Marine Navigation & Instruments - Transducers

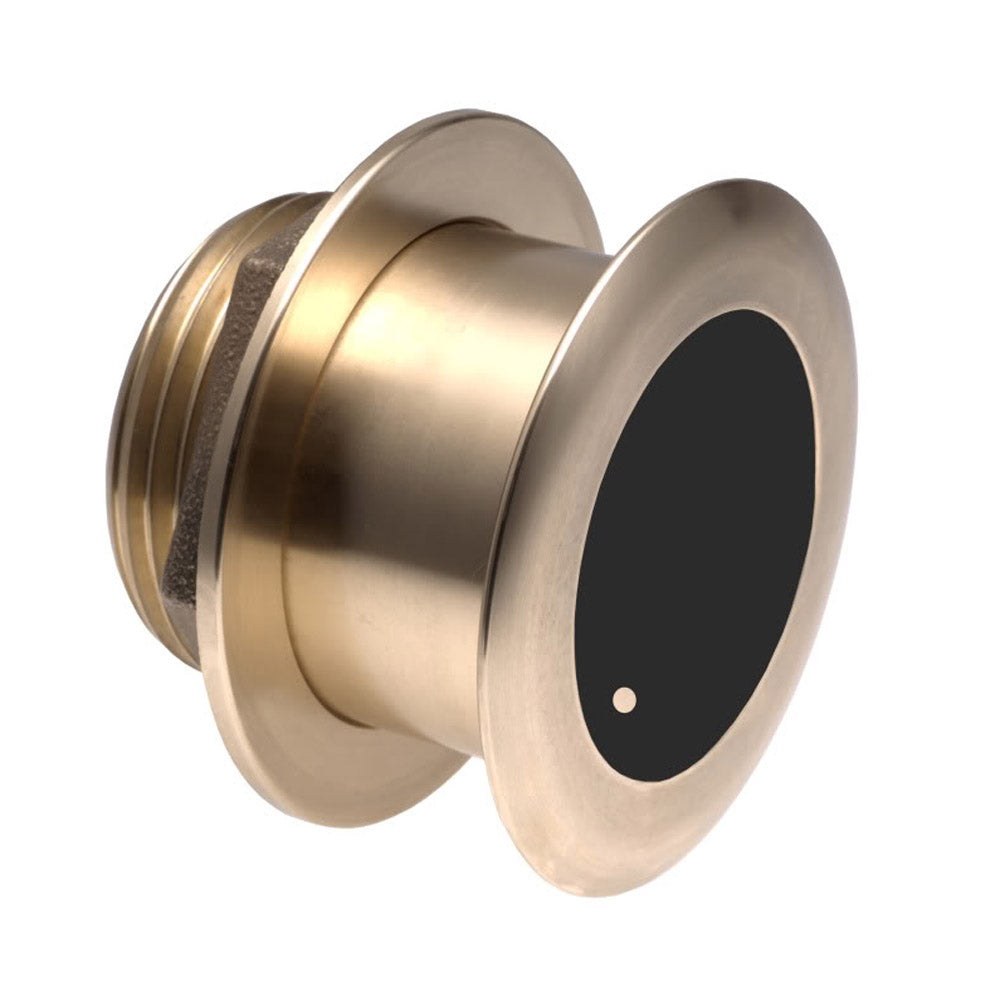

Garmin B175H Bronze 0 Degree Thru-Hull Tranducer - 1kW, 8-Pin [010-11937-20]

Ships Direct From Manufacturer

Airmar B175H
w/0° Tilt
1kW

Flush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Max Depth - 3,000'
Suppoarted Deadrise/Transom Angles - 0-7° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High
• Cable Length (Feet): 39'
• Temperature: Yes
• Speed Included: No
• Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs
• UPC: 753759995683

Owner's Manual (pdf)
Brochure (pdf)

Garmin B75M Bronze 0 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11636-20]

Airmar B75M
w/0° Tilt
600W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block.
This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 0 degree tilt and provides both depth and temperature data to your Garmin Marine Network


Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 0-7° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Medium
• Cable Length (Feet): 39'
• Box Dimensions: 5"H x 8"W x 12"L WT: 6.15 lbs
• UPC: 753759972011

Owner's Manual (pdf)
Brochure (pdf)

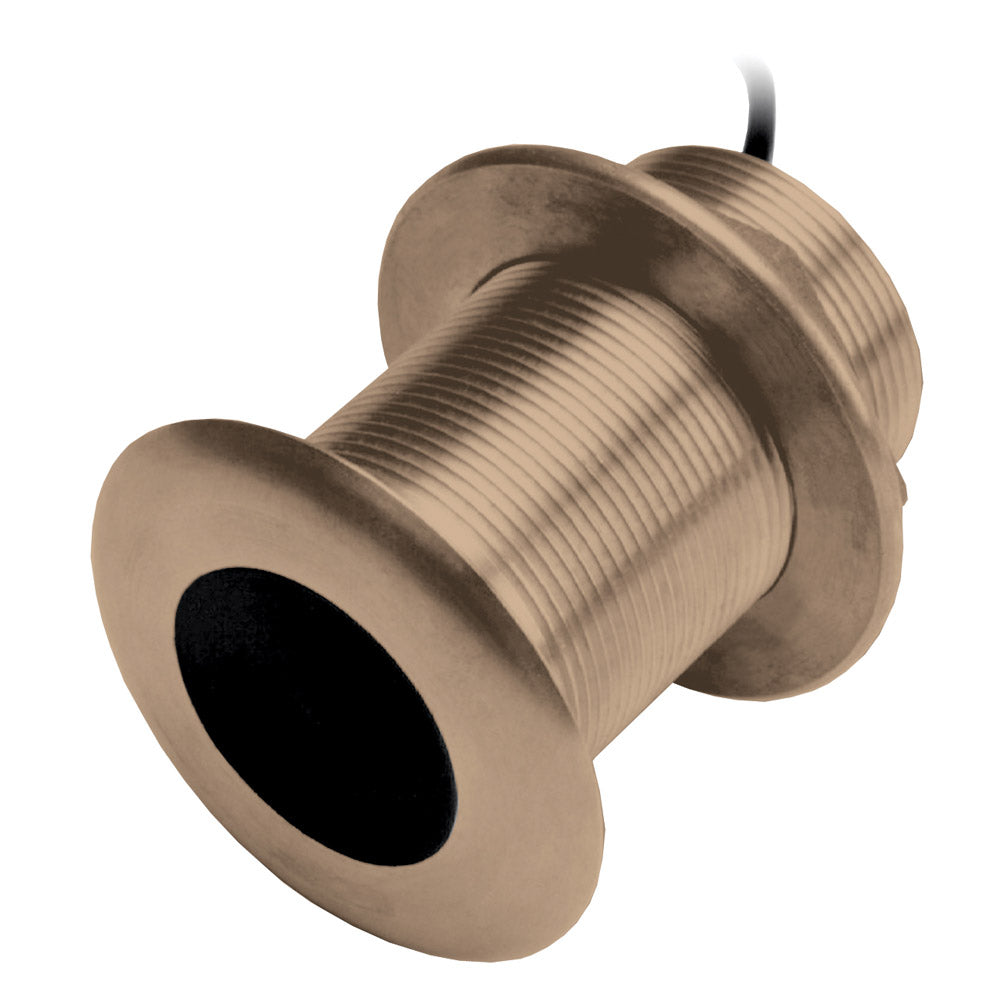

Garmin B75H Bronze 12 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11634-21]

Airmar B75H
w/12° Tilt
600W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 6-15° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High
• Cable Length (Feet): 39'
• Temperature: Yes
• Pins: 8
• Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs
• UPC: 753759971977

Owner's Manual (pdf)
Brochure (pdf)

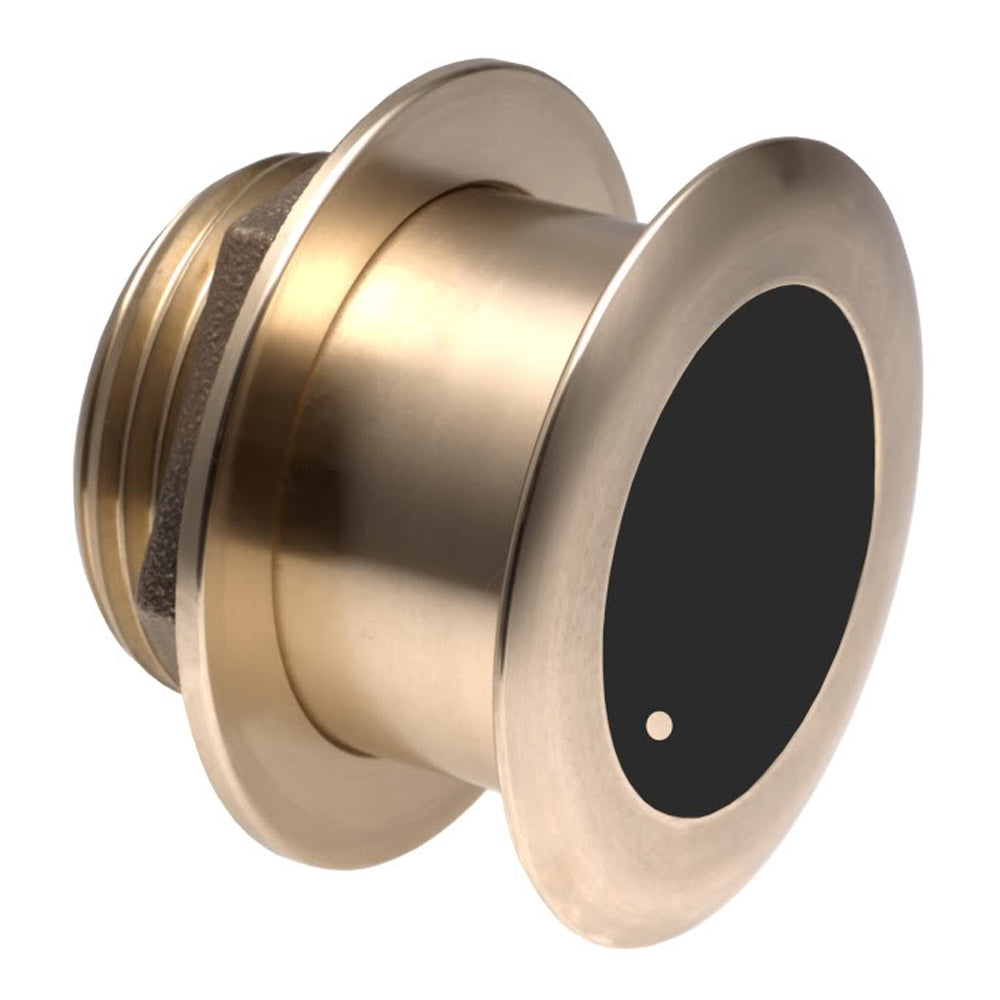

Garmin B164 1kW Tilted Element 12 Degree - 8-Pin [B164-12-8G]

Ships Direct From Manufacturer

B164 1kW Tilted Element 12° - 8-Pin

Garmin's bronze, thru-hull mount transducer with 12° tilt provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 8-15° deadrise angle.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 39'
• Temperature: Yes
• Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs
• UPC: 753759971915

Owner's Manual (pdf)
Brochure (pdf)

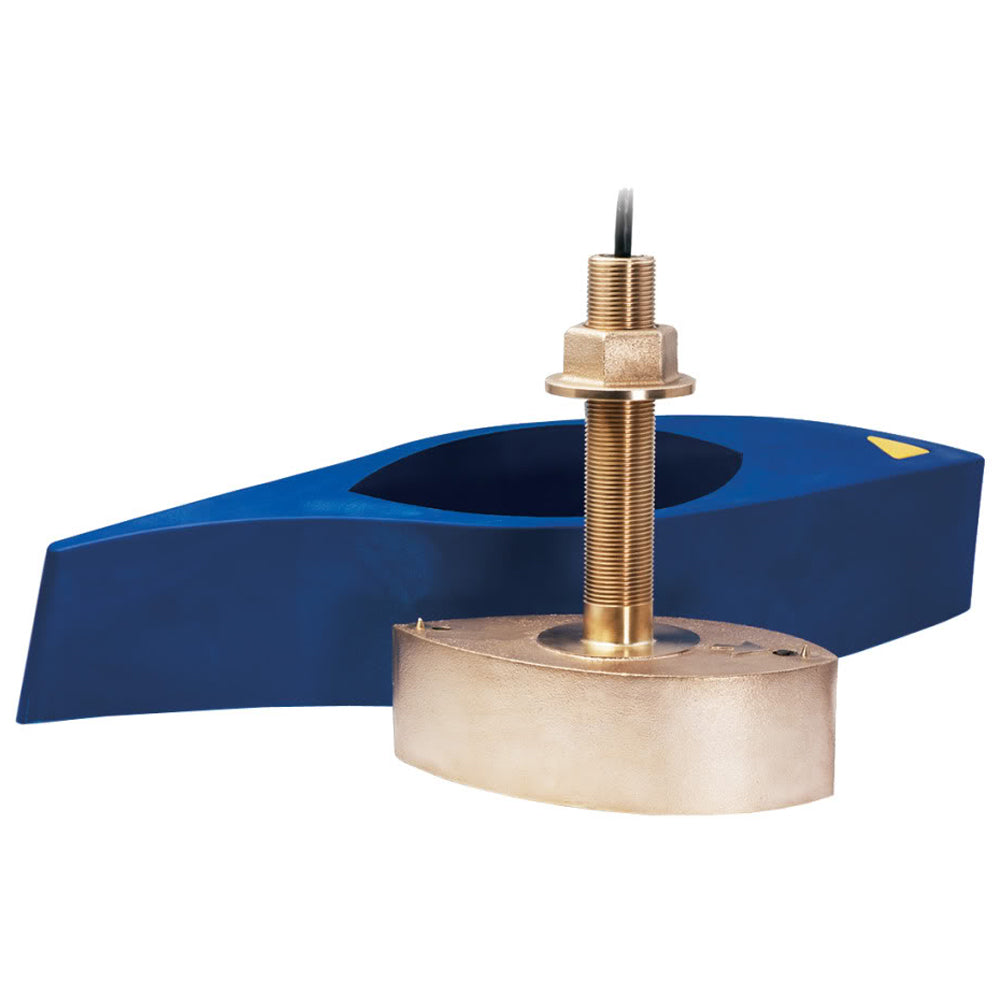

Garmin B260 1kW Bronze Thru-Hull Depth/Temp w/FB - 8-Pin [010-10640-20]

Ships Direct From Manufacturer

B258 1kW Bronze Thru-Hull Depth/Temp with FB - 8-Pin

Garmin's bronze, thru-hull mount transducer with fairing provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-22° deadrise angle.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Cable Length (Feet): 39'
• Imaging: Standard
• Chirp: No
• Box Dimensions: 12"H x 12"W x 24"L WT: 22 lbs
• UPC: 753759971854

Owner's Manual (pdf)
Brochure (pdf)

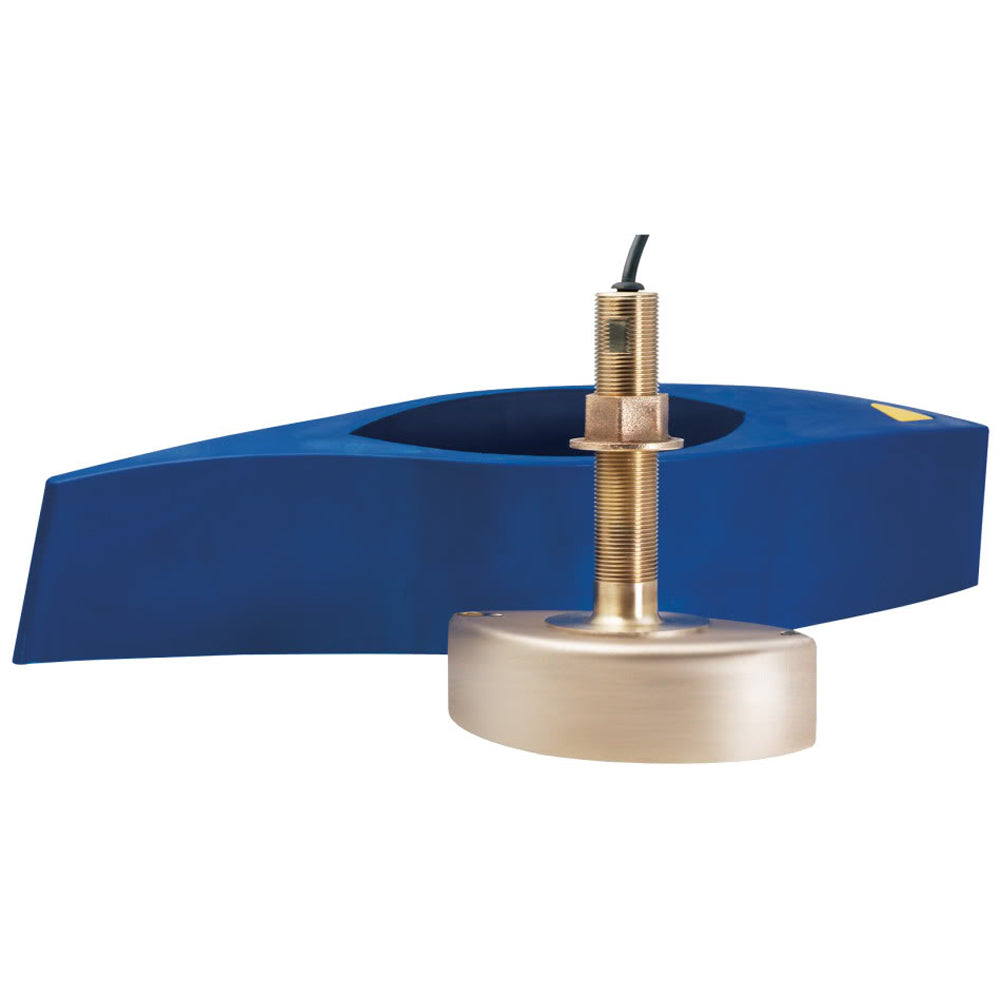

B258 1kW Bronze Thru-Hull Depth/Temp w/FB - 8-Pin

Garmin's bronze, thru-hull mount transducer with fairing provides depth and temperature data. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-25° deadrise angle.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 39'
• Temperature: Yes
• Box Dimensions: 12"H x 14"W x 24"L WT: 15 lbs
• UPC: 753759971892

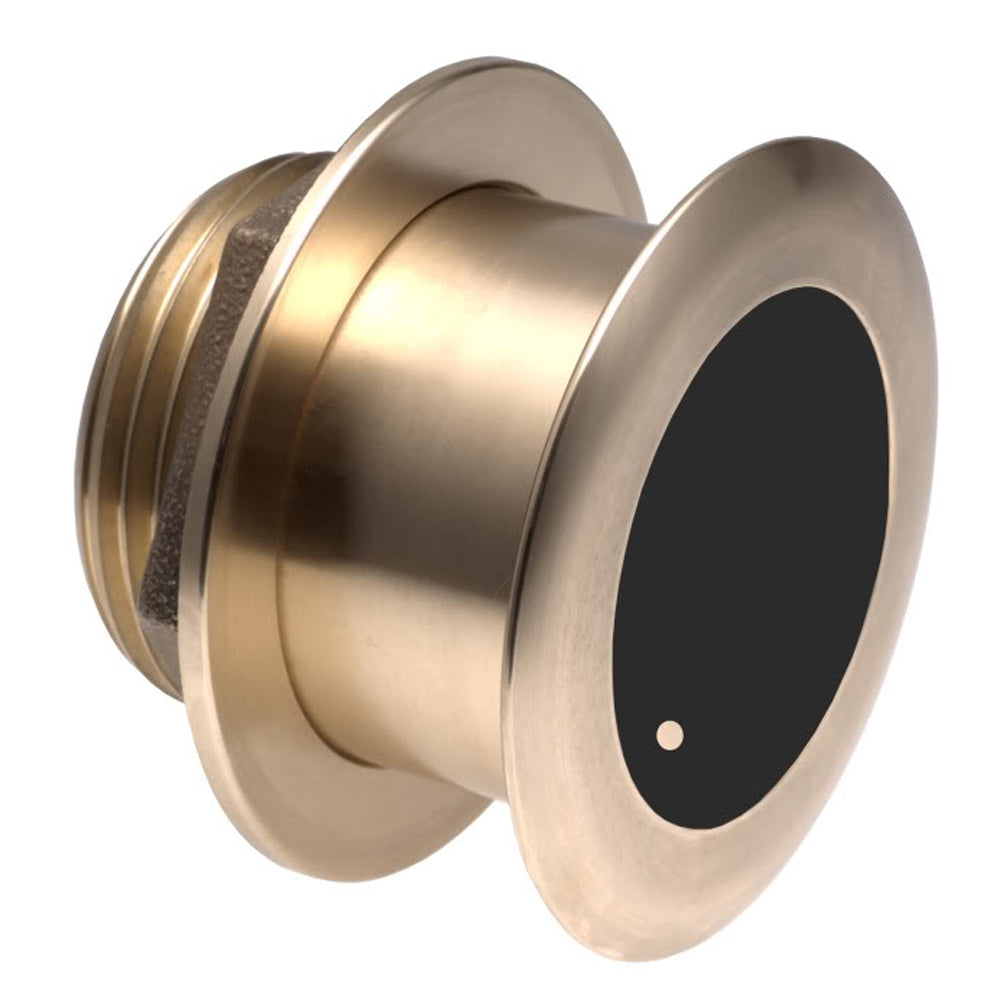

SI-TEX B-164-0 CX 1Kw Transducer f/CVS-128 CVS-1410 [B-164-0-CX]

Ships Direct From Manufacturer

Bronze 0 degrees tilt-element w/temp for 0 degrees to 7 degrees hull deadrise (Beam angle:22 degrees @50kHz, 6 degrees @200kHz)

Specifications:

• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Temperature: Yes
• Speed Included: No
• Pins: 8
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.6 lbs

Owner's Manual (pdf)

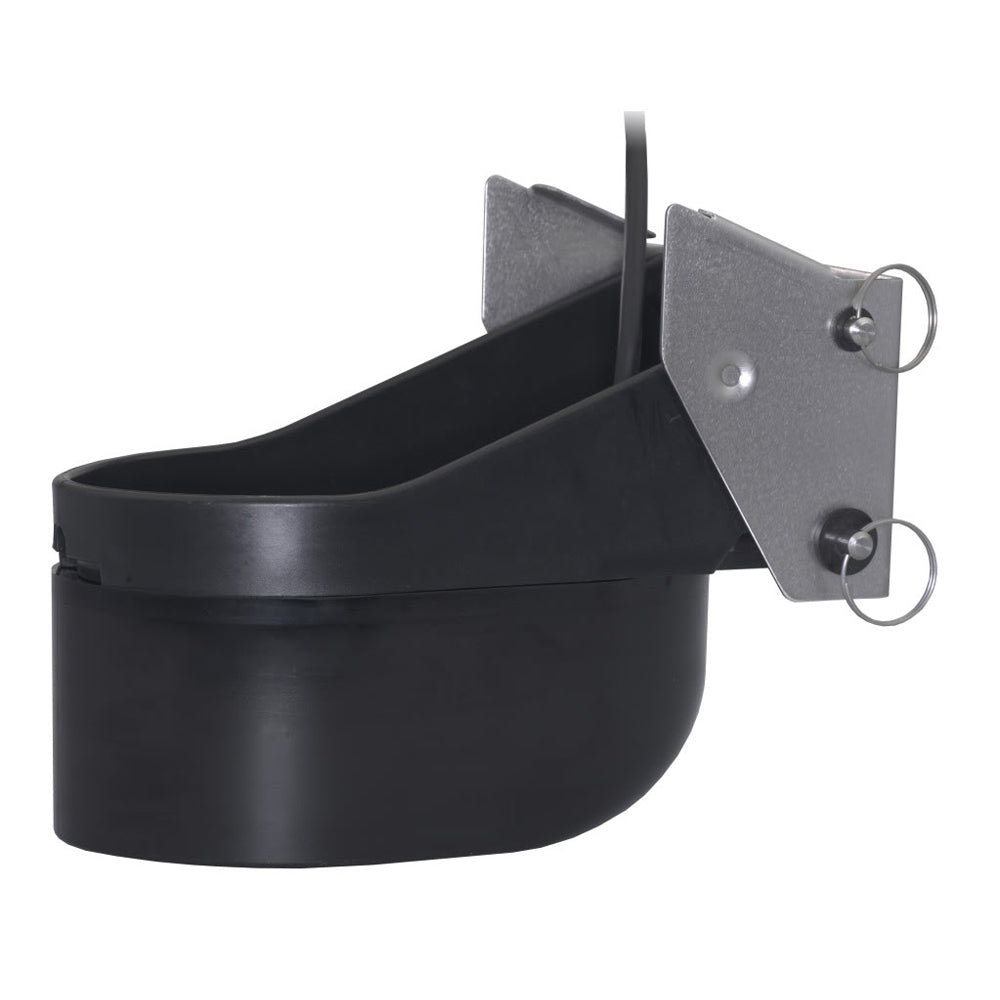

Garmin TM260 1kW Plastic TM Depth/Temp - 8-Pin [TM260-8G]

Ships Direct From Manufacturer

TM260 1kW Plastic TM Depth/Temp - 8-Pin

Garmin's plastic transom mount transducer provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 3-21° transom angle.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Pins: 8
• Mounting Style: Transom
• Imaging: Standard
• Chirp: No
• Temperature: Yes
• Speed Included: No
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.2 lbs
• UPC: 753759971939

Owner's Manual (pdf)
Brochure (pdf)
