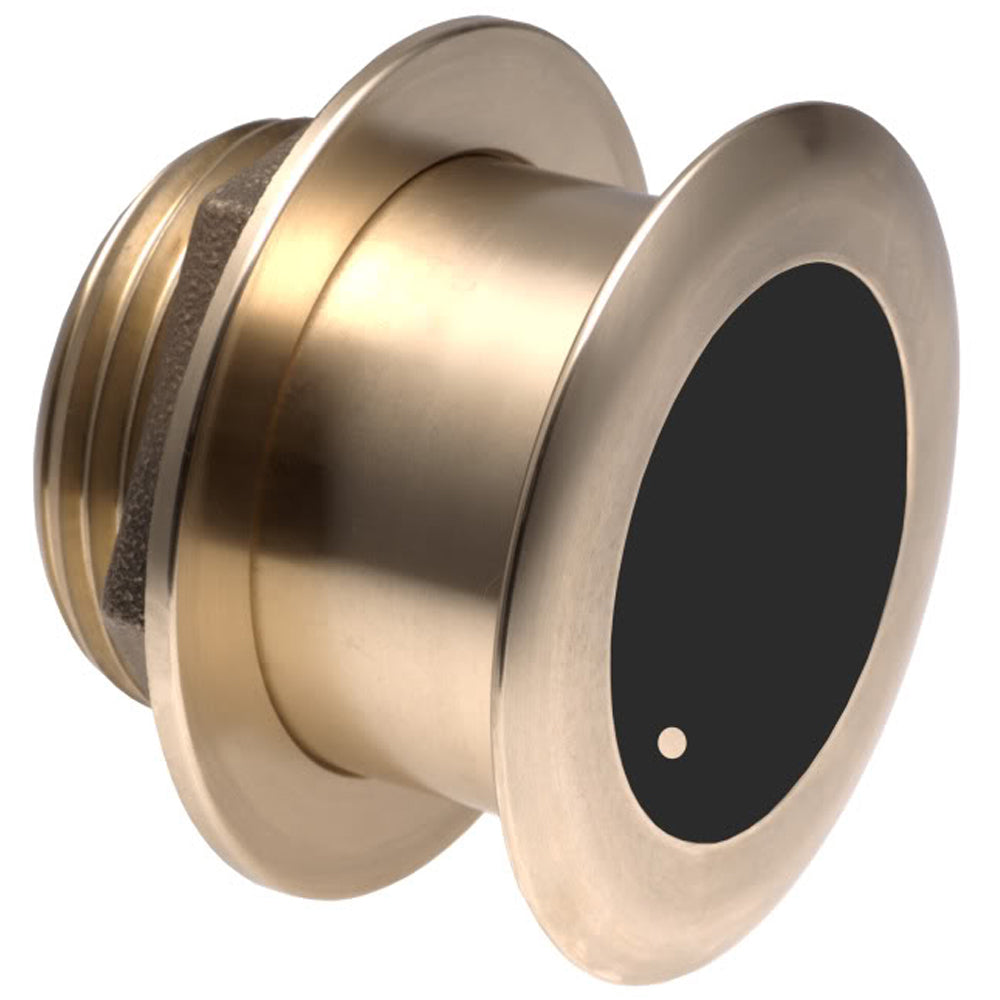

Furuno 1kW 0 Degree Tilted Element Transducer [B164-0-10F]

Ships Direct From Manufacturer

B164 Tilted Element

0 degree tilted version

Features:

• Depth/Temp

• 50/200 kHz

• High-performance

• Bronze

Step up to a 1kW Without a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 11"W x 12"L WT: 10.65 lbs

Owner's Manual (pdf)
Brochure (pdf)

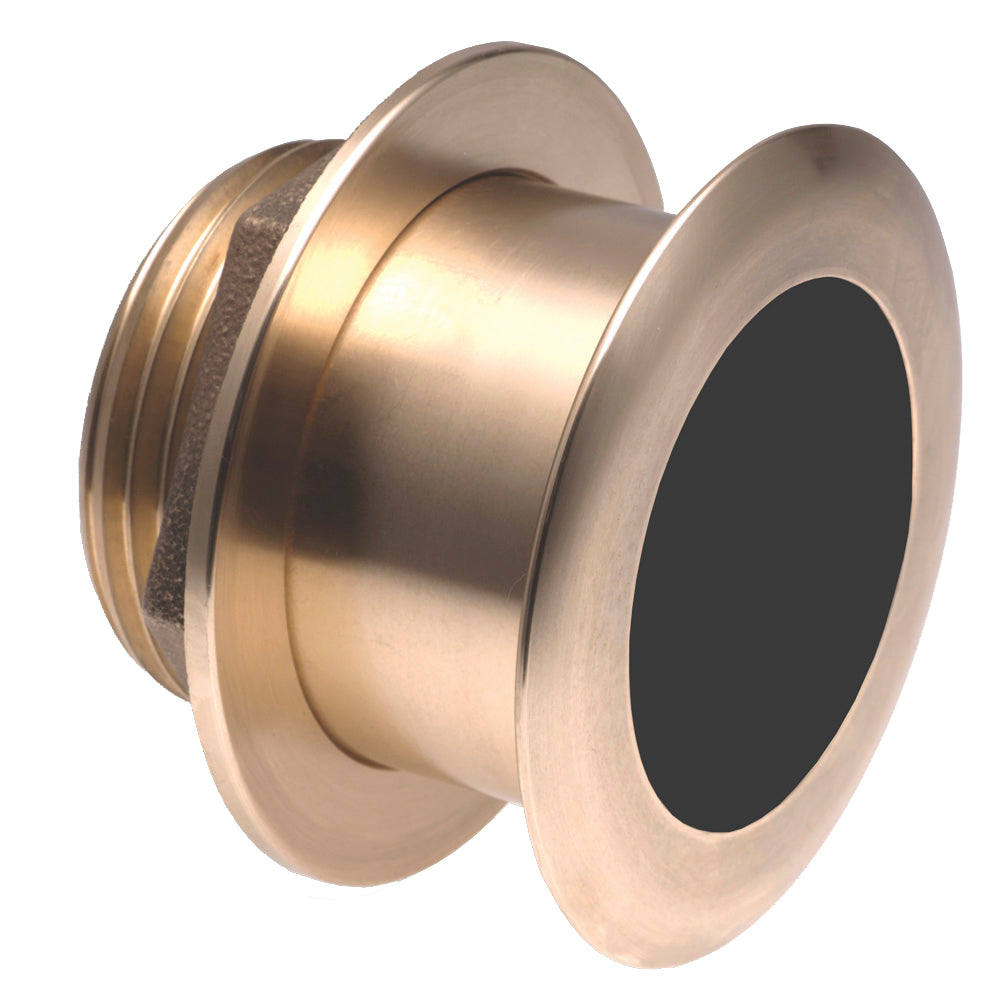

Navico B164 12 Degree Tilted Element Transducer w/Blue Connector [B164-12-BL]

Ships Direct From Manufacturer

B164 12 degree 1kW Tilted Element

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted
Element™ technology to a higher power. The new 1kW, flush-mount, tilted
element transducers are perfect for fast, trailered tournament sport fishing
vessels who cannot have a high-performance fairing. The flush mounted,
bronze housing protrudes less than 6.35 mm (0.25") outside your hull and can
sit on trailer rollers and bunks with no damage at all. The ceramic arrays
are tilted inside the housing giving you the perfect vertical beam with
maximum energy on what is directly below your boat. Take your fishfinder to
the next power with 1kW tilted element transducers.

12 degree tilted version for 8 to 15 degree hull deadrise

Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.

Features:

• Depth/Temp

• 50/200 kHz

• 1 kW RMS

• High-performance

• 7 pin Blue Connector

• Bronze

• 12 degree
  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

  Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 7
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Chirp: No
  • Cable Length (Feet): 33'
  • Box Dimensions: 8"H x 11"W x 12"L WT: 10.55 lbs

  Owner's Manual (pdf)
  Brochure (pdf)

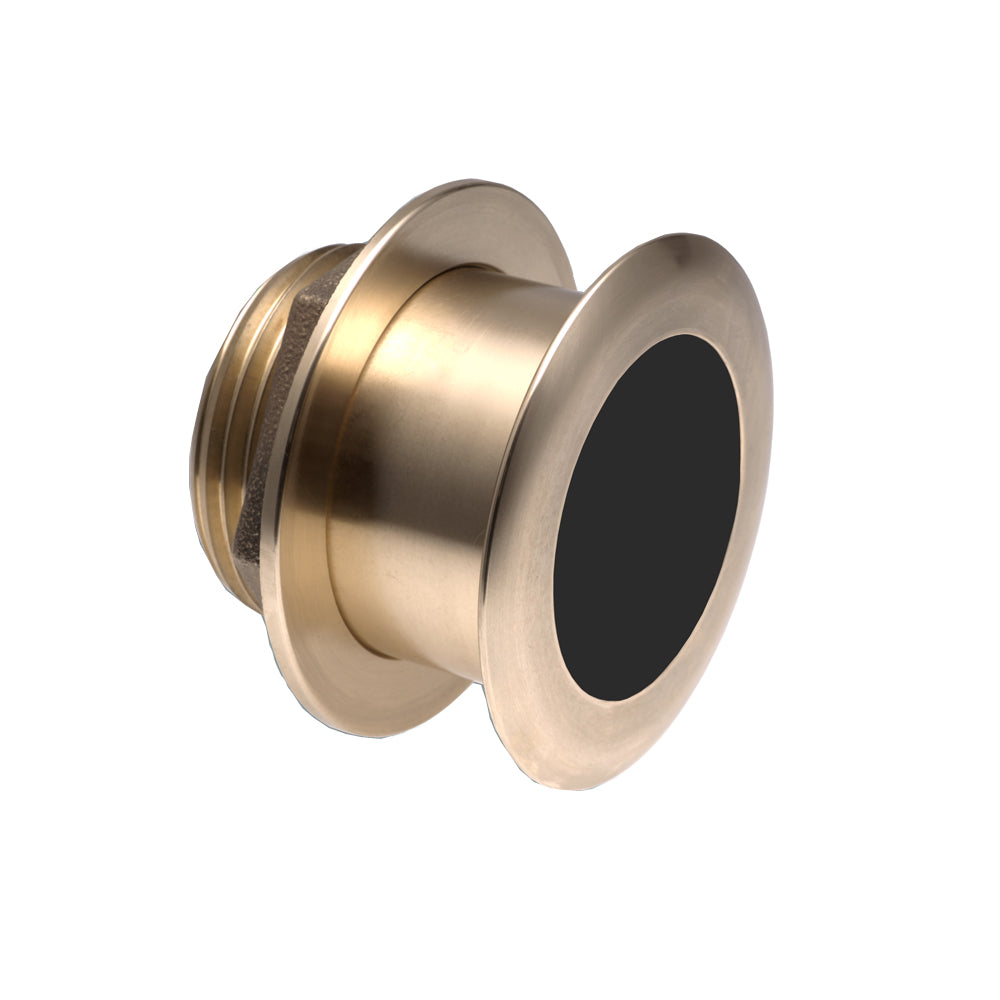

Raymarine 1kW 20 Degree Tilted Element Transducer [A102113]

Ships Direct From Manufacturer

B164 Tilted Element™

20 degree titled version is designed for 16 degree - 24 degree deadrise angles.

for use with Raymarine DSM250, DSM300 sounder modules

Features:

• Depth/Temp

• 50/200 kHz

• 1 kW RMS

• High-performance

• Bronze

Step up to a 1kW Without a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.

Specifications:

• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 11"W x 12"L WT: 12 lbs
• UPC: 091975000737

Owner's Manual (pdf)
Brochure (pdf)

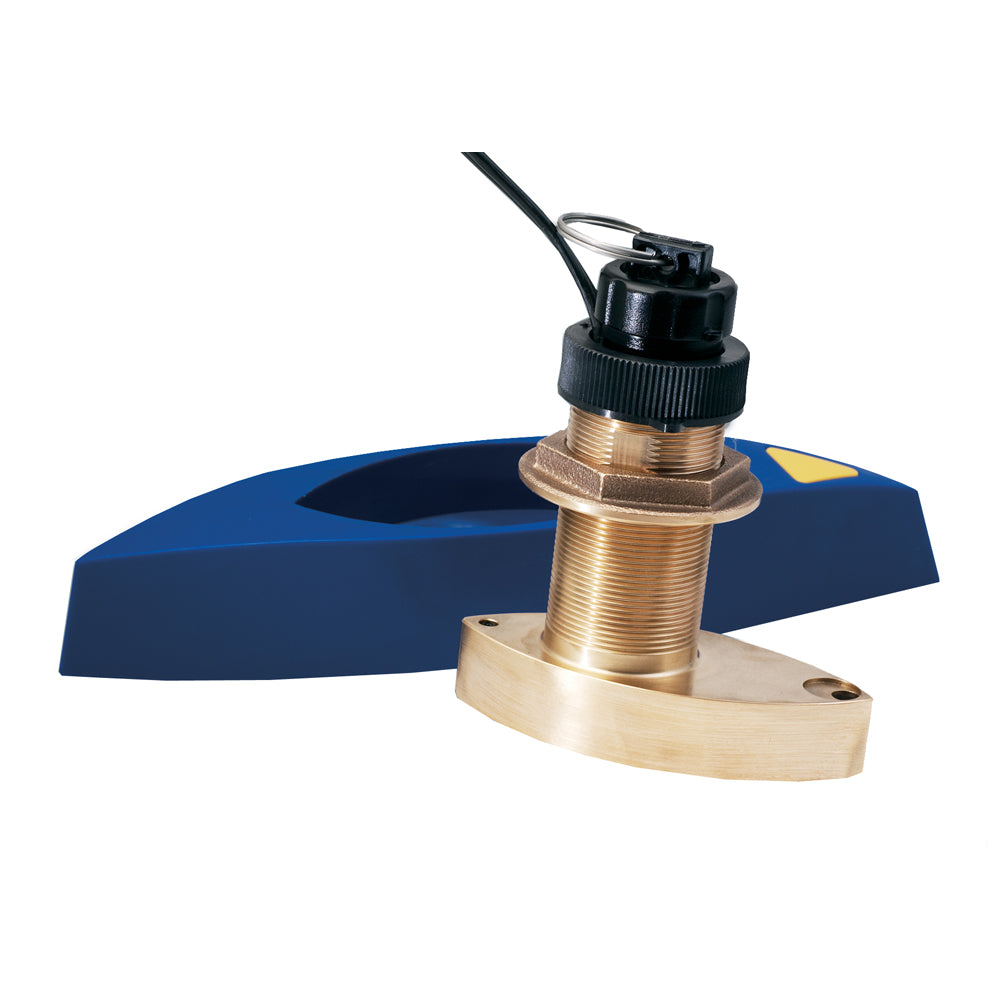

B744V 600 Watt Bronze thru hull transducer with depth, speed, and temperature.

Compatible with the following sounder modules:

• DSM30

• DSM300


Specifications:

• Temperature: Yes
• Speed Included: Yes
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Box Dimensions: 4"H x 12"W x 16"L WT: 7.65 lbs
• UPC: 801769004366

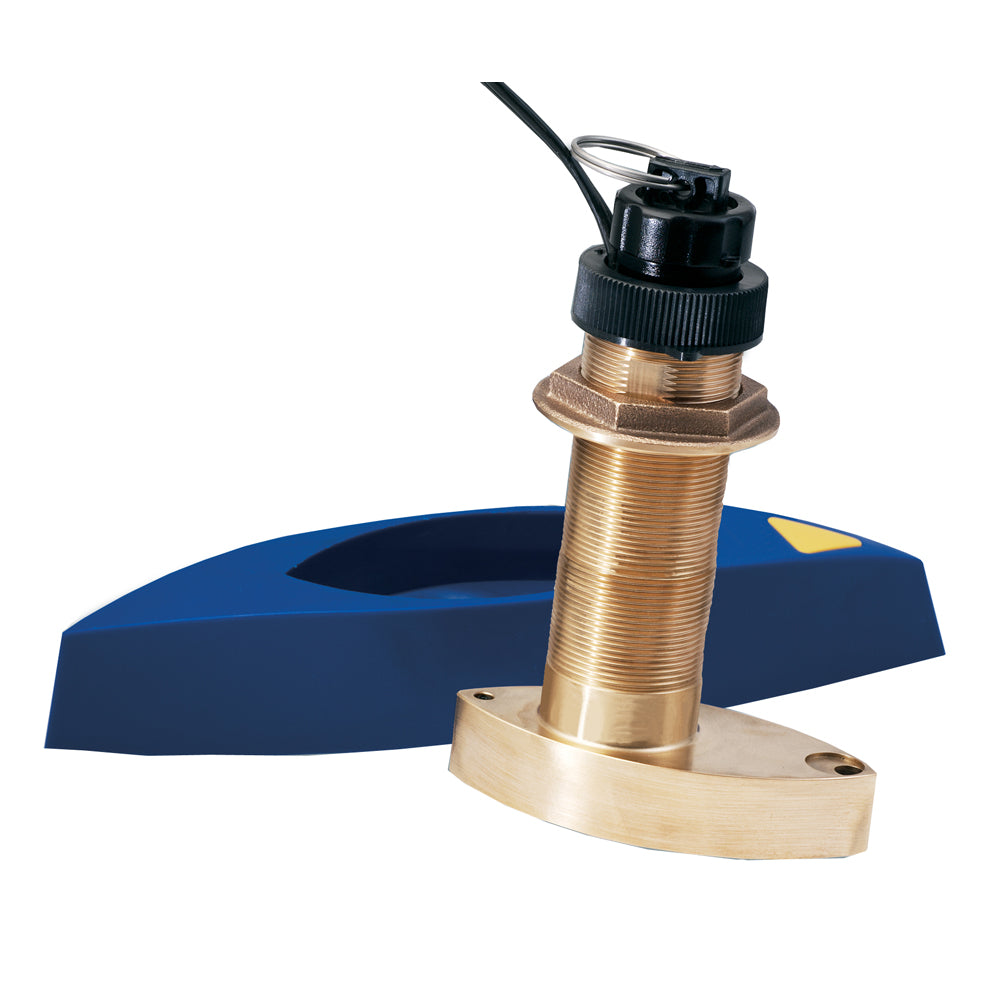

Raymarine B744VL Long Stem Bronze Thru hull Tri-ducer with Fairing Block [A66092]

Long stem for hulls with steep deadrise or thicker cored hulls.

Compatible with the following sounder modules:

• DSM30

• DSM300


Compatible hull material: Wood and fiberglass

Max power: 600 watts

Frequency: 200/50 kHz

Cable: 30ft (10m) cable with connector

Hole diameter for installation: 2"

Other: Self-sealing removable paddle wheel insert.

High speed fairing block is included.

**Requires E66066 Adapter Cable for use with the a,c,e,eS Series built in Sonar Models.**

Specifications:

• Temperature: Yes
• Speed Included: Yes
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Box Dimensions: 4"H x 9"W x 16"L WT: 9 lbs
• UPC: 723193660928

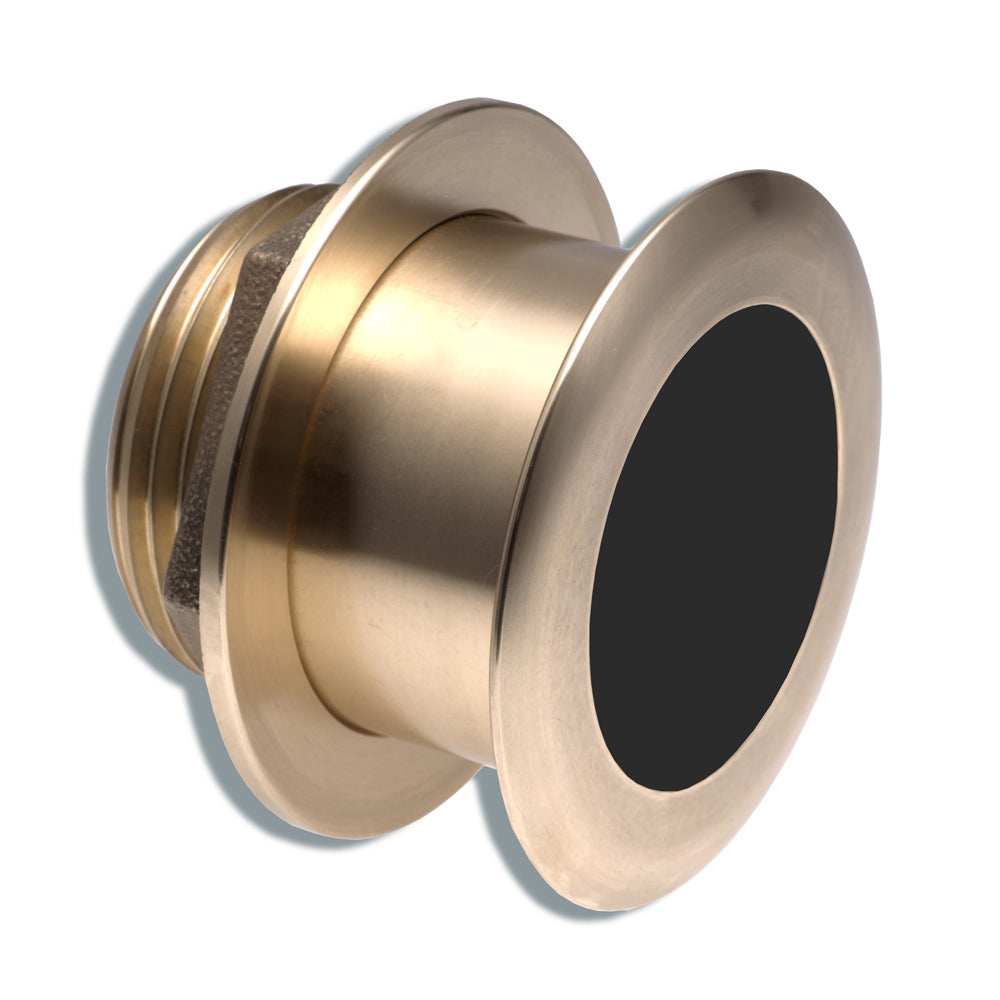

Raymarine 1kW 0 Degree Tilted Element Transducer [A102137]

Ships Direct From Manufacturer

B164 Tilted Element™

0°

Features:

• Depth/Temp

• 50/200 kHz

• 1 kW RMS

• High-performance

• Bronze

Step up to a 1kW Without a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
• UPC: 919750043604

Owner's Manual (pdf)
Brochure (pdf)

Furuno 1kW 12 Degree Tilted Element Transducer [526TID-LTD/12]

B164 Tilted Element™ 10 Pin

12°

Features:

• Depth/Temp

• 50/200 kHz

• 1 kW RMS

• High-performance

• Bronze

Step up to a 1kWWithout a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 11"W x 12"L WT: 10.7 lbs
• UPC: 611679313386

Owner's Manual (pdf)
Brochure (pdf)

Raymarine 1kW 12 Degree Tilted Element Transducer [A102112]

Ships Direct From Manufacturer

B164 Tilted Element™

12 degree titled version is designed for 8 degree - 15 degree deadrise angles

For use with Raymarine DSM250 or DSM300 sounder modules

Features:

• Depth/Temp

• 50/200 kHz

• 1 kW RMS

• High-performance

• Bronze

Step up to a 1kWWithout a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.

Specifications:

• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Temperature: Yes
• Speed Included: No
• Cable Length (Feet): 30'
• Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs
• UPC: 091975000720

Owner's Manual (pdf)
Brochure (pdf)
