Marine Navigation & Instruments - Transducers

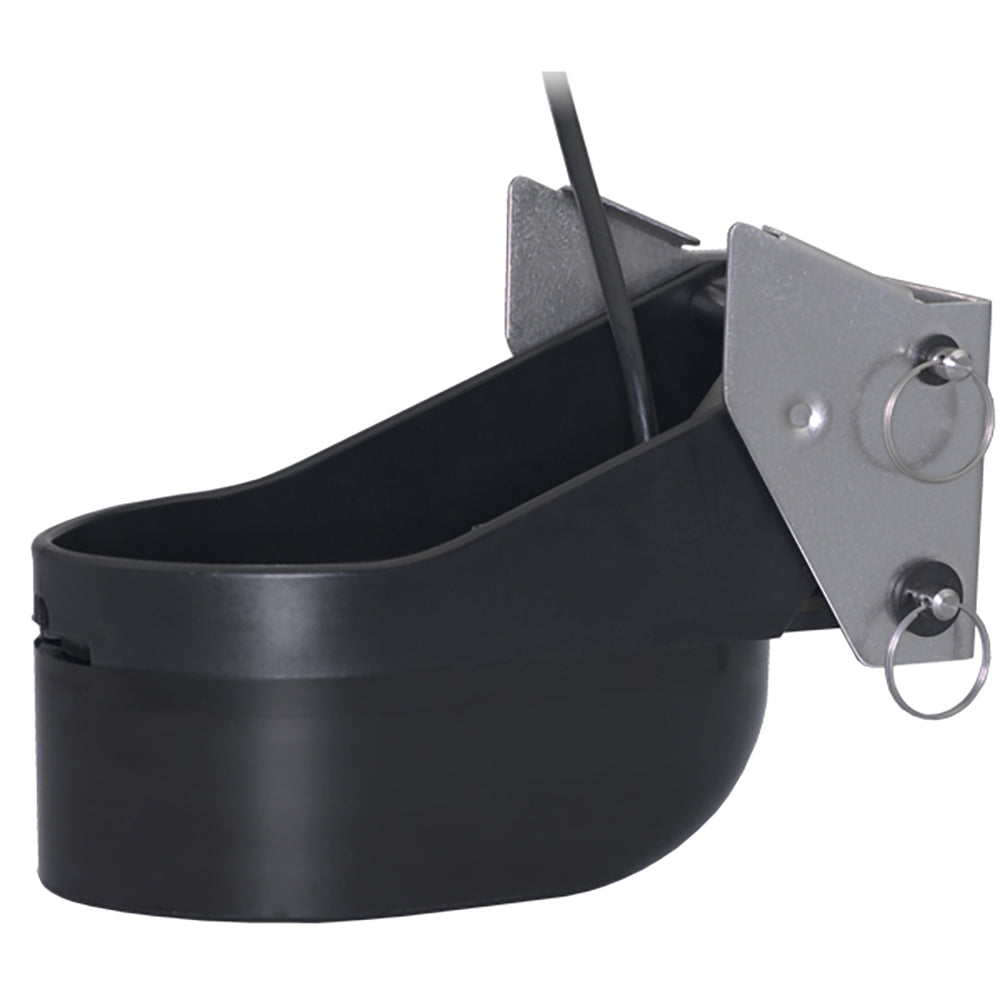

Airmar TM258 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin [TM258-HB]

Ships Direct From Manufacturer

TM258 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin

The re-designed TM258 sports a new look and better high-speed performance. The industry's first, 1kW, transom-mount transducer has an updated, rugged, mounting bracket. The sleek design makes the TM258 easier to install. And its streamlined shape will give you improved high-speed performance up to 30 knots (35 MPH).

The TM258 will make 600W sounders respond like a more-powerful model. Get 16-times the sensitivity compared with a standard transom-mounted transducer. The TM258 packs four, 50 kHz/200 kHz elements to focus narrow beams at both frequencies, so you'll see crisp targets and clear bottom definition.

Features:

• Depth & fast-response water-temperature sensor

• Elliptical beam covers larger bottom area
• Fits existing TM256 and TM258 models
• Bracket kick-up assembly locks in the "up" position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane transducer housing
• Boat Size: Up to 12M (40')

Specifications:

• Weight: 3.6kg (7.9lb)

• Hull Deadrise: Up to 25°
• Acoustic Window: Urethane

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Mounting Style: Transom
• Pins: 7

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

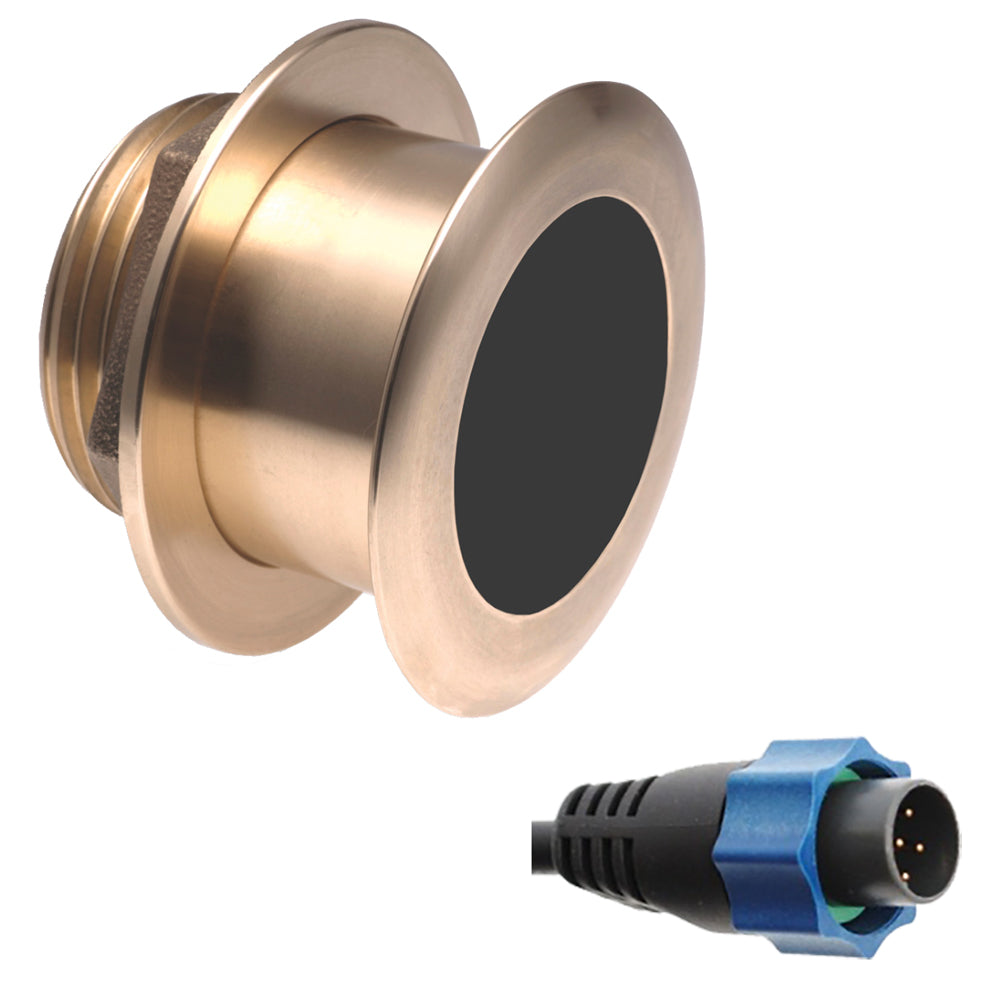

B164 1kW 0° Thru-Hull Transducer with Blue Connector

The B164 is a 1kW bronze low-profile transducer with a fast-response temperature sensor. The transducer is ideal for fast, trailered, tournament, sport-fishing boats that cannot install an external fairing. This version has a zero degree tilt for hull deadrise angles of 0-7 degrees.

The BL (Blue Connector) version of the B164 transducer is for Lowrance fishfinders and sounders that use the standard Lowrance 7-pin blue connector. This includes the Lowrance HDS series and many other current and discontinued Lowrance units. The B164 BL version is also for the Simrad NSE series.

Features:

• Power output 1000W

• 3.875" hole size (98mm)

• Beam 22 x 20° at 50kHz, 6 x 6° at 200kHz

• Maximum depth 1200-1800 ft @ 50kHz

• Maximum depth 500-800 ft @ 200kHz

Specifications:

• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.6 lbs

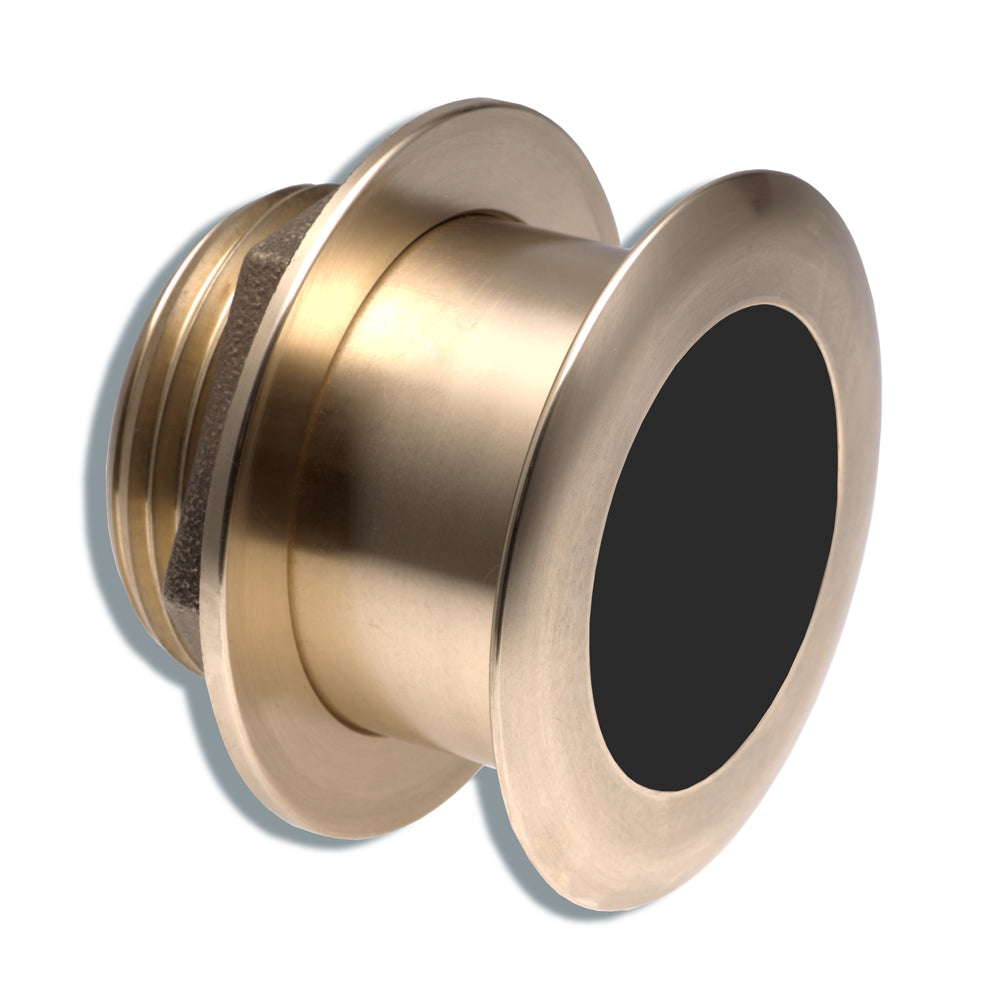

Raymarine B175L Bronze Low Profile Thru Hull 20 degree Tilted Element Transducer - 1kW [A80048]

Ships Direct From Manufacturer

B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW

Features

• Material: Bronze

• For use with CP450C or CP470 Chirp Sonar Module

• Power (RMS): 1Kw

• Max Depth(ft): 2,500

• Frequency (khZ): 40-60

• Beam Width(L/H): 32°-21°

• Records: Depth / Temperature

• Approved Hull Material: Fiberglass / Wood

• Cable Length (Ft/M): 33ft / 10M

• Supported Deadrise / Transom Angles: 16-24° Deadrise

• Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable

Specifications:

• Chirp: Low
• Temperature: Yes
• Mounting Style: Thru-Hull
• Imaging: Standard
• Speed Included: No
• Box Dimensions: 8"H x 10"W x 12"L WT: 11.6 lbs
• UPC: 723193729113

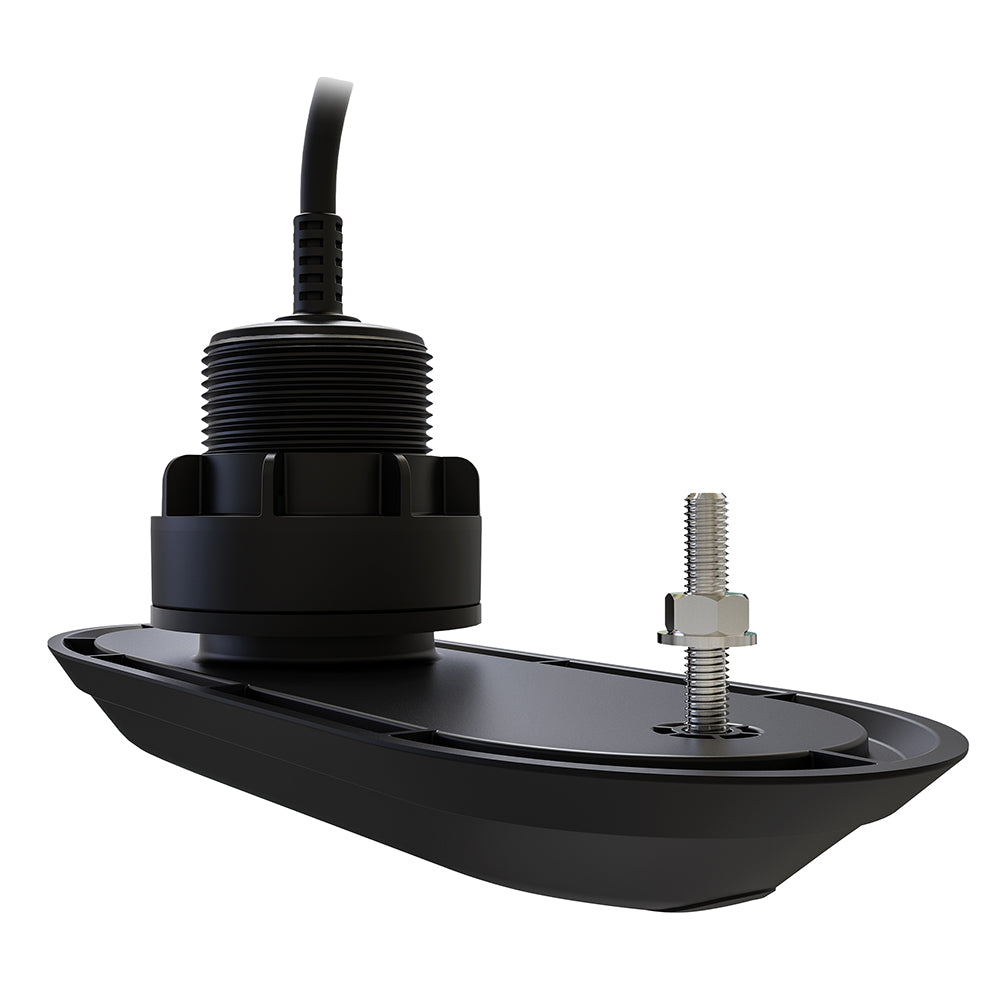

Raymarine RV-300 Plastic All-In-One 0 Thru-Hull Transducer [A80470]

Ships Direct From Manufacturer

RV-300 Plastic All-In-One 0° Thru-Hull Transducer

Raymarine’s RV-300 Plastic All-In-One Thru-Hull Transducer is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. For a deadrise of 0-5 degrees.

The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You’ll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-300 features a rugged plastic through hull body suitable for fiberglass, steel or aluminum hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze.

What’s in the Box?

• RV-300 Plastic All-In-One Through Hull Transducer with 8M(26')
• Anti-rotation bolt kit
• Installation instructions

Specifications:

• Temperature: Yes
• Speed Included: No
• Imaging: Standard/Down/Side
• Cable Length (Feet): 26'
• Mounting Style: Thru-Hull
• Pins: 25
• Chirp: High
• Box Dimensions: 7"H x 14"W x 17"L WT: 7 lbs
• UPC: 723193816585

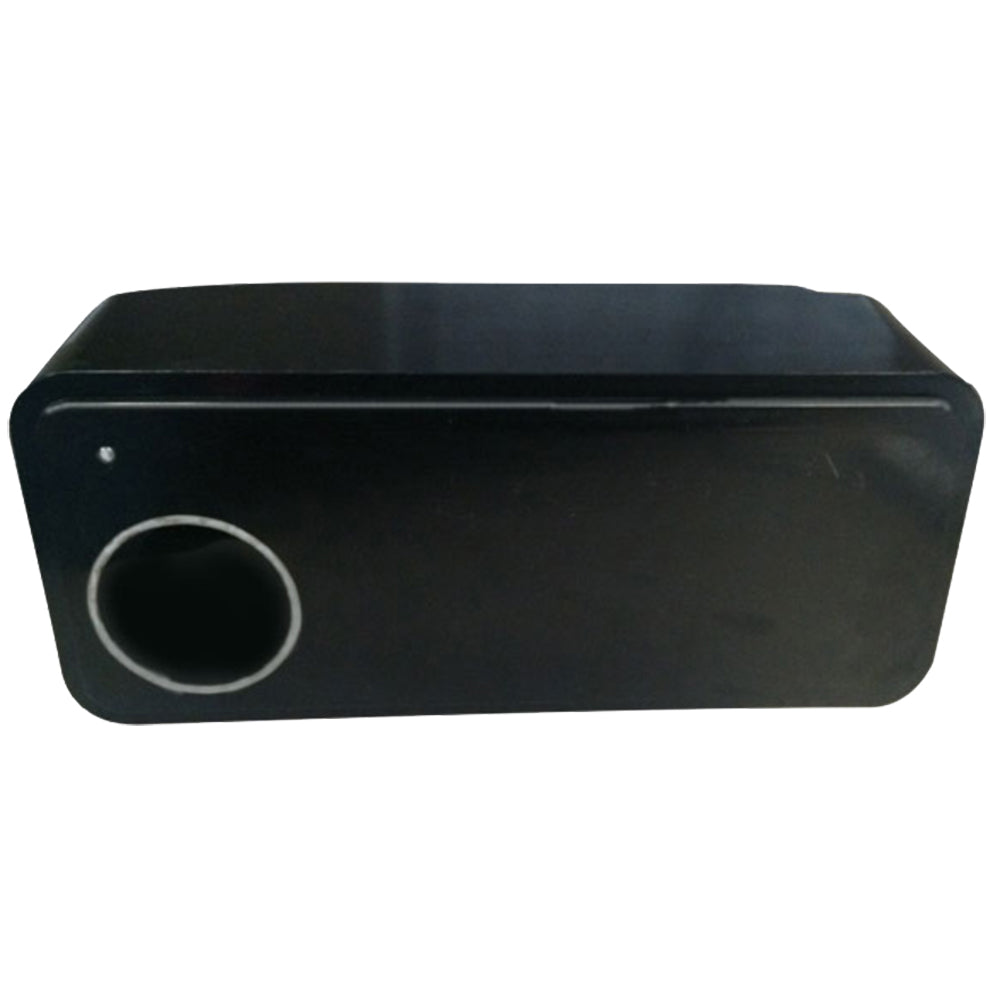

Airmar CM599C-LHW Chirp Wide Broadband - No Connector - Bare Wires [CM599C-LHW]

Ships Direct From Manufacturer

CM599C-LHW Chirp Wide Broadband - No Connector - Bare Wires

Features:

• Pocket/Keel mount wide-beam model with 3000W power rating
• Depth and fast-response water temperature sensor
• Wide-beam model with 25° constant beamwidth in High band and 9°-23° beamwidth in Low band
• With Low (28-60kHz) and High (150-250kHz) frequency bands

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chirp: Low/High Wide
• Pins: Bare Wires
• Box Dimensions: 12"H x 13"W x 17"L WT: 31.65 lbs
• UPC: 801769001983

Quick Guide (pdf)
Owner's Manual (pdf)

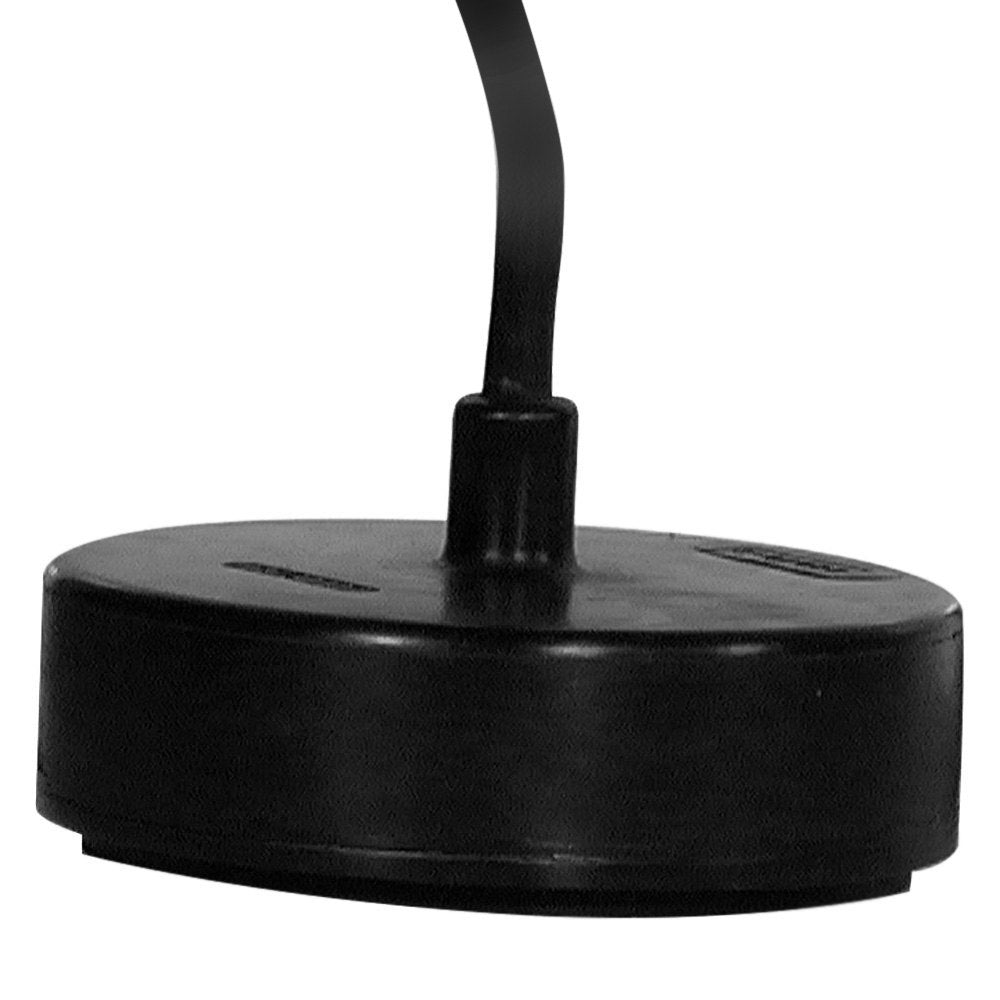

Furuno CA200B-8B/30 2kW Rubber Coated Transducer - 200kHz [CA200B-8B/30]

520T-BLD Bronze Thru-Hull Low Profile 600W - 10-Pin

Airmar B117 Housing Style Transducer

Features:

• 600 Watts

• 50/200 kHz
• 45/15 degree Beam Angles
• Low Profile Bronze Thru-Hull with Temperature
• 30 Foot Cable with 10-Pin Connector

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Speed Included: No
• Pins: 10
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Temperature: Yes
• Box Dimensions: 8"H x 17"W x 17"L WT: 16.5 lbs
• UPC: 611679311986

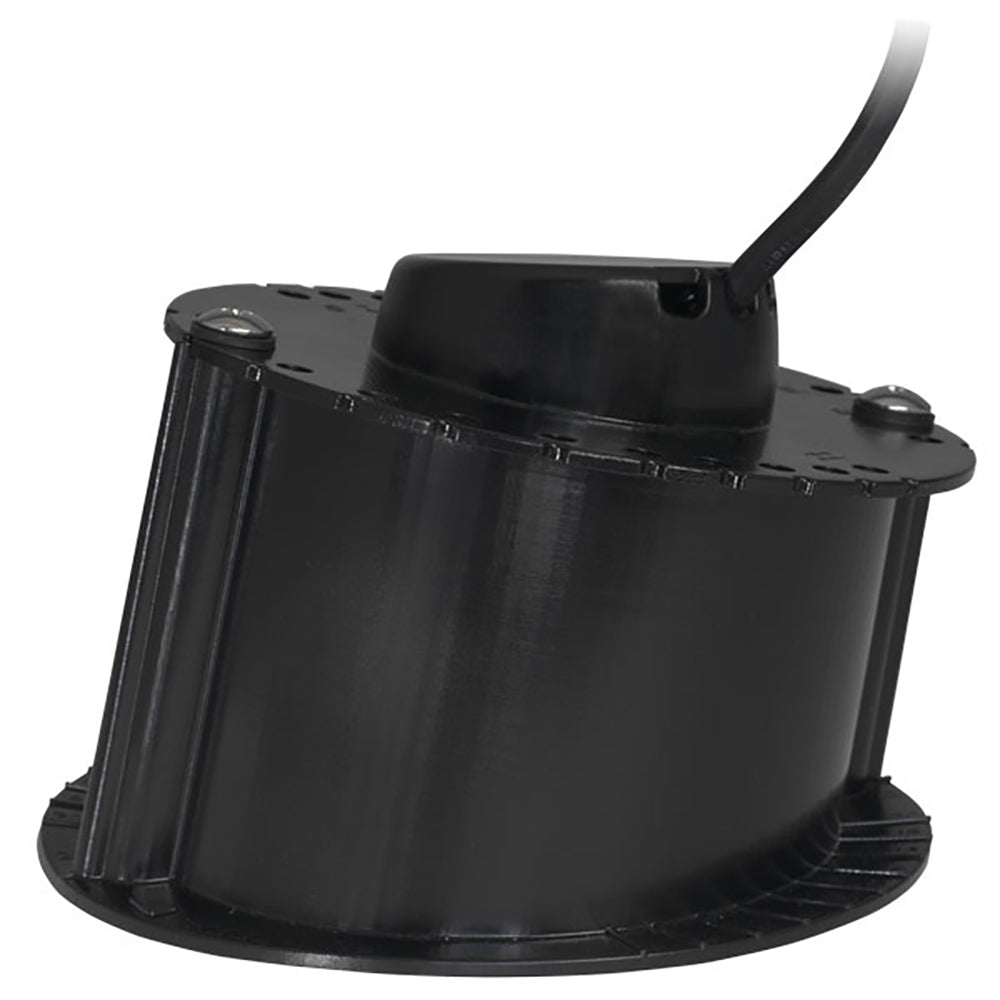

Airmar M285HW High Wide Chirp In-Hull 1KW - Requires Mix and Match Cable [M285C-HW-MM]

Ships Direct From Manufacturer

M285HW Chirp In-Hull 1kw Transducer

Requires Mix and Match Cable

The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).

The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25’ with solid core,fiberglass hulls.

Features:

• Depth only
• Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance
• 25 degree fixed beamwidth
• 1 kW output
• Depth range: to 700’ (215 meters)
• Perfect for trailered or lifted boats
• Urethane Housing- liquid filled
• Exclusive Xducer ID®

Specifications:

• Weight: 9.17 lb (4.16 kg)
• Hull Deadrise: Adjustable 2° to 20°
• Acoustic Window: Urethane
• For use on solid fiberglass hulls only

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Mounting Style: In-Hull
• Box Dimensions: 5"H x 8"W x 12"L WT: 4.75 lbs

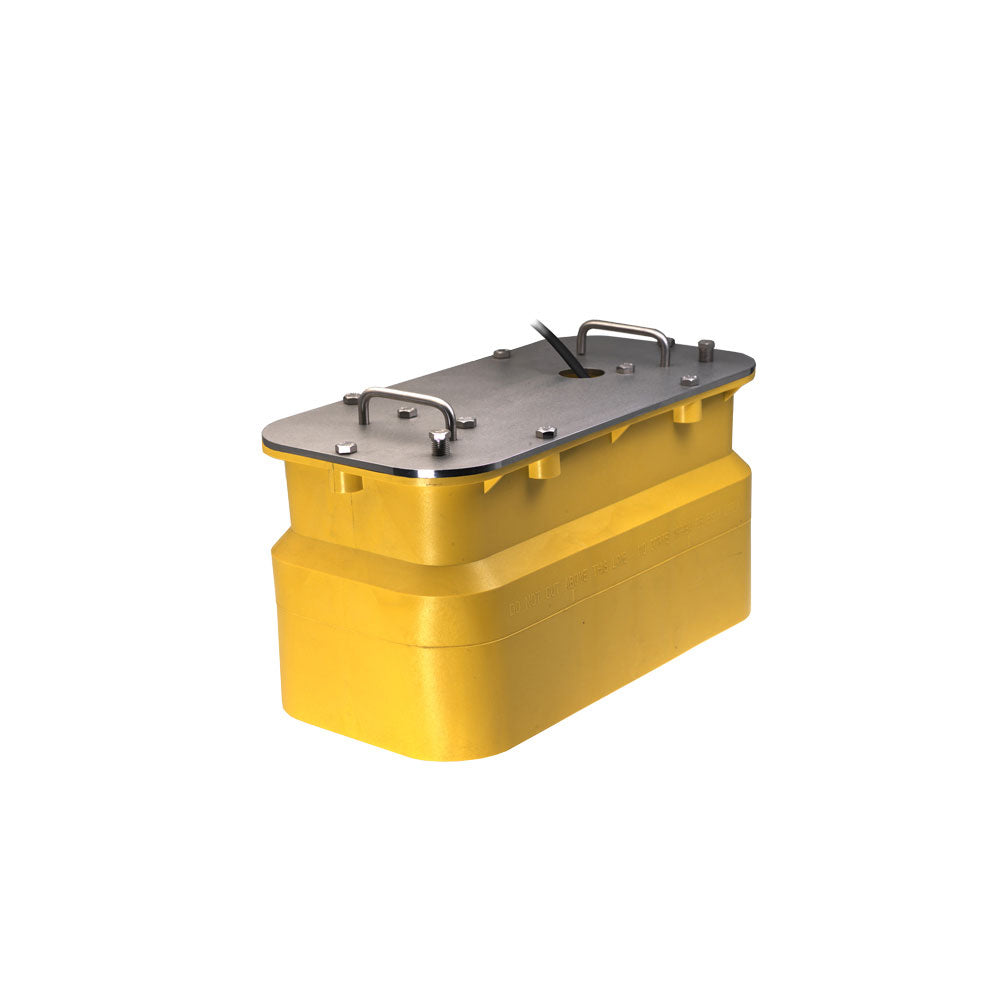

R111-LH Chirp In-Hull Transducer - Bare Wire

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 117 kHz of total bandwidth in just one installation, saving customers time and money.

A Hard-Core In-Hull model in the Chirp Thru-Hull product line L/H Chirps across the following bandwidths:

L/H Model -Low Frequency 38-75 kHz, High Frequency 130-210 kHz

Features

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 38 kHz to 75 kHz 19° to 10° beamwidth
• High—CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth
• 117 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidth
• Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Urethane transducer housing
• Hull Type: Solid fiberglass only
• Exclusive Xducer ID® technology
• Hull Deadrise: 0° to 22°
• Acoustic Window: Epoxy/urethane
• All mounting hardware provided, including tank
• Weight: 19.7 kg (43.4 lb)

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: Bare Wires
• Mounting Style: In-Hull
• Chirp: Low/High
• Cable Length (Feet): 33'
• Imaging: Standard
• Box Dimensions: 13"H x 17"W x 27"L WT: 56 lbs
