B285M Single Band CHIRP Thru-Hull Req's Mix & Match Cable

Medium frequency delivers the right combination of coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1,500') and delivers ultra-clear target resolution.

This model is also ideal for single channel sounder applications where operating in Chirp mode provides a greater opportunity to see what is in the water column. Simply create pre-sets for 85 kHz and 135 kHz to toggle between wide and narrow beams to adjust for scouting an area and then pinpointing structure.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The B285M transmits across the medium frequency 85 to 135 kHz band.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 457 m (1500')
• Medium Frequency: 85 kHz to 135 kHz
  • 16° to 11° beamwidth
• 50 kHz of total bandwidth
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation
• Bronze housing for use on planing or displacement hulls in fiberglass or wood
• Recommended boat size: 8 m (25') and above
• Also available in a transom-mount (TM185M), thru-hull (B175M) and in-hull (M135M) models
• Exclusive Xducer ID® technology

Furuno SS260 Thru-Hull Transducer - Stainless Steel - 1kW - 50/200 - No Plug [556TID-HDN]

Ships Direct From Manufacturer

SS260 Thru-Hull Transducer - Stainless Steel - 1kW - 50/200 - No Plug

Airmar SS260 Housing Style Transducer. Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (No Plug).

Features:

• 1,000 Watts Power
• 50/200 kHz, no Diplexer
• 20/6 degree Beam Angles
• Stainless Steel Thru-Hull with Temperature
• No Connector
• High Speed Fairing Block included

Specifications:

• Beam Angle: 20° and 6°
• Housing Type: Stainless Steel
• Power Rating: 1kW
• Frequency: 50kHz and 200kHz
• Install Type: Thru-Hull

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

TM185C-M-8G 1kW CHIRP-Ready Transom Mount

The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500') and delivers ultra-clear target resolution.

The TM185M transmits across the following bandwidth:

• Medium frequency 85 to 135 kHz

Features:

• The depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 457 m (1,500')
• Medium frequency: 85 to 135 kHz
  • 16° to 11° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
• Also available as thru-hull (B285M, B175M) and in-hull (M135M) models
• Exclusive Xducer ID® technology

Specifications:

• Weight: 4.2 kg (9.2 lb.)
• Recommended Boat Length: Up to 10 m (32')
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Includes: Adjustable, stainless steel bracket and mounting hardware
• Transducer Element: One internal broadband ceramic assembly

Raymarine SS164 Stainless Steel Thru-Hull - 0 Tilted Element - 1KW f/CP370 Sounder [A80451]

Ships Direct From Manufacturer

SS164 Stainless Steel Thru-Hull - 0° Tilted Element - 1KW for CP370 Sounder

Step up to a 1 kW—without a fairing! Airmar’s innovative Tilted Element™ technology to a higher power. The 1 kW, flush-mount, tilted element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot accomodate a high-performance fairing. The flush-mounted, stainless steel housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing providing the perfect vertical beam with maximum energy on what is directly below the boat.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW power for performance to 500 m (1640'), 50 kHz with a wide 22° beam, 200 kHz with a 6° beam
• Interfaces to any 600 W or 1 kW echosounder
• Engineered for center-console and trailered boats
• Low-profile protrusion - less than 6.35 mm (0.25") outside your hull
• Fixed 0° tilted version for 0° to 7° hull deadrise
• No affect on boats running performance
• Stainless steel transducer housing for use on all hull materials
• Recommended boat size: up to 11 m (35')
• Exclusive Xducer ID® technology

Furuno PM275LHW Bronze Pocket Mount CHIRP Transducer - 12-Pin [PM275LHW-12P]

PM275LHW Bronze Pocket Mount CHIRP Transducer - 12-Pin

Bronze, Pocket Mount CHIRP Transducer with Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freg: 150-250kHz.

The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the pocket mounted PM275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the PM275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.

The PM275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Furuno CM599LHG 2-3kW Urethane Pocket Mount CHIRP Transducer [CM599LHG]

Ships Direct From Manufacturer

CM599LHG 2-3kW Urethane Pocket Mount CHIRP Transducer

Urethane, 2-3kW Tank/Cavity/Pocket Mount CHIRP Transducer, 28-60kHz and 130-210kHz.

Specifications:

• Frequency: CHIRP 28-60kHz and 130-210kHz
• Power Rating: 3kW
• Housing Type: Urethane

Broadband CM599LHG operates at any frequency between 28 kHz to 60 kHz and 130 kHz to 210 kHz. Adjusting the frequency allows you to change the CM599LHG’s beamwidth and depth capabilities. For example if you are bottom fishing in 61 m (200') of water, the narrow high-frequency beam will display extreme bottom detail and fish holding tight to structure. If you are tuna or marlin fishing in deep blue water, the wider, low-frequency beam will not only give deep-water bottom detail, but more importantly show you more of what is around your vessel, including bait which may attract game fish.

Because the CM599LHG has a bandwidth that covers a continuous frequency spectrum, next generation fishfinders utilizing Furuno Free Synthesizer (FFS) technology can be made “tunable”, so fishermen can “dial-in” the best frequency for the target fish species or conditions.

Features:

• 3kW High Frequency, 2kW Low Frequency
• Depth and Fast-Response Water Temperature Sensor
• Furuno Free Synthesizer (FFS) compatible
• Low – CHIRPs from 28kHz to 60kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth
• High – CHIRPs from 130kHz to 210kHz, 8° to 4° beamwidth
• Covers popular fishing frequencies of 28, 38, 50, and 200kHz plus everything else in the bandwidth
• Epoxy transducer housing
• No Connector, no Diplexer

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

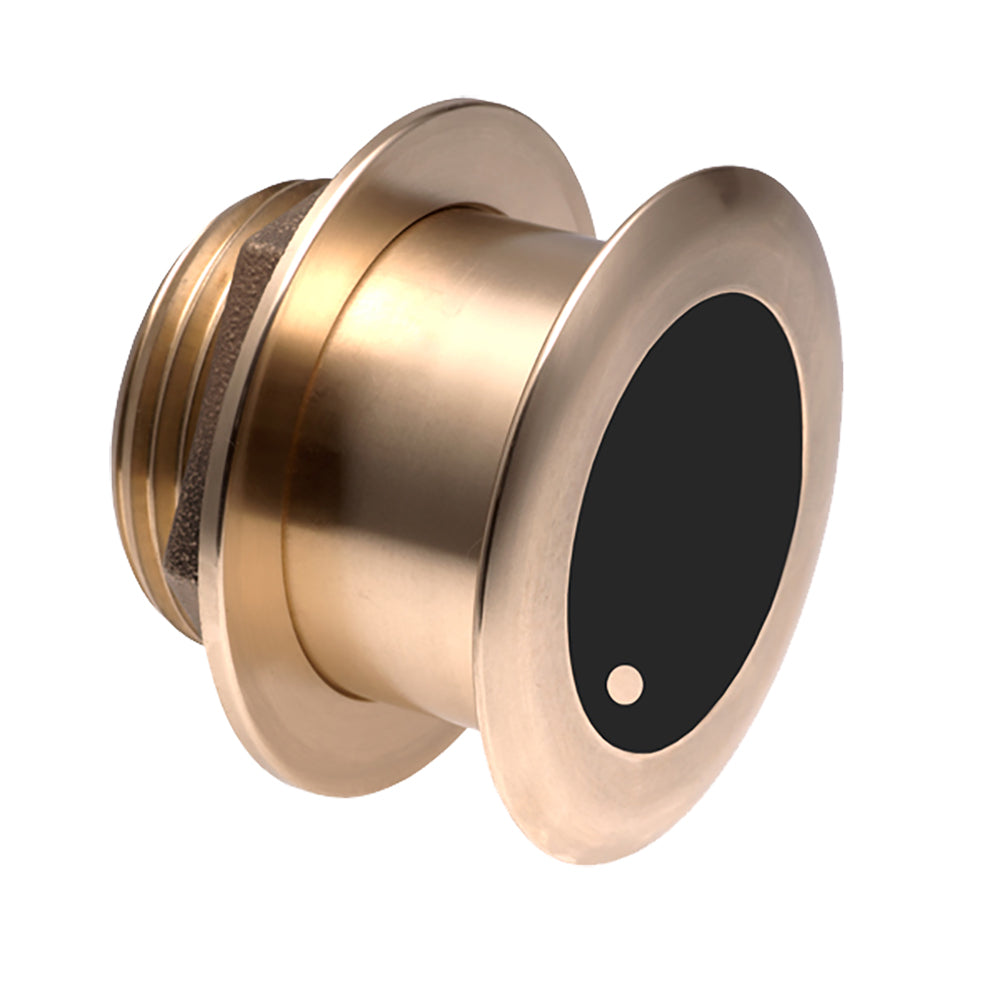

B175 Bronze Low Frequency 1kW Chirp Transducer 0° Tilt - Requires Mix & Match Cable

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The B175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

The B175L transmits across the following bandwidth:

Low Frequency 40 to 60 kHz

Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW
• Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32° to 21° beamwidth
• Great deep water performance
• High performance, low-profile thru-hull housing provides good resolution at speed when installed properly
• Bronze housing for use on stepped, planing or displacement hulls in fiberglass or wood
• Recommended boat size: Up to 11 m (36')
• Exclusive Xducer ID® technology

Specifications:

• Weight: 2.7 kg (6 lb)
• Hull Deadrise: 0-7 degrees
• Acoustic Window: Urethane
• Hole Size: 98 mm (3-7/8")
• Seven internal broadband ceramic assemblies

SS175L Stainless Steel 20° Thru Hull Mix & Match

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• Designed for smaller boats up to 36 feet (11M)
• A tilted element model in the Chirp Thru-Hull product line, the SS175L Chirps across the following bandwidth: L Model - Low Frequency 40-60 kHz
• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 60 kHz, 32° to 21° beamwidth
• 20° tilted
• 35 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
• Steel transducer housing
• Hull Type: Steel or aluminum
• Exclusive Xducer ID® technology
• Hull Deadrise: 16 to 24 degrees
• Acoustic Window: Urethane

Specifications:

• Chirp: Low
• Box Dimensions: 8"H x 10"W x 12"L WT: 11.2 lbs
• UPC: 801769002140
