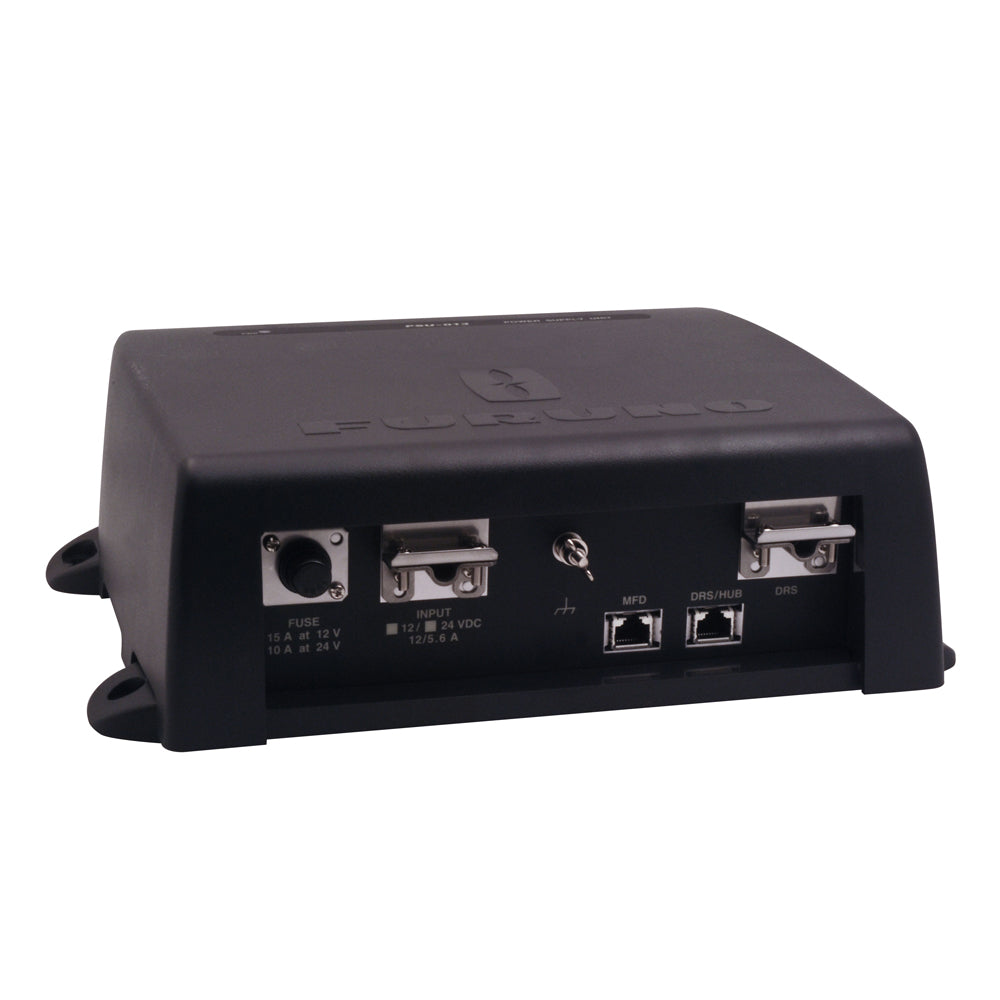

Furuno NN3D Power Supply f/25W Radar [PSU013]

Ships Direct From Manufacturer

NN3D Power Supply for 25W Radars

The PSU013 Power Supply is required for all DRS25A installations and is included iwth the DRS25A.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

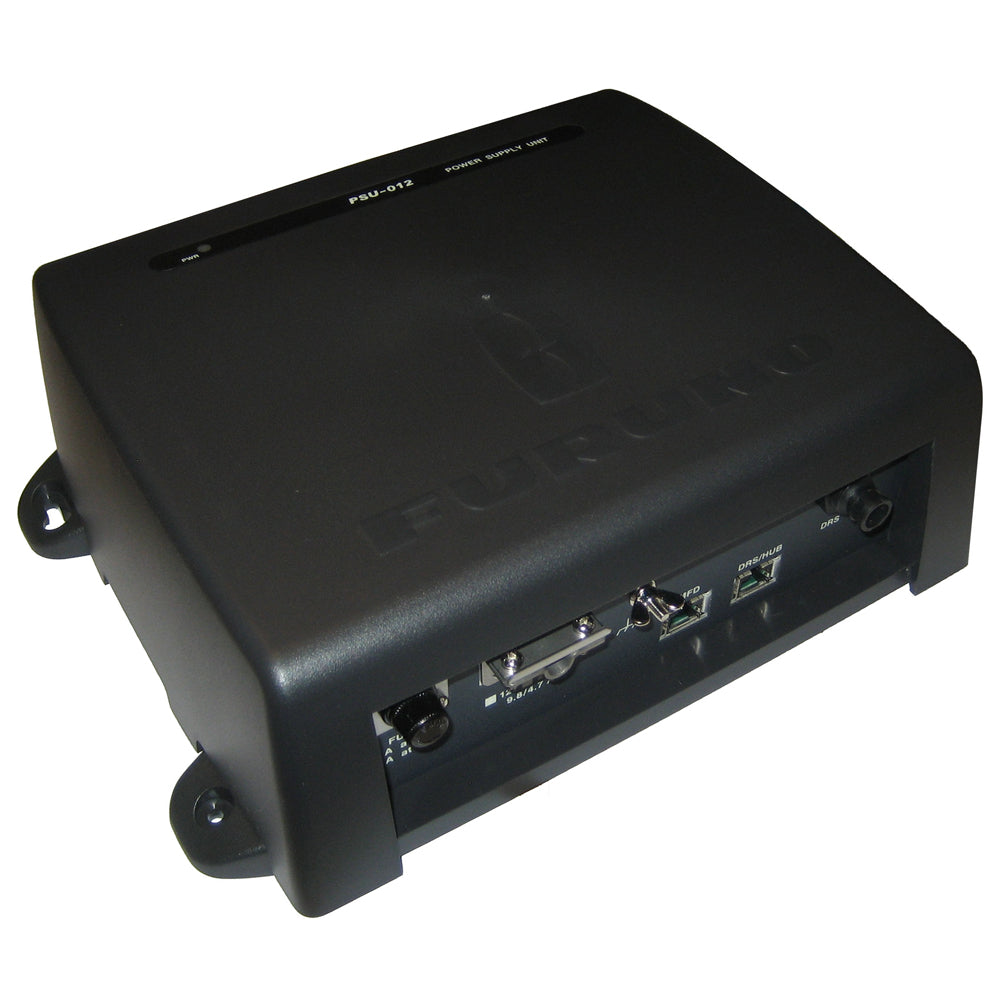

Furuno Power Supply f/NavNet 3D [PSU012]

Power Supply for NavNet 3D and TZtouch

The PSU012 Power Supply is required for DRS4A and DRS6A with MFD8, DRS12A with MFD8 or MFD12. The PSU012 Power Supply is required for DRS2D, DRS4D, DRS4A, DRS6A and DRS12A with TZT9 or TZT14.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

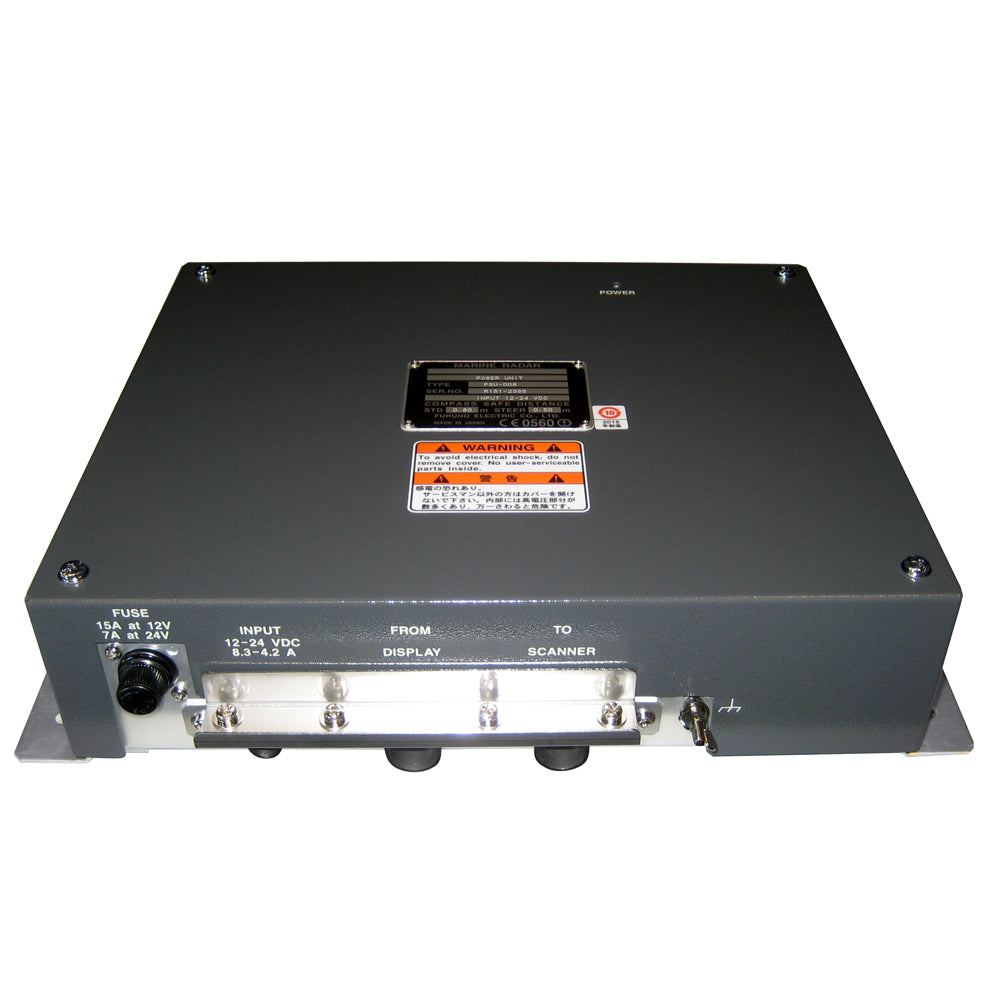

Furuno Power Supply f/1964C [PSU008]

Ships Direct From Manufacturer

Power Supply

Furuno's power supply is used specifically for Furuno's 1964C.

Features:

• 25kW

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Power - Output: 25kW
• Box Dimensions: 10"H x 14"W x 16"L WT: 16 lbs
• UPC: 611679295996

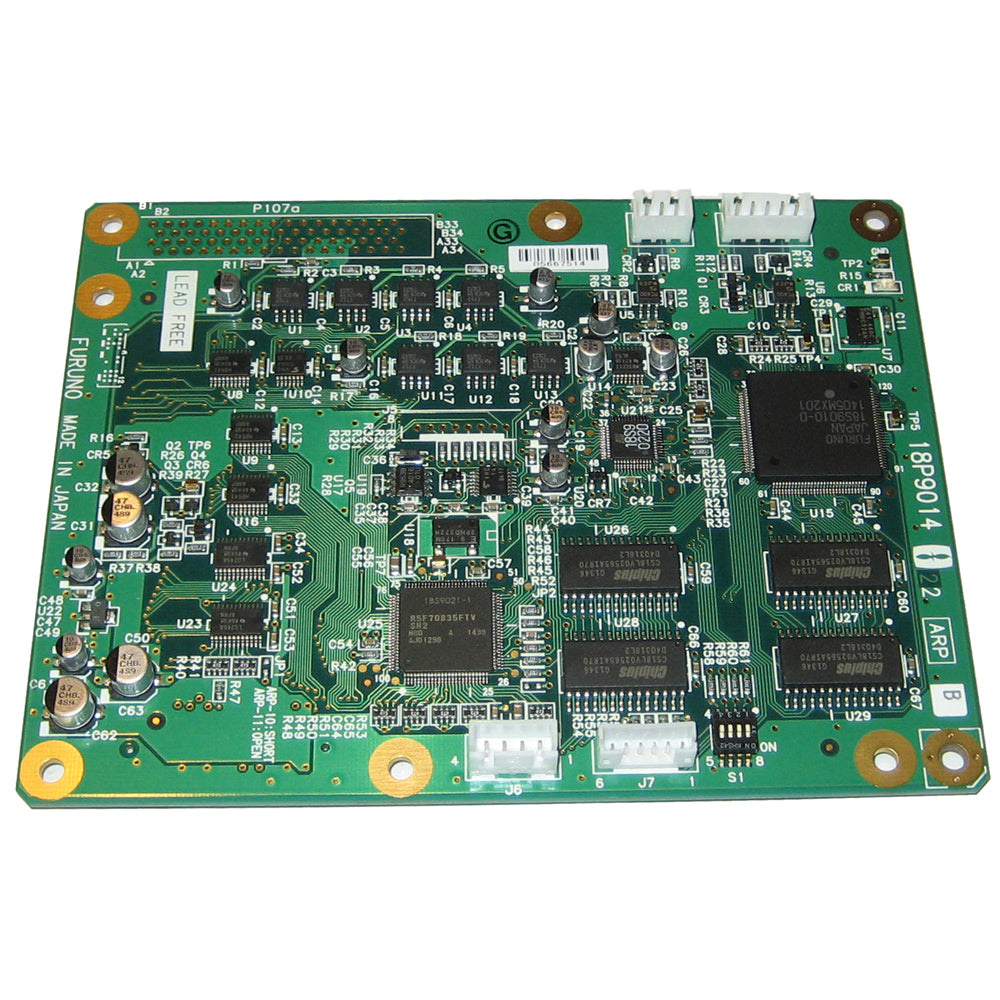

Furuno ARP11 10-Target Auto Plotter [ARP11]

ARP11 10-Target Auto Plotter

The ARP11 is a 10-target auto plotter designed for use with NavNet and NavNet vx2, as well as the FR8002 Radar series.

The ARP automatically tracks automatically or manually acquired radar targets and calculates their courses and speeds, indicating them by vectors. Since the data generated by the auto plotter are based on what radar targets are selected, the radar must always be optimally tuned for use with the ARP to ensure required targets will not be lost or unwanted targets such as sea returns and noise will not be acquired and tracked.

The plotting accuracy and response of this ARP meets IMO standards. Tracking accuracy is affected by the following:

• Tracking accuracy is affected by course change. One to two minutes is required to restore vectors to full accuracy after an abrupt course change. (The actual amount depends on gyrocompass specifications.)

• The amount of tracking delay is inversely proportional to the relative speed of the target. Delay is on the order of 15-30 seconds for high relative speed; 30-60 seconds for low relative speed.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

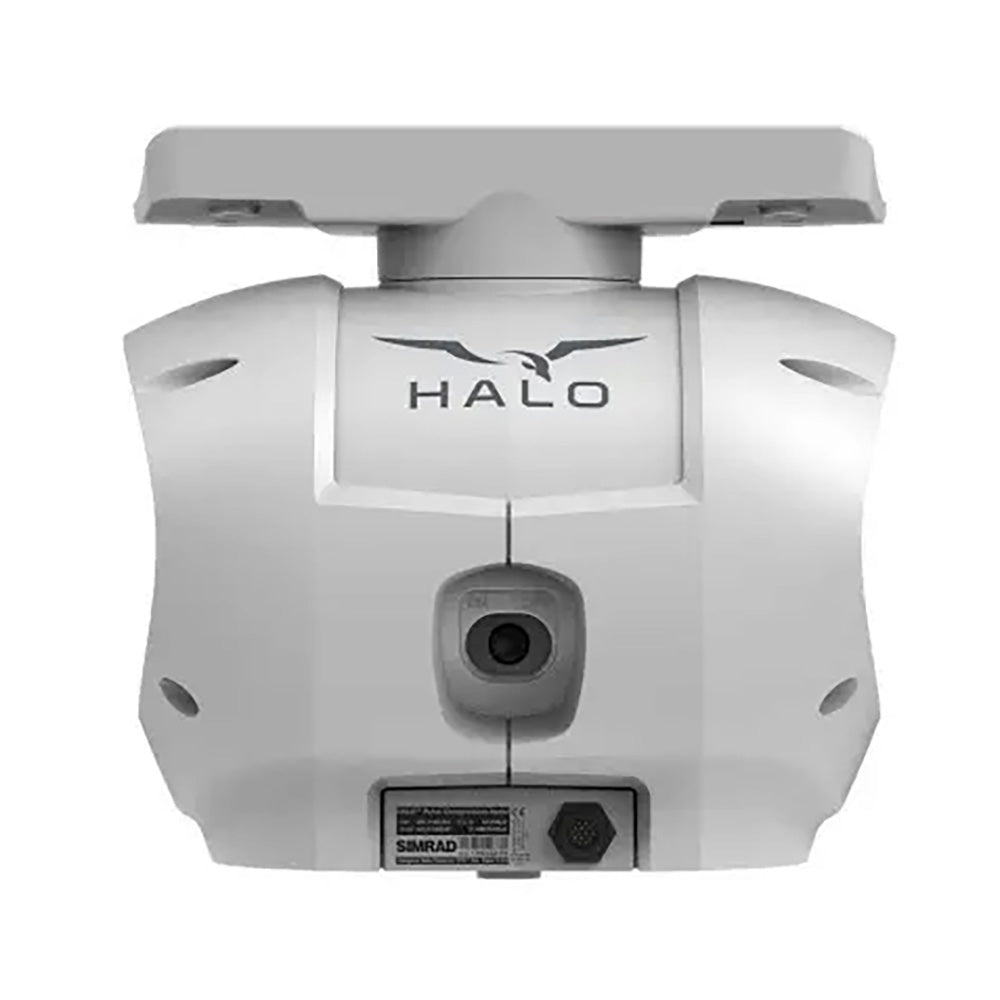

HALO® 300X Radar Pedestal Only - 130W

Simrad's HALO 300X 130W Pulse Compression Radar: Pedestal Only.

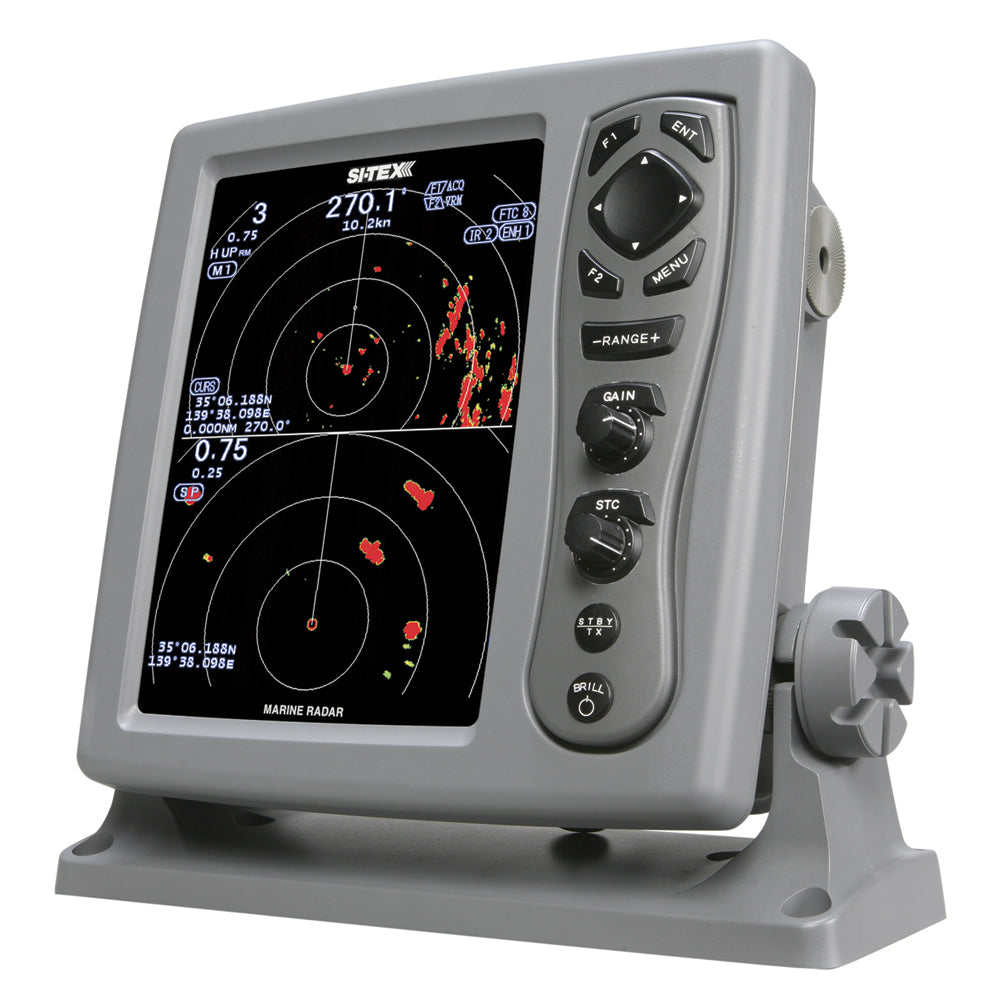

8.5" Color LCD Radar with 4kW Output - 1/16-36nm Range - 25" Radome

SI-TEX's T-941 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.

Features:

• It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets
• Radome: 4kW, 36NM, 25" Display
  • Brilliant 8.4" color LCD daylight viewable display
  • 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
  • True-color radar feature displays echoes in different colors depending on signal strength
  • The real-time presentation offers smooth movement as bearing changes
  • The T-941 has two-speed antenna rotation for tracking of quick-moving, close-in targets:
    • 48 RPM
    • 24 RPM (Requires 24 Volt DC input)
  • Selectable range scales from 1/16 NM
  • Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
  • Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
  • RGB output for connecting (2) optional external monitors
  • Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC
  • Built-in flush mounting system makes installation easy
  • All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
  • Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously
    • Monitor a nearby buoy and a far off island at the same time
  • True Trail function clearly identifies moving targets from stationary targets
  • The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
  • Accepts CCD camera input, to display split-screen Radar and Camera
    • Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings
  • Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets
  • Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
  • Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitter
    • This information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention

Specifications:

Antenna Unit:

• Scanner 25" Radome
• Peak Power Output 4kW
• Output Frequency 9410 + 30MHz
• Beam Width:
• Horizontal 3.9°
• Vertical 25°
• Rotation 24 or 48 rpm (48 rpm; 24V DC or more
• Pulse Width .08, 0.15, 0.3, 0.5, 1 use
• IF Frequency 60 MHz
• Range Accuracy Better than 8m
• Min. Detecting Distance: Within 25m

Display Unit:

• Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels)
• Off Centering Max 66%
• Display Modes Heads up, North up*, Course up* WPT up**, True motion*
• Indication System PPI, PPI/PPI, PPI/NAV
• Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48)
• Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12
• Bearing Accuracy Better than + 1°
• Video Level 8 colors
• Distant Unit (VRM unit) NM, SM, KM
• Alarms Entry or Breakaway (In and Out)
• Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input
• AIS Interface Option (100 targets)
• ATA Option (Auto/Manual, 50 targets)
• Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
• Output Data Format TTM, TLL
• Power Requirements 10.8 - 31.2 Volt DC
• Power Consumption 55 Watt
• Water Protection
  • Display: IPX 5
  • Antenna CFR 46 IPX

What's In The Box?

• Display Unit MRD-103 with hardcover
• Connecting Cable 242J158055A -10 M with 2 connectors
• DC Power Cable CW265-2M 2m
• CCD Camera Cable CW-405-0.3M
• Operation manual, Quick reference
• Fuse (8A)

Specifications:

• Array Size (Inches): 25"
• Power - Output: 4kW
• Range - Max (Miles): 36nm
• Box Dimensions: 9"H x 11"W x 14"L WT: 46.25 lbs

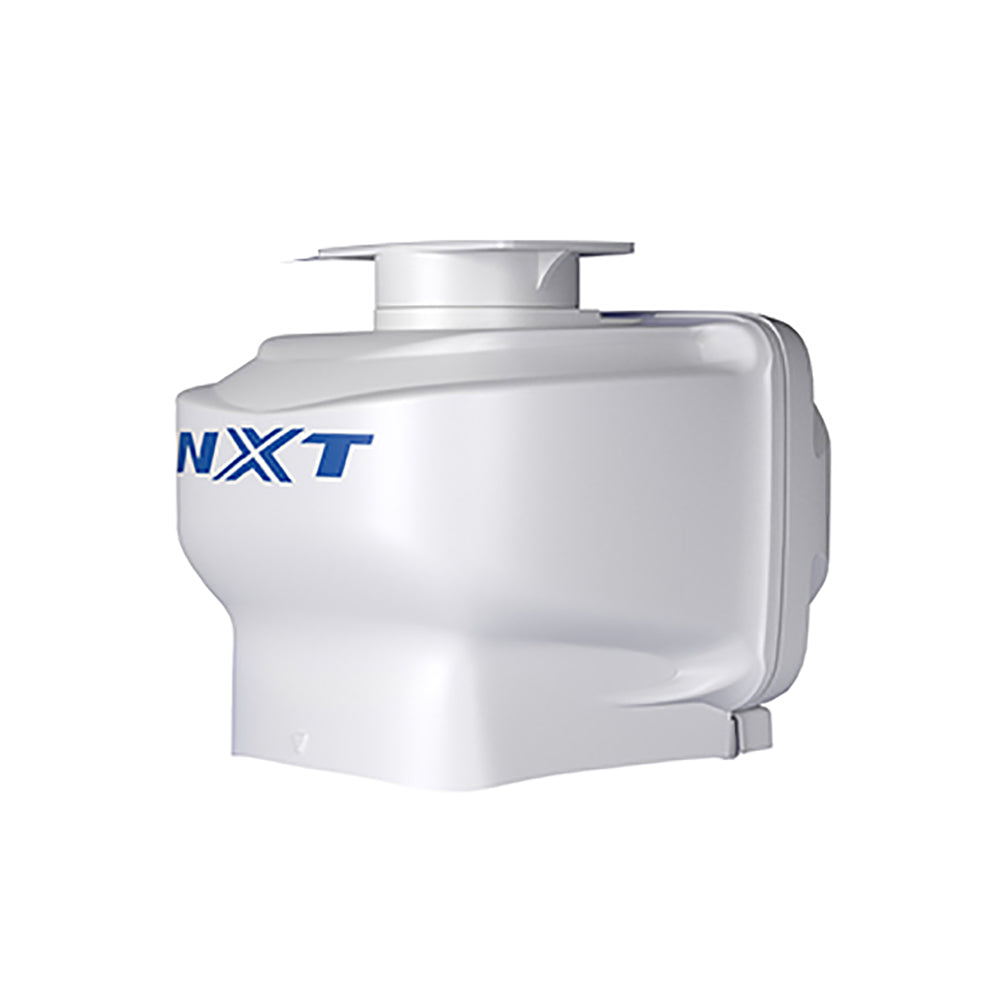

DRS6ANXT Solid-State Doppler Radar Open Array - Add Cable & Array Antenna

The DRS6ANXT leverages the same pulse compression and Doppler frequency shift sensing technologies featured in the DRS4DNXT, as well as offering the same simplified connection with TZtouch and TZtouch2, and TZtouch3.

Target Analyzer

Target Analyzer may be one of the most innovative and revolutionary features available in the NXT family, automatically changing the color of targets approaching your boat to clearly show potential hazards. Green echoes represent stationary targets, land, or approaching targets moving at a velocity of less than 3 knots. Echoes dynamically turn red when targets are approaching your vessel at a speed of 3 knots or faster. It works the same when you are following another vessel. If the target is getting closer at a speed of 3 knots or more, the echo will be depicted in red. Incredibly, Target Analyzer works independently of one's own ship speed!

Target Tracking

Interpreting and tracking threats is easier than ever with NXT radar. Using Furuno's advanced Doppler technology, NXT Radars acquire and track targets in virtually every sweep. Almost instantly, you'll see the target's speed and course vector, and if the target is hazardous, it will also be displayed in red, making it easier to identify and predict its course. The NXT Radar's incredible ARPA signal processor tracks and displays up to 100 targets! The entire target theater can be viewed, monitored, and tracked simultaneously, at any range. For an even more detailed display, target trails and Furuno's unique True Trail feature can be utilized, allowing you to graphically see the direction in which a target is moving, independent of your own vessel's motion.

Bird Mode

Bird Mode is another standard feature found in NXT Radars. With a single selection on the MFD, the Radar automatically adjusts settings for echo enhancement to help locate birds. Of course, finding birds is an important step to zeroing in on the bite.

RezBoost

The resolution of NXT Radars is already impressive, but we've taken it a step further by incorporating our exclusive RezBoost beam sharpening technology. With RezBoost set to maximum, NXT Radars offer enhanced target separation, in addition to its impressive long-range target detection.

*NEED TO ORDER YOUR SIGNAL, POWER CABLE, AND ANTENNA SEPARATELY

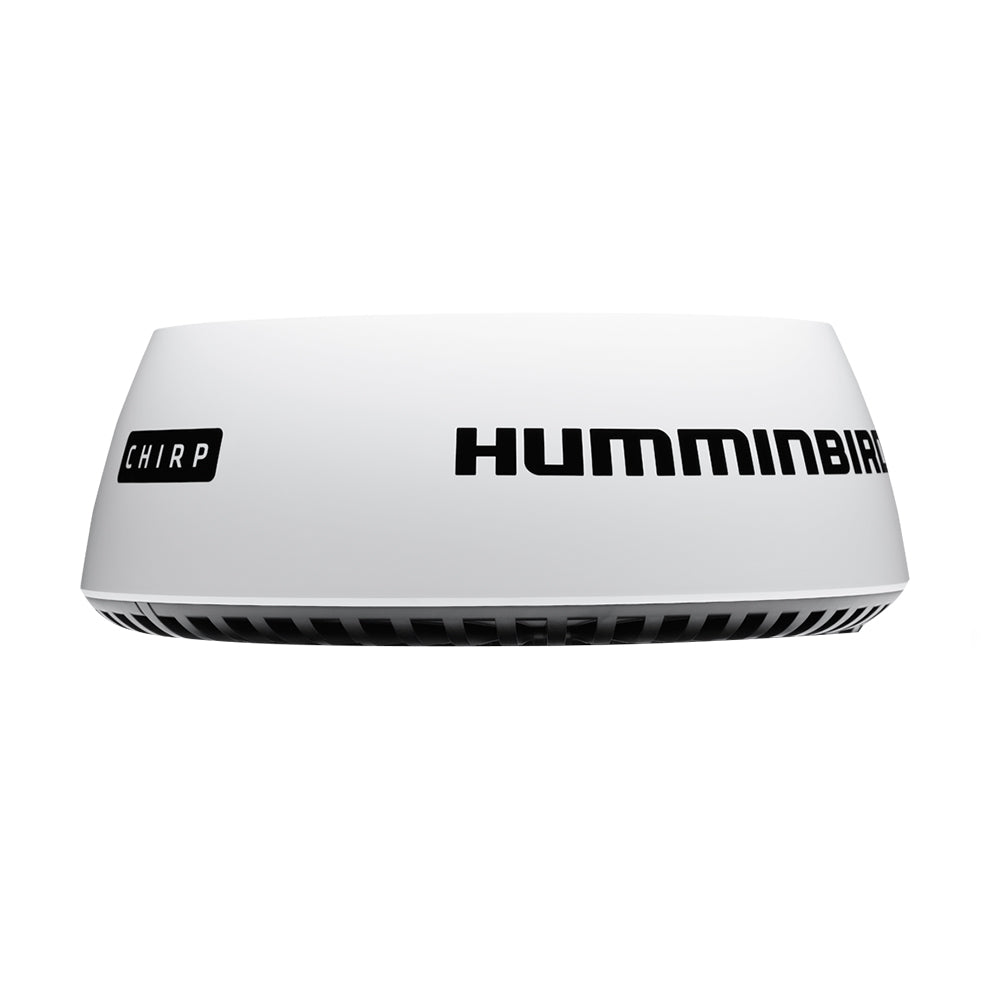

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome

• Antenna Type - Patch Array

• Peak Power Output - 20W

• Transmit Frequency - 9354 to 9446 MHz

• Beam width (nominal) - 4.9° Horizontal and 20° Vertical

• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)

• Networking - Ethernet

• Maximum Range Scale - from 1/16 to 24 nautical miles

• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W

• Duplexer - Circulator

• Pulse Widths @ 3 dB - 40 ns to 14.7µs

• CHIRP Lengths - 400 ns to 20µs

• CHIRP Bandwidth - Up to 32 MHz

• IF Bandwidth - 26 MHz

• Noise - Less than 4 dB

• Polarization - Horizontal

• Waterproofing - IPX6

• Weight - 12.3 lbs (5.6 kg)

• Compatibility Networking HELIX models and all ONIX models

Specifications:

• Array Size (Inches): 21"
• Box Dimensions: 12"H x 24"W x 24"L WT: 21.2 lbs
• UPC: 082324050169
