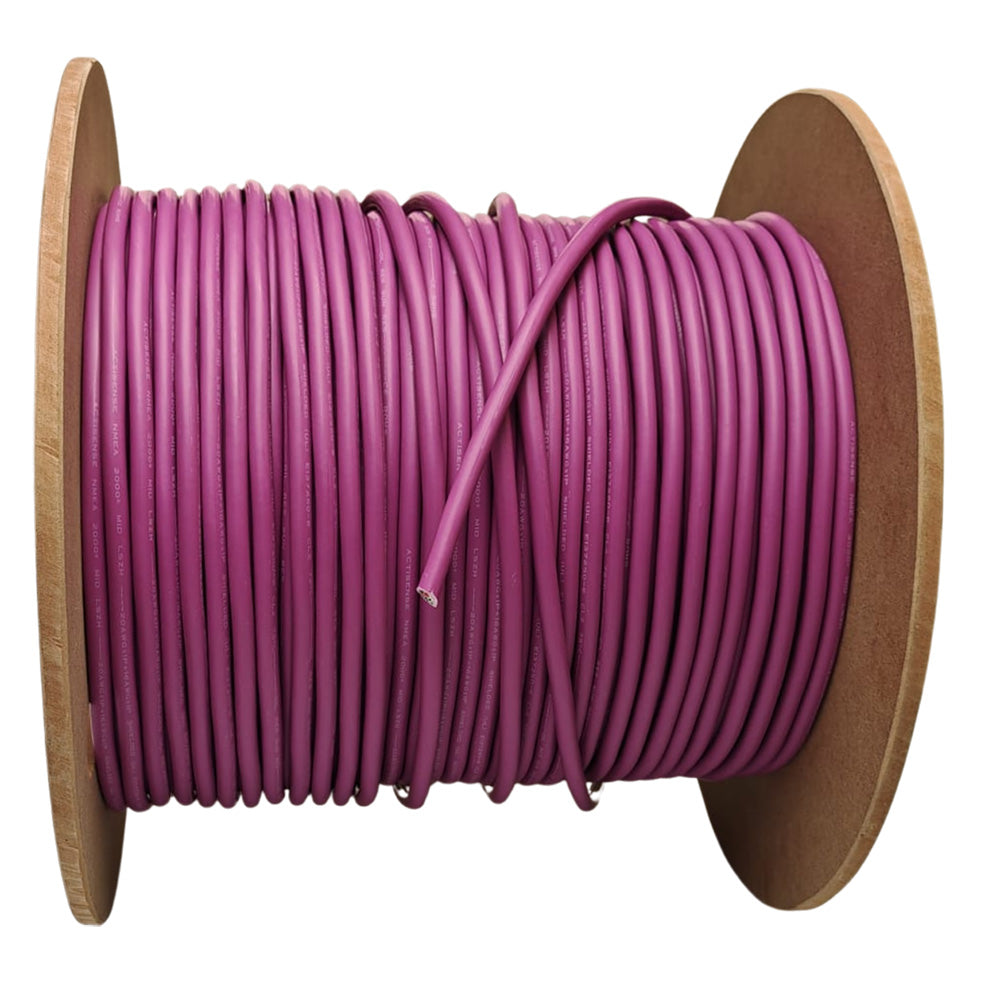

NMEA2000 Mid Bulk Cable Reel - 100M

This cable can be used to create or extend an NMEA 2000® network of flexible lengths to suit any installation. The cable is ideal for use with any of the Actisense A2K Product range for building networks.

The cable is LSZH certified to give installers and end users maximum peace of mind and an extra layer of safety.

The Actisense range of NMEA 2000® connectors and cables has been designed using our specialist interconnectivity and NMEA knowledge. All Actisense cables and connectors are NMEA 2000® approved.

The NMEA 2000® cable includes five wires within a single waterproof cable: power and ground wires, two signal wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.

NMEA 2000® Mid cable can be used to create a backbone up to 250 meters in length, and offers a current capacity of 4A with Micro connectors, or 8A with Mini connectors.

Technical Specifications:

Cable

• Rated Voltage - 60V DC
• Rated Current - 8A
• Braid Material - 37 AWG tinned copper
• Braid Coverage - 65% Nom.
• Jacket Material - LSZH Purple (RAL4008)
• Jacket Outer Diameter - 8.2mm
• Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10.5mΩ/M)
• Reel Length - 100m
• Reel Weight - 13-14kg

Power Pair

• Conductor - 16 AWG (19-strand tinned copper)
• Insulation - 0.17 mm Nom. LSZH
• Diameter - 1.85mm Nom.
• Colors - Red & Black
• Shield - AL Mylar tape over pair
• DC Resistance - 4.26Ω / 1000ft (14mΩ/M)

Data Pair

• Conductor - 20 AWG (19-strand tinned copper)
• Insulation - 0.79 mm Nom. Foam PE
• Diameter - 2.49mm Nom
• Colors - Blue & White
• Shield - AL Mylar tape over pair
• Impedance - 120Ω ±10% @ 1MHz
• DC Resistance - 10.9Ω / 1000 ft (35.8mΩ/M)
• Attenuation @ 125 kHz - 0.29dB / 100ft
• Attenuation @ 500 kHz - 0.50dB / 100ft
• Attenuation @ 1 MHz - 0.70dB / 100ft

Drain

• Conductor - 20 AWG (19-strand tinned copper)
• DC Resistance - 10.9Ω / 1000ft (35.8mΩ/M)

Approvals and Certifications

• Operating Temperature - -20°C to +70°C
• Storage Temperature - -40°C to +85°C
• NMEA 2000 Approved
• RoHS Compliant
• UL Certified (E137250), (UL13)
• LSZH to IEC 60754-1/2 & IEC 61034-1/2

Specifications:

• Data Interface: NMEA 2000
• NMEA 2000 Connectors: Backbone/Drop Cables
• Box Dimensions: 12"H x 14"W x 14"L WT: 30 lbs
• UPC: 5060998710812

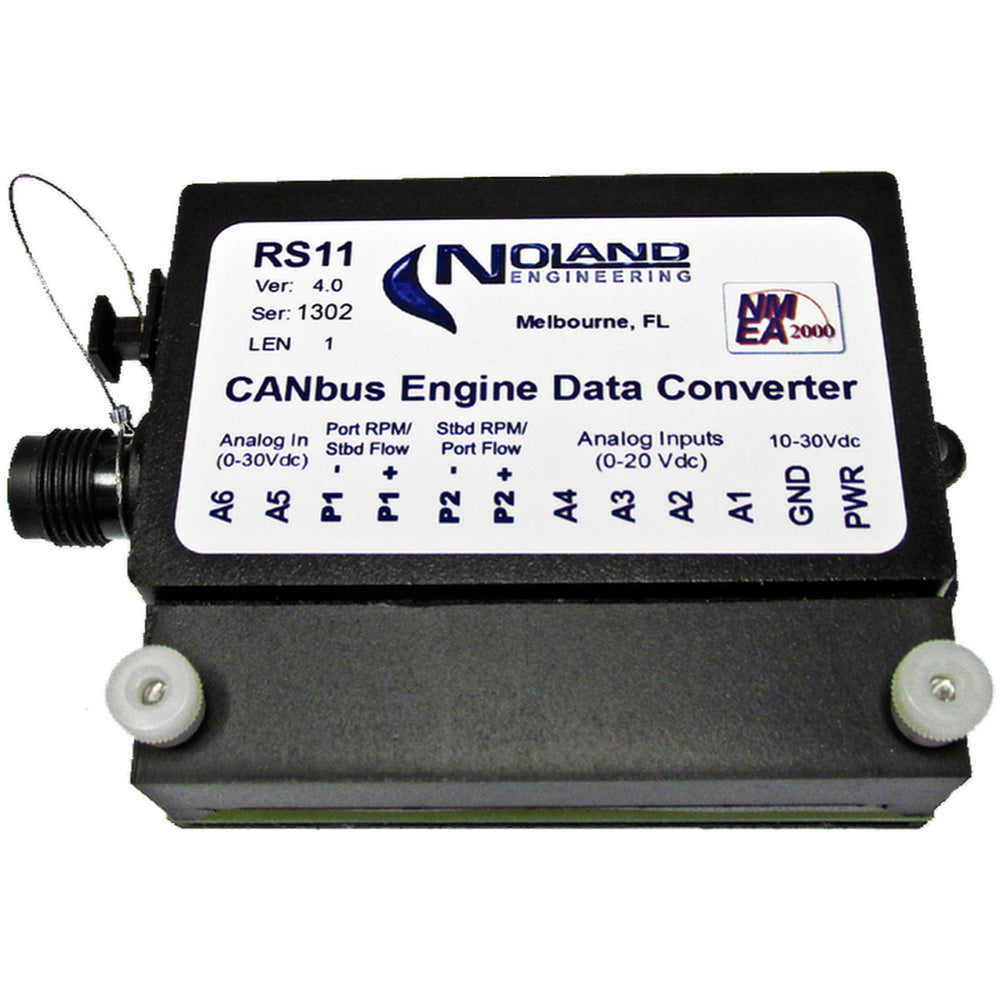

Airmar Noland RS11 Analog to NMEA 2000 Data Converter [RS11]

Noland RS11 Analog to NMEA 2000 Data Converter

The RS11 is intended for converting Tach and analog sensor data into NMEA 2000 messages for display by devices such as chart plotter MFDs (Multifunction Displays). The engine connections are made to existing gauges or directly to senders if there is no gauge. The RS11 can provide drive current to resistive senders where needed. Two RPM inputs plus six analog inputs on each RS11 means it can support one or two engines as needed.

Configuration and calibration of the RS11 are done with a Windows PC(via USB) and the supplied software. It consists of selecting the specific information(engine temp, oil press, etc.) to convert on each input and supplying proper calibration values. There are also options to turn on "Sender Current" where needed, enable or reset "Engine Hours", and set Alarm Values for some inputs. If software updates are ever needed, they are done with a Windows PC via USB.

A water-resistant housing protects the RS11 internal components, while a gasket cover seals the terminal strip connections to the engine. A plastic plug seals the USB Port when not in use. A multicolor status LED indicates the operating mode of the RS11. All inputs can handle 30V or more of applied voltage without damage.

Specifications:

• Supply Voltage/Current: 10-30 Vdc, 40 mA. max
• Pulse Input Impedance: 100K ohm
• Analog Input Impedance: 13K ohms
• Analog Input Accuracy: +/- 1%
• Operating Temp: -20 – 70 °C
• Humidity range: 0 – 100% (non-condensing)
• Certification: NMEA 2000 (Level A), LEN 1
• Size/weight: 2.4″ x 3.4″ x 0.9″ / 3 oz.
• Warranty: 3 year repair/replacement

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)

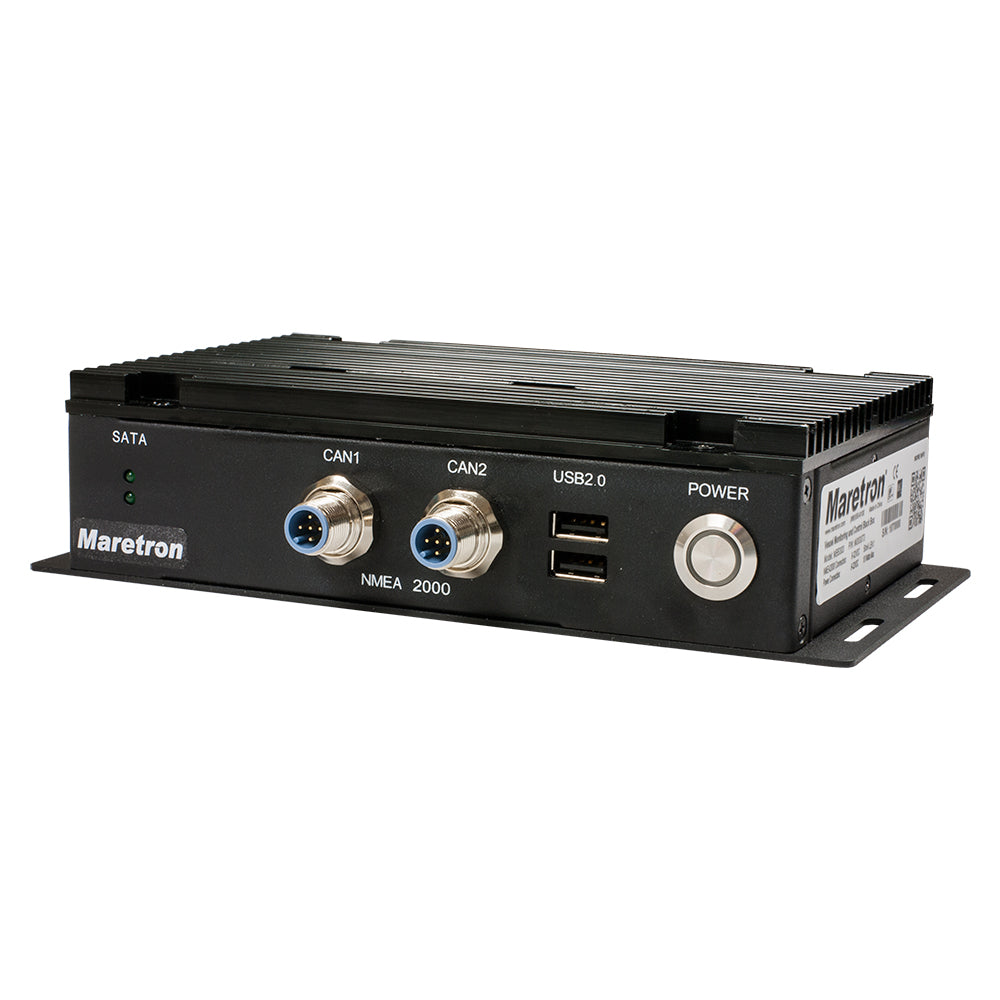

Maretron MBB300C Vessel Monitoring & Control Black Box [MBB300C-01]

Ships Direct From Manufacturer

Vessel Monitoring & Control Black Box

Maretron's third generation Black Box (MBB300C) is a dedicated processing unit that includes Maretron's N2KView® vessel monitoring and control software. Unlike a PC that allows any software to be loaded, the MBB300C runs only N2KView® software making it extremely stable and dedicated to monitoring and controlling your vessel.

The MBB300C is ruggedized for marine use and includes a solid state disk drive to withstand the pounding associated with waves. And since the MBB300C dissipates less than 10W, there is no need for internal cooling fans that are noisy and wear out causing electronics to overheat and fail.

The MBB300C connects to a monitor through a VGA connector or an HDMI connector while the associated touch screen connects through a USB or serial port. Alternatives to controlling the N2KView® software through a touch screen include keyboards, mice, or track balls connected through USB. In addition to the two completely isolated CAN bus connectors for simple connection to single or redundant NMEA 2000® networks, the MBB300C has an Ethernet port for connecting Internet Protocol (IP) cameras for viewing video within the N2KView® software.

Of course you get the same flexibility using Maretron's N2KView® software from the MBB300C as you would running the software on a PC, which includes the ability to configure as many screens as you want with exactly the information you want to see. Plus you get free upgrades to the software as improvements and new features are added.

Features:

• 9-36 Volt Power Supply

• Solid State Disk Drive

• Fanless Cooling System

• Dual CAN Bus for Single or Redundant NMEA 2000® Network Connections

• Four USB Ports for Touchscreen, Keyboard, Mouse, Trackball, or Thumb Drive Connections

• VGA or HDMI Video Connection (2560 x 1600 Maximum Resolution)

• Ethernet Connector for IP Camera Input or Email Alert Notification

Displays:

• Air conditioning (HVAC)

• Anchor watch

• AC power

• Battery

• Depth

• Engine

• Environment

• Fuel management

• GPS

• Heading

• Ice makers

• Navigation

• Rudder

• Speed

• Tanks

• Time

• Transmission

• Video

• Watermakers

• Weather

• Wind

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

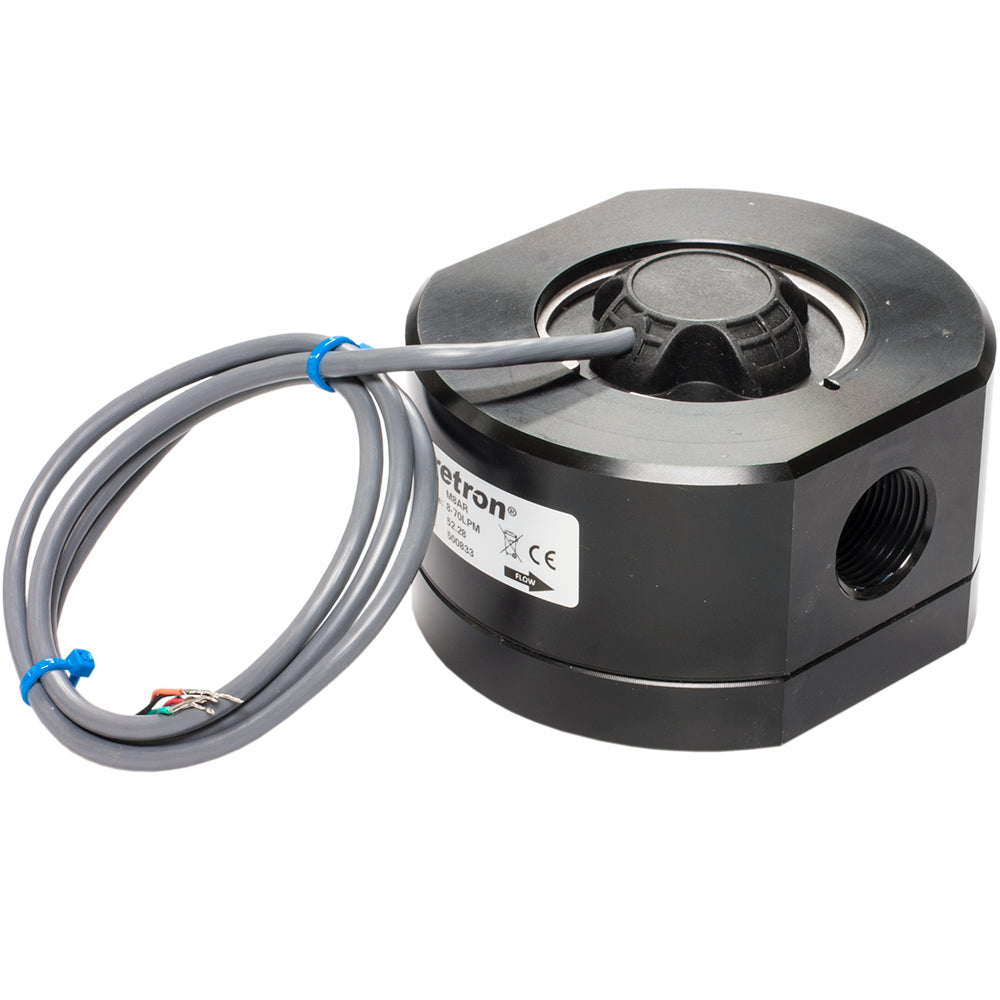

Maretron Fuel Flow Sensor 8-10 LPM/2.1-18.5 GPM [M8AR]

Fuel Flow Sensor 8-10 LPM/2.1-18.5 GPM

When fluid passes through the sensor, the rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.

Specifications:

• Construction: Housing Material Aluminum

• Port Size: 3/4" NPT Female

• Maximum Viscosity: 1000 cPs

• Strainer Size: 60 Mesh (If not already installed after fuel filter)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

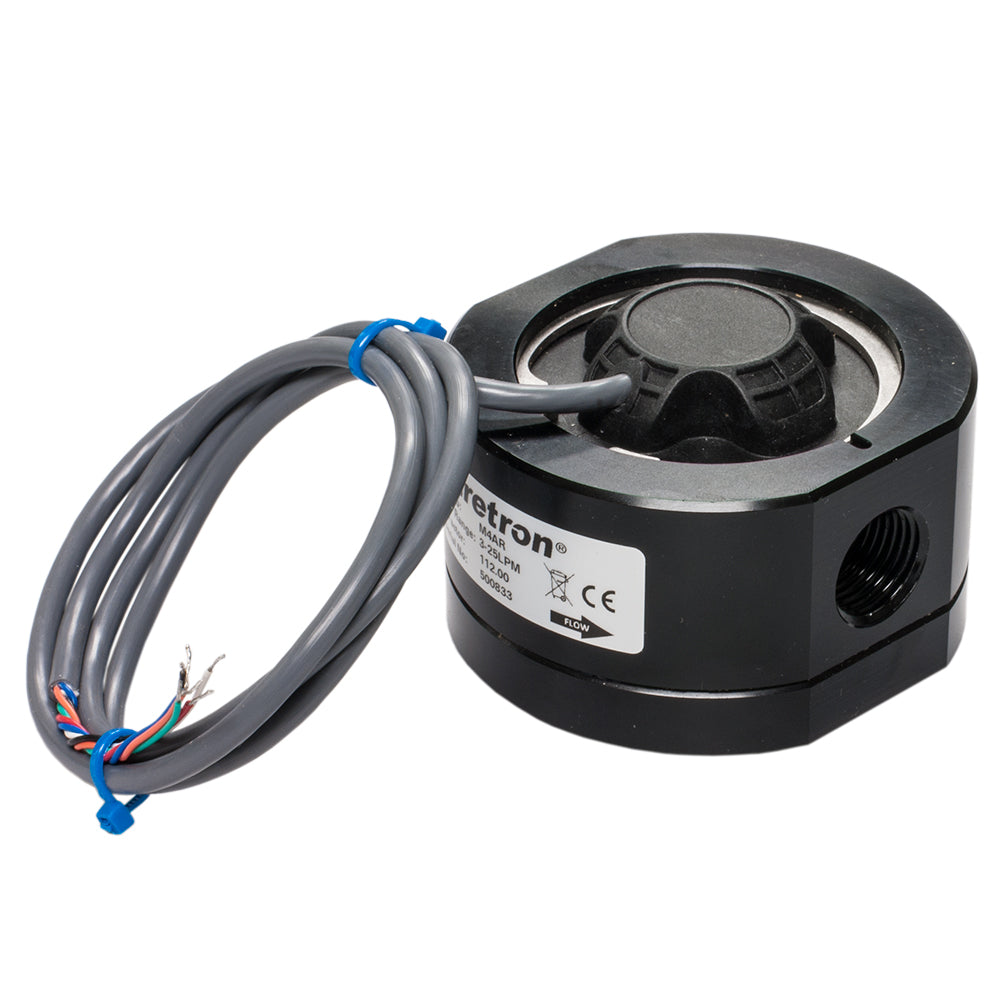

Maretron Fuel Flow Sensor f/FFM100 Fuel Flow Monitor [M4AR]

Fuel Flow Sensor f/FFM100 Fuel Flow Monitor

Flow range: 48 to 396 GPH, 180 to 1500 LPH

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

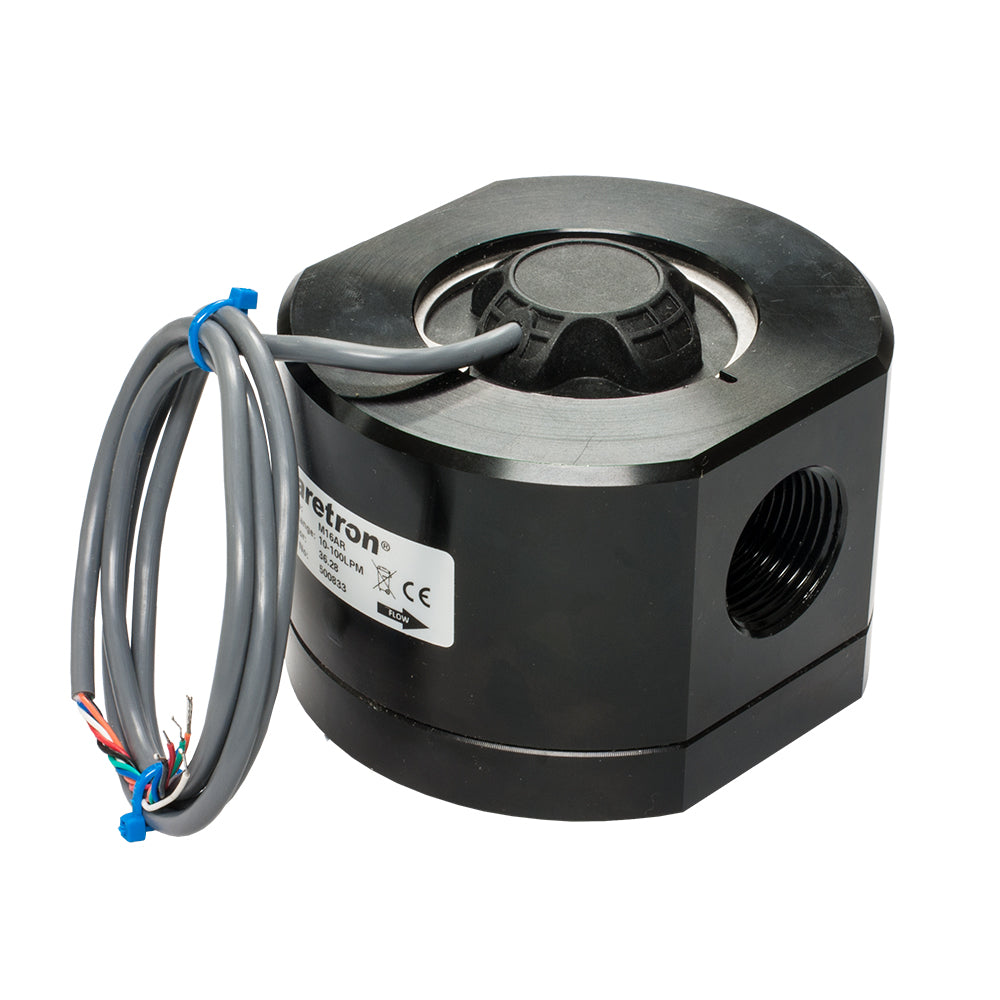

Maretron Fuel Flow Sensor 10-100 LPM/2.6-26.4 GPM [M16AR]

Ships Direct From Manufacturer

Fuel Flow Sensor 10-100 LPM/2.6-26.4 GPM

When fluid passes through the sensor, the rotors turn. Magnets which are located in the rotors will pass across sensors in the sensor circuit board. Pulses from these sensors are transmitted to the FFM100 which performs flow rate calculations based on the received pulses.

Specifications:

• Construction: Housing Material Aluminum

• Port Size: 1" NPT Female

• Maximum Viscosity: 1000 cPs

• Strainer Size: 60 Mesh (If not already installed after fuel filter)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

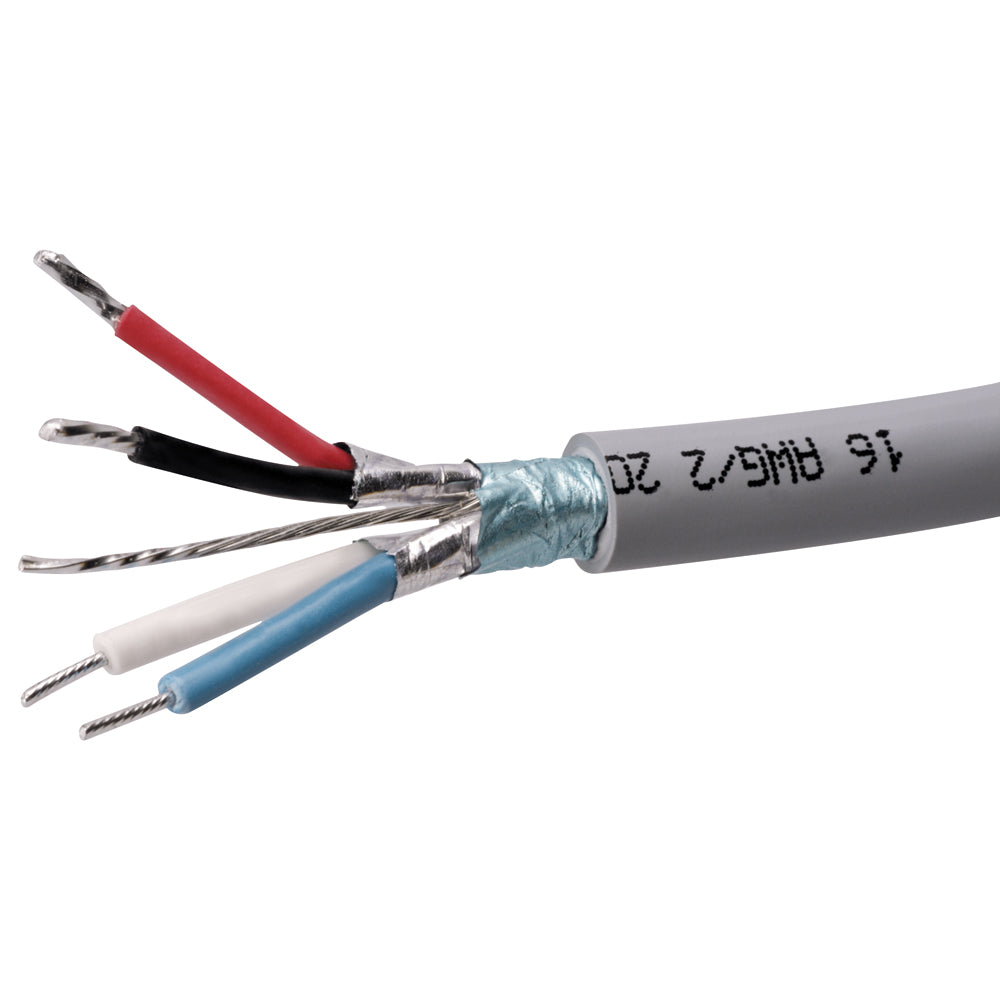

Maretron Mini Bulk Cable - 100 Meter - Gray [NG1-100C]

Maretron Mini Bulk Cable - 100 Meter - Gray

Specifications

Overall

• Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1

• Insulation Material: PE (data), PVC (power)

• Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire

• Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

  Power Pair

• Wire: 2x15 (1.45mm) AWG

• Resistance/Conductor: 3.44 Ohms/1000 ft max

• Max Amperage: 16 Amps - NB1, 14 Amps - NG1

• Color Code: Red/Black

  Data Pair


• Wire: 2x18 (1.02mm) AWG

• Characteristic Impedance: 120 Ohms +/- 10%

• Capacitance: 12 pF/1000 ft Max

• Color Code: White/Blue

  Approvals

• UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

• CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 APPROVED

• IEC: IEC-61162-3

  Specifications:

  • Data Interface: NMEA 2000
  • Cable Length (Meters): 100m
  • Box Dimensions: 12"H x 12"W x 12"L WT: 35 lbs
  • UPC: 873804003054

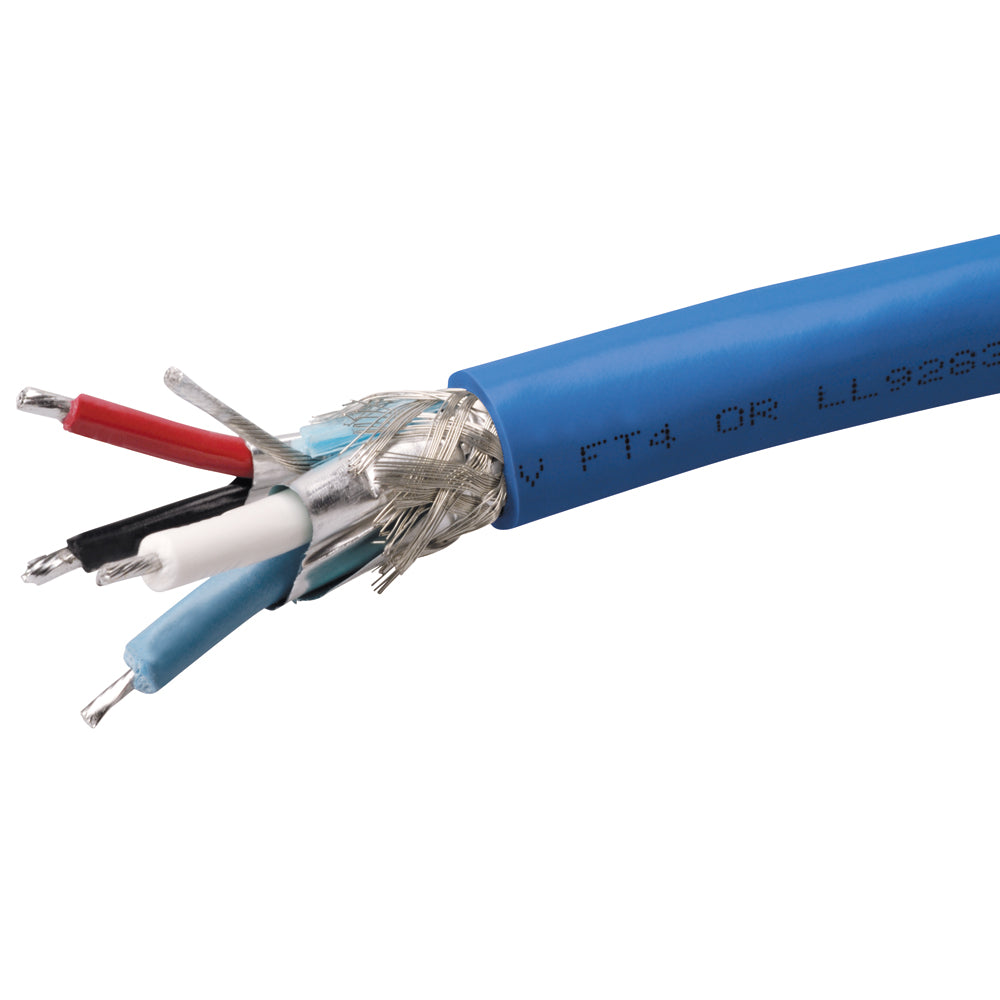

Maretron Mid Bulk Cable - 100 Meter - Blue [DB1-100C]

Specifications

Overall

• Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1

• Insulation Material: PE (data wires), PVC (power wires)

• Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

• Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

  Power Pair

• Wire: 2x16 (1.29mm) AWG

• Resistance/Conductor: 4.1 Ohms/1000 ft max

• Max Amperage: 14 Amps
• Color Code: Red/Black

  Data Pair

• Wire: 2x20 (0.81mm) (AWG)

• Characteristic Impedance: 120 Ohms +/- 10%

• Capacitance: 10.75 pF/ft

• Color Code: White/Blue

  Approvals

• UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

• CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

• NMEA: NMEA 2000 Approved

• IEC: IEC-61162-3

  Specifications:

  • Data Interface: NMEA 2000
  • Cable Length (Meters): 100m
  • Box Dimensions: 11"H x 12"W x 12"L WT: 25.3 lbs
  • UPC: 873804003023
