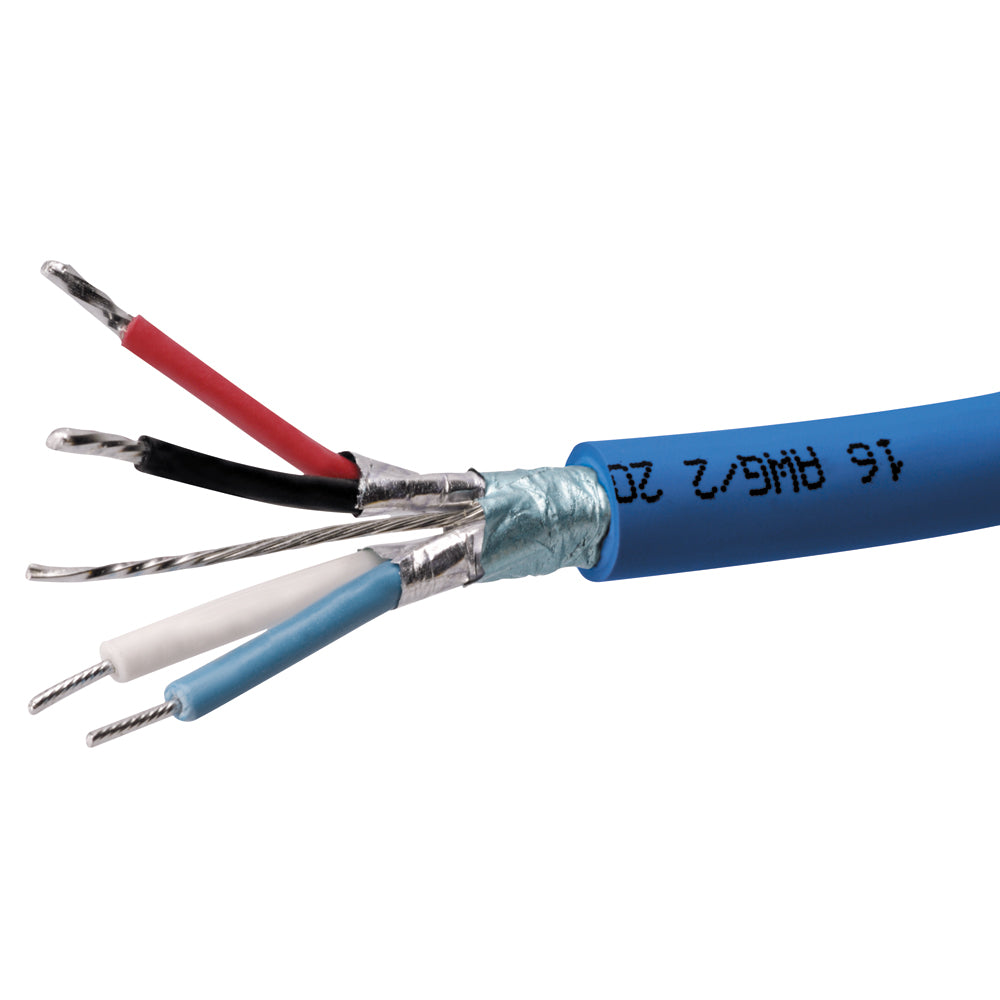

Maretron Mini Bulk Cable - 100 Meter - Blue [NB1-100C]

Maretron Mini Bulk Cable - 100 Meter - BlueSpecifications

Overall

• Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1

• Insulation Material: PE (data), PVC (power)

• Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire

• Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

  Power Pair

• Wire: 2x15 (1.45mm) AWG

• Resistance/Conductor: 3.44 Ohms/1000 ft max

• Max Amperage: 16 Amps - NB1, 14 Amps - NG1

• Color Code: Red/Black

  Data Pair


• Wire: 2x18 (1.02mm) AWG

• Characteristic Impedance: 120 Ohms +/- 10%

• Capacitance: 12 pF/1000 ft Max

• Color Code: White/Blue

  Approvals

• UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

• CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 APPROVED

• IEC: IEC-61162-3

  Specifications:

  • Data Interface: NMEA 2000
  • Cable Length (Meters): 100m
  • Box Dimensions: 12"H x 16"W x 17"L WT: 38 lbs
  • UPC: 873804003047

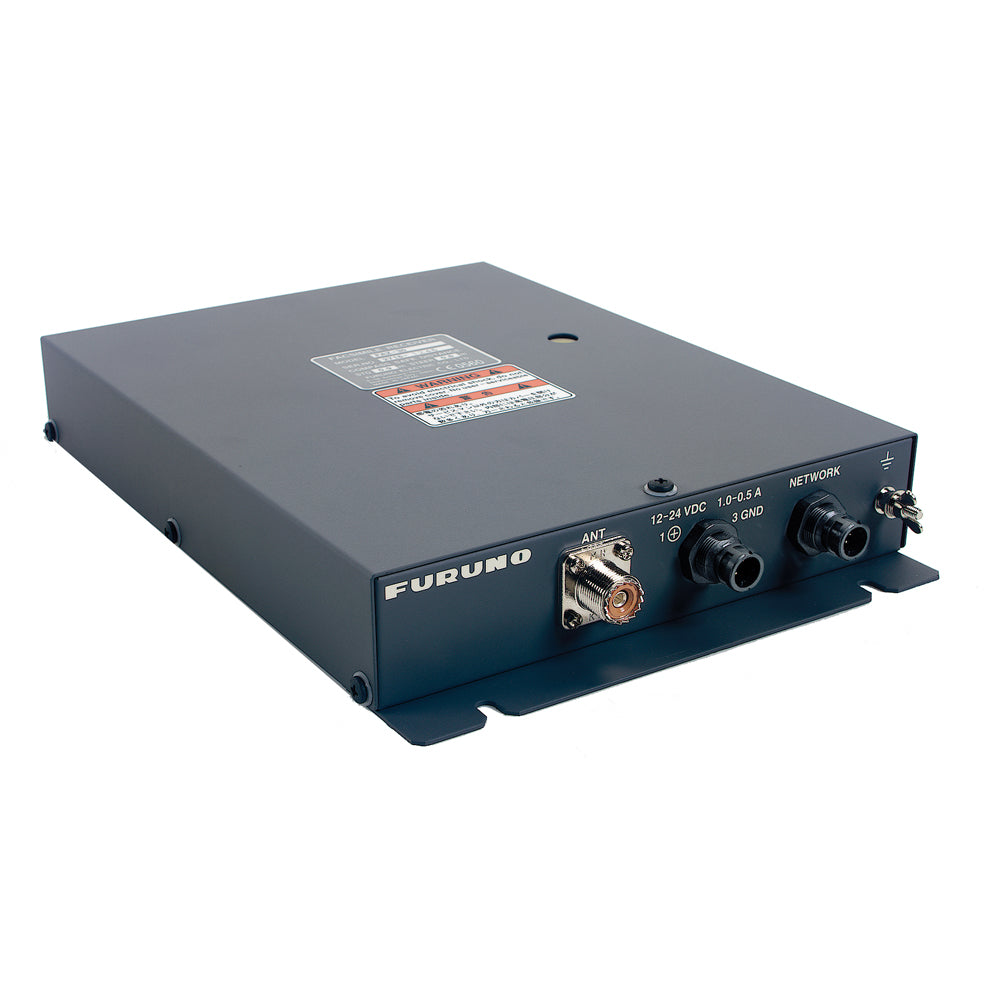

Furuno FAX30 External Black Box Weatherfax  Navtex Receiver - Less Antenna [FAX30]

Ships Direct From Manufacturer

FAX30 External Black Box Weatherfax & Navtex Receiver - Less Antenna

Furuno's FAX30 can turn any NavNet display or PC into a Weatherfax and Navtex receiver. This waterproof "Black Box" unit connects directly to a NavNet display or an Ethernet hub with a single Ethernet cable. If it is connected to an Ethernet hub that has multiple 10.4" NavNet displays attached, each of those displays will have access to the FAX30. In addition, the FAX30 has the capability of being connected to a standard PC with an Ethernet card.

The unit itself receives valuable weather images and navigational information. When connected to a 10.4" NavNet display, the image and information are displayed directly on the screen, with softkey menu options for ease of use. On a PC, the images and information are displayed by simply using your Web Browser. There is no complicated proprietary software to install or learn. You can even print all of the information using your PC and printer!

Combine the FAX30 with NavNet's true color Radar and you have the ultimate in weather tracking. Now you can navigate more safely even during uncertain conditions.

Features:

• Cost-effective paperless weather fax and Navtex receiver
• Connect directly to a 10.4" NavNet display or through an Ethernet hub
• Connect to a generic PC equipped with Ethernet
• Selectable display colors: 8 grey tones, monochrome, blue shades, pink and black, red and blue
• User-friendly softkey menu operation on NavNet display
• Web browser navigation on generic PC, no proprietary software required
• Print images and messages from generic PC and printer
• Store a maximum of 12 weather fax images (depending on file size)
• Navtex messages can be retrieved in a table listing of up to 130 stored files
• Stored images/messages can be shown at any time
• 320 user-programmed channels
• Noise rejection for clear image
• Thumbnail view for easy selection of stored images
• Phase and synchronization adjustments even after completed reception
• Fax Frequency Range: LF - 80 kHz to 160 kHz, MF/HF - 2 MHz to 25 MHz
• Navtex
• Frequency Range: 490 kHz or 518 kHz
• 1,000 channels
• Fax Mode of Reception: F3C, J3C
• Navtex Mode of Reception: F1B
• Waterproof- IEC 60529

Shipping Information:

• 8 lbs.
• 1 Carton

Power Requirements:

• 12-24V DC
• 15W Maximum

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

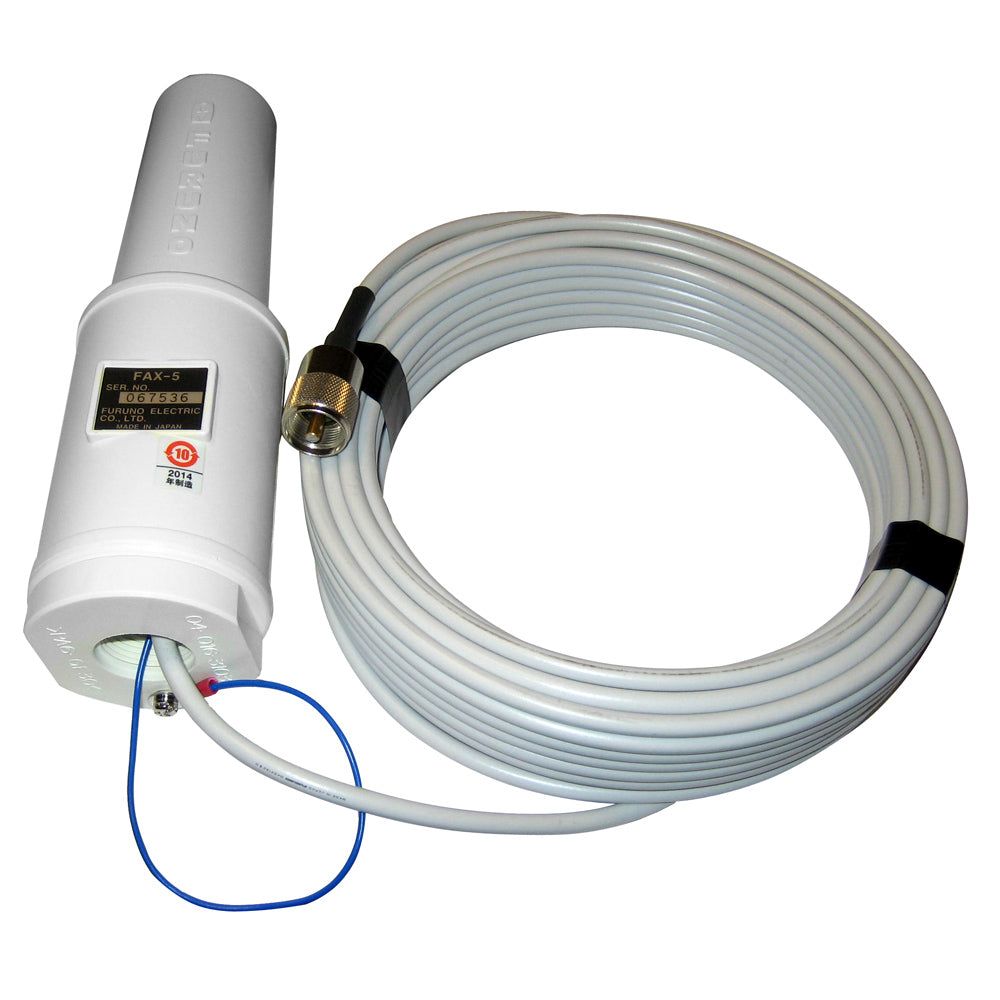

Furuno Fax5 Active Coupler [FAX5]

Active Coupler with 15 Meter Interconnect Cable. Range: 80kHz to 30mHz

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

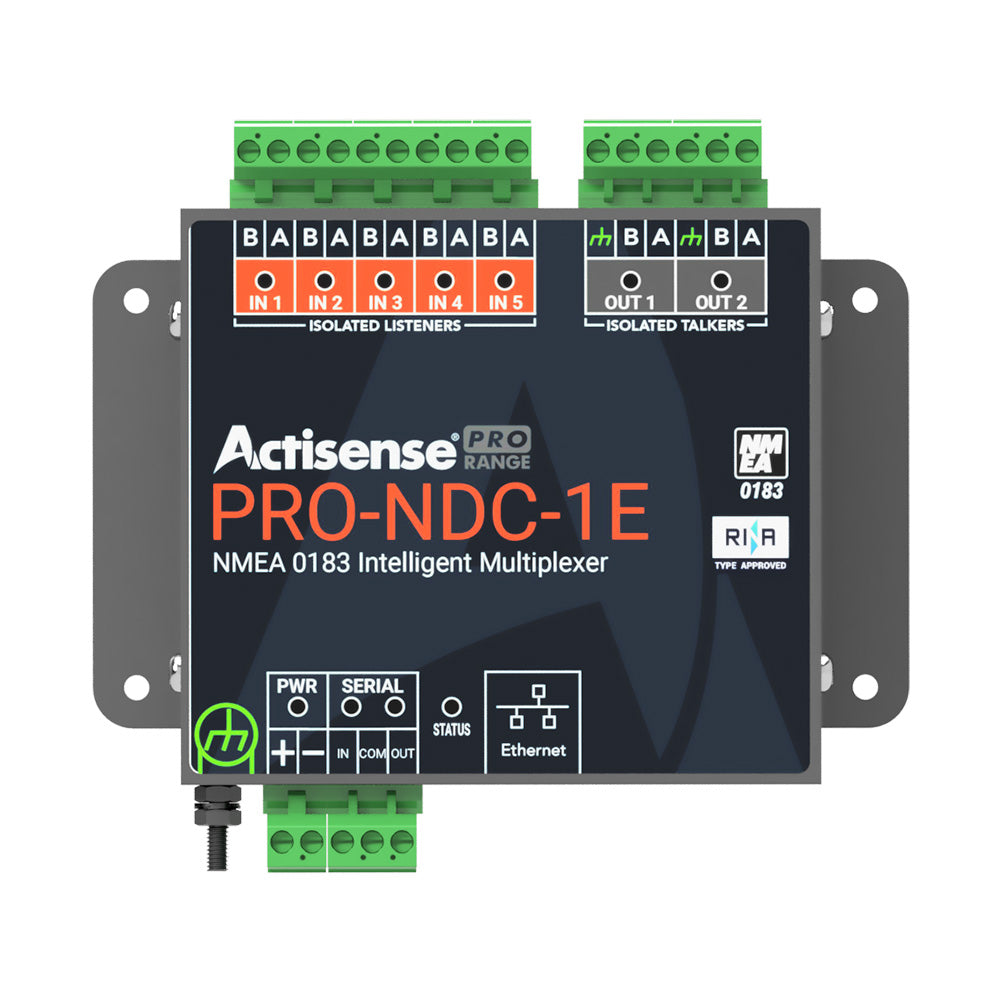

Actisense PRO NMEA 0183 Multiplexer - 5 Inputs  2 ISO-Drive Outputs, Ethernet  Serial Connections [PRO-NDC-1E]

PRO NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet & Serial Connections

The PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…

Rugged, Robust, type-approved multiplexer with powerful, advanced features enables baud rate adjustments, auto-switching, and sentence-level filtering.

Features:

• Auto-switching between inputs to allow for a primary, secondary, and tertiary priority input.
• Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
• Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
• Easy to configure using the web-based UI, no need to manually enter and edit strings of text.
• RINA type-approved device means the multiplexer is fit for leisure, commercial, and class/type installations.
• Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
• NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
• 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
• Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology)
• A serial port can be used as an additional input/output
• Ethernet port supports direct and network connections
• NMEA 0183 streaming via Ethernet
• Configurable input and output baud rates
• Allows Data combining and rate conversion
• 2 independent Autoswitch virtual inputs with priority
• Isolation from battery supply
• Diagnostic LED’s
• Optional DIN rail mount
• Type Approved
• Quick and easy to install
• Configuration using a standard web browser, no PC operating system compatibility issues
• Advanced features solve NMEA 0183 data routing problems
• Fully isolated with ISO-Drive technology for peace of mind
• Easy firmware updates make the device future-proof

Technical Specifications:

Power Supply

• Input supply voltage - 9 to 35 V DC
• Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
• Input protection - Continuous reverse polarity, transient overvoltage, and ESD protection
• Power indicator - LED, Blue – indicates unit is functioning correctly
• Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker

• Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners
• Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers
• Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible
• Speed/baud rate - 4800 to 38400 bps
• Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
• Talker Output Current Drive - 20 mA maximum per output
• Talker Output Protection - Short circuit and ESD
• Talker Data Indicator - LED, Orange (Flashes with data rate)
• Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection
• Listener Data Indicator - LED, Green (Flashes with data rate)
• Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port

• Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible
• Speed/baud rate - 115200 bps
• Output voltage drive - >= 2.1V (differential) into 100 ohms
• Output current drive - 20 mA max
• Output protection - Short circuit and ESD
• Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Input protection - Current limited, overdrive protection to 40 VDC, and ESD protection
• Data Indicators - LED’s: Green = Receive, Orange = Transmit
• Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port

• Host interface - 10/100BaseT, automatic polarity detection
• Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
• Connector - RJ45
• Indicators - Green – Link, Yellow – 100 Mbps

Isolation

• NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V
• NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Ethernet Port - 2kv for 60s

Mechanical

• Housing Material - 316 Stainless Steel
• Dimensions - 139mm (W) x 98mm (H) x 26mm (D)
• Weight - 360g
• Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

• EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
• Compass Safe Distance - 300mm
• Type Approval Certificate - RINA
• Operating Temperature - -25 to +70°C
• Storage Temperature - -40 to +85°C
• Relative Humidity (RH) - 95% @ 55°C
• Environmental Protection - IP40
• Guarantee - 3 years (5 Years if registered)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Data Interface: NMEA 0183
• Box Dimensions: 2"H x 6"W x 10"L WT: 1 lbs
• UPC: 5060998710577

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

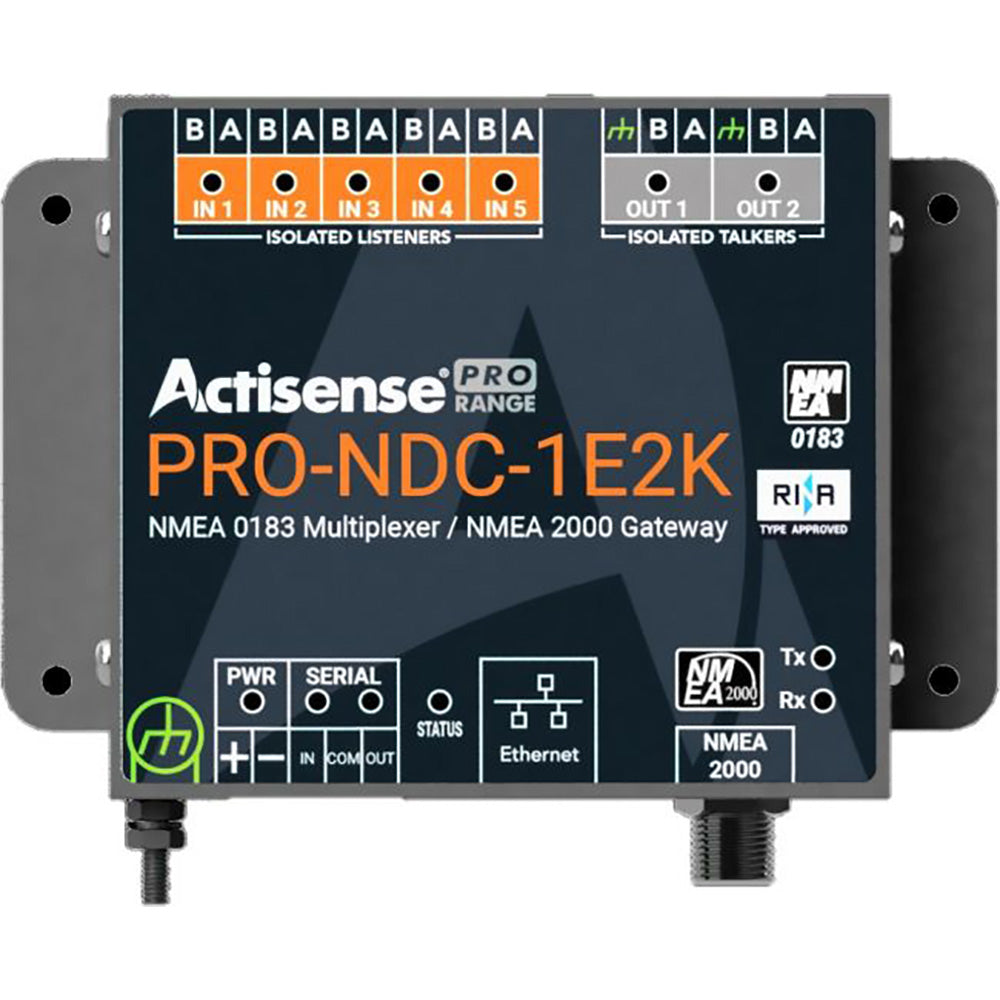

Actisense PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway [PRO-NDC-1E2K]

PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway

Interconnectivity, reimagined!

The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…

Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.

Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K

Features:

• Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
• Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
• Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
• Easy to configure using the web based UI, no need to manually enter and edit strings of text.
• RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
• Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
• Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.
• Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.
• NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
• NMEA 2000 data streaming over Ethernet.
• 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
• Type-approved (RINA).
• NMEA 0183 Ethernet streaming
• NMEA 2000 Ethernet streaming
• NMEA 2000 output via M12
• 5x Configurable Opto-isolated NMEA 0183 inputs.
• 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
• 1x Bi-directional, configurable, isolated serial port.
• Automatic baud rate matching on inputs.
• Advanced data filtering / routing.
• Free firmware updates making the device future-proof.
• Diagnostic LEDs on all inputs and outputs.
• Bi-colour status LED.
• Panel mountable.
• Stainless Steel housing for added durability
• Quick and easy to install
• Configuration using standard web browser, no PC operating system compatibility issues
• Advanced features solve NMEA 0183 data routing problems
• Fully isolated with ISO-Drive technology for peace of mind
• Easy firmware updates make the device future-proof
• Type Approved (RINA)

Technical Specifications:

Power Supply

• Input supply voltage - 9 to 35 V DC
• Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
• Input protection - Continuous reverse polarity, transient overvoltage and ESD protection
• Power indicator - LED, Blue – indicates unit is functioning correctly
• Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker

• Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners
• Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers
• Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
• Speed / baud rate - 4800 to 38400 bps
• Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
• Talker Output Current Drive - 20 mA maximum per output
• Talker Output Protection - Short circuit and ESD
• Talker Data Indicator - LED, Orange (Flashes with data rate)
• Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
• Listener Data Indicator - LED, Green (Flashes with data rate)
• Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port

• Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
• Speed / baud rate - 115200 bps
• Output voltage drive - >= 2.1V (differential) into 100 ohm
• Output current drive - 20 mA max.
• Output protection - Short circuit and ESD
• Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Input protection - Current limited, overdrive protection to 40 VDC and ESD protection
• Data Indicators - LED’s: Green = Receive, Orange = Transmit
• Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port

• Host interface - 10/100BaseT, automatic polarity detection
• Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
• Connector - RJ45
• Indicators - Green – Link, Yellow – 100 Mbps

NMEA 2000 Port

• Compatibility - NMEA 2000 Certification Pending
• Speed / baud rate - 250 kbps
• Connectivity - M12 male (A-coded) connector

Isolation

• NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V
• NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Ethernet Port - 2kv for 60s
• NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V

Mechanical

• Housing Material - 316 Stainless Steel
• Dimensions - 139mm (W) x 98mm (H) x 26mm (D)
• Weight - 360g
• Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

• EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
• Compass Safe Distance - 300mm
• Type Approval Certificate - RINA
• Operating Temperature - -25 to +70°C
• Storage Temperature - -40 to +85°C
• Relative Humidity (RH) - 95% @ 55°C
• Environmental Protection - IP40
• Guarantee - 5 Years when registered

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Data Interface: NMEA 0183
• Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs
• UPC: 5060998710751

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

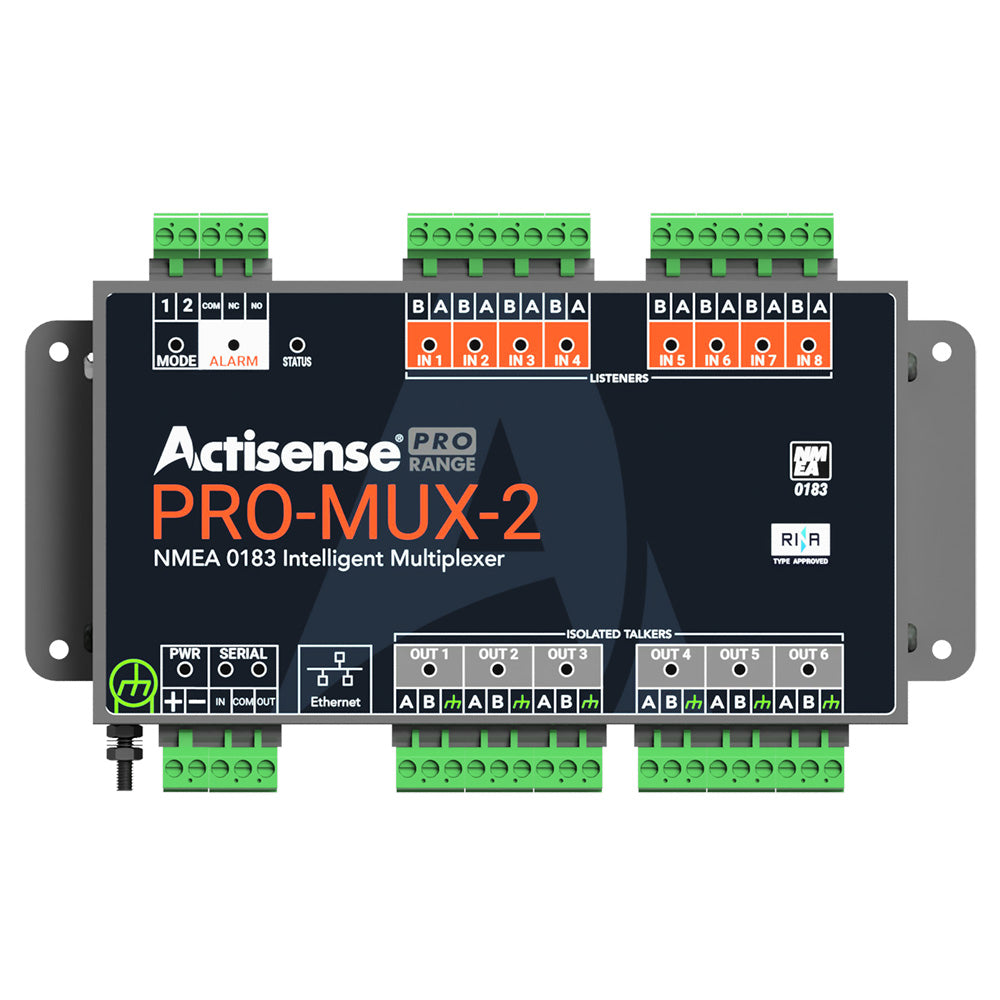

Actisense PRO NMEA 0183 Multiplexer [PRO-MUX-2]

PRO NMEA 0183 Multiplexer

Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.

The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.

The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.

Features:

• 8 OPTO-isolated NMEA 0183 inputs
  • 6 ISO-Drive NMEA 0183 outputs
  • Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
  • 0183 streaming via Ethernet
  • Alarm output (N/O and N/C contacts)
  • Designed for 12- and 24-Volt supply
  • Isolation to battery supply
  • Configurable input and output baud rates for rate conversion
  • Data combining from any input to any output
  • 2 independent Autoswitch virtual inputs with priority
  • Advanced sentence-based filtering / routing
  • Diagnostic LEDs on all inputs and outputs
  • Alarm, mode and Bi-colour Status LED’s
  • 2-part pluggable connector system supports both screw and screwless terminals
  • DIN rail or Panel mountable
  • Advanced statistics are available via a Web Browser
• Quick and easy to install
• Configuration using standard web browser, no PC operating system compatibility issues
• Advanced features solve NMEA 0183 data routing problems
• Fully isolated with ISO-Drive technology for peace of mind
• Easy firmware updates makes the device future-proof

Technical Specifications:

Power Supply

• Input Supply Voltage - 9 to 35 V DC
• Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
• Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection
• Power Indicator - LED, Blue – indicates unit is functioning correctly
• Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker

• Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners
• Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers
• Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
• Speed / baud rate - 4800 to 38400 bps
• Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
• Talker Output Current Drive - 20 mA maximum per output
• Talker Output Protection - Short circuit and ESD
• Talker Data Indicator - LED, Orange (Flashes at data rate)
• Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
• Listener Data Indicator - LED, Green (Flashes to indicate valid input)
• Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port

• Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
• Speed / baud rate - 4800 to 115200 bps
• Output Voltage Drive - >= 2.1V (differential) into 100 ohm
• Output Current Drive - 20 mA max.
• Output Protection - Short circuit and ESD
• Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
• Data Indicators - LED’s: Green = Receive, Orange = Transmit
• Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port

• Host Interface - 10/100BaseT, automatic polarity detection
• Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
• Indicators - Green = Link/Activity, Yellow = 100 Mbps
• Connector - RJ45

Isolation

• NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V
• NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V
• Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V
• Alarm Relay - Hi-Pot tested to 1000V
• Ethernet Port - 2kV for 60s

Mode Inputs

• Input Voltage Range - 0 to 35V DC
• Protection - Transient overvoltage and ESD protection
• Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Alarm Output

• Contacts - Common, Normally Open and Normally Closed
• Alarm Indicator - LED, Red indicates a valid alarm condition
• Contact Ratings - 35VAC / 50VDC
• Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Mechanical

• Housing Material - 316 Stainless Steel
• Dimensions - 210mm (W) x 128mm (H) x 27mm (D)
• Weight - 540g
• Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

• Compass Safe Distance - 175mm
• Type Approval Certificate - RINA
• Operating Temperature - -25 to +70°C
• Storage Temperature - -40 to +85°C
• Relative Humidity (RH) - 95% @ 55°C
• Environmental Protection - IP40
• Guarantee - 5 Years

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Data Interface: NMEA 0183
• Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs
• UPC: 5060998710584

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

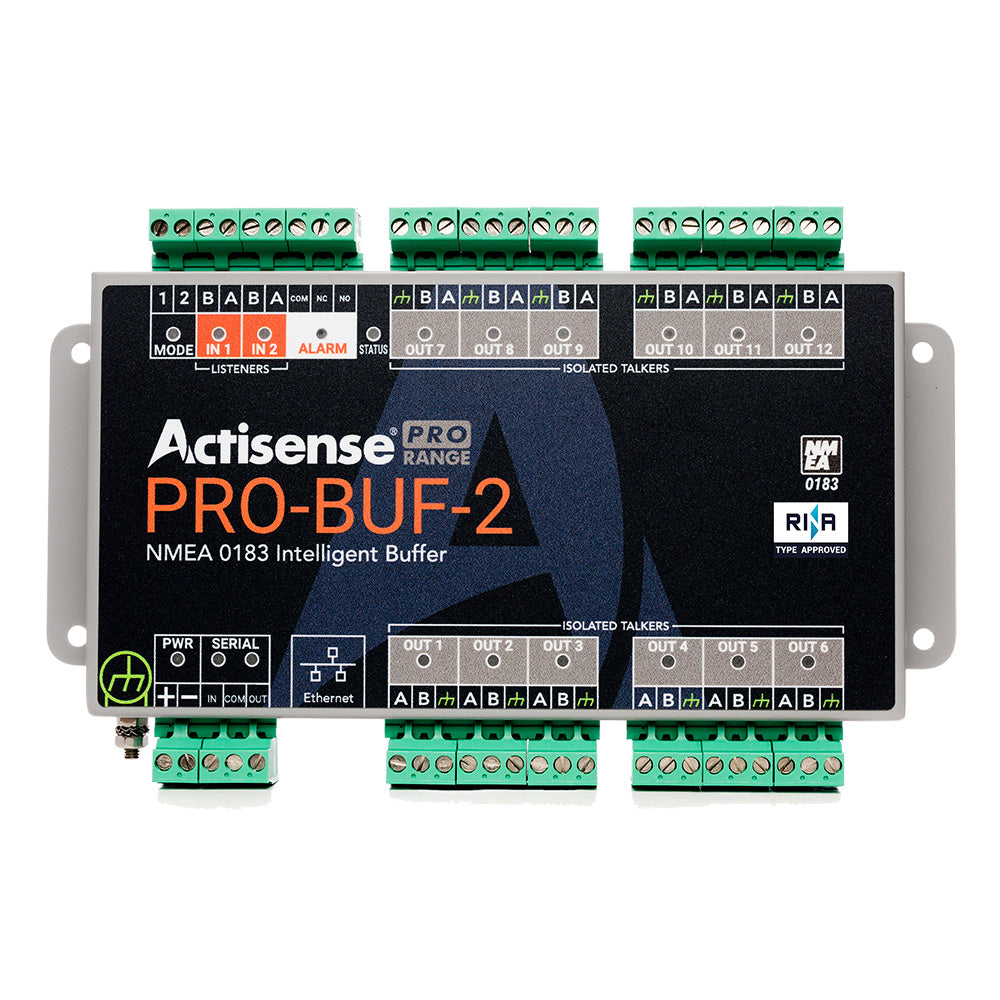

Actisense PRO NMEA 0183 Buffer - 2 OPTO Inputs, 12 ISO-Drive Outputs, Serial Port, Ethernet Port, Pluggable Screw Terminal [PRO-BUF-2]

PRO NMEA 0183 Buffer - 2 OPTO Inputs, 12 ISO-Drive Outputs, Serial Port, Ethernet Port, Pluggable Screw Terminal

Two OPTO-isolated inputs and twelve ISO-Drive™ isolated outputs. Offering device protection and excellent flexibility, all in one product - the Actisense® PRO-BUF-2, the intelligent, type-approved PRO range buffer.

The PRO-BUF-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With two NMEA 0183 inputs, twelve NMEA 0183 outputs, a bi-directional serial port, and an Ethernet port, the PRO-BUF-2 is a perfect solution for larger leisure vessels, commercial shipping, and is a great addition for systems that require type-approved devices.

The PRO-BUF-2 is designed to suit the majority of NMEA 0183 systems and is ready to go ‘out of the box’ by simply hard-wiring the two-mode inputs as required.

The Intelligent NMEA 0183 Buffer's manually configurable basic modes of operation include variations of buffer modes, intelligent auto-switch, and combine modes.

For all other configurations, leaving the mode inputs floating selects the ‘User Configuration Mode’. The web-based configuration tool allows full customisation of the PRO-BUF-2, and is compatible across all popular Operating Systems. Using the web-based configuration tool allows for fine-tuning of the data available on each output.

To make installation quick and simple, the PRO-BUF-2 features 2-part pluggable connectors that allow the use of screw terminals*, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead.

Helpful LEDs indicate power, data in, data out, and the alarm status to aid diagnostics.

Data statistics and load indication via the web tool provide a real-time view of data.

Features:

• 2 Opto-Isolated inputs
• 12 ISO-Drive NMEA 0183 outputs
• Ethernet Port
• Flexible operating modes
• Automatic Baud Rate matching on inputs
• Alarm output options
• Web-based configuration tool
• Diagnostic LEDs
• Advanced Data Filtering and Routing
• 2 virtual Autoswitch modules
• Data statistics and load indication via a web tool
• Designed for a 12 / 24 Volt supply
• Future-proofing with easily upgradable firmware
• 2-part pluggable connector system
• Stainless Steel Housing with DIN rail mount option
• Type Approved
• Flexible configuration options to buffer autoswitch or combine NMEA data
• ISO-Drive separates the Listener from the Talker to protect both the PRO-BUF and each connected device.
• Fast bi-directional data connection to a monitor and control software application
• PRO-BUF can be configured using any web browser on any Operating system
• Works out-of-the-box without configuration for basic installations, or can be easily user-configured as required
• Relay output is compatible with on-board alarm systems, and the NMEA Alarm sentence can be displayed and actioned on an MFD
• Easy to access via network, doesn’t require the device to be moved or have a serial connection to the PC.
• A quick visual check gives the user confidence that each input and output is passing data
• Features can be utilised to fine-tune data, avoiding data overloads on the outputs and connected listeners
• Allows automatic data priority selection between two devices of the same type of data (e.g., GPS)
• Shows the NMEA 0183 on each I/O Port, and how frequently it arrives, great for low-level diagnostics
• Allows use on large vessel 24V DC power supply systems
• Additional features in future firmware revisions are accessed using a simple update process via Actisense Toolkit over Ethernet
• Fast installations and supports both screw and screwless terminal types. Ideal for quick diagnostic swapping
• Increased durability, ease of installation, and high performance
• Can be installed on vessels governed by Class Society Rules
• Type Approved (RINA)

Technical Specifications:

Power Supply

• Input Supply Voltage - 9 to 35 V DC
• Input Supply Current - 325mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
• Input Protection - Continuous reverse polarity, transient overvoltage, and ESD protection
• Power Indicator - LED, Blue – indicates unit is functioning correctly
• Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch

NMEA 0183 Port – Listener & Talker

• Number of Listener / Input Ports - 2 isolated NMEA 0183 Listeners
• Number of Talker / Output Ports - 12 isolated NMEA 0183 Talkers
• Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible
• Speed/baud rate - 4800 to 38400 bps
• Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
• Talker Output Current Drive - 20 mA maximum per output
• Talker Output Protection - Short circuit and ESD
• Talker Data Indicator - LED, Orange (Flashes at data rate)
• Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection
• Listener Data Indicator - LED, Green (Flashes to indicate valid input)
• Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch

Serial Port

• Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible
• Speed/baud rate - 4800 to 115200 bps
• Output Voltage Drive - >= 2.1V (differential) into 100 ohms
• Output Current Drive - 20 mA max.
• Output Protection - Short circuit and ESD
• Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection
• Data Indicators - LED’s: Green = Receive, Orange = Transmit
• Connectors - Pluggable 3-way screw terminals, 5.08mm pitch

Ethernet Port

• Host Interface - 10/100BaseT, automatic polarity detection
• Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
• Indicators - Green = Link/Activity, Yellow = 100 Mbps
• Connector - RJ45

Isolation

• NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V
• NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Alarm Relay - Hi-Pot tested to 1000V
• Ethernet Port - 2kV for 60s

Mode Inputs

• Input Voltage Range - 0 to 35V DC
• Protection - Transient overvoltage and ESD protection
• Connectors - Pluggable 2-way screw terminals, 5.08mm pitch

Alarm Output

• Contacts - Common, Normally Open and Normally Closed
• Alarm Indicator - LED, Red indicates a valid alarm condition
• Contact Ratings - 35VAC / 50VDC
• Connectors - Pluggable 3-way screw terminals, 5.08mm pitch

Mechanical

• Housing Material - 316 Stainless Steel
• Dimensions - 210mm (W) x 128mm (H) x 27mm (D)
• Weight - 530g
• Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

• EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
• Compass Safe Distance - 750mm
• Type Approval Certificate - RINA
• Operating Temperature - -25 to +70°C
• Storage Temperature - -40 to +85°C
• Relative Humidity (RH) - 95% @ 55°C
• Environmental Protection - IP40
• Guarantee - 5 Years

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Data Interface: NMEA 0183
• Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs
• UPC: 5060998710522

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

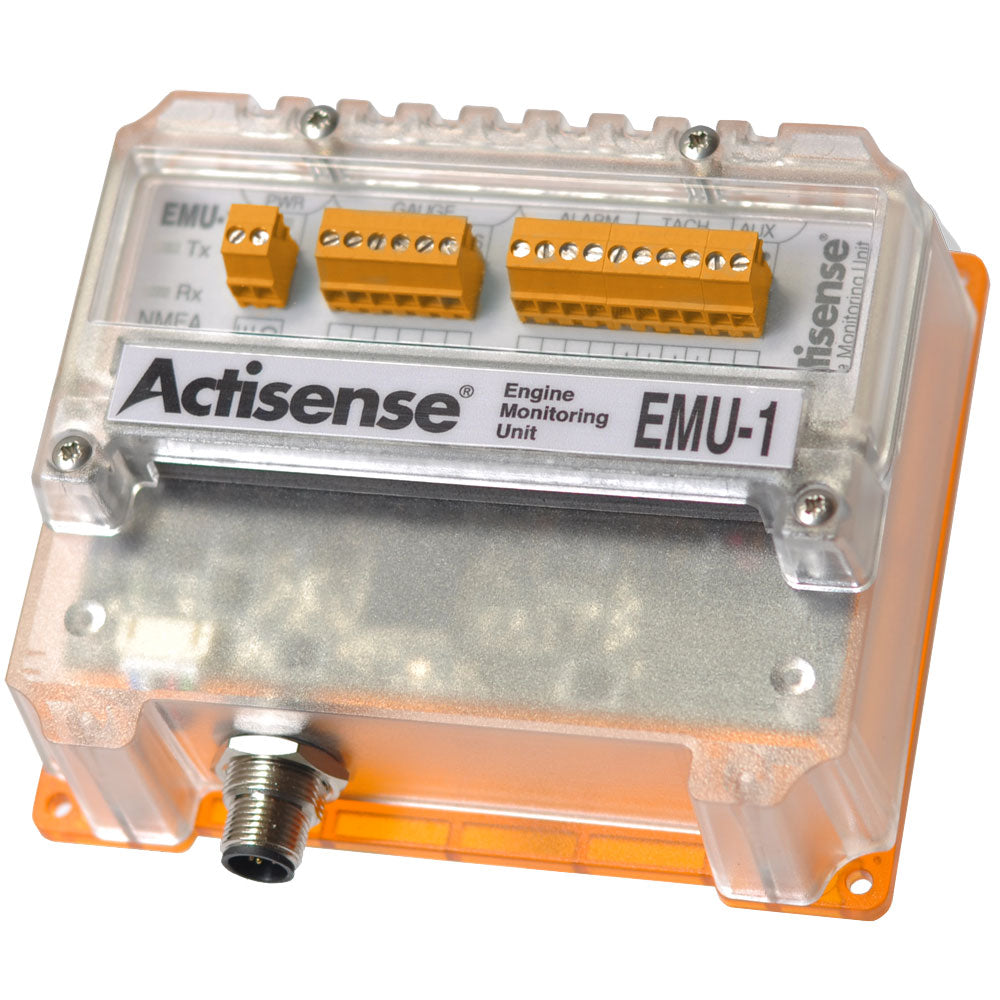

Actisense NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine Gateway [EMU-1-BAS]

NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine Gateway

Share engine information on the NMEA 2000 bus.

The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.

The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.

The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.

An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.

The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.

Features:

• Enables analogue signals to be converted to NMEA 2000 messages
• Convert signals from up to two engines (that share a common ground) with a single EMU-1
• 6 gauge / parameter inputs
• 4 alarm inputs
• 2 additional auxiliary inputs
• 2 Tacho inputs
• Customized IP65 case
• Diagnostic LED’s
• Wide power compatibility of 9 to 35VDC
• No need to change an existing engine
• Easy installation
• Easy to configure to suit the connected engine
• Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000®
• Optional DIN rail mounting kit available
• Total engine hours are logged by the monitoring of engine Tach (RPM) input

Technical Specifications:

Power Supply

• Supply Voltage - 9 to 35VDC
• Supply Current - Typically < 25mA @ 12VDC
• Supply Protection - Continuous reverse polarity protection and load dump protection (meets SAE J1113)
• Supply Connector - Pluggable 2-way screw terminal, 3.5mm pitch
• Supply Voltage (NMEA 2000 Port) - 9 to 29VDC
• Supply Current (NMEA 2000 Port) - < 20mA @ 12VDC from NMEA 2000 bus
• Load Equivalent Number (LEN) - 1
• Supply Protection (NMEA 2000 Port) - Continuous reverse polarity protection and overvoltage protection to 40V

NMEA 2000 Port – In/Out

• Compatibility - Fully NMEA 2000 certified
• Galvanic Isolation - 2500V input to ground, 1500V output to ground using ISO-Drive
• Speed / Baud Rate - 250kbps
• NMEA 2000 Connector - M12 male (A coded) connector

Gauge Inputs

• Voltage Range - 0 to 35VDC
• Input Impedance - > 50kΩ
• Sender Feed - 0, 4 or 18mA
• Accuracy - <= 2%
• Input Connector - Pluggable 6-way screw terminal, 3.5mm pitch
• Input Protection - Overvoltage protection to ±40V

Alarm Inputs

• Voltage Range - 0 to 37VDC
• Input Impedance - > 50kΩ
• Threshold Voltage - Configurable, default is 5V
• Alarm Polarity - Configurable, default is alarm on low input
• Accuracy - <= 2%
• Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch
• Input Protection - Overvoltage protection to ±40V

Tacho Inputs

• Voltage Range - ±3 to ±60V
• Input Impedance - > 100kΩ to ground
• Input Pulse Range - 4 to 50,000Hz
• Accuracy - <= 1%
• Sender Compatibility - Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender
• Threshold - Automatically adjusts to signal level
• Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch
• Input Protection - Can withstand an ignition pulse to ±500V

Engine Log

• Engine Hours - 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memory

Mechanical

• Housing Material - Polycarbonate
• Protective Lid Material - Polycarbonate
• Sealing Materials - Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent
• Dimensions - 127mm (L) x 112mm (W) x 48mm (H)
• Weight - 250g
• Mounting - 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request

Approvals and Certifications

• EMC - EN 60945 (sections 9 & 10)
• Environmental Protection - IP66 (PCB housing)
• Operating Temperature - -20°C to +55°C
• Storage Temperature - -30°C to +70°C
• Recommended Humidity - 0 – 93% RH
• Guarantee - 3 years

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Data Interface: NMEA 2000
• Box Dimensions: 3"H x 6"W x 9"L WT: 1 lbs
• UPC: 5060998710331

Owner's Manual (pdf)
Brochure (pdf)
