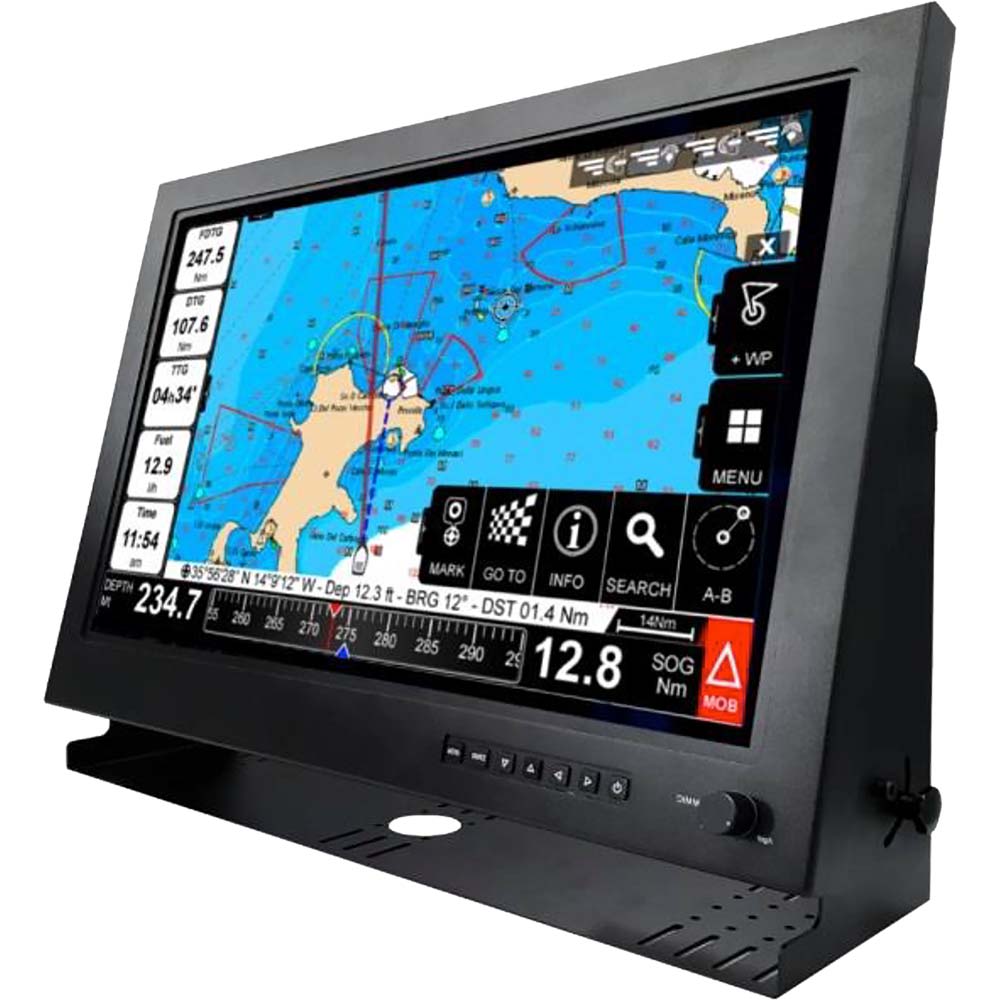

Seatronx 19.0" TFT LCD Industrial Display [IND-19]

Ships Direct From Manufacturer

19.0" TFT LCD Industrial Display

The Seatronx IND Series – Unmatched picture quality with a ruggedized look at an outstanding price. Extreme environments demand ruggedized dependability. With the IND commercial marine display, you’re in complete control with easy-to-use controls, source selection, and dimming capabilities. Heavy-duty mount bracket and AC DC control come standard on 19″ or 24″ displays.

Features:

• Mounting - VESA/Flush/U-Bracket mounted
• Dimensions -  14.96”(W)x17.51”(H)x2.23”(D)
• 2-year warranty
• Black & Dark Grey case colors
• Panel Surface - Anti-Glare Coating with Tempered Glass

Technical Specifications:

• LCD Type - TFT Active Matrix LCD (16.7 Million colors)
• Display Size - 19.0”
• Resolution - 1280x1024 (SXGA)
• Contrast Ratio - 1000:1
• Brightness - LED Backlight Type - 1,500 nit (min.)
• Inputs - DVI, VGA, HDMI (With PIP/POP)
• View Angle - 170(H) 170 (V)
• Response Time - 3m/sec
• Light Source - Light Emitting Diodes
• Input Voltage - 10 to 38VDC Power Input, AC/DC brick power supply included
• Power Consumption - 34W
• Operating Range -10C - 60C
• IP Rating - Front Side: IP65, Rear Side: IP32
• Dimming Range - 1000:1 (dimming control to dark to full bright)
• Weight - 13.67 LBS(6.2Kg)

Specifications:

• AC/DC: Both
• Resolution (VxH): 1280x1024
• Screen Size: 19"
• Touchscreen: Yes

Brochure (pdf)

Seatronx 15" Sunlight Readable Touch Screen Display [SRT-15]

Ships Direct From Manufacturer

15" Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 14.295" x 12.02" x 2.28"
• Cutout Dimensions -  13.58" x 11.30" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 15"
• Native Resolution (Pixels) - 1024x768
• Contrast Ratio - 700:1
• Brightness - 1800
• Viewing Angle (left, right) - 80, 80
• Viewing Angle (up, down) - 60, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 2.8
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 85

Specifications:

• AC/DC: DC
• Amperage: 2.8
• Resolution (VxH): 1024x768
• Screen Size: 15"
• Touchscreen: Yes
• Box Dimensions: 6"H x 17"W x 24"L WT: 15 lbs
• UPC: 850036822028

Quick Guide (pdf)
Owner's Manual (pdf)

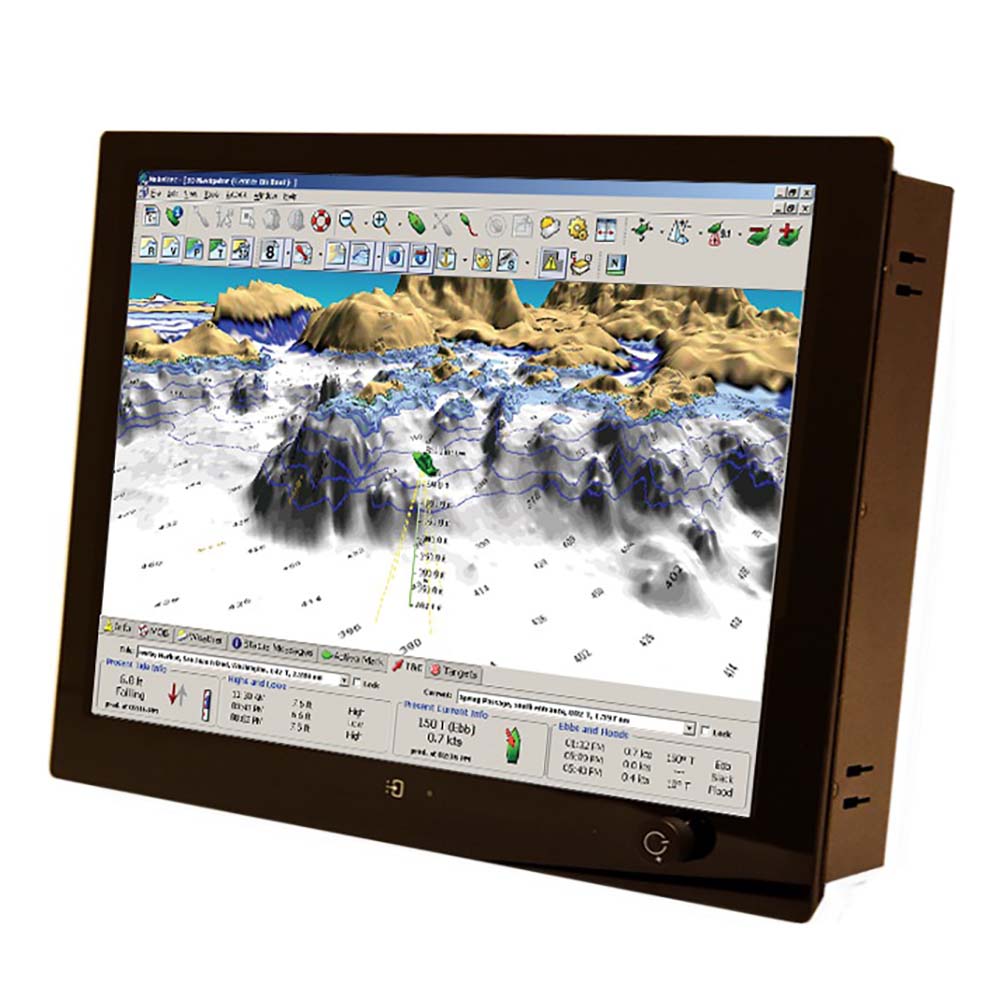

Seatronx 15" Wide Screen Sunlight Readable Touch Screen Display [SRT-15W]

Ships Direct From Manufacturer

15" Wide Screen Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 15.89" x 10.72" x 2.28"
• Cutout Dimensions -  15.18" x 10.01" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 15.6"
• Native Resolution (Pixels) - 1920x1080
• Contrast Ratio - 1500:1
• Brightness - 1500
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3.2
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -20 to 75
• Storage Temperature (°C) - -20 to 80

Specifications:

• AC/DC: DC
• Amperage: 3.2
• Resolution (VxH): 1920x1080
• Screen Size: 15"
• Touchscreen: Yes
• Box Dimensions: 6"H x 15"W x 24"L WT: 15 lbs
• UPC: 850036822066

Quick Guide (pdf)
Owner's Manual (pdf)

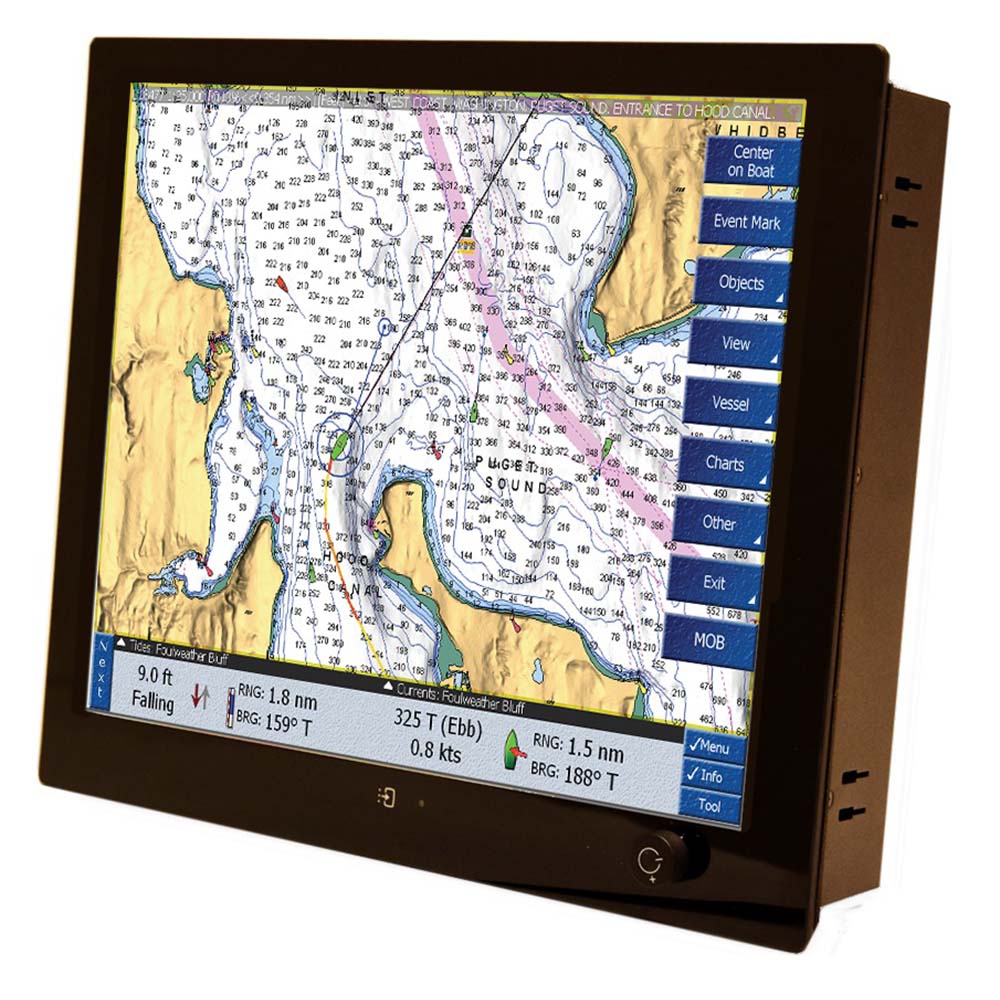

Seatronx 19" Pilothouse Touch Screen Display [PHT-19]

Ships Direct From Manufacturer

19" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 17.03" x 14.85" x 2.28"
• Cutout Dimensions -  16.32" x 14.14" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 19"
• Native Resolution (Pixels) - 1280x1024
• Contrast Ratio - 1000:1
• Brightness - 300
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - 0 to 70
• Storage Temperature (°C) - -20 to 70

Specifications:

• AC/DC: DC
• Amperage: 1.5
• Resolution (VxH): 1280x1024
• Screen Size: 19"
• Touchscreen: Yes
• Box Dimensions: 7"H x 22"W x 31"L WT: 22 lbs
• UPC: 850036822141

Quick Guide (pdf)
Owner's Manual (pdf)

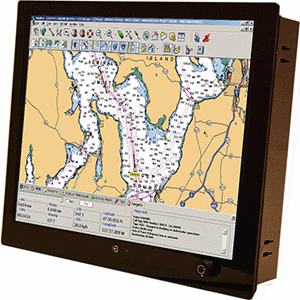

Seatronx 15" Pilothouse Touch Screen Display [PHT-15]

Ships Direct From Manufacturer

15" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 14.295" x 12.02" x 2.28"
• Cutout Dimensions -  13.58" x 11.30" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 15"
• Native Resolution (Pixels) - 1024x768
• Contrast Ratio - 700:1
• Brightness - 700
• Viewing Angle (left, right) - 80, 80
• Viewing Angle (up, down) - 60, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 2.8
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 85

Specifications:

• AC/DC: DC
• Amperage: 1.5
• Resolution (VxH): 1024x768
• Screen Size: 15"
• Touchscreen: Yes
• Box Dimensions: 6"H x 17"W x 24"L WT: 15 lbs
• UPC: 850036822127

Quick Guide (pdf)
Owner's Manual (pdf)

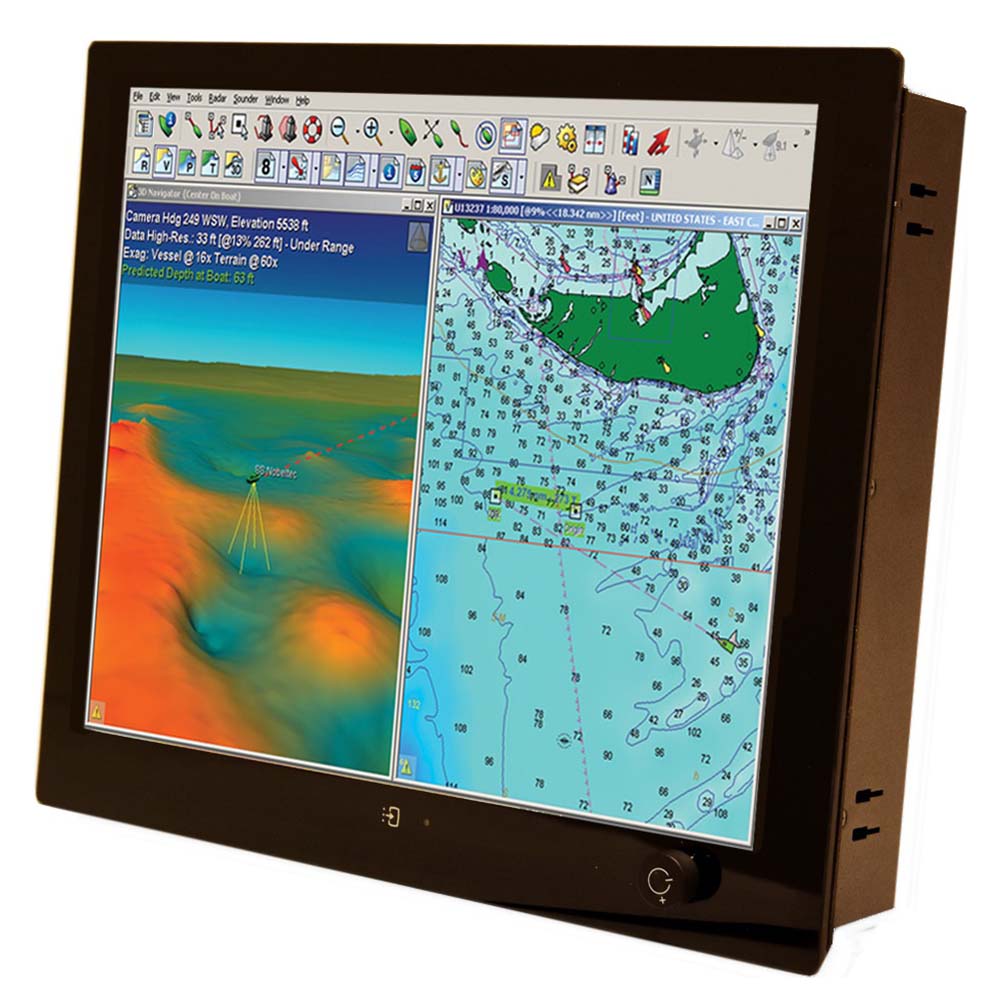

Seatronx 24" Sunlight Readable Touch Screen Display [SRT-24]

Ships Direct From Manufacturer

24" Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 23.11" x 15.91" x 2.28"
• Cutout Dimensions -  22.41" x 15.20" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 24.1"
• Native Resolution (Pixels) - 1920x1200
• Contrast Ratio - 1000:1
• Brightness - 1000
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - 0 to 50
• Storage Temperature (°C) - -20 to 60

Specifications:

• AC/DC: DC
• Amperage: 3.5
• Resolution (VxH): 1920x1200
• Screen Size: 24"
• Touchscreen: Yes

Quick Guide (pdf)
Owner's Manual (pdf)

Seatronx 18.5" Wide Screen Pilothouse Touch Screen Display [PHT-185W]

Ships Direct From Manufacturer

18.5" Wide Screen Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 18.35" x 12.1" x 2.40"
• Cutout Dimensions - 17.65" x 11.39" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 18.5"
• Native Resolution (Pixels) - 1920x1200
• Contrast Ratio - 1000:1
• Brightness - 300
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - 0 to 70
• Storage Temperature (°C) - -20 to 70

Specifications:

• AC/DC: DC
• Amperage: 1.5
• Resolution (VxH): 1920x1200
• Screen Size: 18.5"
• Touchscreen: Yes

Quick Guide (pdf)
Owner's Manual (pdf)

Seatronx 15" Wide Screen Pilothouse Touch Screen Display [PHT-15W]

Ships Direct From Manufacturer

15" Wide Screen Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 15.89" x 10.72" x 2.28"
• Cutout Dimensions -  15.18" x 10.01" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 15.6"
• Native Resolution (Pixels) - 1920x1080
• Contrast Ratio - 1500:1
• Brightness - 400
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3.2
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -20 to 75
• Storage Temperature (°C) - -20 to 80

Specifications:

• AC/DC: DC
• Amperage: 2
• Resolution (VxH): 1920x1080
• Screen Size: 15"
• Touchscreen: Yes

Quick Guide (pdf)
Owner's Manual (pdf)
