Seatronx 24" Wide Screen Pilothouse Touch Screen Display [PHT-24W-1080]

Ships Direct From Manufacturer

24" Wide Screen Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 23.57" x 15.07" x 2.40"
• Cutout Dimensions - 22.86" x 14.36" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 24"
• Native Resolution (Pixels) - 1920x1080
• Contrast Ratio - 1000:1
• Brightness - 350
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - 0 to 50
• Storage Temperature (°C) - -20 to 60

Specifications:

• AC/DC: DC
• Amperage: 1.8
• Resolution (VxH): 1920x1080
• Screen Size: 24"
• Touchscreen: Yes

Quick Guide (pdf)
Owner's Manual (pdf)

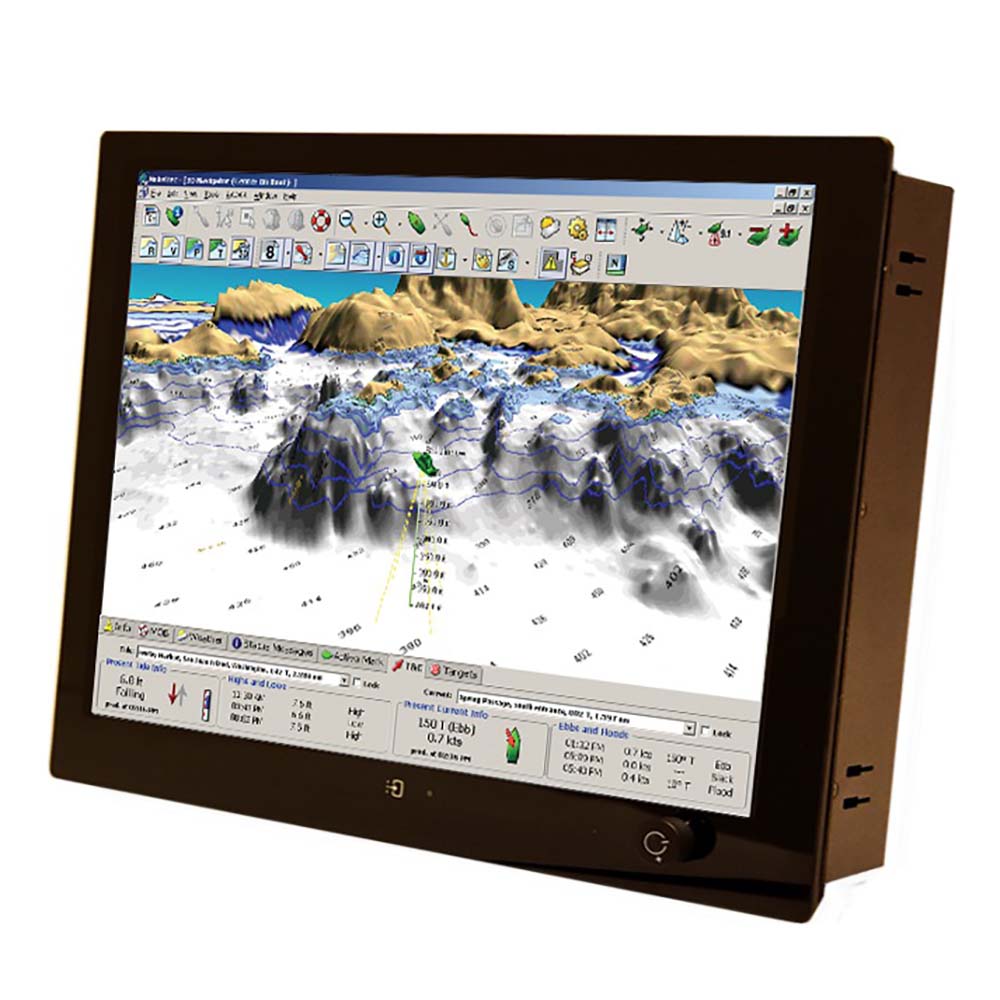

Seatronx 24" Wide Screen Sunlight Readable Touch Screen Display [SRT-24W-1080]

Ships Direct From Manufacturer

24" Wide Screen Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 23.57" x 15.07" x 2.40"
• Cutout Dimensions - 22.86" x 14.36" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 24"
• Native Resolution (Pixels) - 1920x1080
• Contrast Ratio - 1000:1
• Brightness - 1000
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - 0 to 50
• Storage Temperature (°C) - -20 to 60

Specifications:

• AC/DC: DC
• Amperage: 3.5
• Resolution (VxH): 1920x1080
• Screen Size: 24"
• Touchscreen: Yes

Quick Guide (pdf)
Owner's Manual (pdf)

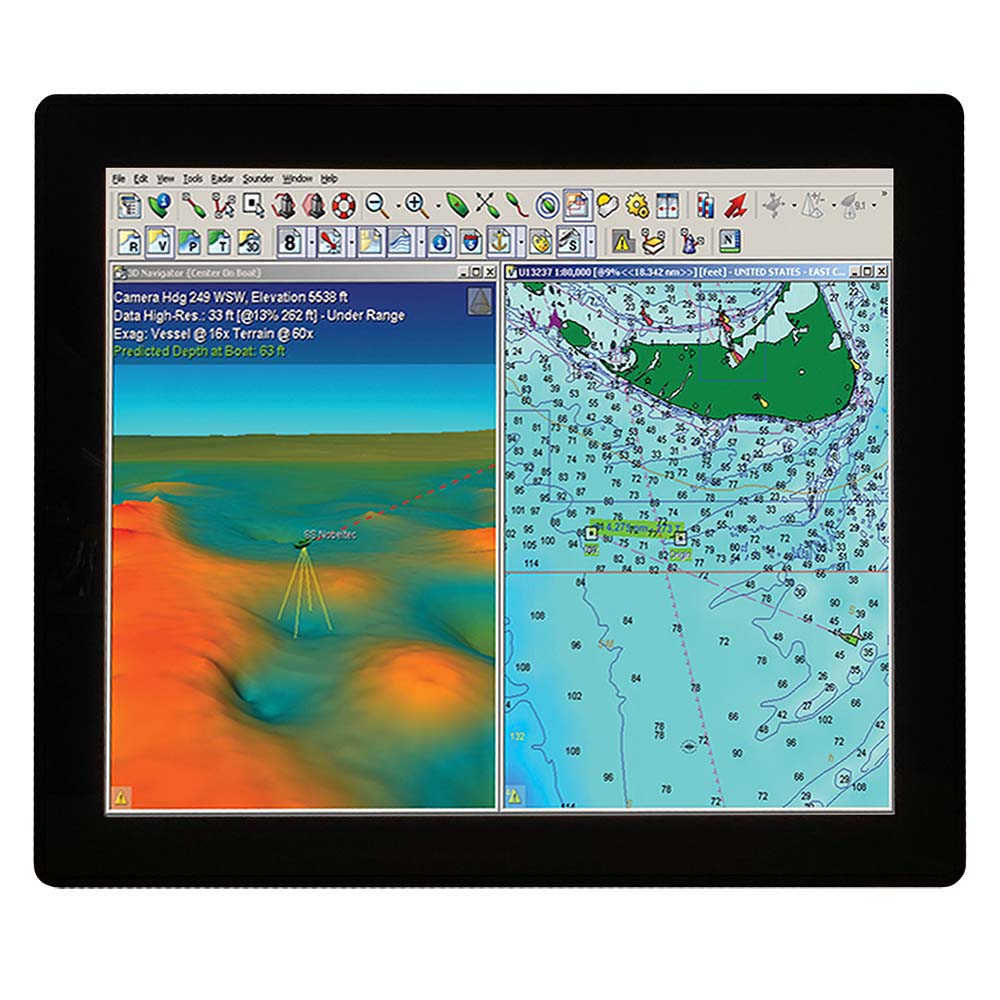

Seatronx 21.5" V Series Sunlight Readable Touch Screen Display [VSRT-21W]

Ships Direct From Manufacturer

21.5" V Series Sunlight Readable Touch Screen Display

The Seatronx V-Series is quite simply the greatest marine display available today. Designed to perfection from the inside and out, the Seatronx V-Series Display features superior picture quality with a clean, sleek design that’ll make even the toughest critic take notice.

The V-Series offers an amazing 9 inputs that eliminate the need for additional expensive switching systems. Now you can view cameras, vessel monitoring, navigation, communication computers, and the newest black box systems from Garmin and Furuno, from each display – saving you money while keeping your bridge looking sharp.

Features:

• Remote control VIA RS232 or IP
• Optical bonding
• Projected Capacitive touch
• Mounting - Panel Mount
• Dimensions front (w x h x d) - 20.981" x 12.950" x 3"
• Cutout Dimensions (w x h x d) - 20.409" x 12.403" x 3"
• IPS Technology
• Parameter adjustment - Remote Keypad
• Power on/off - Remote Keypad

Technical Specifications:

• Diagonal (active area) Inch - 21.5"
• Native Resolution (Pixels) - 1920x1080
• Contrast Ratio - 5000:1
• Sunlight Readable - 1000+
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Lifetime (Hrs) - 50,000+
• Inputs - 2xDVID, 2xVGA, 1xDP, 4xComp
• Power Source - 9-36V + and -
• Voltage Converter - 9-36V (isolated)
• Power consumption AMPS at 24vdc - 3.5
• Inlet plug dc power - Screw Terminal
• Sealing Front - IP65
• Operating temperature (°C) - 0 to +60
• Storage temperature (°C) - -20 to 70

Specifications:

• AC/DC: DC
• Amperage: 3.5
• Resolution (VxH): 1920x1080
• Screen Size: 21.5"
• Touchscreen: Yes

Quick Guide (pdf)
Owner's Manual (pdf)

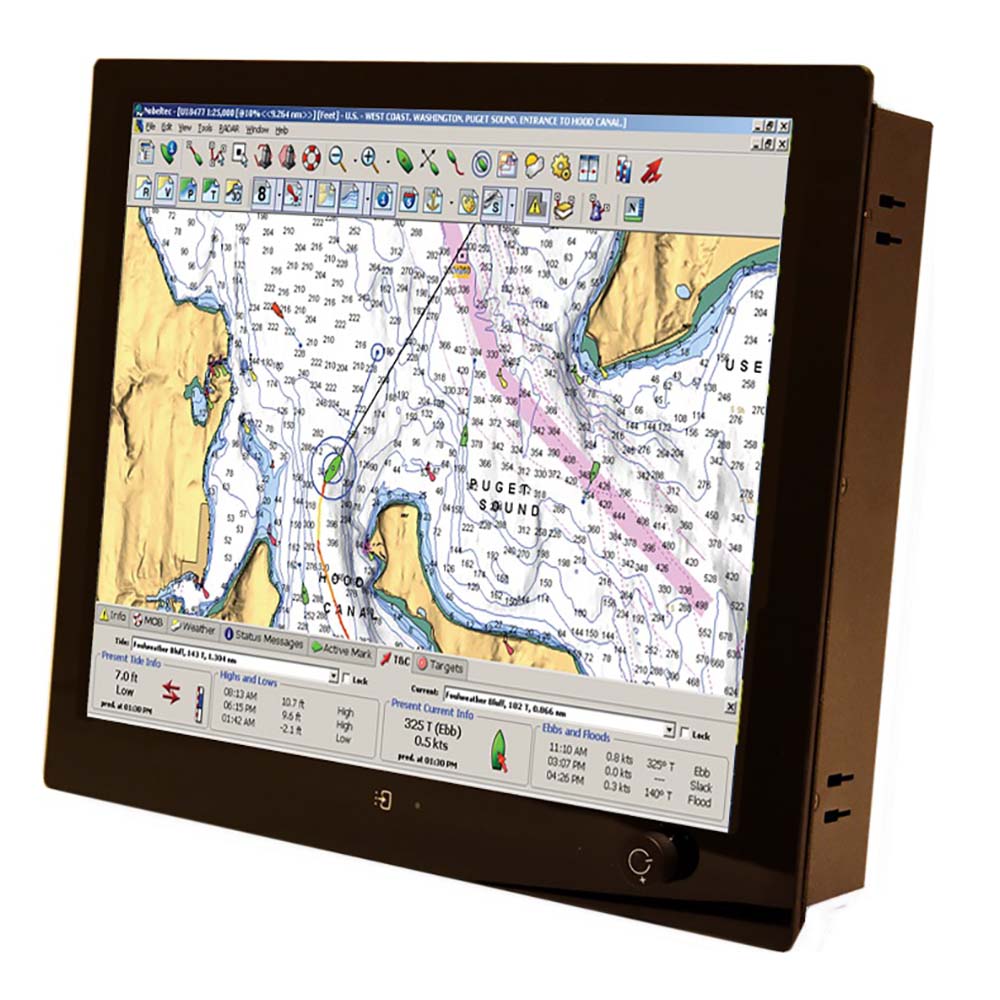

Seatronx 17" Pilothouse Touch Screen Display [PHT-17]

Ships Direct From Manufacturer

17" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 15.62" x 13.46" x 2.28"
• Cutout Dimensions -  14.92" x 12.75" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 17"
• Native Resolution (Pixels) - 1280x1024
• Contrast Ratio - 1000:1
• Brightness - 350
• Viewing Angle (left, right) - 85, 85
• Viewing Angle (up, down) - 80, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 3
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 85

Specifications:

• AC/DC: DC
• Amperage: 1.5
• Resolution (VxH): 1280x1024
• Screen Size: 17"
• Touchscreen: Yes
• Box Dimensions: 7"H x 22"W x 31"L WT: 20 lbs
• UPC: 850036822134

Quick Guide (pdf)
Owner's Manual (pdf)

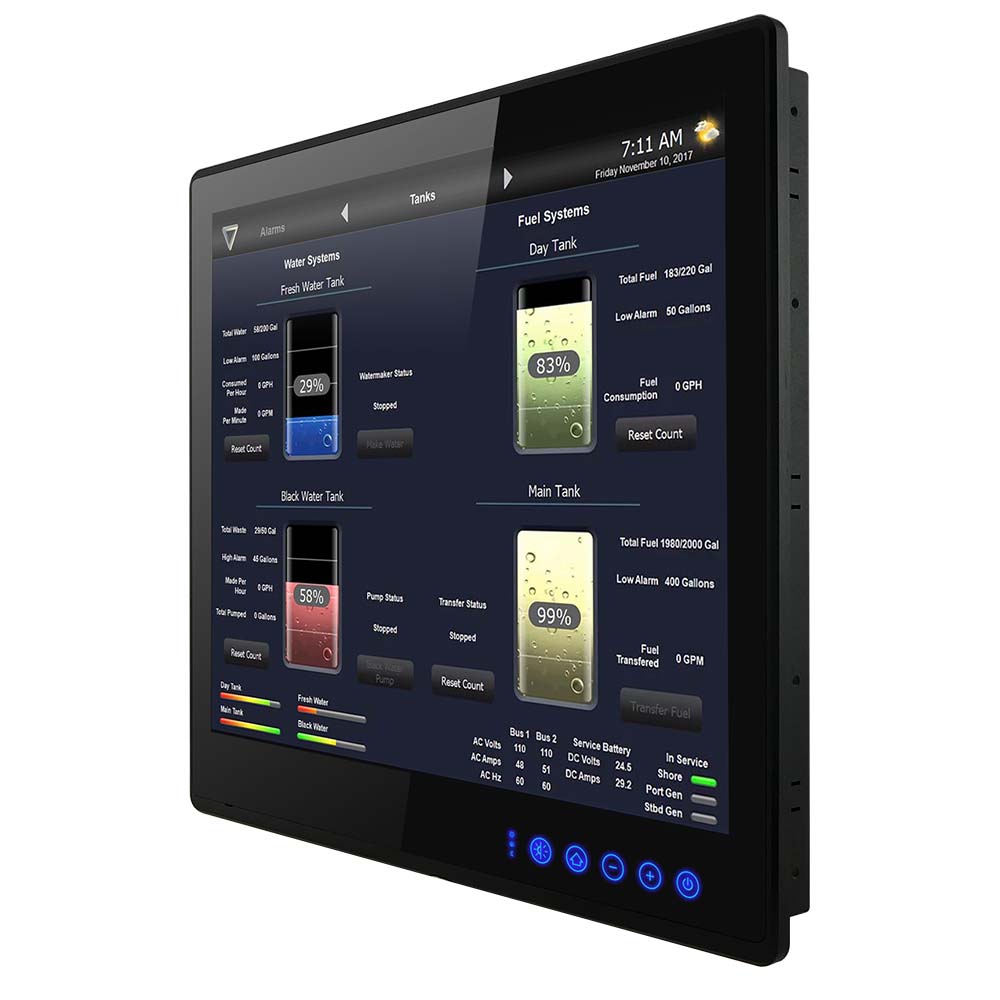

Seatronx 19" Commercial Touch Screen Display [CD-19T]

Ships Direct From Manufacturer

19" Commercial Touch Screen Display

Electronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching).

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 16.889" x 15.433" x 2.866"
• Cutout Dimensions - 16.03" x 14.13"
• Projected Capacitive touch
• Optional ECDIS Color Calibration
• 2x 2W Speakers
• 75 dB - 80 dB buzzer

Technical Specifications:

• Diagonal (active area) Inch - 19"
• Native Resolution (Pixels) - 1280x1024
• Contrast Ratio - 1200:1
• Brightness - 350
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89,89
• Backlight Dimming - -0 (3 Stage ECDIS Option)
• Inputs - 1 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
• Power Source - 9-36VDC Isolated power supply 60W (Max)
• Power on/off dimming control - Front Bezel
• IP Rating - IP65 Front
• Operating Temperature (°C) - -15 to 55

Specifications:

• AC/DC: DC
• Resolution (VxH): 1280x1024
• Screen Size: 19"
• Touchscreen: Yes
• Box Dimensions: 1"H x 1"W x 1"L WT: 1 lbs

Quick Guide (pdf)

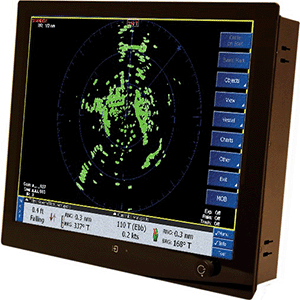

Seatronx 12" Sunlight Readable Touch Screen Display [SRT-12]

Ships Direct From Manufacturer

12" Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 11.88" x 10.13" x 2.28"
• Cutout Dimensions -  11.16" x 9.43" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 12.1"
• Native Resolution (Pixels) - 1024x768
• Contrast Ratio - 700:1
• Brightness - 1500
• Viewing Angle (left, right) - 80, 80
• Viewing Angle (up, down) - 80, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 2.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 80

Specifications:

• AC/DC: DC
• Amperage: 25
• Resolution (VxH): 124x768
• Screen Size: 12"
• Touchscreen: Yes
• Box Dimensions: 6"H x 17"W x 17"L WT: 13 lbs
• UPC: 850036822011

Quick Guide (pdf)
Owner's Manual (pdf)

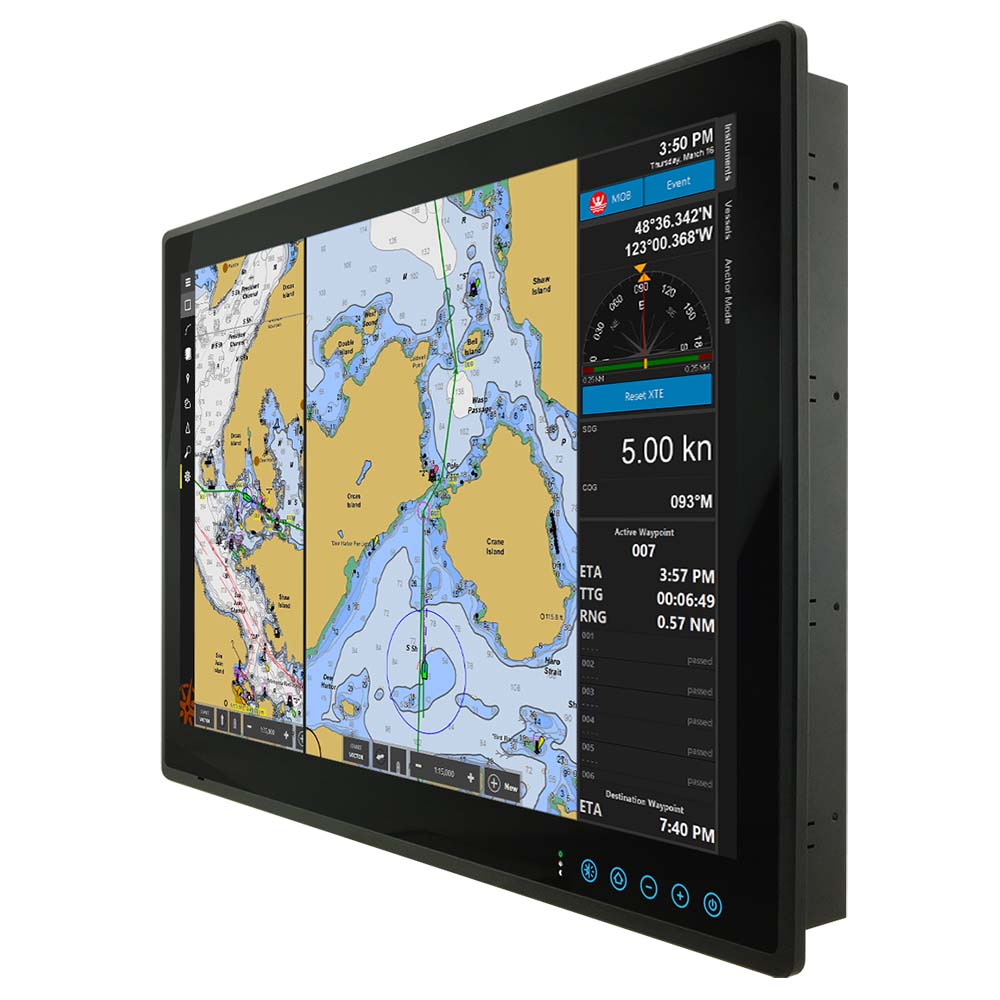

Seatronx 26" Commercial Touch Screen Display [CD-26T]

Ships Direct From Manufacturer

26" Commercial Touch Screen Display

Electronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching).

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 24.44" x 17.02" x 3.66"
• Cutout Dimensions - 23.54" x 16.06"
• Projected Capacitive touch
• Optional ECDIS Color Calibration
• 2x 2W Speakers
• 77 dB - 80 dB buzzer

Technical Specifications:

• Diagonal (active area) Inch - 26"
• Native Resolution (Pixels) - 1920x1200
• Contrast Ratio - 1500:1
• Brightness - 350
• Viewing Angle (left, right) - 89, 89
• Viewing Angle (up, down) - 89, 89
• Backlight Dimming - -0 (3 Stage ECDIS Option)
• Inputs - 3 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
• Power Source - 9-36VDC Isolated power supply 80W (Max)
• Power on/off dimming control - Front Bezel
• IP Rating - IP65 Front
• Operating Temperature (°C) - -15 to 55

Specifications:

• AC/DC: DC
• Resolution (VxH): 1920x1200
• Screen Size: 26"
• Touchscreen: Yes

Quick Guide (pdf)

Seatronx 12" Pilothouse Touch Screen Display [PHT-12]

Ships Direct From Manufacturer

12" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 11.88" x 10.13" x 2.28"
• Cutout Dimensions -  11.16" x 9.43" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 12.1"
• Native Resolution (Pixels) - 1024x768
• Contrast Ratio - 700:1
• Brightness - 700
• Viewing Angle (left, right) - 80, 80
• Viewing Angle (up, down) - 80, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 2.5
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 80

Specifications:

• AC/DC: DC
• Amperage: 1.5
• Resolution (VxH): 1024x768
• Screen Size: 12"
• Touchscreen: Yes

Quick Guide (pdf)
Owner's Manual (pdf)
