Garmin MSC 10 Marine Satellite Compass [010-02407-00]

MSC 10 Marine Satellite Compass

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Features:

• Accuracy comes easy when you’ve got a multi-band GNSS receiver on board.
• Faster updates. More detailed tracking.
• Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too.
• If other onboard systems need a heading sensor, we’ve got you covered.

MULTI-BAND GNSS AND MULTI-CONSTELLATION

The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo¹, GLONASS, and BeiDou1) receiver deliver precise positioning².

BOAT HEAVE AND MORE

Get reliable, accurate boat heave, pitch, and roll information — even in rough waters.

BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.

ACCURATE HEADING DATA

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.

PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

NMEA 2000® NETWORK COMPATIBLE

Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.

EASY TO INSTALL

This compact device is simple to install and easily integrates into your Garmin marine ecosystem.

10 HZ UPDATE RATE

Get better, more detailed tracking information, thanks to the 10 Hz position update rate.

BACKUP HEADING SENSOR

In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading³.

What's In The Box?

• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000® backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

¹ Supported when available

² < 1 meter CEP, < 3 meters 95%

³ Magnetometer calibration required for backup magnetic heading support

Ritchie SS-5000W SuperSport Compass - Flush Mount - White [SS-5000W]

SuperSport Compass

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 5" (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals
• Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole
• Built-in Compensators to Easily Adjust for deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting Standard
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 5 lbs 12 oz (2.6 kg)

Notes:

12v lighting standard – 24 & 32v lighting options are available.

Specifications:

• Mounting Style: Flush
• Lubber Lines: Yes
• Backlight: Yes
• Read: Rear
• Box Dimensions: 9"H x 10"W x 11"L WT: 5.8 lbs
• UPC: 010342050182

Quick Guide (pdf)
Owner's Manual (pdf)

Furuno SCX21 Satellite Compass - NMEA 0183 [SCX21]

SCX21 Satellite Compass

Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX21 sets a new standard for reliable and accurate heading for all of your marine electronics. The four antennas ensure reliable heading performance, even under the most challenging of conditions. The unprecedented quad antenna design of the SCX21 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information, even when line of sight is limited to only a single satellite. They greatly enhance the performance of onboard equipment such as Radar, Fish Finders, Sonar, and Autopilots.

Features:

• Outputs accurate Time, Position, Heading, COG/SOG, ROT (10 degrees/second), Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data
• Unprecedented heading accuracy for Radars, Sonars, and Navigation
• 1.0 degree heading accuracy, 0.02 knot speed accuracy
• Extremely compact with easy & flexible installation for reduced susceptibility to multi-path interference

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Furuno SC70 Satellite Compass w/o Cable [SC70]

SC70 Satellite Compass w/o Cable

The SC70 is the latest satellite compass built on FURUNO’s commercial-grade technology platform. These satellite compasses prove their value by increasing the accuracy of other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. They provide a highly accurate heading input to these other technologies by utilizing the very latest GNSS (Global Navigation Satellite System). This satellite system is comprised of GPS, Galileo and GLONASS to ensure the highest precision and a continuous coverage.

The SC70 provides a variety of data, including GPS Positioning, SOG (Speed Over Ground), COG (Course Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and longitudinal). All of these data assist with critical maneuvers, such as berthing. The compasses is maintenance free - a great asset for any vessel.

Consists Of:

• SC701 - Junction box for SC70/SC130
• SC702 - Display unit for SC70/SC130
• SC703 - ANT 2GPS/ANG/ACCEL/MGNT SNSR

Note: The SC70 and SC130 are sold without an antenna cable.

Standard Features:

• Provides highly accurate heading data of 0.4° for autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots
• Ideal for small to medium boats requiring highly accurate heading
• Utilizes GNSS such as GPS, Galileo and GLONASS for high Precision
• SBAS compatible (EGNOS,WAAS,MSAS)
• Provide precise data for SOG, COG, ROT and L/L
• Eliminating the problem of not having enough satellites at hand by using multiple types of satellites
• Speed on 3 axis (bow, stern and longitudinal) for safe navigating and berthing
• IMO Type-approved as THD, GPS and ROTI. Complying with the IEC, ISO requirements
• Easily integrated into the existing shipboard network via Ethernet
• Rapid follow-up rate 40°/s (twice the IMO high speed craft requirement, 20°/s)
• Maintenance free and no recurring cost as there are no mechanical parts
• Super short starting time - 90 seconds
• Once the power is on, it takes about 90 seconds to start (the starting time will slightly differ depending on the equipment location)
• Easy to retrofit by using existing antenna cabling for SC-50/55/60/110/120. (The LAN_CNV option kit is necessary)
• Precision pitch/roll data in Analog and Digital formats for vessel stabilization, Sonar, etc.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner's Manual (pdf)
Brochure (pdf)

Furuno SC33 Compact Dome Satellite Compass, NMEA2000 (0.4 Heading Accuracy) w/6M Cable [SC33]

SC33 Compact Dome Satellite Compass, NMEA2000 (0.4° Heading Accuracy) with 6M Cable

Sleek, Fast & Accurate

The SC33 Satellite Compass provides highly accurate attitude information for navigation equipment such as Radar, Plotter, Autopilot, Fish Finder and Sonar. With its compact GNSS antenna and built-in processor, it can be used for a wide variety of applications on any type of vessel. This all-in-one system delivers incredibly accurate heading and roll & pitch information as well as heaving information, GPS position, SOG (Speed Over Ground), COG (Course Over Ground) and ROT (Rate Of Turn) data.

Employing a two-antenna system with a 3-axis gyro and acceleration sensors, the SC33 enables high-speed response capability. Advanced digital signal processing techniques compute accurate heading based on sensor data. NMEA2000 interface is standard for simple installation, while the optional interface unit IF-NMEASC is available for conventional NMEA0183, AD10 and contact closure.

The GNSS antenna and advanced parallel signal processing allows the SC33 to achieve more precise Pitch, Roll and Heading measurement than conventional models, providing enhanced performance for all of your connected equipment. Its Micro-C pigtail NMEA2000 cable provides flexibility to run cables in challenging areas.

Revolutionary 2-Antenna & Rate Sensor System

In order to calculate roll & pitch data, a satellite compass requires two vectors. The SC33 employs a dual GNSS antenna system that calculates a single vector while a 3-axis rate gyro and acceleration sensors add the 2nd vector. This configuration enables the SC33 to calculate highly accurate roll and pitch data without using a third sensor.

Features:

• Highly Accurate Two Antenna Satellite Compass & Rate Sensor System
• More resistant to multi-path, shock & vibration, compared to previous models
• Improved time to first fix (TTFF) = 60 seconds (typical)
• NMEA2000 Certified Interface/NMEA0183 Interface with IF-NMEASC (Optional)
• Accuracy: ±0.4° RMS (Heading/Roll/Pitch)
• Position Accuracy: 5.0M (GPS); 3.0M (GPS + SBAS)
• Integrated Rate Sensors provide Pitch, Roll and Heave Compensation
• 6 Meter Micro-C Male/Female NMEA2000 Drop Cable (Standard Supply)
• Pigtail cable w/NMEA2000 connector for convenient connection to drop cable
• Tri-axis speed & direction via PGN 130578 & "Heartbeat" PGN output
• SC33 menu access with NavPilot 300 & TZtouch2 (with impending software update)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Furuno SC130 Satelite Compass w/Display [SC130]

SC130 Satelite Compass with Display

The SC130 are the latest satellite compasses built on FURUNO’s commercial-grade technology platform. These satellite compasses prove their value by increasing the accuracy of other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. They provide a highly accurate heading input to these other technologies by utilizing the very latest GNSS (Global Navigation Satellite System). This satellite system is comprised of GPS, Galileo and GLONASS to ensure the highest precision and a continuous coverage.

The Satellite Compass provides a variety of data, including GPS Positioning, SOG (Speed Over Ground), COG (Course Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and longitudinal). All of these data assist with critical maneuvers, such as berthing. The Compass is maintenance-free - a great asset for any vessel - and connects easily into the existing shipboard network via Ethernet connection.

The SC130 provides highly accurate heading data of 0.25° for autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. It is ideal for medium to large vessels navigating in crowded ports and making precise maneuvers, such as berthing and docking, and is IMO Type-approved as THD, GPS and ROTI, complying with the IEC/ISO requirements. It features a rapid follow-up rate 40°/s, twice the IMO high-speed craft requirement of 20°/s.

Package Contains:

• SC701 Junction Box
• SC702 Display 4.5"
• SC1303 Antenna 3GPS

**DOES NOT INCLUDE CABLE**

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Backlight: Yes
• Box Dimensions: 7"H x 15"W x 17"L WT: 71.7 lbs

Brochure (pdf)

Furuno SCX20 Satellite Compass [SCX20]

SCX20 Satellite Compass

Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX20 sets a new standard for reliable and accurate heading for all of your marine electronics. The four antennas ensure reliable heading performance, even under the most challenging of conditions. The unprecedented quad antenna design of the SCX20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information, even when line of sight is limited to only a single satellite. They greatly enhance the performance of onboard equipment such as Radar, Fish Finders, Sonar, and Autopilots.

Features:

• Outputs accurate Time, Position, Heading, COG/SOG, ROT (10 degrees/second), Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data
• Unprecedented heading accuracy for Radars, Sonars, and Navigation
• 1.0 degree heading accuracy, 0.02 knot speed accuracy
• Extremely compact with easy and flexible installation for reduced susceptibility to multi-path interference

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

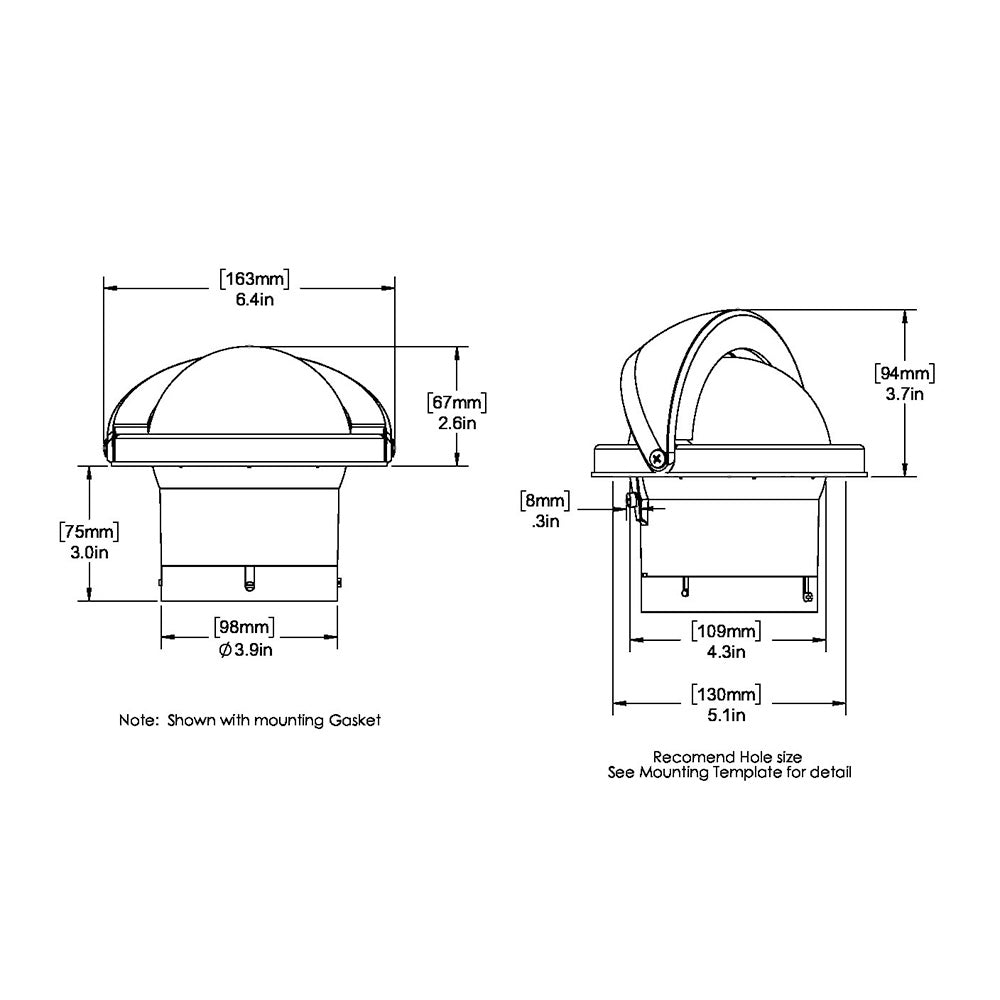

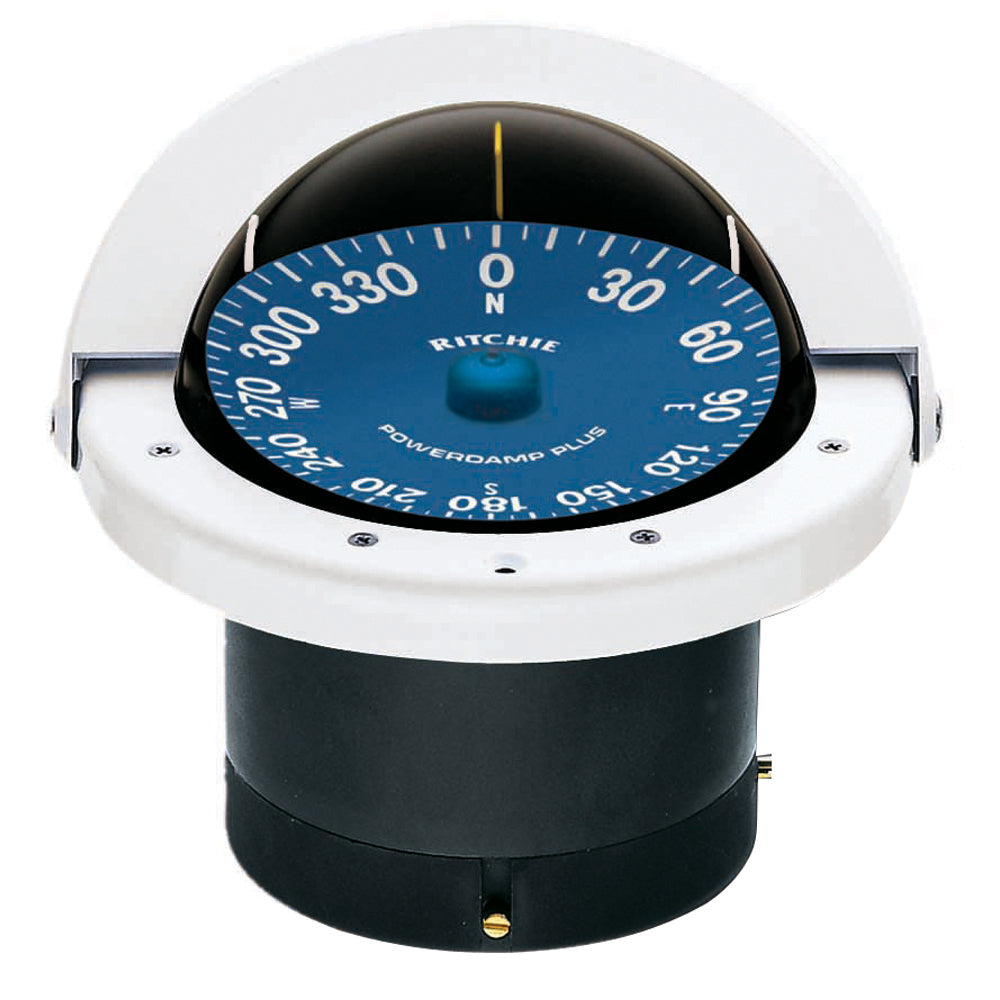

Ritchie SS-2000W SuperSport Compass - Flush Mount - White [SS-2000W]

SuperSport Compass

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 4 1/2″ (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals
• Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 mm) Mounting Hole
• Built-in Compensators to Easily Adjust for Deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting standard
• 45 Degree Lubber Lines
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs. 10 oz. (1.19 kg)

Notes:

Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting.

Specifications:

• Mounting Style: Flush
• Lubber Lines: Yes
• Backlight: Yes
• Read: Rear
• Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs
• UPC: 010342150127

Quick Guide (pdf)
Owner's Manual (pdf)
