Marine Navigation & Instruments - Compasses

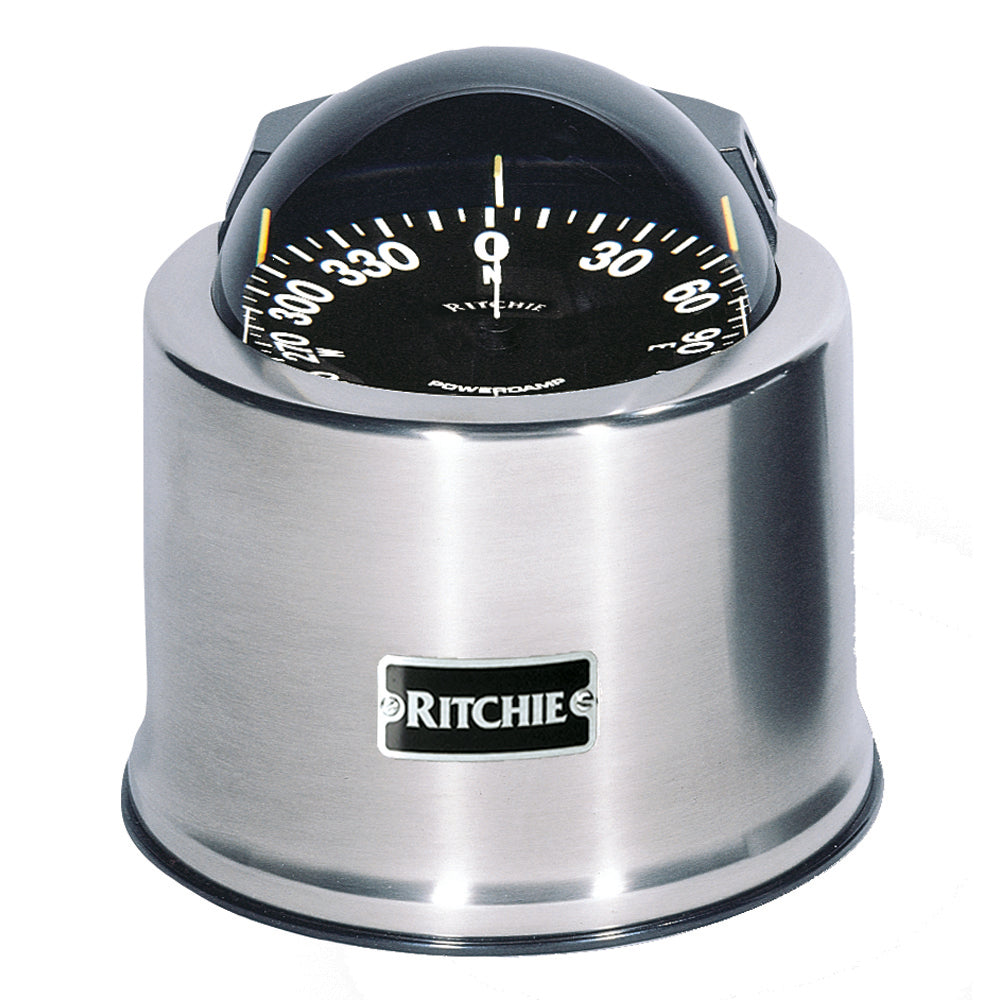

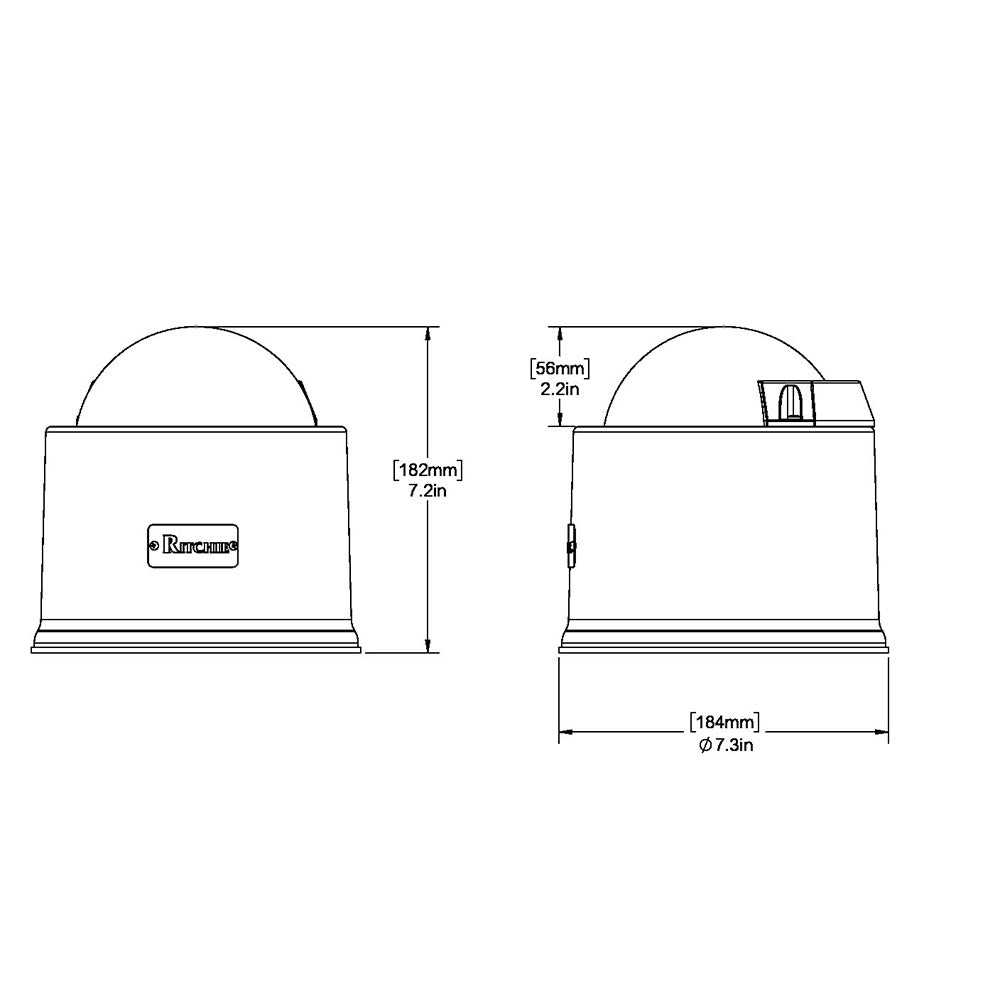

Ritchie SP-5-C GlobeMaster Compass - Pedestal Mount - Stainless Steel - 12V - 5 Degree Card [SP-5-C]

Ships Direct From Manufacturer

Globemaster Compass

Features:

• 5″ (127 mm) Open Face Dial
• Choice of 2 Degree, 2 Degree with Points or 5 Degree Dial
• Brushed Stainless Steel or Black Wrinkle Finish
• Easily Installed
• Ideal for both Power and Sailboats
• Lightweight/Easy-to-Align Mounting Base Fits all Popular Sailboat Pedestals
• 45 and 90 Degree Lubber Lines for Easy Reading
• Full Internal Gimbals
• 12V Green LED lighting Standard
• Built-in Compensators
• Weather Shield Available – Model No. WS-P
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 6lbs (2.72 kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

This compass conforms with ISO 10316(E) and ISO 613:2000(E) standards.

Specifications:

• Read: Rear
• Mounting Style: Pedestal
• Lubber Lines: Yes
• Backlight: Yes
• Box Dimensions: 9"H x 10"W x 11"L WT: 5.9 lbs
• UPC: 010342050397

Quick Guide (pdf)
Owner's Manual (pdf)

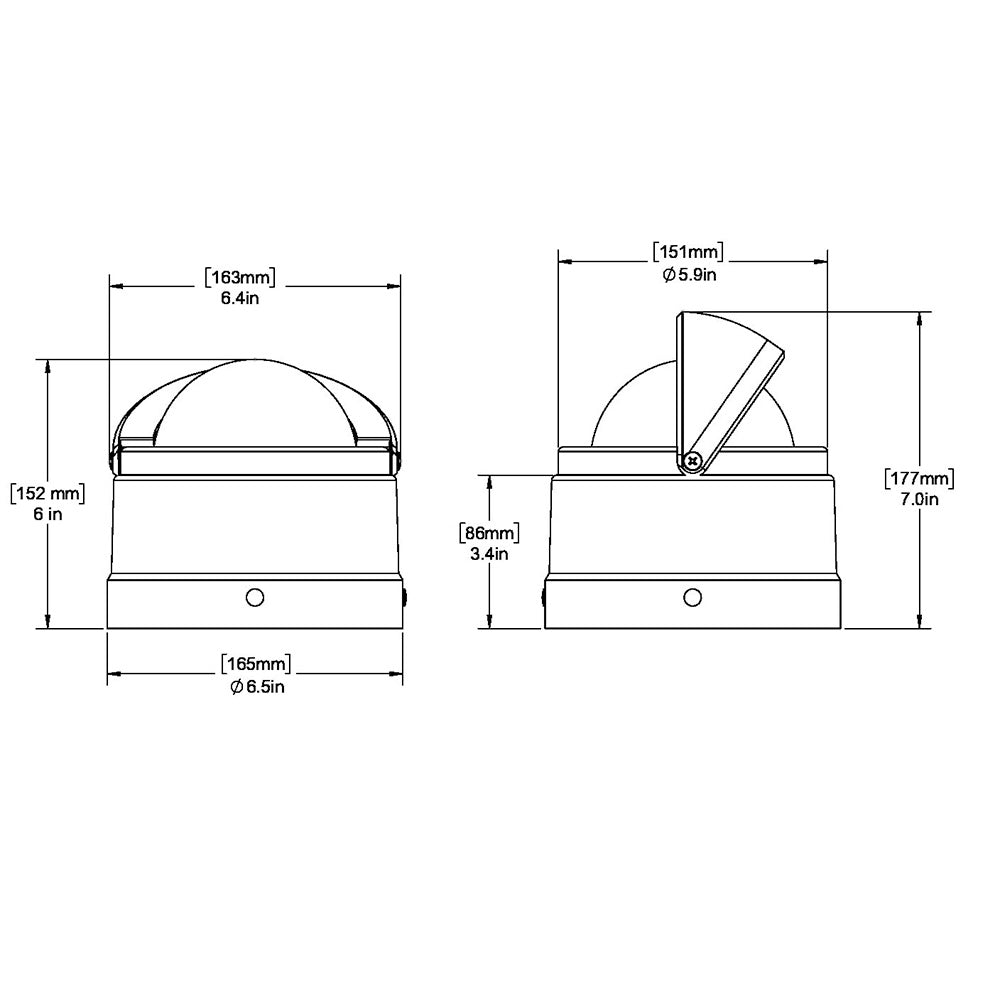

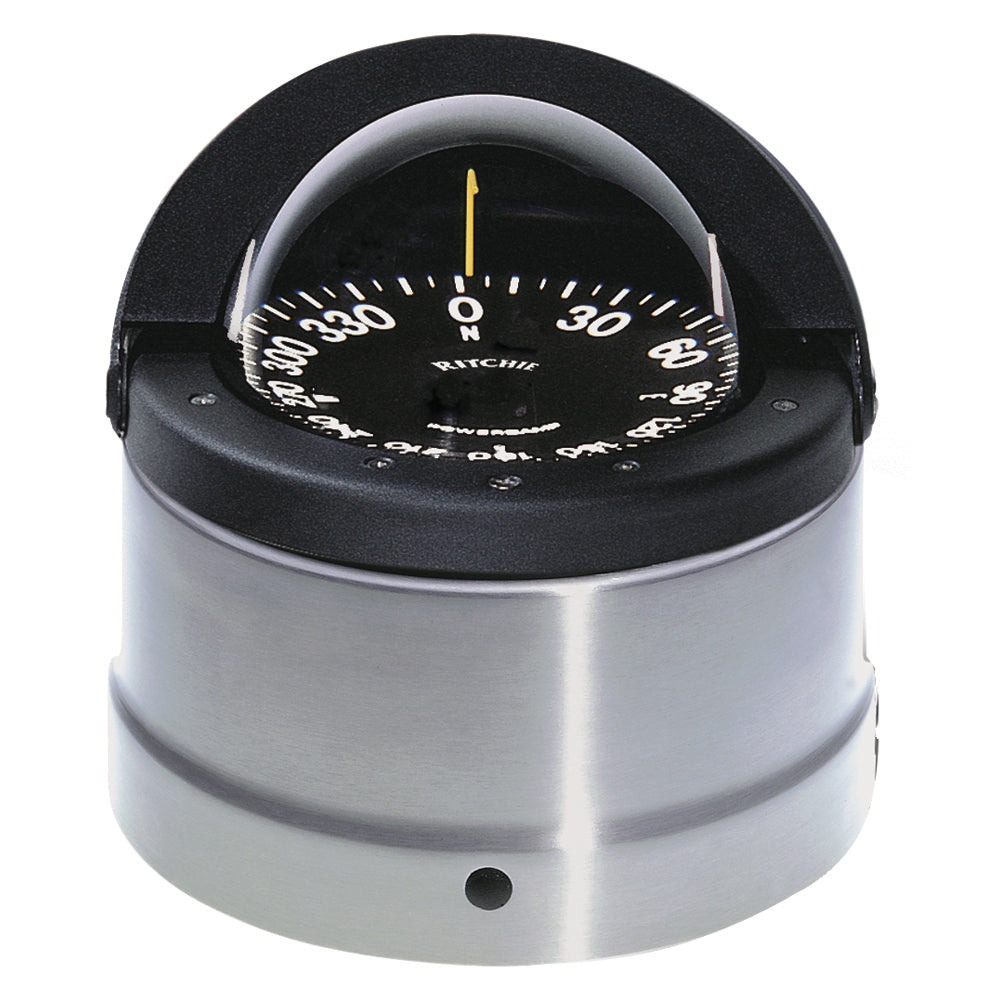

Ritchie DNP-200 Navigator Compass - Binnacle Mount - Polished Stainless Steel/Black [DNP-200]

Navigator Compass

Features:

• 4 1/2″ (115 mm) PowerDamp Open Face Dial with Large Numerals
• Ideal for both Power and Sailboats
• Fits all Popular Sailboat Steering Pedestals
• Easily Installed
• Stainless Housing selections: Brushed stainless, powder-coated black, or powder-coated white
• 12v Green LED lighting Standard
• Built-in Compensators to Easily Adjust for Deviation
• Movable Sun Shield
• 45 Degree Lubber Lines
• High Temperature Construction for Extended Operating Range
• Weather Shield available. Model No. WS-P
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 3lbs 10oz (1.65 kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Specifications:

• Read: Rear
• Mounting Style: Binnacle
• Lubber Lines: Yes
• Backlight: Yes
• Box Dimensions: 7"H x 8"W x 8"L WT: 3.6 lbs
• UPC: 010342150202

Quick Guide (pdf)
Owner's Manual (pdf)

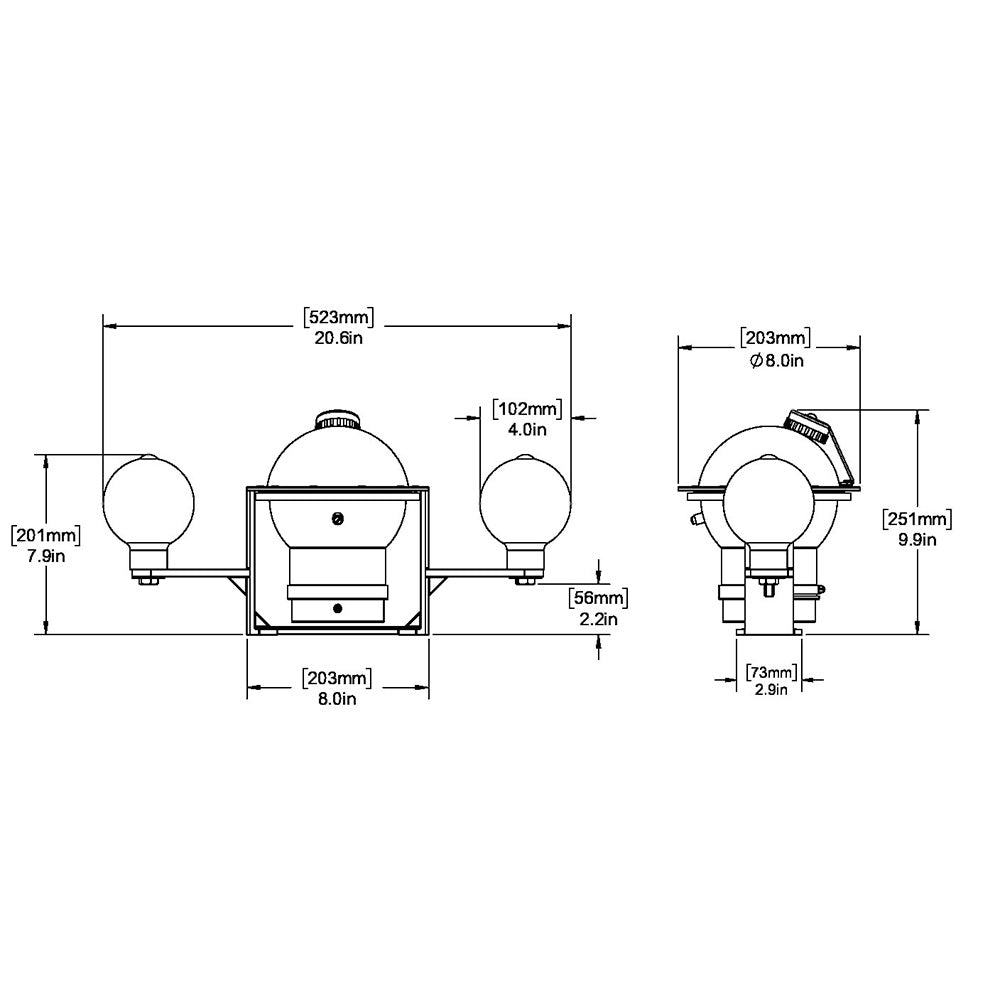

Ritchie YB-600 Globemaster Steel Boat Compass w/5 Card - 12V - Yoke Mounted - Black [YB-600]

Ships Direct From Manufacturer

YB-600 Globemaster Steel Boat Compass with 5° Card - 12V - Yoke Mounted - Black

Features:

• Large, Easy to Read 6″ (152 mm) Open Face Dial
• Choice of 2 degree with points or 5 degree.
• Easily Installed
• Hardened Steel Pivot and Sapphire Jewel Movement
• 90 Degree Lubber Lines for Easy Reading
• Built-in Semi-Circular Compensators
• 4 inch quadrantal correctors are standard. Larger correctors are available.
• Choice of Green or Red lighting in 12, 24, or 32 Volts
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 27 lbs. (8.16 kg)

* Available upon request with the following specifications:

• 2 degree card with points / 2 degree card without points
• Red lighting
• 24 or 32 volt versions

Specifications:

• Mounting Style: Yoke
• Lubber Lines: Yes
• Backlight: Yes
• Read: Rear
• Box Dimensions: 11"H x 12"W x 17"L WT: 28 lbs
• UPC: 010342060211

Quick Guide (pdf)
Owner's Manual (pdf)

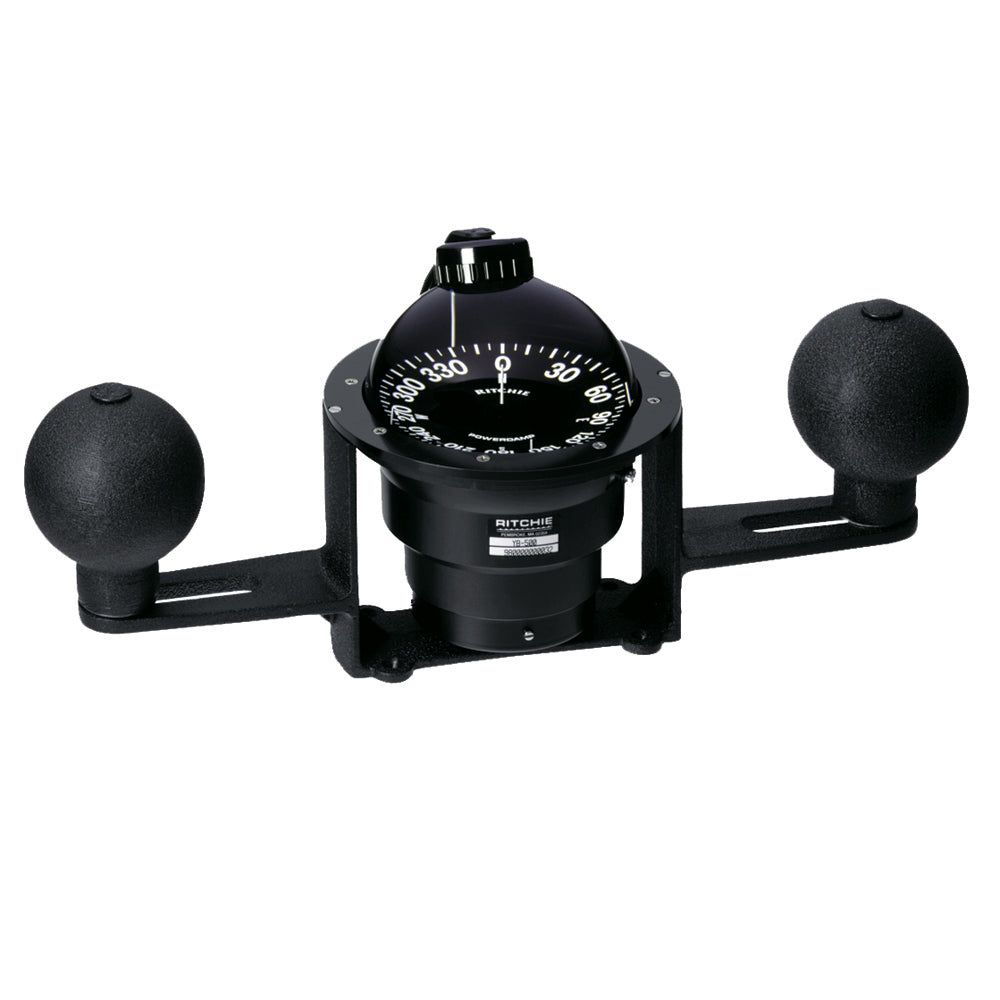

Ritchie YB-500 Globemaster Compass - Yoke Mounted - Black - 5 Degree card - 12V [YB-500-2P12]

Ships Direct From Manufacturer

Features:

• 5″ (127 mm) Open Face Dial
• Choice of 2 Degree, 2 Degree with Points or 5 Degree Dial
• Easily Installed
• Hardened Steel Pivot and Sapphire Jewel Movement
• 90 Degree Lubber Lines for Easy Reading
• Built-in Semi-Circular Compensators
• 3 1/2″ inch quadrantal correctors are standard. Larger correctors are available.
• Choice of Green or Red lighting in 12, 24, or 32v
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 18 lbs. (8.16 kg)

Notes:

When ordering specify Card Style and Night Light Color/Voltage (12, 24, or 32 volt).

Specifications:

• Read: Rear
• Lubber Lines: Yes
• Backlight: Yes
• Mounting Style: Yoke
• Box Dimensions: 10"H x 10"W x 17"L WT: 17.35 lbs

Quick Guide (pdf)
Owner's Manual (pdf)

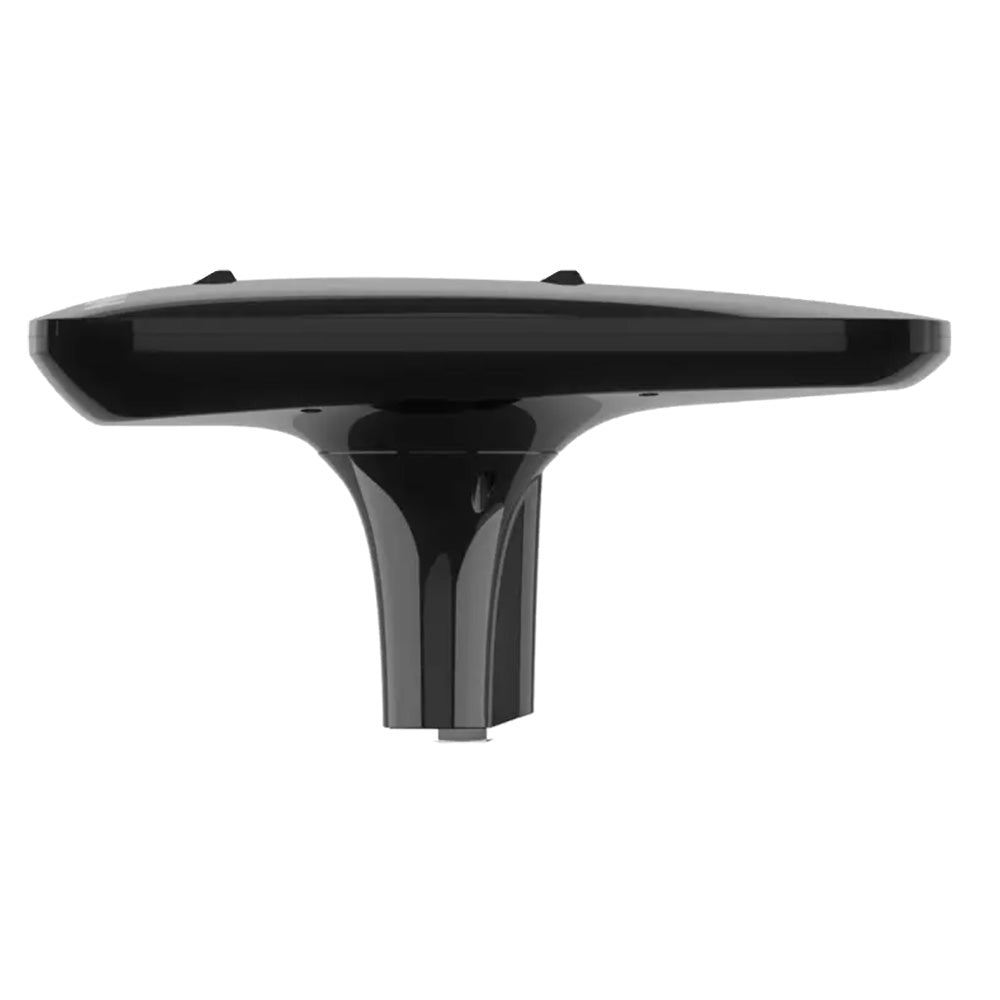

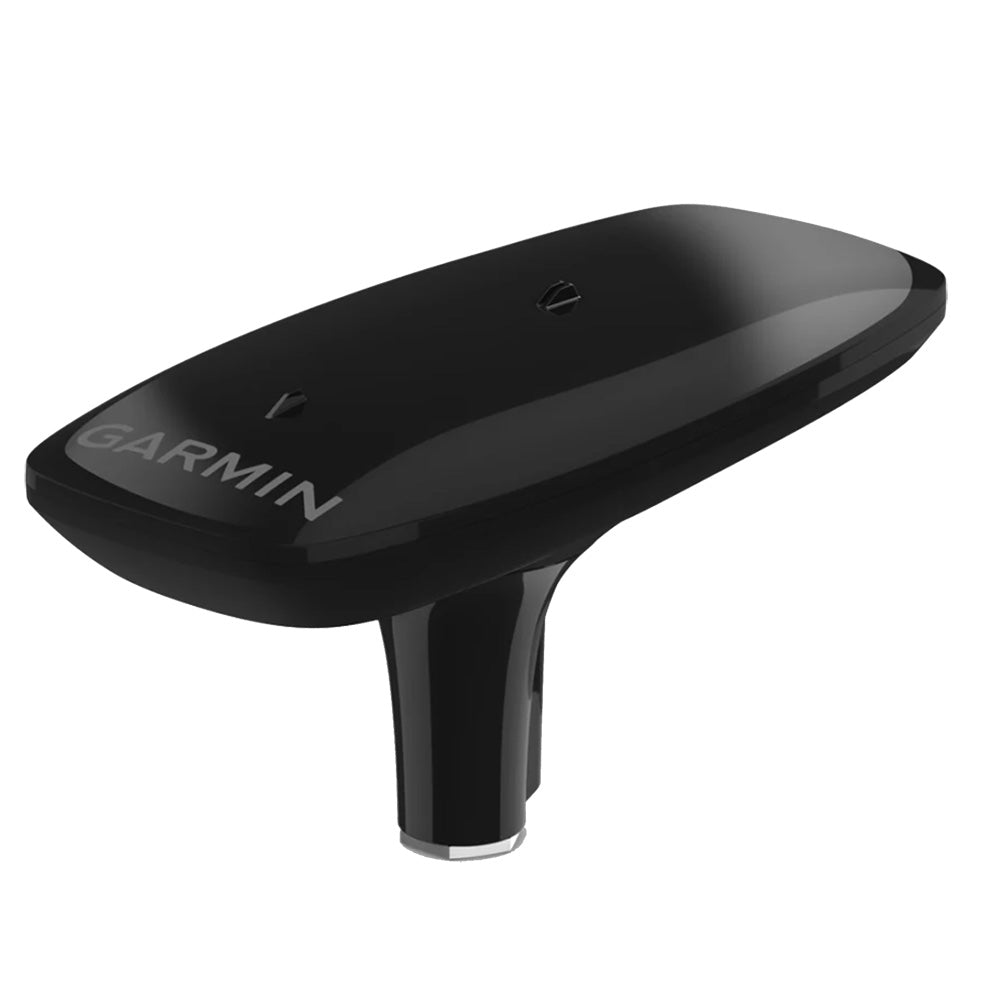

MSC™ 10 Marine Satellite Compass - Black

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Features:

• Accuracy comes easy when you’ve got a multi-band GNSS receiver on board.
• Faster updates. More detailed tracking.
• Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too.
• If other onboard systems need a heading sensor, we’ve got you covered.

MULTI-BAND GNSS AND MULTI-CONSTELLATION

The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.

BOAT HEAVE AND MORE

Get reliable, accurate boat heave, pitch, and roll information — even in rough waters.

BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.

ACCURATE HEADING DATA

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.

PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

NMEA 2000® NETWORK COMPATIBLE

Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.

EASY TO INSTALL

This compact device is simple to install and easily integrates into your Garmin marine ecosystem.

10 HZ UPDATE RATE

Get better, more detailed tracking information, thanks to the 10 Hz position update rate.

BACKUP HEADING SENSOR

In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.

What's In The Box?

• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000® backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

1 Supported when available

2 < 1 meter CEP, < 3 meters 95%

3 Magnetometer calibration required for backup magnetic heading support

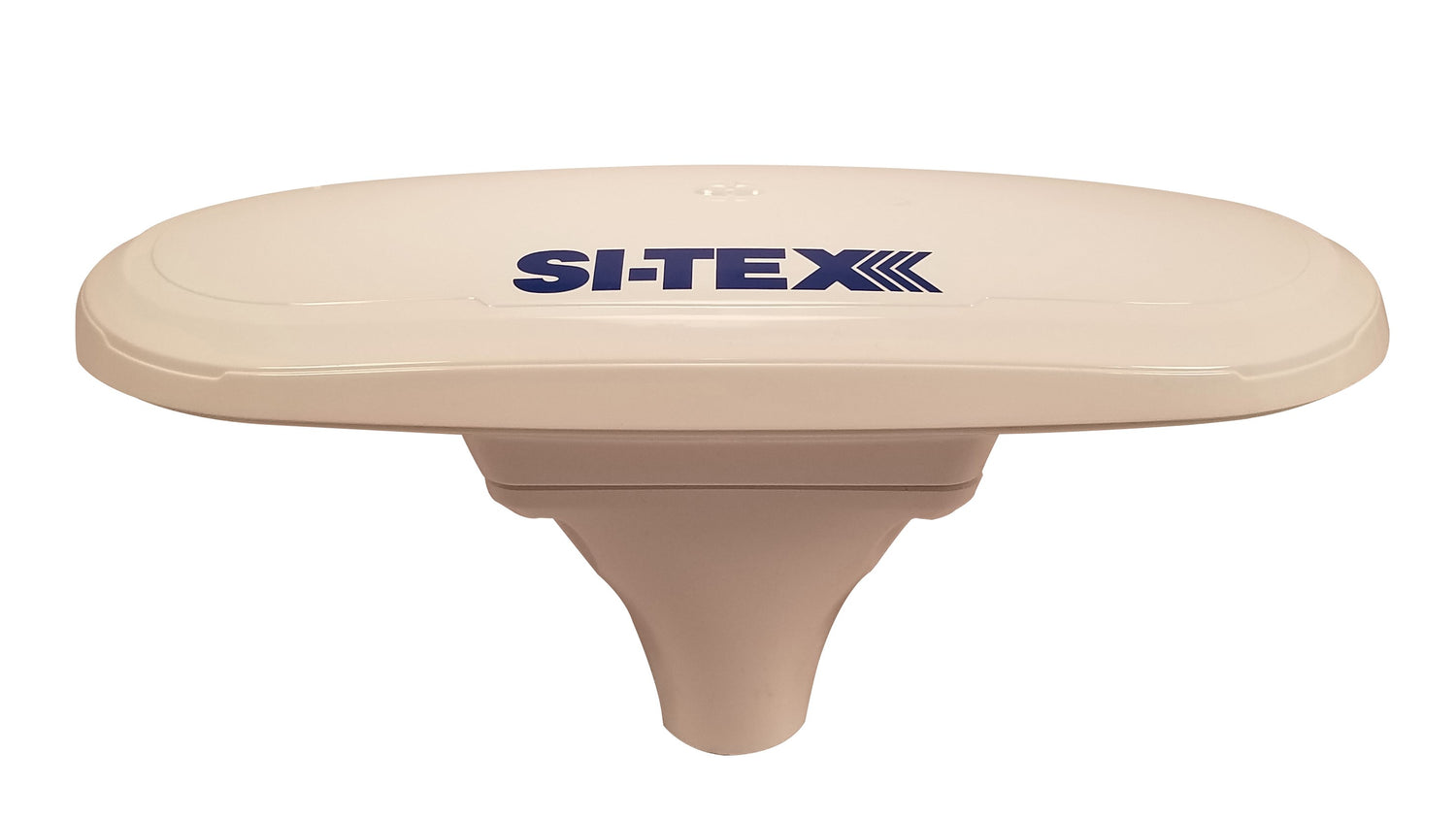

NMEA0183 GNSS SAT Compass with 49' Cable & Pole Mount

Experience superior navigation from the accurate heading and positioning performance available with the V200 SAT Compass.

The multi-GNSS V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30cm (11.8") RMS accuracy via the optional Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35cm (13.7") in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.

Features:

• Uses all known Satellite Systems GPS, GLONASS, Galileo, BeiDou, QZSS
• 30cm (11.8") RMS world-wide positioning accuracy with Atlas correction subscription
• 0.75 degree heading accuracy in an amazingly small form factor
• Excellent in-band and out-of-band interference rejection
• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
• Provides heading, positioning, heave, roll and pitch

Specifications:

• Output Type: NMEA 0183
• Mounting Style: Surface
• Lubber Lines: No
• Backlight: No
• Box Dimensions: 9"H x 9"W x 15"L WT: 8.65 lbs
• UPC: 010407520568

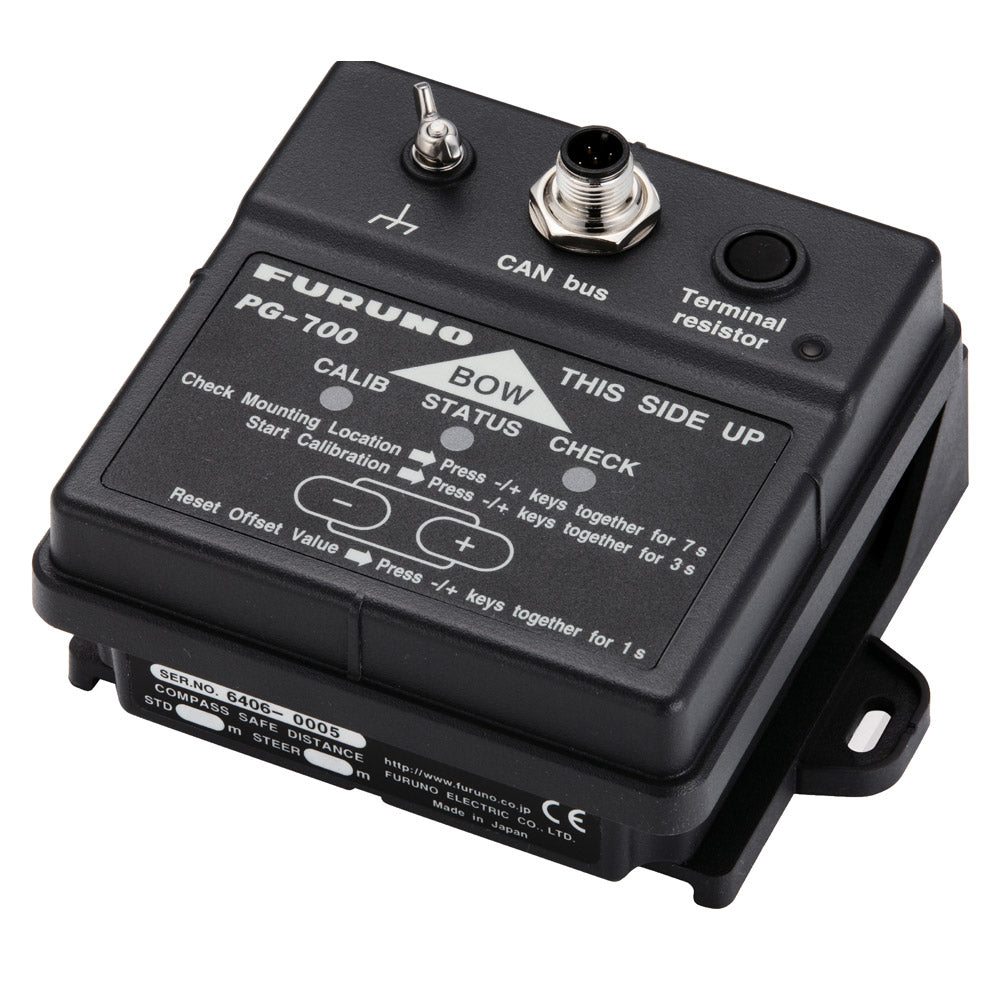

PG700 Integrated Heading Sensor, NMEA2000

The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.

Features:

• Angular velocity sensor and magnetic bearing sensor incorporated

• Automatic determination of installation site suitability

• L-shaped mounting base for mounting on bulkhead

• Output of magnetic bearing data to FURUNO CAN bus device

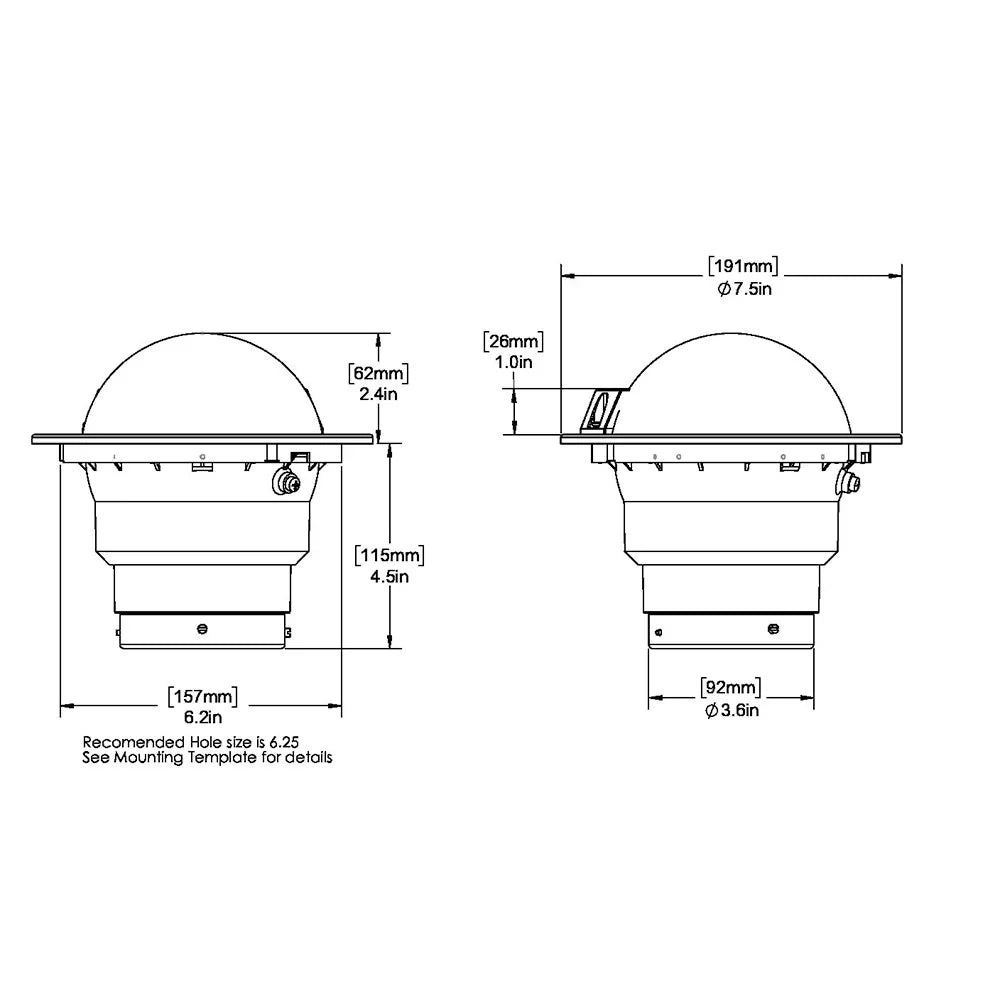

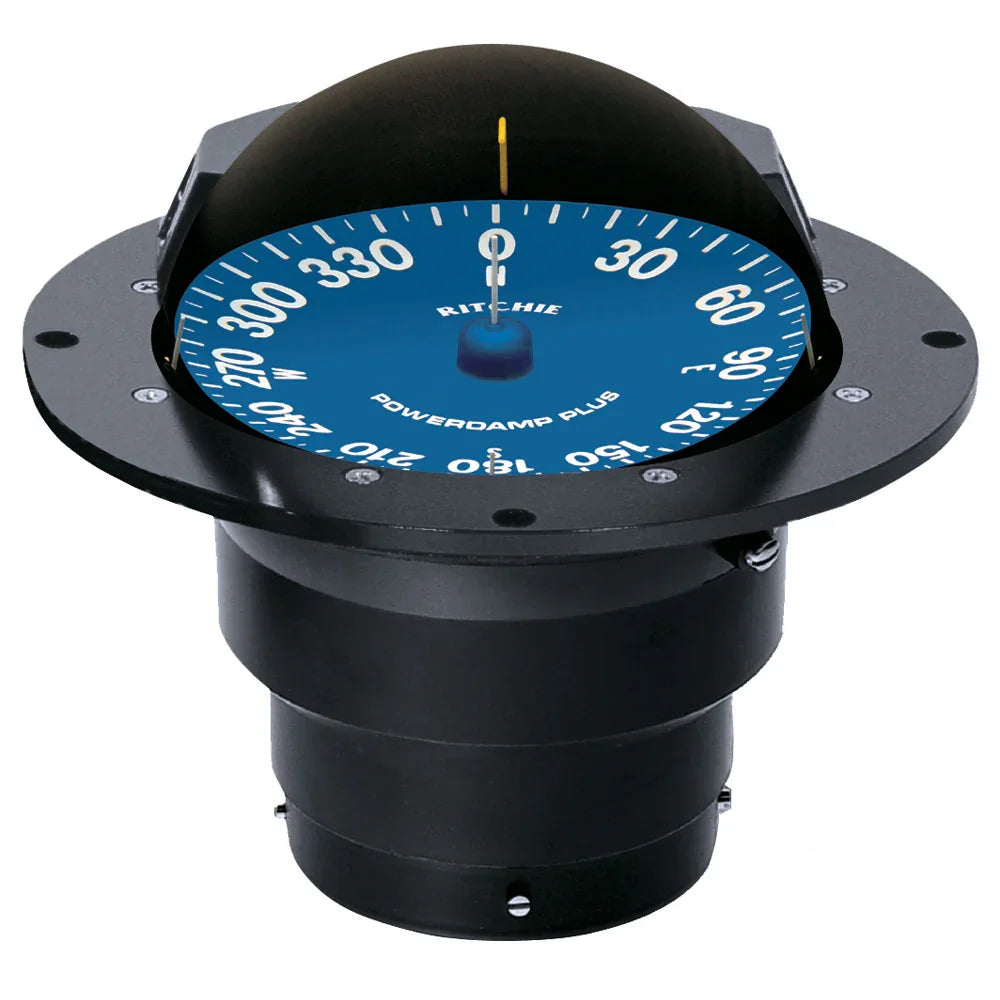

Ritchie SS-5000 SuperSport Compass - Flush Mount - Black [SS-5000]

Supersport™ Compasses

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 5" (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals
• Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole
• Built-in Compensators to Easily Adjust for deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting Standard
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 5lbs 12oz (2.6kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Specifications:

• Read: Rear
• Mounting Style: Flush
• Backlight: Yes
• Lubber Lines: Yes
• Box Dimensions: 9"H x 9"W x 10"L WT: 5.7 lbs
• UPC: 010342050410

Quick Guide (pdf)
Owner's Manual (pdf)
