Marine Navigation & Instruments - Compasses

Ritchie DNB-200 Navigator Compass - Binnacle Mount - Black [DNB-200]

Navigator Compass

Features:

• 4 1/2″ (115 mm) PowerDamp Open Face Dial with Large Numerals
• Ideal for both Power and Sailboats
• Fits all Popular Sailboat Steering Pedestals
• Easily Installed
• Stainless Housing selections: Brushed stainless, powder-coated black, or powder-coated white
• 12v Green LED lighting Standard
• Built-in Compensators to Easily Adjust for Deviation
• Movable Sun Shield
• 45 Degree Lubber Lines
• High Temperature Construction for Extended Operating Range
• Weather Shield available. Model No. WS-P
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 3lbs 10oz (1.65 kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Specifications:

• Mounting Style: Binnacle
• Lubber Lines: Yes
• Read: Rear
• Backlight: Yes
• Box Dimensions: 7"H x 8"W x 8"L WT: 3.6 lbs
• UPC: 010342150219

Quick Guide (pdf)
Owner's Manual (pdf)

Raymarine Wireless Micro Compass System w/Strap Bracket [T061]

The Micro Compass proved a huge advantage over competitors using glass ball compasses. To win races you must react to even small wind shifts. Readable, precise and reliable heading information from you compass is critical. Digital compasses deliver this data right into your natural field of view, where you need it, how you need it, when you need it. The Micro Compass's tactical scale gives you clear stable figures corresponding on port and starboard tack. The readings whilst tacking are always the same, meaning you never have to remember numbers.

Data Displayed:

• Heading

• Tactical Scale

• Race Timer

Features:

• No wires or connections to make

• Simple to set-up and use

• Totally waterproof (submersible from 10m)

• Lightweight only .34 lbs.

• Ultra wide viewing angles

• Battery level indicator

• Easy-to-read large digits

Owner's Manual (pdf)

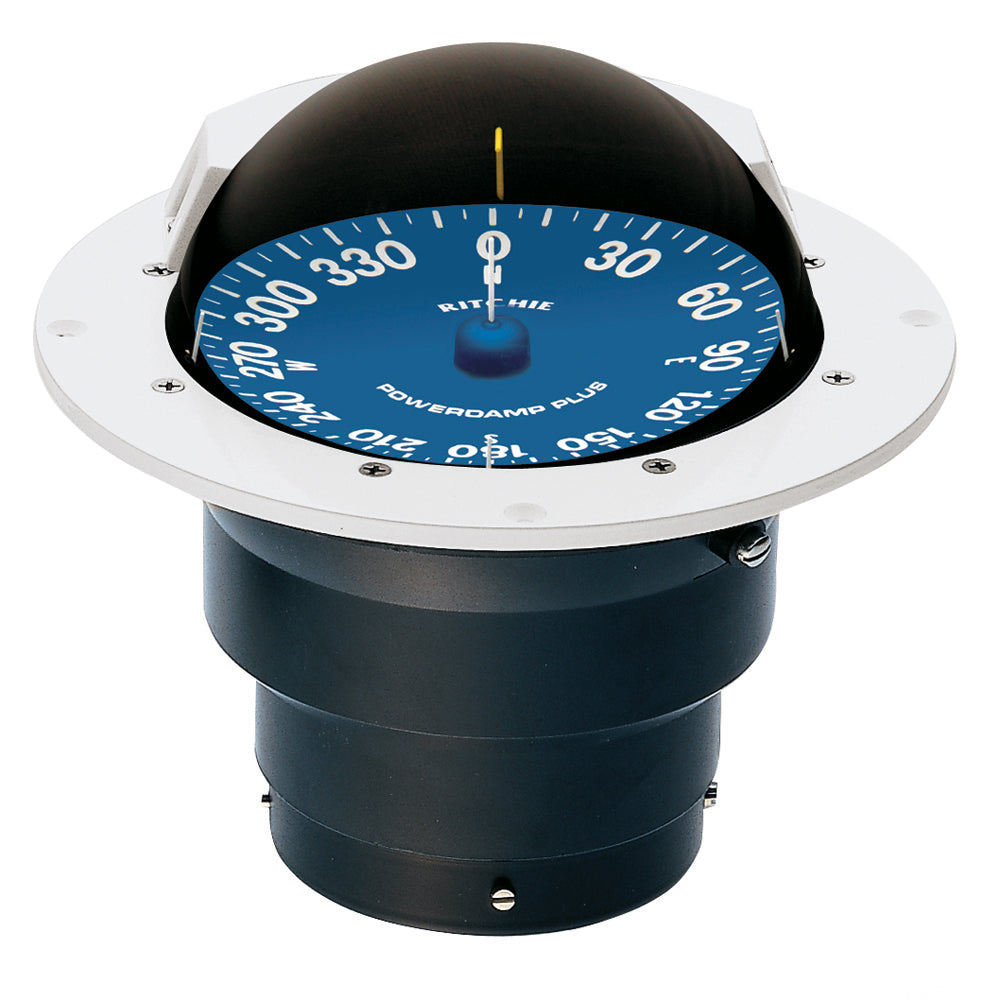

Ritchie SS-5000 SuperSport Compass - Flush Mount - Black [SS-5000]

Supersport™ Compasses

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 5" (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals
• Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole
• Built-in Compensators to Easily Adjust for deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting Standard
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 5lbs 12oz (2.6kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Specifications:

• Read: Rear
• Mounting Style: Flush
• Backlight: Yes
• Lubber Lines: Yes
• Box Dimensions: 9"H x 9"W x 10"L WT: 5.7 lbs
• UPC: 010342050410

Quick Guide (pdf)
Owner's Manual (pdf)

Ritchie HB-845 Helmsman Steel Boat Compass - Bracket Mount - Black [HB-845]

Helmsman Steel Boat Compass

Features:

• 3 3/4″(95 mm) Open Face Dial
• Special Reinforced Bracket with Quadrantal Correctors
• Built-in Standard Compensators and Booster Magnets on Base
• Hardened Steel Pivot and Sapphire Jewel Movement
• 45 Degree Lubber Lines
• Exclusive Built-in Green NiteVu Lighting
• Movable Sun Shield
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 6 lbs (2.72 kg)

Notes:

Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting.

Specifications:

• Read: Rear
• Mounting Style: Bracket
• Lubber Lines: Yes
• Backlight: Yes
• Box Dimensions: 7"H x 7"W x 8"L WT: 5 lbs
• UPC: 010342138651

Quick Guide (pdf)
Owner's Manual (pdf)

PG700 Integrated Heading Sensor, NMEA2000

The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.

Features:

• Angular velocity sensor and magnetic bearing sensor incorporated

• Automatic determination of installation site suitability

• L-shaped mounting base for mounting on bulkhead

• Output of magnetic bearing data to FURUNO CAN bus device

Navigator Compass

Features:

• 4 1/2″ (115 mm) Ritchie CombiDial and Built-in Inclinometer
• When mounting this Compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.
• Easily Installed, Fits 5.75″ (146 mm) Mounting Hole
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Fiberglass Reinforced Bowl
• 45 degree Lubber Lines
• Exclusive Built-in 12v Amber LED Lighting
• Built-in Compensators to Easily Adjust for Deviation
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Specifications:

• Mounting Style: Bulkhead
• Lubber Lines: Yes
• Read: Both
• Backlight: Yes
• Box Dimensions: 7"H x 8"W x 8"L WT: 3.13 lbs
• UPC: 010342150301

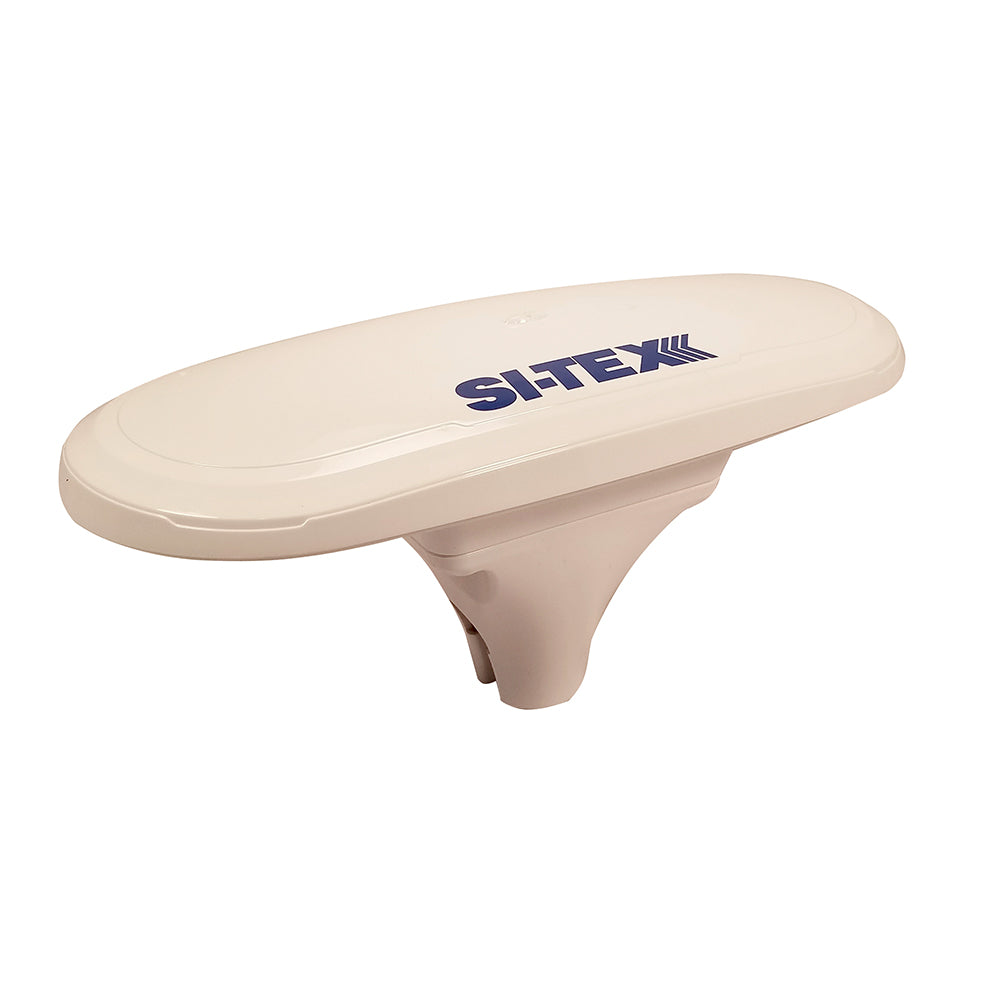

NMEA2000 GNSS SAT Compass with Pole Mount (No Cable Included)

Experience superior navigation from the accurate heading and positioning performance available with the V200 SAT Compass.

The multi-GNSS V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30cm (11.8") RMS accuracy via the optional Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35cm (13.7") in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.

Features:

• Uses all known Satellite Systems GPS, GLONASS, Galileo, BeiDou, QZSS
• 30cm (11.8") RMS world-wide positioning accuracy with Atlas correction subscription
• 0.75 degree heading accuracy in an amazingly small form factor
• Excellent in-band and out-of-band interference rejection
• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
• Provides heading, positioning, heave, roll and pitch

Specifications:

• Output Type: NMEA 2000
• Mounting Style: Surface
• Lubber Lines: No
• Backlight: No
• Box Dimensions: 9"H x 9"W x 15"L WT: 5.1 lbs
• UPC: 010407520575

Simrad HS65 GNSS Heading Sensor [000-16235-001]

HS65 GNSS Heading Sensor

The HS65 is an all-in-one GNSS-based heading sensor that combines compass and positioning functionality in a single device, simplifying installation while delivering stable, precise heading information critical to navigation, autopilot control, radar overlay, and overall system performance.

The HS65 replaces the Simrad HS60 and represents an evolution in both performance and installation flexibility, informed by real-world customer and installer feedback.

The Simrad HS65 is a GNSS-based heading sensor that provides accurate, interference-free heading and positioning data for Simrad® marine electronics systems. Using satellite-based heading rather than magnetic sensors eliminates interference from onboard electronics and metals.

Features:

• All-in-one heading and position sensor combining a compass and a satellite in a single device
• High-precision performance with less than 2° heading accuracy and under 1 meter position accuracy
• Dead reckoning capability to maintain heading temporarily if the satellite signal is lost
• Seamless integration with Simrad® systems via NMEA 2000® connectivity
• Modern low-profile design with improved cable routing and flexible installation options

Why It Was Created?

Modern marine systems rely on precise heading data to support accurate navigation, radar overlay, chart alignment, and autopilot performance. The HS65 was developed to deliver a more reliable and simplified heading solution that improves system accuracy and installation flexibility. It provides consistent, satellite-based heading data, simplifies integration with Simrad® chartplotters and autopilot systems.

The HS65 provides critical heading and positioning data that supports multiple onboard systems, including:

• Autopilot systems for accurate course keeping
• Radar overlay and MARPA target tracking
• Chart orientation and navigation accuracy
• Overall situational awareness and vessel control
• Designed to integrate seamlessly with Simrad® marine electronics systems running on both NOS and NEON™ OS, including NSO®, NSS®, and NSX® platforms.
