Raymarine Hydraulic Reversing Pump Type 0.5 [E12139]

Hydraulic Reversing Pump Type 0.5

Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.

Raymarine Type 1 Rotary Drive - 12V [M81135]

Ships Direct From Manufacturer

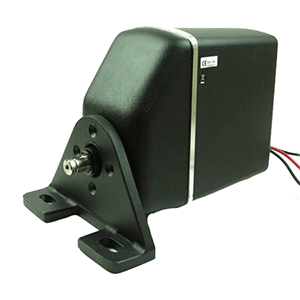

Rotary Drive Type 1 - 12V

The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.

Optional drive sprockets and modification to the steering chain may be required.

Features:

• Rotary Drive
• Type 1
• 12V

Specifications:

• Maximum Boat Displacement: 11,000 kg
• Peak Output Torque: 20 nm
• Maximum Shaft Speed: 33 rpm
• Recommended Hard-Over Time (no load): 10 seconds
• Power Consumption: 24-48w
• Corepack Used: ACU-200

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 6"H x 11"W x 14"L WT: 11.3 lbs
• UPC: 023193811352

Raymarine Rotary Drive Type 2 - 12V [M81136]

Ships Direct From Manufacturer

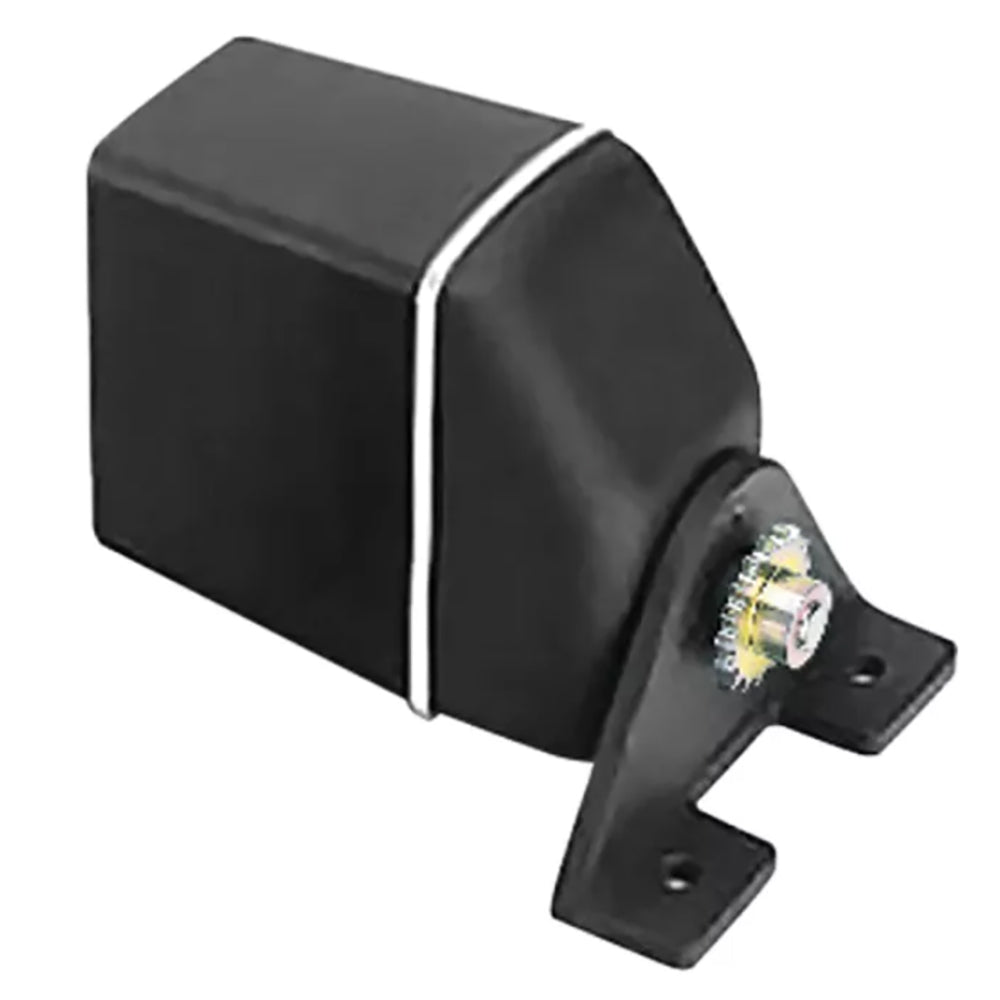

Rotary Drive Type 2 - 12V

The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.

Optional drive sprockets and modification to the steering chain may be required.

Features:

• Rotary Drive
• Type 2
• 12V

Specifications:

• Maximum Boat Displacement: 20,000 kg
• Peak Output Torque: 34 nm
• Maximum Shaft Speed: 33 rpm
• Recommended Hard-Over Time (no load): 10 seconds
• Power Consumption: 60-84w
• Corepack Used: ACU-400

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 7"H x 11"W x 14"L WT: 13.5 lbs
• UPC: 023193811369

Furuno PUMPHRP11-24 Type Autopilot Pump - 24V [PUMPHRP11-24]

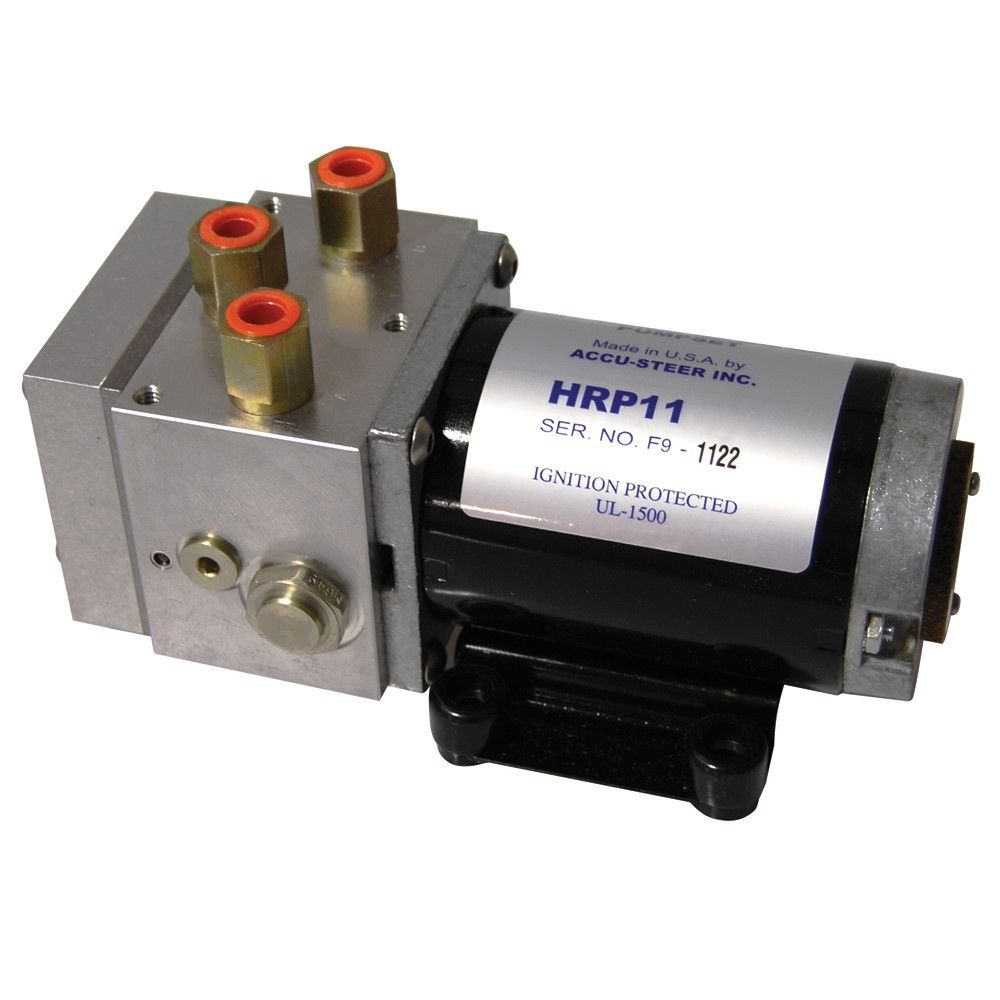

PUMPHRP11-24 Type Autopilot Pump - 24V

Autopilot Pump, 24 VDC, 1.1 Cubic Inches Per Second (For Ram Sizes of Up to 13 Cubic Inches in Volume)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 6"H x 6"W x 8"L WT: 9.7 lbs
• UPC: 611679305060

Brochure (pdf)

Intellisteer Type R f/Cable Steered Boats w/Auxiliary Outboards [INTTYPER]

Type R for Cable Steered Boats with Auxiliary Outboards

Features:

• Drive connects to kicker
• Electronic clutch disengages for manual steering
• Rotary drive system
• Safety override technology
• Current 1.25A typical, 5A peak
• 6' steering cable for connecting drive unit included
• Requires outboard link arm assembly
• Wireless control module plus handheld pendant - steering in the palm of your hand
• Steer, fish and cruise from anywhere on the boat
• Easy DIY installation - no need for professional installer
• 2 Year limited warranty - purchase with confidence

Specifications:
Wireless Controller & Receiver

• Meets FCC standards
• Additional Handheld and receiver can be paired in field
• Pendant and receiver auto-off in 30 minutes if no usage
• Over 1 Million control codes provide enhanced security

Handheld Pendant

• Water proof
• Supplied with 2xAAA batteries
• Includes lanyard

Wireless Receiver & Motor Controller

• Waterproof
• Motor drive capability up to 25A
• Overload protection
• Reverse polarity protection
• 12V DC nominal (9V min - 16V max operating range)
• Offers pass-through capability for Autopilot motor and clutch control circuits

Specifications:

• Type: Parts
• Box Dimensions: 8"H x 16"W x 26"L WT: 21.3 lbs
• UPC: 628309263379

Brochure (pdf)

Raymarine Hydraulic Linear Drive Type 3 - 24V [M81203]

Ships Direct From Manufacturer

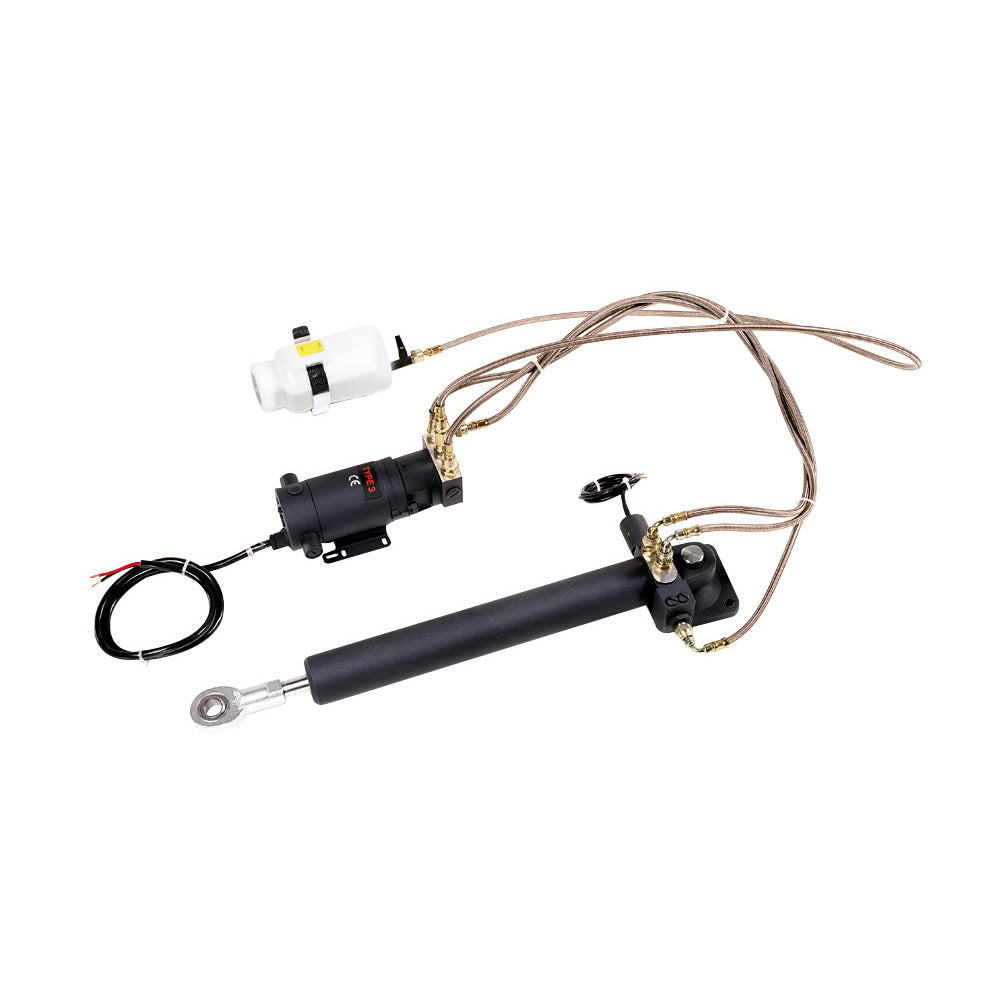

Hydraulic Linear Drive Type 3 - 24V

The hydraulic linear drive system is designed for boats with existing mechanical steering systems, not hydraulic steering systems. It provides a totally isolated autopilot steering system consisting of:

Hydraulic ram: a self-contained autopilot steeringcylinder with a load limiting system and a built in clutch (to allow friction-free steering when the autopilot is not in use).

Reversing hydraulic pump: powers the hydraulic ram.

Hydraulic fluid reservoir: supplies hydraulic fluid to the system.

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 10"H x 14"W x 36"L WT: 30.8 lbs
• UPC: 023193812038

Raymarine Type 2 Long Linear Drive Unit - 24V [M81134]

Ships Direct From Manufacturer

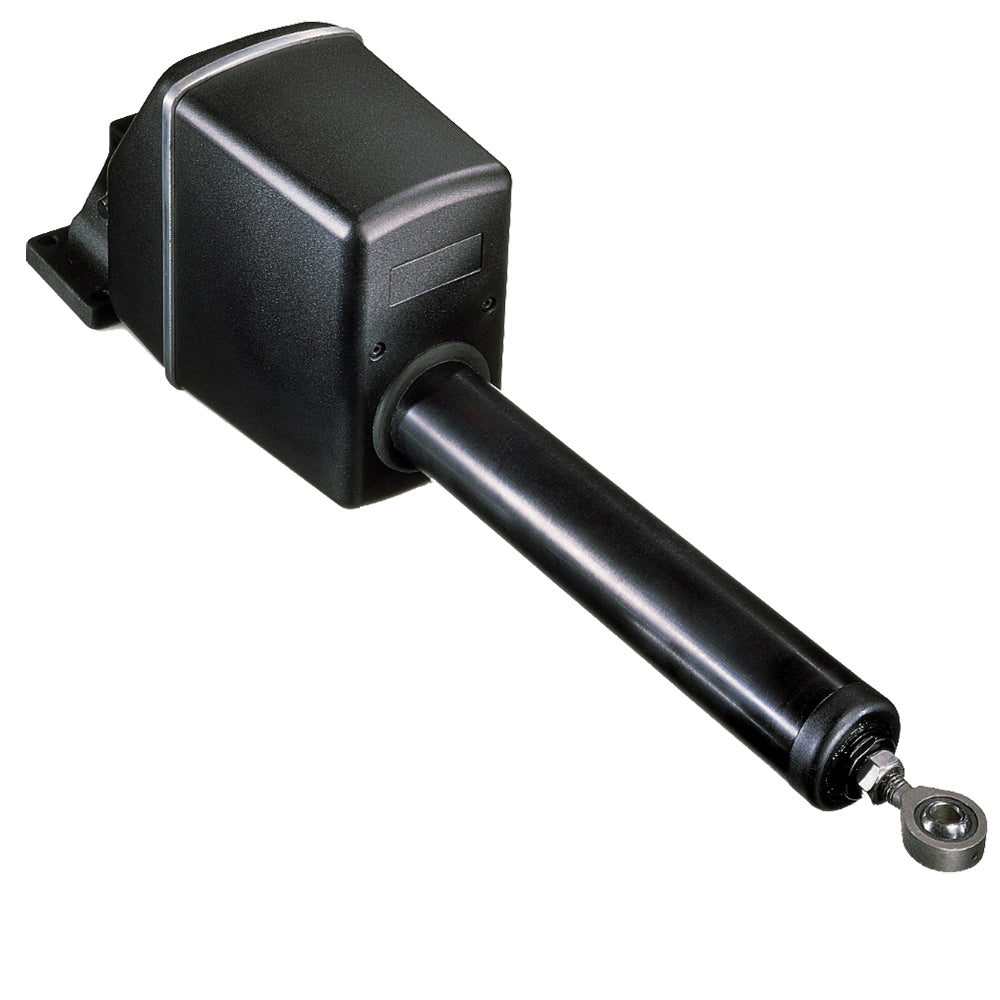

M81134 Type 2 Long Mechanical Linear Drive - 24V

Raymarine's most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.

A linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering manufacturer may be required. Must be able to back-drive steering system from the rudder.

Features

• Drive Type: Type 2 Long

• Maximum boat displacement: 20,000kg (44,000 lb)

• Peak thrust: 480 kg (1050 lb)

• Maximum stroke: 400 mm (16")

• Hard-over to hard-over times: 14 seconds

• Maximum rudder torque: 1,660 nm (14,700 lb.in)

• Power consumption: 48-72W

• Corepack used: ACU-400

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 11"W x 31"L WT: 18 lbs
• UPC: 023193811345

Octopus Hydraulic Gear Pump 12V 6-9CI Cylinder [OCTAFG0612]

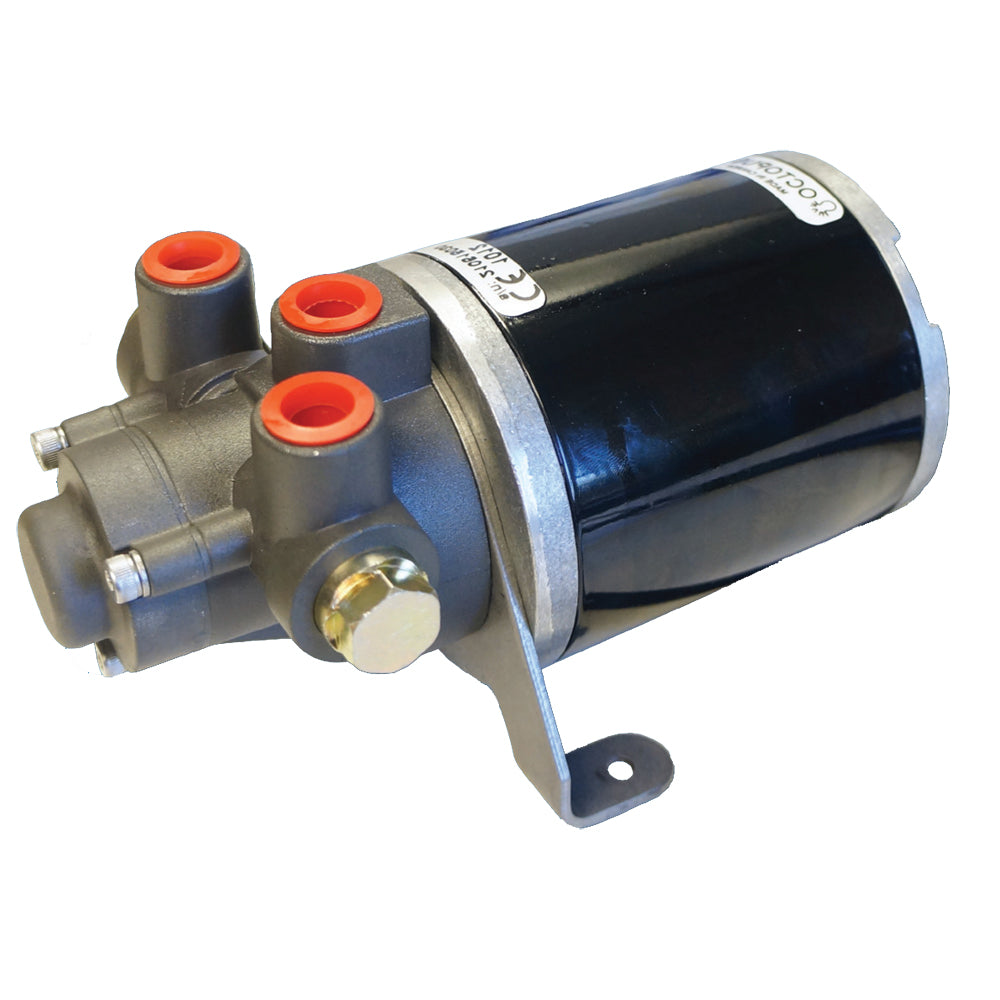

Hydraulic Gear Pump 12V 6-9CI Cylinder

From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency - lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units.

• Cost saving - the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units.

• The smaller footprint of the compact gear pump increases installation flexibility.

• Lower noise and vibration make the gear pump particularly suitable for sailboat installations.

• Suitable for balanced or unbalanced cylinders.

• All models available for both 12v and 24v systems.

Specifications:

• Flow Rate: 600CC/min

• Voltage: 12 Volt

• Cylinder Range: 6-9ci CYLINDER

• Average Current Draw: 3.8A

• Operating Temperature: -15 to +75'C (5 - 167'F)

• Waterproofing: IP55

• Ignition Protection: ISO 8846 & SAEJ1171

• EMC Compliance: EN60945-9-2002

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 5"W x 9"L WT: 4.2 lbs

Quick Guide (pdf)
