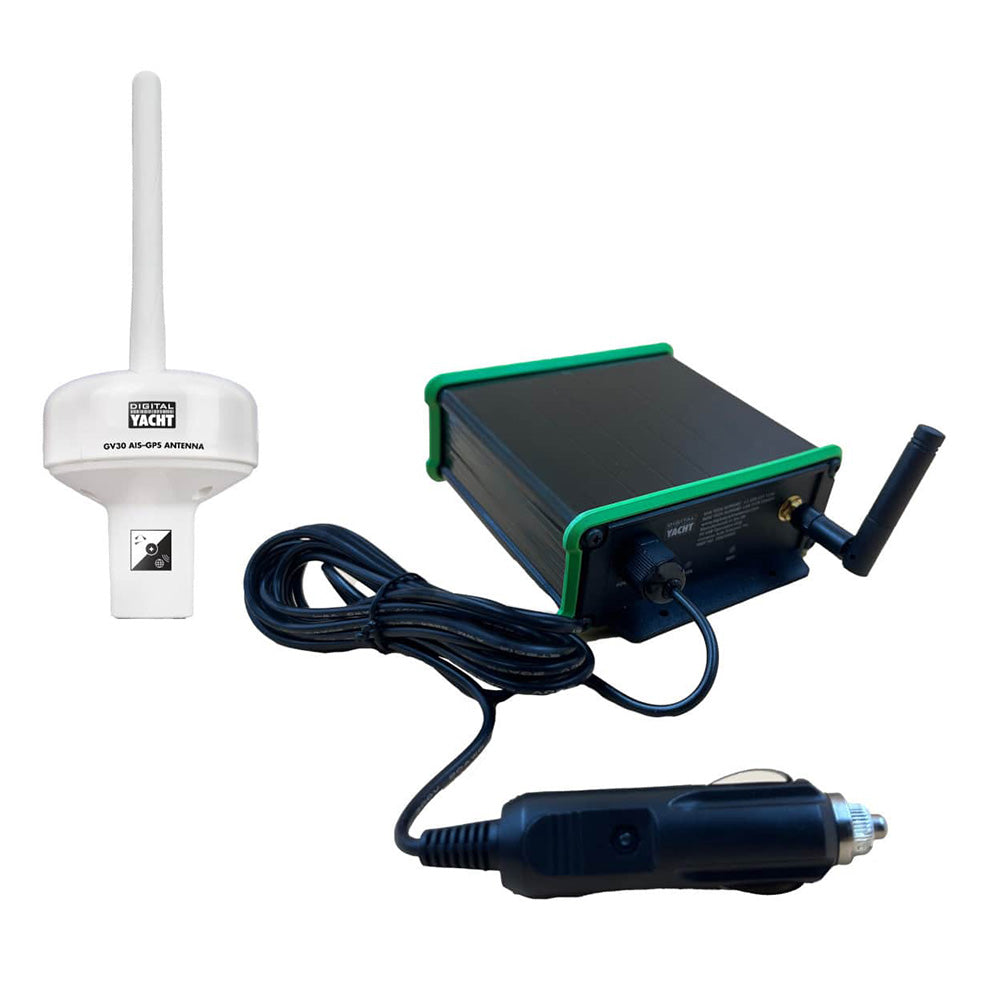

Digital Yacht Nomad 2 Portable AIS w/GV30 [ZDIGNMD2]

Nomad 2 Portable AIS with GV30

Nomad 2 is a portable AIS transponder from Digital Yacht. Designed for recreational boaters and professional mariners, it offers a full-function Class B AIS transponder with a wireless and USB interface built in for tablets and PCs—all in a portable, compact package.

It incorporates an innovative USB power solution, therefore allowing the Nomad to be powered from any standard USB source. This can include low-cost 3rd-party battery packs, a USB PC connection, or 12V USB adaptors/cigarette lighter adaptors. It ships with a compact combination of AIS and GPS antenna, which allows the main unit to be used below decks on all types of vessels – leisure and commercial.

It addresses the needs of so many boaters who want a portable yet sophisticated navigation solution with AIS and GPS and the ability to interface with tablets, PCs, and smartphones. It appeals to charter skippers, professional mariners like delivery skippers and pilots, as well as boat owners who don’t want the hassle or cost of installing a dedicated transponder and like the concept of easy iPad and tablet navigation using their favorite charting apps with a detailed AIS overlay and real-time GPS positioning. As a full-function Class B transponder, it also sends the boat's position to other AIS users.

Nomad 2 has a built-in wireless interface for outputting GPS position data and AIS. It’s designed for use with an iPad, tablet, phone, or PC in conjunction with any compatible charting app or program—Navionics, NavLINK, Weather 4D, AquaMap, Imray, SailGrib, and 100’s more.

The unit can also act as an AIS/GPS receiver only if MMSI and specific boat data are not available.

Configuration

Nomad 2 has a built-in web interface. The configuration of the transponder can be done through a computer, a tablet, or even a smartphone, and most importantly, no software is required.

You can configure Nomad 2 through its simple web interface. Just open the web browser, enter the Nomad 2’s IP address, and users can configure the vessel details (MMSI number, boat name, etc.), network name, and password, and even merge the AIS’s WiFi to an existing WiFi network on board. So, no complicated programming software or app is required.

You can even view the received NMEA data in the web browser for easy fault-finding. Finally, Nomad 2 supports TCP and UDP network protocols for maximum compatibility with apps.

Features:

• The perfect AIS solution for charter users, rental boats, delivery skippers, pilots, commercial users, etc.
• Full-function Class B transponder (send and receive AIS)
• Supplied with a combination GPS-VHF antenna that has an industry standard 1” threaded mount – suitable for many 3rd party deck, rail, and pole mounts
• Integrated wireless and USB interfaces – compatible with 100s of AIS-ready charting apps
• USB powered
• Easy programming and control through a wireless web interface – no apps required
• Silence transmissions via the web interface
• Supports up to 7 connected devices
• Creates its access point and can also join an existing wireless network if required

Specifications:

• Weight: 1200 g
• Dimensions: 245 × 165 × 100 mm

What’s in the box?

• Nomad Class B+ SOTDMA Transponder
• 3db Wifi Antenna
• Integrated Cigarette Lighter Plug
• GV30 Combination AIS/GPS Antenna With 10m Cable And Connectors
• Instructions

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Box Dimensions: 4"H x 9"W x 13"L WT: 3.5 lbs
• UPC: 703791696635

Owner's Manual (pdf)

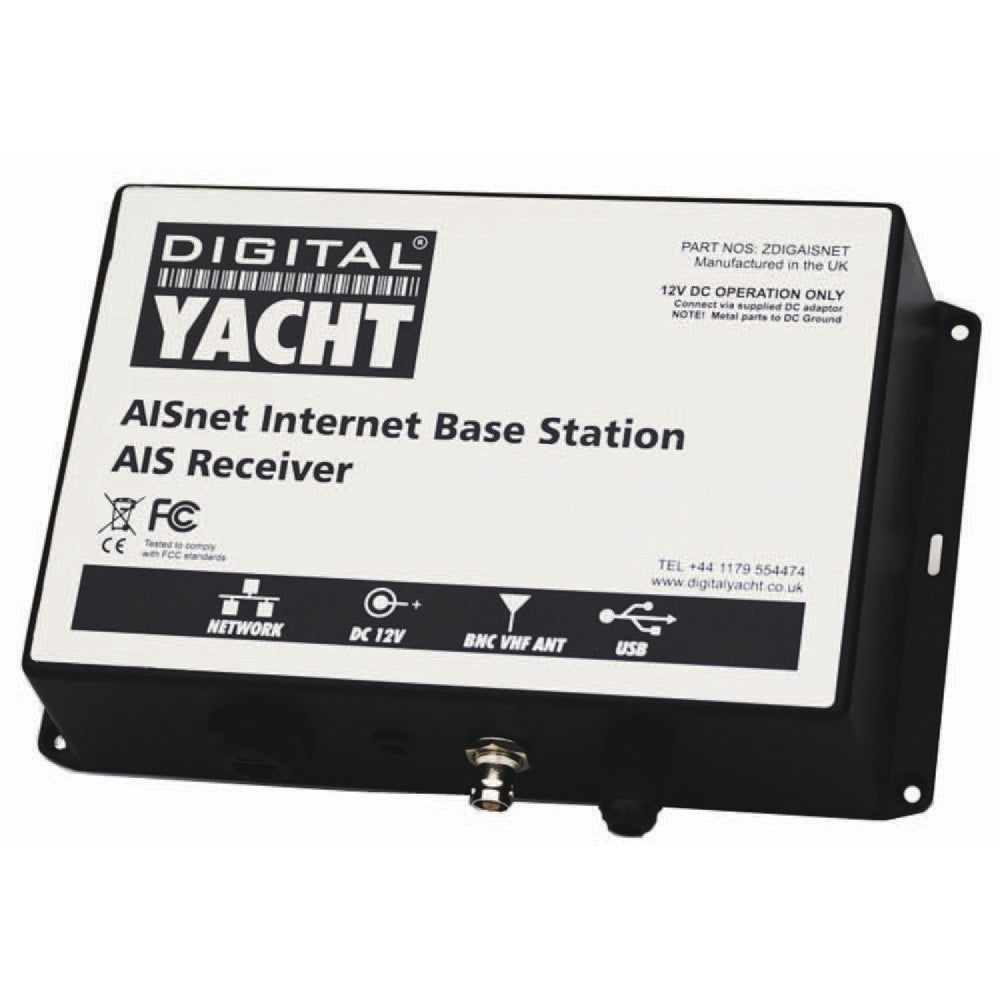

Digital Yacht AISnet AIS Base Station [ZDIGAISNET]

AISnet AIS Base Station

AISnet is a new AIS receiver for use as an AIS base station at home or in the office. Utilising the same high performance dual channel AIS receiver as the rest of the Digital Yacht range, AISnet also features an ethernet socket so that you can connect it to your broadband router and send AIS data to an on-line AIS tracking service.

There are now a large number of internet based web sites which offer a view of AIS equipped vessels on a background chart allowing users to check the position and identity of ships and yachts. If your home/office is close to the coast and you would like to contribute your data to one of these sites, simply register with the company and they will give you an IP address and Port number.

Using the setup program that Digital Yacht supply, it takes seconds to program the IP address and Port in to AISnet, which will immediately start sending your local AIS data seamlessly across the internet to be displayed on the site.

It is also possible to view the data, that AISnet is collecting, locally on your PC using the free SmarterTrack Lite software that Digital Yacht include with every AISnet. Simply plug the USB connector into your PC and the AIS data will appear on your PC and still be transmitted over the internet.

AISnet is supplied with a universal UK/Euro/US mains adaptor that provides a regulated 12v supply from 240v/110v AC mains.

KEY FEATURES

• AIS base station for Home of Office use

• Integrated ethernet network controller for supplying AIS data to online AIS websites

• High performance dual channel AIS receiver

• Simple configuration via free setup program

• USB Interface for simple Plug and Play connection to a PC

• Requires VHF antenna or dedicated AIS antenna (available as optional accessory) or splitter

• Universal Mains power supply included

• Simple "fit and forget" black box solution

Specifications:

• GPS Included: No
• AIS Class: Both A & B
• Antenna Included: No
• Display Included: No
• Function: Receive Only
• Box Dimensions: 4"H x 13"W x 18"L WT: 3 lbs
• UPC: 738435472429

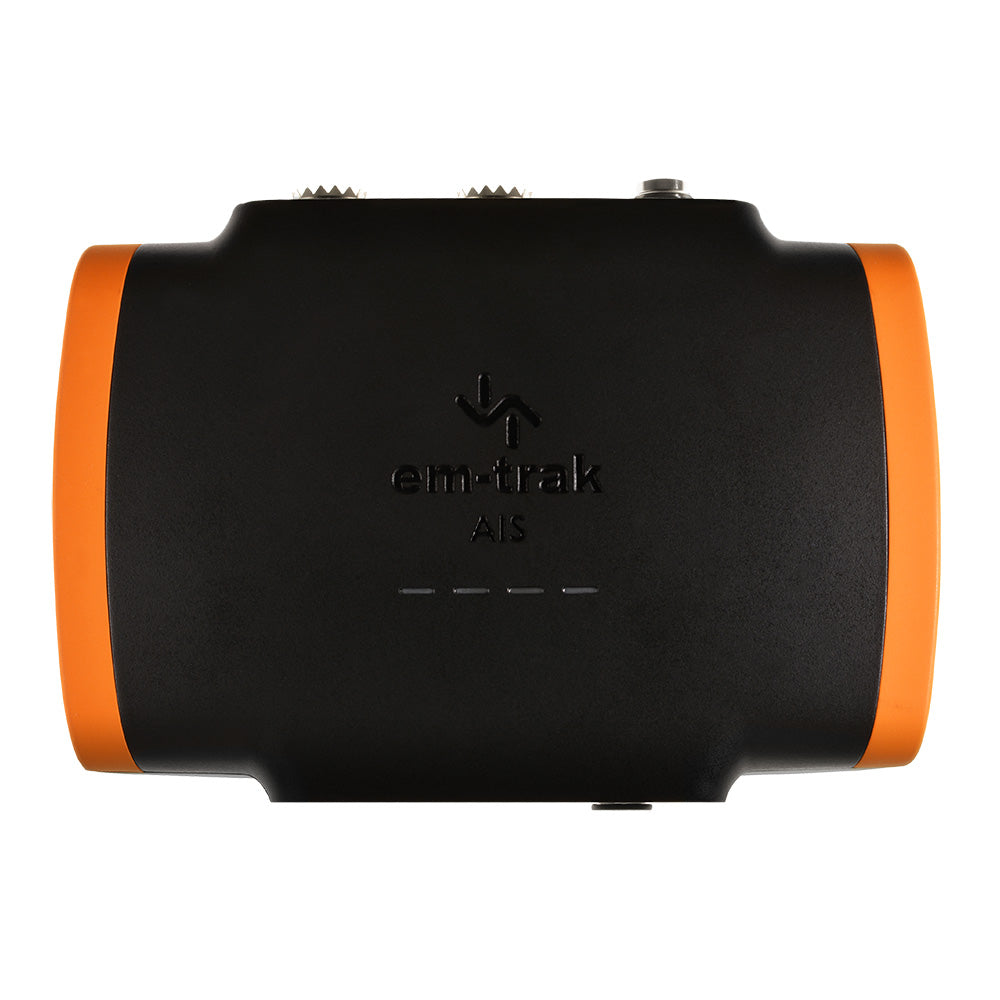

B923 Class B AIS Transceiver with VHF Splitter - 2W CSTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

Get the most from your on-the-water experience with the B923, a 2W CSTDMA AIS Class B transceiver. Small and lightweight, it delivers em-trak's advanced AIS performance to ensure you see all information and targets, even at maximum range, and with the lowest power consumption in its class.

The B923 is equipped with an integrated VHF antenna splitter, which enables your transceiver to share your existing VHF antenna without any loss of performance. It offers quick and simple installation, with built-in intelligent connectivity, including an integrated next-generation GPS receiver and antenna and em-trak's unique FLEXI-FIT® bracket system to get you up and running in no time at all. The dual NMEA2000 & 0183, coupled with serial ports, USB, optional Wi-Fi, and Bluetooth also make connecting to all your tablets, PCs, display, and navigation devices easy and simple.

Features:

• Certified AIS Class B – 2W CSTDMA
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any chart plotter or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection
• Fail-safe VHF radio operation

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 415kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 245mA
• Peak current: 2A
• Average power consumption (at 12V): 2.9 W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

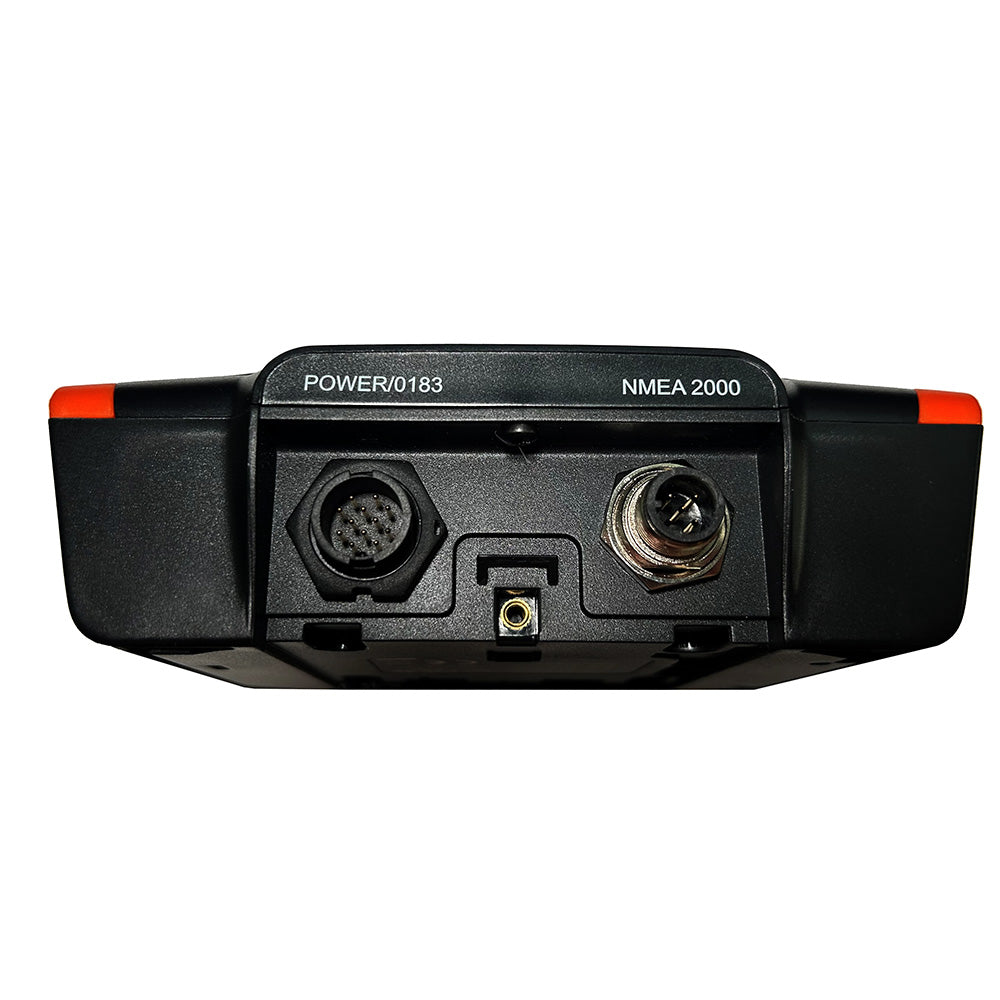

Connectors:

• VHF antenna: SO-239
• VHF radio: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: CSTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 2W (+33dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 6"H x 7"W x 8"L WT: 2.25 lbs
• UPC: 672975210526

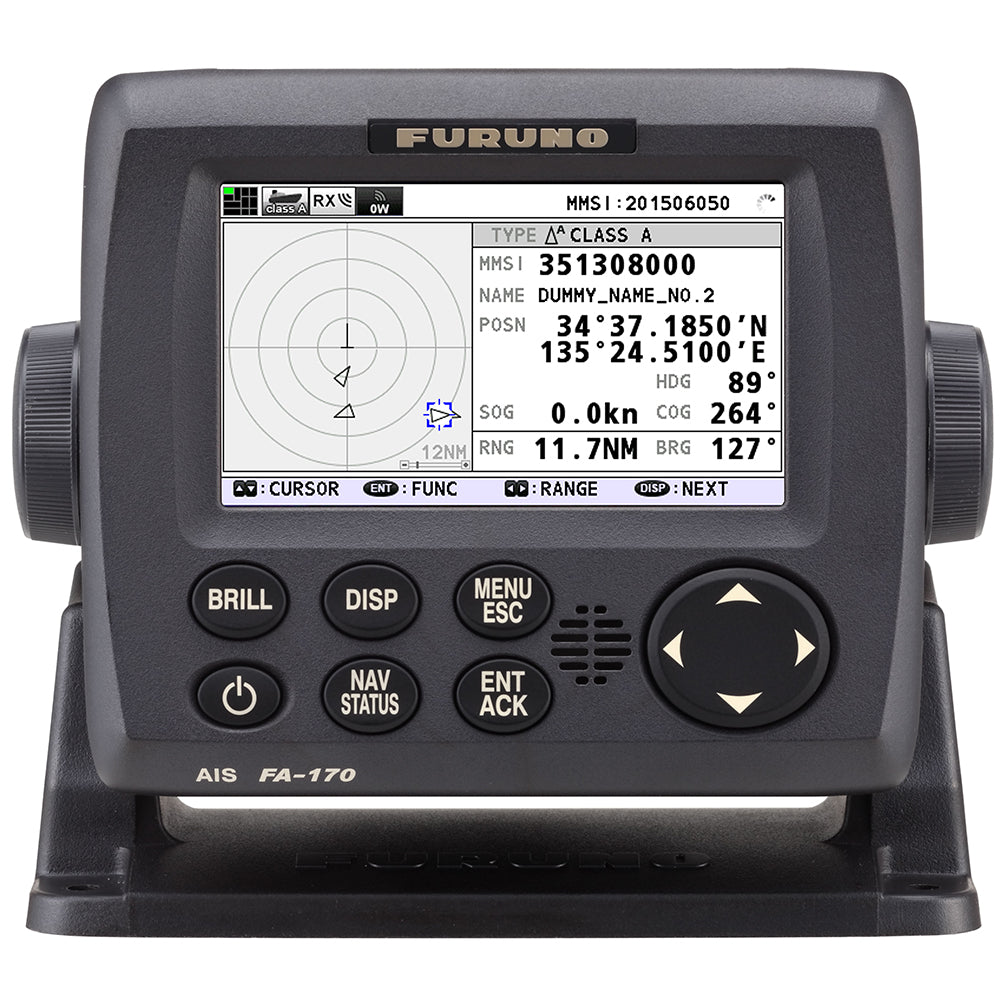

Furuno Class A AIS Transponder [FA170]

Class A AIS Transponder

Furuno's FA170 is a Class A AIS Transponder with a 4.3" Color LCD Display. It displays symbols for AIS-equipped vessels, AIS-SARTs, coastal stations, and other aids to navigation within the VHF range. AIS data can be output to ECDIS, Radar, or other navigational equipment for collision avoidance support.

The FA170 includes 6 in/out ports, 3 input-only ports, one LAN port, and one alarm output (contact closure) port. The unit is BAM (Bridge Alert Management) ready, meeting the specific requirements for BAM as specified in IMO MSC.302 (87). An optional Pilot Plug is available.

This compact unit can store up to 2,048 AIS targets and AIS sarts. Selecting a target from the list generates a pop-up window where detailed information is displayed. You can also create an AIS message or send a name request to the target ship.

When dangerous targets are detected, the FA170 provides a Dangerous Target list. The FA170 is also capable of exchanging short, safety-related messages with a specified MMSI or all AIS-equipped vessels via VHF channels. The FA170 can store up to 20 transmitters and 20 received messages.

Features:

• Class A AIS Transponder with 4.3" Color LCD Display
• Displays Information about AIS-equipped ships, as well as coastal stations and Aids to Navigation within VHF coverage
• Outputs AIS data to ECDIS, Radar, and other navigational equipment
• Sufficient output ports for dual configuration of ECDIS and Radar Systems
• LAN Interface available for simple and efficient network integration
• BAM (Bridge Alert Management) is ready
• Optional available Pilot Plug
• Receives AIS-SART signals for assisting in streamlining SAR activities

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• AIS Class: A
• GPS Included: Yes
• Function: Receive/Transmit
• Display Included: Yes
• Antenna Included: Yes
• Box Dimensions: 13"H x 14"W x 19"L WT: 18.5 lbs
• UPC: 611679364449

Owner's Manual (pdf)
Brochure (pdf)

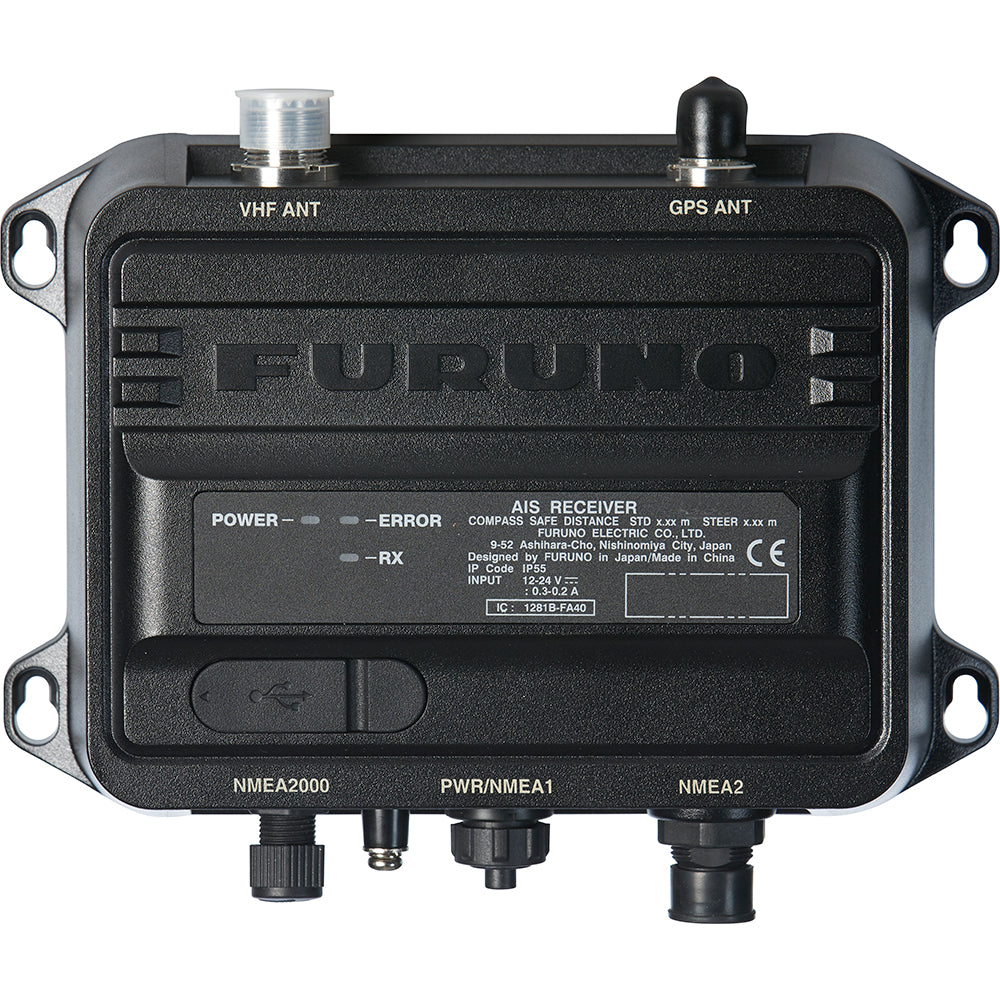

Furuno FA70 AIS Transceiver [FA70]

FA70 AIS Transceiver

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below at the time of purchase to request programming. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The FA70 AIS Transceiver has multiple ports for simple connection to your NavNet, AIS-capable Radar or Chart Plotter, or your favorite navigation software. AIS information such as vessel name and call sign, position, course, and speed are graphically presented, allowing you to monitor vessel traffic simply and easily. Both models are designed to work with nearly any VHF antenna, and a signal splitter is an available option that allows the unit to share your radio's VHF antenna, making installation simple.

The FA-70 AIS receives the vessel name, call sign, position, COG, SOG, and other useful information from surrounding vessels. The FA-70 is a Class-B+ AIS that transmits your vessel information at higher power & faster rates than typical Class B units for added awareness. SOTDMA guarantees an AIS time slot allocation, making you visible in congested waters.

The FA70 includes an internal GPS Receiver with differential (DGPS) capability, ensuring that you're transmitting the highest precision information.

Features

• Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby
• Greatly improves the level of situational awareness even in fog, darkness, or congested waterways
• Flexible integration with various AIS-compatible radar and chart plotters
• High power (5W) and fast transmitting rate contribute to greater safety
• Internal VHF splitter eliminates the need for a separate antenna
• Switchable SO-TDMA and CS-TDMA
• Receives both Class-A and Class-B AIS information
• Initial setup can be done through the NMEA2000 network (TZT2/TZT3)
• Silent Mode with external ON/OFF switch

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

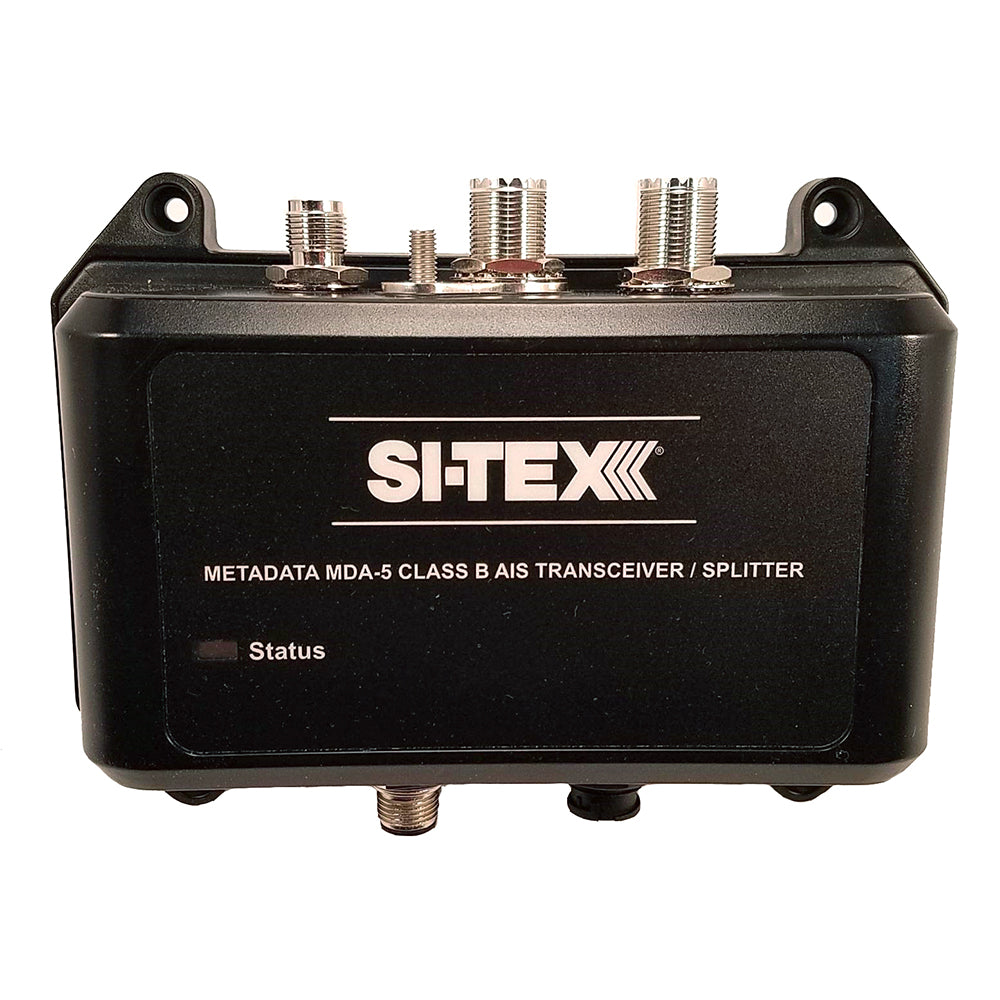

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

Features:

• The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
• 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
• Intergrated zero loss VHF antenna splitter - no second antenna needed
• Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
• NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
• Built-In GPS & GLONASS satellite navigation receiver
• Water Proof certified to IPX7
• Dual Receivers decodes all DSC & AIS messages, including MOB & SART
• Ultra-power efficient
• IEC-62287-2, FCC and USCG certified
• 2 Year Warranty

Package Includes:

• Commercial Grade External GPS Antenna with Coax Cable
• Mounting hardware
• Power & Data Interface cable
• VHF Radio Connection cable
• Product Information DVD, with ProAis2 Software for Programming & Troubleshooting
• User Manual & Quick Start Guide

Specifications:

• Transmitter Output Power: 5 Watts
• VHF Antenna Connector SO-239 UHF
• GPS Antenna Connector TNC
• Frequency Range: 156.025-162.025 Mhz
• Input Voltage: 9.6-31.2 VDC
• Current Draw: 220mA average power consumption
• Operating Temperature Range: -25C to +55xC
• Ingress Protection: IP67
• Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
• Weight 0.8 lbs.

Specifications:

• AIS Class: B
• GPS Included: Yes
• Function: Receive/Transmit
• Display Included: No
• Antenna Included: No
• Box Dimensions: 5"H x 9"W x 14"L WT: 3.5 lbs
• UPC: 010407510705

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

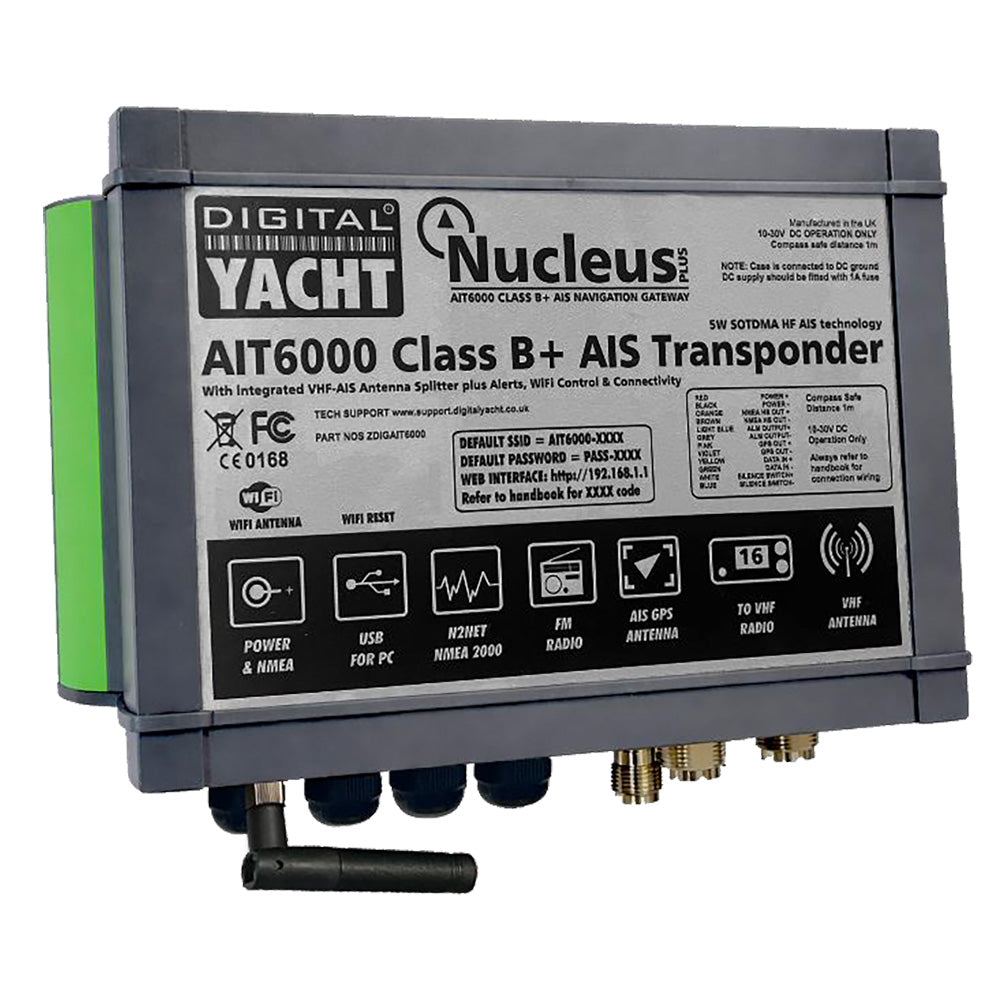

AIT6000 Class B+ AIS Transponder

Nucleus Class B + AIS Transponder with SPAIS satellite AIS compatibility, alerts & an integrated NMEA 2000 wifi Gateway.

The AIT6000 is Digital Yacht’s Class B+ AIS transponder, set to replace the AIT5000. It retains all the features that made the AIT5000 successful—an integrated and patented ZeroLoss VHF antenna splitter, 5W SOTDMA transmissions, and NMEA 0183, NMEA 2000, wireless, and USB interfaces—while introducing several major innovations:

SPAIS Satellite Tracking

The AIT6000 incorporates Digital Yacht’s latest SPAIS™ (space AIS) technology with AIS transmissions now enabled for reception by AIS satellites. This functionality can be easily enabled from the set up menu and will prioritise your AIS transmissions for satellite reception, ideal for offshore and ocean sailors.

Integrated NMEA 2000 Gateway

The AIT6000 has also been designed to become an onboard hub for navigation.  It features NMEA 0183 and NMEA 2000 connectivity for modern navigation systems. It also has PC connectivity via USB and a wireless interface supporting up to 7 tablets or phones which can utilise the data for app integration.

AIT6000 adds a lot of interfacing capability through this WiFi interface with not just AIS and GPS data from the transponder being sent but also boat instrument data from the NMEA 2000 network thanks to its internal NMEA 2000 multiplexer – such as depth, heading, speed and wind information.

Built-In Collision & Anchor Alarms

The AIT6000 also has a built in interface accessible via any connected device for diagnostics, silence of AIS transmissions and also alerts for anchor drift and AIS closest point of approach (CPA) and time to CPA (TCPA).

These alarms can be monitored through the wireless interface with an attractive graphical display of current status or NMEA 2000 alerts can be sent over the NMEA 2000 network for pop up notifications or NavAlarm audible activations. This allows navigators to receive critical collision-avoidance warnings even when a chartplotter is not in use.

There is also a switched output on the AIT6000 power data cable which allows the alarm to attach to a sounder, relay or connect to a 3rd party system for alert activation.

Web Interface with Integrated Alarms

Installation is simple with an integrated and patented zero-loss VHF antenna splitter so the main VHF antenna is used for both AIS and VHF operation.

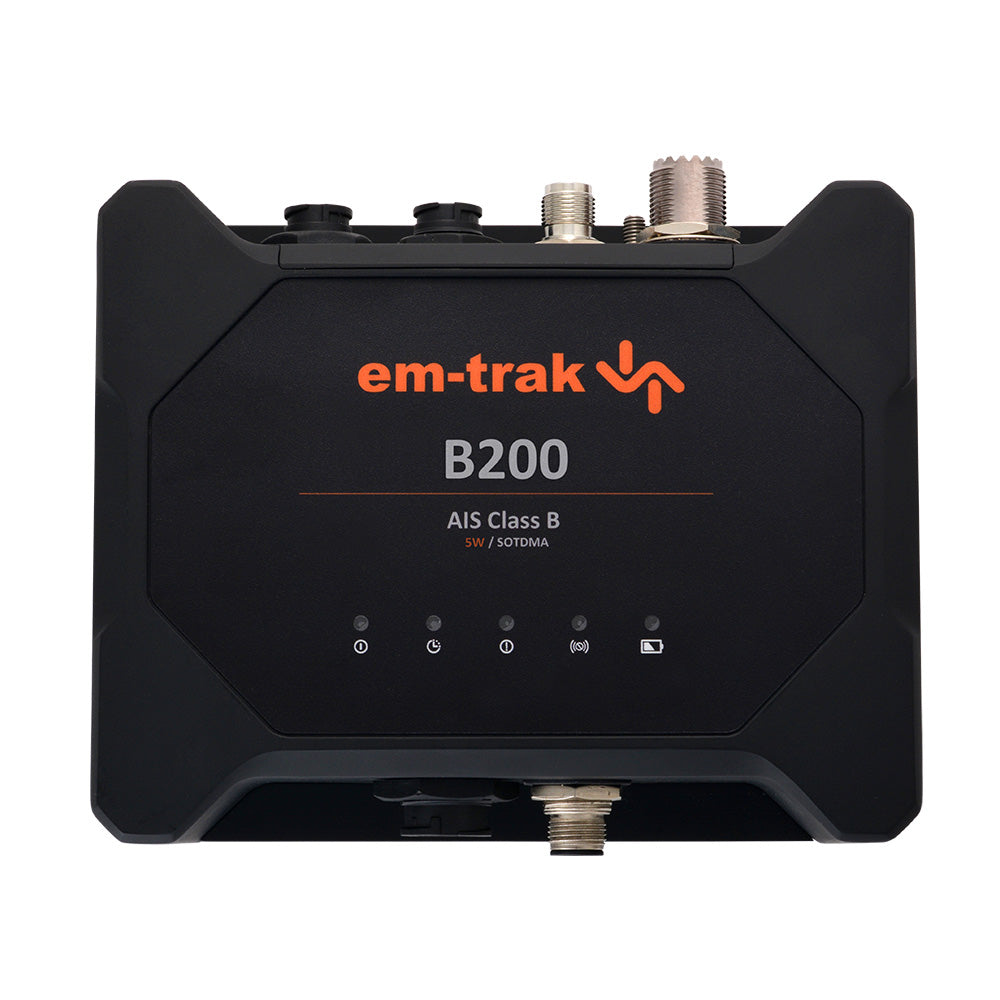

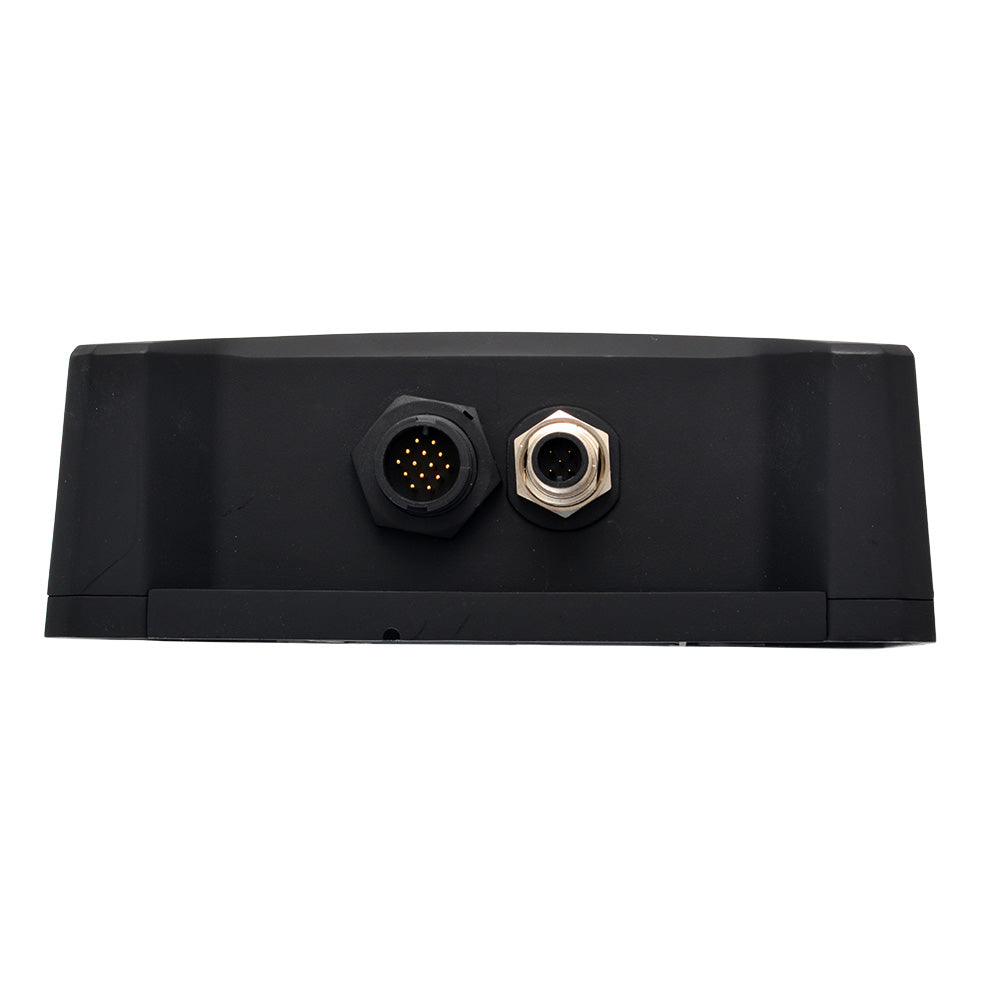

B200 Class B AIS Transceiver - 5W SOTDMA with Battery Backup

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The em-trak B200 is a high transmit power (5W) priority AIS Class B transceiver specifically designed for serious ocean sailors, offering enhanced safety through maximum range and transmission priority.

The high-powered, advanced AIS engine provides the reliability you can depend on and the very best AIS performance in its class. Completely water and weatherproof (IPx6 & IPx7 certified), and ruggedized to withstand shock and vibration, the B200 has been extensively tested in the most extreme marine environments and will provide years of maintenance-free operation. The dual NMEA2000 & 0183, coupled with serial ports, USB, Wi-Fi, and Bluetooth also make connecting to all your tablets, PCs, display, and navigation devices easy and simple.

Peace of mind is further enhanced with an internal battery that ensures continuous operation for up to 120 hours in the event of total power loss. The B200 also supports silent mode, where transmissions are switched off, but receiving continues, and can be enabled through the integrated switch.

Features:

• Certified AIS Class B – 5W SOTDMA
• Ruggedized and impervious to extreme environments – water (IPx6, IPx7), damp, shock, vibration, temperatures
• Internal battery back-up for up to 120hrs operation – charge is automatically maintained by primary vessel power and automatically switches to the battery if lost
• Wi-Fi & Bluetooth wireless connectivity
• High performance latest generation GPS
• NMEA0183 & NMEA2000
• Low power consumption
• Anti-tamper protection
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (w x h x d): 170 x 140 x 69mm
• Weight: 695g
• Operating temperature: –25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection – IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V – 31.2V DC
• Average current (at 12V): 240mA (1.6A when battery charging)
• Peak current: 3.85A
• Average power consumption (at 12V): 2.9W (19.2W when battery charging)
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port
• Battery Capacity: 4600mAh
• Battery Type: 3.7V Li-Ion rechargeable
• Battery life (default operating conditions): 48 hours

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 2-way circular multipole
• NMEA 0183/silent mode: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data
• Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
• Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

• AIS standards: IEC 62287-2 Ed. 2.  ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0.  IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: External only
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 5W (+37dBm)

User Interface:

• Buttons: Integrated silent mode
• Indicators: Power, transmit timeout, error, silent mode

GNSS antenna

• Size: 85 x 70mm
• Weight: 470g
• Ingress Protection: IPx6 and IPx7
• Mounting: 1 inch 14 TPI pole mount required
• GNSS systems supported: GPS, GLONASS, Galileo, BeiDou

In the Box:

• 1 x AIS transceiver
• 2 x Anti-tamper locking plates
• 1 x Power cable (2M)
• 1 x Fixing pack
• 1 x Anti-tamper bracket
• 1 x Mounting template

Specifications:

• AIS Class: B
• Antenna Included: No
• Display Included: No
• Function: Receive/Transmit
• GPS Included: No
• Box Dimensions: 6"H x 7"W x 12"L WT: 4.5 lbs
• UPC: 672975210588
