B200 Class B AIS Transceiver - 5W SOTDMA with Battery Backup

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The em-trak B200 is a high transmit power (5W) priority AIS Class B transceiver specifically designed for serious ocean sailors, offering enhanced safety through maximum range and transmission priority.

The high-powered, advanced AIS engine provides the reliability you can depend on and the very best AIS performance in its class. Completely water and weatherproof (IPx6 & IPx7 certified), and ruggedized to withstand shock and vibration, the B200 has been extensively tested in the most extreme marine environments and will provide years of maintenance-free operation. The dual NMEA2000 & 0183, coupled with serial ports, USB, Wi-Fi, and Bluetooth also make connecting to all your tablets, PCs, display, and navigation devices easy and simple.

Peace of mind is further enhanced with an internal battery that ensures continuous operation for up to 120 hours in the event of total power loss. The B200 also supports silent mode, where transmissions are switched off, but receiving continues, and can be enabled through the integrated switch.

Features:

• Certified AIS Class B – 5W SOTDMA
• Ruggedized and impervious to extreme environments – water (IPx6, IPx7), damp, shock, vibration, temperatures
• Internal battery back-up for up to 120hrs operation – charge is automatically maintained by primary vessel power and automatically switches to the battery if lost
• Wi-Fi & Bluetooth wireless connectivity
• High performance latest generation GPS
• NMEA0183 & NMEA2000
• Low power consumption
• Anti-tamper protection
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (w x h x d): 170 x 140 x 69mm
• Weight: 695g
• Operating temperature: –25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection – IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V – 31.2V DC
• Average current (at 12V): 240mA (1.6A when battery charging)
• Peak current: 3.85A
• Average power consumption (at 12V): 2.9W (19.2W when battery charging)
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port
• Battery Capacity: 4600mAh
• Battery Type: 3.7V Li-Ion rechargeable
• Battery life (default operating conditions): 48 hours

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 2-way circular multipole
• NMEA 0183/silent mode: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data
• Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
• Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

• AIS standards: IEC 62287-2 Ed. 2.  ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0.  IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: External only
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 5W (+37dBm)

User Interface:

• Buttons: Integrated silent mode
• Indicators: Power, transmit timeout, error, silent mode

GNSS antenna

• Size: 85 x 70mm
• Weight: 470g
• Ingress Protection: IPx6 and IPx7
• Mounting: 1 inch 14 TPI pole mount required
• GNSS systems supported: GPS, GLONASS, Galileo, BeiDou

In the Box:

• 1 x AIS transceiver
• 2 x Anti-tamper locking plates
• 1 x Power cable (2M)
• 1 x Fixing pack
• 1 x Anti-tamper bracket
• 1 x Mounting template

Specifications:

• AIS Class: B
• Antenna Included: No
• Display Included: No
• Function: Receive/Transmit
• GPS Included: No
• Box Dimensions: 6"H x 7"W x 12"L WT: 4.5 lbs
• UPC: 672975210588

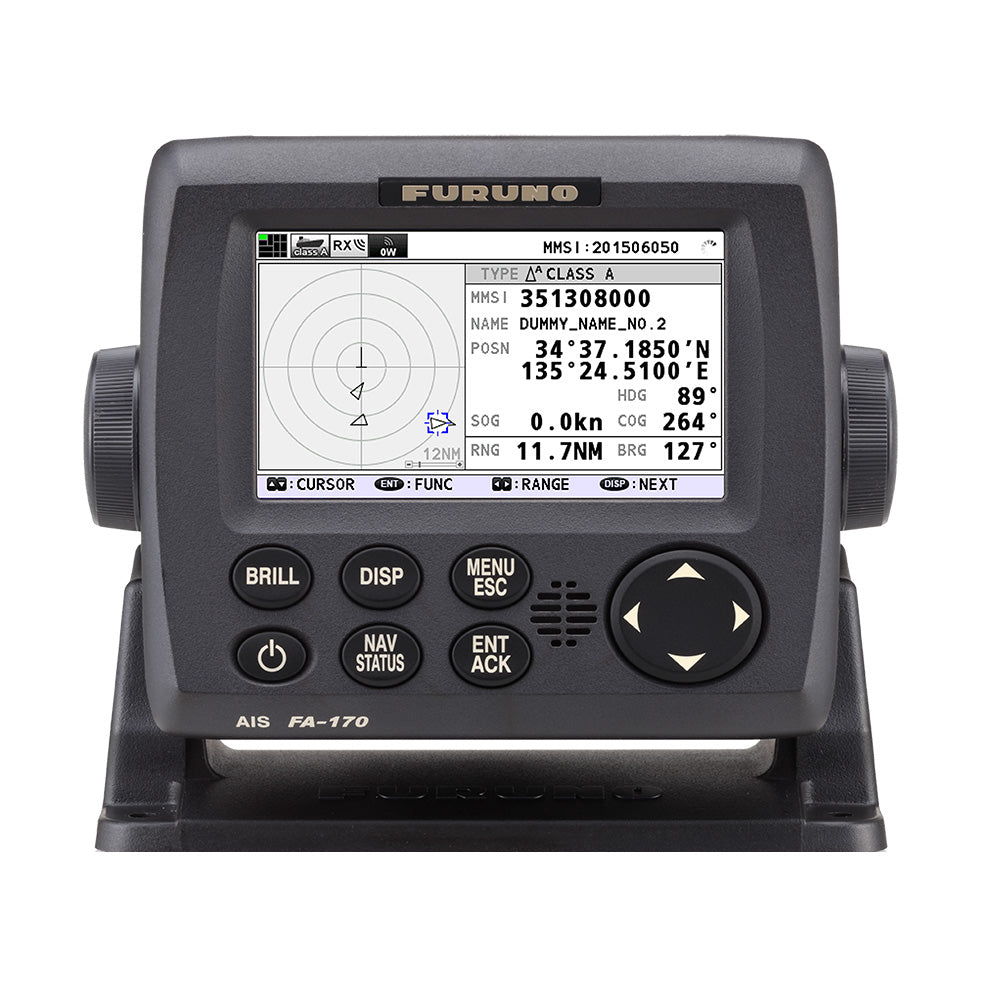

Furuno FA170 Display Unit [FA1702]

Ships Direct From Manufacturer

FA170 Display Unit

This 4.3" color LCD display displays symbols for AIS-equipped vessels, AIS-SARTs, coastal stations, and other aids to navigation within VHF range. AIS data can be output to ECDIS, radar, or other navigational equipment for collision avoidance support. The FA170 includes 6 in/out ports, 3 input-only ports, one LAN port, and one alarm output (contact closure) port. The unit is BAM (Bridge Alert Management) ready, meeting the specific requirements for BAM as specified in IMO MSC.302 (87).

This compact unit can store up to 2,048 AIS targets and AIS SARTs. Selecting a target from the list generates a pop-up window where detailed information is displayed. Users can also create an AIS message or send a name request to the target ship. When dangerous targets are detected, the FA170 provides a dangerous target list. The FA170 is also capable of exchanging short, safety-related messages with a specified MMSI or all AIS-equipped vessels via VHF channels. The FA170 can store up to 20 transmitted and 20 received messages.

Specifications:

• Screen Size: 4.3 Inch color LCD, 480 x 272 dots (WQVGA)
• Viewing Area: 95.04 (W) x 53.856 (H) mm
• Brightness Adjustment: 18 steps

*Display unit only

*No AIS transponder included

Specifications:

• AIS Class: A
• Antenna Included: No
• Display Included: Yes
• Box Dimensions: 7"H x 9"W x 12"L WT: 3.1 lbs
• UPC: 611679368263

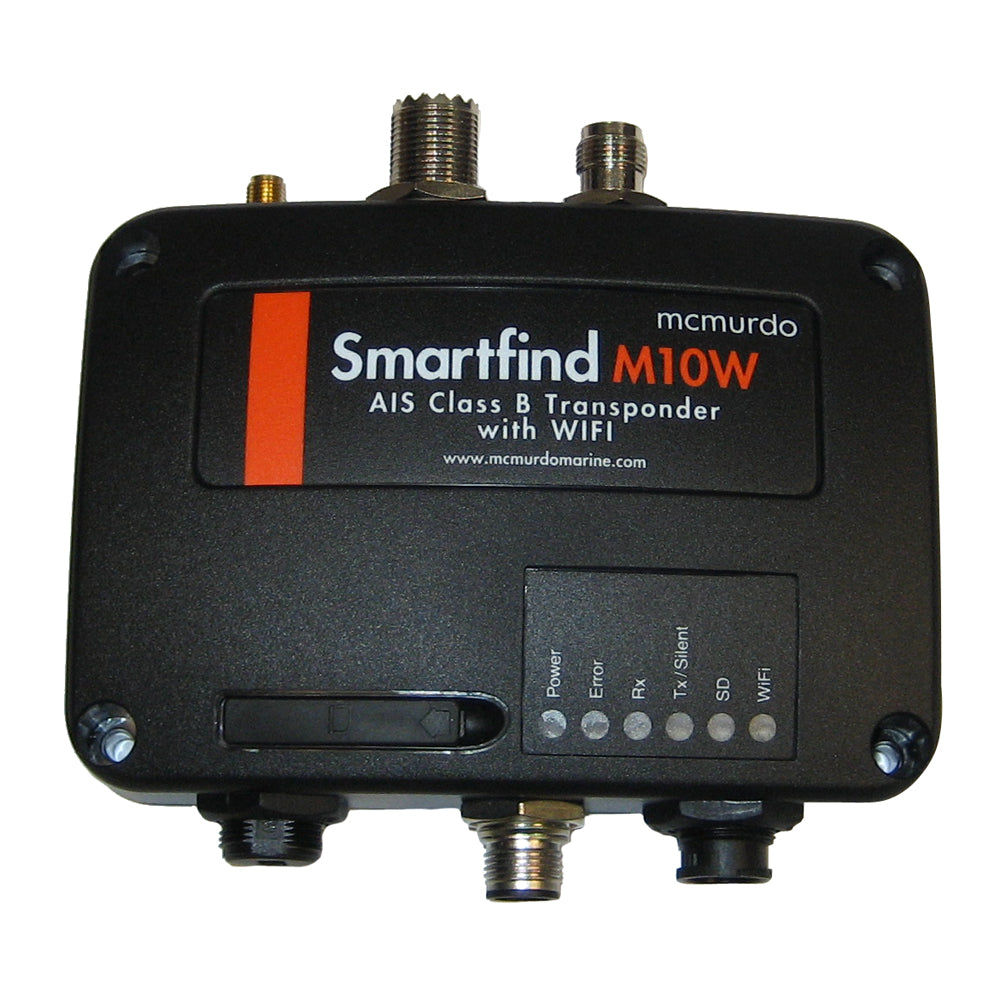

McMurdo SmartFind M10W Class B AIS Transponder W/Wifi [21-200-002A]

Ships Direct From Manufacturer

SmartFind M10W Class B Transponder

The McMurdo SmartFind M10W AIS Class B Transponder, part of McMurdo's range of innovative AIS products, is perfect for smaller non SOLAS vessels, where the complexity of a Class A Transponder is not necessary. The SmartFind M10W transmits vessel position information as well as receiving all AIS targets within 20 miles of the boat. Using the built-in GPS receiver, the SmartFind M10 determines position, speed and course, and once this is combined with other navigational information, it is automatically transmitted without any user interaction. When received by other vessels and coast stations, the data built up to provide a live graphical display of traffic in the area.

McMurdo's SmartFind M10W AIS Class B Transponder with WiFi features Wireless connectivity to a user's smart device (tablet, phone, laptop) allowing operational flexibility.

Engineered for flawless integration with navigation systems, the SmartFind M10 supports NMEA2000 and NMEA0183 output, meets IEC 62287 and related standards, and features an optional WiFi interface as well as USB connectivity.

Benefiting from an SD card slot, the SmartFind M10W, can be quickly and easily used as a data recorder, enabling the capture of all messages - to assist in system and safety monitoring, including incident investigation. Recorded data is logged and stored.

The 'Silent' option, allows the user to temporarily stop the broadcast of identifying information on occasions where either privacy or security is required.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Antenna Included: No
• GPS Included: Yes
• AIS Class: B
• Function: Receive/Transmit
• Display Included: No
• Box Dimensions: 4"H x 6"W x 13"L WT: 2.8 lbs
• UPC: 658185001840

Owner's Manual (pdf)
Brochure (pdf)

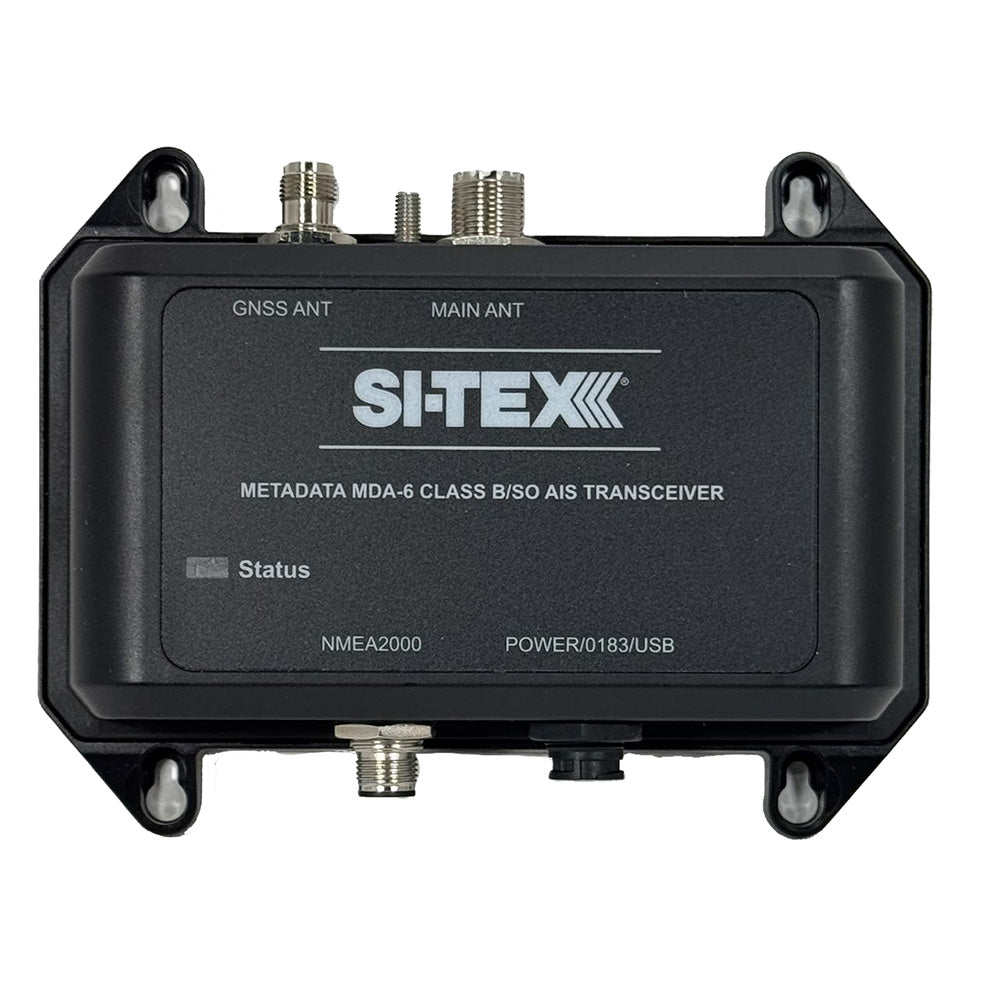

SI-TEX MDA-6 High Power 5W SOTDMA Class B/SO AIS Transceiver w/Bluetooth, Wi-Fi, NMEA0183, NK2 Isolated USB Interface [MDA-6]

MDA-6 High Power 5W SOTDMA Class B/SO AIS Transceiver with Bluetooth, Wi-Fi, NMEA0183, NK2 Isolated USB Interface

The SI-TEX MDA-6 delivers Class-A–level transmit priority, rapid update rates, and 5-watt SOTDMA transmission—more than twice the power of standard Class B AIS units. Your vessel is detected earlier and at greater distances, even in demanding or congested waterways.

The MDA-6 broadcasts continuous dynamic data, including SOG, COG, heading, and hazard reports, giving surrounding vessels a clearer, more accurate picture of your movements.

Features:

• 5W SOTDMA Class B/SO for long-range, high-priority AIS transmissions
• High-fidelity AIS performance for precise, reliable tracking
• Integrated high-power Wi-Fi for tablets and laptops
• Bluetooth programming app for fast setup and troubleshooting
• AIS Control App with WAZE-style hazard reporting
• Built-in VDR capability
• NMEA 0183, NMEA 2000 & USB connectivity
• Low power consumption
• External GPS antenna included
• IP67 waterproof, dustproof, vibration-proof
• Compact, lightweight design
• IEC-62287-2, FCC & USCG certified

Built for Harsh Marine Environments

The MDA-6 is engineered for reliability in real-world conditions. Its IP67-rated housing protects against water, dust, and vibration, while its compact footprint allows flexible installation on any vessel.

Ideal For:

• High-speed vessels
• Commercial operators
• Recreational boaters in busy waterways
• Installations requiring long-range AIS visibility

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• Box Dimensions: 5"H x 9"W x 14"L WT: 3.6 lbs
• UPC: 010407510729

Quick Guide (pdf)
Brochure (pdf)

B951 Class B AIS Transceiver - 5W SOTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The B951 is a high-power (5W SOTDMA) Class B transceiver, delivering advanced performance and ultimate reliability through em-trak's next-gen technology. Small and durable, this trusted transceiver processes all AIS transmissions in real-time, with increased range and transmission priority so you always have the complete picture and the time to respond, even in the busiest waters.

em-trak's flexible, intelligent connectivity means the B951 can be paired to any chart-plotter and its next-gen GPS receiver and the antenna are already integrated inside the device to provide best-in-class, ultra-low power consumption, and performance. em-trak's unique FLEXI-FIT® bracket system completes the package and ensures easy installation.

Features:

• Certified AIS Class B – 5W SOTDMA
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 375kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 135mA
• Peak current: 2.5A
• Average power consumption (at 12V): 1.6W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 5W (+37dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 6"H x 7"W x 7"L WT: 2 lbs
• UPC: 672975210540

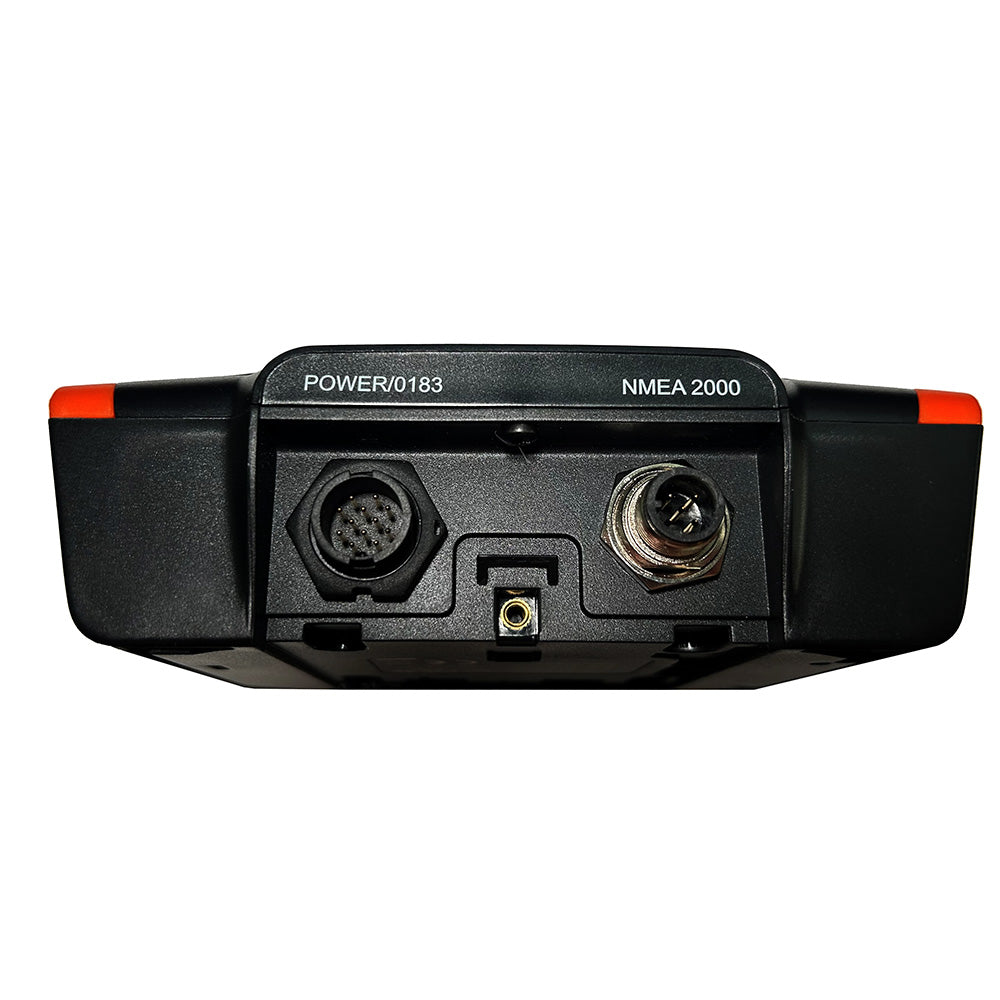

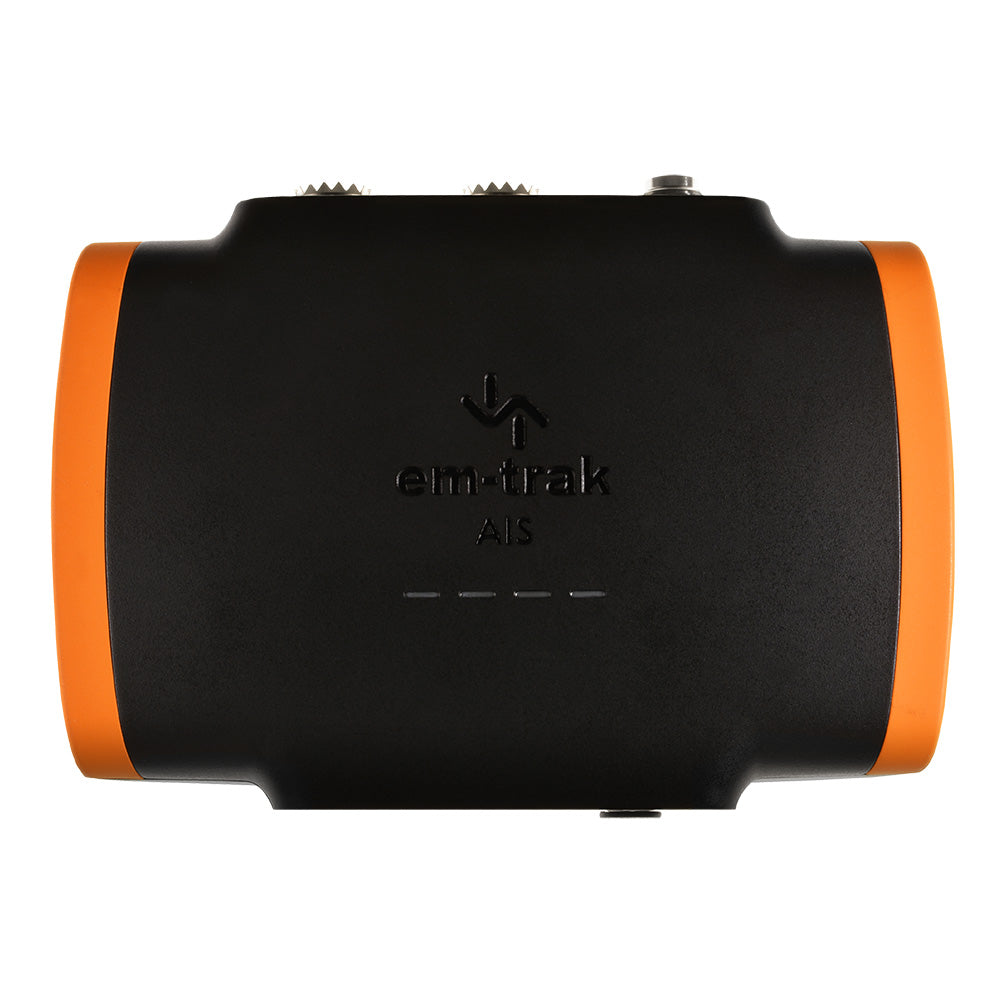

B924 Class B AIS Transceiver with WiFi, Bluetooth & VHF Antenna Splitter - 2W CSTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The most feature-rich 2W CSTDMA AIS transceiver in the B900 range. The B924 includes WiFi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC, or wearable, with an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance. Like all B900 transceivers, it also includes an integrated next-generation GPS receiver and antenna and is designed for em-trak's unique FLEXI-FIT® bracket system to make installation as easy as possible.

Exceptionally lightweight and completely weatherproof, the B924 delivers the very best (2W) AIS receive and transmit performance, so you see all AIS information and targets, even at maximum range. Your transceiver will also work with our CONNECT-AIS mobile phone app to make programming, configuration, and transceiver health monitoring simple and convenient.

Features:

• Certified AIS Class B – 2W CSTDMA
• Integrated WiFi and Bluetooth
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 425kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 280mA
• Average current (at 12V) (wireless off): 245mA
• Peak current: 2A
• Average power consumption (at 12V): 3.4W
• Average power consumption (at 12V) (wireless off): 2.9W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

• VHF antenna: SO-239
• VHF radio: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data
• WiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
• Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: CSTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 2W (+33dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x VHF radio accessory cable
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 6"H x 7"W x 7"L WT: 2.25 lbs
• UPC: 672975210533

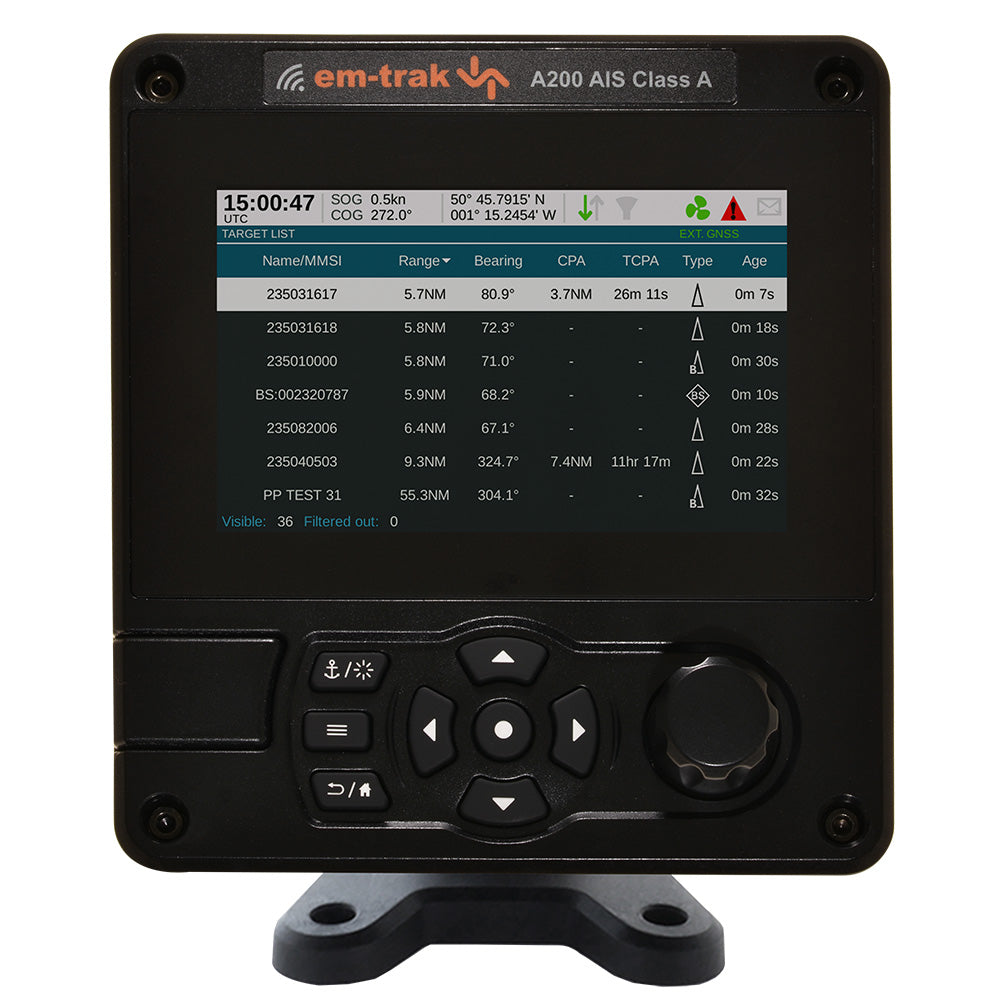

A200 Class A AIS Transceiver

The A200 Class A is both SOLAS and Inland Waterway certified and offers superior performance through its advanced, next-gen technology. The A200 has been engineered for even the harshest marine environments, undergoing extensive testing by independent experts to ensure it is waterproof and unaffected by extreme temperatures, shock, and vibration so you don't need to worry about reliability issues impacting performance or longevity.

The A200 is easy to install and will seamlessly connect to your ECDIS and other bridge systems. The A200 delivers comprehensive AIS functionality, such as alerts, target filters, vessel information lists, real-time weather, and more.

With its integrated color display, the A200 plays an important role in tracking, collision avoidance, and CPA when vessels are in busy port areas. The combination of advanced performance, trusted reliability and competitive price make the A200 the best-value AIS Class A in the market by far.

Features:

• IMO SOLAS certified AIS Class A
• EU Inland Waterway certified ruggedized and impervious to extreme environments – water (IPx6, IPx7), dampness, shock, vibration, and temperatures
• High performance latest generation GPS
• Suitable internal or permanent external installation
• Robust ergonomic button and rotary-knob user interfaces with configurable multi-lingual menu options
• Integrated high-definition color display with night mode
• ENC chart (C-Map) with configurable AIS target overlay
• Silent mode – AIS transmissions are stopped, all AIS messages continue to be received
• Integrated WiFi
• Pilot plug cable and junction box accessory options

Physical & Environmental Specifications:

• Size (H x W x D): 152 x 165 x 95mm
• Weight: 1.1kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 520mA
• Peak current: 6A
• Average power consumption (at 12V): 6.2W
• Galvanic isolation: NMEA 0183, NMEA 2000, power supply, VHF antenna port

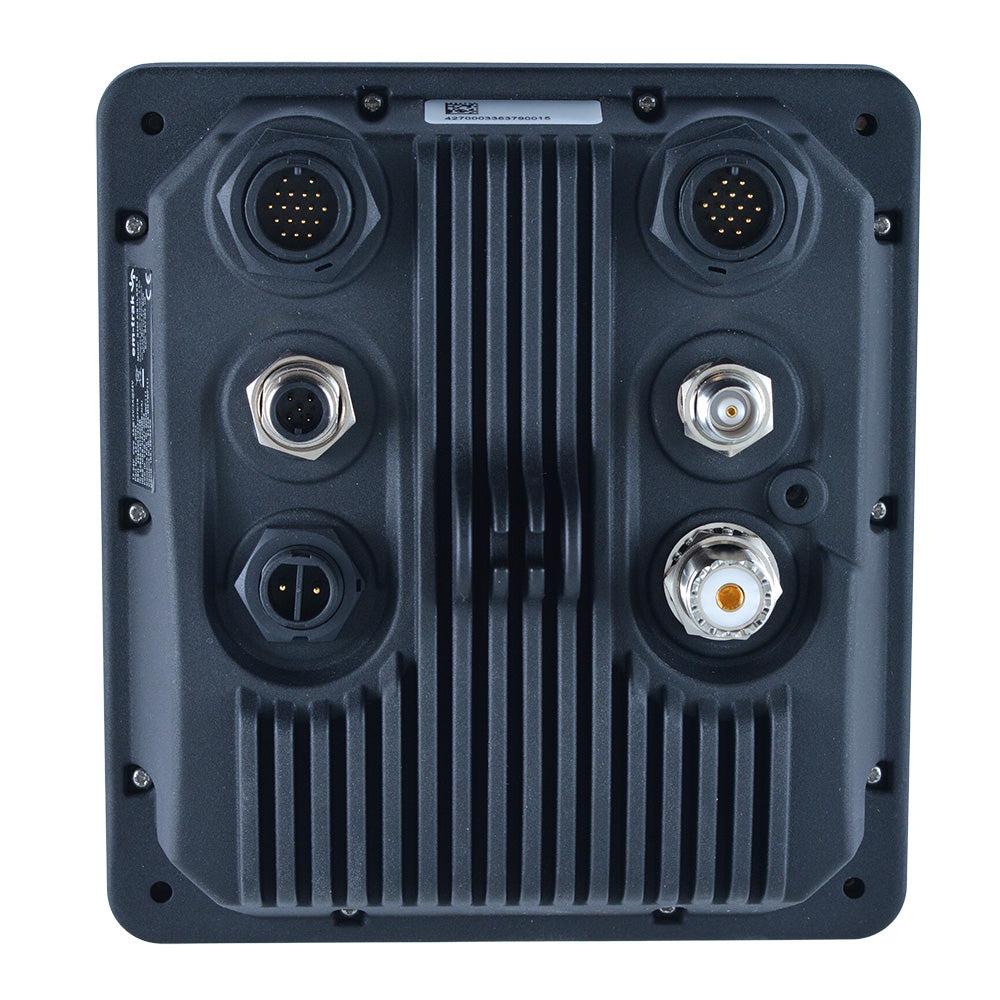

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 2-way circular multipole
• NMEA 0183/silent mode/blue sign: 14-way circular multipole
• NMEA 0183/alarm relay: 18-way circular multipole
• NMEA 2000: 5-way Micro-C connector

Data Interfaces:

• NMEA 0183: 3 x input ports, 3 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• WiFi: IEEE 802.11 (a/b/g), client mode, and access point mode supported. (5 connections in access point mode)

Standards Compliance:

• AIS standards: IEC 61993-2 Ed. 3
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: External only
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 3 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 12W (+41dBm)

User Interface:

• Screen: 5-inch 800 x 480 full color LCD
• Buttons: Rotary encoder for selection and entry, 4 menu keys, and 4 direction keys
• SD card interface: Micro SD card interface for logging and chart cards (not available from em-trak)

GNSS Antenna:

• Size: 85 x 70mm
• Weight: 470g
• Ingress protection: IPx6 and IPx7
• Mounting: 1 inch 14 TPI pole mount required
• GNSS systems supported: GPS, GLONASS, Galileo, BeiDou

In the Box:

• 1 x AIS transceiver
• 1 x Power cable
• 1 x Mounting bracket & fixings pack
• 1 x 14 Way data cable
• 1 x Product manual and document pack
• 1 x 18 Way data cable
• 1 x GPS Antenna

Specifications:

• AIS Class: A
• Antenna Included: Yes
• Display Included: Yes
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 5"H x 10"W x 15"L WT: 6.3 lbs
• UPC: 602573090091

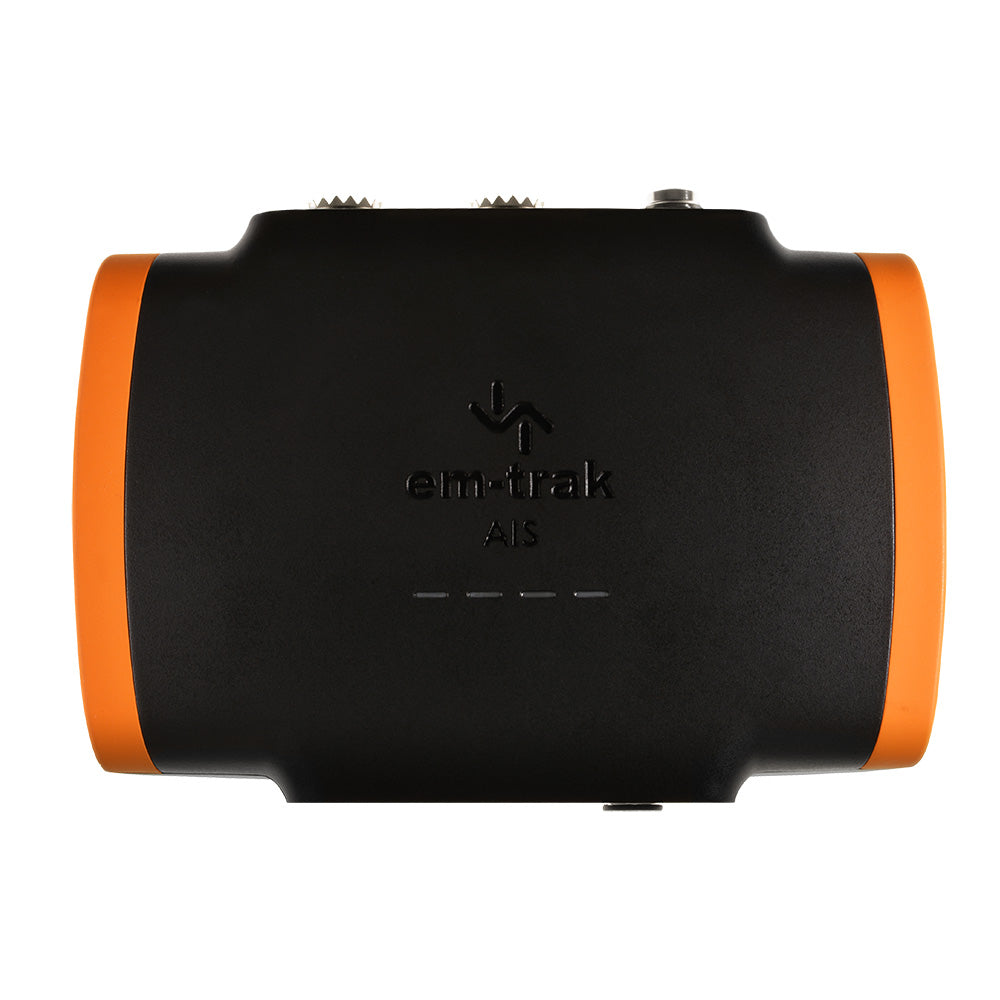

B953 Class B AIS Transceiver - 5W SOTDMA with VHF Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The B953 is a high transmit power (5W SOTDMA) AIS Class B transceiver that is small, and lightweight, yet delivers the very best AIS receive and transmit performance so you see more AIS information and targets at maximum range – all achieved with the least power consumption.

The B953 has an integrated VHF antenna splitter which enables the transceiver to share your existing VHF antenna without any loss of performance. With built-in intelligent connectivity, integrated next-generation GPS receiver & antenna, and a unique FLEXI-FIT bracket system, safe and secure installation is simple.

Features:

• Certified AIS Class B – 5W SOTDMA
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any chart plotter or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection
• Fail-safe VHF radio operation

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 415kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 245mA
• Peak current: 2.5A
• Average power consumption (at 12V): 2.9W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 5W (+37dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x VHF radio accessory cable
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 5"H x 7"W x 8"L WT: 1.9 lbs
• UPC: 672975210564
