Lumitec Razor 18" Light Bar -Flood - White [101586]

~~$874.29~~$821.99

Lumitec Razor 18" Light Bar -Flood - White [101586]

Razor 18" Light Bar - Flood - Flush Mount - White

The World’s FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs – typically with little or no modification to production tooling.

Razor is designed to drop into a contoured pocket molded into a hardtop, radar arch, brow, or other surface. Alternatively, use Razor’s surface mount kit for a sleek, low profile installation on existing flat or slightly crowned tops. Mount forward or aft, horizontal or downward facing. In all installations Lumitec’s careful thermal analysis and self-venting design puts an end to ‘pod’ mounted lightbars, which can overheat and damage surrounding composites in hard tops. Flood and spot/flood beam patterns ensure the light goes where you need it.

Advanced Thermal Management

Razor has been designed and analyzed as a complete system – with careful consideration of the top in which it is mounted. This means that Razor delivers maximum performance while protecting hardtops and pods from dangerously high temperatures.

80% Lower Profile Than Most Other Light Bars On The Market

Razor’s integrated design delivers more power with a cleaner, more streamlined look. Up to 80% more streamlined in fact. As the images to the right demonstrate Razor allows builders to eliminate light pods which must be molded and added separately, saving many hours of costly finishing labor. Razor simply drops into an as-molded recess. CAD models of mold plugs or tooling inserts may be provided upon request.

Features:

10,000+ TRUE lumens output
Surface mountable on top or inverted
Dimmable with no additional dimmer switch required
Available with two beam patterns (spot or flood)
Low profile (1.5") with sleek streamline design
Powder-coated die-cast aluminum construction
Voltage: 10-30V DC
Dimensions - 17.8" Length x 1.5" High x 3.5" Depth

Specifications:

Beam Pattern: Flood
Housing: White
Length (Inches): 18"
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 5"H x 5"W x 26"L WT: 3.9 lbs
UPC: 089300015860

Brochure (pdf)

Black Oak Pro Series Double Row Combo Infrared 20" 850nm Light Bar - White [20MIR-850]

Black Oak LED

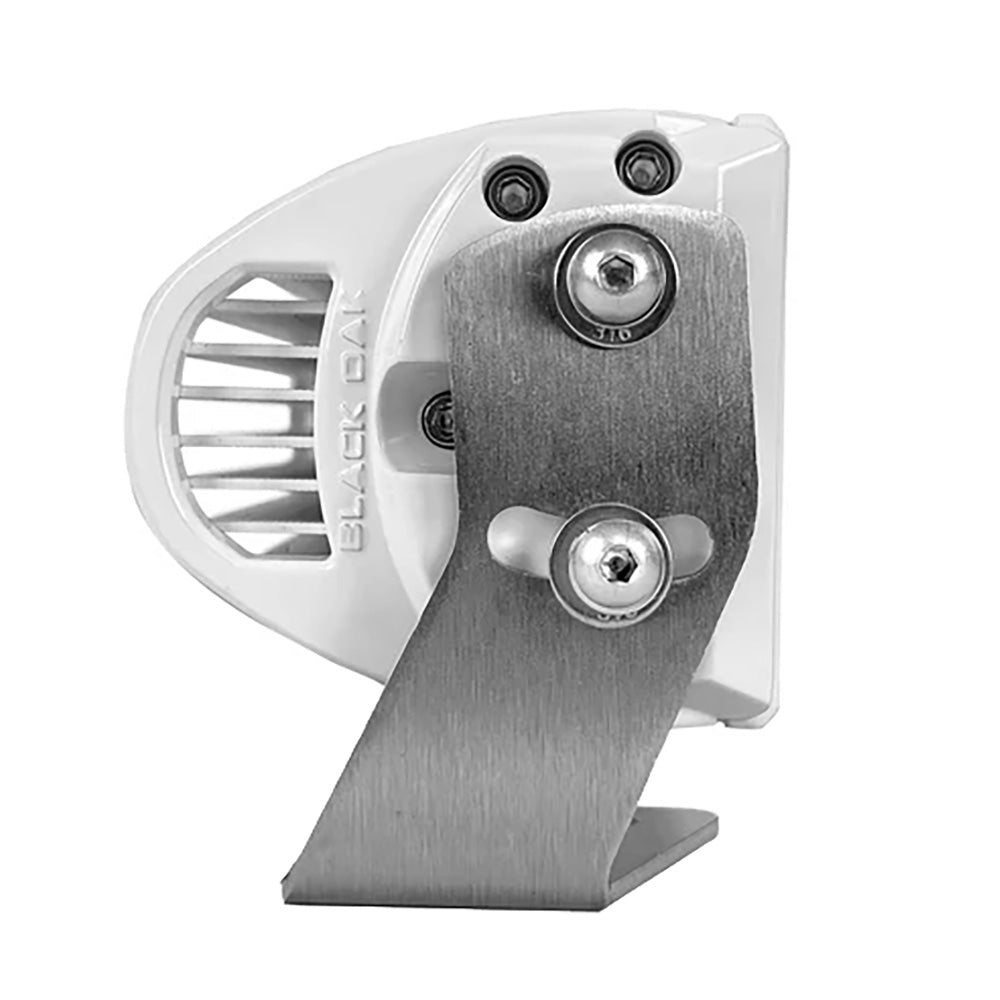

Black Oak Pro Series Double Row Combo Infrared 20" 850nm Light Bar - White [20MIR-850]

~~$760.00~~$646.00

OceanLED

OceanLED Sport S3124s Underwater LED Light - Ultra White/Midnight Blue [012103BW]

~~$664.99~~$631.00

Hella Marine

Hella Marine Apelo A3 RGBW Underwater Light - Bronze - White Lens [016831001]

~~$930.24~~$635.99

Apelo A3 RGBW Underwater Light - Bronze - White Lens

The A3 model has an improved formula with double the light output, maximizing the vibrant blue, intense white, or full-spectrum RGBW* color. The RGBW version includes dedicated white light emitting LEDs, adding brighter and more intense white light to RGBW underwater lighting. Both versions sport the edge lighting, which Apelo is known for.

Optical intelligence is at the heart of Hella Marine lighting, and Apelo is no exception. Intelligent optics spread light across the water without losing light to the depths, projecting wide across the transom. With the addition of nickel-silver to the extremely corrosion-resistant housing, the Apelo A3 is perfect for permanently submerged installations on larger boats and ships.

*Connect Apelo RGBW lights to an RGBW lighting controller for unlimited color selection (Not supplied).

Features:

Suitable for fiberglass, timber, steel, and composite hulls
Only mount on aluminum-hulled vessels with a suitable isolation spacer
Made in New Zealand and backed by Hella Marine’s 5-year warranty (Apelo Underwater Lights are built to last)

Specifications:

Mounting: Transom/surface
Voltage: Multivolt™ 12 / 24V DC Nominal
Max. Power Consumption: RGBW 70W / 5.9A @ 12V, 2.9A @ 24V and Edge Light <5W / 0.37A @12V, 0.2A @ 24V
Max. Light Output: 6000 lumens (white)
Color Temperature: 5000K (white)
Beam: 90° x 24°
Protection: Spike protected to +500 volts; reverse polarity protected to -700 volts; IP68 / IP69: Suitable for submersion in operation and high-pressure water jet cleaning; High-temperature thermal cutout for out of water
Cable Length: 2.5m / 8.2ft, tinned marine cable
Ideal Depth: 100–500mm
Ideal Width: 600–1200mm
Lens Material: Grilamid® (premium grade, UV stable, impact resistant nylon)
Base Material: Marine grade bronze
Compliance: CE, UKCA, EN55015 / CISPR 15, IEC60533, IEC61547, ICES-005, RCM

Specifications:

Color: Full Color RGBW
Material: Bronze
Box Dimensions: 5"H x 5"W x 5"L WT: 2.8 lbs
UPC: 9416325252559

TACO Marine

TACO Grand Slam 960 Electric Masthead Anchor Light [GS-960]

~~$2,314.99~~$1,849.99

Grand Slam 960 Electric Masthead Anchor Light

The Grand Slam 960 Electric Masthead Anchor Light offers enhanced safety, durability, and style. Building on the success of the GS-950, the Grand Slam 960 features a durable stainless-steel body and a Type 316L stainless-steel breakaway pin for superior weather resistance. It incorporates a new stainless-steel anti-backlash linear screw drive for added durability. The oblong design accommodates a longer, more powerful motor for excellent performance at sea. Suitable for powered vessels up to 39’ (12 meters), the GS-960 meets the USCG's 3 nautical mile visibility requirement. Boaters can easily adjust their Masthead Anchor Light from the deck with a push-button operation, thanks to the auto-rotating stop feature and manual stop option. This fully electric unit has a hidden base wire inside the hardtop, which easily installs to the top’s surface. It has the same hole pattern as the GS-950, making upgrades possible, and fits all top thicknesses. The GS-960 lights run on 12 volts and consist of four 3-watt LED Cree chips driven by two Mean Well drivers.

Features:

Certified for USCG-required 3-nm
Meets NMMA/ABYC C-5 5.8 Standards requirements
NMMA Type Accepted Approved Product
Includes heavy-duty anodized aluminum tube, light and 6” lead of 20-gauge wire from the base
Reliable long-life LEDs
5-watt Stern Light and 10-watt Anchor
Low-draw, 0.6 amps per light
Electronic Control Module (ECM) features an industry-standard On-Off-On control switch
ECM includes a 5A fuse for device protection
Comes with a 12” wire lead and water-sealed Deutsch connector, using 18-gauge wire from the base
Operates on 12-volt DC for lift and descent
No under-mount clearance needed
Polished stainless-steel body with a mirrored finish
Stainless-steel threaded screw drive ensures smooth lift and descent
High-torque, anti-backlash ball-bearing motor
Oil-lite bronze bushings for smooth operation
The integrated nylon knob on the stainless-steel breakaway pin allows for manual operation in case of power failure
1-year limited warranty

Specifications:

Weight: 7.2 lbs
UoM: Each
CoO: USA
Finish: VEL

OceanLED

Ocean LED X-Series X16 - Colours LEDs [012311C]

$550.00

X-Series X16 - Colours LEDs

The OceanLED X-Series X16 combines brightness with affordability. Whether cruising or fishing, the X16 gives stunning performance, allowing you to enjoy more time on the water with family and friends.

The X16 packs a mighty 5,800 Fixture Lumens into its low-profile design and utilizes focused optics to produce a 60° circular beam from each LED, providing great water penetration, illuminating a large area.

Choose either a single color version from Midnight Blue or Ultra White, or pick our Colors option where you can select any color you want from the RGBW spectrum. You can toggle between the colors or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish? Switch on the Fish-Strobe mode, and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The low-profile, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix 4 screws and that's the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth, thanks to the special Tritonium coating.

Features:

5,800 Lumens / 4,500 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want to stand out from the crowd.

60° Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built-in driver, there is a lot packed into this compact light. Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Easy to Clean

Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it.

Fish-Strobe Mode

Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Mounting Recommendations:

Boat size: up to 65' (20M)
Transom / Hull spacing: 2-4' (0.5-1.2M)
Transom quantity: 2-6
Hull quantity: 4-8" (10-20cm)
Maximum hull thickness: N/A
Installation depth (to top of fixture): 300mm below the water line
In water fitting: No

Technical:

Light output equivalent to: 150 Metal Halide
Fixture Lumens* (total light output from a finished fixture): 4,500
Lumens: 5,800
Beam angle: 60° circular
Typical LED life expectancy: 40,000 hours
Minimum-Maximum operating voltage DC: 9 - 32 V DC
Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 3.2A @ 12V DC - 1.5A @ 24V DC
Approx. light penetration (avg. water quality): 40' (12M)
Approx. Light penetration (perfect water quality): 100' (30M)
Driver type: Internal
Driver size (L x W x H): N/A
Color options: Ultra White, Midnight Blue, or Colors
Correlated Color Temp: 6500 K - 450 nm
IP Rating: IP68
Fish strobe: YES
Anti-fouling properties: Tritonium-coated lens
LED Manufacturer: CREE
