Lighting

RDS-Series PRO 20" - Spot LED - White

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output. With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it's needed on the road ahead. By taking an E-Series light bar and treating it to a gentle arc, the RDS-Series PRO provides a sleek, integrated look with the curved windshields and bumpers on today's trucks and SUVs. The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar. RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look.

Features:

• Family: RDS - Series | PRO
• Optic: Spot
• LED Color: Cool White
• Finish Color: White
• Mount Type: Surface
• Length: 20"
• Shipping Dimensions: 6" × 23.25" × 6"
• Product Weight: 6.31lb
• Sold As: Single
• Tough Alodine Coating that withstands the harshes Marine Environments
• Limited Lifetime Warranty

Specifications:

• Watts: 105
• Amp Draw: 7.5
• LED's: 40
• Raw Lumens: 31680
• Lux @ 10M: 1826.48
• Beam Distance: 427.4M
• Peak Beam Intensity: 182648 cd

Specifications:

• Beam Pattern: Spot
• Length (Inches): 20"
• Housing: White
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 6"H x 10"W x 25"L WT: 11.85 lbs
• UPC: 849774030017

RCL-50 LED Searchlight - 12/24V - Black

Designed for small-to-mid-size pleasure crafts and small commercial vessels, this rugged searchlight boasts a new 6 LED lamp with over 100,000-candela power.  Built for the rough and tough marine environment, the new RCL-50 utilizes the same proven die-cast aluminum housing with all new internal mechanical controls to power and rotate the ultra-bright LED lamp.

The RCL-50 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, yachts, sport fishers, workboats, and light commercial vessels.  With more efficient LEDs, the RCL-50 LED has reduced power consumption demand by up to 50% on 12/24V vessels.

Features:

• Ultra-bright, 6 LED Array
• Rugged triple-primed and sealed, marine-grade aluminum housing
• Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
• Can be used in conjunction with up to 3 controllers
• Simple installation

Technical Specifications:

• Color - Black
• Material - Die-cast aluminum (518)
• Operation - Remote-controlled Point Pad™
• Voltage Input - 12/24 VDC
• Rotation - 360° continuous
• Tilt - 40°
• Light Pattern - Spot
• Dimensions (H x W x D) - 8.4" x 6" x 8" (21.3 x 15.2 x 20 cm)
• Dimensions (Footprint Diameter) - 4.75” (120.7 cm)
• Weight - 7.72 lb  (3.5 kg)

In the Box:

• RCL-50 Searchlight (12 V)
• URP-102 Point Pad™ remote
• URC-102 Master controller
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including BISPHENOL A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage - Input Range (Volts): 12/24v
• LED: Yes
• Candela: 100,000
• Wireless: No
• Box Dimensions: 12"H x 12"W x 12"L WT: 12.4 lbs
• UPC: 791659019610

Lopolight 360-Degree Anchor Light - 2NM - Silver Housing w/FB Base [201-012-FB]

360-Degree Anchor Light - 2NM - Silver Housing with FB Base

This silver 360-degree anchor light is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042735
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: White
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 110
• Current Consumption (mA @ 12VDC): 167
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Specifications:

• Housing: Silver
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 3"H x 3"W x 3"L WT: 1.15 lbs
• UPC: 879343042868

Quick Guide (pdf)

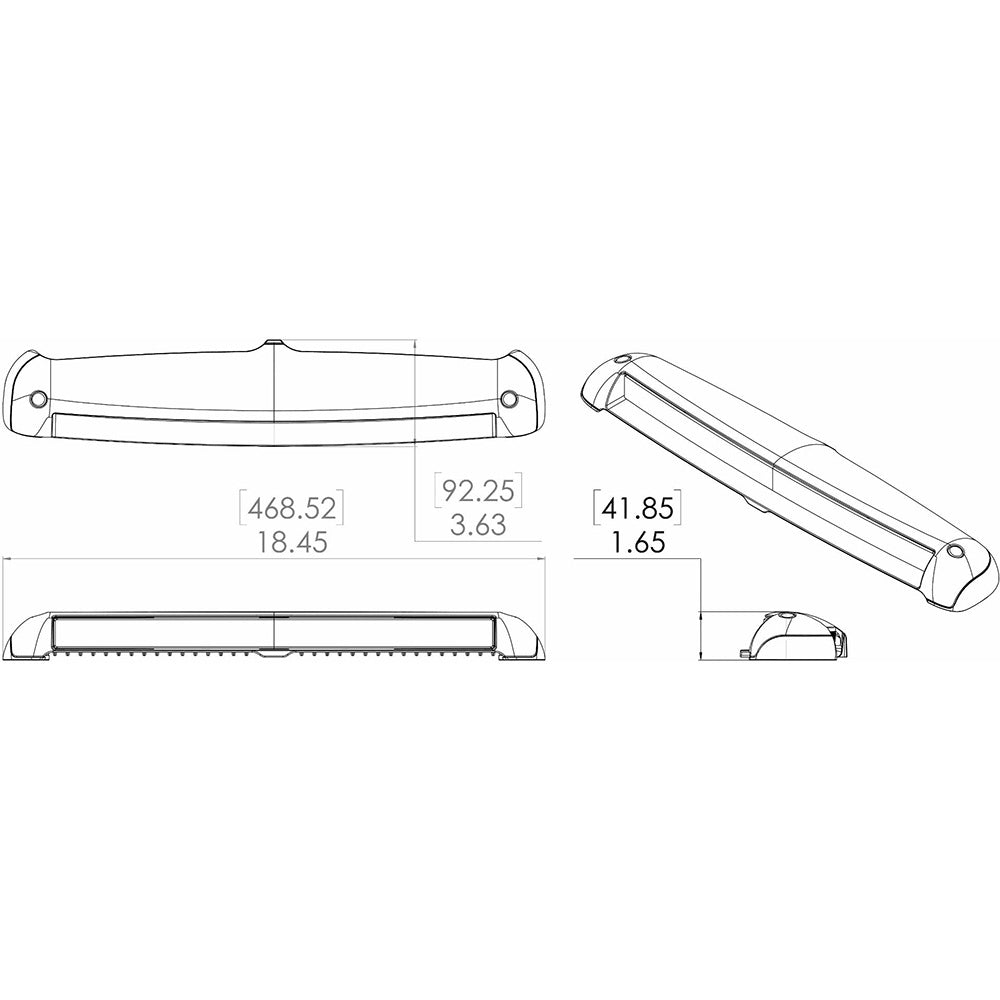

Lumitec Razor Light Bar - Flood - White Housing w/Inverted Logo Flush Mount [101590]

Razor Light Bar - Flood - White Housing with Inverted Logo Flush Mount

Features:

• 10,000+ TRUE lumens output
• Surface mountable on top or inverted
• Dimmable with no additional dimmer switch required
• Available with two beam patterns (spot or flood)
• Low profile (1.5”) with a sleek streamlined design
• Powder-coated die-cast aluminum construction
• Voltage: 10-30VDC

Specifications:

• Voltage - Input Range (Volts): 12/24v
• Beam Pattern: Flood
• Housing: White
• Length (Inches): 18"
• Box Dimensions: 4"H x 4"W x 25"L WT: 3.6 lbs
• UPC: 089300015907

Razor 18" Light Bar - Flood - Flush Mount - White

The World’s FIRST flush-mount light bar. Razor was carefully designed to be easily integrated into most existing hardtop, arch, and pilothouse designs – typically with little or no modification to production tooling.

Razor is designed to drop into a contoured pocket molded into a hardtop, radar arch, brow, or other surface. Alternatively, use Razor’s surface mount kit for a sleek, low profile installation on existing flat or slightly crowned tops. Mount forward or aft, horizontal or downward facing. In all installations Lumitec’s careful thermal analysis and self-venting design puts an end to ‘pod’ mounted lightbars, which can overheat and damage surrounding composites in hard tops. Flood and spot/flood beam patterns ensure the light goes where you need it.

Advanced Thermal Management

Razor has been designed and analyzed as a complete system – with careful consideration of the top in which it is mounted. This means that Razor delivers maximum performance while protecting hardtops and pods from dangerously high temperatures.

80% Lower Profile Than Most Other Light Bars On The Market

Razor’s integrated design delivers more power with a cleaner, more streamlined look. Up to 80% more streamlined in fact. As the images to the right demonstrate Razor allows builders to eliminate light pods which must be molded and added separately, saving many hours of costly finishing labor. Razor simply drops into an as-molded recess. CAD models of mold plugs or tooling inserts may be provided upon request.

Features:

• 10,000+ TRUE lumens output
• Surface mountable on top or inverted
• Dimmable with no additional dimmer switch required
• Available with two beam patterns (spot or flood)
• Low profile (1.5") with sleek streamline design
• Powder-coated die-cast aluminum construction
• Voltage: 10-30V DC
• Dimensions - 17.8" Length x 1.5" High x 3.5" Depth

Specifications:

• Beam Pattern: Flood
• Housing: White
• Length (Inches): 18"
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 5"H x 5"W x 26"L WT: 3.9 lbs
• UPC: 089300015860

Apelo A3 RGBW Underwater Light - Bronze - White Lens

The A3 model has an improved formula with double the light output, maximizing the vibrant blue, intense white, or full-spectrum RGBW* color. The RGBW version includes dedicated white light emitting LEDs, adding brighter and more intense white light to RGBW underwater lighting. Both versions sport the edge lighting, which Apelo is known for.

Optical intelligence is at the heart of Hella Marine lighting, and Apelo is no exception. Intelligent optics spread light across the water without losing light to the depths, projecting wide across the transom. With the addition of nickel-silver to the extremely corrosion-resistant housing, the Apelo A3 is perfect for permanently submerged installations on larger boats and ships.

*Connect Apelo RGBW lights to an RGBW lighting controller for unlimited color selection (Not supplied).

Features:

• Suitable for fiberglass, timber, steel, and composite hulls
• Only mount on aluminum-hulled vessels with a suitable isolation spacer
• Made in New Zealand and backed by Hella Marine’s 5-year warranty (Apelo Underwater Lights are built to last)

Specifications:

• Mounting: Transom/surface
• Voltage: Multivolt™ 12 / 24V DC Nominal
• Max. Power Consumption: RGBW 70W / 5.9A @ 12V, 2.9A @ 24V and Edge Light <5W / 0.37A @12V, 0.2A @ 24V
• Max. Light Output: 6000 lumens (white)
• Color Temperature: 5000K (white)
• Beam: 90° x 24°
• Protection: Spike protected to +500 volts; reverse polarity protected to -700 volts; IP68 / IP69: Suitable for submersion in operation and high-pressure water jet cleaning; High-temperature thermal cutout for out of water
• Cable Length: 2.5m / 8.2ft, tinned marine cable
• Ideal Depth: 100–500mm
• Ideal Width: 600–1200mm
• Lens Material: Grilamid® (premium grade, UV stable, impact resistant nylon)
• Base Material: Marine grade bronze
• Compliance: CE, UKCA, EN55015 / CISPR 15, IEC60533, IEC61547, ICES-005, RCM

Specifications:

• Color: Full Color RGBW
• Material: Bronze
• Box Dimensions: 5"H x 5"W x 5"L WT: 2.8 lbs
• UPC: 9416325252559

Grand Slam 960 Electric Masthead Anchor Light

The Grand Slam 960 Electric Masthead Anchor Light offers enhanced safety, durability, and style. Building on the success of the GS-950, the Grand Slam 960 features a durable stainless-steel body and a Type 316L stainless-steel breakaway pin for superior weather resistance. It incorporates a new stainless-steel anti-backlash linear screw drive for added durability. The oblong design accommodates a longer, more powerful motor for excellent performance at sea. Suitable for powered vessels up to 39’ (12 meters), the GS-960 meets the USCG's 3 nautical mile visibility requirement. Boaters can easily adjust their Masthead Anchor Light from the deck with a push-button operation, thanks to the auto-rotating stop feature and manual stop option. This fully electric unit has a hidden base wire inside the hardtop, which easily installs to the top’s surface. It has the same hole pattern as the GS-950, making upgrades possible, and fits all top thicknesses. The GS-960 lights run on 12 volts and consist of four 3-watt LED Cree chips driven by two Mean Well drivers.

Features:

• Certified for USCG-required 3-nm
• Meets NMMA/ABYC C-5 5.8 Standards requirements
• NMMA Type Accepted Approved Product
• Includes heavy-duty anodized aluminum tube, light and 6” lead of 20-gauge wire from the base
• Reliable long-life LEDs
• 5-watt Stern Light and 10-watt Anchor
• Low-draw, 0.6 amps per light
• Electronic Control Module (ECM) features an industry-standard On-Off-On control switch
• ECM includes a 5A fuse for device protection
• Comes with a 12” wire lead and water-sealed Deutsch connector, using 18-gauge wire from the base
• Operates on 12-volt DC for lift and descent
• No under-mount clearance needed
• Polished stainless-steel body with a mirrored finish
• Stainless-steel threaded screw drive ensures smooth lift and descent
• High-torque, anti-backlash ball-bearing motor
• Oil-lite bronze bushings for smooth operation
• The integrated nylon knob on the stainless-steel breakaway pin allows for manual operation in case of power failure
• 1-year limited warranty

Specifications:

• Weight: 7.2 lbs
• UoM: Each
• CoO: USA
• Finish: VEL

X-Series X16 - Colours LEDs

The OceanLED X-Series X16 combines brightness with affordability. Whether cruising or fishing, the X16 gives stunning performance, allowing you to enjoy more time on the water with family and friends.

The X16 packs a mighty 5,800 Fixture Lumens into its low-profile design and utilizes focused optics to produce a 60° circular beam from each LED, providing great water penetration, illuminating a large area.

Choose either a single color version from Midnight Blue or Ultra White, or pick our Colors option where you can select any color you want from the RGBW spectrum. You can toggle between the colors or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish? Switch on the Fish-Strobe mode, and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The low-profile, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix 4 screws and that's the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth, thanks to the special Tritonium coating.

Features:

5,800 Lumens / 4,500 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want to stand out from the crowd.

60° Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built-in driver, there is a lot packed into this compact light. Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Easy to Clean

Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it.

Fish-Strobe Mode

Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Mounting Recommendations:

• Boat size: up to 65' (20M)
• Transom / Hull spacing: 2-4' (0.5-1.2M)
• Transom quantity: 2-6
• Hull quantity: 4-8" (10-20cm)
• Maximum hull thickness: N/A
• Installation depth (to top of fixture): 300mm below the water line
• In water fitting: No

Technical:

• Light output equivalent to: 150 Metal Halide
• Fixture Lumens* (total light output from a finished fixture): 4,500
• Lumens: 5,800
• Beam angle: 60° circular
• Typical LED life expectancy: 40,000 hours
• Minimum-Maximum operating voltage DC: 9 - 32 V DC
• Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 3.2A @ 12V DC - 1.5A @ 24V DC
• Approx. light penetration (avg. water quality): 40' (12M)
• Approx. Light penetration (perfect water quality): 100' (30M)
• Driver type: Internal
• Driver size (L x W x H): N/A
• Color options: Ultra White, Midnight Blue, or Colors
• Correlated Color Temp: 6500 K - 450 nm
• IP Rating: IP68
• Fish strobe: YES
• Anti-fouling properties: Tritonium-coated lens
• LED Manufacturer: CREE

Physical:

• Size: 9.84" (250mm) x 4.29" (109mm)
• Depth: 0.86" (22mm)
• Total weight including electrical driver: 0.50kg
• Extension cable length (standard-hard wired to light): 9-7/64' (3M)
• Hole cut-out for cable entry: 1/2" (12.5mm)
• Material: Chemically Resistant Optical Polymer
• Lens material: Pilkington Optiwhite
• Body construction: Machined (First Release)
• Bezel material: Plastic
• Bezel thickness: N/A
• Bezel options: Stainless Steel Bezel Optional
• Bezel color: White
• Drag factor: N/A
• Optics: Collimator
• No of LEDs: 16
• Certification: EMC Approved
• CE Approved: Yes

Specifications:

• Warranty: 2 years

Specifications:

• Mounting Style: Surface
• Color: Full Color RGBW
• Material: Polymer
• Box Dimensions: 3"H x 5"W x 11"L WT: 1.4 lbs
• UPC: 5051803007302
