Lighting

SCM-10 LED Underwater Light w/20' Cable - 316 SS Housing - Bimini Blue

With ten high-intensity LEDs, the SCM-10 underwater light is our most popular model. The SCM-10 is the perfect addition to every vessel and dock. The SCM-10 works with our Wireless Controller and Power Distribution Box for ease of use and installation.

High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
Robust Design
With Shadow-Caster underwater LED lights, there's no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
Surface Mounted
Our lighting solutions feature a low profile design that requires noalteration to the main hull
Wide Input Voltage Range
Shadow-Caster's underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
Thermal Protection
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Specifications:

• Size: 10" Length x 2.375" Width x 0.5" Height (254 x 60 x 13mm)

• Operating Voltage: 10 - 30 Volts DC with consistent brightness

• Current Draw: 3.5 Amps @ 12 Volts

• Internal high efficiency digital switching power supply

• 42 Watts of high efficiency LED light

• 40,000-Hour Lamp Life

• 120° light spread angle

• 316 Stainless Steel Housing with Polycarbonate Lens

• 20' (6M) Standard Cable Length

• 1-Year Warranty

• Made in the USA

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Surface
• Color: Blue
• Material: Stainless Steel
• Watts: 42w
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 5"H x 5"W x 14"L WT: 2.4 lbs
• UPC: 8557260050266

OceanLED Sport S3166s Multi-Color Surface Mount Underwater LED Light [012110C]

Sport S3166s Multi-Color Surface Mount Underwater LED Light

OceanLED Sport S3166s has been designed and built for those who want to stand out. Whether cruising in the Mediterranean or fishing in The Keys, the S3166s Multi-Color gives dazzling performance allowing you to enjoy more time on the water.

The Sport Multi-Color is full RGBW and allows you to choose any color you wish or scroll through the spectrum. Whether fishing or enjoying time on the water with friends of family, you can choose the perfect color for the mood.

The S3166s has the most advanced optics available on the market. These optics are designed exclusively by OceanLED and offer a truly striking 90Ëš surface beam angle with a focused 20Ëš side beam angle providing greater water penetration, illuminating a larger area without any loss. There are other lights in the market that claim to be bright, but if you don’t focus that power, you don’t achieve great results and that’s what sets OceanLED apart from the rest.

The S3166s packs a powerful 3,500 fixture lumens into a small body and has more dedicated LED’s per color than leading competitor models. When you combine that with the advanced optics, the results are truly remarkable.

Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The compact, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that’s needed to run the cable through the hull. Fix 3 screws and that’s the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth thanks to the special Tritonium coating.

Features:

• 3,500 Fixture Lumens/8448 Lumens
• Best-in-class performance from this ultra-bright light makes it the obvious choice for those who want to stand out from the crowd.
• 90°/20° Beam Angle
• A true wide-angled, focused beam lights up a large area of the water.
• Compact and simple design
• Made from corrosion resistant Alu Bronze, there is a lot packed into this 10cm light. Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.
• Easy to clean
• Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours of scrubbing each time you use it.
• Fish-Strobe Mode
• Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Benefits:

• Ultra-bright, best-in-class performance.
• Advanced optics and a focused beam illuminate a greater area.
• Choose any color you wish or scroll through the RGBW spectrum.
• Compact and simple design makes it quick and easy to install on virtually any boat.

Specifications:

• Warranty: 2 years

Specifications:

• Mounting Style: Surface
• Color: Full Color RGBW
• Material: AB2 Aluminum Bronze
• Box Dimensions: 3"H x 6"W x 6"L WT: 1.6 lbs
• UPC: 5051803007470

Quick Guide (pdf)
Brochure (pdf)

Light Commander Version 2 - 6-Zone Lighting Controller with Bluetooth/Wi-Fi, NMEA 2000 & HTML Ethernet Connectivity

Discover the SHADOW-CASTER® Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.

Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes – from color change, fade, rotation, and strobe, through to music sync effects, offering versatility and customization to illuminate your boat like never before.

Encased in durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for.

Elevate your marine lighting experience with the Light Commander NMEA 2000 – where technology meets functionality and style.

Features:

• NMEA 2000 Backbone or MFD Network Port Connectivity
• Global control for all lighting
• Up to 6 separate zones of lighting control – expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
• 6 “Instant ON” switch inputs for enabling lights without MFD control
• Supports RGB and RGBW lighting
• Optional wireless connectivity for control from a mobile device (SCM-LC-PLUS-V2)
• IP67 Water-resistant housing with waterproof connections
• Deutsch style IP67 rated connections, for clean OEM installations
• All in one design, no need for a separate MFD communication bridge
• “Digitally fused” over current protection circuits, 15amps/channel (X4)
• Backlit logo and zone indicator LEDs to indicate functions and operation
• Built-in 3.5mm female audio port and microphone for music sync input
• Multi-zone Lighting Controller for NMEA 2000 & Ethernet connectivity with integrated HTML interface

Specifications:

• IP67 rated enclosure
• Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
• 15 amps per RGB(W) zone, 60 amps max
• 10 to 30V input range
• Direct 3.5mm female audio input for music synchronization
• Music sync created by onboard DSP (Digital Signal Processing)
• Digital power protection set at 15amps/channel
• Built-in switch inputs for instant lighting for each zone
• 24-bit color support and gamma correction for universal color support
• Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)

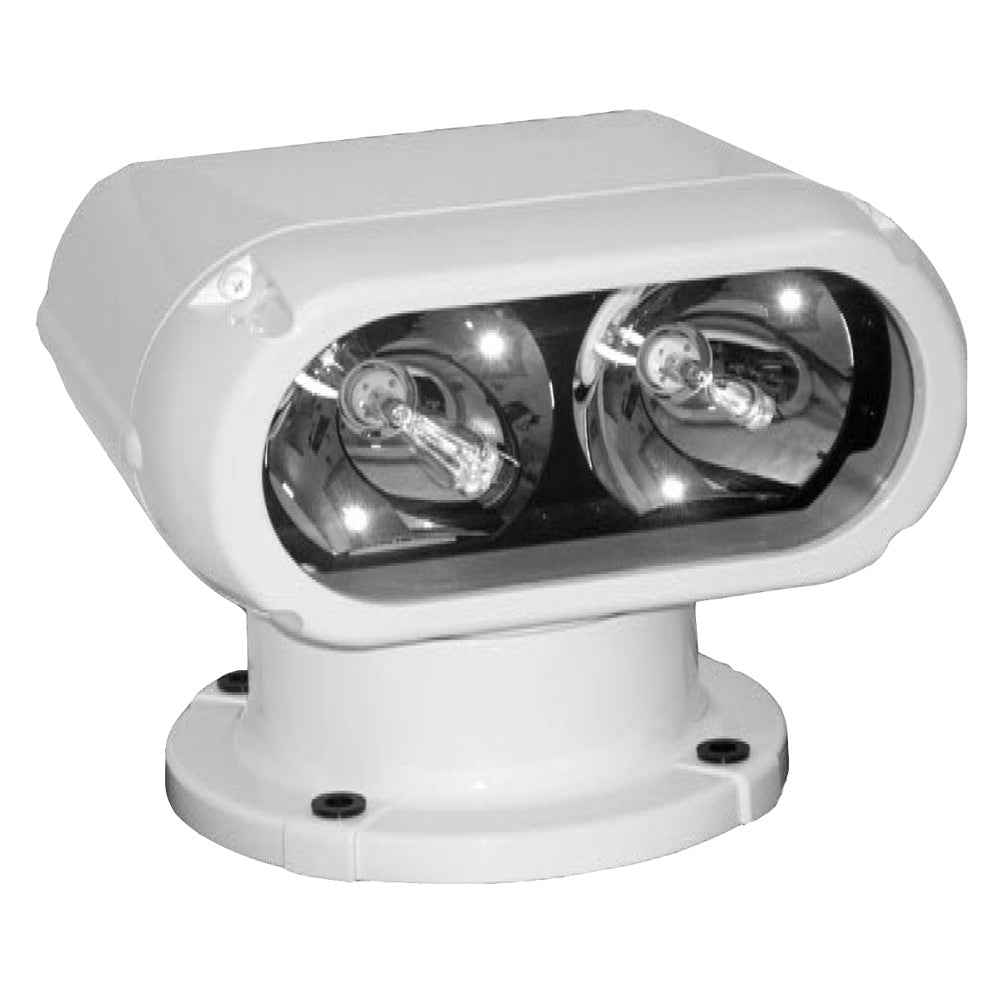

RCL-300A HID Searchlight - 12V/24V

The RCL-300A was specially designed for mariners who require a high intensity remote controlled searchlight that can stand up to the tough marine environment.

The sleek design and modern construction of the searchlight body makes it attractive for recreational and commercial vessels.  The searchlight is totally enclosed and is made of rugged aluminum alloy.  It is gasketed and finished to be resistant to the weather.

The RCL-300A searchlight contains a narrow beam searchlight that produces 1,000,000 peak candle power by combining twin 35W metal halide HD lamps providing over 500K candela (CD) each and 1 million effective CD when combined.

It’s also simple to use with the ACR Point Pad™ controller.

Features:

• Internal elevation mechanism provides pitch control of spotlight beam
• Up to three remote Point Pad™ units may be installed on system
• Rugged triple-primed and sealed, marine grade aluminum housing
• Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
• Auto return function that returns light to forward position when powered down
• Salt water-resistant construction with nylon and phenolic washers for years of reliable service

Technical Specifications:

• Color - White
• Material - Marine-grade cast aluminum, tempered glass
• Operation - Remote controlled Point Pad™
• Voltage Input - 12/24 VDC
• Lamp -  Twin 35W metal Halide lamps
• Rotation - 360° continuous
• Tilt - 45°
• Light Pattern - Variable; can be narrowed or broadened
• Beam Angle - 15° up, 30° down
• Dimensions (H x W x D) - 12" x 13" x 9.3" (31 x 33 x 23.5 cm)
• Dimensions (Footprint Diameter) - 9” (23 cm)
• Weight - 31 lb  (14.06 kg)

In the Box:

• RCL-300A Searchlight (12/24 V)
• Coaxial cable kit
• URP-102 Point Pad™
• URC-300 Master controller
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including BISPHENOL A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Bulb Watts: 35
• Candela: 1 Million
• Voltage - Input Range (Volts): 12/24v
• LED: No
• Wireless: No
• Box Dimensions: 17"H x 19"W x 19"L WT: 44 lbs
• UPC: 791659019337

HEISE Dual Row Marine LED Curved Light Bar - 30" [HE-MDRC30]

Dual Row Marine LED Curved Light Bar - 30"

Specs

• Input Voltage: 10-30V DC
• Wattage: 180 W
• (60-3W CREE LEDs)
• Raw Lumens: 14400
• LUX at 10M: 625
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 31 inches
• Brackets Turned Outward – 33.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 9.5 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Beam Pattern: Spot-Flood Combo
• Length (Inches): 30"
• Housing: White
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 6"H x 9"W x 35"L WT: 10.8 lbs
• UPC: 086429348275

Quick Guide (pdf)

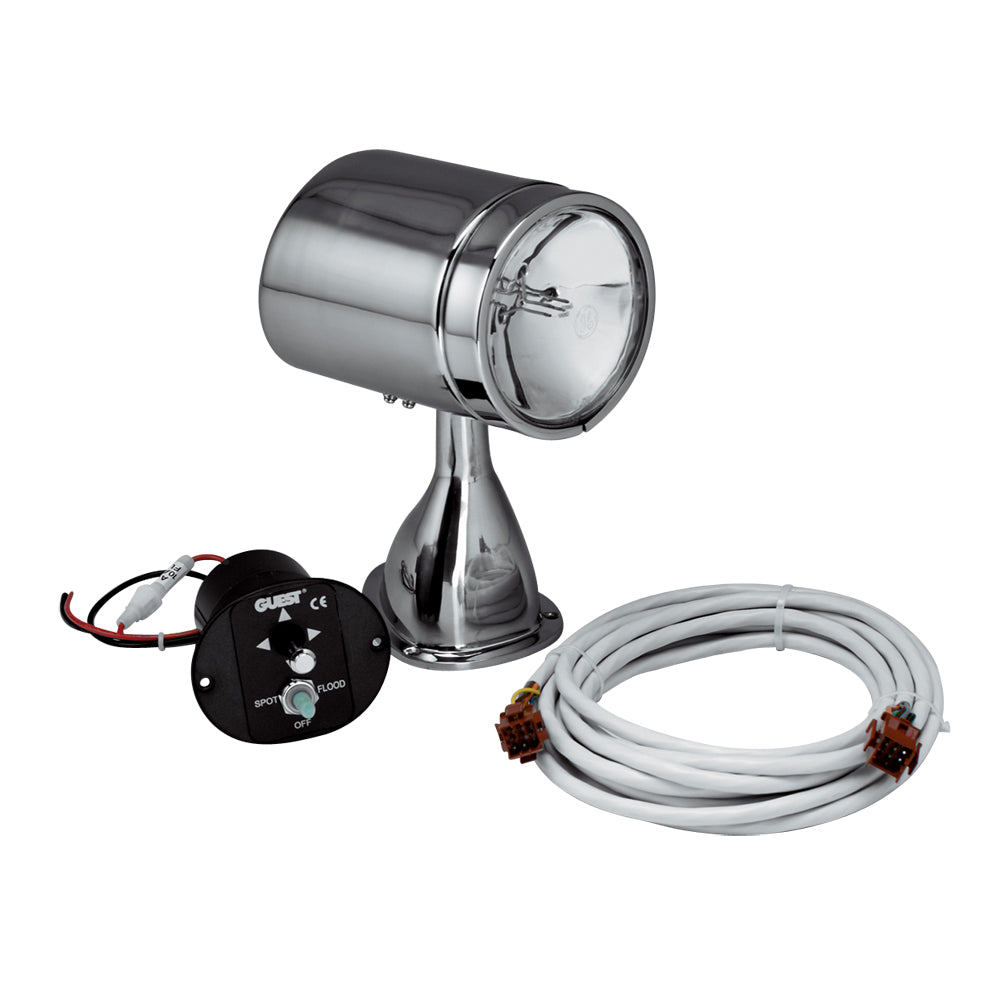

Marinco 5" SS Spotlight / Floodlight Kit [22040A]

5" Stainless Steel Spotlight / Floodlight Kit

Part No. 22040A

Description

• Spot Power: 72,000CP
  Flood Power: 30,000CP
  Amp Draw: 7 Amps
  Operation: 12 Volt Incandescent
  Bulb: Replaceable Incandescent
  Lamp Dimensions: 9-1/2"H x 4-1/2"W x 7-1/2"L
  Base Dimensions: 5-1/2"L x 3-1/2"W
  Weight: 6 Lbs.

Product Features

Joystick requires 2-3/4" installation holes

Remote control, joystick operation

One year warranty

Dual station option available

Light can be directed manually without damaging motor

316 Stainless steel base

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Wireless: No
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 8"H x 12"W x 13"L WT: 7.5 lbs
• UPC: 046904220403

Quick Guide (pdf)

Typhoon SeaBlaze Underwater Bronze Thru-Hull LED Light - White/Blue

SeaBlaze Typhoon sets a new standard for performance, reliability, and value in through-hull underwater lighting. Typhoon delivers more than 10,000 measured lumens, with a modular quick-change design for easy in-water service and upgrades. Lumitec's innovative internal relay simplifies wiring and significantly reduces installation costs and complexity. The solid naval bronze housing requires a 3” mounting hole for the surface. The color output of this light is white/blue. Also, this does not require external controllers and can be operated using any standard on/off switch. Combine with the optional Poco Digital Lighting Control module (sold separately) to unleash advanced functionally - precise color selection and intensity, or create custom lighting scenes at the touch of a button via a compatible display or connected smart device.

Features:

• Output: Dual Color White/Blue
• Lumens: 10,000+
• Voltage: 10-30V DC
• 12V DC Amps: 10A
• 24V DC Amps: 4.5A
• CCT: 6500K
• CRI: 70+

Specifications:

• Color: White/Blue
• Material: Bronze
• Mounting Style: Thru-Hull
• Watts: 120w
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 6"H x 9"W x 11"L WT: 5.6 lbs
• UPC: 089300014481

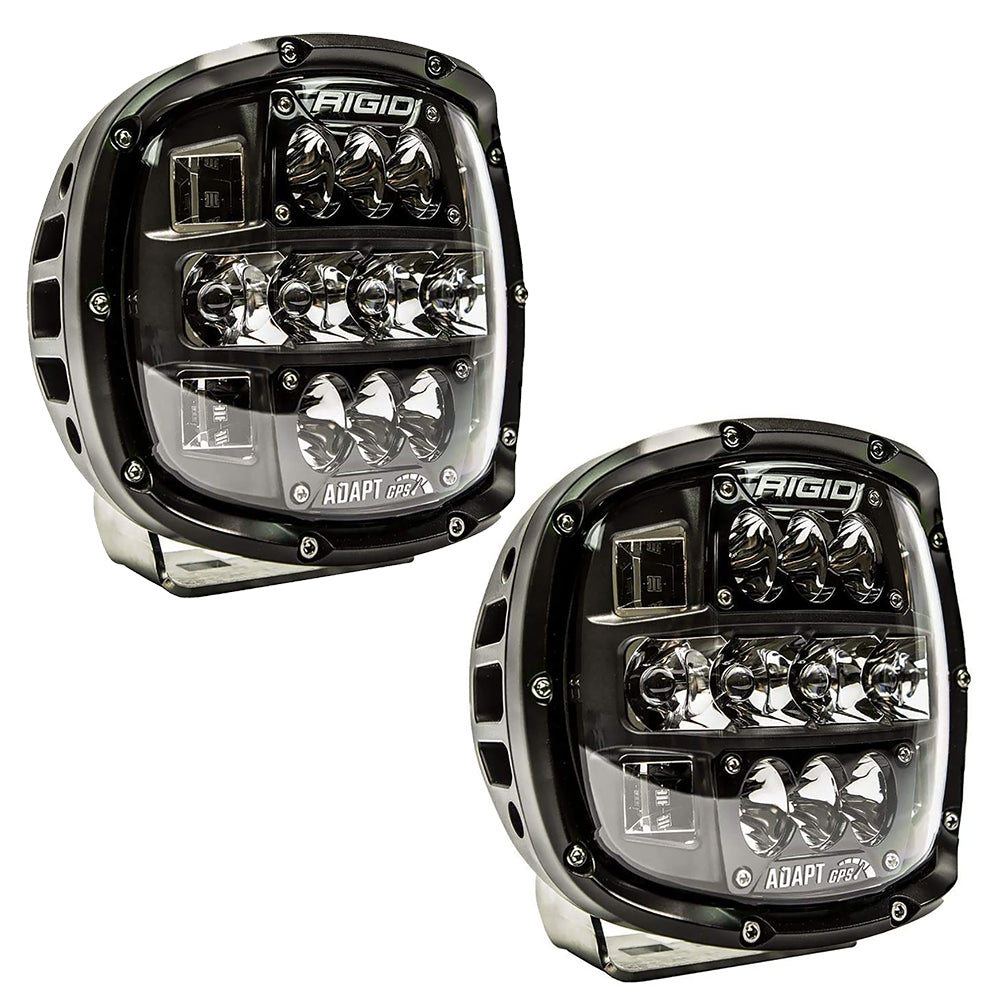

Adapt XP - Pair

The RIGID Adapt XP has a signature look that is unlike any other off-road LED light on the market.  Feature-packed with the most advanced patented technology, this light features a high-strength aluminum heat sink and an impact-resistant polycarbonate lens.  On the inside, the Adapt XP contains cutting-edge technology.  The Adapt XP takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.

Features:

• 3 Optic Zones - Scene, Driving, Spot
• Seamless Beam Transition
• Slow, Moderate & High-Speed Beam Patterns
• Two Layers of Adaptive Response
• Active Power Management System - Power Capacity Sensing
• Internal GPS Module
• 9-32 VDC
• Patented Optics

Technical Specifications:

• Impact Resistant Polycarbonate Lens
• Durable UV Polyester Powder Coat • Universal Fit
• Operating Temp -22F to +158F/-30C to +70C
• 9-32 VDC
• 50,000 Hour+ LED Lifespan

In the Box:

• Pair of Adapt XP lights
• Mounting bracket and Hardware
• Amber Light Covers
• Installation Manual

*Wiring Harness Sold Separately

Specifications:

• Voltage - Input Range (Volts): 9 to 32 V
• LED: Yes
• Bulb Watts: 12/80
• Box Dimensions: 6"H x 9"W x 17"L WT: 8.1 lbs
• UPC: 815711017946
