Lighting - Underwater Lighting

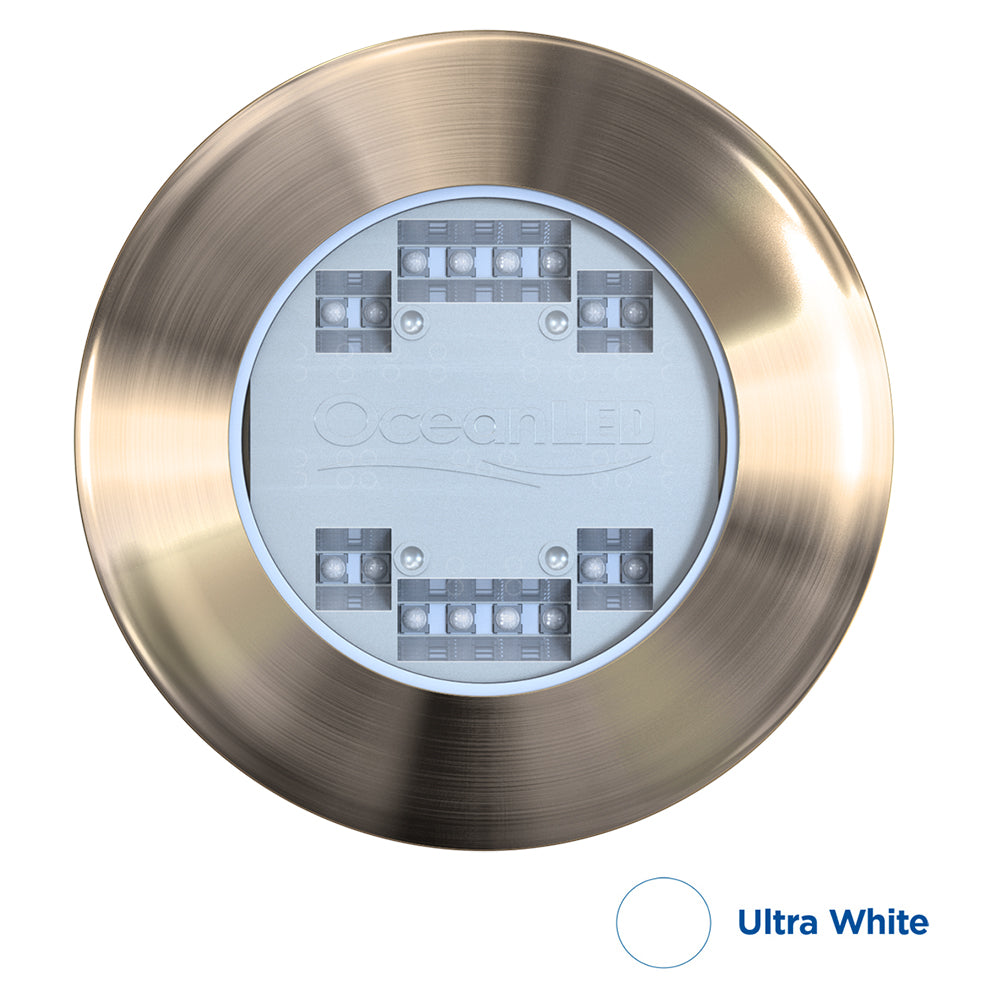

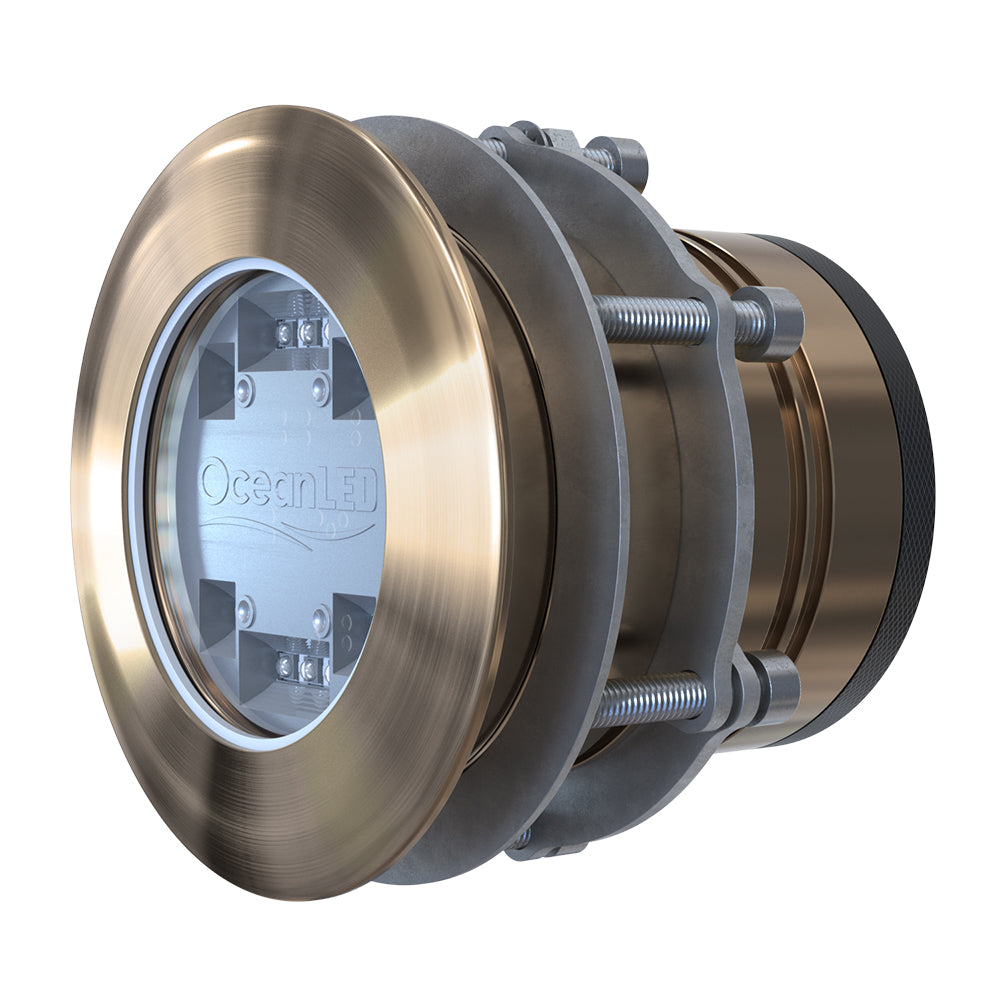

Explore E3 XFM Ultra Underwater Light - Ultra White

Technologically advanced & super efficient. Explore is the ultimate choice of underwater light series.

The Explore E3 has the most advanced optics available on the market. These optics are designed exclusively by OceanLED and offer a truly striking 90° surface beam angle with a focused 20° side beam producing a blade of light under the water that penetrates further, illuminating a larger area with minimal loss.

The ultra low profile outer face of the housing is designed for vessels wanting to go fast and have no impact on speed or flow of water over the hull, perfect for the sides or running surfaces.

Features:

• Superior light distribution due to advanced, generation optics
• Available in single, dual or full RGBW color scroll models
• In built driver for easy installation
• 90° top beam - A true wide-angled, focused beam lights up a large area of water, flooding it with light
• 20° side beam - A true wide-angled, focused beam lights up a large area of water, flooding it with light
• Rectangular beam
• 5,000 Fixture Lumens - Best-in-class performance from this ultrabright light makes it the obvious choice for those who want to stand out from the crowd
• Compact Design - The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas
• Reduced Installation Time - All aspects of this design make installation quicker and simpler
• Simple Toggle Control - Changing to Fish-Strobe or selecting a color on the RGBW model is a simple toggle of the power switch
• Fish-Strobe Mode - Exceptionally bright, randomized strobing of the light is proven to attract more bait and catch more fish
• Same Light Output as Sport Series - E3 can be mixed with Sport series lights
• Sport can be used on transom and E3 along the sides where flush mount is preferred

Specifications:

• Warranty: 3 years

Specifications:

• Mounting Style: Thru-Hull
• Material: AB2 Aluminum Bronze
• Color: White
• Box Dimensions: 7"H x 8"W x 11"L WT: 3.95 lbs
• UPC: 5051803007630

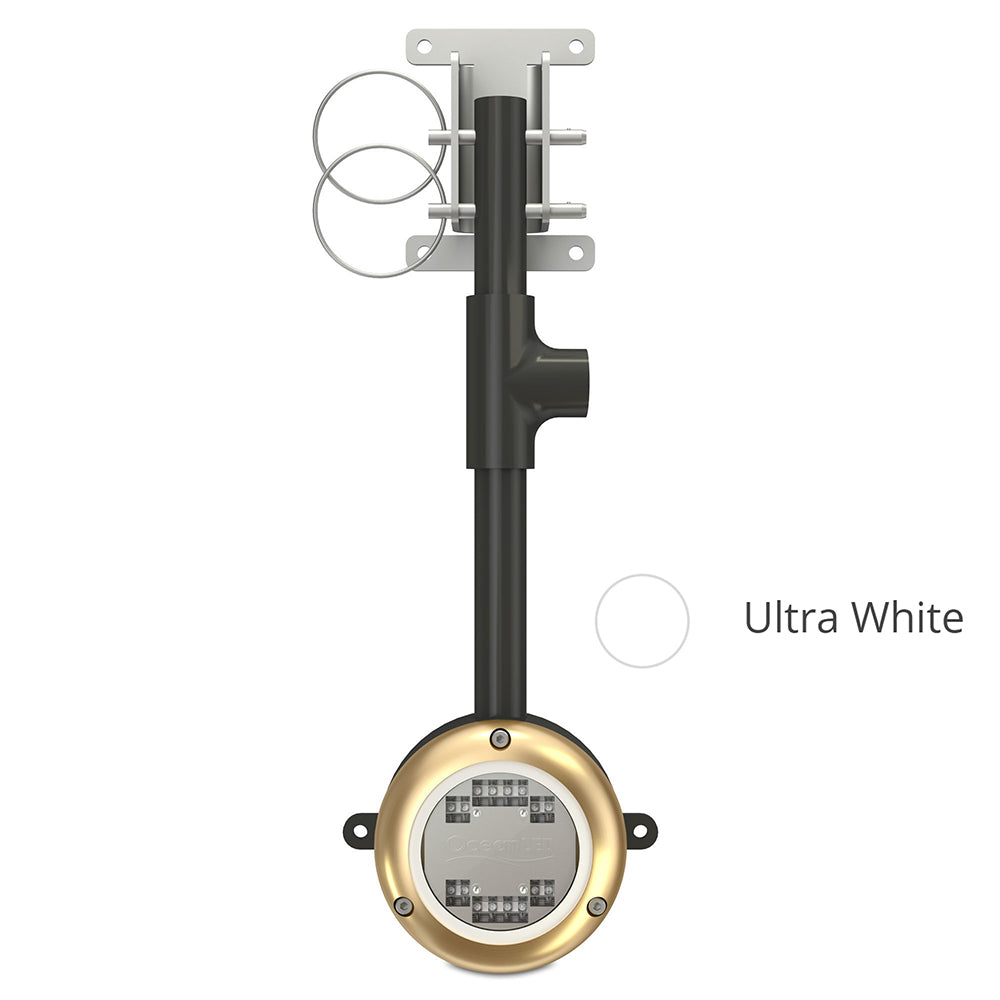

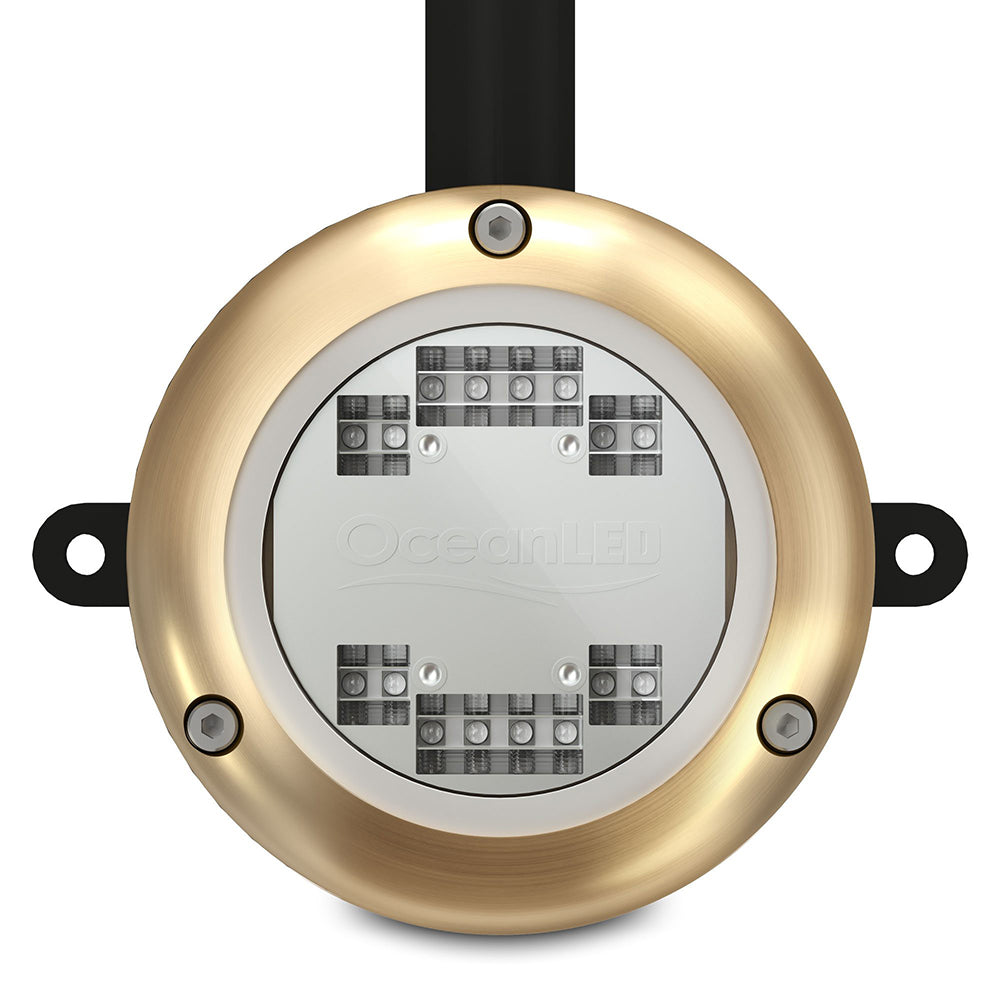

Sport 3116d DockLight - Ultra White

The OceanLED Sport DockLight is the perfect underwater LED light to create a stunning light display at your dock.

Packing an impressive 5,000 fixture lumens into a small body, combined with advanced optics, creates a truly remarkable ‘Best-In-Class’ performance.

Compact, simple design with a small footprint. Easy to install and maintain with a choice of standard fixed dock or optional floating dock brackets.

Features:

• Brightest dock light in its class provides safety and security at your dock
• Create a stunning backdrop to your dock parties
• Increase interest and value in your property with stunning pictures for any marketing material
• 11,600 Lumens / 5,000 Fixture Lumens - Best-in-class performance from this ultrabright light makes it the obvious choice for those who want to stand out
• 90°/20° Beam Angle - A true wide-angled, focused beam lights up a large area of the water around the dock
• Compact & Simple Design - Made from corrosion resistant Alu Bronze, there is a lot packed into this 100mm / 4” light Simple plastic brackets keep footprint to a minimum
• Simple to Install - A choice of fixed or floating brackets, depending on tidal factors or dock type
• Easy to Clean - Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it. Optional Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean
• Active Thermal Control - ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely

Specifications:

• Lumens: 11600
• Fixture Lumens: 5000
• Typical LED life expectancy: 40,000+ Hours
• Minimum-Maximum operating voltage DC: 20-32V DC
• Current / Amp draw (DC):  24V DC 2.4A
• Driver type: Internal, Reverse Polarity Protected
• Dock spacing: 5-10’ (1.5-3m)
• Installation depth (To top of fixture): 12” (30cm)
• Total weight: 1.2kg
• Extension cable length (standard):    32.8” (10M)
• Hole cut-out for cable entry: 0.5” (12.5mm)
• Material: AB2 Aluminium Bronze

Specifications:

• Warranty: 2 years

Specifications:

• Color: White
• Material: AB2 Aluminum Bronze
• Mounting Style: Bracket

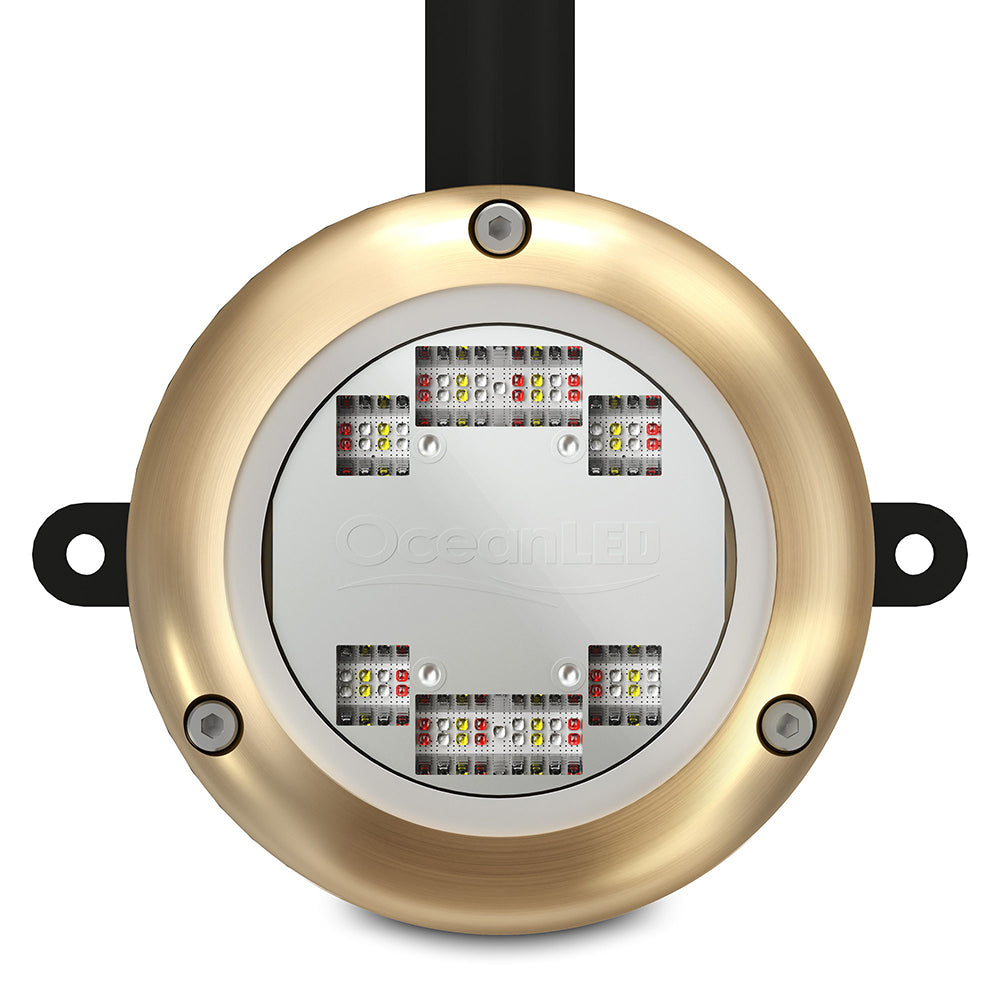

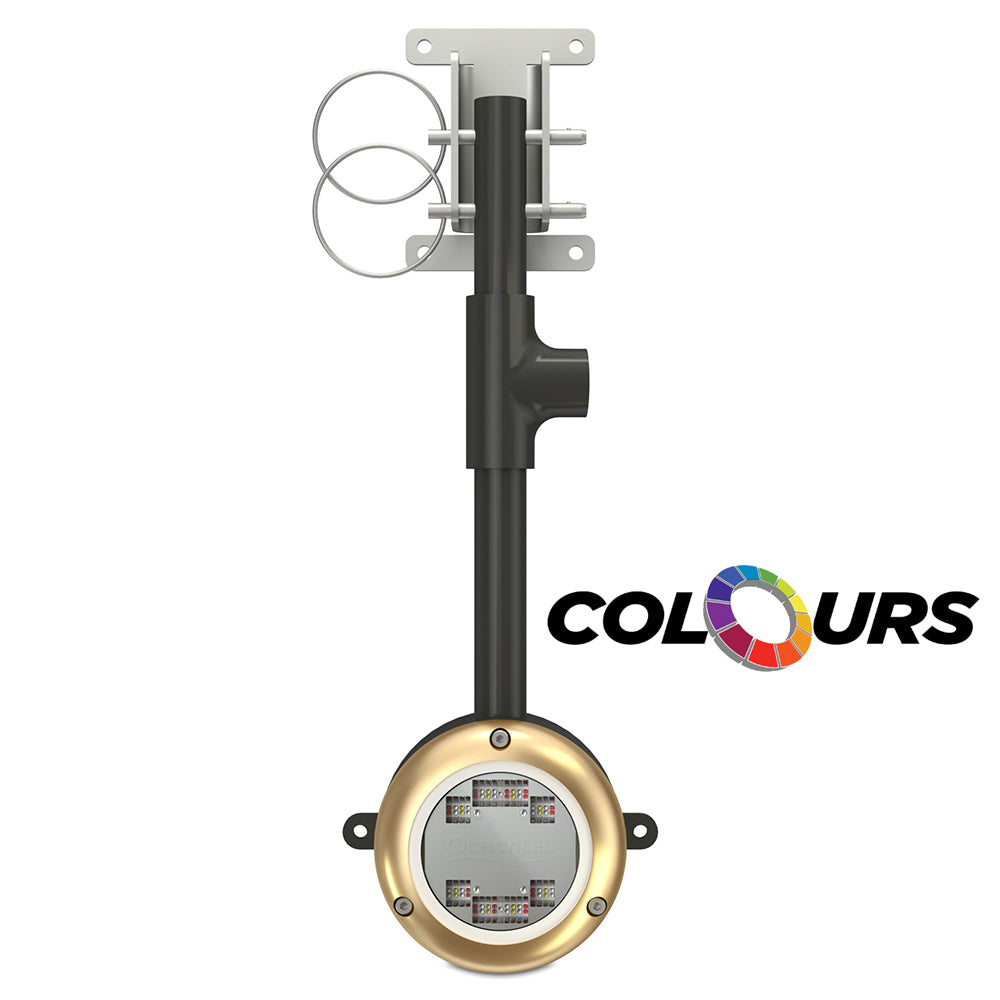

Sport S3166d Dock Light - Multi-Color

The Sport S3166d gives your dock parties a dramatic backdrop with a stunning multi-colour light display.

More dedicated LED’s per colour than leading competitor models utilising full RGBW colour mixing. This allows you to choose any colour you wish or scroll through the spectrum to attract marine life creating your own aquarium.

Allows attachment to floating pontoons. The Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean.

• Illuminates a significantly larger area than its competitors
• Narrower focused side beam angle providing greater water penetration
• True 90Ëš beam angle with no fading at the edge gives better illumination

90/20 degree Beam Angle - A true wide-angled, focused beam lights up a large area of the water.

More dedicated LED’s per colour than leading competitor models utilising full RGBW colour mixing.

Choose any colour you wish or scroll through the spectrum to attract marine life creating your own aquarium.

Features:

• Up to 3,500 Fixture Lumens
• 90° Top Beam
• 20° Side Beam
• Rectangular Beam

Specifications:

• Warranty: 2 years

Specifications:

• Color: Full Color RGBW
• Material: AB2 Aluminum Bronze
• Mounting Style: Bracket
• Box Dimensions: 6"H x 7"W x 10"L WT: 3.65 lbs

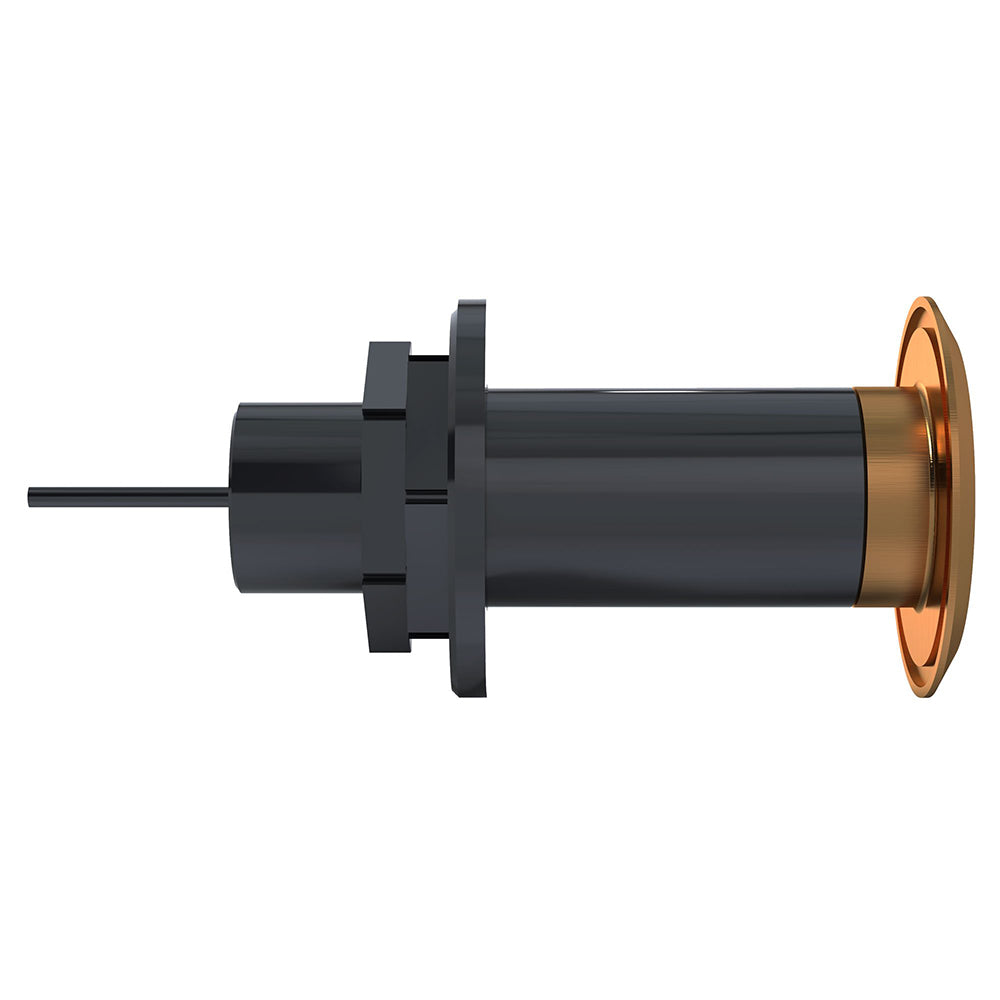

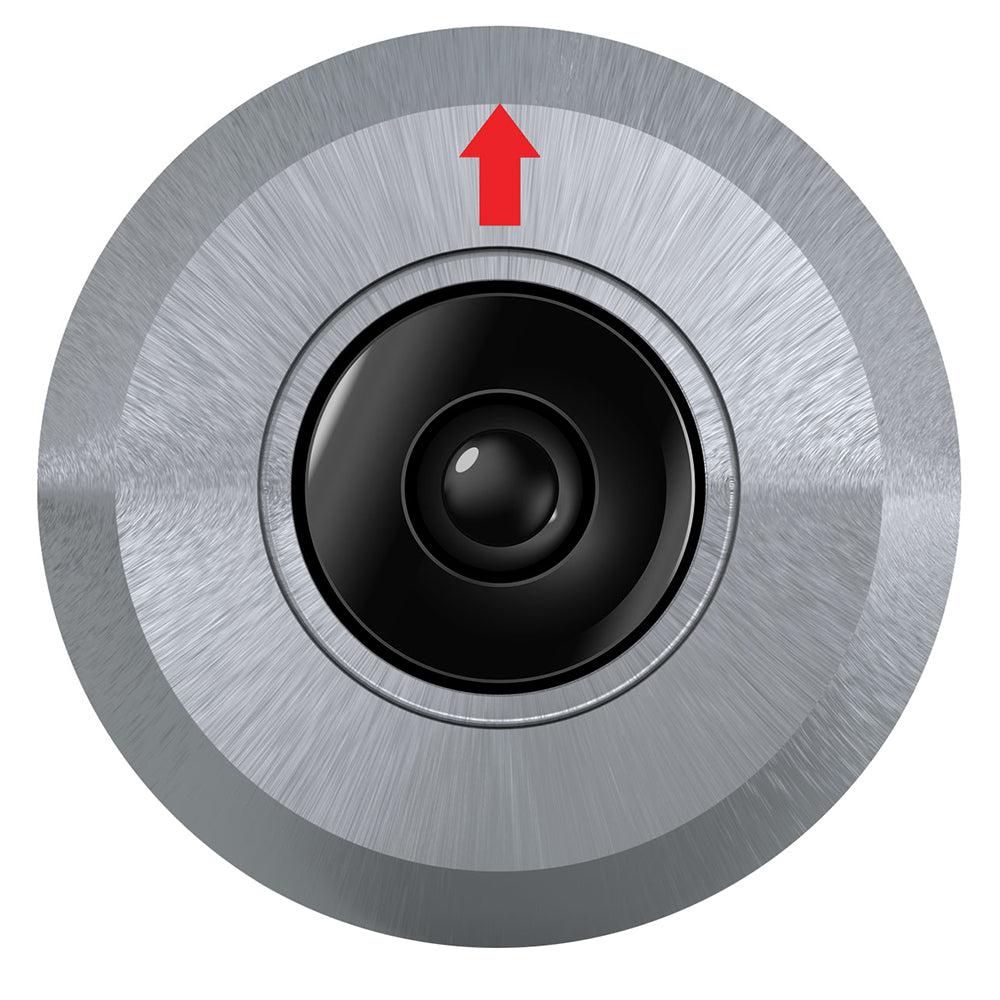

OceanLED Eyes HD Gen2 Ocean Camera - Stainless Steel Bezel [011811]

Eyes HD Gen2 Ocean Camera - Stainless Steel Bezel

View your own underwater aquarium in high definition.

Never miss the moment the fish strikes or when you’re lucky enough to have a pod of dolphins swimming with you. Cockpit mounting means you get a different view of the event or rest secure when you’re away from your boat.

Features:

• Full 1080p HD
• HD-SDI Output
• 2.1 Megapixel
• 35mm (1.38") Hole in Hull
• 12V DC
• Aluminium Bronze / Stainless Steel Bezel Options
• Tritonium™ Optical Lens
• Simple to install
• Compact and simple design
• No Breakable Parts

Specifications:

• Warranty: 2 years

Specifications:

• Material: Stainless Steel
• Box Dimensions: 7"H x 7"W x 10"L WT: 2.35 lbs
• UPC: 5051803007616

Quick Guide (pdf)
Brochure (pdf)

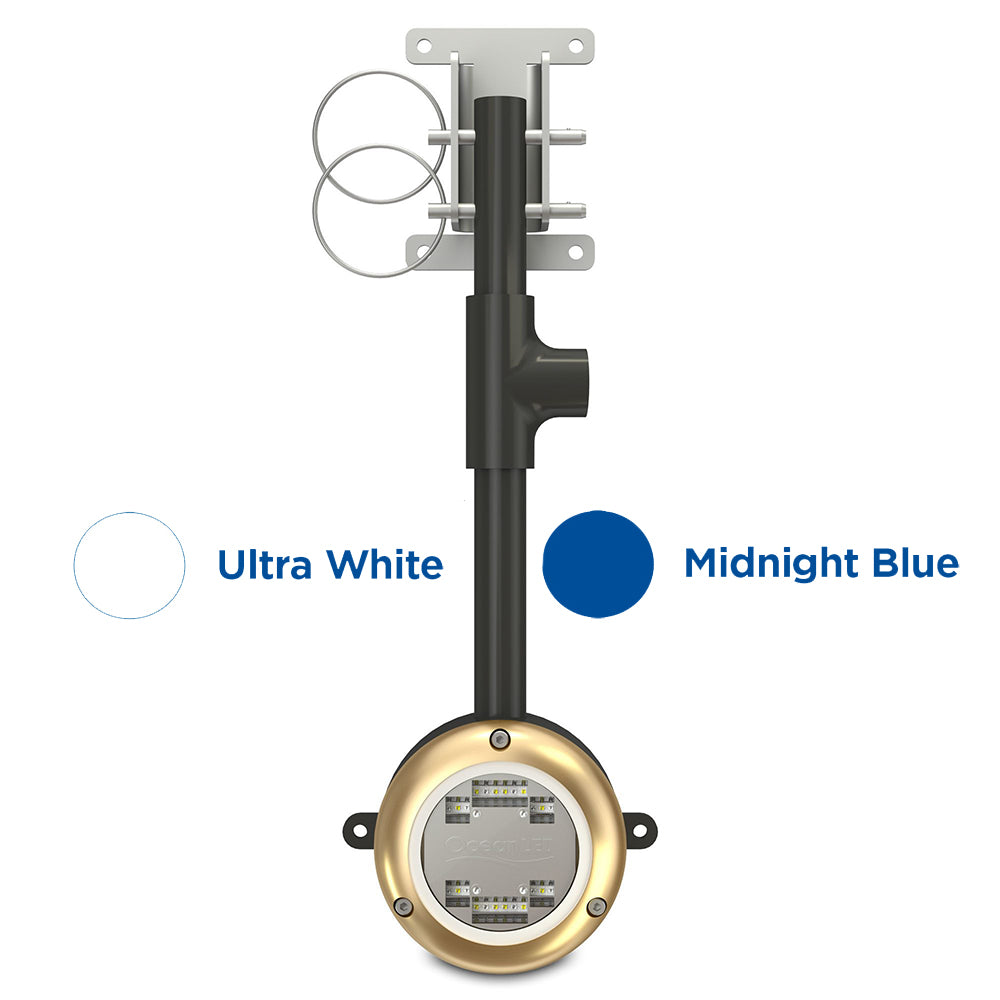

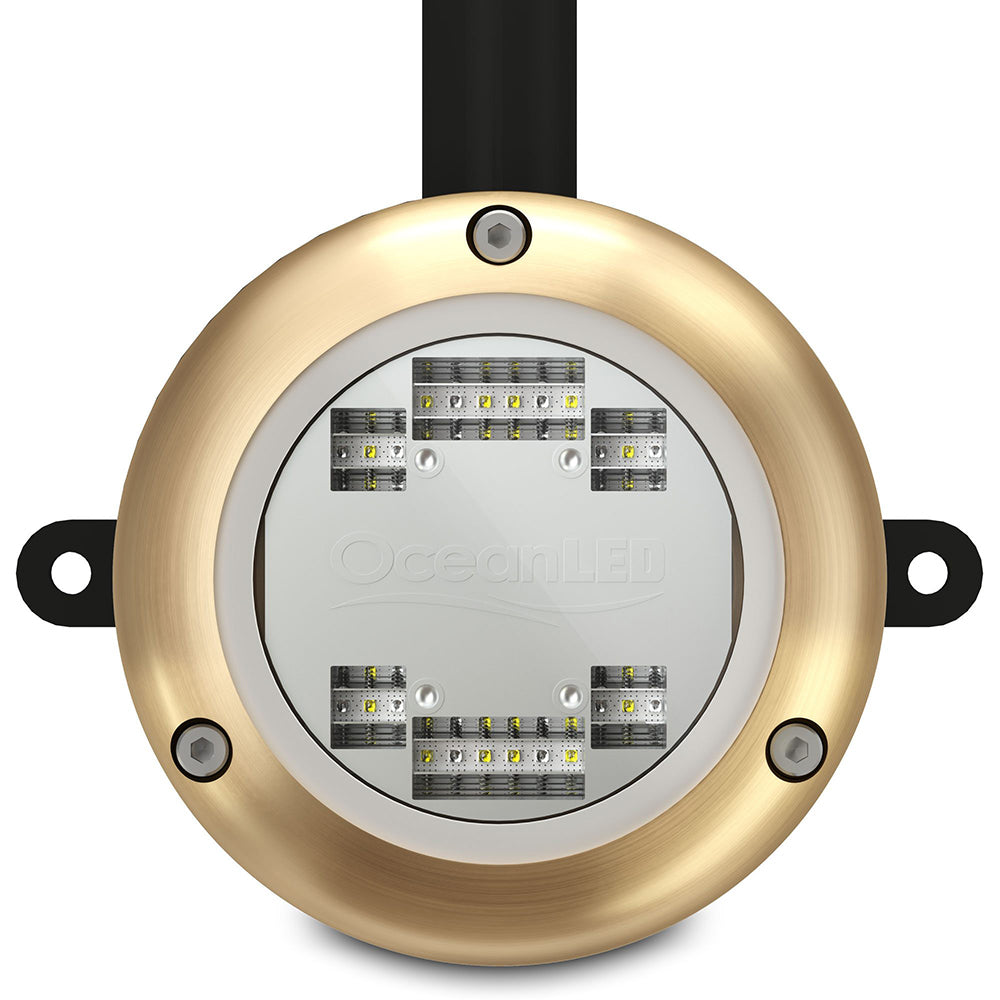

Sport S3124d Dock Light Dual Color - Blue/White

With twice the amount of LEDs as its competitors, the dual colour S3124d is the leader in its class. Simply toggle the power between white, blue and fade modes.

Create a stunning backdrop to your dock parties and provide safety and security.

Allows attachment to floating pontoons. The Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean.

90°/20° Beam Angle - A true wide-angled, focused beam lights up a large area of the water.

Brightest dock light in its class provides safety and security at your dock.

A choice of fixed or floating brackets, depending on tidal factors or dock type.

Features:

• 90° Top Beam
• Up to 3000 Fixture Lumens
• 20° Side Beam
• Rectangular Beam
• Brightest dock light in its class
• Provides safety and security at your dock
• Create a stunning backdrop to your dock parties
• Increase interest and value in your property
• Easi-Kleen floating bracket option
• Simple to install
• Active Thermal Control prevents overheating
• Fade between blue/white.
• Select your desired startup color

Specifications:

• Warranty: 2 years

Specifications:

• Color: White/Blue
• Material: AB2 Aluminum Bronze
• Mounting Style: Bracket
• Box Dimensions: 6"H x 7"W x 11"L WT: 3.85 lbs
• UPC: 5051803007432

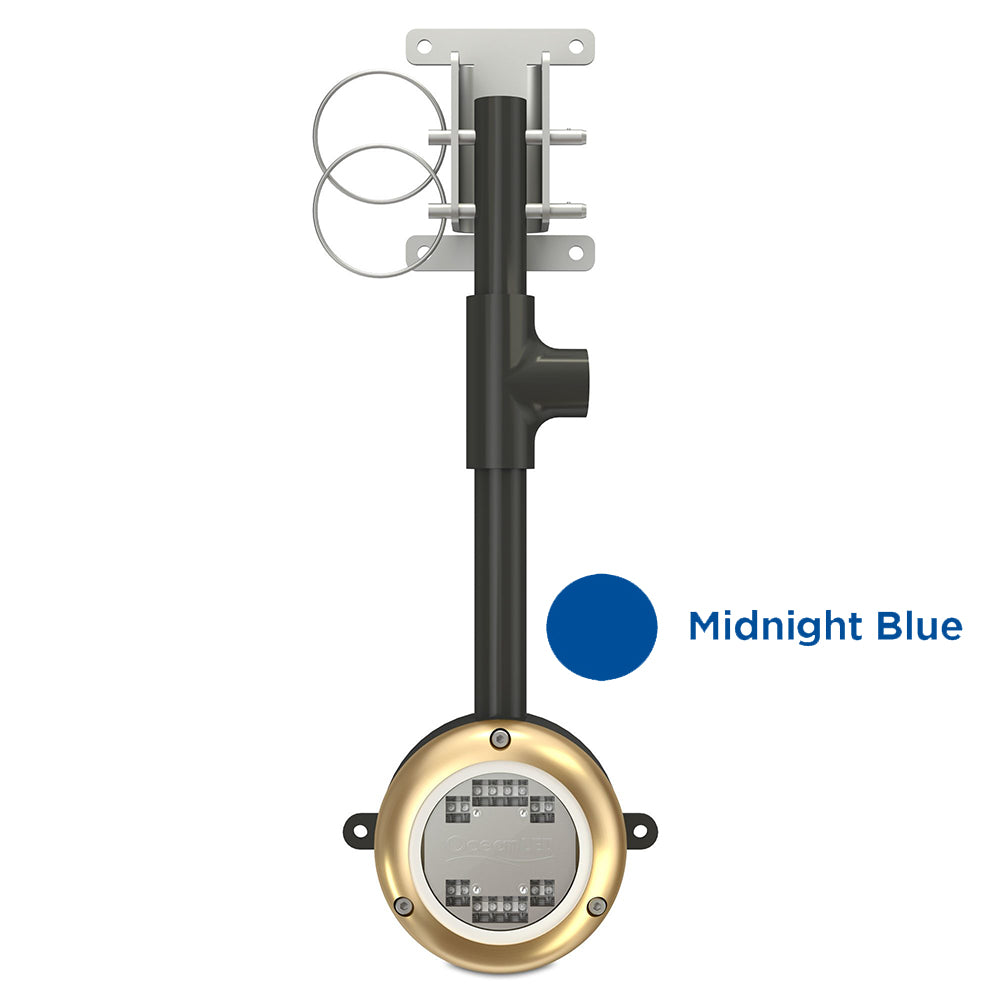

Sport 3116d DockLight - Midnight Blue

The OceanLED Sport DockLight is the perfect underwater LED light to create a stunning light display at your dock.

Packing an impressive 5,000 fixture lumens into a small body, combined with advanced optics, creates a truly remarkable ‘Best-In-Class’ performance.

Compact, simple design with a small footprint. Easy to install and maintain with a choice of standard fixed dock or optional floating dock brackets.

Features:

• Brightest dock light in its class provides safety and security at your dock
• Create a stunning backdrop to your dock parties
• Increase interest and value in your property with stunning pictures for any marketing material
• 11,600 Lumens / 5,000 Fixture Lumens - Best-in-class performance from this ultrabright light makes it the obvious choice for those who want to stand out
• 90°/20° Beam Angle - A true wide-angled, focused beam lights up a large area of the water around the dock
• Compact & Simple Design - Made from corrosion resistant Alu Bronze, there is a lot packed into this 100mm / 4” light Simple plastic brackets keep footprint to a minimum
• Simple to Install - A choice of fixed or floating brackets, depending on tidal factors or dock type
• Easy to Clean - Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it. Optional Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean
• Active Thermal Control - ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely

Specifications:

• Lumens: 11600
• Fixture Lumens: 5000
• Typical LED life expectancy: 40,000+ Hours
• Minimum-Maximum operating voltage DC: 20-32V DC
• Current / Amp draw (DC):  24V DC 2.4A
• Driver type: Internal, Reverse Polarity Protected
• Dock spacing: 5-10’ (1.5-3m)
• Installation depth (To top of fixture): 12” (30cm)
• Total weight: 1.2kg
• Extension cable length (standard): 32.8” (10M)
• Hole cut-out for cable entry: 0.5” (12.5mm)
• Material: AB2 Aluminium Bronze

Specifications:

• Warranty: 2 years

Specifications:

• Color: Blue
• Material: AB2 Aluminum Bronze
• Mounting Style: Bracket
• Box Dimensions: 6"H x 7"W x 10"L WT: 3.7 lbs
• UPC: 5051803007418

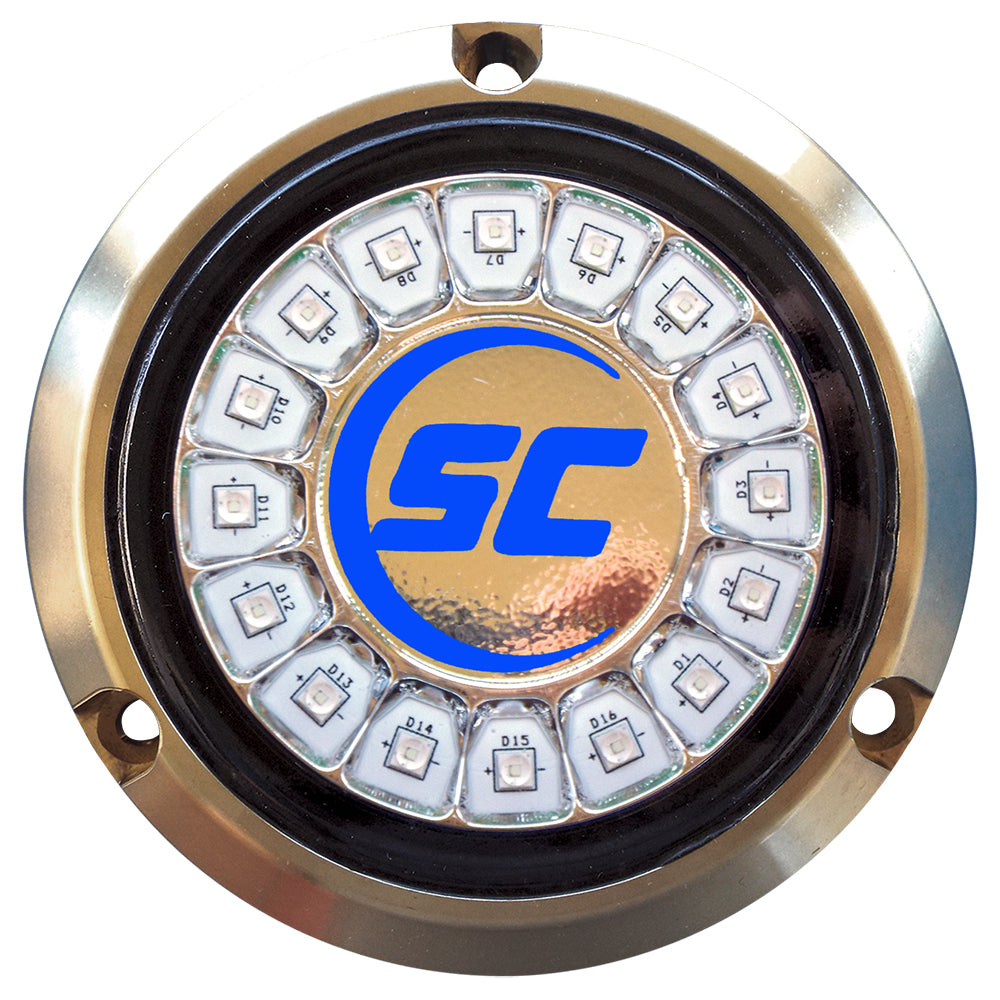

Ultra Blue Single Color Underwater Light - 16 LEDs - Bronze

Features:

• High Intensity 6,700 Lumens
• Transient surge protection
• Thin design of .63" thick and 4" diameter
• Surge and reverse polarity protected
• Thermal throttling technology protects light for safe operation out of the water
• Optional dimming and strobe control

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Surface
• Color: Blue
• Material: Bronze
• Box Dimensions: 6"H x 6"W x 6"L WT: 2.3 lbs
• UPC: 855726005651

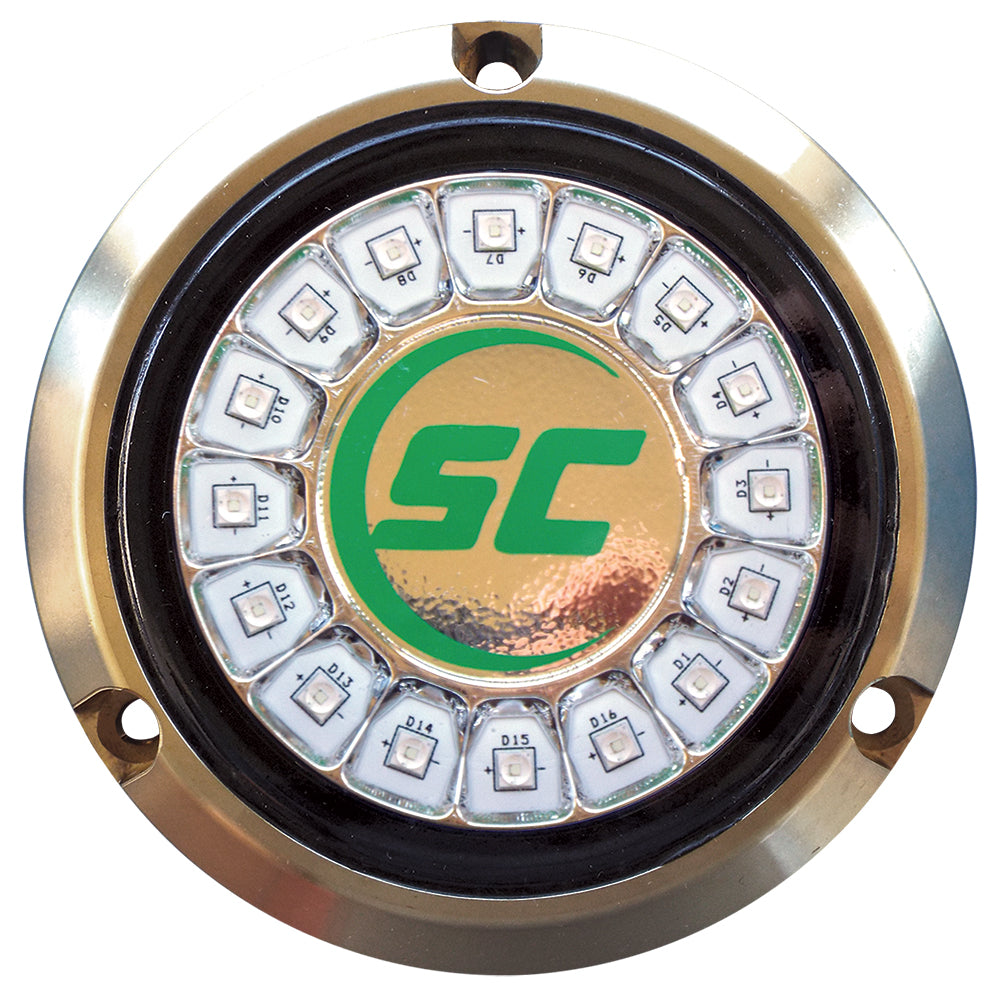

Aqua Green Single Color Underwater Light - 16 LEDs - Bronze

The SCR-16 is a 16 LED round light. Presenting exceptional brightness in a flood pattern, the SCR-16 is built into durable bronze housing, complete with a scratch-resistant glass lens. The Shadow-Caster SCR is a beautiful compliment to any vessel.

High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).

Robust Design
With Shadow-Caster underwater LED lights, there’s no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.

Surface Mounted
Our lighting solutions feature a low profile design that requires no alteration to the main hull

Wide Input Voltage Range
Shadow-Caster’s underwater LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.

Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.

Thermal Protection
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Features:

• 60 Watts (5 amps @ 12 volts)
• 4 “ Outside Diameter
• Bronze Housing
• Scratch-Resistant Glass Lens
• Surge and Reverse Polarity Protection
• Thermal Throttling ( C ) Above Water Protection
• Includes 10’ Submersible Cord & Install Diagram
• 10-40 Volts input
• 2- Year Warranty
• Made in the USA

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Surface
• Color: Green
• Material: Bronze
• Box Dimensions: 6"H x 6"W x 6"L WT: 2.4 lbs
• UPC: 8557260056824
