Lighting - Underwater Lighting

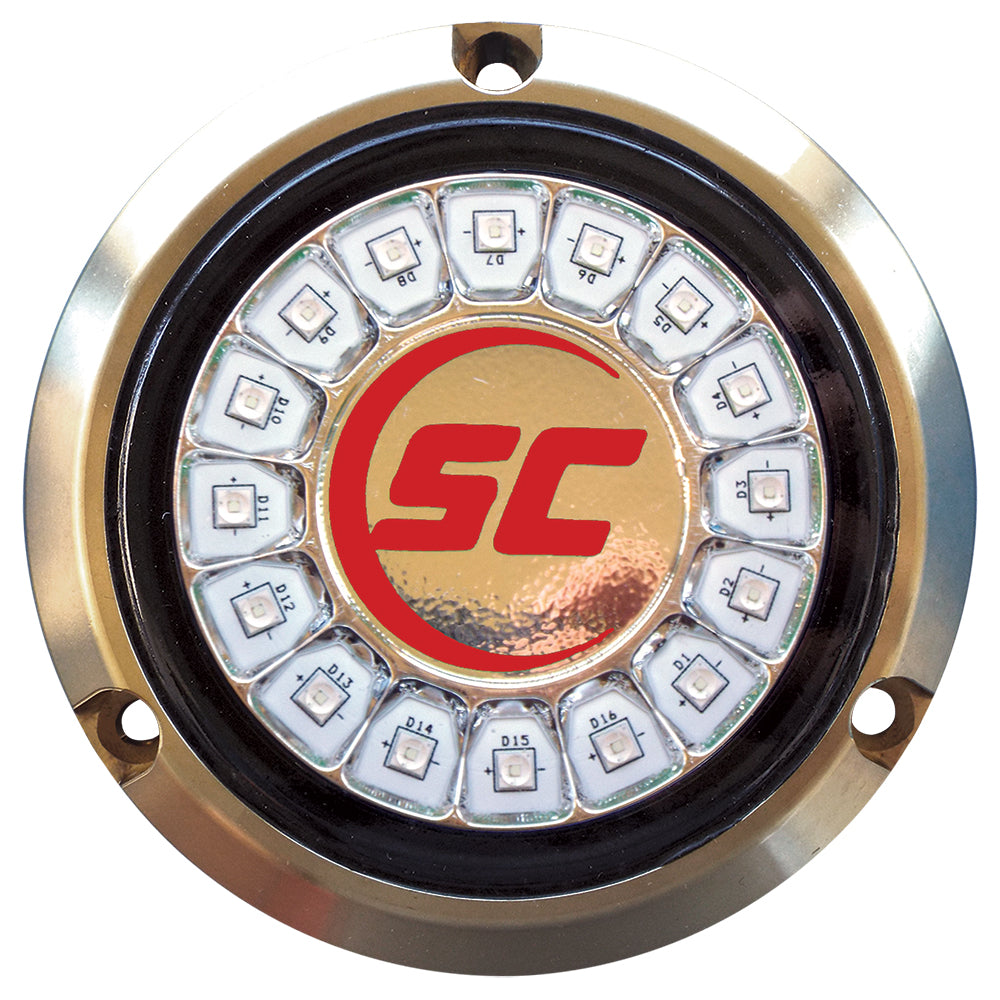

Cool Red Single Color Underwater Light - 16 LEDs - Bronze

The SCR-16 is a 16 LED round light. Presenting exceptional brightness in a flood pattern, the SCR-16 is built into durable bronze housing, complete with a scratch-resistant glass lens. The Shadow-Caster SCR is a beautiful compliment to any vessel.

High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).

Robust Design
With Shadow-Caster underwater LED lights, there’s no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.

Surface Mounted
Our lighting solutions feature a low profile design that requires no alteration to the main hull

Wide Input Voltage Range
Shadow-Caster’s underwater LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.

Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.

Thermal Protection
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Features:

• 60 Watts (5 amps @ 12 volts)
• 4 “ Outside Diameter
• Bronze Housing
• Scratch-Resistant Glass Lens
• Surge and Reverse Polarity Protection
• Thermal Throttling ( C ) Above Water Protection
• Includes 10’ Submersible Cord & Install Diagram
• 10-40 Volts input
• 2- Year Warranty
• Made in the USA

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Surface
• Color: Red
• Material: Bronze
• Box Dimensions: 6"H x 6"W x 6"L WT: 2 lbs
• UPC: 8557260056992

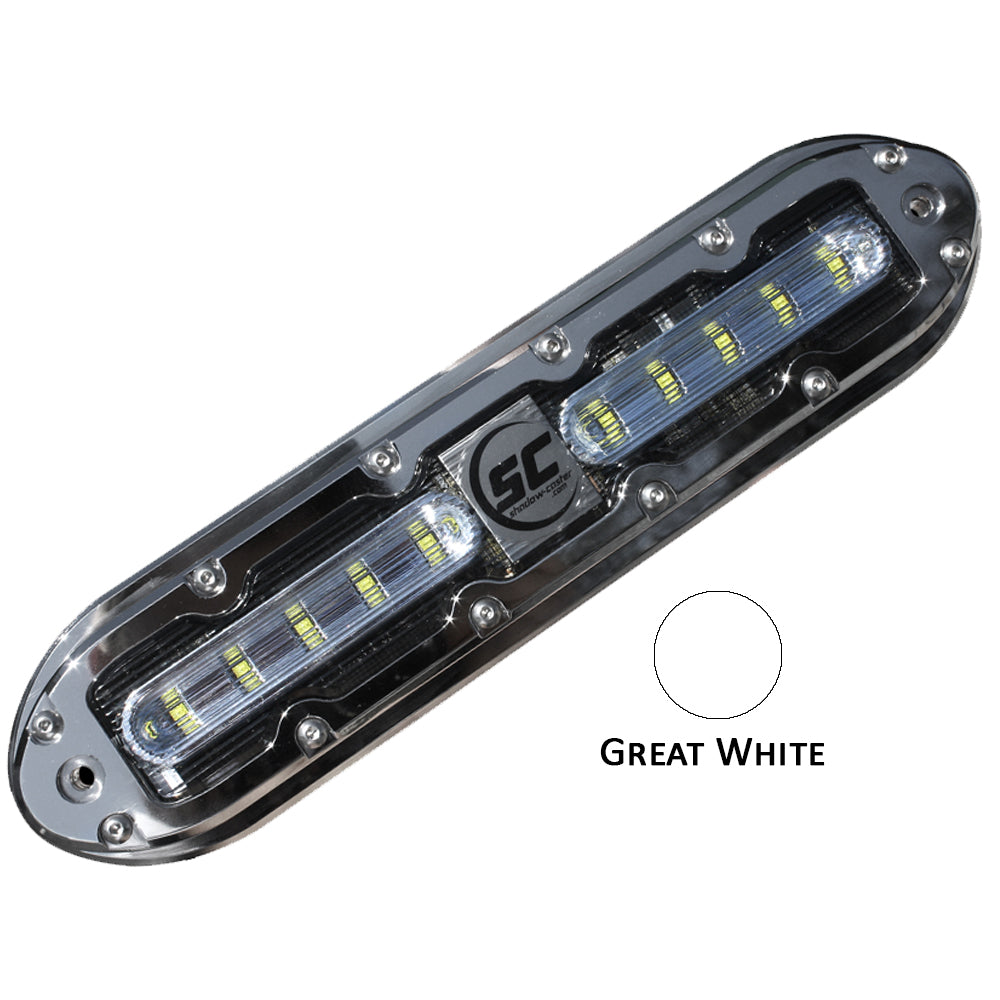

SCM-10 LED Underwater Light w/20' Cable - 316 SS Housing - Great White

With ten high-intensity LEDs, the SCM-10 underwater light is our most popular model. The SCM-10 is the perfect addition to every vessel and dock. The SCM-10 works with our Wireless Controller and Power Distribution Box for ease of use and installation.

High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
Robust Design
With Shadow-Caster underwater LED lights, there's no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
Surface Mounted
Our lighting solutions feature a low profile design that requires noalteration to the main hull
Wide Input Voltage Range
Shadow-Caster's underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
Thermal Protection
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Specifications:

• Size: 10" Length x 2.375" Width x 0.5" Height (254 x 60 x 13mm)

• Operating Voltage: 10 - 30 Volts DC with consistent brightness

• Current Draw: 3.5 Amps @ 12 Volts

• Internal high efficiency digital switching power supply

• 42 Watts of high efficiency LED light

• 40,000-Hour Lamp Life

• 120° light spread angle

• 316 Stainless Steel Housing with Polycarbonate Lens

• 20' (6M) Standard Cable Length

• 1-Year Warranty

• Made in the USA

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Surface
• Color: White
• Material: Stainless Steel
• Watts: 42w
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 5"H x 5"W x 14"L WT: 2.6 lbs
• UPC: 855726005019

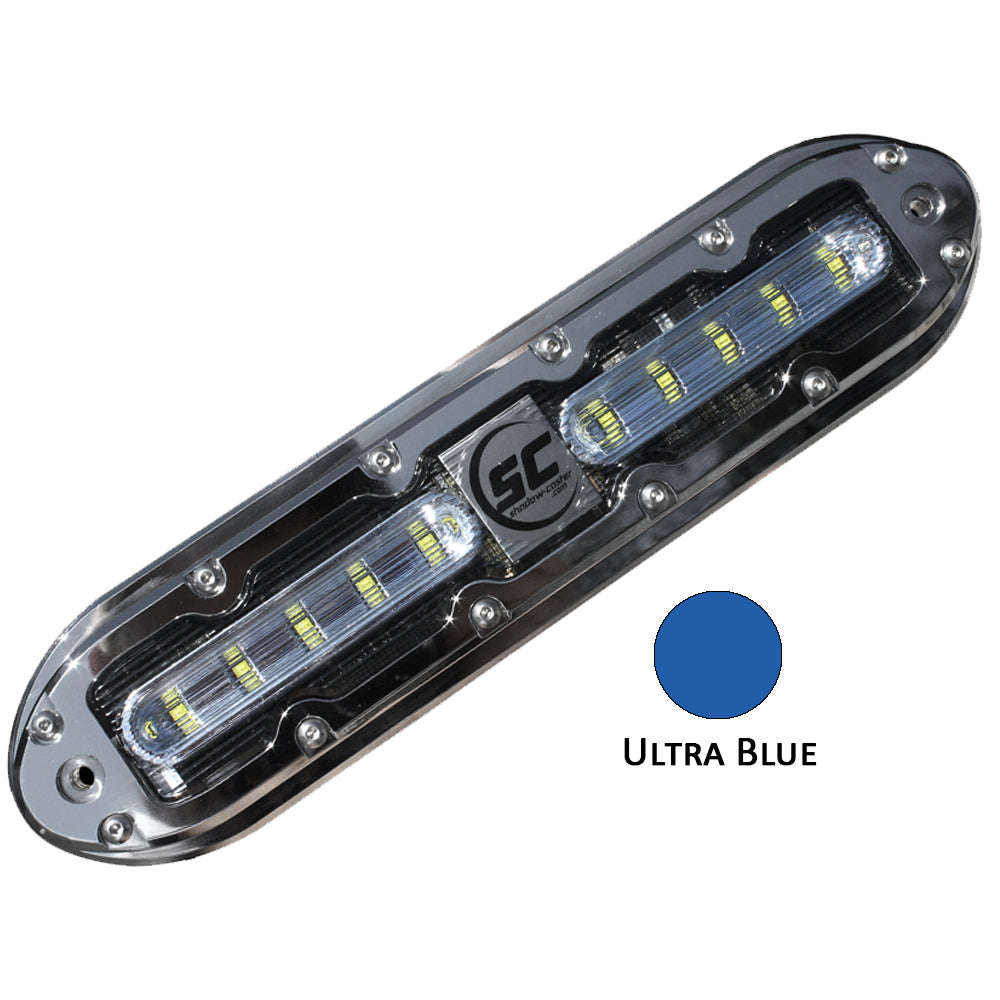

SCM-10 LED Underwater Light w/20' Cable - 316 SS Housing - Ultra Blue

With ten high-intensity LEDs, the SCM-10 underwater light is our most popular model. The SCM-10 is the perfect addition to every vessel and dock. The SCM-10 works with our Wireless Controller and Power Distribution Box for ease of use and installation.

High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
Robust Design
With Shadow-Caster underwater LED lights, there's no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
Surface Mounted
Our lighting solutions feature a low profile design that requires noalteration to the main hull
Wide Input Voltage Range
Shadow-Caster's underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
Thermal Protection
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Specifications:

• Size: 10" Length x 2.375" Width x 0.5" Height (254 x 60 x 13mm)

• Operating Voltage: 10 - 30 Volts DC with consistent brightness

• Current Draw: 3.5 Amps @ 12 Volts

• Internal high efficiency digital switching power supply

• 42 Watts of high efficiency LED light

• 40,000-Hour Lamp Life

• 120° light spread angle

• 316 Stainless Steel Housing with Polycarbonate Lens

• 20' (6M) Standard Cable Length

• 1-Year Warranty

• Made in the USA

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Surface
• Color: Blue
• Material: Stainless Steel
• Watts: 42w
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 10"H x 10"W x 12"L WT: 8 lbs
• UPC: 8557260050334

SCM-10 LED Underwater Light w/20' Cable - 316 SS Housing - Cool Red

With ten high-intensity LEDs, the SCM-10 underwater light is our most popular model. The SCM-10 is the perfect addition to every vessel and dock. The SCM-10 works with our Wireless Controller and Power Distribution Box for ease of use and installation.

High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
Robust Design
With Shadow-Caster underwater LED lights, there's no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
Surface Mounted
Our lighting solutions feature a low profile design that requires noalteration to the main hull
Wide Input Voltage Range
Shadow-Caster's underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
Thermal Protection
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Specifications:

• Size: 10" Length x 2.375" Width x 0.5" Height (254 x 60 x 13mm)

• Operating Voltage: 10 - 30 Volts DC with consistent brightness

• Current Draw: 3.5 Amps @ 12 Volts

• Internal high efficiency digital switching power supply

• 42 Watts of high efficiency LED light

• 40,000-Hour Lamp Life

• 120° light spread angle

• 316 Stainless Steel Housing with Polycarbonate Lens

• 20' (6M) Standard Cable Length

• 1-Year Warranty

• Made in the USA

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Surface
• Color: Red
• Material: Stainless Steel
• Watts: 42w
• Voltage - Input Range (Volts): 10-30v
• UPC: 855726005040

Sport Series Colours with Built-In Camera

The Sport Colours – Camera Edition is the world’s first surface-mounted, full-color underwater light with an integrated underwater camera. Designed for both recreational and professional use, this all-in-one solution delivers exceptional underwater visibility and unmatched lighting effects, ideal for leisure boats and sport fishing vessels.

Its wide-angle view offers a natural perspective with zero distortion, making it ideal for docking, hazard detection, and capturing underwater action in full clarity. Producing 3,500 fixture lumens, the Sport Colours – Camera Edition leverages OceanLED’s most advanced optical technology, ensuring uncompromised performance.

Built for harsh marine environments, the Sport Colours – Camera Edition features a robust marine-grade aluminum bronze housing, IP69K-rated waterproofing, and Tritonium™ coating to resist marine growth. Installation is fast and simple, requiring only a single 12.5mm (0.5”) hole.

Specifications:

• Material: Bronze
• Mounting Style: Thru-Hull
• Type: Lights
• Box Dimensions: 3"H x 6"W x 6"L WT: 2 lbs
• UPC: 5051803011514

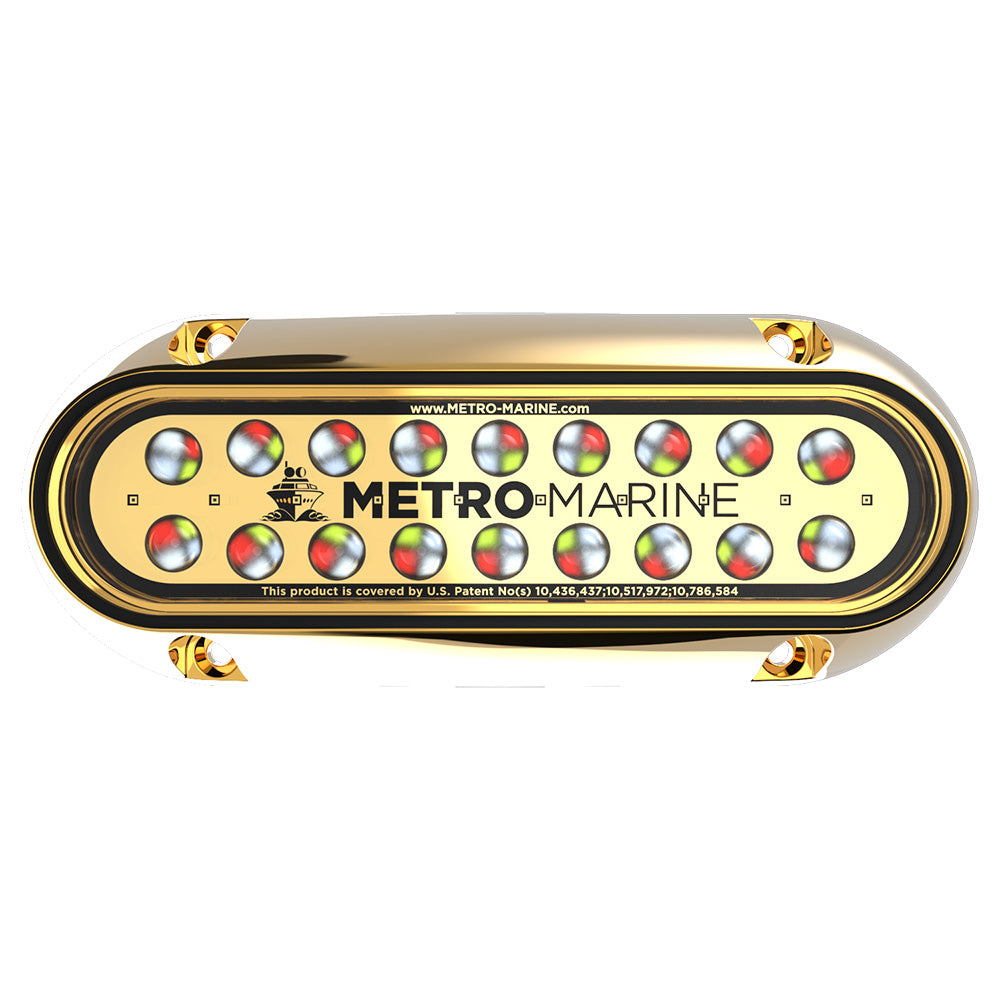

High-Output Elongated Underwater Light with Intelligent Full Spectrum LED's - RGBW, 45° Beam

The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the water’s surface to provide vibrant color and color-changing light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. . Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 72 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important. Our F-Series RGBW Luminaires also integrate a separate white LED in each of the 18 individually optically lensed RGBW LED configurations, creating higher-quality whites and richer color blends than possible with traditional RGB+White fixtures.

The F-BME1-H-FS-45 is a superior underwater RGBW LED luminaire with 45° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.

Clear Lens Technology

One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVC’s became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear – forever!

Anti-Condensation Assembly Methodology

Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!

Technical Specifications:

• Beam Angle - 45°
• Input Voltage - 10VDC-30VDC
• Power Consumption - 86W
• Dimensions - 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight - 3.41 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122°

Specifications:

• Color: Full Color RGBW
• Material: AB2 Aluminum Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30v
• Watts: 86w
• Box Dimensions: 5"H x 9"W x 10"L WT: 4.95 lbs
• UPC: 850050884316

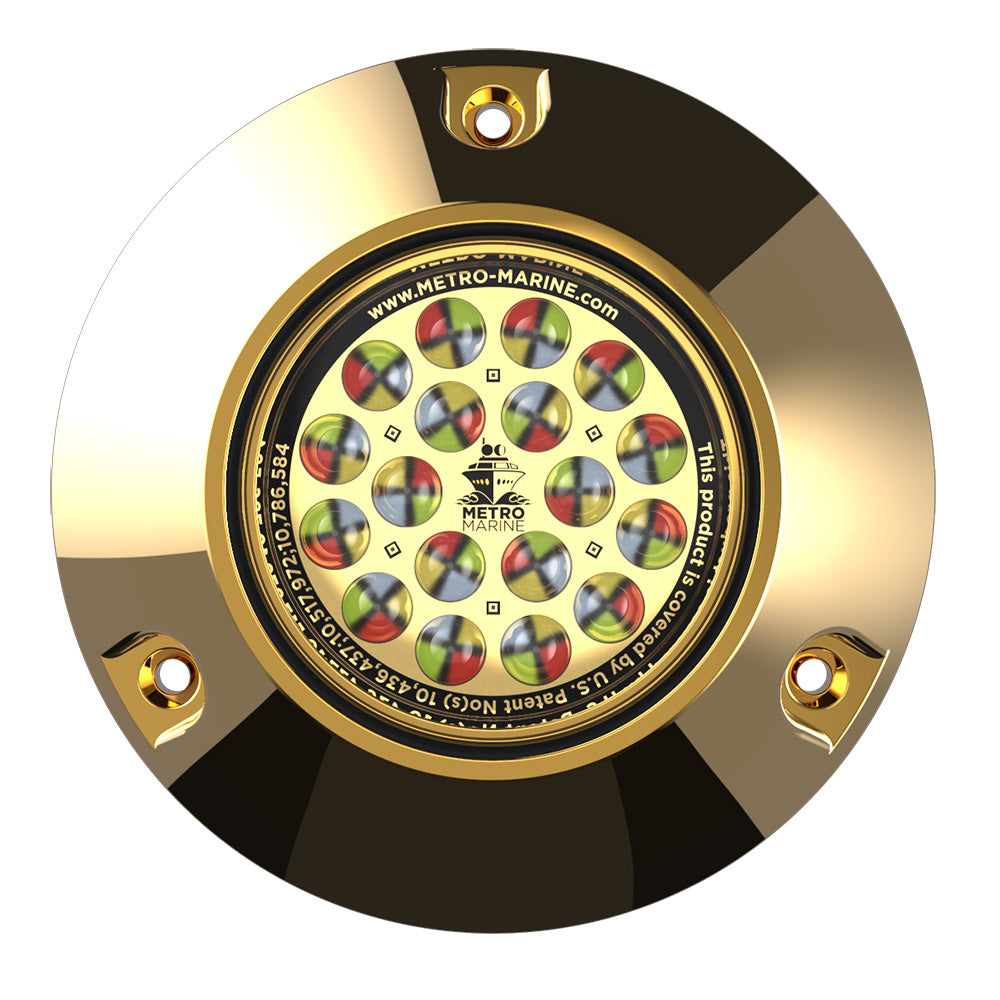

High-Output Submersible Underwater Light with Intelligent Full Spectrum LED's - RGBW, 45° Beam

The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the water’s surface to provide vibrant color and color-changing light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. . Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 72 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important. Our F-Series RGBW Luminaires also integrate a separate white LED in each of the 18 individually optically lensed RGBW LED configurations, creating higher-quality whites and richer color blends than possible with traditional RGB+White fixtures.

The F-BMR1-FS-45 is a superior underwater RGBW LED luminaire with 45° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.

Clear Lens Technology

One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVC’s became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear – forever!

Anti-Condensation Assembly Methodology

Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!

Technical Specifications:

• Beam Angle - 45°
• Input Voltage - 10VDC-30VDC
• Power Consumption - 86W
• Dimensions - 5.47" (Dia.) x 1.12" (D)
• Weight - 3.54 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122°

Specifications:

• Color: Full Color RGBW
• Material: AB2 Aluminum Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30v
• Watts: 86w
• Box Dimensions: 5"H x 9"W x 10"L WT: 5.45 lbs
• UPC: 850050884071

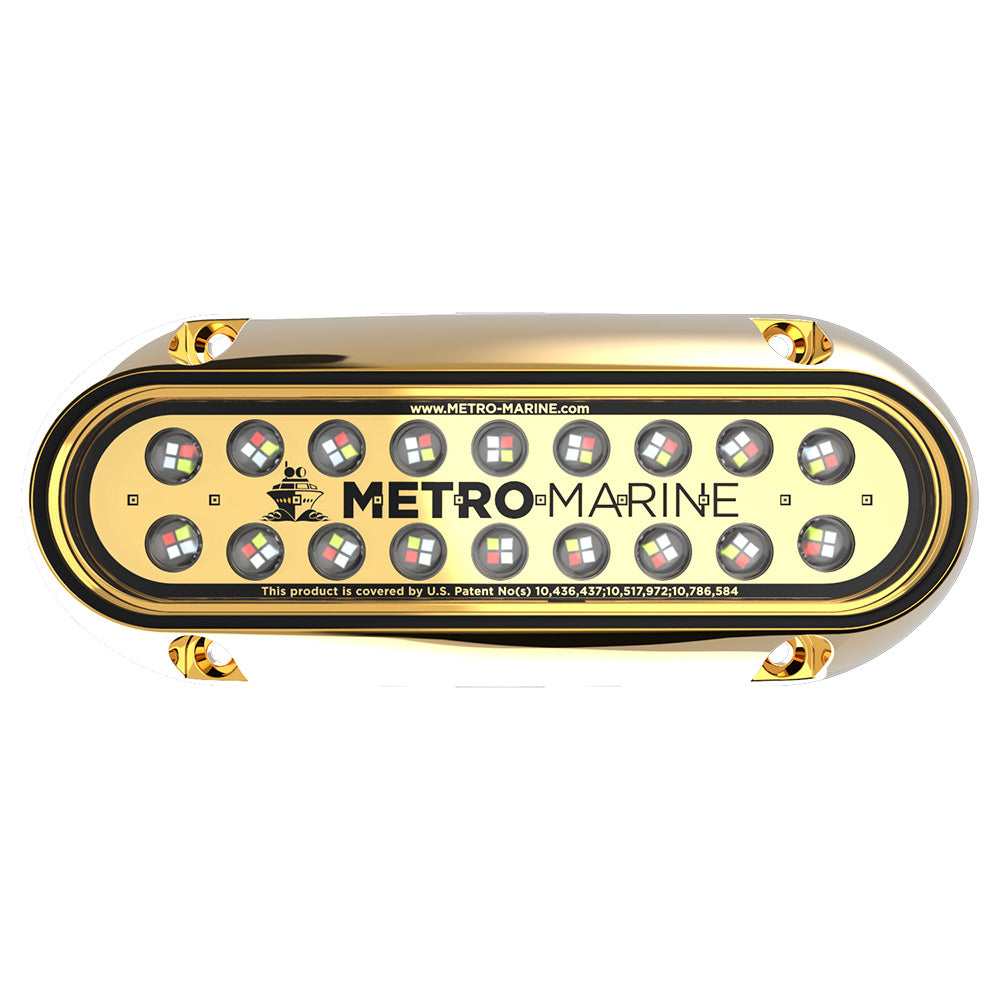

High-Output Elongated Underwater Light with Intelligent Full Spectrum LED's - RGBW, 90° Beam

The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6M (15') below the water’s surface to provide vibrant color and color-changing light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. . Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 72 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important. Our F-Series RGBW Luminaires also integrate a separate white LED in each of the 18 individually optically lensed RGBW LED configurations, creating higher-quality whites and richer color blends than possible with traditional RGB+White fixtures.

The F-BME1-H-FS-90 is a superior underwater RGBW LED luminaire with 90° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10M (32') to 30M (100'), with uniform color control, and high efficiency.

Clear Lens Technology

One of the main problems seen with underwater marine lighting fixtures is the aggressive growth (biofouling) that attaches to the clear lenses in front of the LEDs. This growth blocks the light, and causes the fixtures to overheat. When UVC’s became available in LED form, Metro Marine devised and patented a unique and innovative system utilizing UVC LEDs to keep the lenses on our fixtures crystal clear – forever!

Anti-Condensation Assembly Methodology

Condensation is a critical issue found in many underwater marine lighting fixtures. It can cause internal corrosion which can destroy underwater lighting fixtures from the inside-out. Taking a scientific approach, we have solved this problem, completely eliminating condensation from forming in our fixtures. We manufacture our fixtures in a Class 1000 Clean Room, and our patent-pending assembly methodology guarantees our fixtures will never experience condensation!

Technical Specifications:

• Beam Angle - 90°
• Input Voltage - 10VDC-30VDC
• Power Consumption - 86W
• Dimensions - 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight - 3.41 lbs
• Lens Material - Clear Quartz
• Operating Temperature - -40 to 122°

Specifications:

• Color: Full Color RGBW
• Material: AB2 Aluminum Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 10-30v
• Watts: 86w
• Box Dimensions: 5"H x 9"W x 10"L WT: 5 lbs
• UPC: 850050884323
