Lighting - Navigation Lights

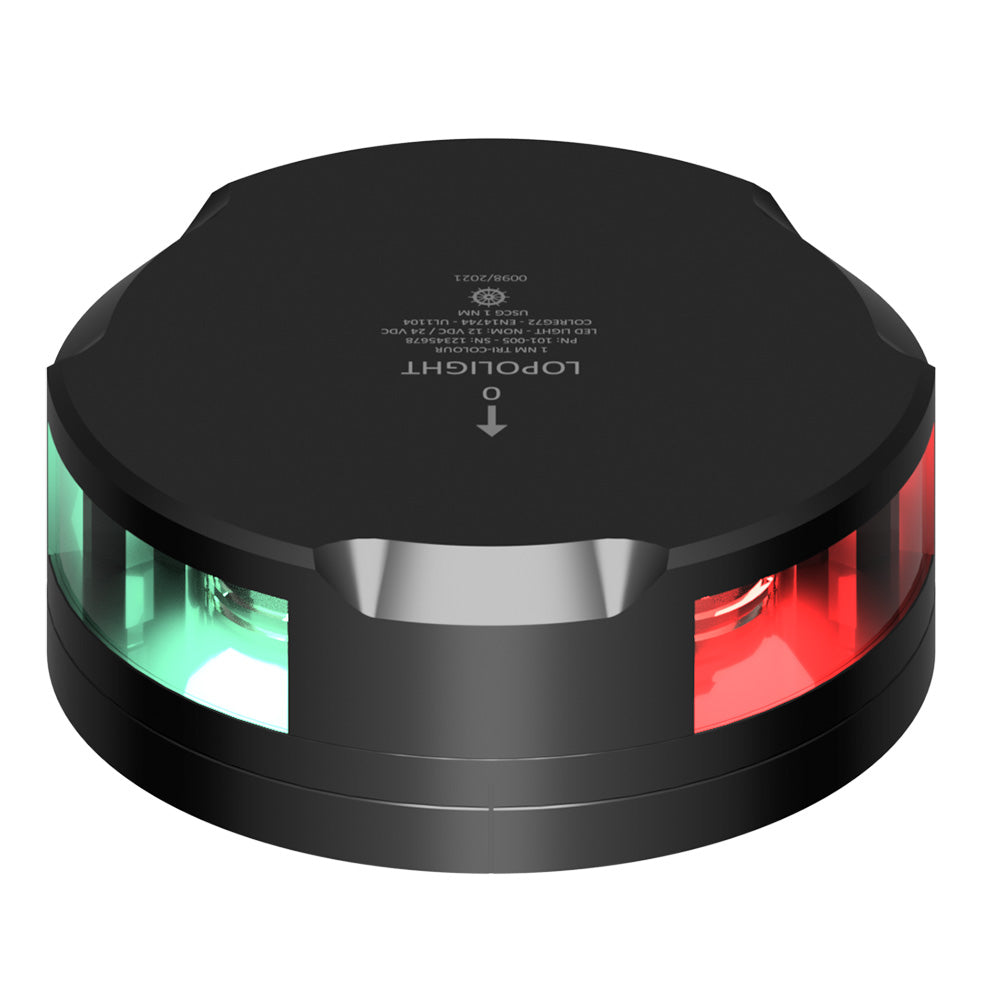

Lopolight Tri-Color Nav Light - 1NM - Black Housing w/FB Base [101-005-FB-B]

Tri-Color Nav Light - 1NM - Black Housing with FB Base

This tri-color navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042643
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable and installation guide
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92,5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Black
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

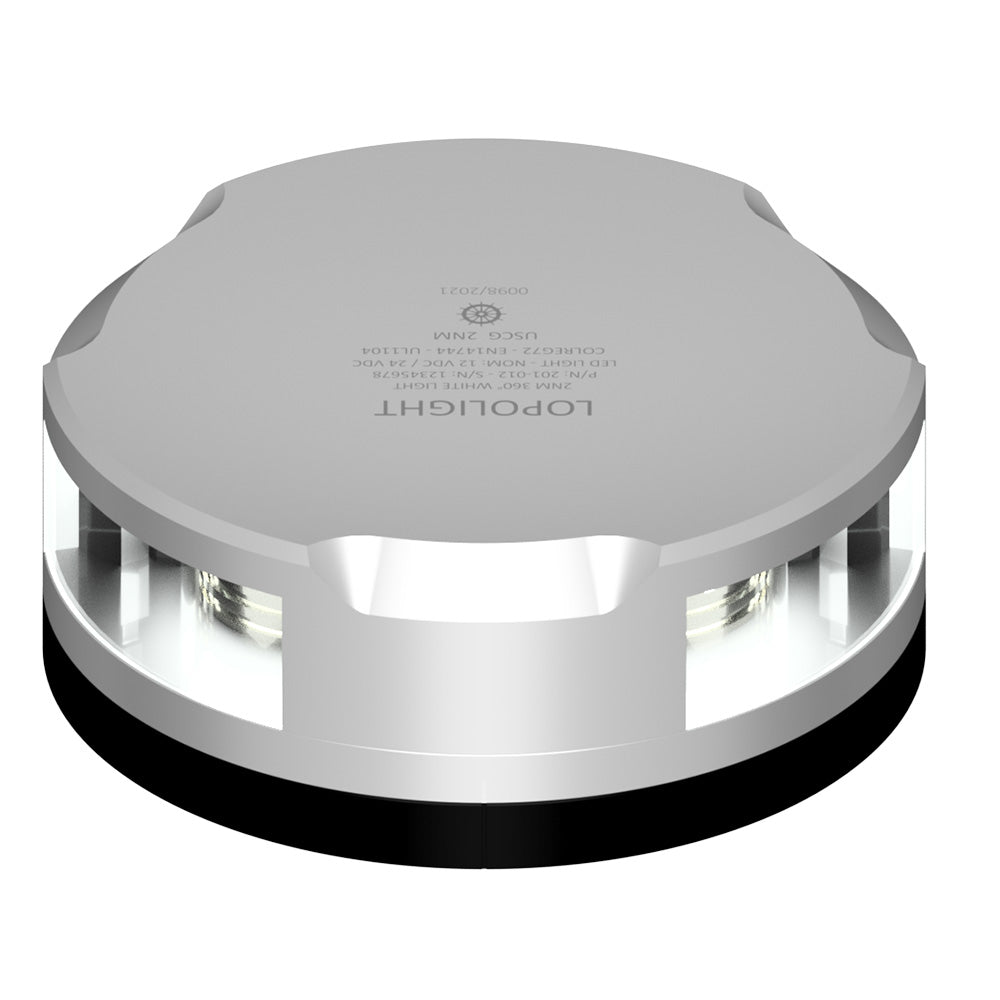

Lopolight 360-Degree Anchor Light w/Strobe - 2NM - Silver Housing w/FB Base [201-012S-FB]

360-Degree Anchor Light with Strobe - 2NM - Silver Housing with FB Base

This silver 360-degree anchor light has a white strobe light, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042919
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: White
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 110
• Current Consumption (mA @ 12VDC): 167
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Specifications:

• Housing: Silver
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 3"H x 6"W x 8"L WT: 1.25 lbs
• UPC: 879343043049

Quick Guide (pdf)

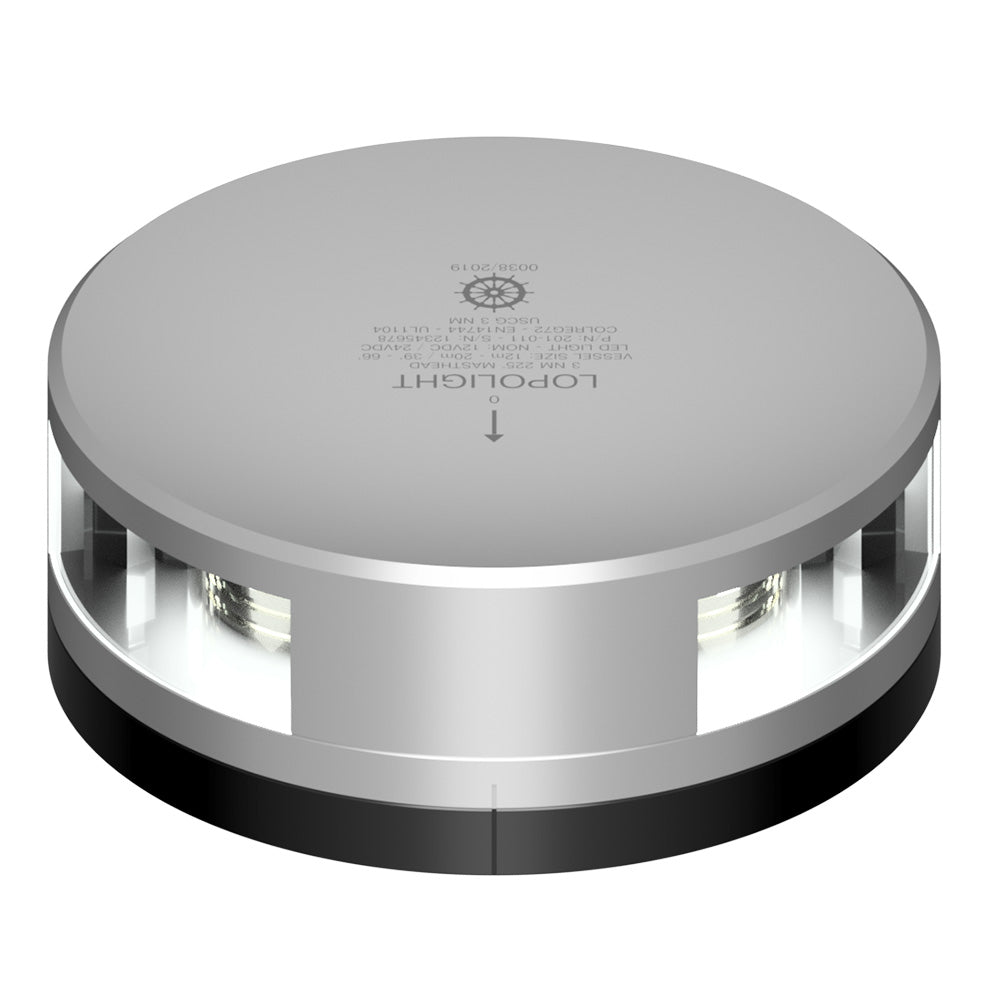

Lopolight Masthead Light - 3NM - Silver Housing w/FB Base [201-011KL-FB]

Masthead Light - 3NM - Silver Housing with FB Base

This silver masthead light is horizontally mounted and has a three-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043404
• Min. Feed Wire Gauge: 0.5mm2 AWG22
• Light Color: White
• Visibility: 3NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meters shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, and Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 80
• Current Consumption (mA @ 12VDC): 137
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2
• Vessel Size: Under 12 meters

Specifications:

• Housing: Silver
• Lens Color: White
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

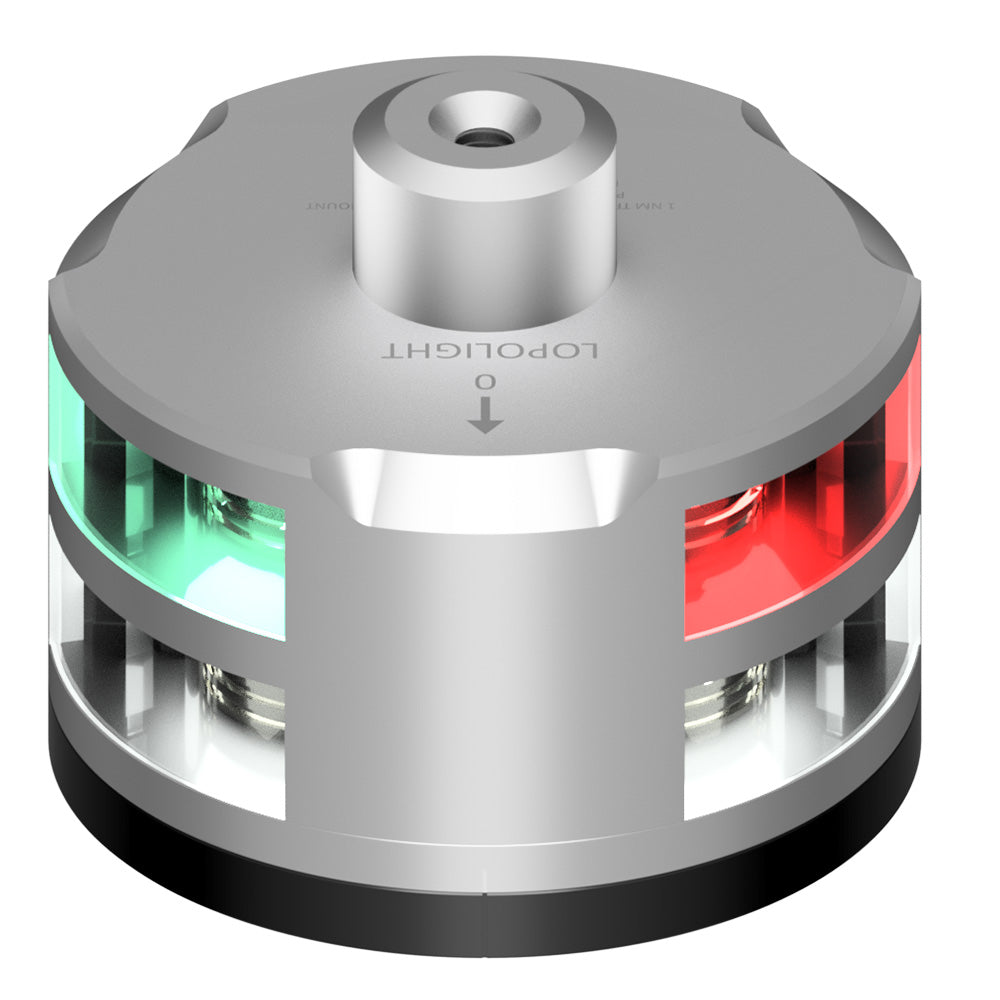

Lopolight Tri-Color Anchor Light w/Windex Mount - 1NM - Silver Housing w/FB Base [101-009W-FB]

Tri-Color Anchor Light with Windex Mount - 1NM - Silver Housing with FB Base

This silver tri-color anchor light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042704
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, and Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92.5mm x 86mm
• Dimensions Imperial: Ø3.6" x 3.3"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Silver
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

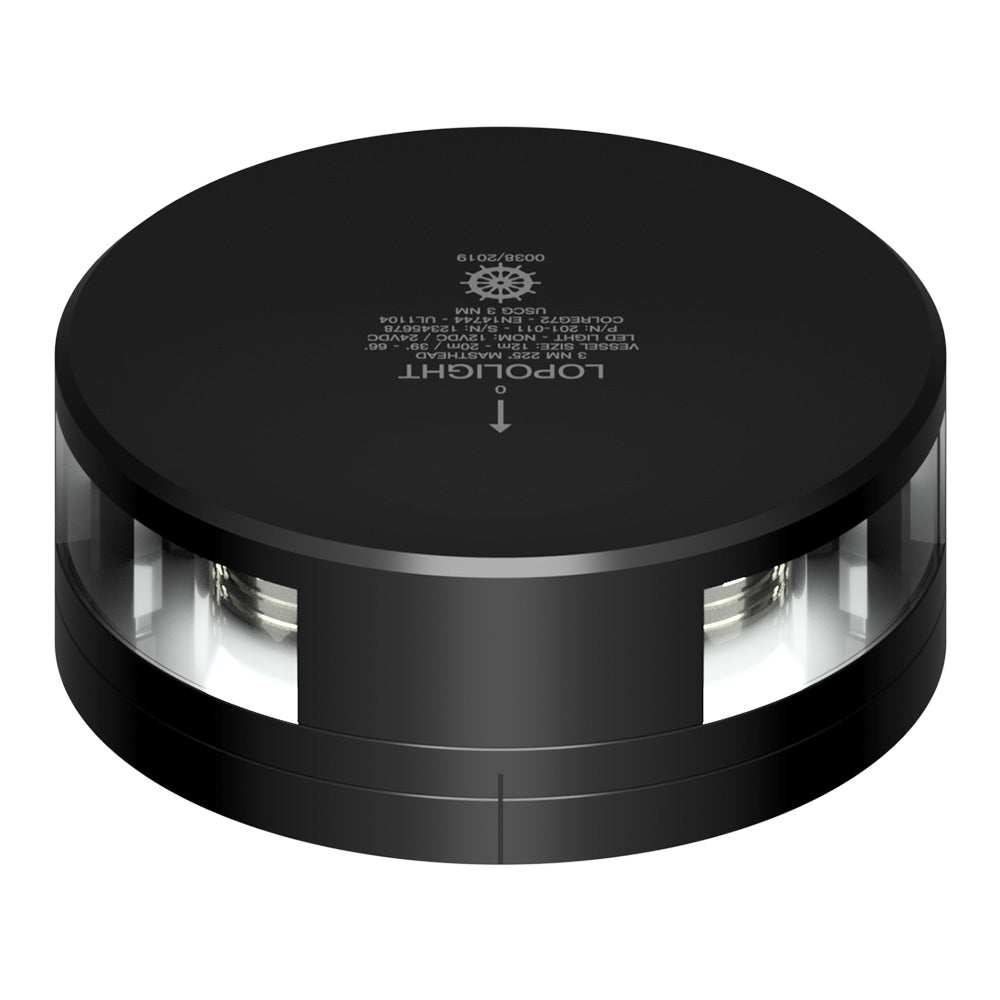

Lopolight Masthead Light - 3NM - Black Housing w/FB Base [201-011KL-FB-B]

Masthead Light - 3NM - Black Housing with FB Base

This black masthead light is horizontally mounted and has a three-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043411
• Min. Feed Wire Gauge: 0.5mm2 AWG22
• Light Color: White
• Visibility: 3NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meters shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, and Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 80
• Current Consumption (mA @ 12VDC): 137
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2
• Vessel Size: Under 12 meters

Specifications:

• Housing: Black
• Lens Color: White
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 3"H x 4"W x 4"L WT: 0.6 lbs
• UPC: 879343043544

Quick Guide (pdf)

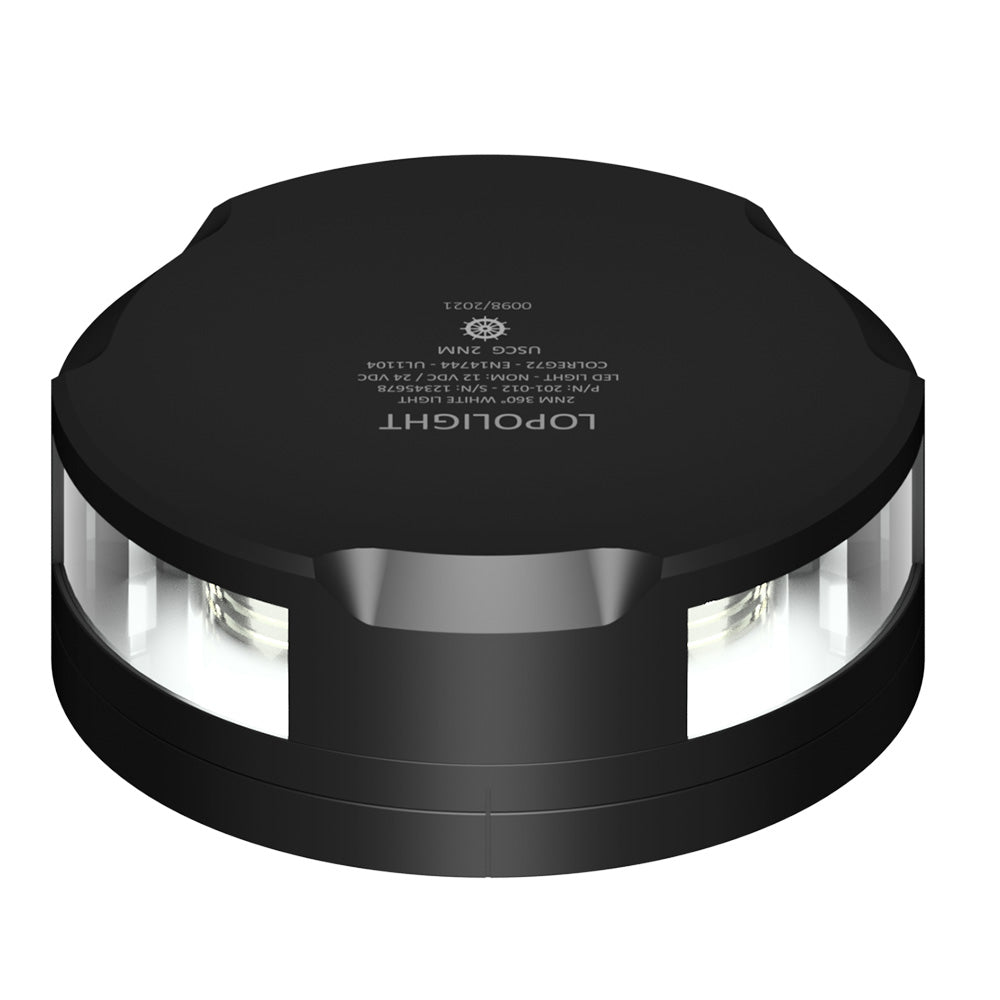

Lopolight 360-Degree Anchor Light w/Strobe - 2NM - Black Housing w/FB Base [201-012S-FB-B]

360-Degree Anchor Light with Strobe - 2NM - Black Housing with FB Base

This black 360-degree anchor light has a white strobe light, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042926
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: White
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 110
• Current Consumption (mA @ 12VDC): 167
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Specifications:

• Housing: Black
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 3"H x 4"W x 4"L WT: 1.2 lbs

Quick Guide (pdf)

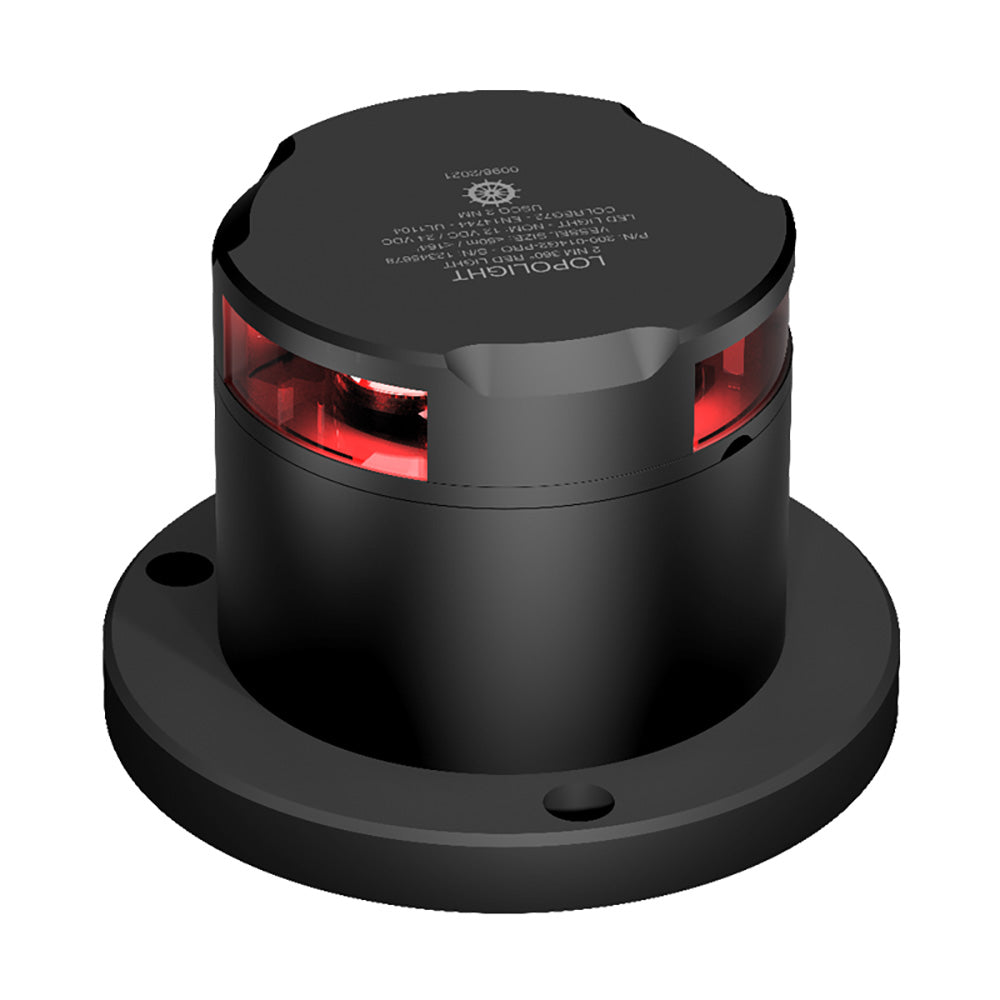

Lopolight 360-Degree Red Nav Light w/De-Icing Function - Black Housing [200-014G2-PRO-I]

Ships Direct From Manufacturer

360-Degree Red Nav Light with De-Icing Function - Black Housing

This 360-degree navigation light has a red-light color and black housing while having up to 2 nautical miles of visibility.

Features:

• Built-in de-icing function
• Horizontally mounted on a POM base (IP68)
• Side cable direction
• Included HDPE base plate
• Quality Cable Glands 2 Sizes Are Included: 7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438019331
• Min. Feed Wire Gauge: 1.5mm² AWG18
• Light Color: Red
• Intensity: >5.4cd
• Visibility: 2NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: Plug connector
• Current Consumption (mA @ 24VDC): 85
• Current Consumption (mA @ 12VDC): 150
• Weight: 0.81 kg (35.27 oz)
• Dimensions Metric: Ø92,5mm x 75mm
• Dimensions Imperial: Ø3.6 x 2.9
• Operating Temperature: -60 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2,1W (When de-icing 15W @24VDC)
• Vessel Size: Under 12M,12-20M,20-50M

Specifications:

• Housing: Black
• Lens Color: Red
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 5"H x 6"W x 8"L WT: 2 lbs
• UPC: 879343012137

Quick Guide (pdf)

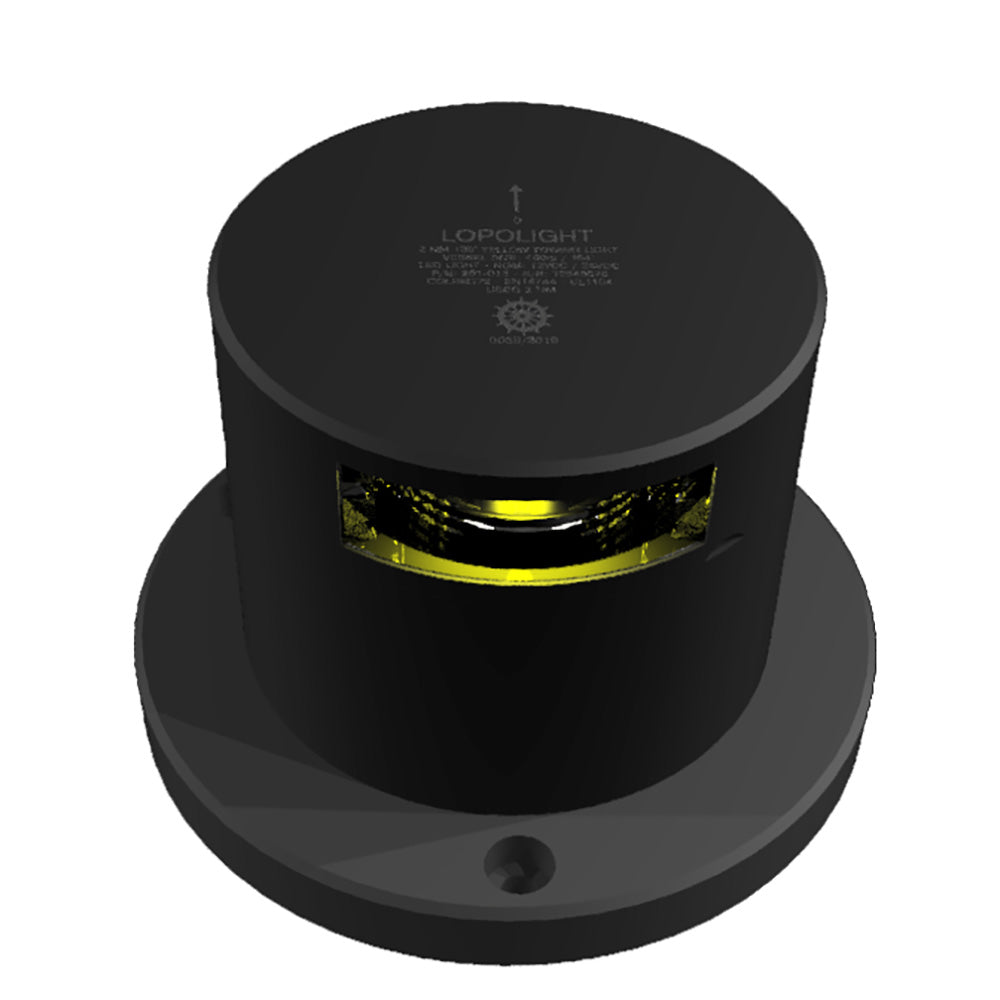

Lopolight Pro Yellow Towing Light - 2NM - Black Housing [201-013-PRO]

Pro Yellow Towing Light - 2NM - Black Housing

This towing light has a yellow-light color and black housing while having up to 2 nautical miles of visibility.

Features:

• Horizontally mounted on POM base (IP68)
• Side cable direction
• Included HDPE base plate
• Quality Cable Glands (2 sizes Included):7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438015548
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Yellow
• Intensity: >5.4cd
• Visibility: 2NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: Plug connector
• Current Consumption (mA @ 24VDC): 71
• Current Consumption (mA @ 12VDC): 124
• Weight: 1.04 kg (36.68 oz)
• Dimensions Metric: Ø92,5mm x 74,5mm
• Dimensions Imperial: Ø3.6 x 2.9
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 1,7
• Vessel Size: Under 12M,12-20M,20-50M

Included In Package:

• (1) Navigation light
• (2) Mounting screws (M6 * 8 mm)
• Installation guide

Specifications:

• Housing: Black
• Lens Color: Yellow
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 5"H x 6"W x 8"L WT: 2.05 lbs
• UPC: 879343015541

Quick Guide (pdf)
