Lighting - Navigation Lights

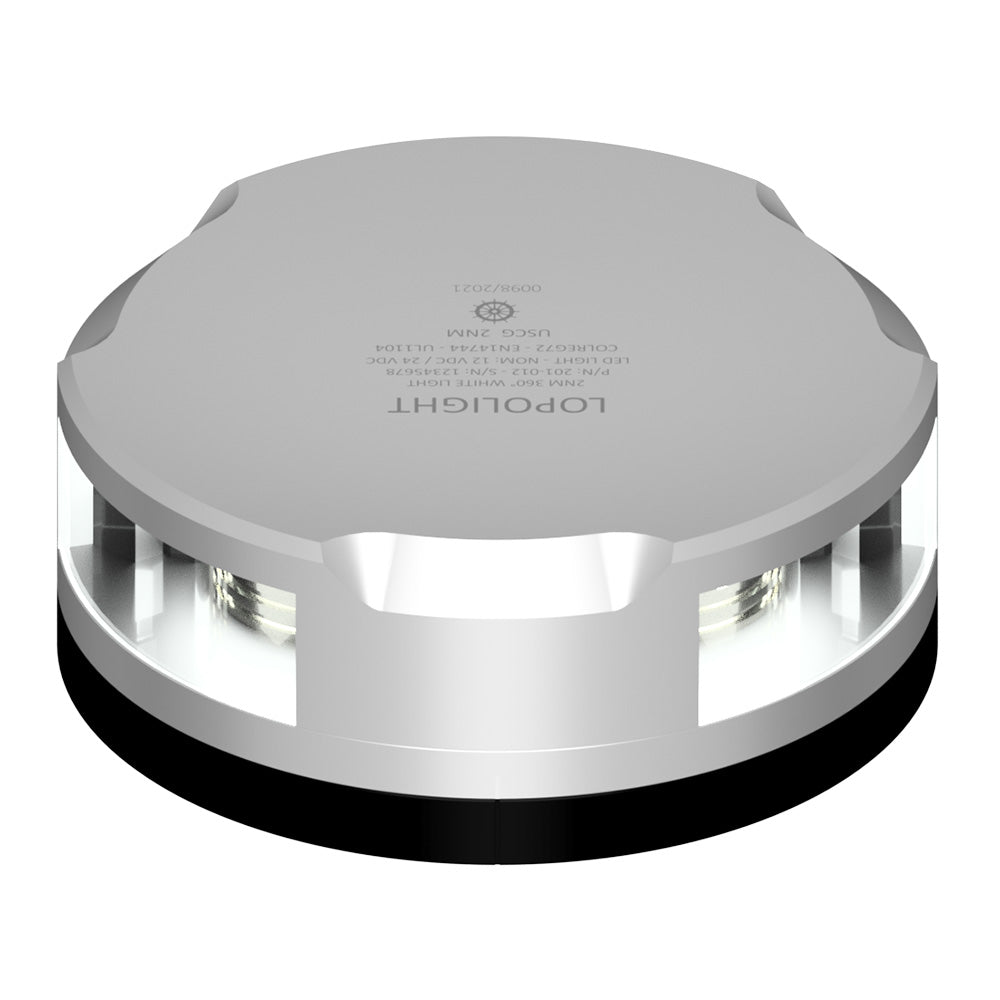

Masthead/360-Degree Light - 2NM - Silver Housing with FB Base

This white 360-degree/masthead light has a silver housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043510
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: White
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 156
• Current Consumption (mA @ 12VDC): 225
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 3
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Specifications:

• Housing: Silver
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 3"H x 4"W x 4"L WT: 1.15 lbs
• UPC: 879343043643

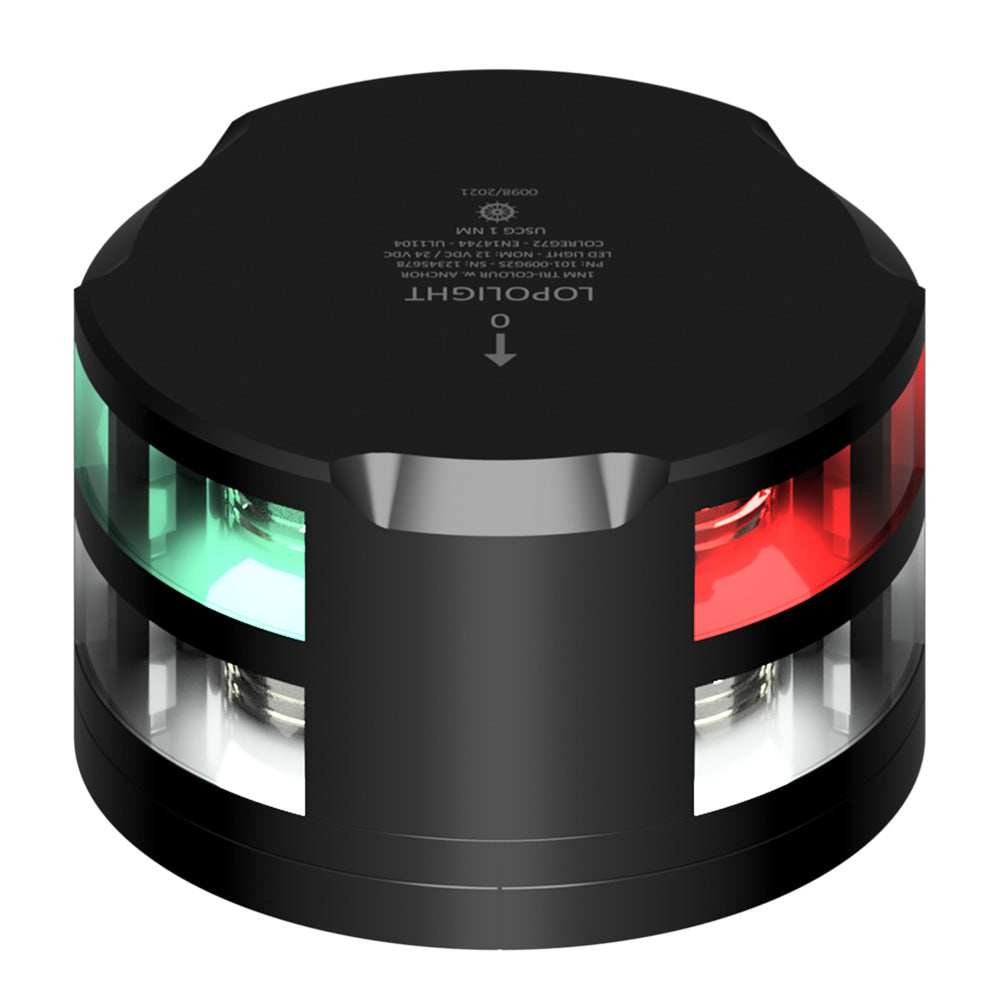

Lopolight Tri-Color Anchor Light - 1NM - Black Housing w/FB Base [101-009-FB-B]

Tri-Color Anchor Light - 1NM - Black Housing with FB Base

This black tri-color anchor light is horizontally mounted and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042698
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92,5mm x 68mm
• Dimensions Imperial: Ø3.6" x 2.6"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Black
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

Lopolight 3nm 360 Red Ice-Class Black Anodized Light [300-114G2-PRO-I]

Ships Direct From Manufacturer

3nm 360° Red Ice-Class Black Anodized Light

Features:

• Built-in De-icing function
• Horizontally mounted on 400-037 alu base (IP68)
• Cable direction side
• Includes HDPE base plate
• Quality cable glands - 3 sizes included:
• 9-17mm (3/8"-11/16") cable diameter
• 7-13mm (1/4"-1/2") cable diameter
• 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support. This Navigation Light conforms to USCG Commandant instructions M16672.2.
• Compliant with relevant sections of: MIL-STD-461G, - MIL-STD-901E, - MIL-STD-167-1A, - MIL-STD-1399/300-1
• Intensity: >15cd
• Dimensions imperial: Ø3.6" x 3.5"
• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Visibility: 3nm
• Operating temperature: -60°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 20-32VDC
• EAN: 5704438012448
• IP rating: IP68
• Power draw (W): 2,9
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 210
• Current consumption (mA @ 24VDC): 120
• Vessel size: Over 50M
• Min. feed wire gauge: 1.5mm2 AWG18
• Weight (Kg): 1.14 Kg
• Weight (Oz): 40.21 Oz

Quick Guide (pdf)

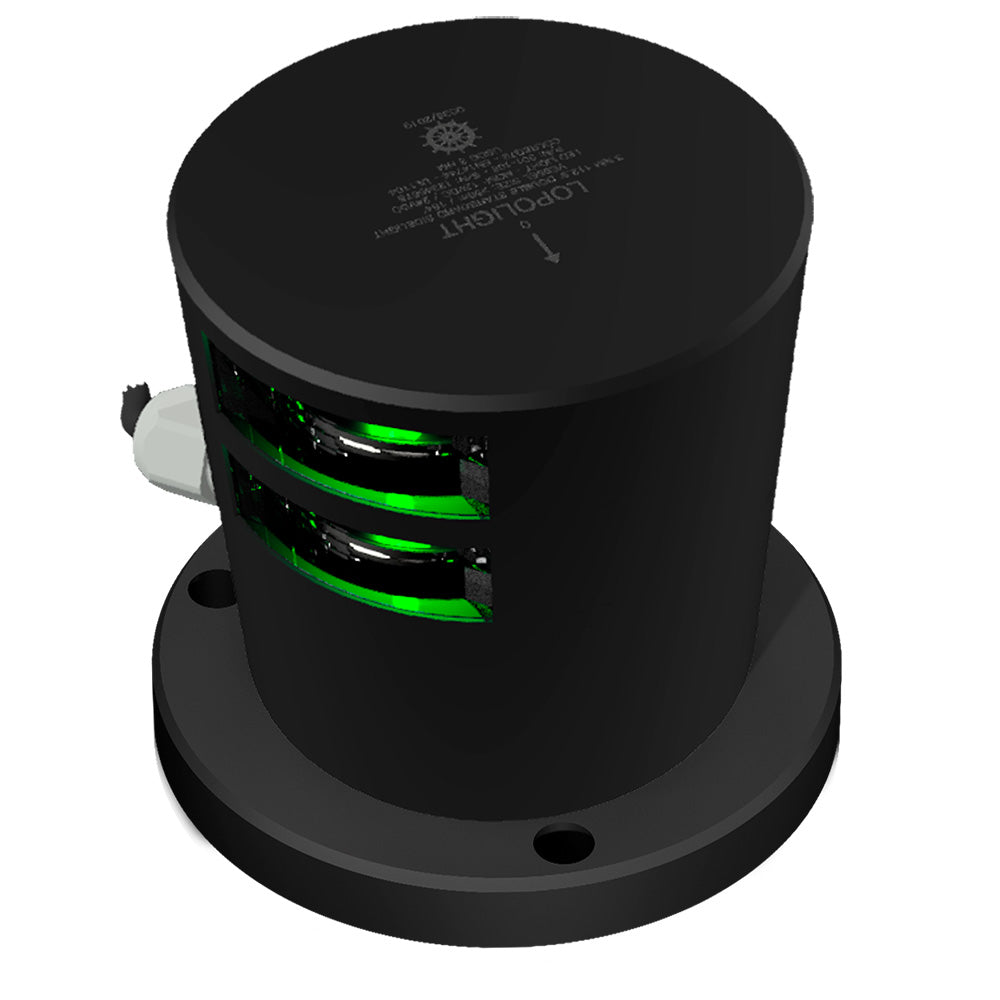

Lopolight 3NM Double Stacked Ice-Class Starboard Light [301-108ST-PRO-I]

Ships Direct From Manufacturer

3NM Double Stacked Ice-Class Starboard Light

This double-stacked light has a visibility of 3NM and is meant for the starboard side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

• 9-17mm (3/8-11/16 in.) cable diameter
• 7-13mm (1/4-1/2 in.) cable diameter
• 4.5-10mm (5/32-3/8 in.) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438014268
• Light Color: Green
• Intensity: >15cd
• IP rating: IP68
• Connection: Plug connector
• Visibility: 3NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Current Consumption (mA @ 12VDC): 183
• Current Consumption (mA @ 24VDC): 110
• Dimensions Metric: Ø92,5mm x 143mm
• Dimensions Imperial: Ø3.6" x 4.9"
• Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
• Operating Temperature: -60°C to 55°C
• Operating Voltage: 20-32VDC
• Power Draw (W): 2,6
• Vessel Size: Over 50M
• Min. Feed Wire Gauge: 1.5mm2 AWG18
• Weight (kg): 1.4 Kg
• Weight (oz): 49.38 Oz

Specifications:

• Housing: Black
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 20-32

Owner's Manual (pdf)

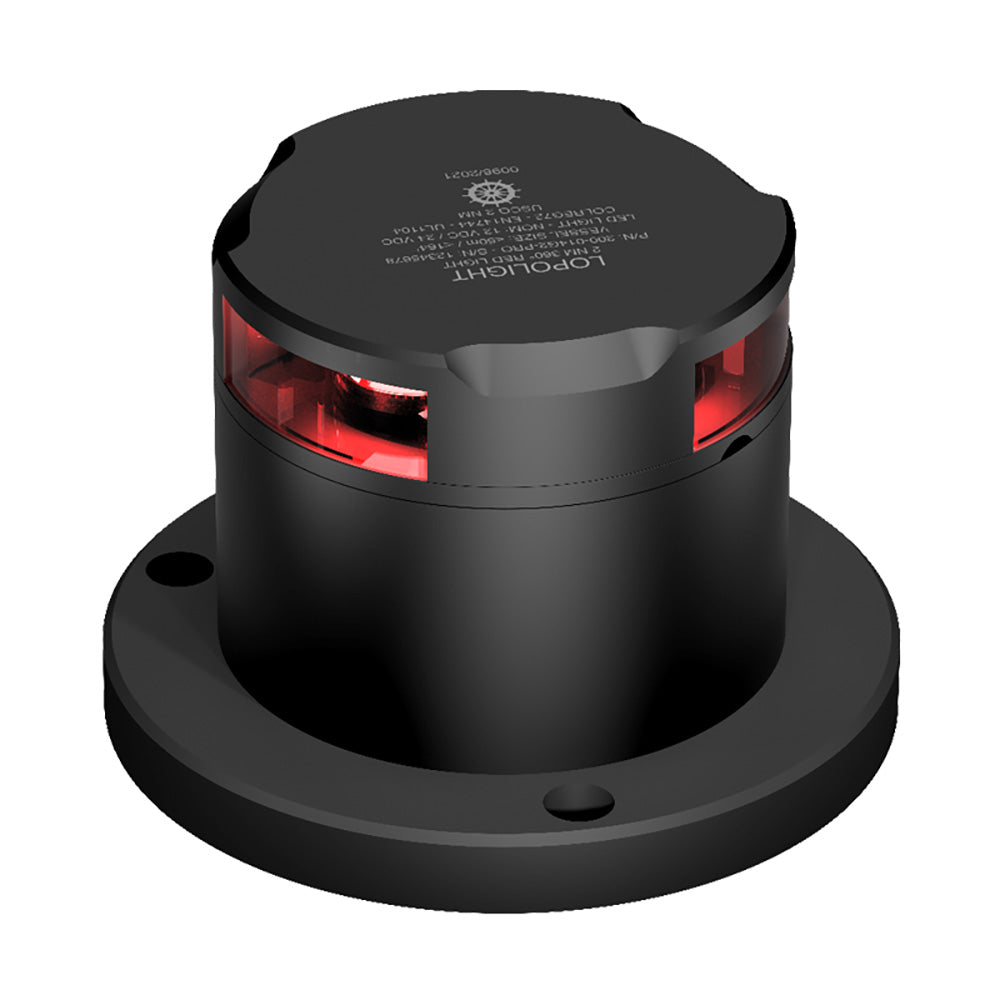

Lopolight 360-Degree Pro Red Nav Light - 2NM - Black Housing [200-014G2-PRO]

360-Degree Pro Red Nav Light - 2NM - Black Housing

This 360-degree navigation light has a red color and black housing while having up to 2 nautical miles of visibility.

Features:

• Horizontally mounted on POM base (IP68)
• Side cable direction
• Included HDPE base plate
• Quality Cable Glands (2 sizes Included):7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438012134
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red
• Intensity: >5.4cd
• Visibility: 2NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: Plug connector
• Current Consumption (mA @ 24VDC): 85
• Current Consumption (mA @ 12VDC): 150
• Weight: 1 kg (35.27 oz)
• Dimensions Metric: Ø92,5mm x 75mm
• Dimensions Imperial: Ø3.6 x 2.9
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2,1
• Vessel Size: Under 12M,12-20M,20-50M

Specifications:

• Housing: Black
• Lens Color: Red
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 5"H x 6"W x 8"L WT: 2.3 lbs
• UPC: 879343019464

Quick Guide (pdf)

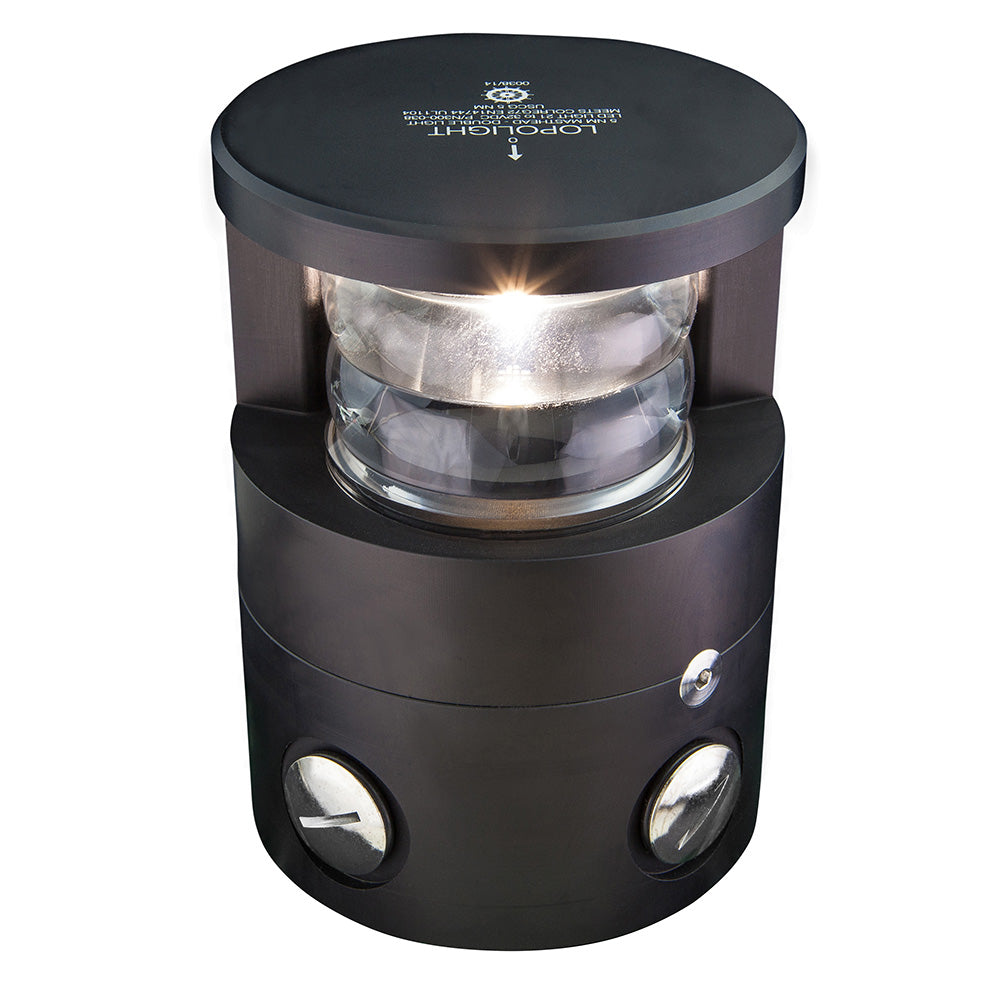

Lopolight 6NM Double Stacked Ice-Class Masthead Light [300-138-PRO-I]

Ships Direct From Manufacturer

6NM Double Stacked Ice-Class Masthead Light

This double-stacked masthead light is dimmable, monitored, and controllable. Also, this light has a two-lead connection for power/control and ice-class heaters built-in. The de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

• 9-17mm (3/8-11/16 in.) cable diameter
• 7-13mm (1/4-1/2 in.) cable diameter
• 4.5-10mm (5/32-3/8 in.) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438006669
• Light Color: White
• Intensity: >94cd
• IP rating: IP68
• Connection: Plug connector
• Visibility: 6NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Current Consumption (mA @ 12VDC): 0
• Current Consumption (mA @ 24VDC): 290
• Dimensions Metric: Ø92,5mm x 143mm
• Dimensions Imperial: Ø3.6" x 5.6"
• Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
• Operating Temperature: -60°C to 55°C
• Operating Voltage: 20-32VDC
• Power Draw (W): 7W (normal), 24W (de-icing mode, light on)
• Vessel Size: Over 50m
• Min. Feed Wire Gauge: 1.5mm2 AWG18
• Weight (kg): 1.75 Kg
• Weight (oz): 61.72 Oz

Specifications:

• Visible Range (Miles): 6NM
• Voltage - Input Range (Volts): 20-32

Owner's Manual (pdf)

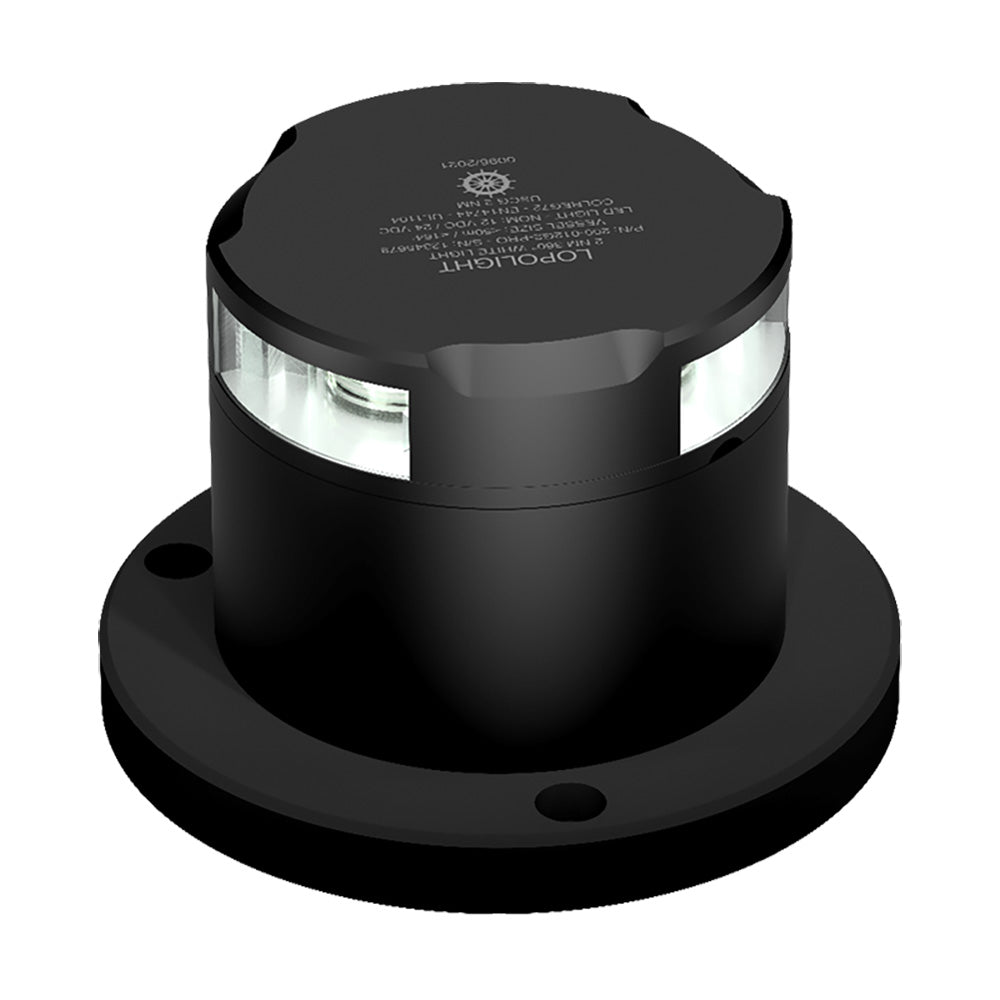

Lopolight 3NM 360-Degree White Ice-Class Port Light [300-112G2-PRO-I]

Ships Direct From Manufacturer

3NM 360-Degree White Ice-Class Port Light

This 360-degree ice-class light has a visibility of up to 3NM, and the de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

• 9-17mm (3/8-11/16 in.) cable diameter
• 7-13mm (1/4-1/2 in.) cable diameter
• 4.5-10mm (5/32-3/8 in.) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438012240
• Light Color: White
• Intensity: >15cd
• IP rating: IP68
• Connection: Plug connector
• Visibility: 3NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Current Consumption (mA @ 12VDC): 270
• Current Consumption (mA @ 24VDC): 176
• Dimensions Metric: Ø92,5mm x 89,5mm
• Dimensions Imperial: Ø3.6" x 3.5"
• Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
• Operating Temperature: -60°C to 55°C
• Operating Voltage: 20-32VDC
• Power Draw (W): 4W (normal), 21W (de-icing mode, light on)
• Vessel Size: Over 50M
• Min. Feed Wire Gauge: 1.5mm2 AWG18
• Weight (kg): 1.14 Kg
• Weight (oz): 40.21 Oz

Specifications:

• Housing: Black
• Lens Color: White
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 20-32
• Box Dimensions: 5"H x 6"W x 8"L WT: 2 lbs
• UPC: 879343012243

Owner's Manual (pdf)

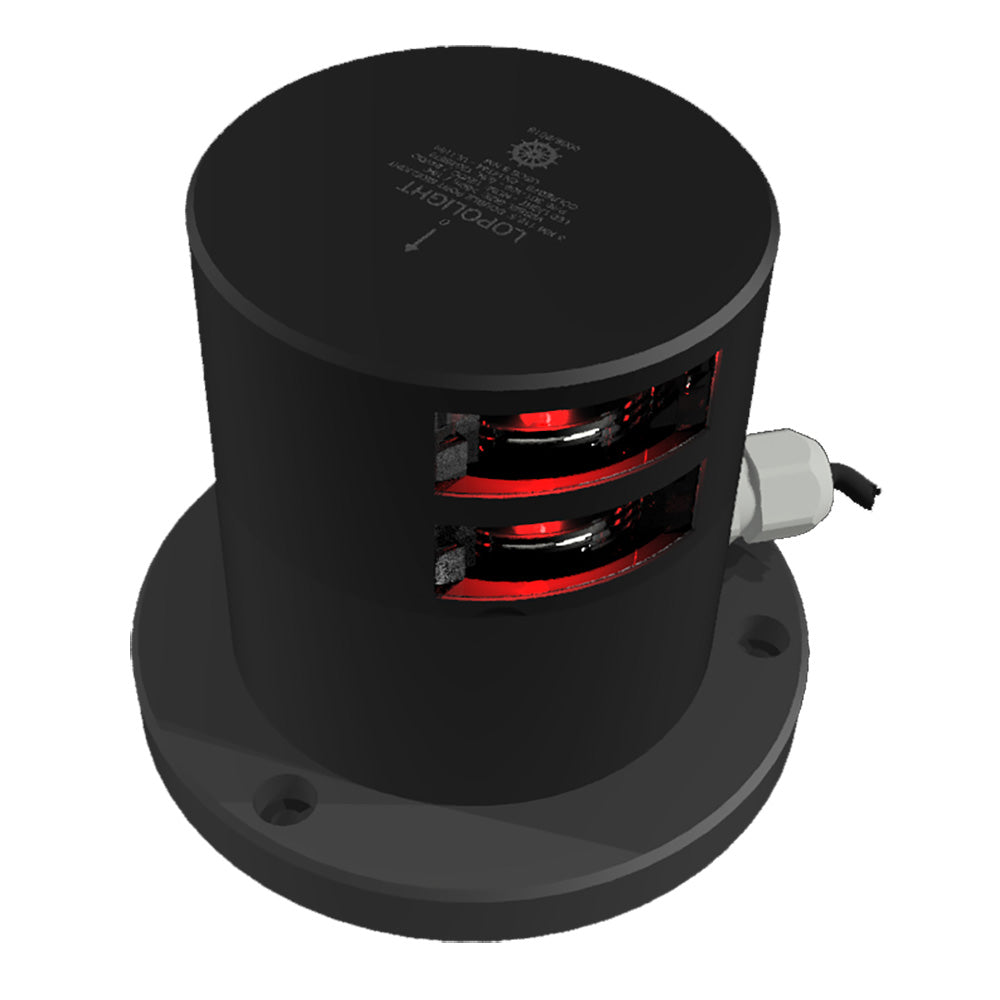

Lopolight 3NM Double Stacked Ice-Class Port Light [301-109ST-PRO-I]

Ships Direct From Manufacturer

3NM Double Stacked Ice-Class Port Light

This double-stacked light has a visibility of 3NM and is meant for the port side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

• 9-17mm (3/8-11/16 in.) cable diameter
• 7-13mm (1/4-1/2 in.) cable diameter
• 4.5-10mm (5/32-3/8 in.) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438014114
• Light Color: Red
• Intensity: >15cd
• IP rating: IP68
• Connection: Plug connector
• Visibility: 3NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Current Consumption (mA @ 12VDC): 153
• Current Consumption (mA @ 24VDC): 92
• Dimensions Metric: Ø92,5mm x 125,5mm
• Dimensions Imperial: Ø3.6" x 4.9"
• Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
• Operating Temperature: -60°C to 55°C
• Operating Voltage: 20-32VDC
• Power Draw (W): 2,2
• Vessel Size: Over 50M
• Min. Feed Wire Gauge: 1.5mm2 AWG18
• Weight (kg): 1.4 Kg
• Weight (oz): 49.38 Oz

Specifications:

• Housing: Black
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 20-32

Owner's Manual (pdf)
