Lighting - Navigation Lights

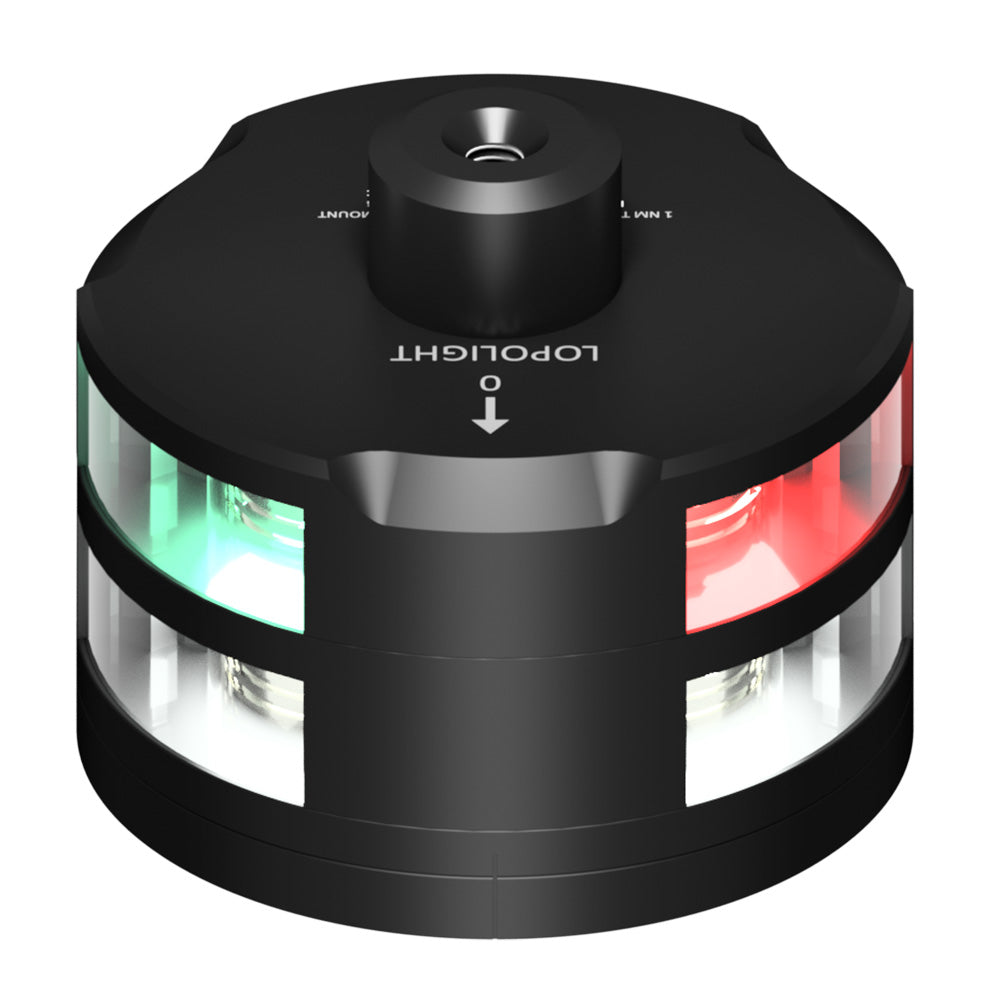

Lopolight Tri-Color Anchor Light w/Windex Mount - 1NM - Black Housing w/FB Base [101-009W-FB-B]

Tri-Color Anchor Light with Windex Mount - 1NM - Black Housing with FB Base

This black tri-color anchor light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042728
• Min. Feed Wire Gauge: 0.5mm2 AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92.5mm x 86mm
• Dimensions Imperial: Ø3.6" x 3.3"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Black
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

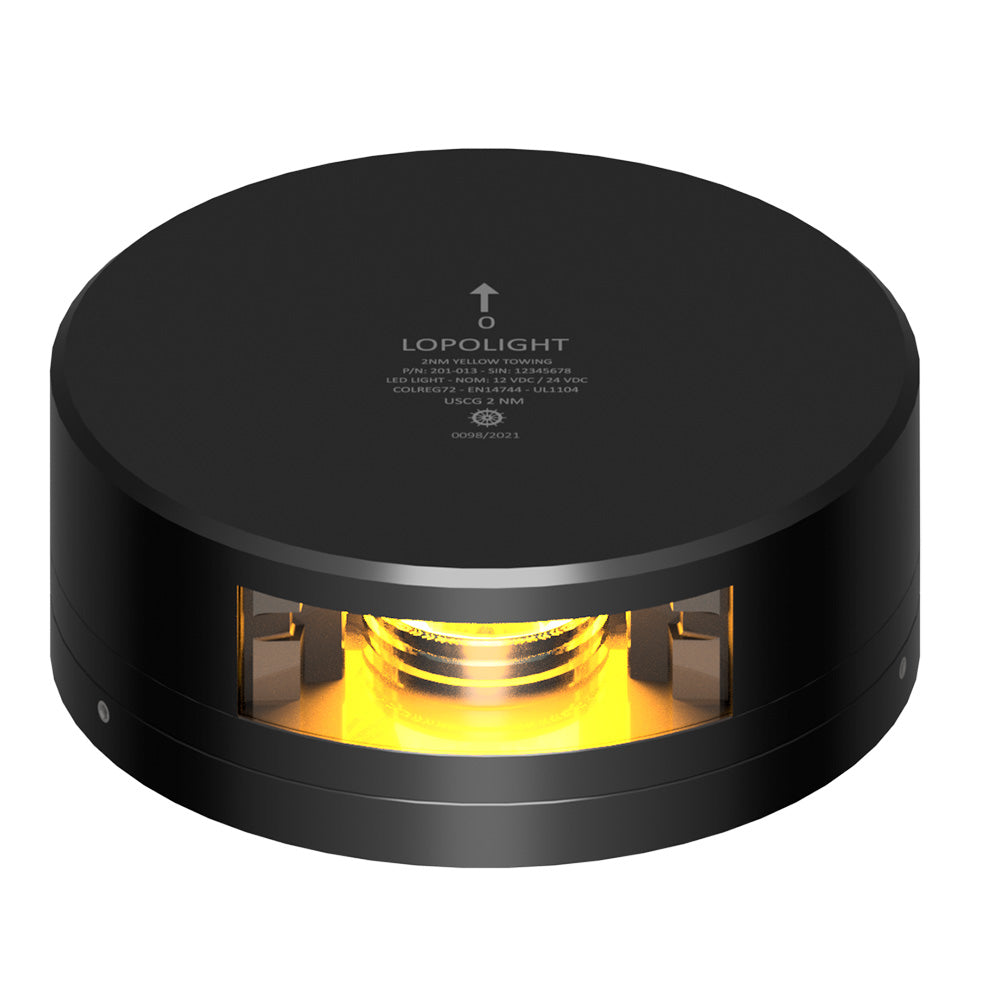

Lopolight Yellow Towing Light - 2NM - Black Housing w/FB Base [201-013-FB-B]

Yellow Towing Light - 2NM - Black Housing with FB Base

This yellow towing light has a black housing, is designed to be horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 2.5m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043473
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Yellow
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 71
• Current Consumption (mA @ 12VDC): 124
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 1.7
• Vessel Size: 20-50 meters

Specifications:

• Housing: Black
• Visible Range (Miles): 2NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

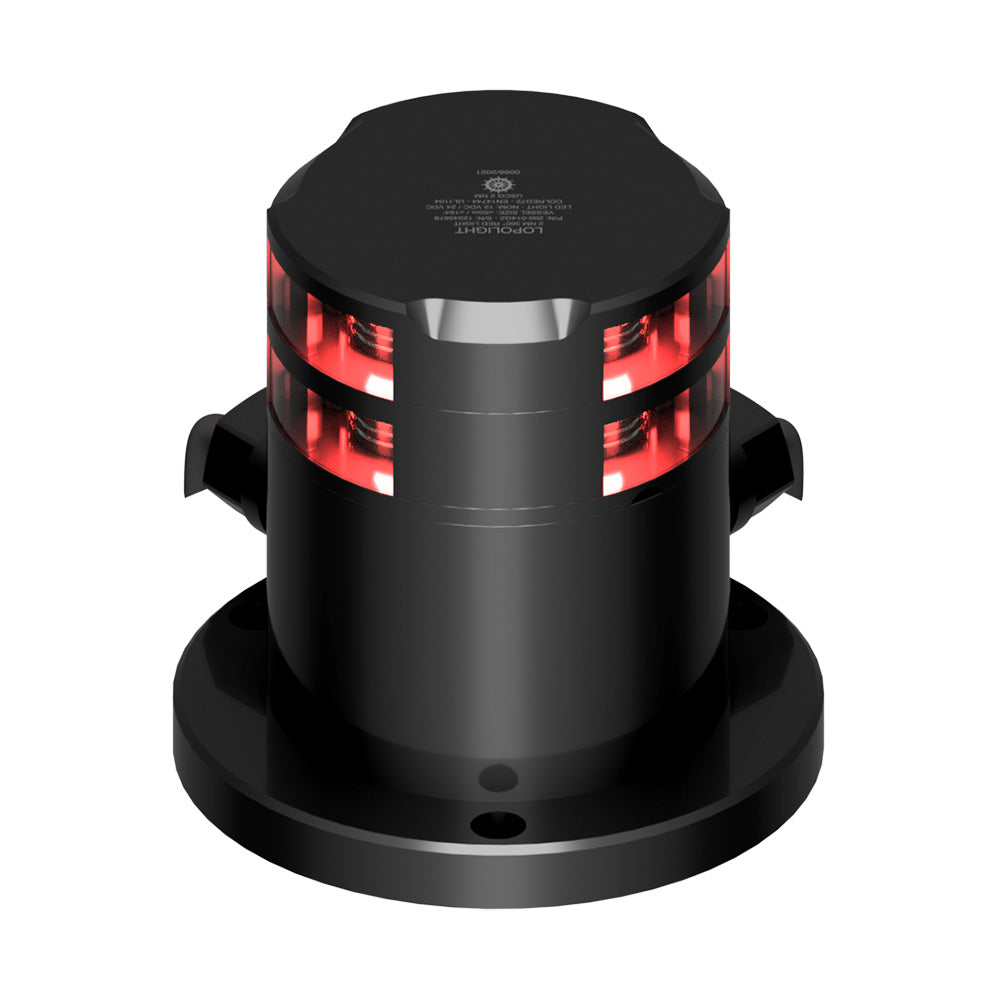

Lopolight 3nm Double Stacked Ice-Class 360 Degree - Red Light [300-114G2ST-PRO-I]

Ships Direct From Manufacturer

3nm Double Stacked Ice-Class 360 Degree - Red Light

Features:

• Built-in De-icing function
• Horizontally mounted on 400-037 alu base (IP68)
• Cable direction side
• Incl. HDPE base plate
• Quality cable glands - 3 sizes included:
• 9-17mm (3/8"-11/16") cable diameter
• 7-13mm (1/4"-1/2") cable

Specifications:

• Light Color: Red
• Dimensions metric: Ø92,5mm x 112mm
• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity and the certificates can be found on www.lopolight.com under Support
• Intensity: >15cd
• Dimensions imperial: Ø3.6" x 4.4"
• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Visibility: 3nm
• Operating temperature: -60°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 20-32VDC
• EAN: 5704438012370
• IP rating: IP68
• Power draw (W): 2,9
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 210
• Current consumption (mA @ 24VDC): 120
• Vessel size: Over 50M
• Min. feed wire gauge: 1.5mm2 AWG18
• Weight (Kg): 1.52 Kg
• Weight (Oz): 53.61 Oz

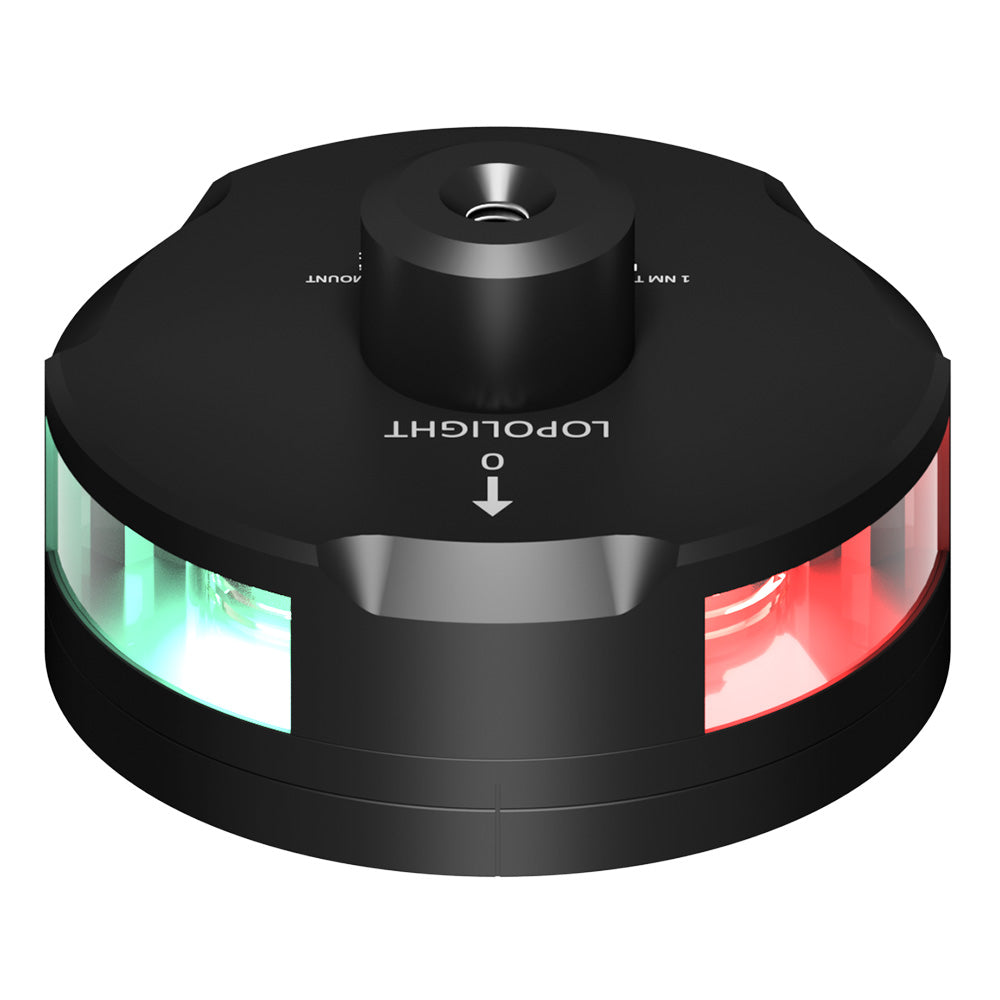

Lopolight Tri-Color Nav Light w/Windex Mount - 1NM - Black Housing w/FB Base [101-005W-FB-B]

Tri-Color Nav Light with Windex Mount - 1NM - Black Housing with FB Base

This black tri-color navigation light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042667
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92,5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Black
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

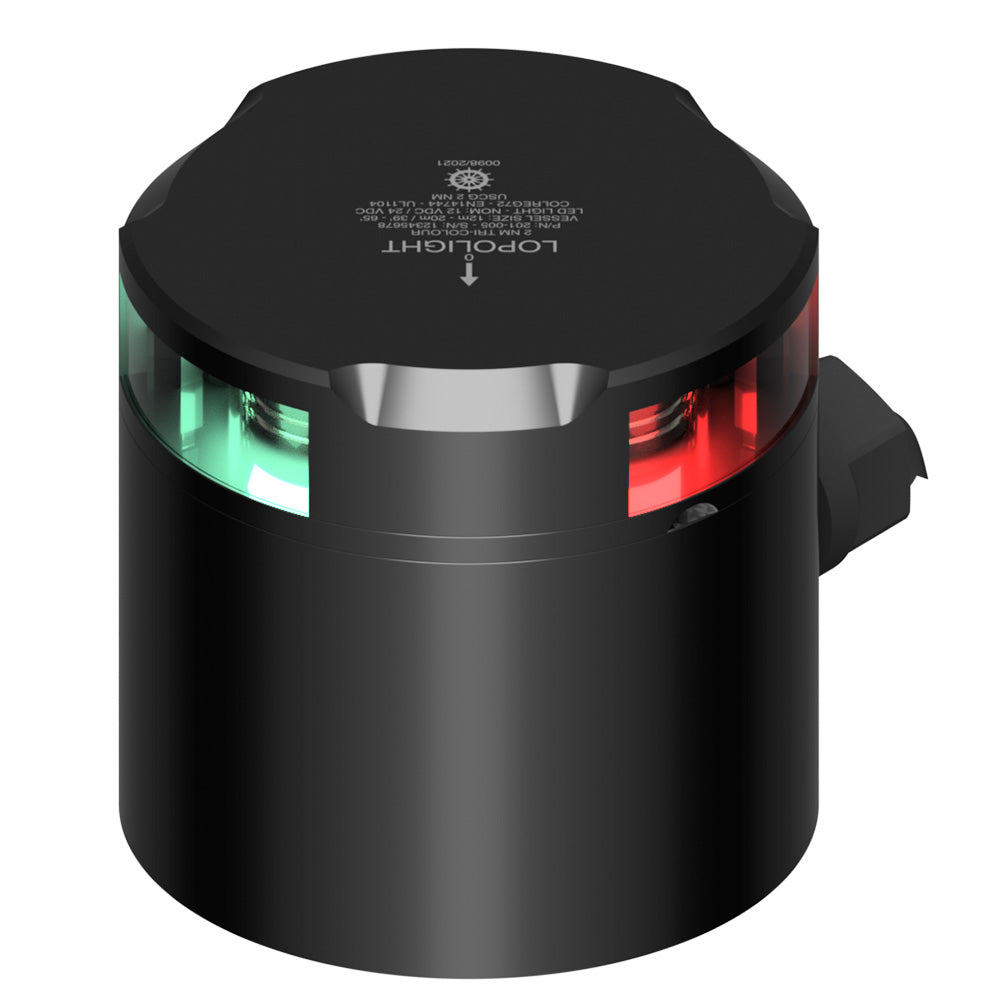

Lopolight Tri-Color Nav Light - 2NM - Black Housing w/IP68 POM Base  Connector [201-005-B TB]

Tri-Color Nav Light - 2NM - Black Housing with IP68 POM Base & Connector

This tri-color nav light has a black housing, is horizontally mounted, and has a two-nautical-mile range. The IP68 POM base is waterproof and includes a cable gland for 4-14mm cable with a connector.

Features:

• Black anodized aluminum housing
• IP68 POM base and connector

Specifications:

• Mounting: Horizontal
• EAN: 5704438043329
• Light Colors: Red, green, and white
• Weight: 18.69 oz (0.53 kg)

Specifications:

• Housing: Black
• Visible Range (Miles): 2NM
• Box Dimensions: 5"H x 6"W x 8"L WT: 1.9 lbs

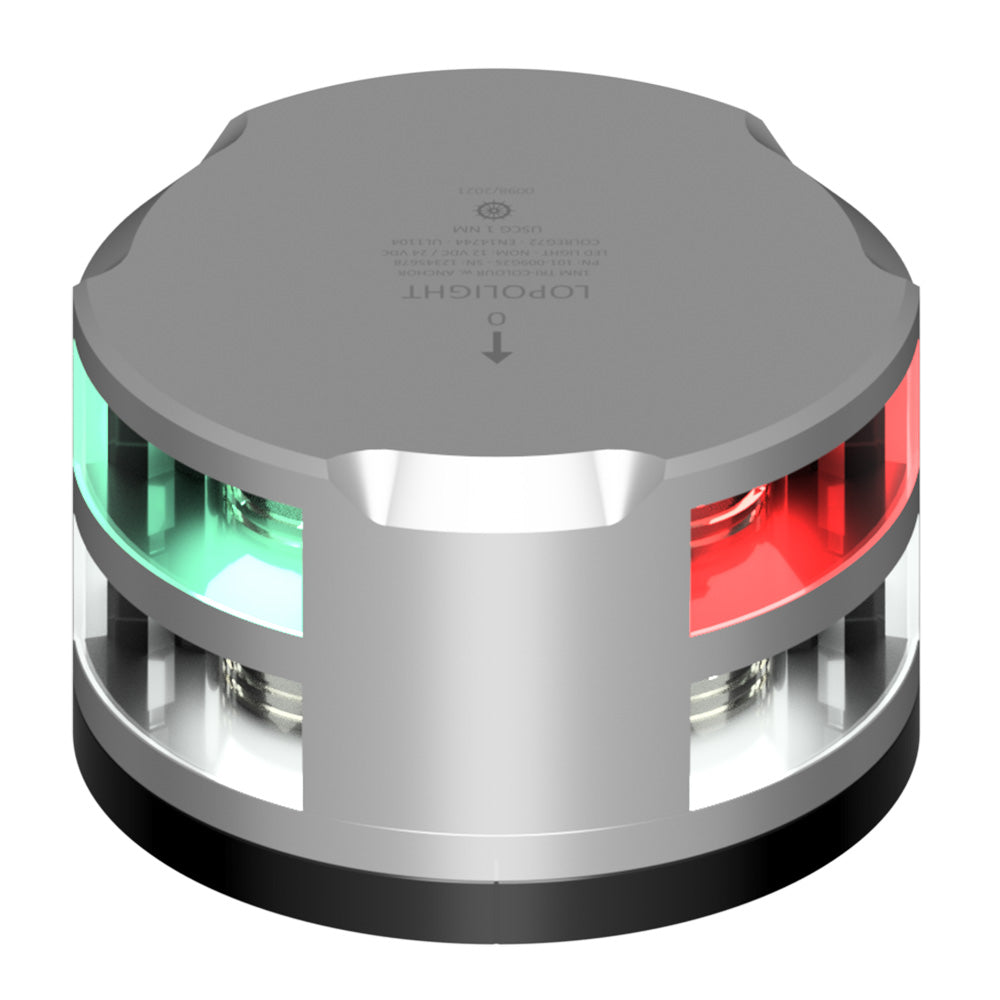

Lopolight Tri-Color Anchor Light - 1NM - Silver Housing w/FB Base [101-009-FB]

Tri-Color Anchor Light - 1NM - Silver Housing with FB Base

This silver tri-color anchor light is horizontally mounted and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042674
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92,5mm x 68mm
• Dimensions Imperial: Ø3.6" x 2.6"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Silver
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 4"H x 4"W x 5"L WT: 2 lbs
• UPC: 879343042806

Quick Guide (pdf)

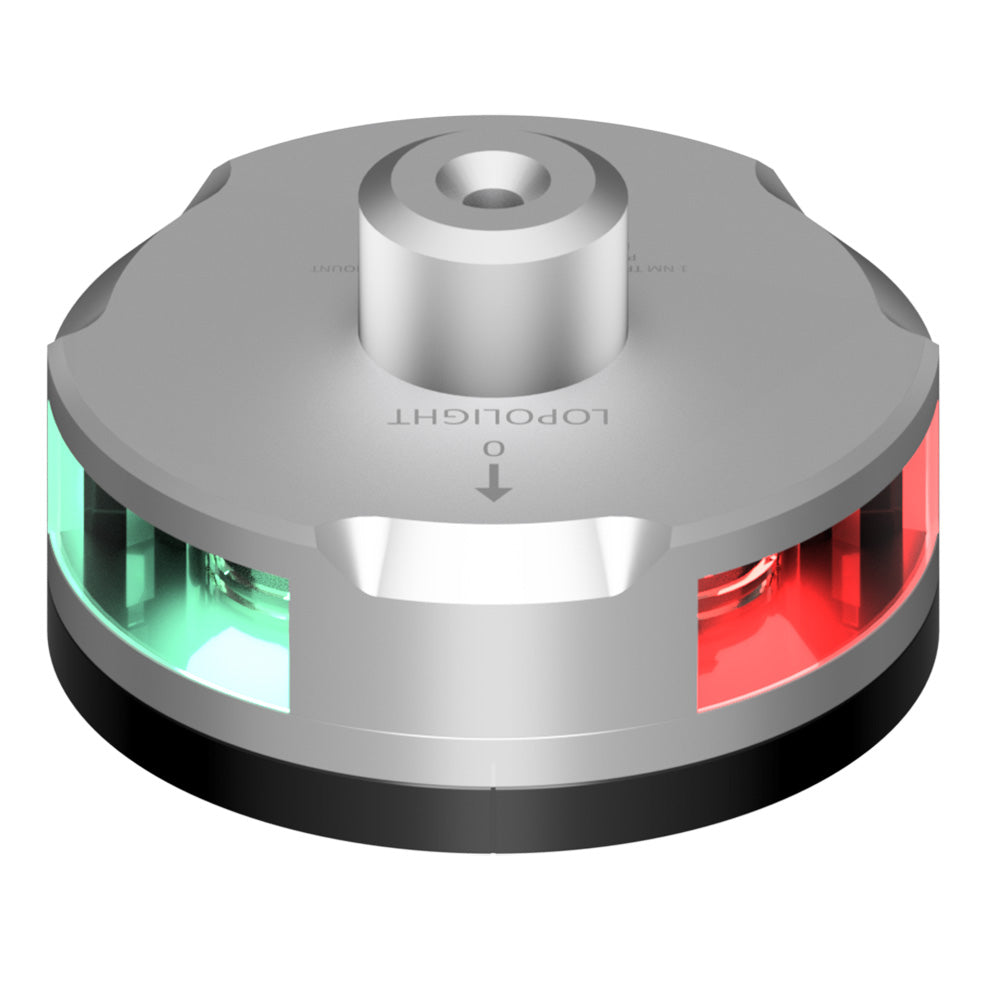

Lopolight Tri-Color Nav Light w/Windex Mount - 1NM - Light Silver Housing w/FB Base [101-005W-FB]

Tri-Color Nav Light with Windex Mount - 1NM - Light Silver Housing with FB Base

This silver tri-color navigation light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042650
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Silver
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32

Quick Guide (pdf)

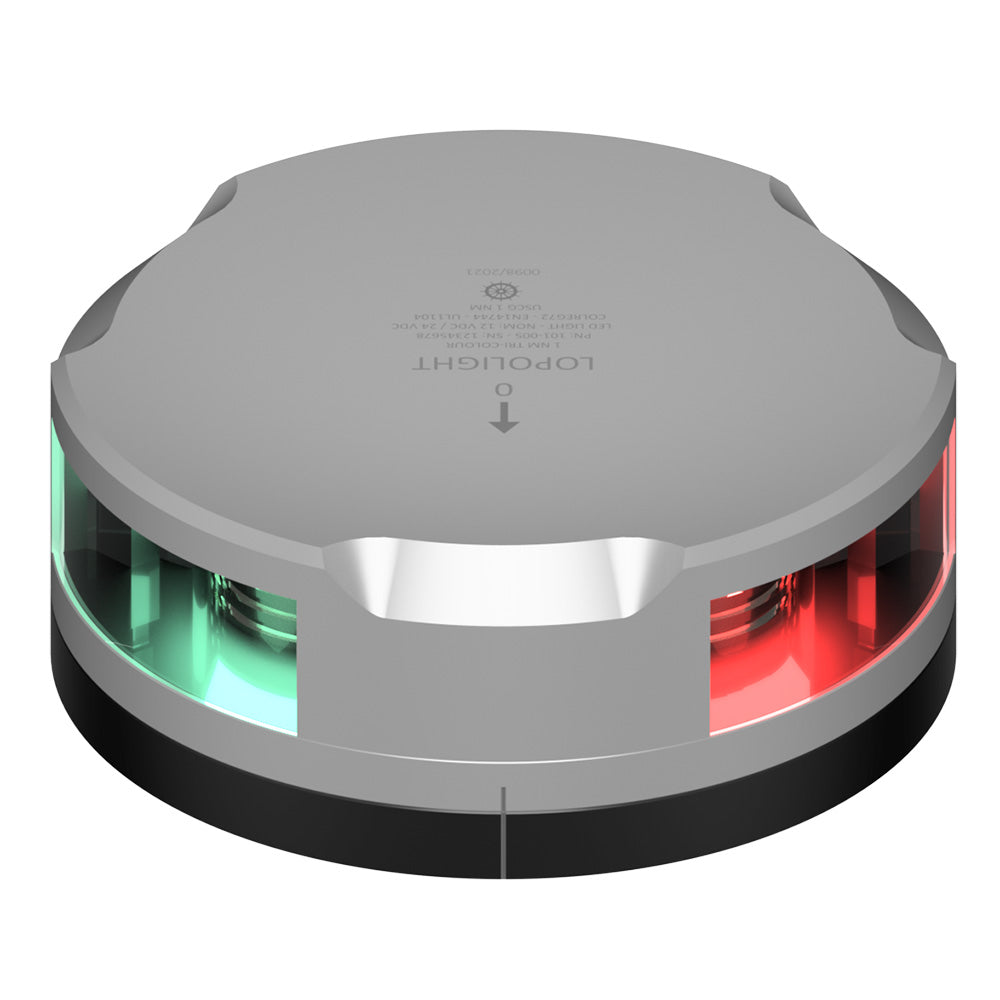

Lopolight Tri-Color Nav Light - 1NM - Silver Housing w/FB Base [101-005-FB]

Tri-Color Nav Light - 1NM - Silver Housing with FB Base

This tri-color navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042636
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In Package: 1 Navigation light, 0.75 meter shielded marine grade cable, and installation guide
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92,5mm x 36mm
• Dimensions Imperial: Ø3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Specifications:

• Housing: Silver
• Lens Color: White/Red/Green
• Visible Range (Miles): 1NM
• Voltage - Input Range (Volts): 10 - 32
• Box Dimensions: 3"H x 4"W x 4"L WT: 1 lbs
• UPC: 879343042769

Quick Guide (pdf)
