Electrical

Main + 11 Positions

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 11
• Box Dimensions: 4"H x 6"W x 12"L WT: 3 lbs
• UPC: 632085084073

AC Toggle Source Selector (European)


PN: 8562
White Switches

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout
  =
• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

• For 230V AC Systems

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 9
• Box Dimensions: 4"H x 9"W x 12"L WT: 4.2 lbs
• UPC: 632085085629

Main + 11 Positions

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 11
• Box Dimensions: 5"H x 9"W x 12"L WT: 3.5 lbs
• UPC: 632085084851

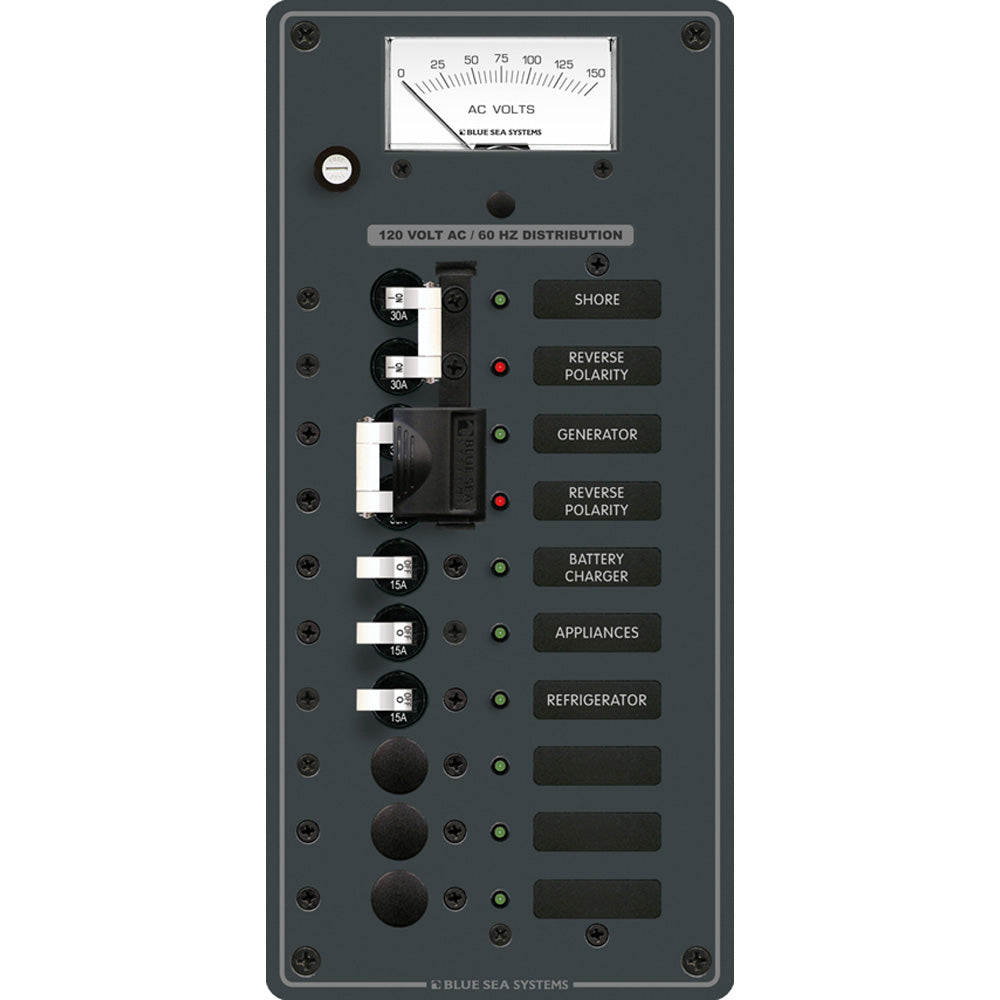

AC 2 Sources + 6 Positions


Color: White
30A Double: 1
50A Double: 0
15A Single: 5

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 6
• Box Dimensions: 5"H x 10"W x 12"L WT: 3.2 lbs
• UPC: 632085084899

AC 2 Sources + 9 Positions

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Voltage: 120v
  • AC/DC: AC
  • Max Breaker Quantity: 9
  • Box Dimensions: 5"H x 9"W x 11"L WT: 4.15 lbs
  • UPC: 632085084622

  Quick Guide (pdf)
  Owner's Manual (pdf)

AC 10 Position

• A-Series Circuit Breaker Panels

• All hot, neutral, and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 100 Amperes

• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 10
• Box Dimensions: 5"H x 9"W x 12"L WT: 3.05 lbs
• UPC: 632085084783

AC Main + 8 Positions (European)


Color: White
16A Double: 1
8A Single: 5

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 8
• Box Dimensions: 6"H x 9"W x 12"L WT: 3.4 lbs
• UPC: 632085085063

230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8505
White Switches

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 3
• Box Dimensions: 6"H x 10"W x 12"L WT: 3 lbs
• UPC: 632085085056
