Electrical

AC Main + 14 Positions (European)


Color: White
16A Double: 1
8A Single: 8

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 14
• UPC: 632085085643

AC Main + 8 Positions (European)


Color: White
16A Double: 1
8A Single: 5

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 8
• Box Dimensions: 4"H x 10"W x 12"L WT: 3.35 lbs
• UPC: 632085085889

AC Toggle Source Selector (European)


p045.19PN: 8589
White Switches

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Voltage: 230v
  • AC/DC: AC
  • Max Breaker Quantity: 6
  • Box Dimensions: 4"H x 9"W x 12"L WT: 3.3 lbs
  • UPC: 632085085896

  Quick Guide (pdf)
  Owner's Manual (pdf)

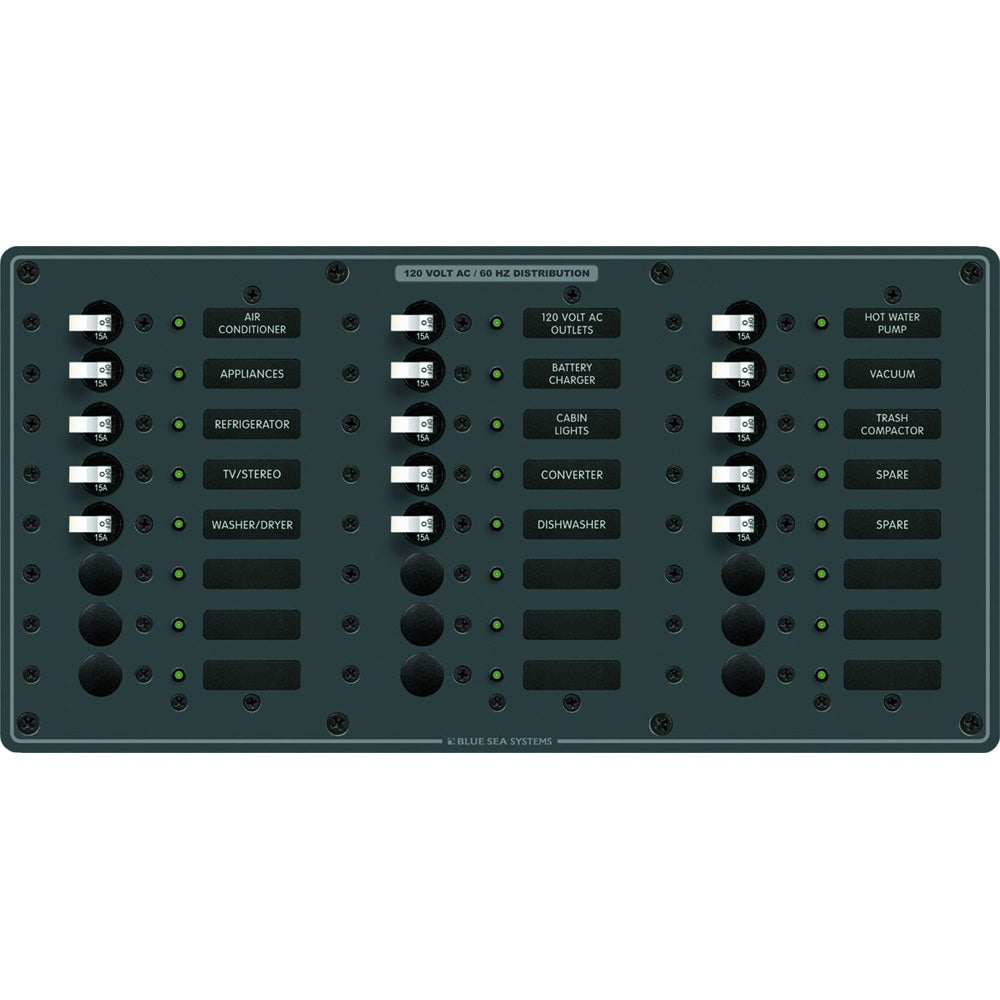

24 Positions

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 100 Amperes

• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 24
• Voltage: 120v
• Box Dimensions: 6"H x 15"W x 22"L WT: 7.6 lbs
• UPC: 632085082659

AC Main + 8 Positions / DC Main + 29 Positions

Switches Color: White

Installed AC Breakers

• Voltage 230v - 12V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 8 AC / 29 DC
• AC/DC: Both
• Voltage: 230v/12v
• Box Dimensions: 8"H x 15"W x 22"L WT: 12.6 lbs
• UPC: 632085081959

AC 2 Sources + 9 Positions

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 9
• Box Dimensions: 5"H x 10"W x 12"L WT: 5 lbs
• UPC: 632085084660

AC 16 Position (European)

PN:  8561
White Switches

Features:

• All hot, neutral and safety ground buses installed, fully pre-wired

• Label backlighting pre-installed

• Detailed installation instructions and cutout template

• All LEDs installed

• Maximum panel Amperage - 100 Amperes

• (10) 8A Single Pole Circuit Breaker

• 230 Volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 16
• Box Dimensions: 4"H x 9"W x 12"L WT: 4.1 lbs
• UPC: 632085085612

AC 13 Position

Black Switches

• A-Series Circuit Breaker Panels

• All hot, neutral, and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 100 Amperes

• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 13
• Box Dimensions: 4"H x 9"W x 13"L WT: 3.45 lbs
• UPC: 632085084806
