Electrical

EEL "Y" Adapters

These adapters are equipped with sealing collars and are for use in wet locations.

Boat Side
Female Connector: Attaches to boat inlet or cordset
(2)50A-125V Locking w/ Sealing Collar System

Dock Side
Male Plug: Attaches to dockside receptacle or cordset
(1)50A-125/250V Locking

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Y-Adapter
• Box Dimensions: 5"H x 12"W x 13"L WT: 7.9 lbs
• UPC: 093344051852

Standard Cordsets
50Amp 125/250V PowerCord Plus® Cordsets (4-Wire)

All Marinco® cordsets are made of the highest quality, marine-grade construction with features you won't find on other power cords:

• Watertight molded plug and connector for safety and durability

• Heavy duty, super flexible marine-grade cable (50 amp 6 gauge)

• All models include a standard threaded ring for hook-up to ordinary threaded inlets

• Corrosion resistant, nickel plated contacts

• Power Indicator Light: Boatside connector features a molded-in LED light. When it glows red, you know you have power to the boat.

• Contour Grip with Thumbprint Locator: Both plug and connector ends are molded to fit the contour of your hand. When the thumbprint is in the 12 o'clock position, the blades line up for easy connection.

• Marinco's Easy Lock™ system: Quickly locks the cord set to the inlet in just 1/8 of a turn. The exclusive locking tabs engage slots built into all Marinco® inlets.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 50a
• Voltage: 125/250v
• Type: Cordset
• Length: 50'
• Box Dimensions: 9"H x 17"W x 20"L WT: 45.55 lbs
• UPC: 093344309809

50 Amp 125V 3-Wire Cordset

All Marinco 50A PowerCord Plus™ cordsets are made of the highest quality, marine-grade construction with features you won't find on other power cords:

• Various length and color options for your specific needs

• LED power indicator light - lets you know if you have power

• Watertight molded plug and connector for safety and durability

• Heavy-duty, super flexible 6 gauge conductor cable

• Contoured grip ends with Thumbprint Locator for fast and easy connection

• All models include the Marinco Easy Lock System Ring - a simple 1/8 twist of the ring provides a fast, positive watertight connection

• All models also include a standard threaded ring for hook-up to ordinary threaded inlets

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Cordset
• Length: 50'
• Amperage: 50a
• Voltage: 125v
• Box Dimensions: 9"H x 17"W x 19"L WT: 35.5 lbs
• UPC: 093344309861

Xantrex PROsine International 1800I Schuko Outlet Power Inverter - 1800W - 12VDC/230VAC [806-1870]

Ships Direct From Manufacturer

PROsine™ International 1800I Schuko Outlet Power Inverter - 1800W - 12VDC/230VAC

PROsine™ Inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine™ Inverters ideal for handling sensitive loads, while also improving AC equipment performance. Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, speed tools, and any other electronics where you want nothing but the most optimal performance.

Provides Pure Sine Wave AC Power from a DC Source
Offering superior quality true sine wave output, the PROsine™ 1000 and 1800 stand-alone inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. PROsine™ inverters include a backlit LCD display panel, which can be mounted remotely.

Ultra-Clean Pure Sine Wave Power
With less than 3% total harmonic distortion, the Prosine delivers true sine wave output that is identical to AC power supplied by your utility. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.

Features:

• 2900 Watt surge

• True sine wave output

• Removable LCD display can be mounted remotely for control and monitoring

• Unique DC terminals offer 180-degree connections for easy installation in tight places
• Efficient powersave mode draws only 1.5 watts under no load condition

• Two year warranty

• Over temperature shutdown and automatic overload protection

• Over voltage and under voltage protection

• Short circuit and AC backfeed protection

• Schuko AC receptacle

• Remote interface kit for remote mounting of display module

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Inverter Output Voltage: 230v
• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 1 Duplex GFCI
• Inverter Surge Rating: 3600w
• Inverter Input Voltage: 12v
• Waveform: True Sine Wave
• Inverter Cont. Output Wattage: 1800w
• Box Dimensions: 8"H x 13"W x 19"L WT: 18.5 lbs
• UPC: 715535618704

Quick Guide (pdf)
Owner's Manual (pdf)

AC 2 Sources + 12 Positions / DC Main + 19 Positions

Switches Color: White

Installed AC Breakers

• Voltage 230v - 12V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 12 AC / 19 DC
• AC/DC: Both
• Voltage: 230v/12v
• UPC: 632085081867

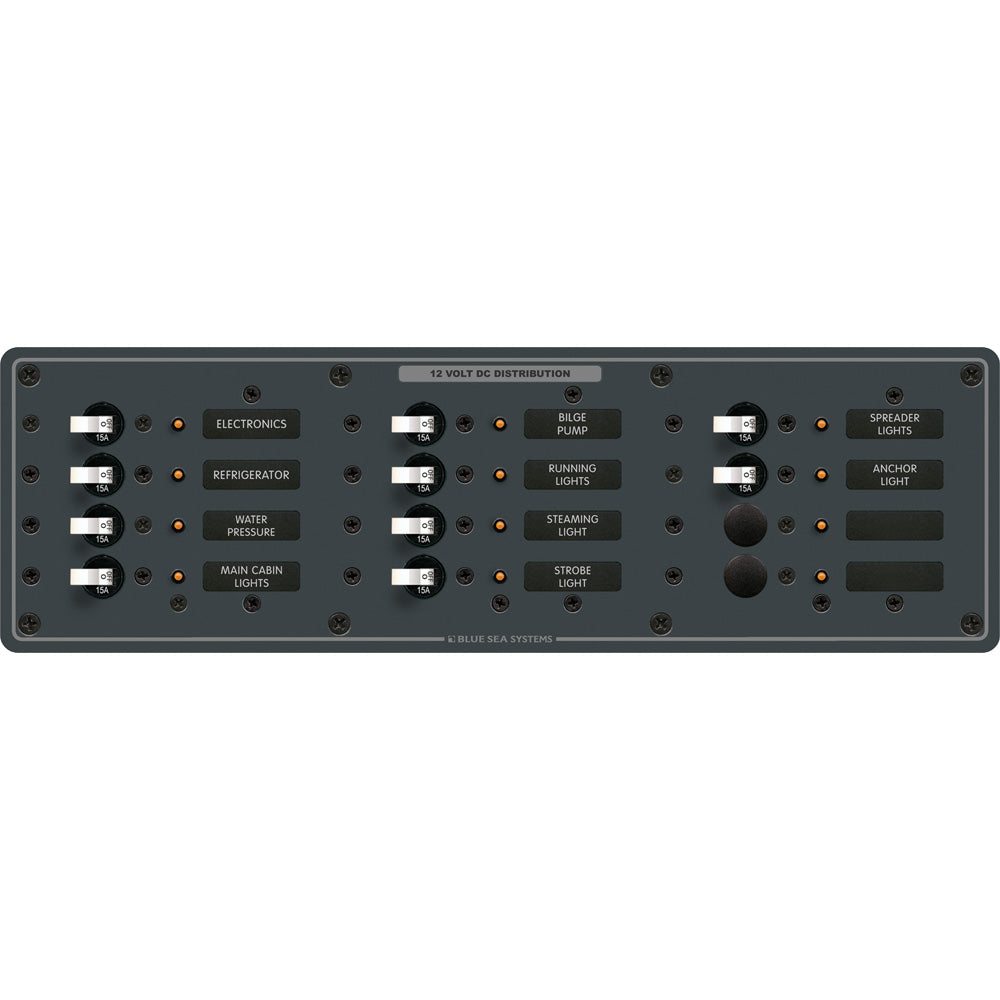

12 Positions

• Voltage 12/24v

• Amperage 100A

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 12
• AC/DC: DC
• Voltage: 12/24v
• Box Dimensions: 6"H x 15"W x 23"L WT: 5.7 lbs
• UPC: 632085083755

AC Main + 11 Positions (European)


Color: White
16A Double: 1
8A Single: 8

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 11
• Box Dimensions: 6"H x 9"W x 11"L WT: 4.6 lbs
• UPC: 632085085070

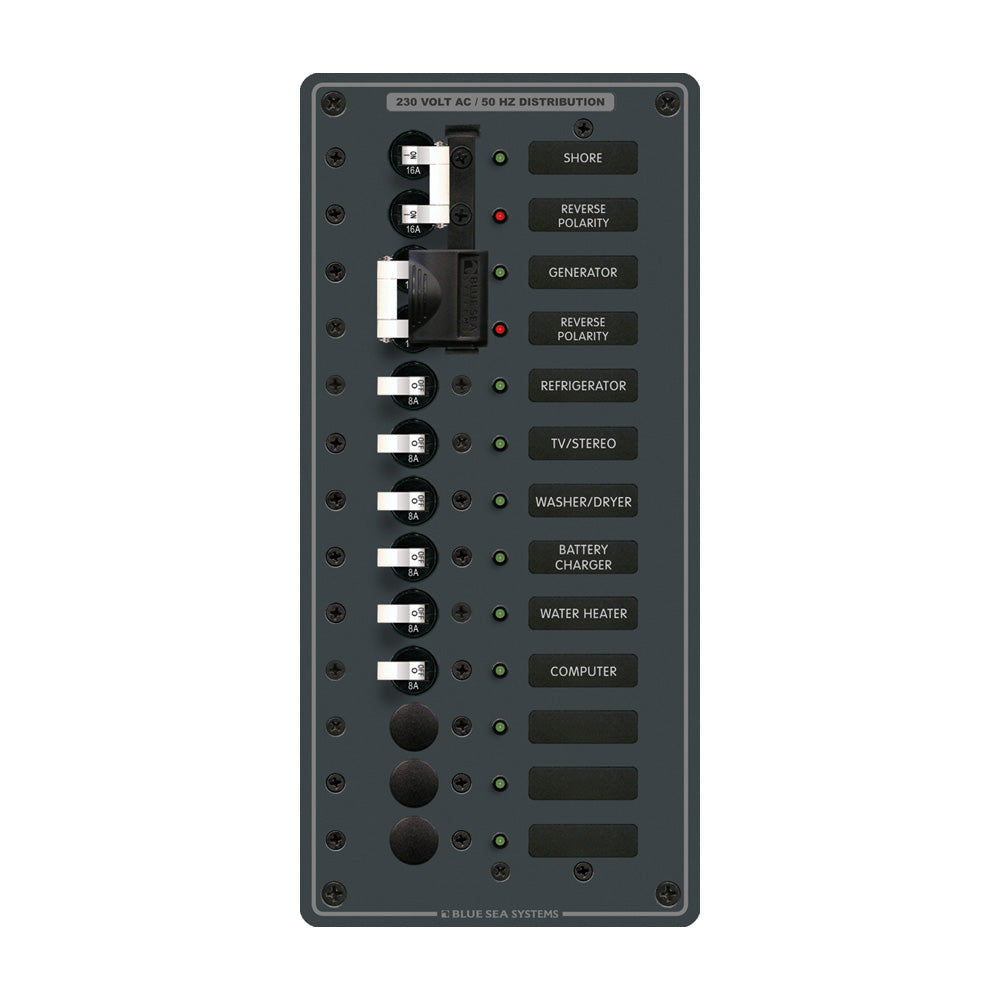

AC Toggle Source Selector (European)


PN: 8566
White Switches

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

• For 230V AC Systems

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 9
• Box Dimensions: 4"H x 9"W x 12"L WT: 3.6 lbs
• UPC: 632085085667
