Samlex 1500W Pure Sine Wave Inverter - 12V [PST-1500-12]

1500W Pure Sine Wave Inverter - 12V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs or can be hard-wired. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 10.7 - 16.5 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 1500
• Surge: 3000 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 1500w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 12v
• Waveform: Pure Sine Wave
• Box Dimensions: 6"H x 12"W x 21"L WT: 17 lbs
• UPC: 622988072192

Owner's Manual (pdf)
Brochure (pdf)

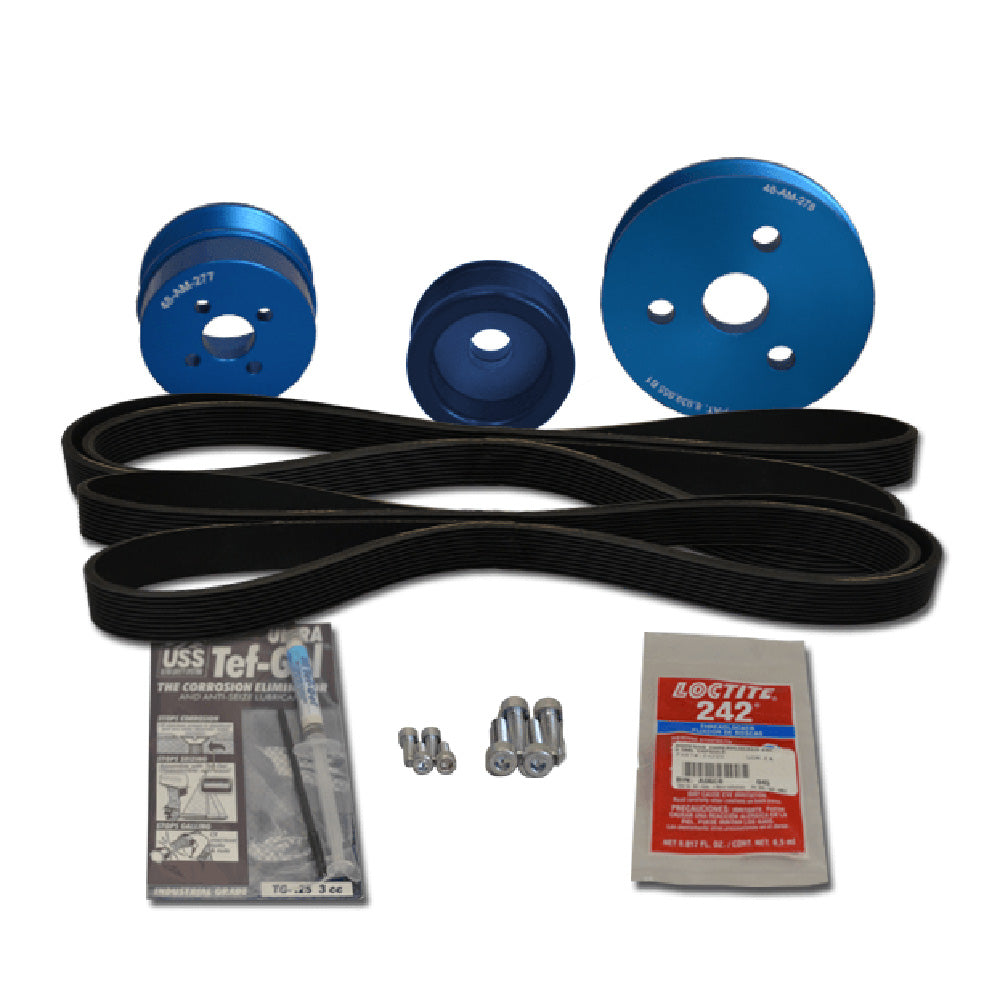

Balmar Pulley Kit f/Volvo D2-55, A, B, C, D, E, F [48-VSP-D2-A]

Pulley Kit for Volvo D2-55, A, B, C, D, E, F

AltMount® Serpentine Pulley Conversion Kit for Volvo Penta Diesel Engines

Volvo Penta Engines Covered: D2-55A, B, C, D, E, F

Kit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 44″ Circumference Serpentine Belts (one spare) & Mounting Hardware

Note: If you specify an AT-200A Alternator, a longer belt length may be required.

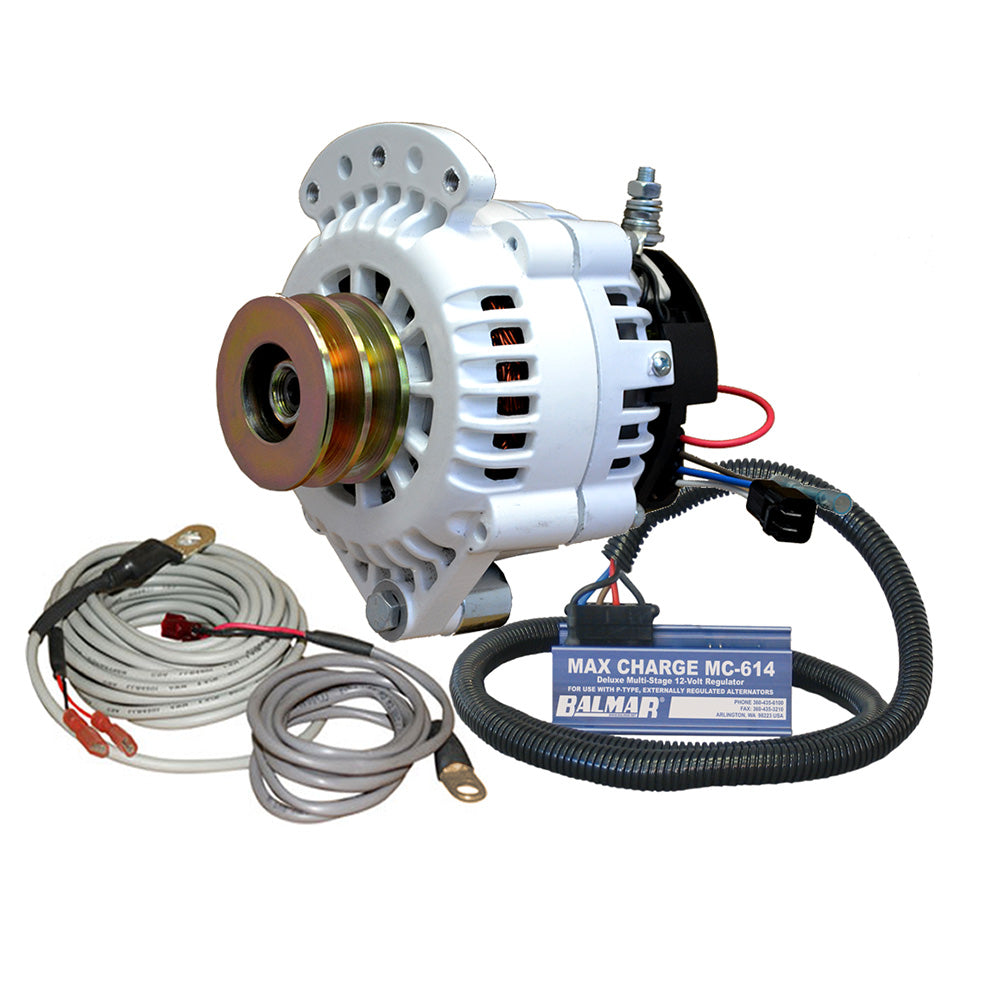

Balmar Alternator 100 AMP Kit 12V 1-2" Single Foot Spindle Mount Dual Vee Pulley Regulator  Temp Sensor [621-VUP-MC-100-DV]

Alternator 100 AMP Kit 12V 1-2" Single Foot Spindle Mount Dual Vee Pulley Regulator & Temp Sensor

KIt Includes: 621-100-DV Alternator, MC-618 Regulator, Temperature Sensors, Mounting Hardware

621-100-DV Alternator: 100A, 12V, Spindle Mount (Single Foot), 1-2in, Dual Deep Vee Pulley, Isolated Ground

1" Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines
2" Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Replaces: 621-VUP-MC-100-SR-KIT

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Amperage: 100A
• Voltage: 12v
• Box Dimensions: 10"H x 10"W x 14"L WT: 14 lbs
• UPC: 676205750936

Brochure (pdf)

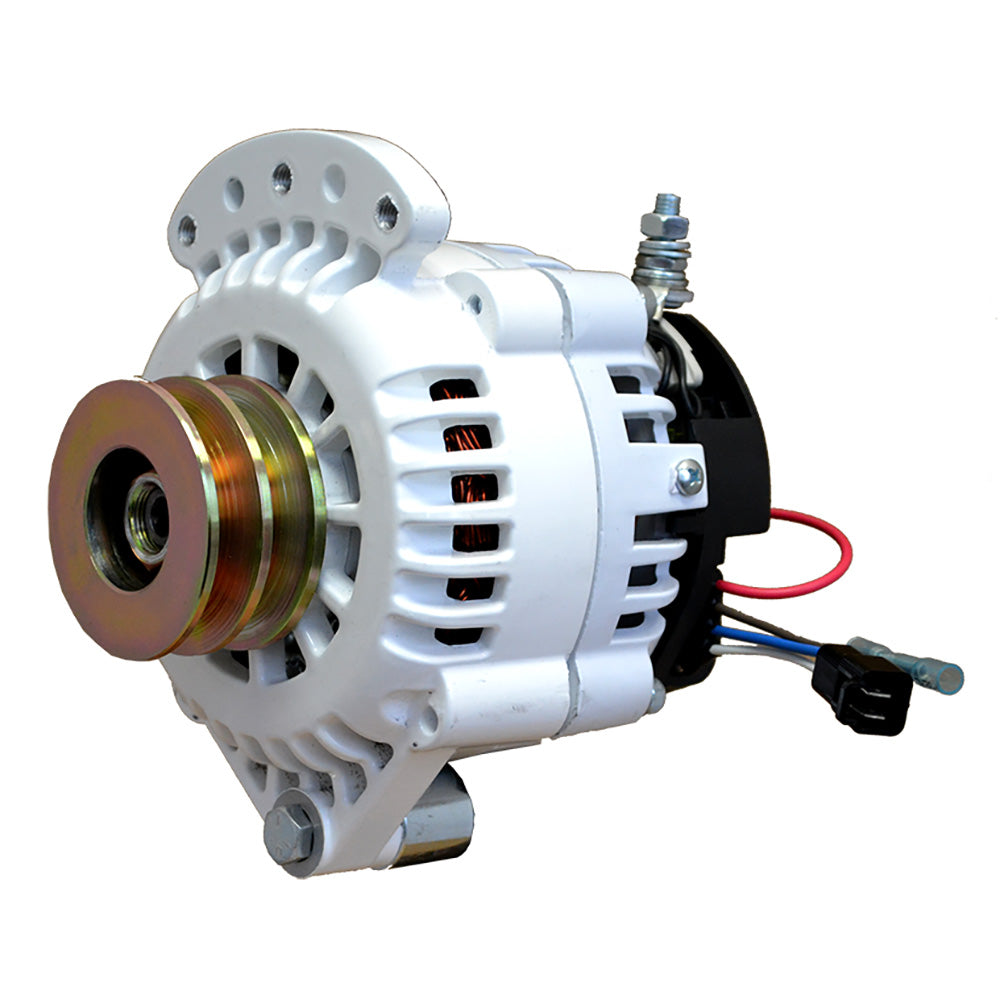

Balmar Alternator 100 AMP 12V 1-2" Single Foot Spindle Mount J10 Pulley w/Isolated Ground [621-100-J10]

Alternator 100 AMP 12V 1-2" Single Foot Spindle Mount Dual Vee Pulley with Isolated Ground

Alternator, 621 Series, 100A, 12V, Spindle Mount (Single Foot), 1-2in, Dual Deep Vee Pulley, Isolated Ground 1" Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines 2" Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Replaces: 621-100-SR-IG

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Amperage: 100A
• Voltage: 12v
• Box Dimensions: 9"H x 10"W x 10"L WT: 13.65 lbs
• UPC: 676205750790

Brochure (pdf)

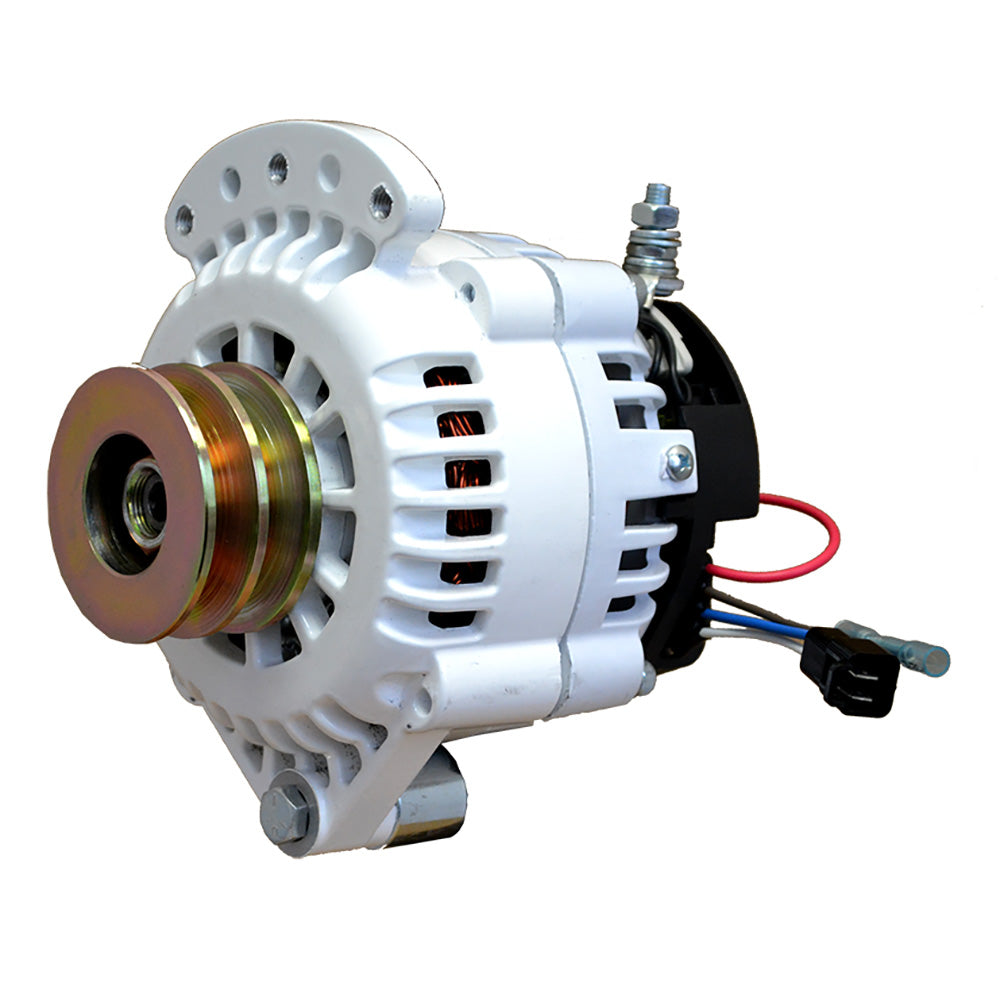

Balmar Alternator 120 AMP 12V 1-2" Single Foot Spindle Mount Dual Vee Pulley w/Isolated Ground [621-120-DV]

Alternator 120 AMP 12V 1-2" Single Foot Spindle Mount Dual Vee Pulley with Isolated Ground

Alternator, 621 Series, 120A, 12V, Spindle Mount (Single Foot), 1-2in, Dual Deep Vee Pulley, Isolated Ground 1" Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines 2" Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Replaces: 621-120-SR-IG

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Amperage: 120A
• Voltage: 12v
• Box Dimensions: 9"H x 10"W x 10"L WT: 13.6 lbs
• UPC: 676205131087

Brochure (pdf)

Balmar Regulator Kit f/Valeo w/MC-618 [MC-618-VL-01]

Regulator Kit for Valeo with MC-618

Balmar's MC-618 Regulator communicates with the SG200 Battery Monitor to provide information to the SG200 Color Display and Smartphone App.  Now you can see how the MC-618 Regulator is directing your onboard charging activity from either the SG200 2" Color Display and/or the optional Bluetooth Smartphone App.  Basic setup functions can be accomplished from the SG200 Color Display, Smartphone App, or the traditional on-regulator programming tool.  Advanced Programming functions are available from the Bluetooth Smartphone App.  Balmar customers have been asking for years to view regulator information from outside the engine compartment.  Balmar has accomplished this goal without the need for a separate dedicated display device!

Kit Includes:

• 30-SR12-02 Internal Smart Ready® Regulator Conversion Kit
• MC-618 External Regulator
• Wire Harness
• MC-TS-A & MC-TS-B Temp Sensors

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Balmar Alternator 120 Amp 12V 3.15" Dual foot Saddle Single K6 Pulley w/Isolated Grounding [60-120-K6]

Alternator 120 Amp 12V 3.15" Dual foot Saddle Single K6 Pulley with Isolated Grounding

Alternator, 60 Series, 120A, 12V, Saddle Mount (Dual Foot), 3.15in, K6 Serpentine Pulley, Isolated Ground Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre Engines.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Voltage: 12v
• Amperage: 120A
• Box Dimensions: 9"H x 9"W x 10"L WT: 13.35 lbs
• UPC: 676205750585

Brochure (pdf)

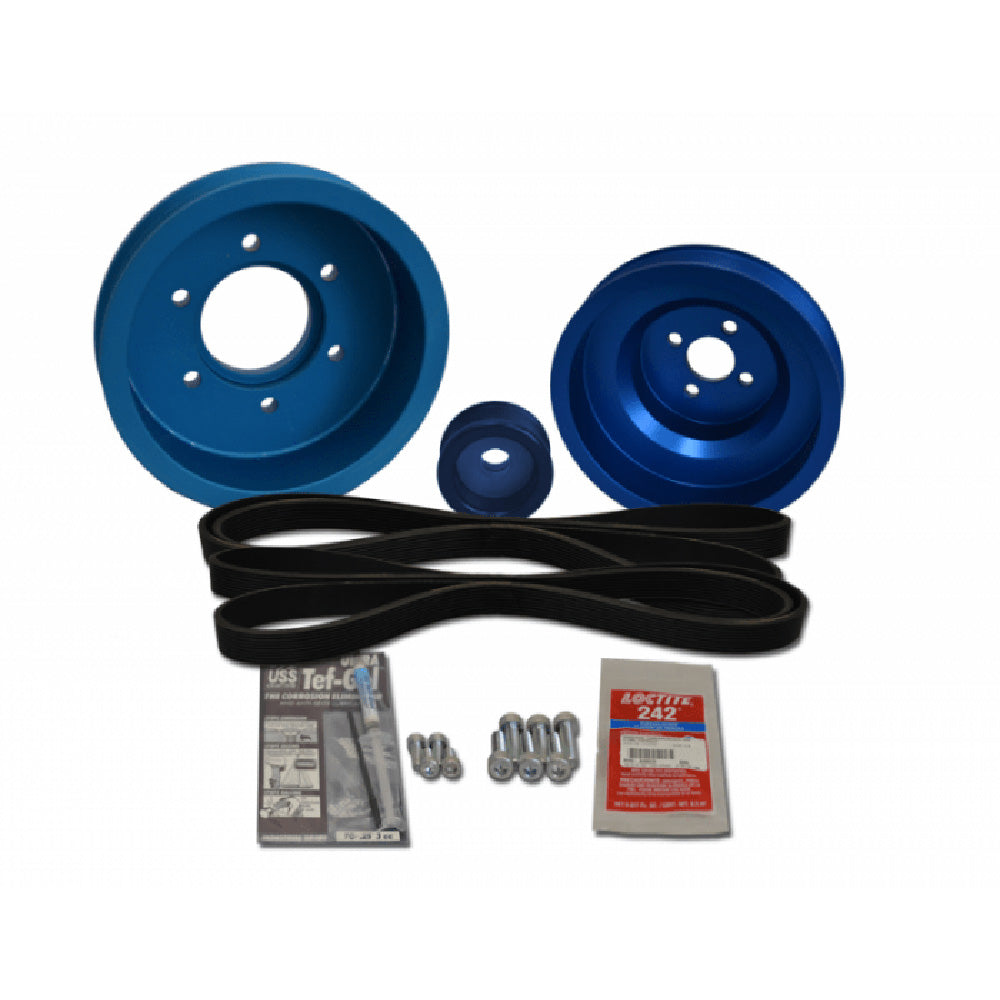

Balmar Pulley Kit f/Yanmar 4JH3-TE, 4JH3-HTE [48-YSP-4JH-D]

Pulley Kit for Yanmar 4JH3-TE, 4JH3-HTE

AltMount®Serpentine Pulley Conversion Kit for Yanmar Diesel Engines

Yanmar Engines Covered: 4JH3, -TE, -THE

Kit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 48″ Circumference Serpentine Belts (one spare) & Mounting Hardware

Note: If you specify an AT-200A Alternator, a longer belt length may be required.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
