Electrical

Alternator 170 Amp, 12V Single Foot Internal Regulator K6 Pulley

Alternator, XT Series, 170A, 12V, Spindle Mount (Single Foot), 1-2in, K6 Serpentine Pulley, Case Ground

1″ Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines
2″ Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Specifications:

• Voltage: 12v
• Amperage: 170A
• Box Dimensions: 9"H x 9"W x 10"L WT: 14.3 lbs
• UPC: 676205501996

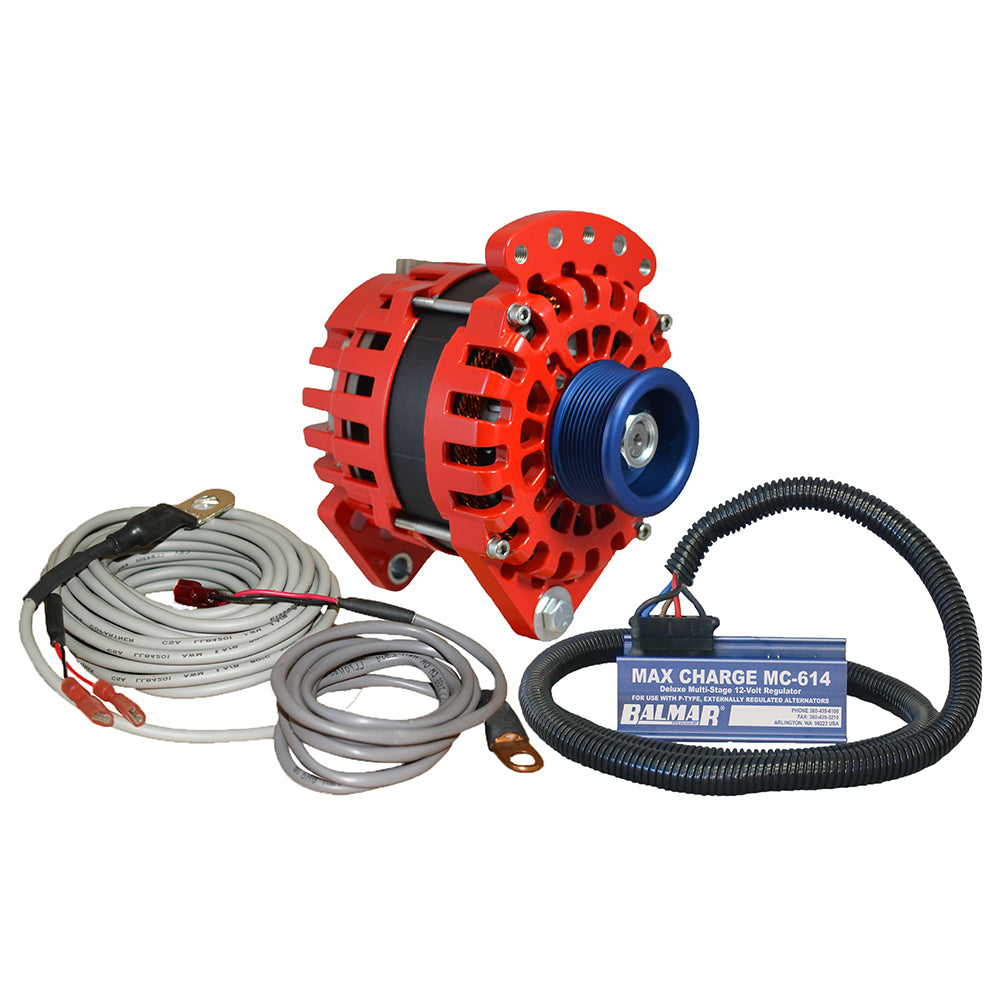

Alternator 3.15" Dual Foot Saddle J10 Serpentine Pulley Regulator & Temp Sensor - 170A Kit - 12V

Balmar offers a wide range of alternator power upgrades designed specifically for marine industry applications. Balmar installs high reliability bearings, robust rectifier diodes and improved heat-sinking capabilities on all our alternators to ensure improved system reliability combined with increased charging power.

Features:

• 3.15" Dual Foot Saddle
• J10 Serpentine Pulley Regulator & Temp Sensor
• 170A Kit
• 12V

Specifications:

• Voltage: 12v
• Amperage: 170A
• Box Dimensions: 11"H x 11"W x 14"L WT: 16.65 lbs
• UPC: 676205500784

Alternator Vortec K6 Serpentine Pulley Regulator & Temp Sensor - 170A - 12V

Balmar offers a wide range of alternator power upgrades designed specifically for marine industry applications. Balmar installs high reliability bearings, robust rectifier diodes and improved heat-sinking capabilities on all our alternators to ensure improved system reliability combined with increased charging power.

Features:

• Vortec K6 Serpentine Pulley Regulator & Temp Sensor
• 170A Kit
• 12V

Specifications:

• Voltage: 12v
• Amperage: 170A
• Box Dimensions: 11"H x 11"W x 14"L WT: 17.25 lbs
• UPC: 676205500883

Balmar 621 Series Alternator - Spindle Mount(Single Foot) - 100A - 12V [621-100-SV]

621 Series Alternator - Spindle Mount(Single Foot) - 100A - 12V

Features:

• 100A
• 12V
• Spindle Mount (Single Foot)
• 1-2"
• Single Deep Vee Pulley
• Isolated Ground
• 1″ Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines
• 2″ Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner's Manual (pdf)

NP-12 Nav-Pac - 12V

Marine communication and navigation electronics such as programmable data transceivers, GPS, and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drops from engine starts, noise and line spikes from alternators and motors, and noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.

Features:

• Prevents voltage “drop-out” during engine start and/or other high intermittent loads such as Thrusters
• Absorbs line “spikes”
• Filters out electrical interference
• Provides supplemental voltage and battery backup for up to 15 min.
• Optional remote panel (773-5037-0)

Specifications:

• Output: 12 Volt @ 20 amps max.
• Battery: Sealed Rechargeable 5.0 Amp-Hour, 5-7 years of typical life, can be replaced. A low-voltage disconnect circuit protects the battery from total discharge. Certified by DOT and IATA for shipment by air.
• Noise Filtering: Audio through 200 MHZ
• Voltage Spike Protection: Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 microseconds)
• Back-Up Power: 8A for 15 minutes, 12A for 8 minutes, 18A for 2 minutes, and 20A for 1 minutes
• Size: 5.25 x 6.2 x 7.4 inches (13.3 X 15.7 X 18.8 cm)
• Weight: 5.9 lbs. (2.7 kg)

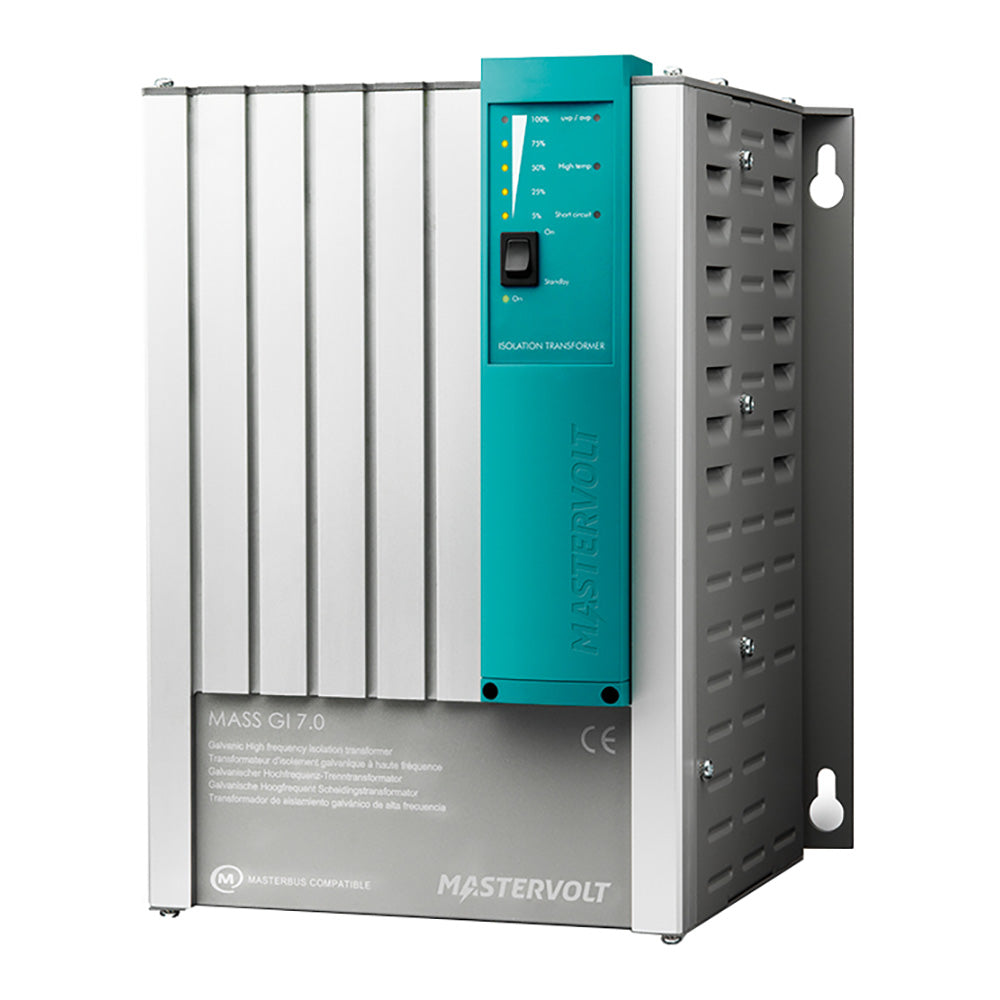

Mass GI 7 Isolation Transformer 7KW

A safe connection between the vessel and the shore installation is an essential part of your electrical system. A galvanic electrical isolation between shore power and the on-board power prevents any electrical corrosion of metal parts while keeping you earthed.

Features:

• Ultra-modern high-frequency electronic switch technology.
• Lightweight and compact.
• Integrated Soft Start function.
• Connect to voltages from 90 to 255 V and from 45 to 65 Hz.
• Units can be parallel-coupled for higher capacity.
• Higher efficiency, limited heat development.

Modern transformer technology: Light, silent, reliable, and easy - The Mass GI is supplied with the latest high-frequency switching technology as well as Soft Start for peak loads when connecting to the grid. LED lights on the casing indicate load and overload. The transformer can be remote-controlled. The Mass GI is 75 % lighter and 60 % smaller than a low-frequency transformer.

Higher capacity via parallel switching - Parallel switching of the Mass GI units increases the AC power capacity. Two 16 A/3.5 kW units ensure 32 A/7 kW; four units give 64 A/14 kW.

Install anywhere - With its robust aluminium casing, this isolation transformer can be fitted in any position on the wall or floor. No rubber mountings are necessary because the unit does not vibrate or hum. The Mass GI also features professional connections with strain relief cable glands.

Specifications:

• Output voltage (± 5 %) - 90-255 V
• Output frequency range - 45-65 Hz
• Input voltage range - 90-255 V
• Input frequency range - 45-65 Hz
• Nominal input current (230 V) - 32 A
• Galvanic isolation - yes
• Efficiency - > 93 %
• Power 230 V (120 V) - 7000 VA (3840) VA
• Dimensions, hxwxd: 340 x 261 x 250 mm 13.4 x 10.3 x 9.8 inch
• Weight - 10 kg 22.0 lb
• Compliance - CE, ABYC

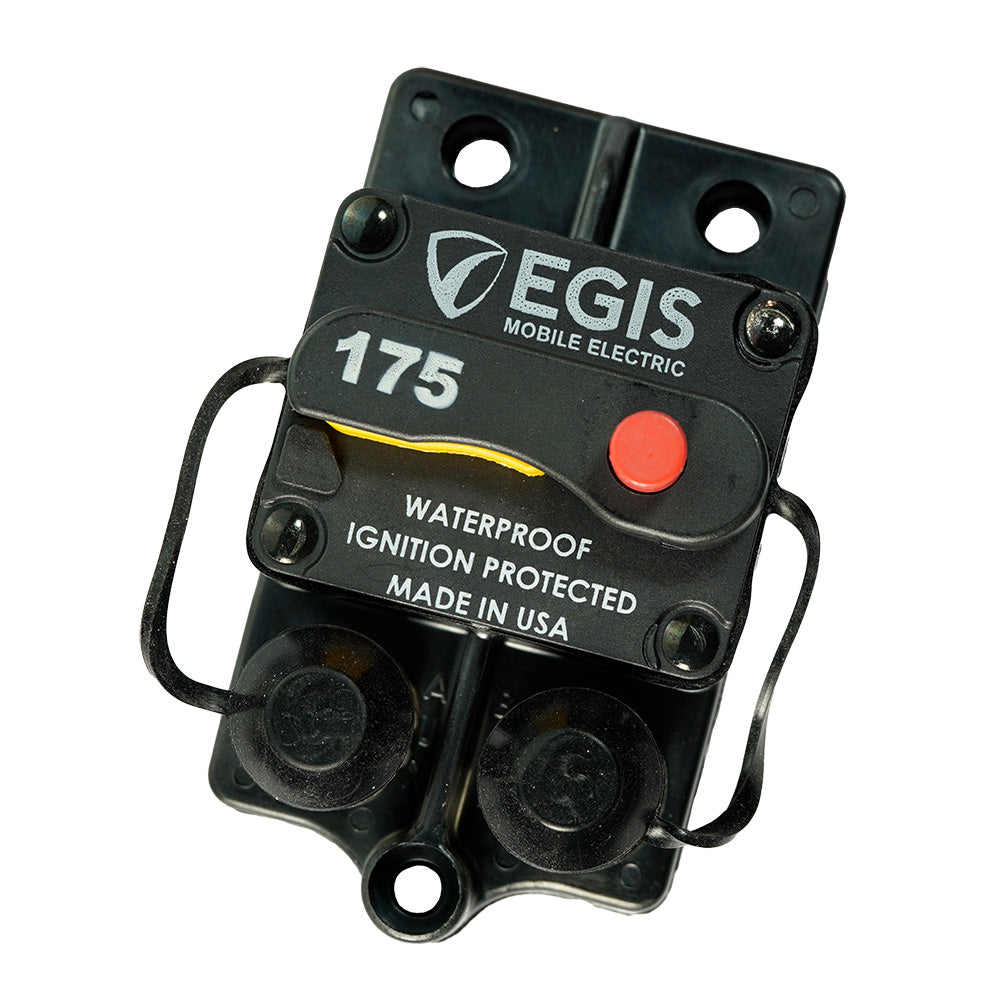

175A Circuit Breaker - 85 Series - Surface Mount

Features:

• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
•  Up to 30 Volt-rated easily supports 12 Vdc (200 & 250 A) and 24 Vdc (200 A) applications.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
• Ignition-protected safe for installation in closed compartments with potential explosive gases.
• Harsh Environment design with stainless steel hardware, serrated flange nuts, and silicone terminal covers.

Specifications:

• Amperage: 175a
• Box Dimensions: 3"H x 5"W x 6"L WT: 0.45 lbs
• UPC: 850035199688

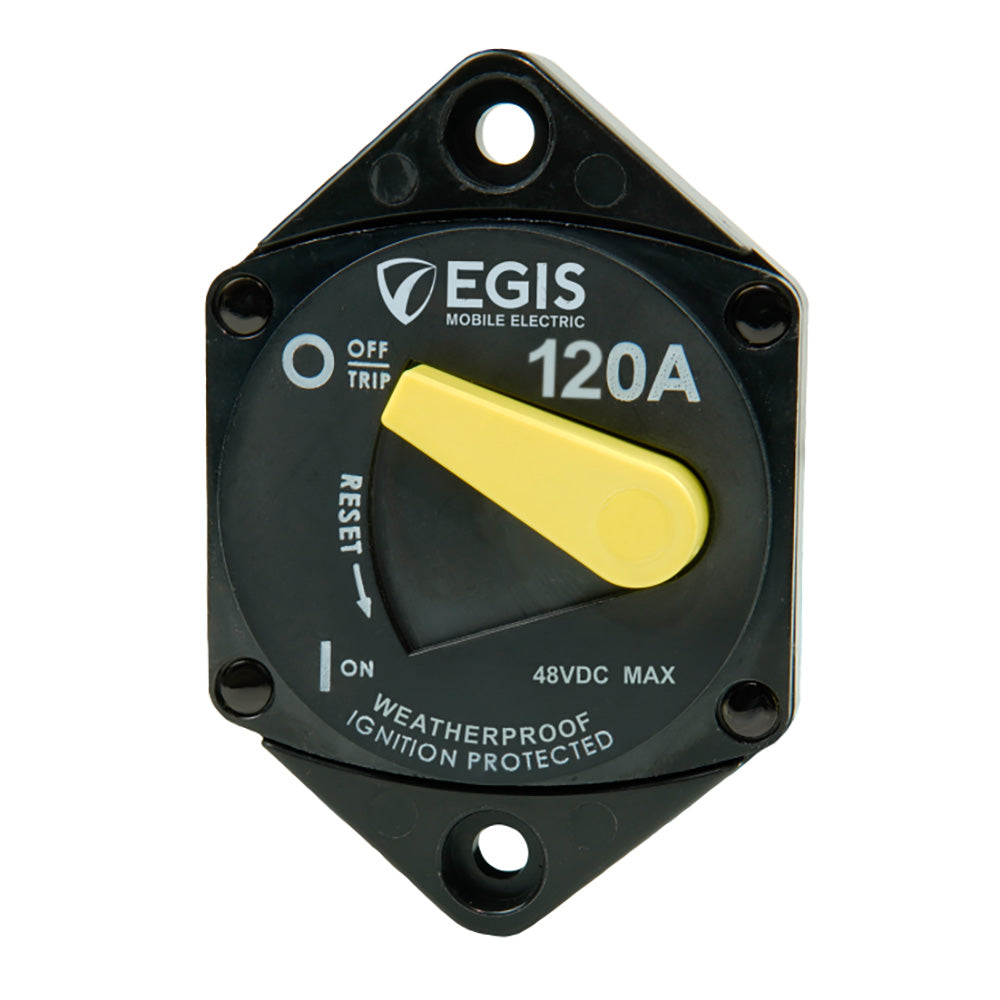

120A Circuit Breaker - 87 Series - Panel Mount

Features:

• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
• High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
• Ignition-protected safe for installation in closed compartments with potential explosive gases.
• Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers.

Specifications:

• Amperage: 120a
• Box Dimensions: 3"H x 5"W x 6"L WT: 0.45 lbs
• UPC: 850053879098
