621 Series 120A Kit with MC-618 Regulator, T-Sensor, K6 Pulley, Single Foot & Mounting Hardware

Kit Includes:

• 621-120-K6 Alternator
• MC-618 Regulator
• Temperature Sensors
• Mounting Hardware

621-120-K6 Alternator: 120A, 12V, Spindle Mount (Single Foot), 1-2in, K6 Serpentine Pulley, Isolated Ground

1" Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines
2" Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Specifications:

• Voltage: 12v
• Amperage: 120A
• Box Dimensions: 10"H x 10"W x 14"L WT: 7.46 lbs
• UPC: 676205750950

Balmar Pulley Kit f/Yanmar 3JH5, 3JH4-E, 4JH4-E, 4JH5, 4JH5-E [48-YSP-3JH-A]

Pulley Kit for Yanmar 3JH5, 3JH4-E, 4JH4-E, 4JH5, 4JH5-E

AltMount® Serpentine Pulley Conversion Kit for Yanmar Diesel Engines

Yanmar Engines Covered: 3JH5, 3JH4-E, 4JH4-E, 4JH5

Kit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 44.5″ Circumference Serpentine Belts (one spare) & Mounting Hardware

Note:  If you specify an AT-200A Alternator, a longer belt length may be required.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Alternator 120 AMP Kit 120V 3.15" Dual Foot Saddle J10 Pulley Regulator & Temp Sensor

Kit Includes: a 60-120-J10 Alternator, MC-618 Regulator, Temperature Sensors, Mounting Hardware

60-120-J10 Alternator: 120A, 12V, Saddle Mount (Dual Foot), 3.15in, J10 AltMount Serpentine Pulley, Isolated Ground

Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre Engines

Replaces: 60-YP-MC-120-SR-KIT

Specifications:

• Amperage: 120A
• Voltage: 12v
• Box Dimensions: 11"H x 11"W x 14"L WT: 16.1 lbs
• UPC: 676205751155

Alternator 3.15" Dual Foot Saddle J10 Serpentine Pulley - 170A - 12V

Balmar offers a wide range of alternator power upgrades designed specifically for marine industry applications. Balmar installs high reliability bearings, robust rectifier diodes and improved heat-sinking capabilities on all our alternators to ensure improved system reliability combined with increased charging power.

Features:

• 3.15" Dual Foot Saddle
• J10 Serpentine Pulley
• 170A
• 12V

Specifications:

• Voltage: 12v
• Amperage: 170A
• Box Dimensions: 9"H x 10"W x 10"L WT: 13.8 lbs
• UPC: 676205500777

Yellow 4/0 AWG Battery Cable - 50'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Yellow
• Gauge: 4/0 AWG
• Length (Feet): 50'
• Box Dimensions: 9"H x 12"W x 12"L WT: 44 lbs
• UPC: 840248204569

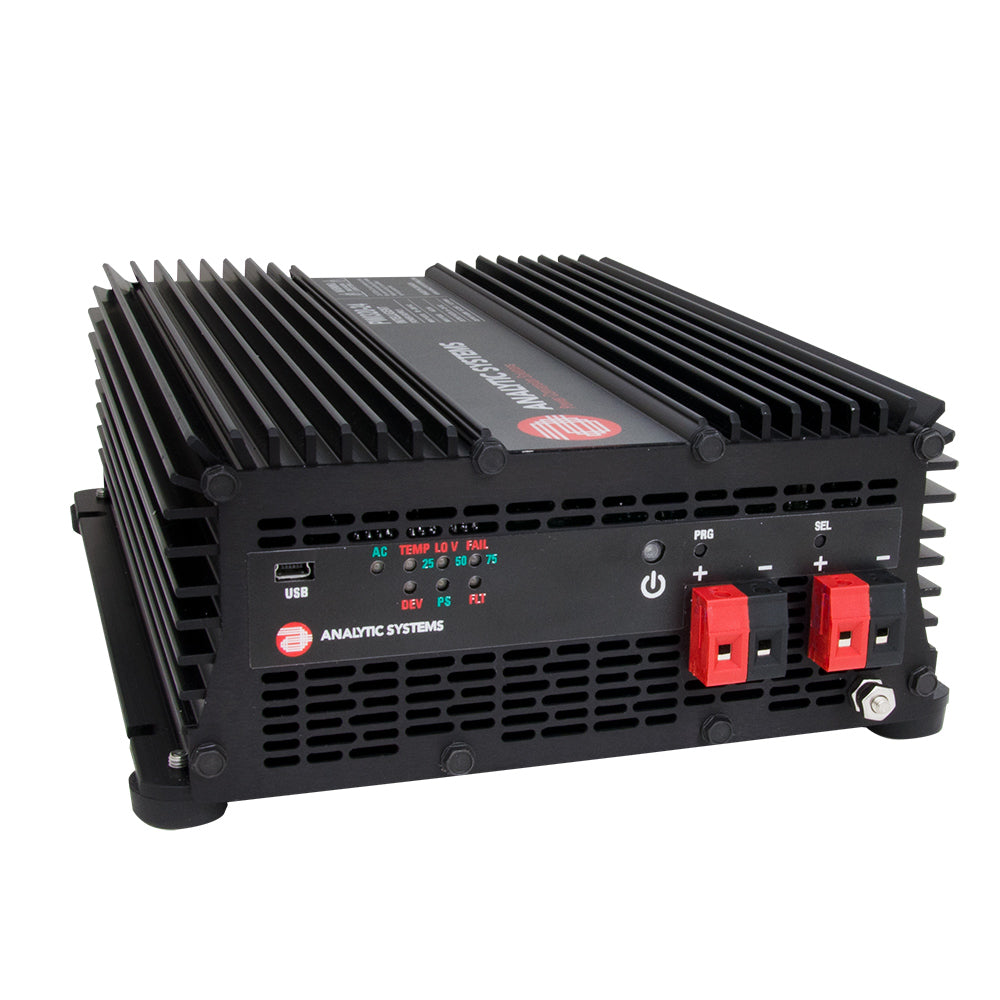

Analytic Systems AC Power Supply 20/25A, 12V Out, 85-265V In [PWI320-12]

AC Power Supply 20/25A, 12V Out, 85-265V In

The PWI320 Intelligent Power Supply delivers a full 300 watts of output power for communications, control or a wide variety of other devices. It is fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.

The Power Supply is preset to the same voltage as a fully charged battery of the nominal output voltage (ie. 13.6V for a 12V model, etc.). The voltage can be adjusted over a reasonable range using the front panel controls, or the PowerWizard software that is free to download from www.analyticsystems.com.

Seven dual color LEDs clearly indicate output current levels as well as indicating faults with the Power Supply. Safety features include Power Supply over temperature shutdown, current limiting, short circuit protection, input under voltage shutdown and output overvoltage protection all with automatic recovery.  PWI320MW model available with MIL connectors, extra input and output filtering and sealed to IP66

Features:

• Digital Signal Processor controlled
• Universal worldwide AC input
• Computer programmable
• Simple front panel controls
• Easy connection to loads
• High Vibration Rugged Duty
• Dry Contact Output Fail Relay Carrying Handle
• Canbus / RS232 / Remote Control port
• Five year parts and labour warranty

Specifications:

• Charger Input - Voltage: 85-265v
• Charger Output - Amps: 20-25a
• Charger Output Voltage: 12v
• Box Dimensions: 7"H x 11"W x 12"L WT: 8.3 lbs

MultiPlus Inverter/Charger 12 VDC - 3000VA - 120AMP Battery Charger - 50AMP Transfer Switch (UL LISTED)

Features:

• Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
• Unique PowerAssist feature - The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery
• Uninterrupted AC power (UPS function) -  In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Output Voltage: 120v
• Inverter Input Voltage: 9.3-17v
• Inverter Cont. Output Wattage: 3000w
• Outlet Qty: None
• Charger Output Voltage: 12v
• Charger Output - Amps: 120a
• Charger Input - Voltage: 94-140v
• Charging Banks: 1+1
• Box Dimensions: 13"H x 13"W x 18"L WT: 49.25 lbs
• UPC: 8719076046615

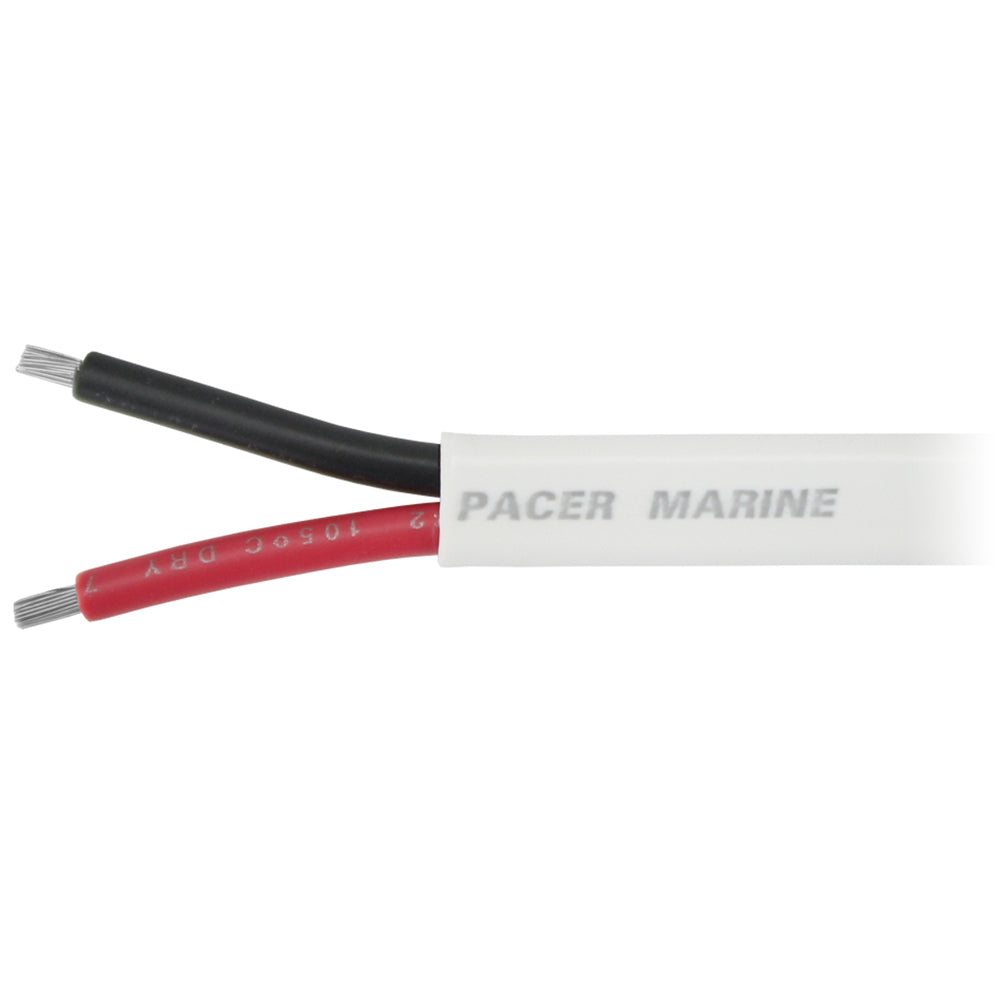

8/2 AWG Duplex Cable - Flat Cable - Red/Black - 250'

Duplex Boat Cable is used in low voltage AC applications as well as DC circuits.  Pacer manufactures 8 AWG Duplex boat cable in house in the USA for the best quality.  First, the cable is built from finely stranded, Type III tinned copper conductors.  These conductors allow for flexibility and help to prevent corrosion.

The PVC jacket helps 8 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating.  How does it do that?  During the extrusion process, the spaces between wires are filled.  This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed.  Just another reason 8 AWG Duplex boat cable is perfect for marine use.

Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.

Features:

• Extruded exterior cable insulation with no gaps
• Highly flexible color coded wire insulation
• Stranded, tinned copper conductors
• Annealed Finely Stranded Tinned Copper ASTM B172 Class K
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Compliances:

• UL Standard - 1426
• U.S.C.G - 33 CFR part 183
• ABYC - E-11.14

Technical Specifications:

• Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K
• Insulation -20 °C to 105 °C flexible, color-coded PVC
• Voltage Rating - 600-V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
• No. of Conductors - 2
• Type of Cable - Duplex

*Sold as an Individual

Specifications:

• Color: Red/Black
• Gauge: 8/2 AWG
• Length (Feet): 250'
• Box Dimensions: 12"H x 14"W x 14"L WT: 54 lbs
• UPC: 840248200486
