Electrical

SmartPlug Combo Kit w/ELCI Sensor  30 Amp Breaker Non-Metallic Door - White [ELCIBRKR30PW]

Combo Kit with ELCI Sensor & 30 Amp Breaker Non-Metallic Door - White

Features:

• White Sensor
• 30 Amp Breaker

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 30a
• Type: Misc
• Box Dimensions: 6"H x 6"W x 8"L WT: 2 lbs
• UPC: 682500440830

Brochure (pdf)

Maretron MConnect Vessel Monitoring  Control Web Server [WSV100-01]

MConnect® Vessel Monitoring & Control Web Server

MConnect is a cutting-edge, NMEA 2000® certified web server and screen editor designed to enhance the boating experience by centralizing control, monitoring, and automation functions. It connects to over 400 NMEA 2000® data points on a vessel, providing real-time visual feedback through customizable, modern graphics on multi-function displays or any browser-enabled device.

Engineered to cater to vessels of all sizes, this powerhouse delivers real-time data displayed on sleek web pages accessible from your favorite devices—phones, tablets, PCs, or MACs, take your pick! MConnect, inspired by the design brilliance of Maretron’s award-winning N2KView® Vessel Monitoring and Control Software, boasts intuitive graphic controls that transform complex data into a visually stunning experience.

MConnect integrates with marine Multifunction Displays (MFDs) like Garmin OneHelm™, Raymarine LH, and many more. It also fully integrates with digital switching systems such as Octoplex® and MPower® for a truly interconnected marine ecosystem.

MConnect doesn’t stop at one NMEA 2000 bus—it connects directly to two, independently receiving data from both. Monitor Primary and Secondary buses, or keep an eye on Navigation and Monitoring buses separately—no bridge is required.

Spot potential issues at a glance

Say goodbye to deciphering data jargon! MConnect uses vibrant colors and high-definition graphics to give you an instant visual checkup of your boat's health. Spot potential issues at a glance as the information effortlessly synchronizes across various screens. Fast, seamless, and beginner-friendly, MConnect boasts an uncluttered interface that you can customize to fit your needs.

Revolutionizing vessel monitoring for OEMs

MConnect isn't just a powerful tool for vessel monitoring; it's a game-changer for Original Equipment Manufacturers (OEMs). We understand the importance of brand identity, and with MConnect, OEMs can take control like never before. Seamlessly integrate your brand aesthetics into the MConnect interface by creating custom graphics that align with your unique identity. This unprecedented feature empowers OEMs to showcase their brand seamlessly within the monitoring experience. The result? A truly cohesive and branded vessel monitoring solution that not only delivers unparalleled functionality but also elevates your brand presence on board. MConnect opens up a realm of possibilities for OEMs, ensuring their vessels stand out with a distinctive visual identity, making waves in both performance and style.

Your boat's well-being has never been so accessible

MConnect opens the doors wider with its simultaneous multi-user capability and an attractive price point.

Features:

Advanced Customization

The built-in MConnect Editor provides an unparalleled level of customization, allowing users to design screen layouts from scratch or choose from 87 pre-built options. OEMs can tailor the interface to match their brand identity, creating a cohesive branded user experience. This flexibility enables a truly personalized user interface, catering to both novice and expert users.

Dual NMEA 2000® Bus Connectivity

MConnect can independently connect to and receive data from two optically isolated NMEA 2000® networks, offering enhanced reliability and redundancy that ensures continuous system monitoring.

Full Integration with Digital Switching Systems

MConnect uses standard NMEA 2000® switching PGNs, allowing seamless integration with third-party systems as well as our own Octoplex® and MPower® systems. This consolidation of control and monitoring simplifies complex integrations into one platform.

Web-Based Accessibility

Unlike traditional systems, MConnect’s web server allows remote access from any device with a browser and uses VPN support for enhanced data security. This ensures both versatility and security for onboard and offboard management.

Affordable Pricing

MConnect provides high-end features at a competitive price, delivering exceptional value without compromising on quality or performance.

Specifications:

• Engaging HTML5 user interface experience
• Design your look with custom graphics
• Can support simultaneous access by up to four users
• Dual Can Bus for dual or redundant NMEA 2000 Connections
• 9-32 Volt Power Input (with reverse polarity protection)
• Only 5-watt power usage
• RJ45 Ethernet Port
• USB 3.0 Port
• WIFI

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
Owner's Manual (pdf)

Lithium Battery SuperPack 12V/100Ah NG

The Lithium SuperPack NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available in various capacities with nominal voltages of 12,8V, 25,6V, and 51,2V. They are designed as drop-in replacements for lead-acid batteries in mobile, marine, and industrial applications. Designed for extended off -grid use, it provides ample capacity to power the complete electrical system, including high -demand appliances. Its form factor and terminal layout ensure easy installation across a wide range of mobile and industrial applications, including commercial and recreational vehicles.

The Lithium SuperPack batteries are extremely easy to install, not needing any additional components. The internal switch will disconnect the battery in case of over-discharge or high temperature.

The Lithium SuperPack batteries can be connected in parallel. A series connection is not allowed.

Embedded protection: The integrated Battery Management System (BMS) provides a layer of protection that ensures energy flow remains within the safe operating limits of the battery and the overall system.

Energy flow management: Capable of interrupting charging and discharging independently through its self-resetting circuit breaker.

Continuous current capability: Supports continuous discharge currents up to 2C and continuous charge currents up to 1C, reducing the need to oversize the battery pack.

Internal cell balancing: Allows the battery to maintain optimal voltage balance at the end of the charging process.

Bluetooth monitoring and control: Integrated Bluetooth interface for real-time monitoring and control of the battery via VictronConnect.

On/Off push button: Push button for switching the battery on or off, disabling both charging and discharging. The on/off procedure can also be used to reset certain protection or lock-in conditions. When switched off, the battery enters a storage mode with a self-discharge rate of less than 3% per month.

LED status indication: Two integrated LEDs indicate Bluetooth connectivity, warning and alarm conditions, and firmware update status.

External Feedback Signal (EFS): Provides a battery voltage signal limited to 250 mA. The EFS signal serves as an External Disconnection Signal (EDS) to trigger an event for redundant system protection. Additionally, the EFS can be configured as an External Charging Signal (ECS), based on the low SoC pre-alarm threshold, to activate a charger start signal.

Self -heating function: Maintains the battery temperature above the minimum safe charging limit to ensure reliable operation in cold environments. Two heating modes are available:

• Charger mode – the heater is powered by the connected charger and activates automatically when the cell temperature drops below 0 °C during charging (default setting).
• Auto mode – the battery powers the heater to keep the cells above 0 °C for immediate charging. This is limited by the battery’s internal energy; if SoC falls below the Low SoC threshold, the heater is disconnected, and charging remains unavailable.

The internal heat balancer supports optimised thermal management and a wide operating range.

Parallel connection: Supports parallel connection of an unlimited number of batteries to increase total energy capacity. The total system current should not exceed the maximum current that a single battery can safely interrupt (refer to Battery Specification [28] for details.

BCI Group 49 compatibility: Height dimension is compatible with the BCI Group 49 standard, allowing easy replacement in standard battery compartments.

Mounting brackets: Mounting brackets are included to ensure safe and stable fixing in all three axes.

Ingress protection (IP65): The battery enclosure is rated IP65, providing protection against dust ingress and low-pressure water jets from any direction.

Self-restoring protection: Certain protection events are automatically cleared without user intervention. The battery allows multiple automatic recovery attempts for short-circuit and over-current conditions, reducing the need for manual reset in the case of occasional or transient faults.

Dolphin Charger Premium Series Dolphin Battery Charger - 24V, 30A [99041]

Premium Series Dolphin Battery Charger - 24V, 30A

The Premium range of chargers is perfect for most of today’s battery technologies, with a load capacity of up to 400 amps at 12V. These compact chargers are ideally suited to recharging batteries in light vehicles, ambulances, repair vehicles, and motorhomes. The Premium charger is perfect for workshops, pleasure boats, computer cabinets, and starter batteries for gen-sets.

The robust compact housing is lighter and easier to install than ever thanks to better mounting design and electrical speed connections. Outstanding features include the latest battery charging technology and a new charging program for lithium-ion-iron-phosphate batteries. These chargers come in a nice package, making them ideal for retailers.

Features:

• 24V, 30A
• Digital management with up-to-date RISC micro-controller
• 4 charging programs, including one for Lithium-Ion-Iron-Phosphate with integrated BMS.
• Charging program selection by internal dip switch.
• Thanks to the Winsta (Wago) and Phoenix contact connectors, wiring, and connections are easy and user-friendly.
• 3 completely isolated battery outputs.
• Automatic 115/230V switch-over
• Touchview controller connection

Specifications:

• Charger Input - Voltage: 115/230v
• Charger Output - Amps: 30a
• Charger Output Voltage: 24v
• Portable: No
• Box Dimensions: 5"H x 10"W x 13"L WT: 7.65 lbs
• UPC: 786142990415

Owner's Manual (pdf)

Xantrex Freedom SW3012 Inverter/Charger
815-3012

12V, 3000W - 120 Vac / 60 Hz

Powerful. Configurable. Versatile...

The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.

Product Description
The second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

NEW - PARALLEL AND SERIES STACKING

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output<sup>2

2</sup> AC source must be split phase, requires Stacking Cable (part# 808-9005)

Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.

Product Features

• Pure sine wave output to operate sensitive electronics

• Advanced configuration options for customized applications

• Parallel and series stacking capability

• Built-in transfer switch automatically transfers between inverter power and incoming AC power

• Power factor corrected, multi-stage charger for fast, efficient charging

• Temperature compensated charging for a vareity of climate conditions

• Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power³

• Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)

• Conformal coated circuit boards for humid environments

• Dual input / Dual output AC interface for 3000 W model

• Ability to charge batteries drained to extremely low voltage

• Compatible with the Xantrex Automatic Generator Start⁴ (Part# 809-0915)

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Integrated, resettable AC breakers

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Outlet Qty: Optional
• Charging Banks: 1
• Inverter Cont. Output Wattage: 3000w
• Charger Output - Amps: 150a
• Box Dimensions: 12"H x 18"W x 21"L WT: 69.4 lbs
• UPC: 008153012413

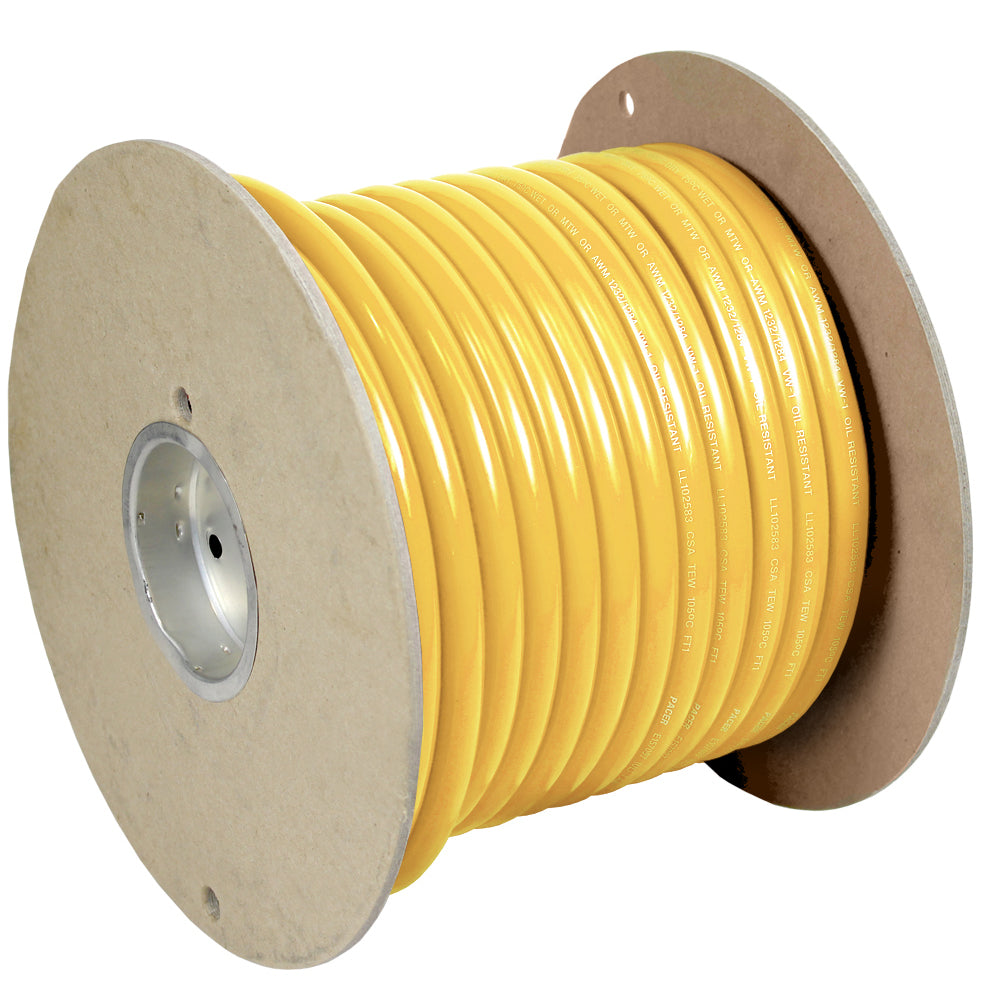

Yellow 2/0 AWG Battery Cable - 100'

Pacer's 2/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 2/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Yellow
• Gauge: 2/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 61.2 lbs
• UPC: 840248204330

Xantrex TRUECHARGE3 30A 3 Bank Battery Charger - 24V [804-2430-10]

TRUECHARGE™3 30A 3 Bank Battery Charger - 24V

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUEcharge3 battery chargers feature low electrical interference and efficient power factor-corrected multistage charging. Thanks to their inherent drip-proof design characteristics, the TRUEcharge3 Chargers can be mounted in multiple positions. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model comes with built-in protection against surges and spikes on the AC power line.

Features:

• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Battery-equalization feature
• Settings for flooded, gel, AGM, or lithium-ion batteries
• Equipped with parallel stacking (remote panel required)
• Ability to charge batteries drained to extremely low voltage
• Added quiet mode

Protection Features:

• Reverse-battery polarity protection
• Drip-proof design
• DC over-voltage protection
• Over-temperature protection
• Circuit breaker protection

Three-Stage Charging

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

• Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate
• Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate
• Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate

Power Factor Corrected (PFC) Charging

Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.

Electrical Specifications (@ 25 degrees C unless otherwise noted):

• Output Current (nominal): 30 A
• Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 V
• DC Output Connections: Three
• AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal
• Temperature Compensation: Three settings
• Charger Efficiency: > 80%
• Battery Type: Gel, Flooded, AGM, LiFePO4
• Minimum Recommended Battery Bank Size: 60 Ah

General Specifications:

• Operating Temperature Range: 0–60°C (32–140°F)
• Storage Temperature -40–80°C (-40–176°F)
• Battery Connection: Three positive terminals and one negative terminal
• Dimensions (H x W x L): 90 x 170 x 340 mm (3.5 x 6.7 x 13.4”)
• Weight 4.5 kg (9.9 lb)

 Regulatory Approvals

Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Charger Input - Voltage: 120/240v
• Charger Output - Amps: 30a
• Charger Output Voltage: 24v
• Charging Banks: 3
• Portable: No
• Box Dimensions: 6"H x 11"W x 17"L WT: 9 lbs
• UPC: 715535920975

Brochure (pdf)

Yellow 4/0 AWG Battery Cable - 100'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Yellow
• Gauge: 4/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 90 lbs
• UPC: 840248204538
