Electrical

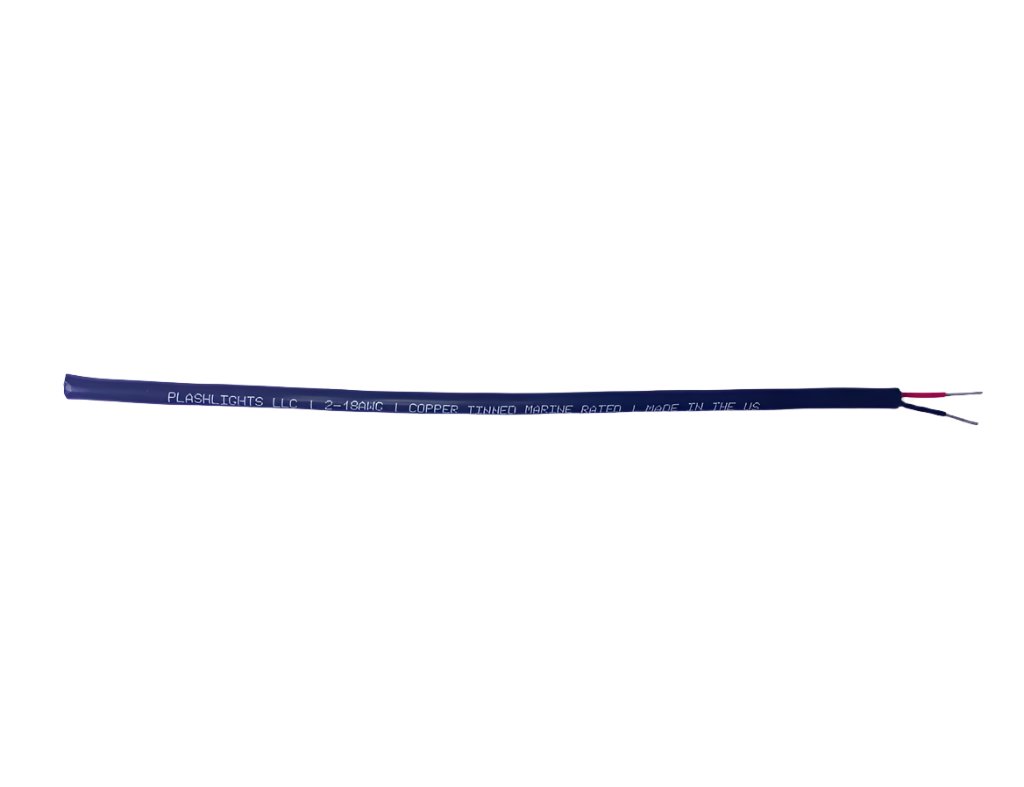

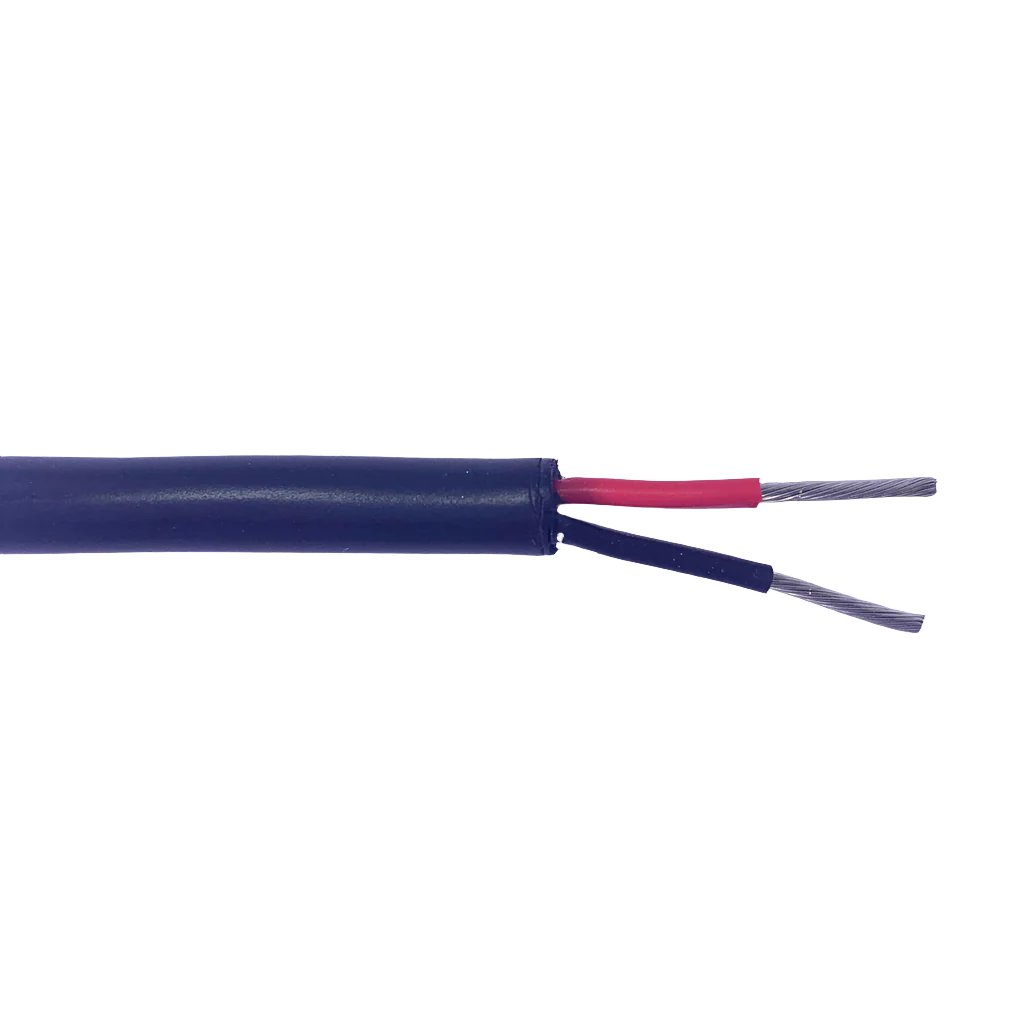

Plashlight Insulated Power Wire - 2 Conductor 18G (by the foot)

• Black PVC Insulated - Very Tough
• 2 wire setup (red & black wire) in a single outer jacket
• Copper Tinned Marine Rated
• Waterproof
• Sold by the foot
• MADE IN THE USA

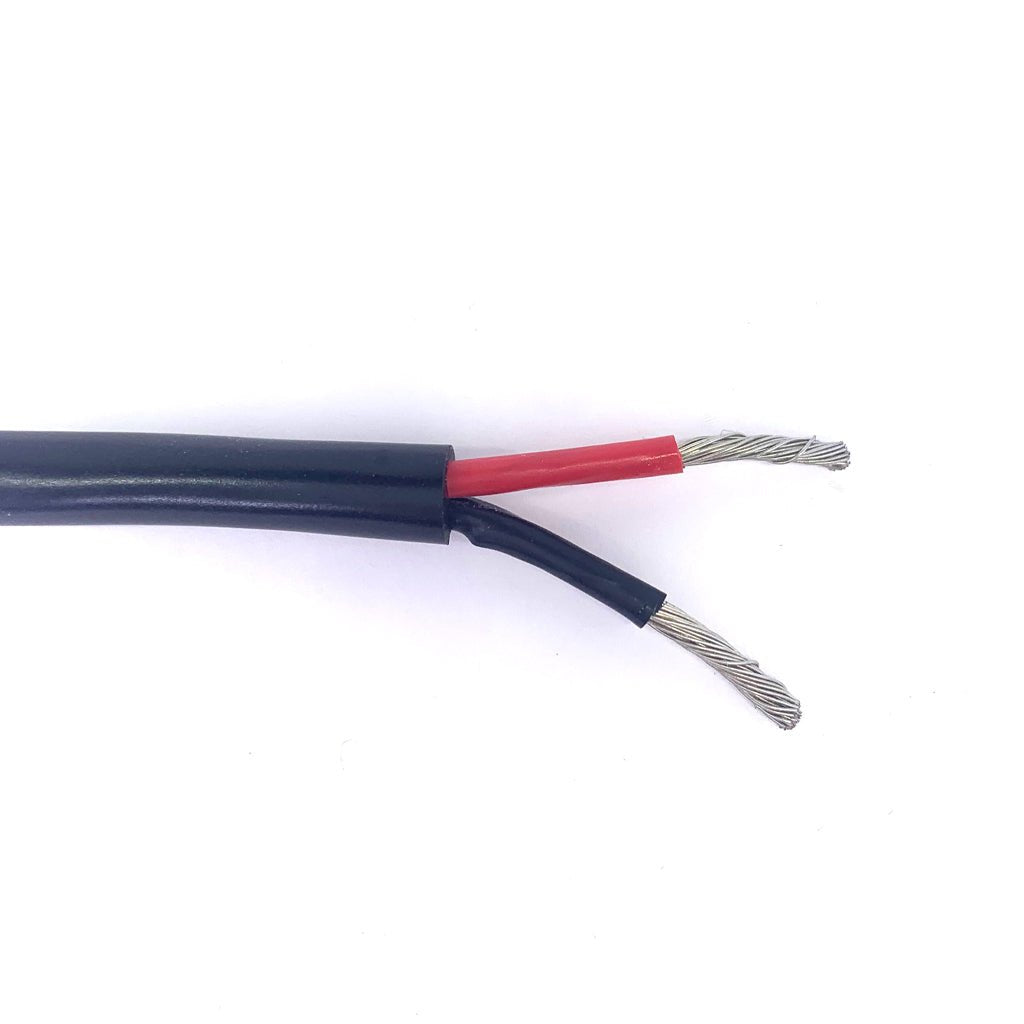

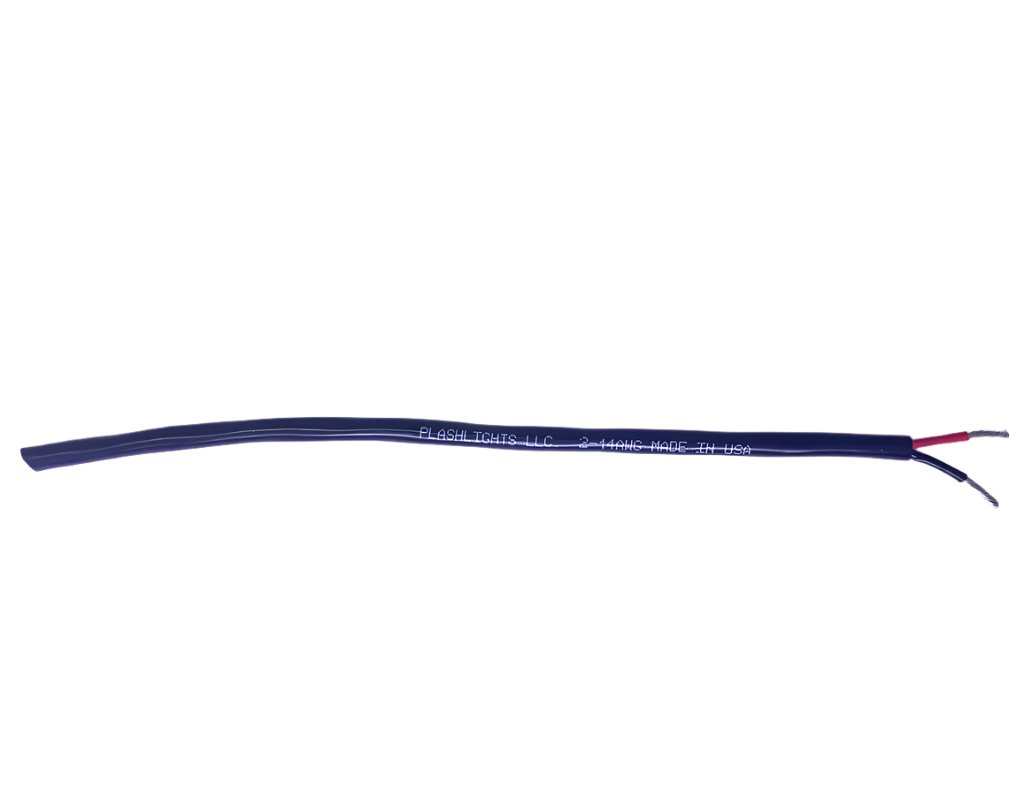

Plashlight Insulated Power Wire - 2 Conductor 14G (by the foot)

• Black PVC Insulated - Very Tough
• 2 wire setup (red & black wire) in a single outer jacket
• Copper Tinned Marine Rated
• Waterproof
• Thermo-molded to protect the inner wires
• Sold by the foot
• MADE IN THE USA

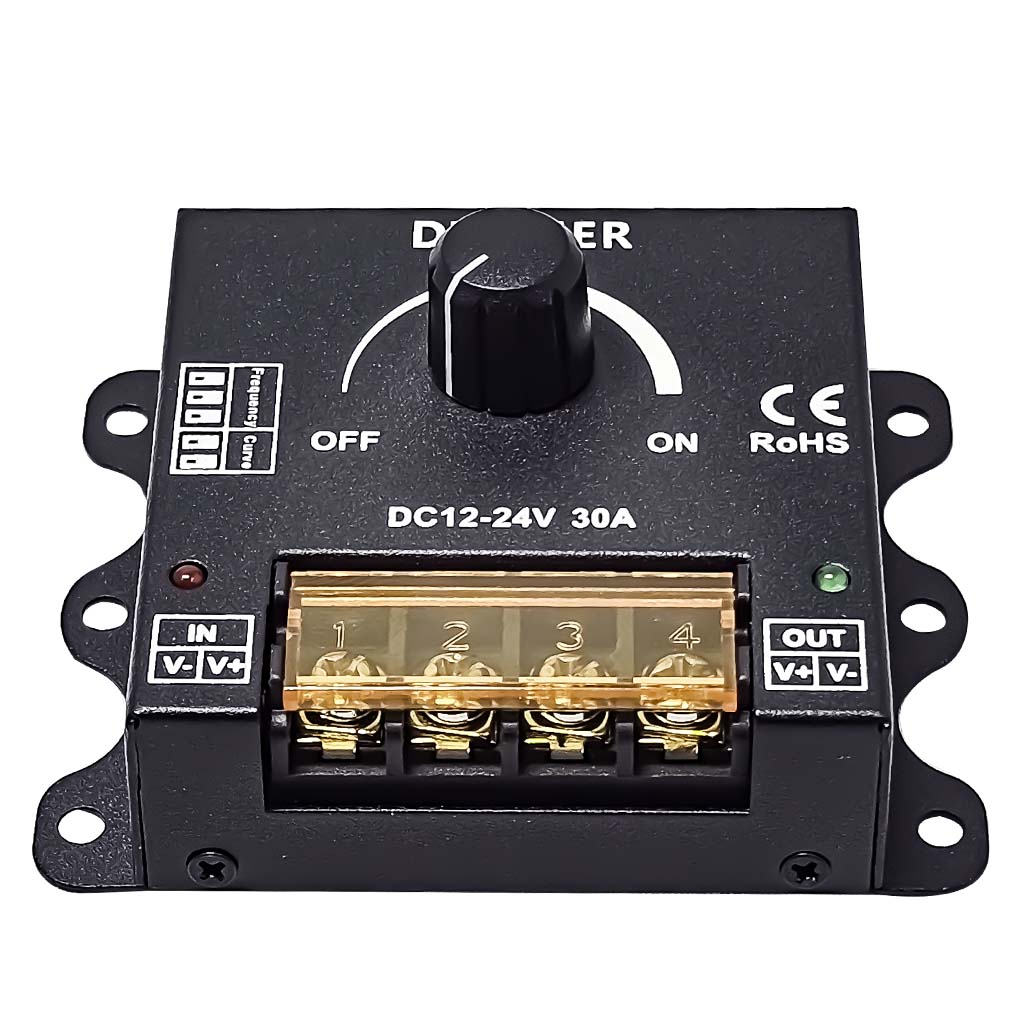

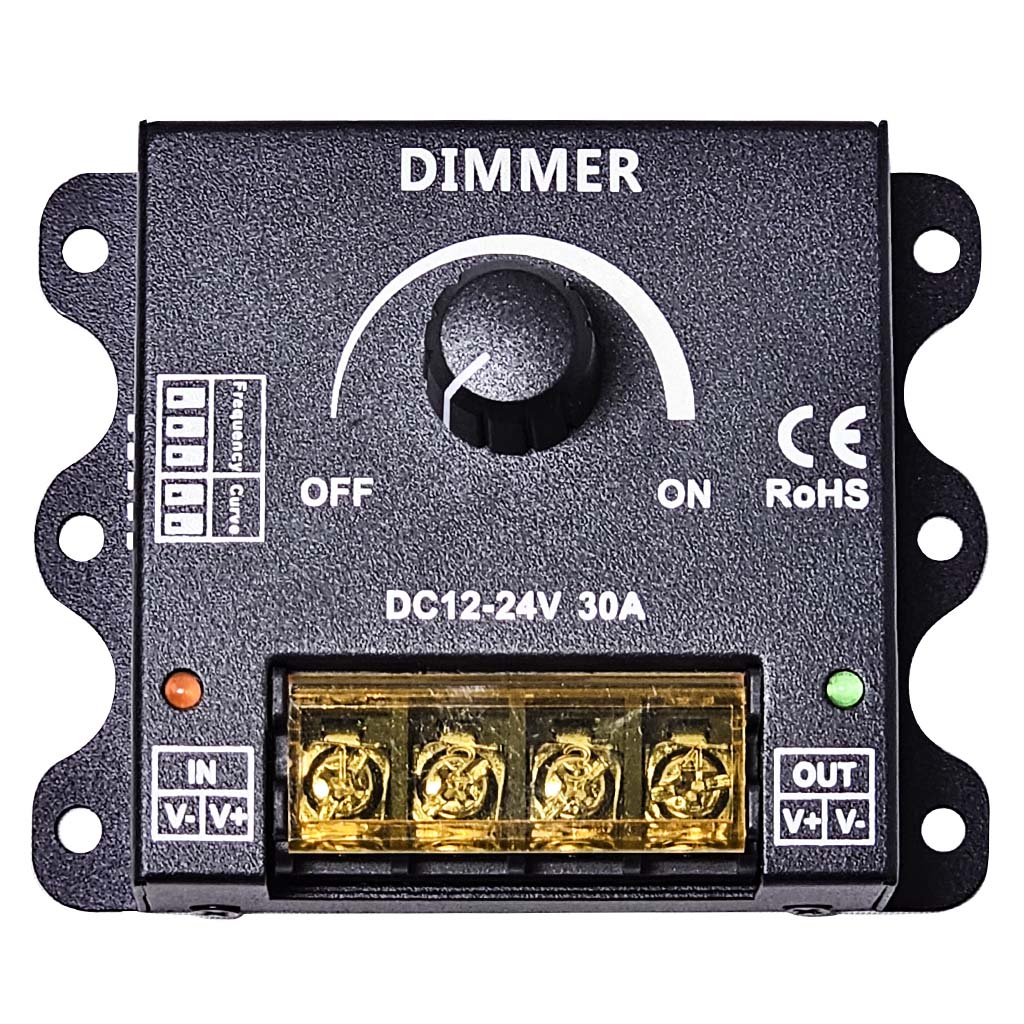

Plashlight Manual Dimmer - 30A

12-24V DC

30A

Not Waterproof

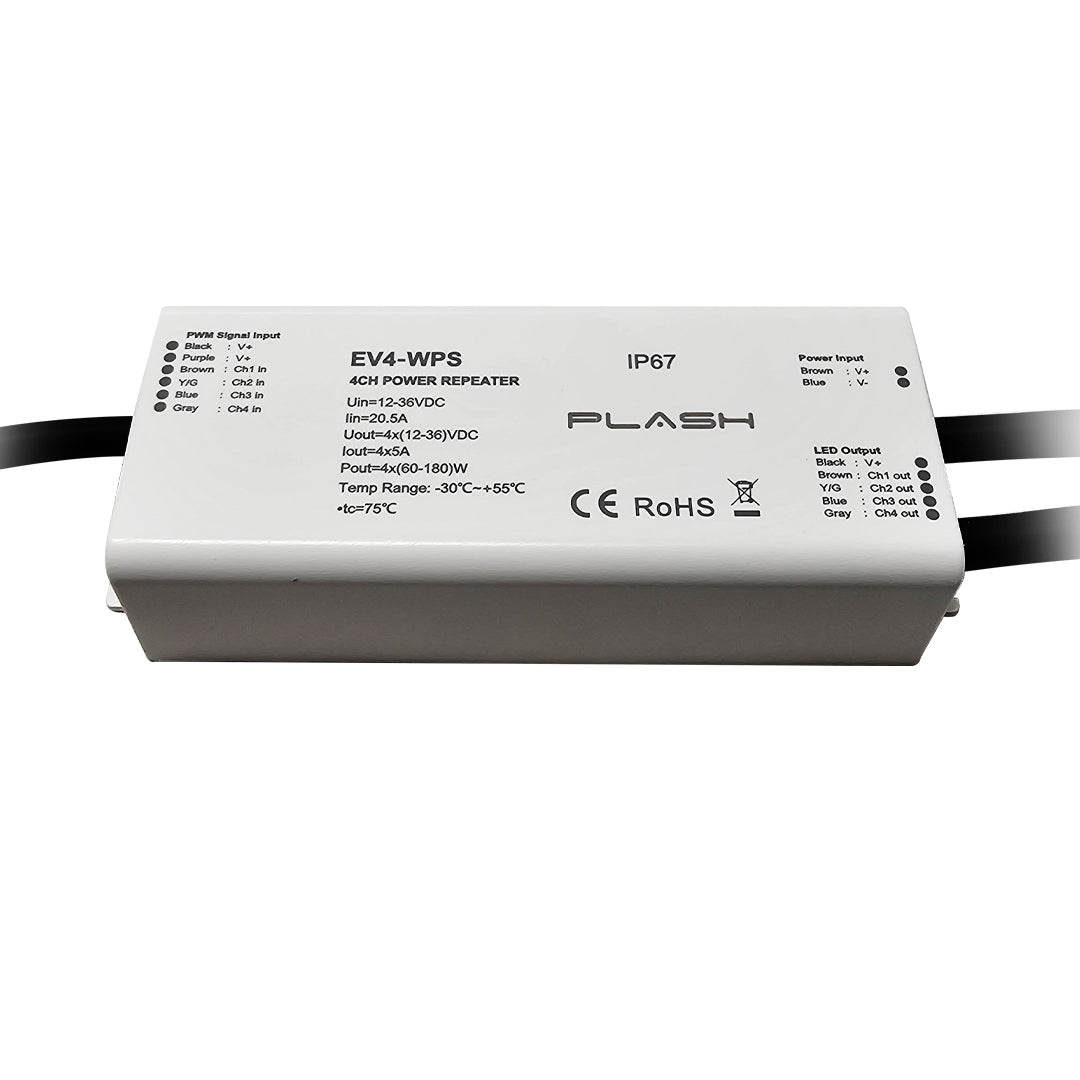

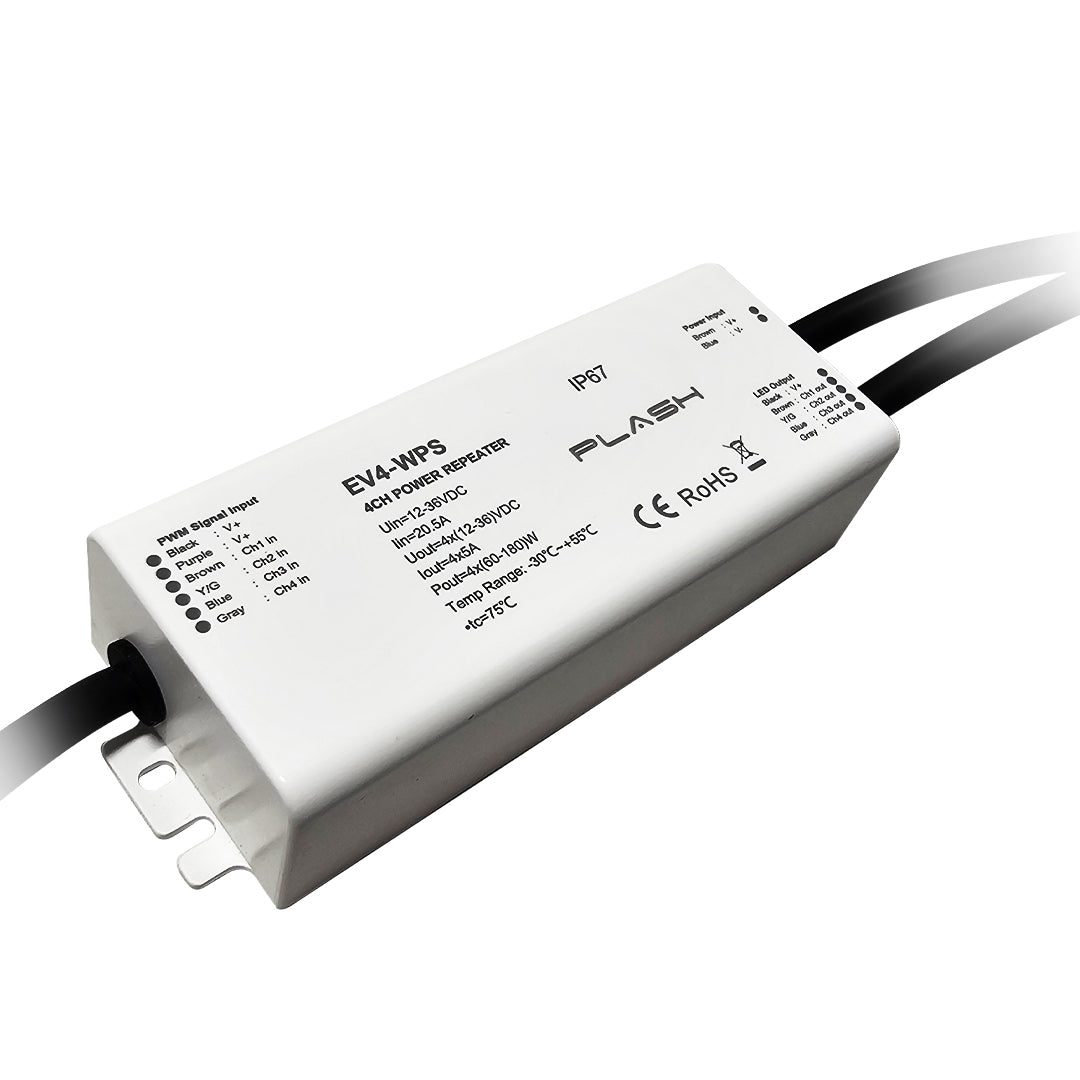

Plashlight EV4-Series Waterproof RGBW Amplifier -5A/CH

Waterproof RGBW (RED, GREEN, BLUE, WHITE) Amplifier can be used with any of our RGB LED Controllers to extend the number of the RGB LED Light Strips or Bars connected to it. RGB Amplifiers are required if exceeding the maximum load capacity of the RGB controller.  Increases the load capability and extends the signal of the universal RGB controllers.

To simplify, the RGBW controller (sold separately) is the brain.  It creates the program, function, and color and tells the lights what to do, but it can only control or operate so many lights.  That is where the amplifier comes in.  It takes that output from the controller and amplifies it so that you can run more lights.

Example: Think of a long fishing pier with RGBW Strip Lights under the handrails.  The power supply and controller are on land and the lights extend out 100ft, but every 32ft the lights must be re-powered (amplified) to maintain the signal and not fade.  An amplifier would be required every 32ft.

If you have any questions about the placement and usage of our RGBW EV4-Series Amplifiers please do not hesitate to contact us.

FEATURES

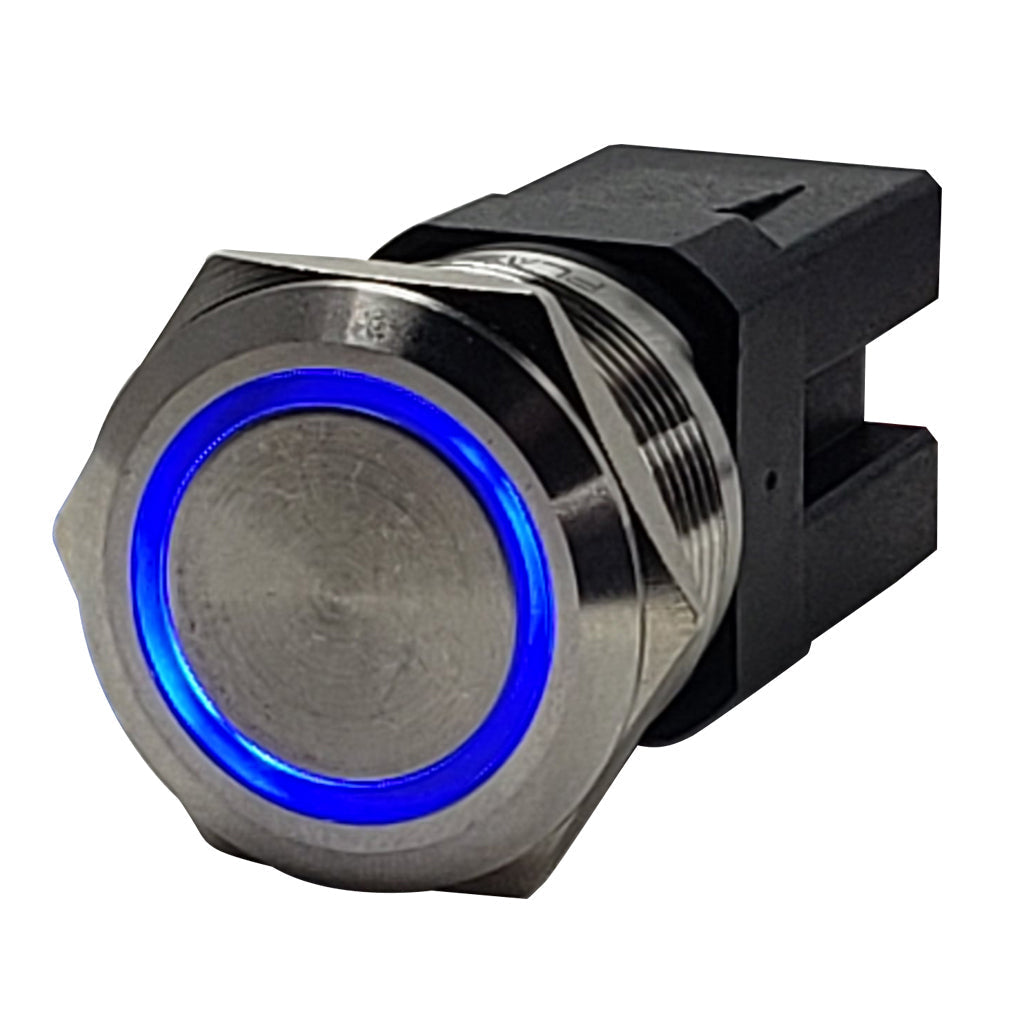

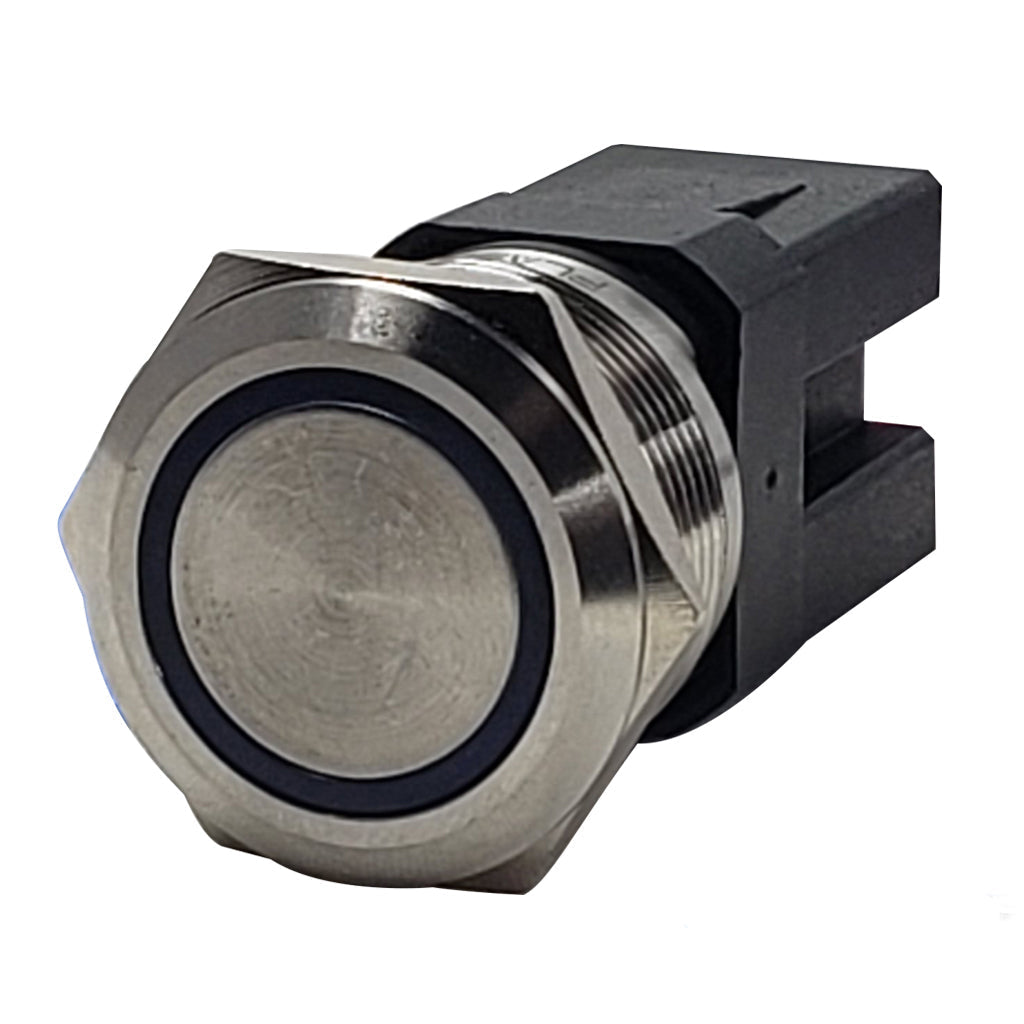

Plashlight Marine Push Button Switch - Blue LED - 20A - Stainless Steel

FEATURES:

• Rated for 20A
• Stainless Steel Housing - No Rust
• Simply remove the switch and rotate it 180° to change from "LED Always On" to "LED On When Pressed."
• 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
• 25mm (1") Outside Diameter
• Works on 12V or 24V Systems
• LED Backlit Ring in your Choice of Colors
• IP67 Rated - Waterproof
• Silky Smooth Movement
• Rated for 150,000 Cycles (Presses)
• Removable Clip for Wiring Harness
• 3ft of 14AWG Wiring for a Simple Installation
• Mounts in panels up to 3/8" thick
• Fits a 7/8" Hole
• Plash Limited Lifetime Warranty

WIRING:

• BLACK wire = Ground
• RED wire = Positive V+
• BLUE wire = Ground
• BROWN wire = Positive V+

* For wiring diagram see images.

 There are many options when it comes to wiring configuration such as do you want the LED ring to be on all the time, only when the navigation lights are on, or only when the switch is pressed?  Depending on how you wire the switch, and the orientation of the switch, you can decide which function suits you best.

SPECIFICATION SHEET:

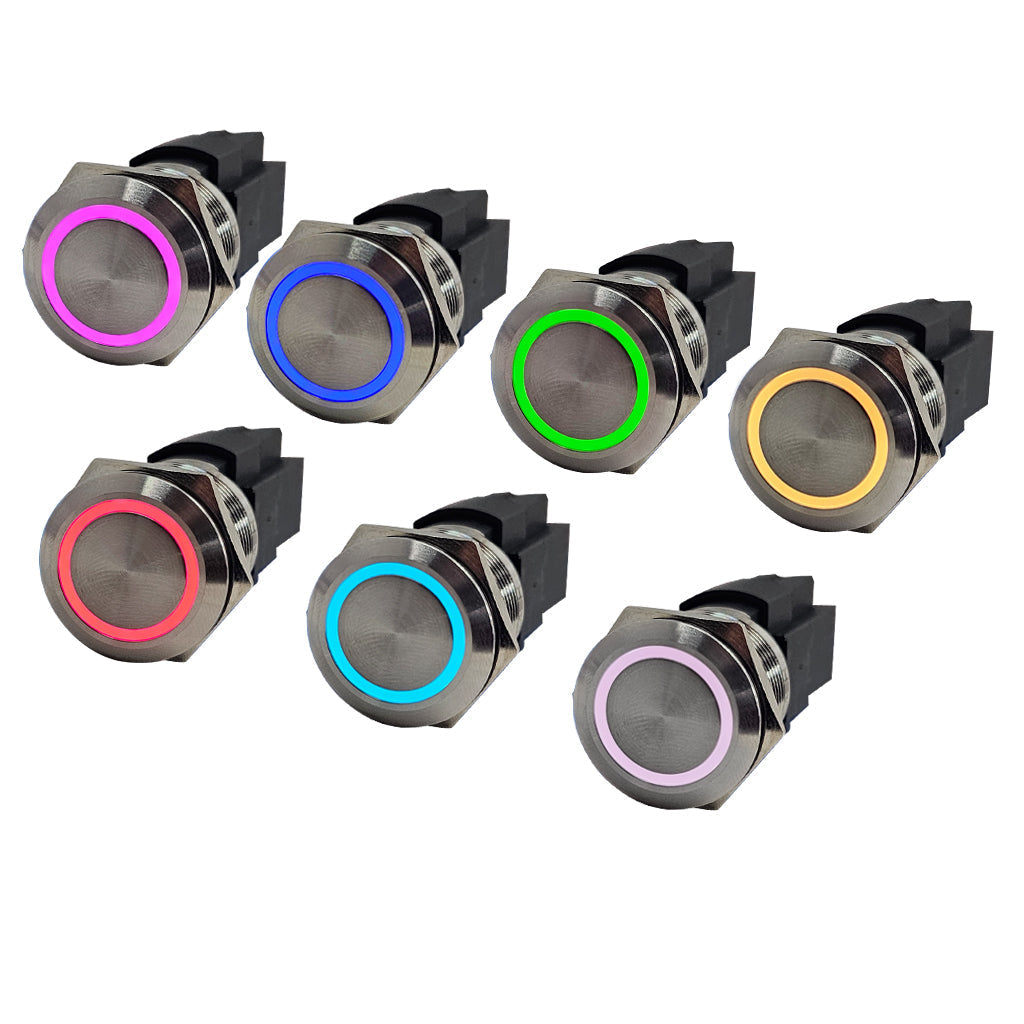

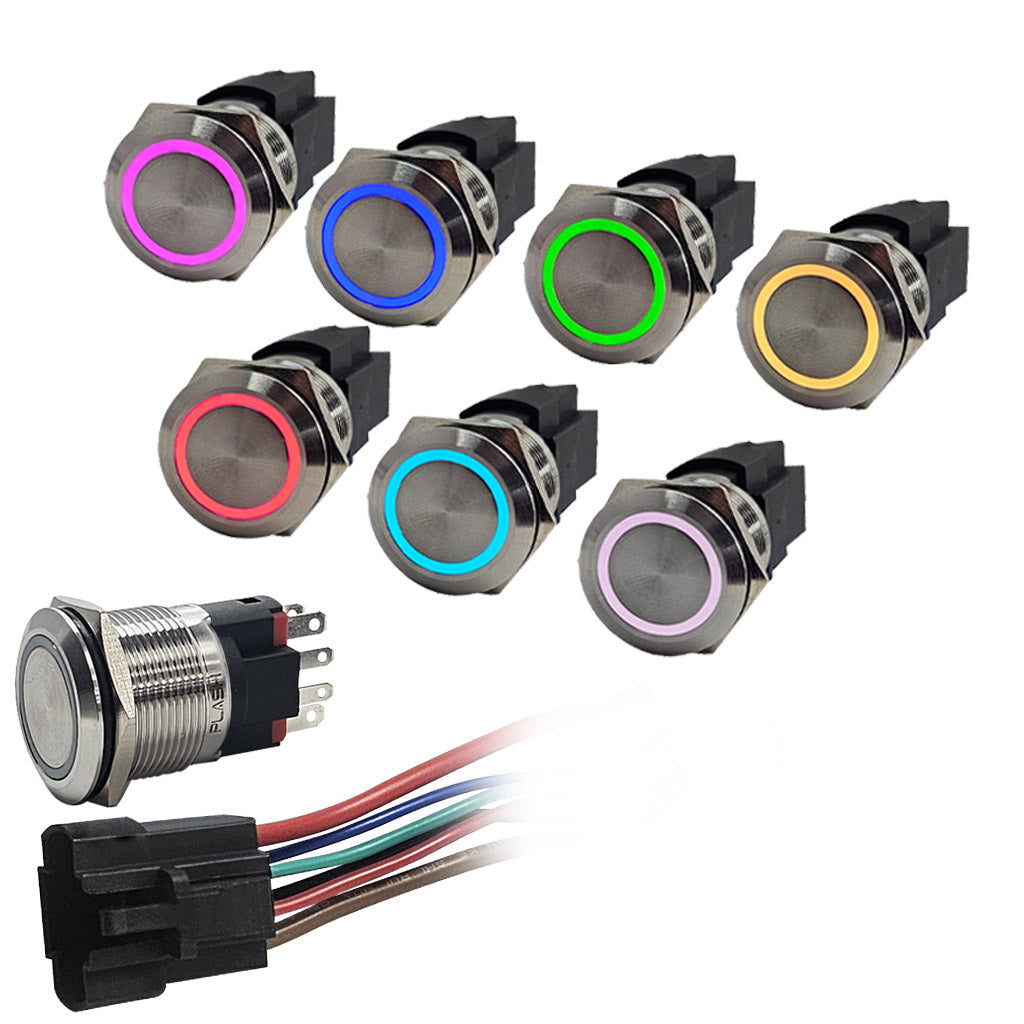

Plashlight Marine Push Button Switch - RGB - 10A - Stainless Steel

FEATURES:

• Rated for 10A
• Stainless Steel Housing - No Rust
• Simply wire according to an RGB Controller for your choice of color options such as color changing Fade, Flash/Strobe, or a single color such as hot pink or teal.
• 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
• 25mm (1") Outside Diameter
• Works on 12V Systems
• LED Backlit Ring in your Choice of Colors
• IP67 Rated - Waterproof
• Silky Smooth Movement
• Rated for 150,000 Cycles (Presses)
• Removable Clip for Wiring Harness
• 3ft of Wiring for a Simple Installation
• Mounts in panels up to 3/8" thick
• Fits a 7/8" Hole
• Plash Limited Lifetime Warranty

WIRING:

This push button switch has two functions:

A) Illuminating the LED Ring

B) Controlling the Equipment that it is Connected to (such as a bilge pump or light bar).

A) LED Illuminated Ring on the Switch:

The below 4 wires connect to the RGB Controller --> **Sold Separately

• BLACK 18 AWG Wire = Positive V+ (connects to RGB controller)
• RED 18 AWG Wire = Ground (connects to RGB controller)
• BLUE 18 AWG Wire = Ground (connects to RGB controller)
• GREEN 18 AWG Wire = Ground (connects to RGB controller)

B) Control of your Load:

• RED 14 AWG Wire = Positive V+  IN from Fuse Panel (verify the fuse is correctly sized for your load)
• BROWN 14 AWG Wire = Positive V+ OUT to Load (example: connects to bilge pump)

* For wiring diagram see images.

SPECIFICATION SHEET:

Plashlight Sho-Me LED Flasher

LED Flasher - Strobe Patterns

Model 11.1005SF

• Solid-state flasher with two outputs
• Seven strobe-style flash patterns
• Waterproof
• Specify 12V or 24V
• For use with LED lights only
• Made in the U.S.A.
• Specifications:
• Voltage: 12V or 24V
• Outputs: 2Amps per Output
• 3 Amps Max per outlet
• Maximum Amps: 6 Amps Max total
• Output Polarity: Positive
• Dimensions: 2" H x 1/2" D x 4" L
• Instructions PDF - Click to view

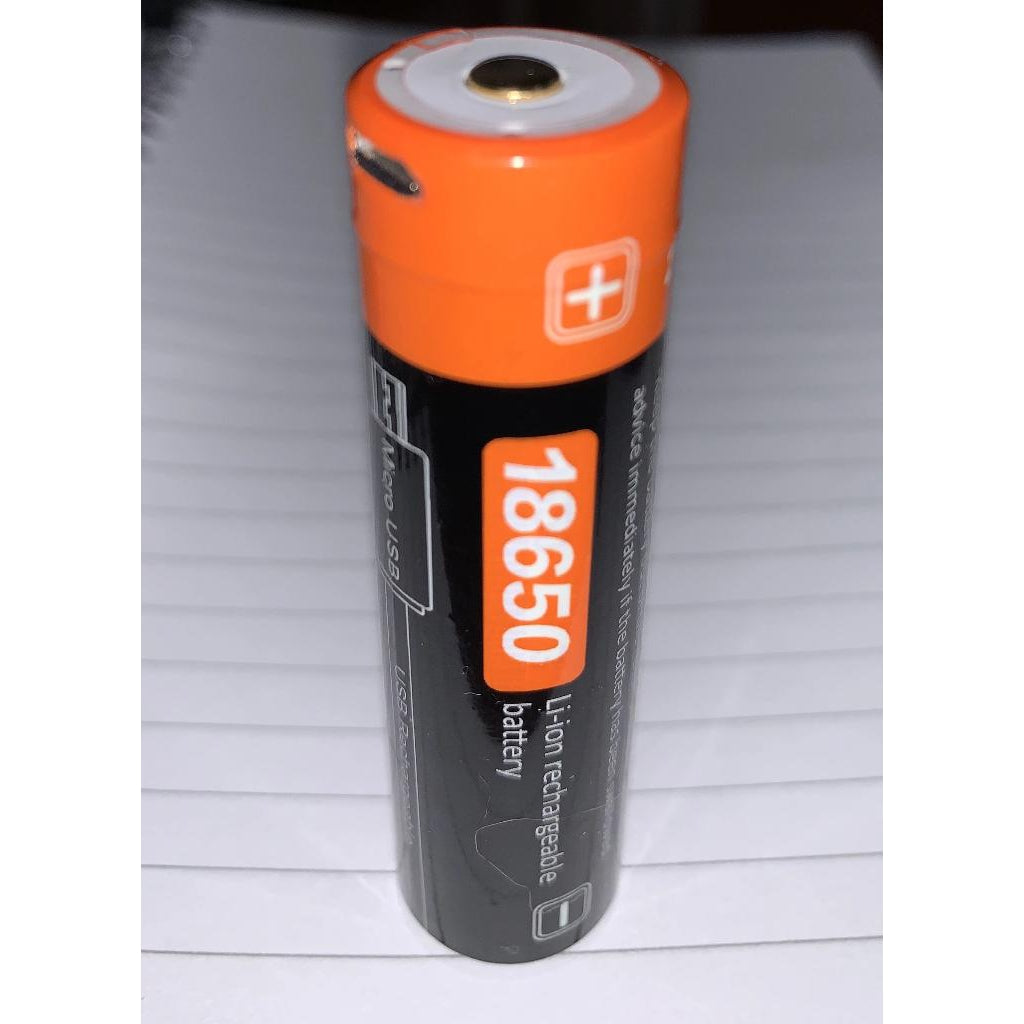

Plashlight 18650 Lithium-Ion Rechargeable Battery

Micro USB Rechargeable Lithium Ion 18650 Battery

Fits: PL20X, PL30X, and PL35X Flashlights

Battery Specifications:

• Li-ion 2200mAh 18650 cell - ( Real Capacity )

• Product Name: Lithium-ion Rechargeable Battery

• Model: 18650

• Nominal Capacity: 2200mAh

• Diameter: 18.25mm

• Height: 65.0mm

• Weight(Typical): 1.6OZ / 45g

• Charge Method: Micro USB Constant Current and Constant Voltage (4.2V)

• Nominal Voltage: 3.7 V

• Max. Charge Current: 1CmA(2200mA)

• Discharge Temperature: -20°C ~ +60°C

• Energy Density: 565Wh/I, 215Wh/kg

• Charging Time: 3hrs This is Single Flat Cap 18650 Battery
