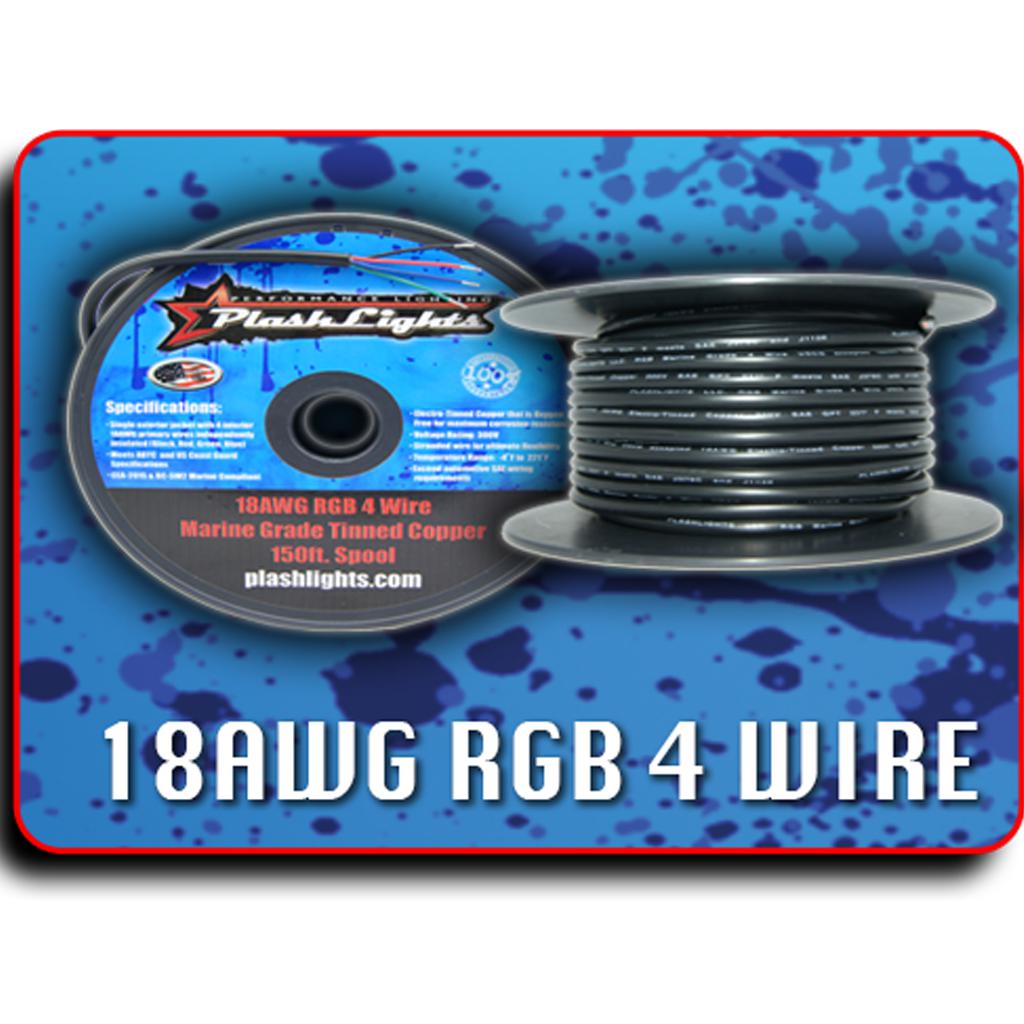

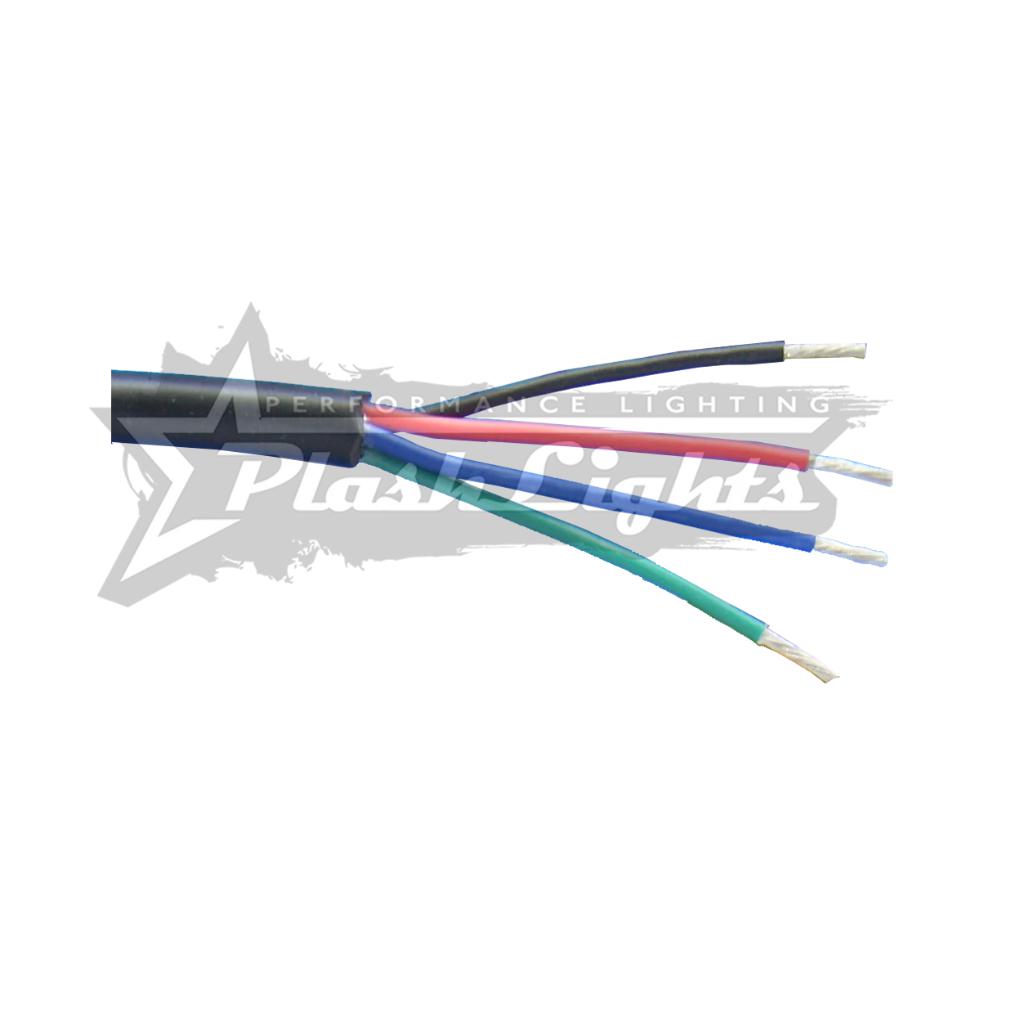

Plashlight 18AWG RGB 4 Conductor Wire - 150ft. Spool

Designed by boaters for boaters.  This wire is made to ensure that the lighting added to your boat stays as bright and dependable as when you first envisioned it.

• Single exterior jacket with 4 interior 18AWG primary wires independently insulated (Black, Red, Green, Blue)
• Electro-Tinned Copper that is Oxygen Free for maximum corrosion resistance
• Stranded wire for ultimate flexibility
• Voltage Rating: 300V
• Temperature Range: -4°F to 221°F
• CEA-2015 & BC-5W2 Marine Compliant
• Exceeds automotive SAE wiring requirements
• Meets ABYA and US Coast Guard specifications
• Sold by the Spool - 150 ft. ($1.63/ft)
• MADE IN THE USA

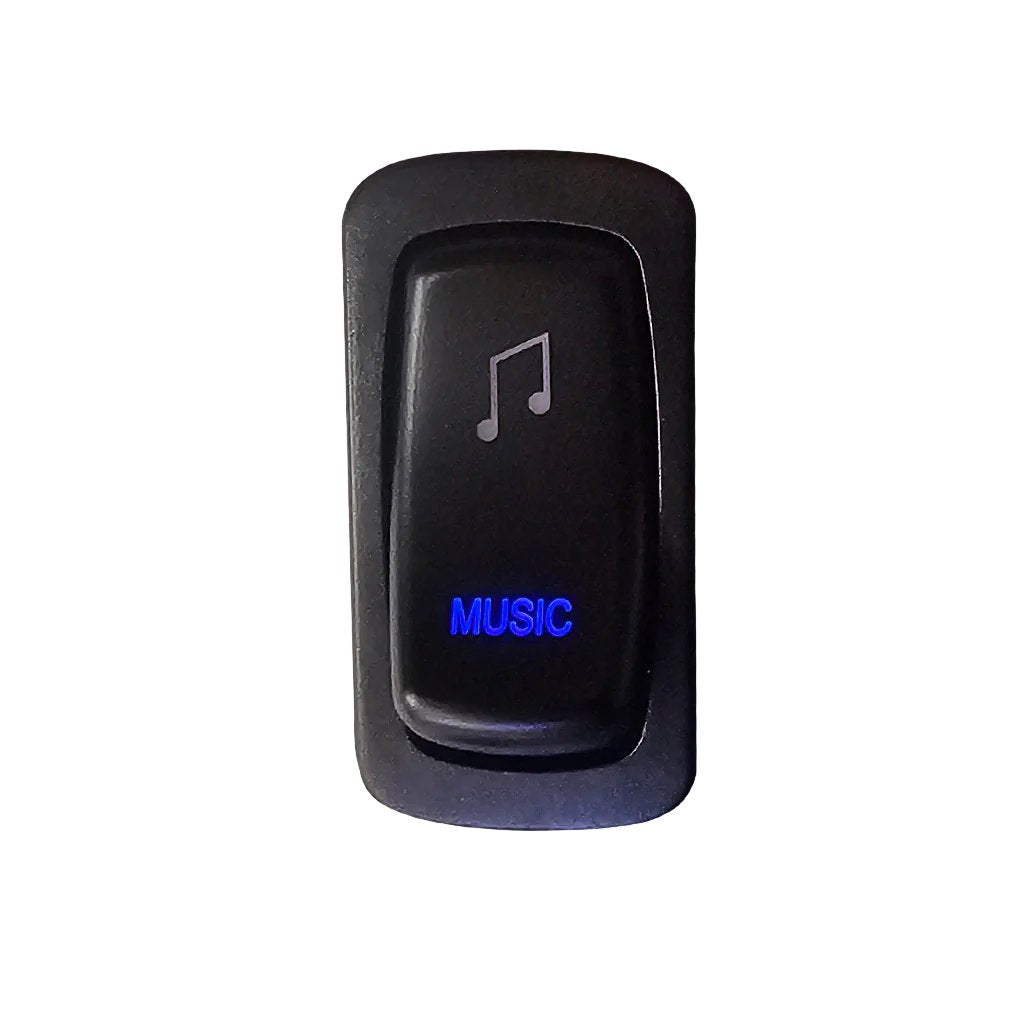

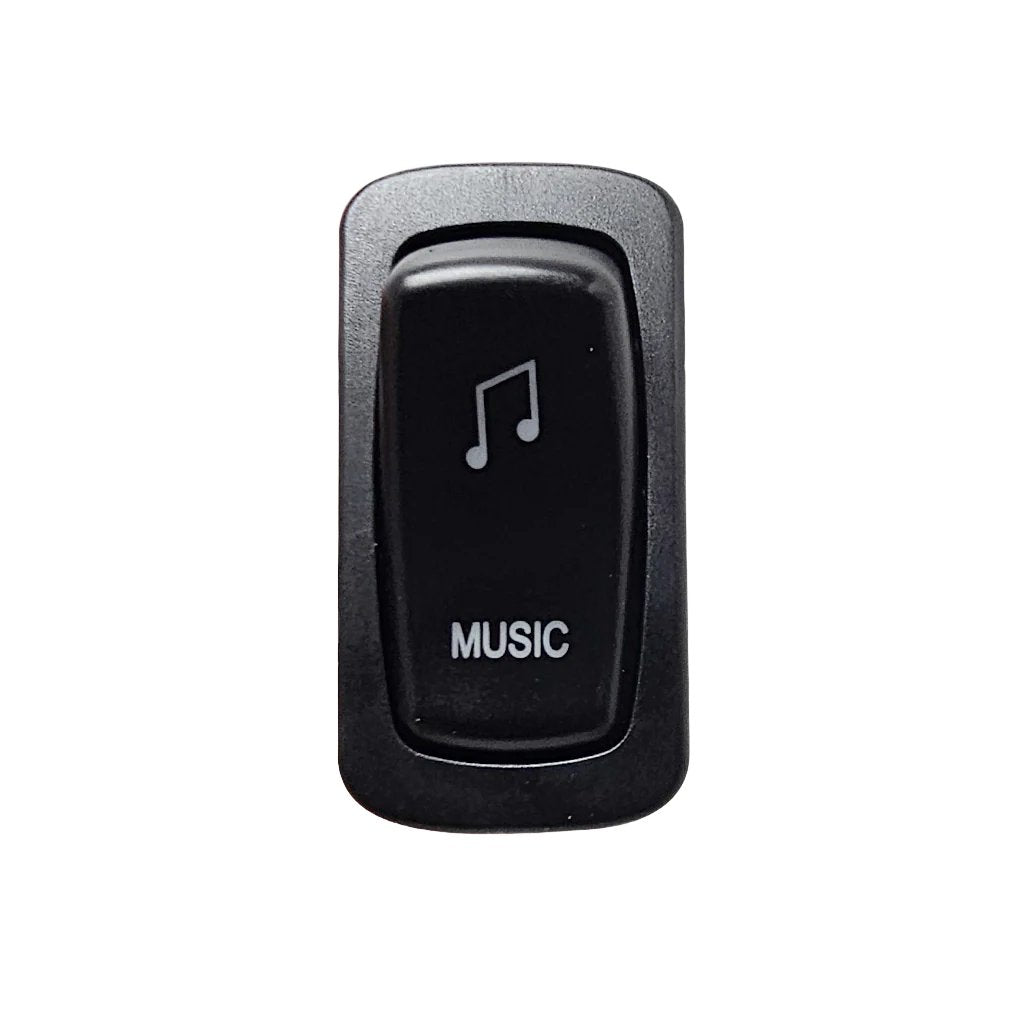

Plashlight Music - L Series  Rocker Switch

This single-pole single-throw (SPST) L Series type LED rocker switch lets you quickly activate music on your off-road vehicle, truck, UTV, boat, tractor, or machine.

• Text is illuminated when the vehicle is on, and the legend is illuminated when the switch is pressed ON.
• 20-amp 12V switch has (4) 1/4" male contact terminals to be used with 1/4" female push-on connectors.
• The sealed, watertight rocker switch easily installs in industry standard panel cutouts with the included rubber gasket (optimal panel thickness: 0.13" or 0.03" min. - 0.19" max.).
• Requires a 0.83" x 1.45" hole (industry standard)
• Great for Polaris, Can-Am, Honda, Kawasaki, Toyota, Kubota, John Deere & many more factory cut-outs.

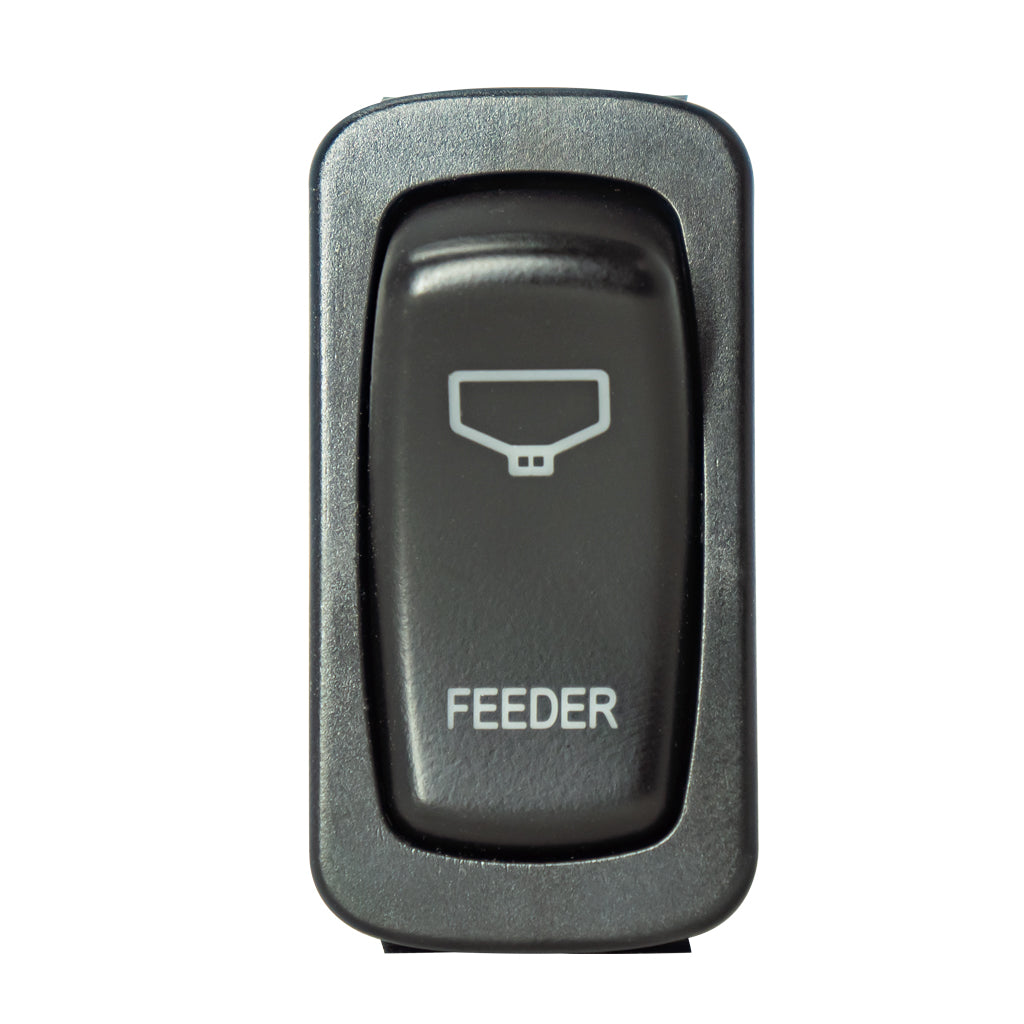

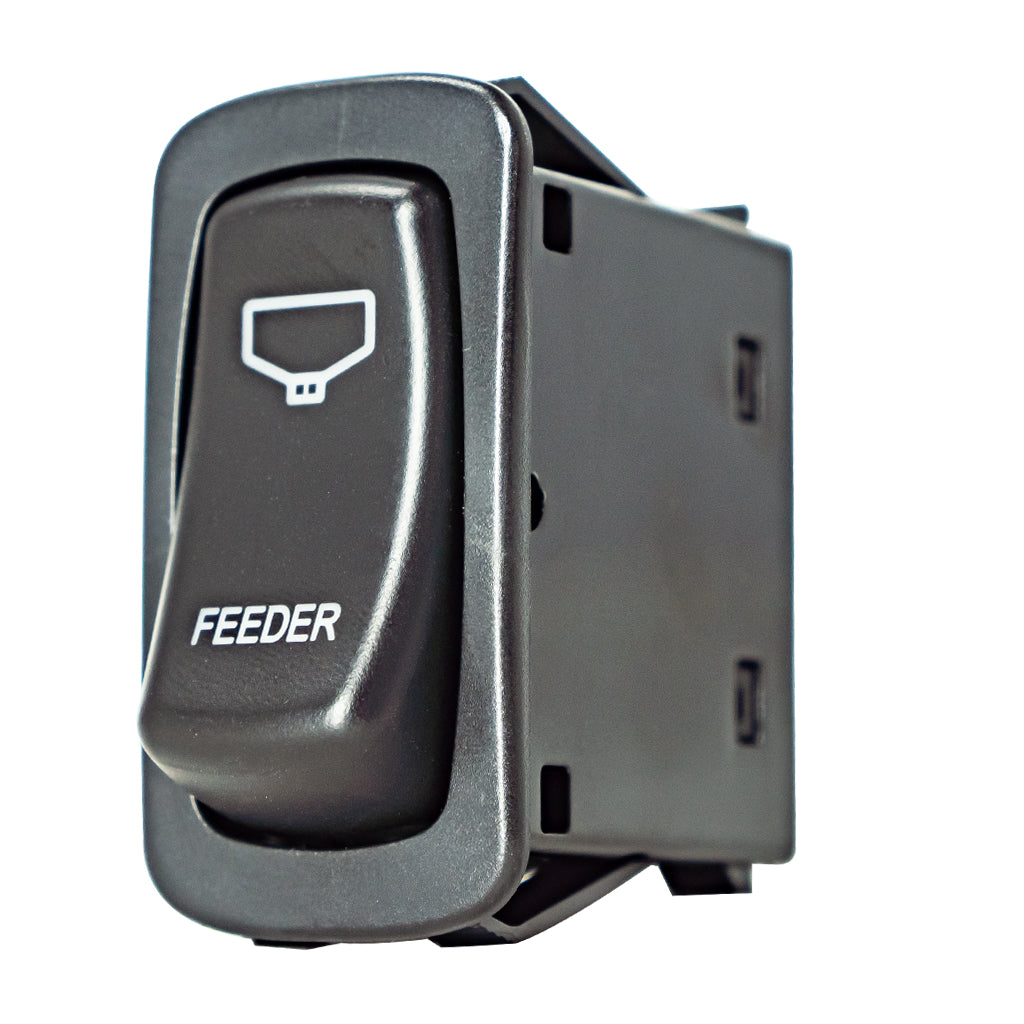

Plashlight Feeder - L Series Rocker Switch

This single-pole single-throw (SPST) L Series type LED rocker switch lets you quickly activate lights on your off-road vehicle, truck, UTV, boat, tractor, or machine.

• Text is illuminated when the vehicle is on, and the legend is illuminated when the switch is pressed ON.
• 20-amp 12V switch has (4) 1/4" male contact terminals to be used with 1/4" female push-on connectors.
• The sealed, watertight rocker switch easily installs in industry standard panel cutouts with the included rubber gasket (optimal panel thickness: 0.13" or 0.03" min. - 0.19" max.).
• Requires a 0.83" x 1.45" hole (industry standard)
• Great for Polaris, Can-Am, Honda, Kawasaki, Toyota, Kubota, John Deere & many more factory cut-outs.
• Momentary press and latching (on/off) styles available.

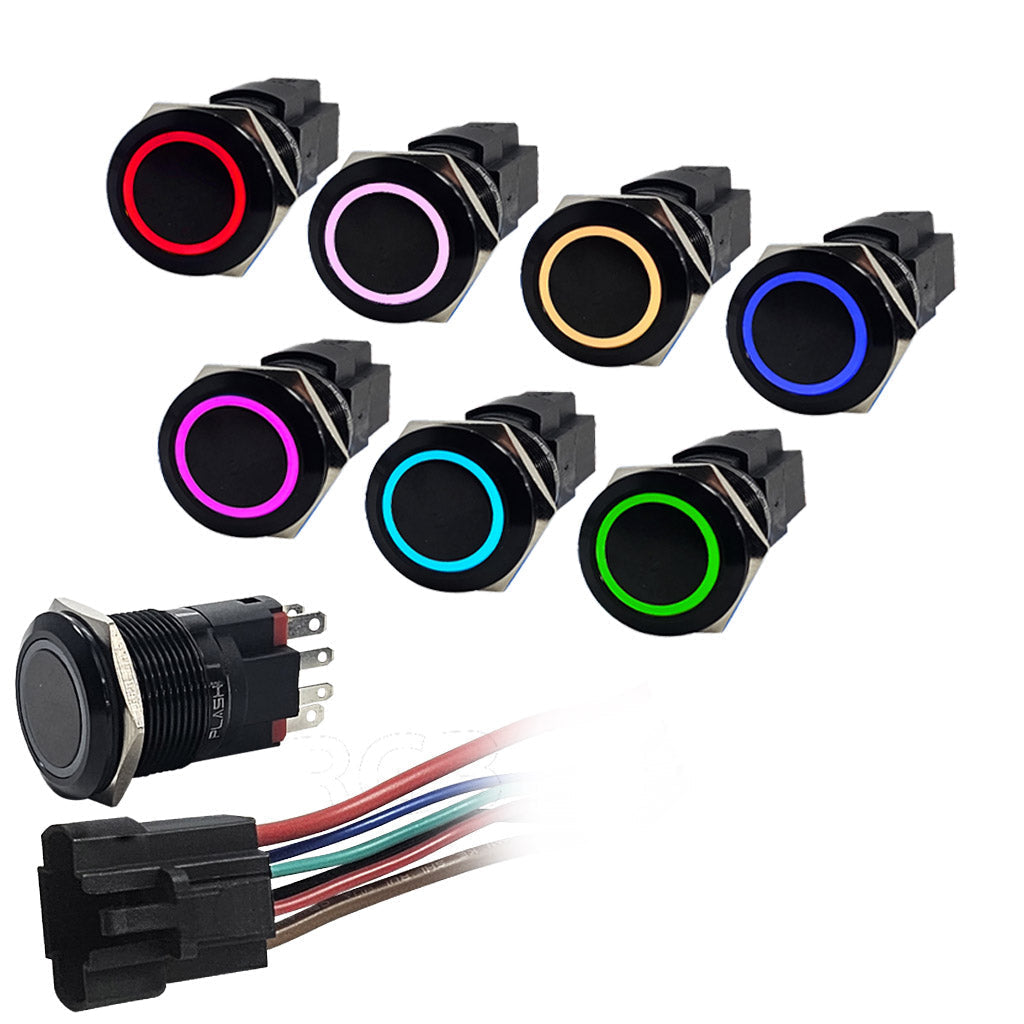

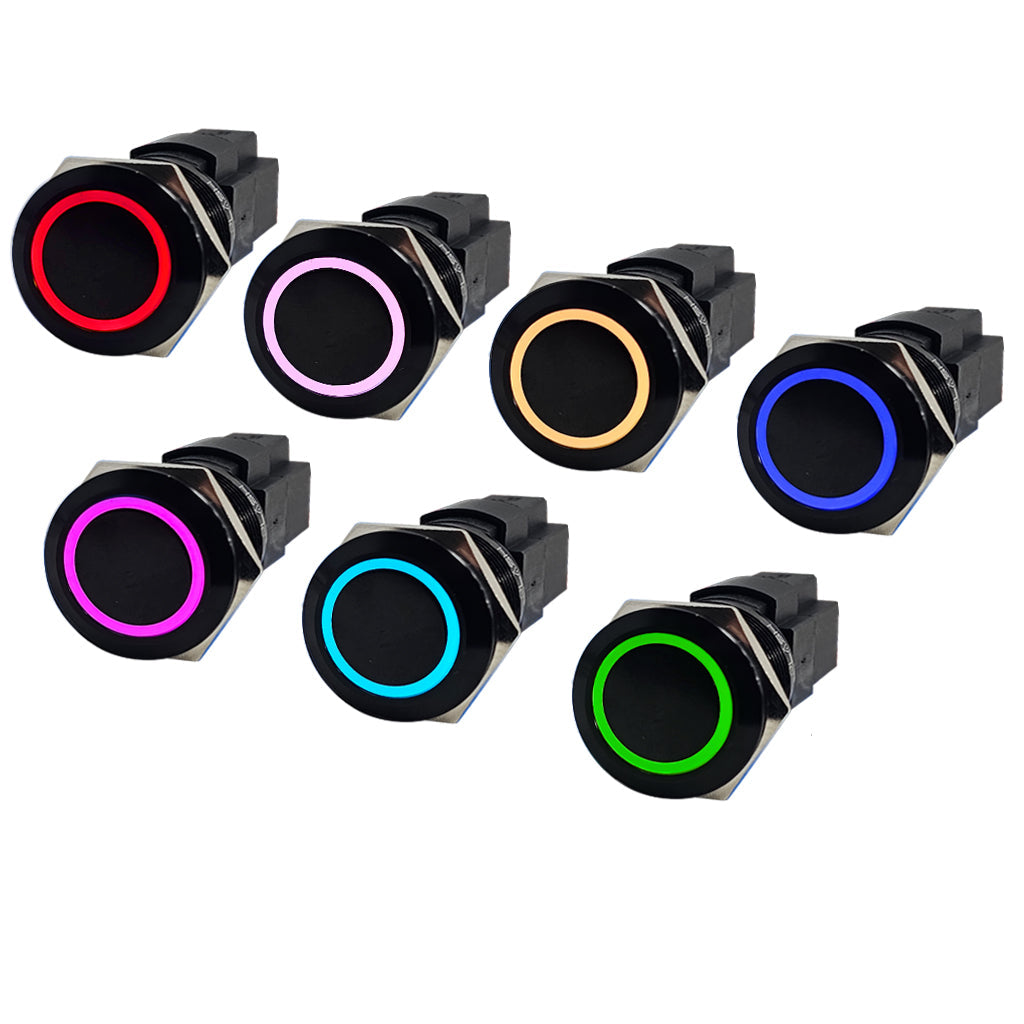

Plashlight Marine Push Button Switch - RGB - 10A - Black Anodized

FEATURES:

• Rated for 10A
• Black Anodized Aluminum Housing
• Simply wire according to an RGB Controller for your choice of color options such as color changing Fade, Flash/Strobe, or a single color such as hot pink or teal.
• 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
• 25mm (1") Outside Diameter
• Works on 12V Systems
• LED Backlit Ring in your Choice of Colors
• IP67 Rated - Waterproof
• Silky Smooth Movement
• Rated for 150,000 Cycles (Presses)
• Removable Clip for Wiring Harness
• 3ft of Wiring for a Simple Installation
• Mounts in panels up to 3/8" thick
• Fits a 7/8" Hole
• Plash Limited Lifetime Warranty

WIRING:

This push button switch has two functions:

A) Illuminating the LED Ring

B) Controlling the Equipment that it is Connected to (such as a bilge pump or light bar).

A) LED Illuminated Ring on the Switch:

The below 4 wires connect to the RGB Controller --> **Sold Separately

• BLACK 18 AWG Wire = Positive V+ (connects to RGB controller)
• RED 18 AWG Wire = Ground (connects to RGB controller)
• BLUE 18 AWG Wire = Ground (connects to RGB controller)
• GREEN 18 AWG Wire = Ground (connects to RGB controller)

B) Control of your Load:

• RED 14 AWG Wire = Positive V+  IN from Fuse Panel (verify the fuse is correctly sized for your load)
• BROWN 14 AWG Wire = Positive V+ OUT to Load (example: connects to bilge pump)

* For wiring diagram see images.

SPECIFICATION SHEET:

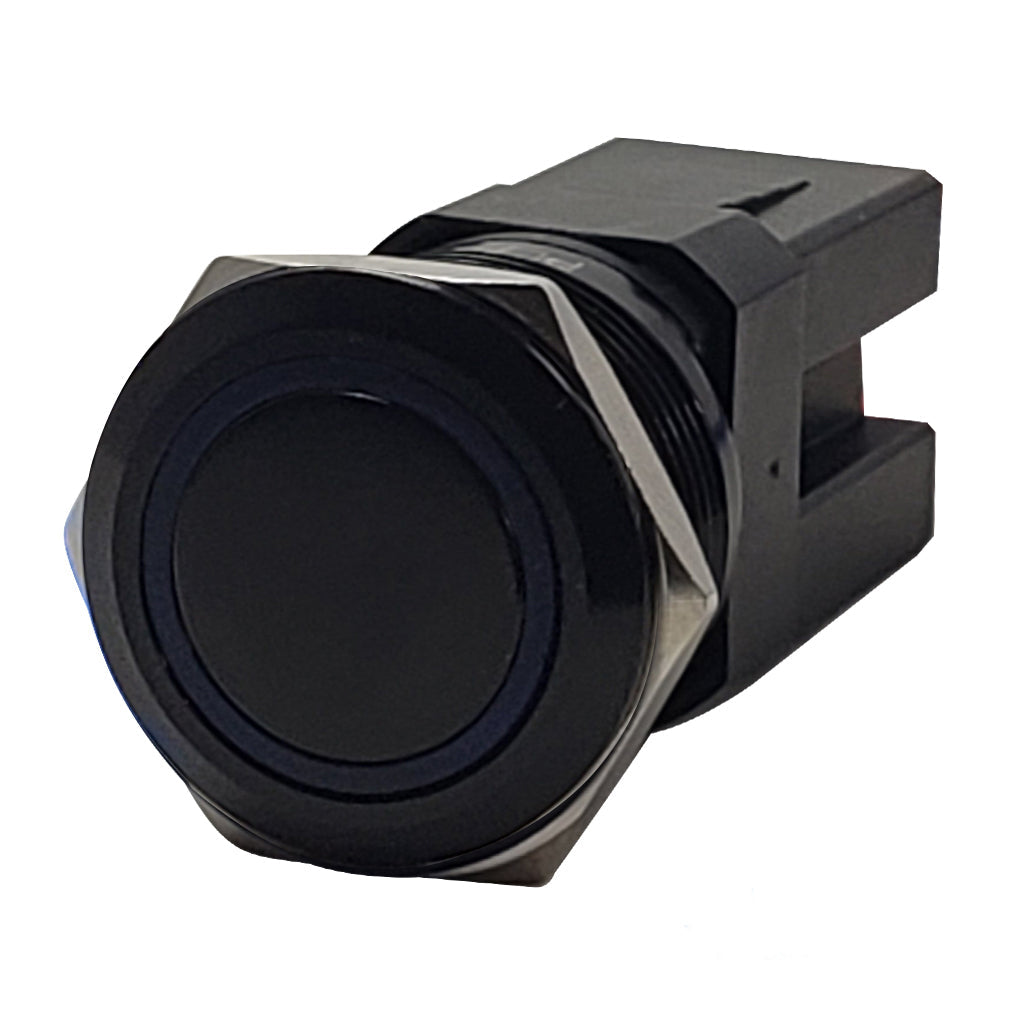

Plashlight Marine Push Button Switch - Blue LED - 20A - Black Anodized

FEATURES:

• Rated for 20A
• Black Anodized Aluminum Housing

• Simply remove the switch and rotate it 180° to change from "LED Always On" to "LED On When Pressed."
• 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
• 25mm (1") Outside Diameter
• Works on 12V or 24V Systems
• LED Backlit Ring in your Choice of Colors
• IP67 Rated - Waterproof
• Silky Smooth Movement
• Rated for 150,000 Cycles (Presses)
• Removable Clip for Wiring Harness
• 3ft of 14AWG Wiring for a Simple Installation
• Mounts in panels up to 3/8" thick
• Fits a 7/8" Hole
• Plash Limited Lifetime Warranty

WIRING:

• BLACK wire = Ground
• RED wire = Positive V+
• BLUE wire = Ground
• BROWN wire = Positive V+

* For wiring diagram see images.

 There are many options when it comes to wiring configuration such as do you want the LED ring to be on all the time, only when the navigation lights are on, or only when the switch is pressed?  Depending on how you wire the switch, and the orientation of the switch, you can decide which function suits you best.

SPECIFICATION SHEET:

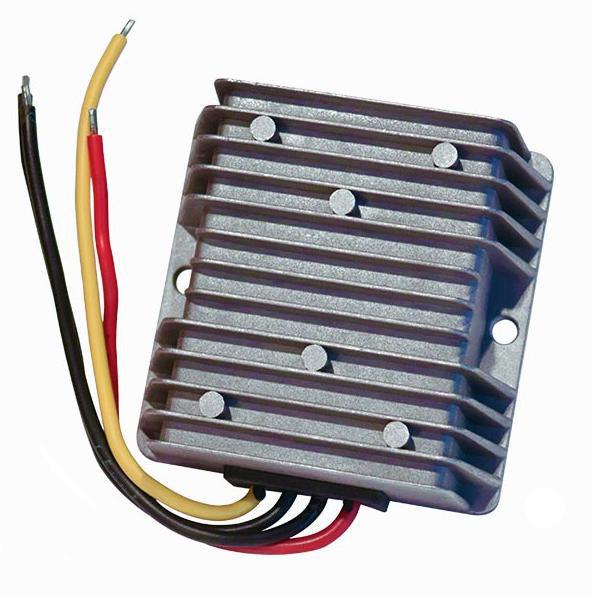

Plashlight 12V to 24V Step Up Voltage Regulator

12V to 24V 10A step up power converter and regulator boosts the voltage of DC power to run 24V equipment and devices off 12V battery packs and power sources.

Get more voltage out of your battery banks with fewer batteries, or swap your series voltage for parallel and get more amp-hours out of the same batteries.

Available in a 10A output or a 20A output.

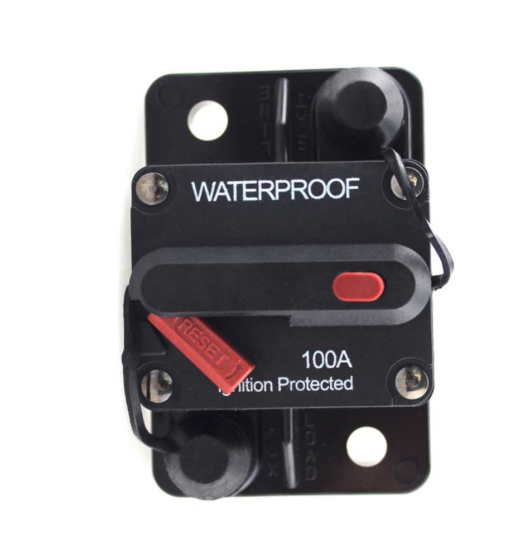

Plashlight In-Line Resettable Circut Breaker

• Manual Resettable Circuit Breaker
• 50A-150A
• Compatible with all 12, 24 Volt Systems
• Stops Power Surges From Damaging Your Lights
• Protects Your Electronics From Damage
• Mount on Panel or Firewall
• Unique Push Button Reset can also be used as a Kill Switch
• Push Button Reset will Save Your Money by not having to Replacing Fuses

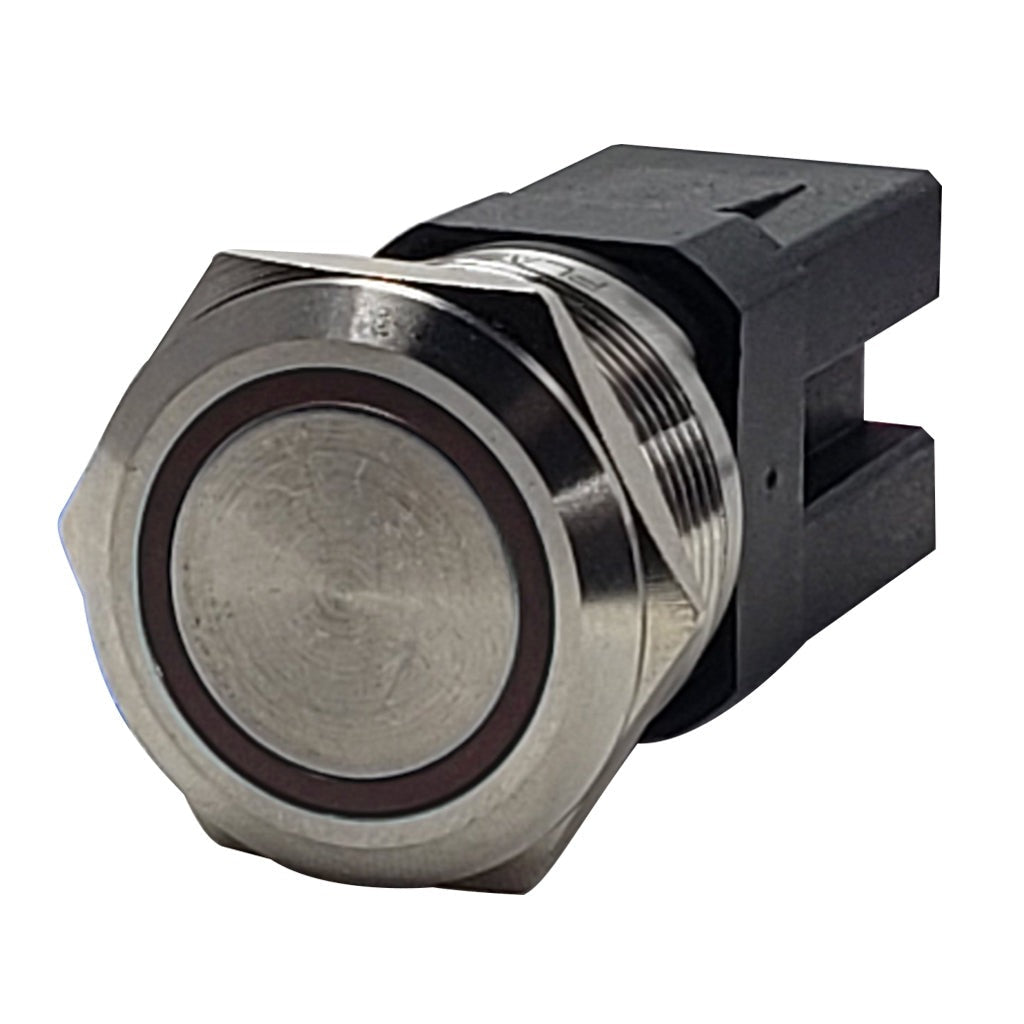

Plashlight Marine Push Button Switch - Red LED - 20A - Stainless Steel

FEATURES:

• Rated for 20A
• Stainless Steel Housing - No Rust
• Simply remove the switch and rotate it 180° to change from "LED Always On" to "LED On When Pressed."
• 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
• 25mm (1") Outside Diameter
• Works on 12V or 24V Systems
• LED Backlit Ring in your Choice of Colors
• IP67 Rated - Waterproof
• Silky Smooth Movement
• Rated for 150,000 Cycles (Presses)
• Removable Clip for Wiring Harness
• 3ft of 14AWG Wiring for a Simple Installation
• Mounts in panels up to 3/8" thick
• Fits a 7/8" Hole
• Plash Limited Lifetime Warranty

WIRING:

• BLACK wire = Ground
• RED wire = Positive V+
• BLUE wire = Ground
• BROWN wire = Positive V+

* For wiring diagram see images.

 There are many options when it comes to wiring configuration such as do you want the LED ring to be on all the time, only when the navigation lights are on, or only when the switch is pressed?  Depending on how you wire the switch, and the orientation of the switch, you can decide which function suits you best.

SPECIFICATION SHEET:
