Zeus A220/3000W 12V HD High Output Alternator - Pad Mount

ARCO Zeus Heavy Duty Alternator is engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator
• Designed for Extended Duty Operation
• Engineered for high energy production
• Rapidly charges large battery banks
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine
• External Regulation Required
• SAE J1171 Certified

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 12V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 249 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 228 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 200 amps
• Max Continuous Operating Temperature: 125°C

Zeus A115/3500W 24V HD Hight Output Alternator - J180 Mount

ARCO Zeus Heavy Duty Alternator is engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator!
• Suitable for most diesel applications
• Designed for extended duty operation
• Engineered for high energy production
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine.
• External Regulation Required

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 24V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 132 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 104 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 89 amps
• Max Continuous Operating Temperature: 125°C

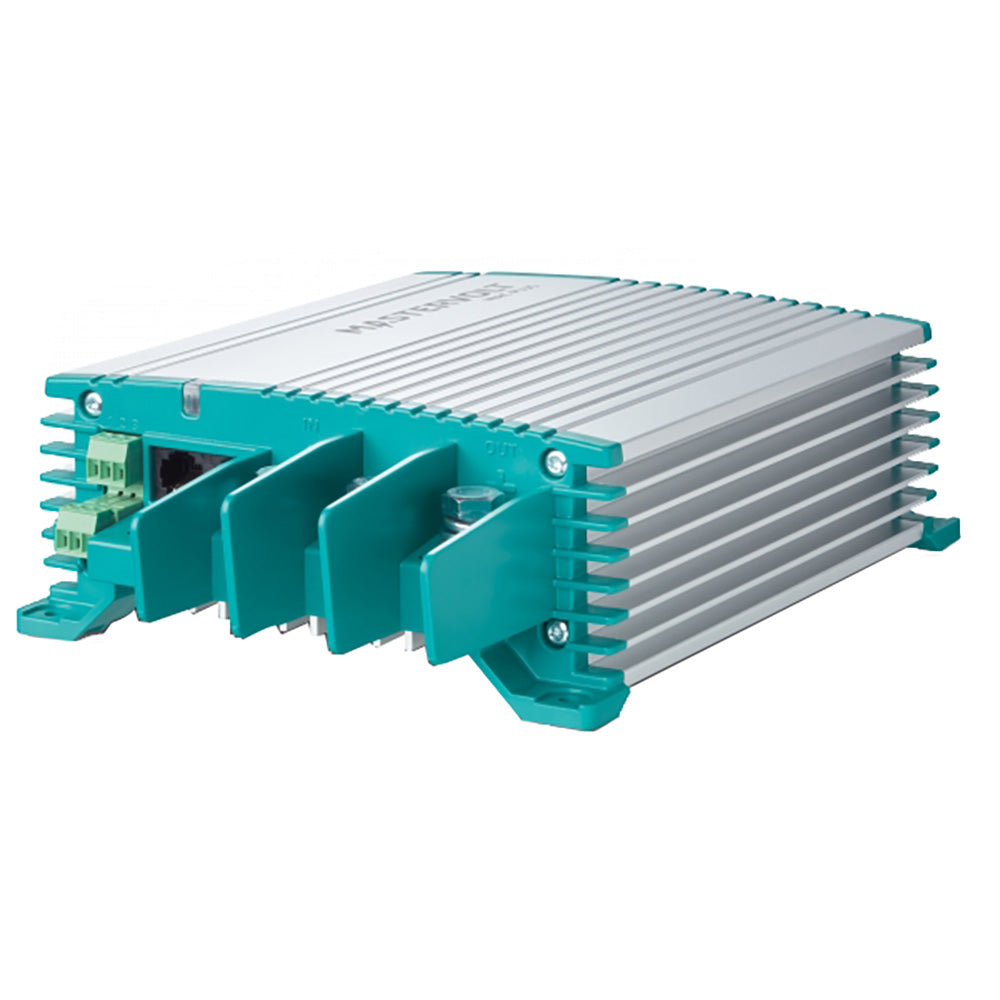

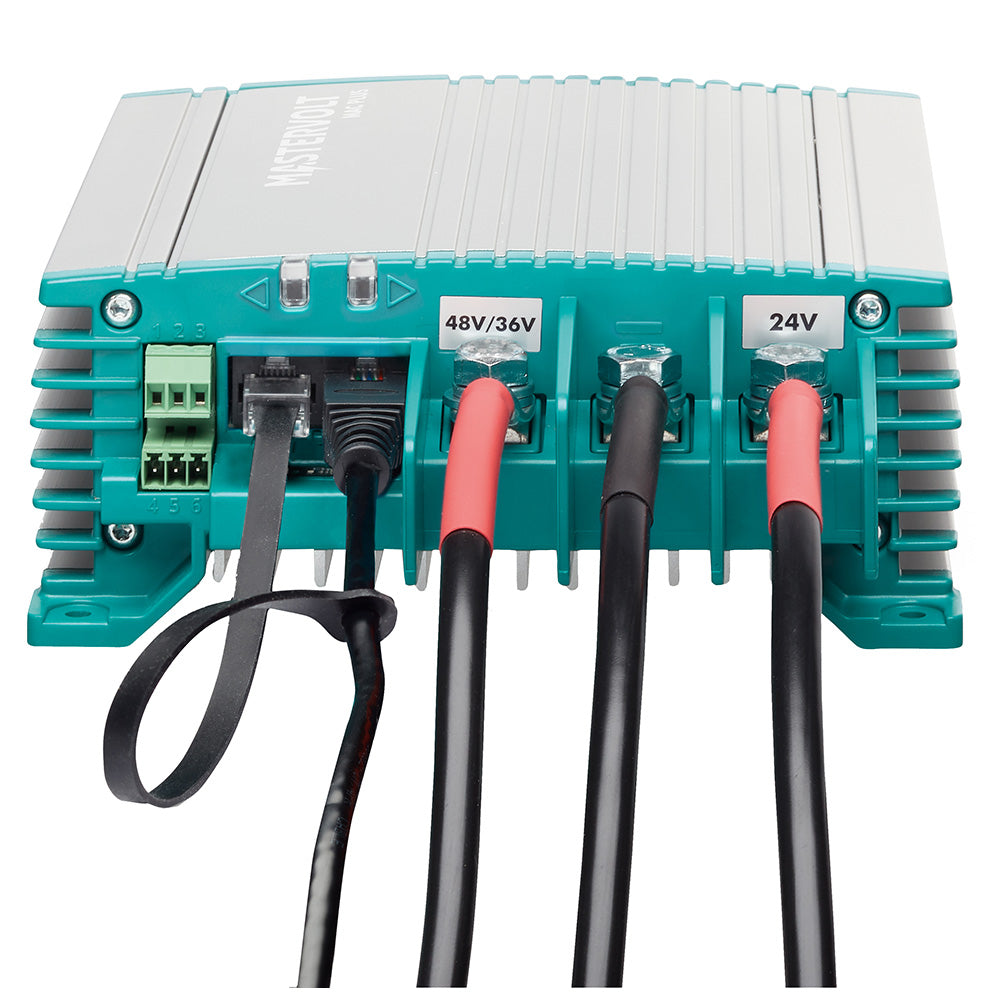

Mac Plus 12/48-15

Boost Your Service Battery

Too often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus 48V and 36V solve that problem. With brand-new bi-directional technology, the Mac Plus can use each side as an input or output, delivering a reliable and consistent charge to both service and starter batteries.

Proven Mastervolt Quality

The Mac Plus uses the proven Mastervolt 3-step+ charge algorithm, delivering a quick and easy charge, even to completely flat batteries. By knowing when the engine is running and providing charge, you can also be sure that the Mac Plus will never drain your starter battery.

A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.

Total Power Flexibility

With a wide DC input range, the Mac Plus allows all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.

Parallel configuration of up to ten units will provide over 100 amperes. And advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 36/48V to 12/24V and vice versa.

Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.

Superior Monitoring & Control

Compatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.

Features:

• Bi-directional technology
• Get either 48V or 36V power from a single unit
• Fast and safe charging, even during short trips
• Fanless design for silent operation
• Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4)
• Even charges fully depleted batteries
• Engine run detection protects the starter battery
• Adjustable current limits to meet Euro 5/6 requirements
• Voltage stabilization protects sensitive equipment, lights, and loads
• Parallel operation to obtain charging capacities well over 100 Amps
• MasterBus, CZone, and NMEA 2000 compatible, with intelligent system monitoring and automation
• Temperature compensation and voltage sense for an optimal charging result
• E-Mark/R10 certification for mobile applications
• Power supply mode offers stable power for sensitive loads
• Heavy-duty connections for easy installation and quick setup via DIP switches

General Specifications:

• Battery Voltage Sense: Yes
• Status indicator: Yes, 3 color double LED
• Communication protocol: MasterBus, CZone & NMEA 2000
• Output voltage: 30-60 V DC
• Nominal output voltage: 36/48 V
• Output voltage stabilization: 2 % at extremes of temps, load, and input
• Output voltage ripple (peak-peak): Max. 1 %
• Max. output power: 900 W
• Max. output current: 15 A
• Nominal input voltage: 12 V DC
• Input voltage range: 8-16 V
• Max. input current: 60 A
• Galvanic isolation: No
• Efficiency: > 95 % (at nom. input voltage, full load); 97 % peak
• Parallel configuration: Yes, up to 4
• Alarm contact: Yes, through MasterBus, CZone, DIP Switch, or remote switch
• Engine run signal input: Yes (active high/active low)
• DIP switches: Yes, for basic setup
• Dimensions, hxwxd: 255x165x66 mm, 10.0 x 6.5 x 2.6 inch
• Weight: 2 kg, 4.4 lb
• Compliance: CE, E-Mark, SAE J1171, ISO 8846 ignition protected, ABYC & UKCA

Technical Specifications:

• Battery types: Gel, AGM, Lithium Ion, user-defined
• Power consumption: < 5 mA, < 10 mA in CZone, < 1 mA in MasterBus
• Temperature range (ambient temp.): - 25 °C to 60 °C; derating > 40 °C/104 °F
• Cooling: Natural cooling
• Protection degree: IP23
• Protections: Overload, over-temperature, DC short circuit, reversed polarity (fuse)

Specifications:

• Charger Input - Voltage: 12v
• Charger Output - Amps: 15a
• Charger Output Voltage: 36/48V
• Box Dimensions: 4"H x 9"W x 15"L WT: 5.6 lbs
• UPC: 816882023446

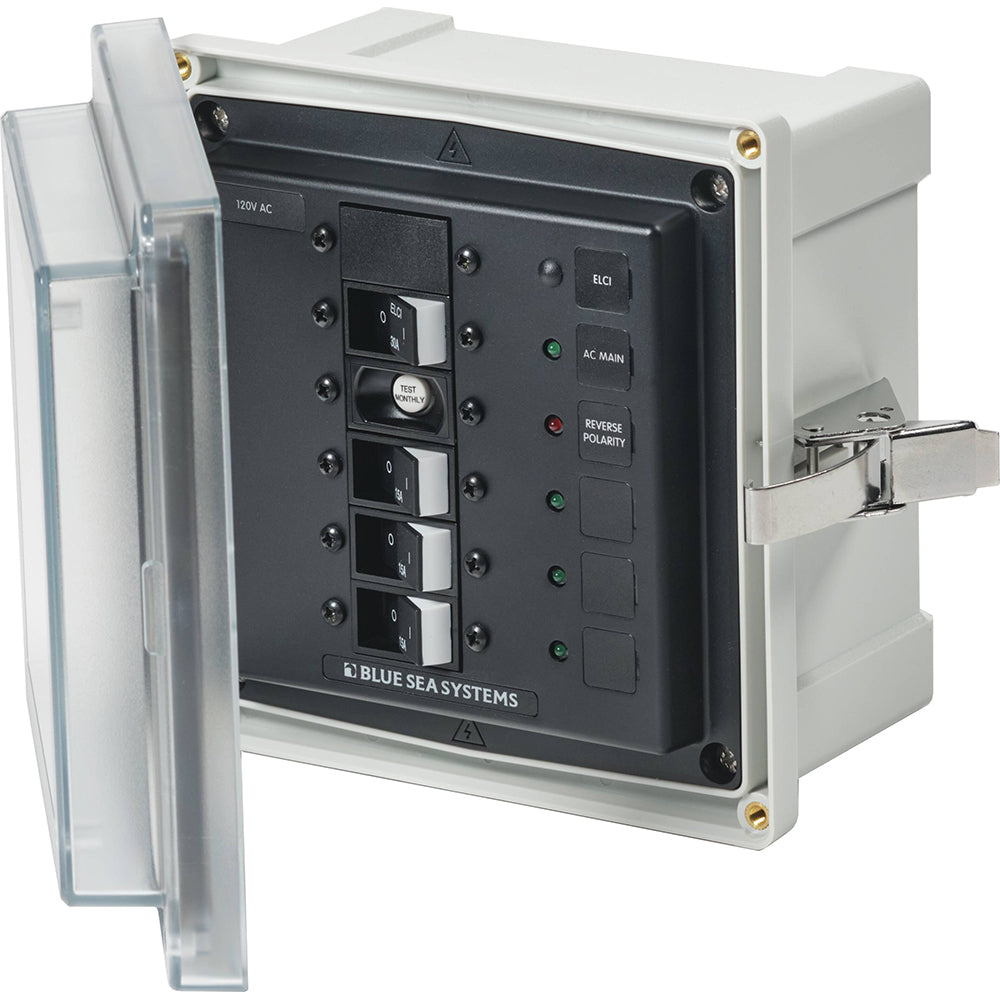

3128 - SMS Panel Enclosure with ELCI (30A) & 3 Branch (15A) - 120V AC

The 3128-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass-filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Branch (15A)
• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC)

In the Box:

• 3128 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

These inverters provide AC power source onboard trucks, RVs and boats. Featuring high surge capability, they are ideal for users who may need to power multiple loads such as appliances, power tools and other onboard electronics at the same time. The NEW XPower Inverters are certified to CSA standard C22.2 No. 107.1-01 and UL 458.

Mobile Power for Trucks, RVs and Boats

XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models meet the stringent UL458 regulatory requirements.

Product Features:

• Portable power for AC products

• Two GFCI AC receptacles for connecting multiple loads

• 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker

• High surge capacity for products that require more power to start

• High efficiency - converts virtually all the battery's available power to AC

• Mounting brackets for convenient installation

• Heavy duty stud connectors

• Remote on/off switch included


• Overload and over temperature shutdown

• Over voltage protection (15.0 VDC)

• Low voltage alarm (11.0 VDC)

• Low voltage cut-out (10.5 VDC)


• Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans

• Handheld Power Tools: drills, jigsaws, sanders and buffers

• Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment

• Office Equipment: computers with 17" monitors, facsimile machines

  WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • DC Connection Type: Hardwire
  • GFCI: Yes
  • Outlet Qty: 2 Duplex GFCI
  • Inverter Surge Rating: 10000w
  • Inverter Input Voltage: 12v
  • Waveform: Modified Sine Wave
  • Inverter Cont. Output Wattage: 4000w
  • AC Connection Type: Hardwire
  • Inverter Output Voltage: 115v +/- 5%
  • Box Dimensions: 11"H x 13"W x 24"L WT: 30 lbs
  • UPC: 715535896591

  Quick Guide (pdf)
  Owner's Manual (pdf)
  Brochure (pdf)

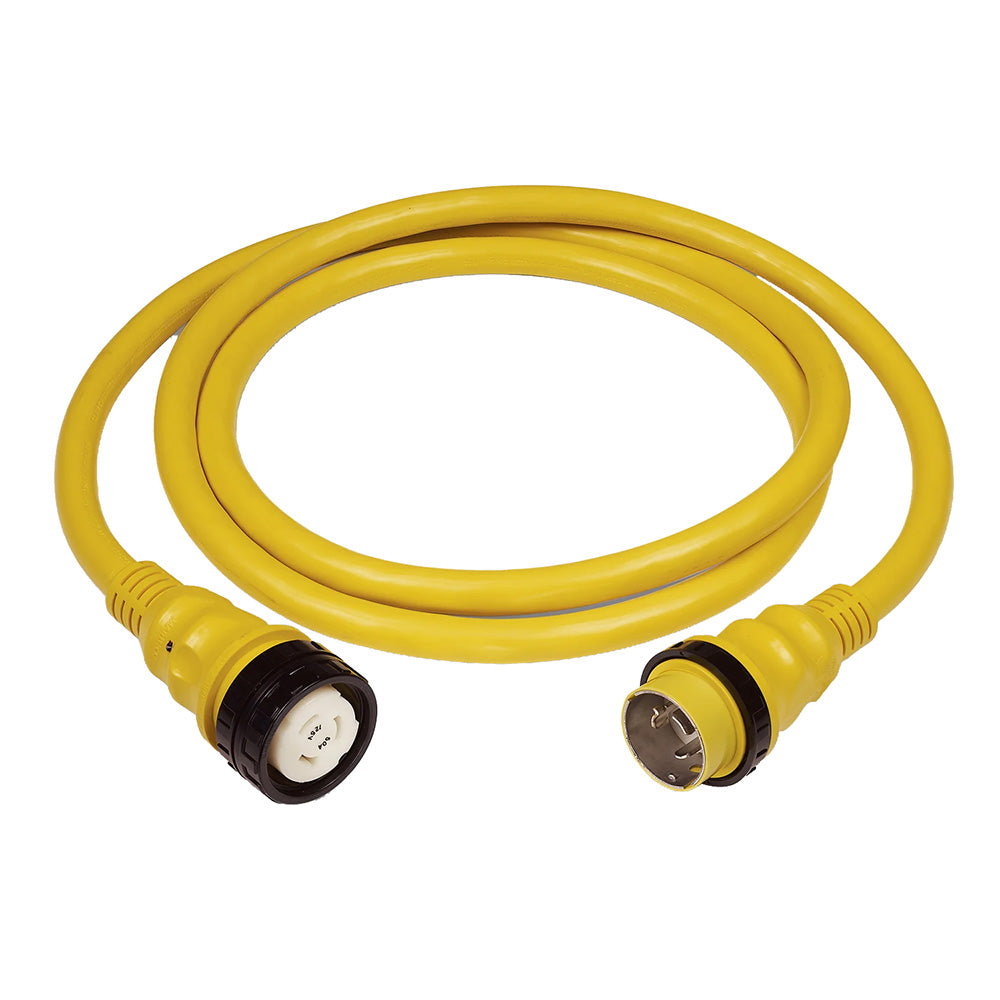

PowerCord Plus Cordset - 50AMP - 125/250V - 75' - Yellow

Marinco's PowerCord Plus 50A Cordset is a shore power cable designed for 50A 125/250V AC service.

Features:

• Heavy-duty, super-flexible marine-grade cable
• Corrosion-resistant, nickel-plated contacts
• Watertight molded plug and connector for safety and durability
• Standard threaded ring for hook-up to ordinary threaded inlets
• Power indicator light on the boatside connector features a molded-in LED light. When it glows red, you know you have power to the boat.
• Contour grip with thumbnail locator, both plug and connector ends are molded to fit the contour of your hand
• When the thumbprint is in the "12 o'clock position," the blades line up for easy connection
• Marinco Easy Lock system quickly locks the cordset to the inlet with just 1/8 of a turn
• These exclusive locking tabs engage the slots built into all Marinco inlets
• Meets and exceeds rigorous UL testing standards

125V Specifications:

• Connections: NEMA SS2-50R Female (boatside) / SS2-50P Male (dockside), Marinco Easy Lock System
• Max. Amperage: 50A
• Max. Voltage: 125V
• Cable Size: 6 AWG
• Conductors: 3
• Material: PVC (jacket), nylon (plug bodies), nickel-plated brass (contacts)

250V Specifications:

• Connections: NEMA SS2-50R Female (boatside) / SS2-50P Male (dockside), Marinco Easy Lock System
• Max. Amperage: 50A
• Max. Voltage: 125/250V
• Cable Size: 6 AWG
• Conductors: 4
• Material: PVC (jacket), nylon (plug bodies), nickel-plated brass (contacts)

Yellow 1/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Yellow
• Length (Feet): 100'
• Gauge: 1/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 43.05 lbs
• UPC: 091887968033

Dual Pro HF Eagle ES800 Series 36V Single Lithium Charger [ES0800-36V003]

HF Eagle ES800 Series 36V Single Lithium Charger

For Marine, Golf, Aerial, Emergency Services, Floor Scrubbers, and more.

Applications:

• Marine: Connect to our PROView Link app to choose the right algorithm for your Lithium, AGM, or Lead Acid batteries and more.
• Golf & LSV: Pair our portable charger with our 7.5 ft. interchangeable connector cables. We offer options for most major cart manufacturers. Our PVL app allows you to choose the algorithm for your battery(s) chemistry.
• Aerial Equipment: Our chargers work with most Scissor and Boom Lifts, as well as various carts and burden carriers' manufacturers.
• Emergency Services: First Responders & Warning Systems depend on our chargers to keep their batteries charged and conditioned for use when needed.
• Floor Scrubbers: Rugged and Waterproof to work in any Janitorial/Industrial environment.
• Your Equipment: The Eagle Series HF (ES800) is the perfect choice for any application requiring a Powerful, Durable, Waterproof Charger with Advanced Data Monitoring & Logging capabilities, with selectable algorithms all accessible via our free-to-download PROView Link App.

Features:

• Portable and Onboard Options
• Output: 800W - 24VDC @ 33.3A, 36VDC @ 22.48VDC, & 48VDC @ 16.7A
• AC Universal Input (85-270 VAC 50/60HZ)
• CAN Capable
• PROView Link App Enabled to receive over-the-air updates and more
• Dimensions: L10" x W7.15" x H4"
• Weight: 11 LBS
• Developed to be interleaved for higher output requirements
• US Designed and Assembled

Quick Guide (pdf)
