SS4 Auto 4 Bank Battery Charger with 3 Bank B.O.S.

This kit combines Dual Pro’s B.O.S. Battery Optimization System - 12V - 3-Bank (PN: BOS12V3) and Dual Pro’s SS4 Auto 40A - 4-Bank Lithium/AGM Battery Charger (PN: SS4AUTO).

B.O.S. (Battery Optimization System) - 12V - 3-Bank

B.O.S. actively shuttles energy between batteries to keep “the pack” balanced, increasing battery strength and longevity.

Batteries in a pack will become “out of balance” and the pack is only as good as its “weakest link”. In watercraft applications, this is further compounded when the trolling motor battery is used for peripherals and/or to assist the cranking battery.

B.O.S. actively shuttles energy as needed between batteries wired in series to ensure equal voltage before, during, and after charging.

B.O.S. keeps packs balanced, enabling maximum performance, and quadruple run time on the water.

Premature battery failure due to an unbalanced pack has been, unfortunately, accepted as the ‘norm’ for decades. The B.O.S. answers this call with a BSAP-24 algorithm that can accurately predict and select the battery that needs additional energy to match the other batteries within the pack. This simultaneously and successfully extends the life of each battery in the pack, as well as increasing run times.

Features:

• Available in 6V, 8V, and 12V configuration
• Up to six batteries in a series
• Battery Selection and Prediction (BSAP-24) algorithm
• Less than 1mA sleep mode
• Transfer rate up to 7.5A
• Self-powered
• Any type of battery chemistry

Used in Any Application Where Batteries Are in Series:

• Marine
• Golf
• Industrial
• Aerial Equipment
• Solar Power
• Electrical Vehicles
• Communications
• Defense/Military

SS4 Auto 40A - 4-Bank Lithium/AGM Battery Charger

Latest Technology:

• Detects if a battery is Lithium or AGM
• Automatically charges both Lithium and AGM batteries for optimal performance
• Fully automatic. Completely and safely charges both Lithium and AGM batteries
• Algorithms designed and validated with battery manufacturers for a 100% charge
• The startup feature will wake up batteries that have turned off due to low-voltage protection
• Auto return to charging feature
• Quickest charge times in its class
• Unbeatable performance, reliability, safety, and quality delivered by DUAL PRO®

Features:

• Waterproof - Use on land and in fresh and saltwater
• TROUBLE-FREE—Just Plug It In and Forget It!
• Independent outputs
• Fully automatic/multi-stage charging
• On-board diagnostic codes
• FCC 15 Parts A & B interference compliant
• Approved and meets ISO 8846 Marine standards
• Ignition protected (US Coast Guard 33 CFR 183.410)
• 3-Year Warranty

AutoProfile Intuitive Charging Technology Lithium/AGM

Professional and Sportsman Series chargers have set the standard in the marine industry for more than two decades, known as the safest, most reliable, and best performing chargers in the industry.

AutoProfile Intuitive Charging Technology provides flexibility for the charging system, ready for the ever-changing lithium battery technologies. No matter if users choose Lithium or AGM batteries for the boat, Dual Pro is ready to keep a boat on the water longer, enhancing battery performance and extending battery life.

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 40a
• Charger Output Voltage: 12/24/36/48v
• Charging Banks: 4
• Portable: No
• Box Dimensions: 3"H x 6"W x 9"L WT: 25.5 lbs

Dolphin Charger DC-DC Converter - 12/36V - 20A [99204]

DC-DC Converter - 12/36V - 20A

Your boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!

Flexibility & Versatility

BOOSTER units are designed to charge a 24V, 36V, or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).

Efficient Power Conversion

Small is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!

Faster Charging Times

BOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).

Compatibility with Different Voltages

BOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.

Protection Features

BOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.

As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger.

Quick Guide (pdf)

Centaur Charger - 50AMP, 12/50(3), 120-240V

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.

Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.

The range spans 12V and 24V models from 16A through to 100A.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charging Banks: 3
• Charger Output Voltage: 12v
• Charger Output - Amps: 50a
• Charger Input - Voltage: 120/240v
• Portable: No
• Box Dimensions: 8"H x 13"W x 22"L WT: 15.95 lbs
• UPC: 8719076021506

Newmar 32-12-25 DC Converter [32-12-25]

32-12-25 DC Converter

Convert 20-50 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)

Features:

• Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating
• Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components
• Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments

Numerous Converter and Load Protection Circuits:

• Current limiting
• Automatic thermal shutdown
• Short circuit proof
• Reverse polarity
• Overvoltage protection
• Carries CE mark

Specifications:

• Input Voltage: 20-50
• Output Voltage: 13.6
• Output Amps (Intermittent): 25
• Output Amps (Continuous): 20
• Case Size (H x W x D): 6.0 x 4.7 x 14.0 inches (15.2 x 11.9 x 35.6 centimeters)
• Weight: 7.5 lb. (3.4 kg)
• Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)
• Ripple: 150 mV P-P maximum
• Regulation: 1% Line/Load
• Switching Frequency: 40 Khz
• Efficiency: 85% – Typical.
• Isolation: Output/Chassis; Input/chassis: 250 VDC

Duty Cycle Ratings*:

• Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating.
• Continuous: 24 hours, 100% duty *24-12-3: 2 minute max. on time
• Idle Current: Less than 100 mA (including power “ON” light)

Operating Temp Specifications:

• 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C.
• Thermal shutdown @ 70 degrees C Case Temperature
• Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C

Mechanical Specifications:

• Powder coated aluminum heat sink case
• Front panel terminal block
• Heavy duty mounting flange
• Conformal coated PC board

Options:

• Operation as a battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
• Extreme vibration mounting kit. (Information below)

Option: Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles. The kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KIT L for units that weigh 2–15 lbs. and Kit H for units that weigh 16–7 lbs.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

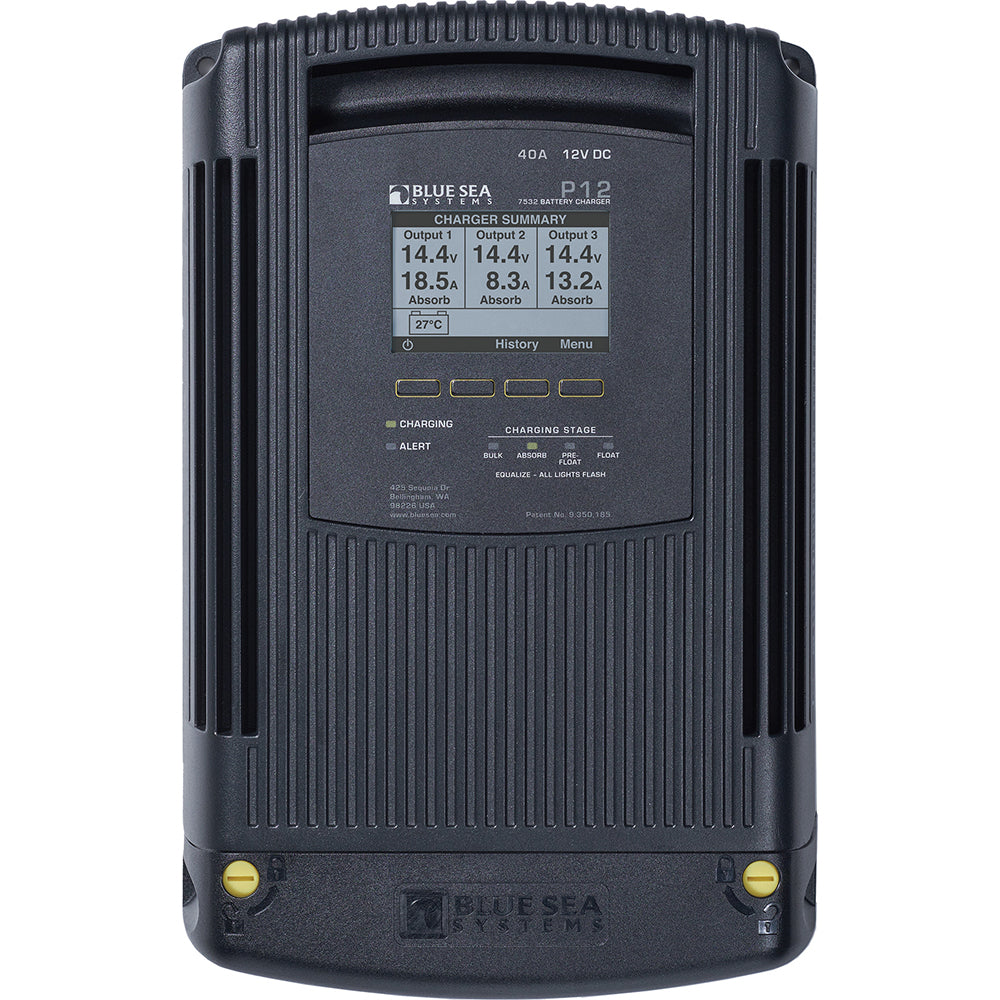

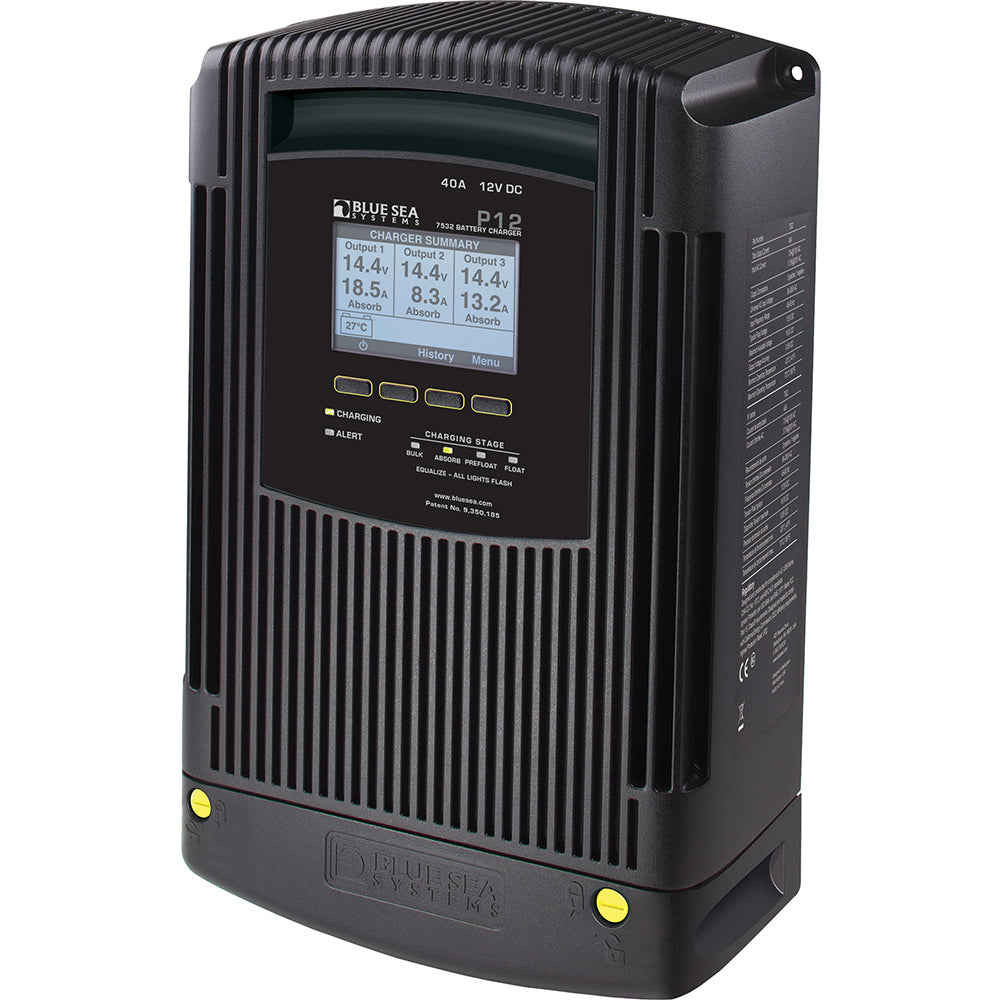

P12 Gen2 Battery Charger - 40A - 3-Bank

Features:

• Four stage, three output, dry mount design, for use in harsh environments.
• Rugged, finned aluminum case
• PreFloat™ stage prevents over charging
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation - adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications:

• Total Output Current: 40A
• Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
• Maximum Output Voltage: 16V DC
• Nominal Voltage: 12V DC
• Ignition Protected: Yes
• Number of Outputs: 1 negative / 3 positive
• Universal AC Input Voltage: 90-265V AC
• AC Input Frequency: 45-65Hz
• Output Voltage Accuracy: 0.05V
• Typical Float Voltage:13.5V DC
• Minimum Operating Temperature: -20° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -30° C
• Maximum Storage Temperature: 80° C
• Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
• Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
• Warranty: 5 Year
• Height: 13.03" (330.96 mm)
• Width: 8.46" (214.88 mm)
• Depth: 3.66" (92.96 mm)
• Weight: 13.00lb (5.9 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charging Banks: 3
• Charger Output - Amps: 40a
• Charger Output Voltage: 12v
• Portable: No
• Charger Input - Voltage: 120/240v
• Box Dimensions: 7"H x 11"W x 18"L WT: 10.2 lbs
• UPC: 632085075323

4/0 AWG Red Battery Cable - 25'

Tinned Copper Stranded Wire

Battery Cable is available in all colors in accordance with ABYC standard. 600V 105°C DRY (75°C WET) and oil resistant. UL Listed Boat Cable. Made in the U.S.A.

All 4 AWG- 4/0 AWG cables are designed and manufactured for marine use with tinned copper wire for corrosion resistance and improved conductivity. The copper is annealed and finely stranded to offer flexibility and resistance to vibration to ensure reliable performance over time.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red
• Gauge: 4/0 AWG
• Length (Feet): 25'
• Box Dimensions: 7"H x 11"W x 11"L WT: 20.25 lbs
• UPC: 035514804653

Pro Series Dolphin Battery Charger - 12V, 90A, 110/220VAC - 50/60Hz

The Dolphin Series of battery chargers has always been recognized for its outstanding quality, which the manufacturer is proud to support with a 2-year warranty. Due to production on a wide scale, Dolphin is able to offer high-quality, truly international battery chargers at a reasonable price.

The Pro Range, which allows battery banks of up to 1000 amps to be charged, can be equipped with an optional touch-view touchscreen. It provides an intuitive display of measurements as well as charging phases (boost, absorption, and float), the allocated available power, and possible operating faults. The Pro range is equipped with communication via CAN bus, which means it can be used professionally in all land and industrial energy management sectors.

Features:

• 12V-90A Dolphin Pro
• All Dolphin Battery Chargers and accessories are CE-marked and manufactured to UL and ABYC specifications
• The Pro Touch Range features a built-in TouchView remote in place of the standard display panel on the Pro chargers
• The Touchview control panel gives the user more information and control of the charger functions
• LED Display for programming and monitoring functions
• Temperature sensor for battery compensation
• Switch mode technology and a three-stage charging design with a power supply
• Modern, lightweight, and compact design with white aluminum powder-coated casing
• 4 screw simple install with easy access removable panel
• ISO 9002-certified manufacturing plant

Three-Stage Charging Curve

Bulk Stage: A high current is sent to the battery until it reaches approximately 80% of its full charge.

Absorption Stage: The voltage level is maintained and the current is reduced until the battery is 100% charged.

Float Stage: Voltage and current are reduced to maintain the battery. Float gives what the battery requires.

Specifications:

• Charger Input - Voltage: 110/220v
• Charger Output - Amps: 90a
• Charger Output Voltage: 12v
• Portable: No
• Box Dimensions: 9"H x 16"W x 19"L WT: 16.65 lbs
• UPC: 786142995014

Yellow 3/0 AWG Battery Cable - 100'

Pacer's 3/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 3/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Yellow
• Gauge: 3/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 73 lbs
• UPC: 840248204422
