Zeus 24V 7kW 3.15 Alternator with Isolated Ground

The ARCO Zeus 24v 7kW alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM and almost 6kW (218 Amps) at under 6,000 RPM. In real-world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio generates over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio generates over 6kW!

The ARCO Zeus 24v 7kW alternator turns on for cruising or at mid to higher RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitor’s 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitor’s 24V alternators, having a direct impact on the alternator lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,962 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 27.5v - 284 Amps - 7,810 Watts – 11.2 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 220 Amps - 6,050 Watts – 8.6kW PTO
• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 50 Amps 1,375 Watts – 2kW PTO
• Max Continuous Operating Temperature - 100°C / 212°F

Mounting Application:

• Replaces most small case styles using a 3.15” J180 saddle style mount (e.g., Hitachi, Lucas, Mitsubishi) Most Yanmars.

Samlex NTX-3000-12 Pure Sine Wave Inverter - 3000W [NTX-3000-12]

NTX-3000-12 Pure Sine Wave Inverter - 3000W

The NTX Series Pure Sine Wave Inverters are FCC certified to ensure no electrical interference when operating near sensitive equipment. This series has a single variable speed temperature and load-controlled fan for quiet operation.

Features:

• Pure Sine Waveform of AC output voltage
• High efficiency
• Compact size and low weight
• Very low idle current
• Easily start high surge loads with Samlex HypersurgeTM technology
• LCD Remote Control Model NTX-RC included
• Low noise load and temperature controlled variable speed fan
• Wide input voltage range
• NEMA L5-30R receptacle with mating plug included

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

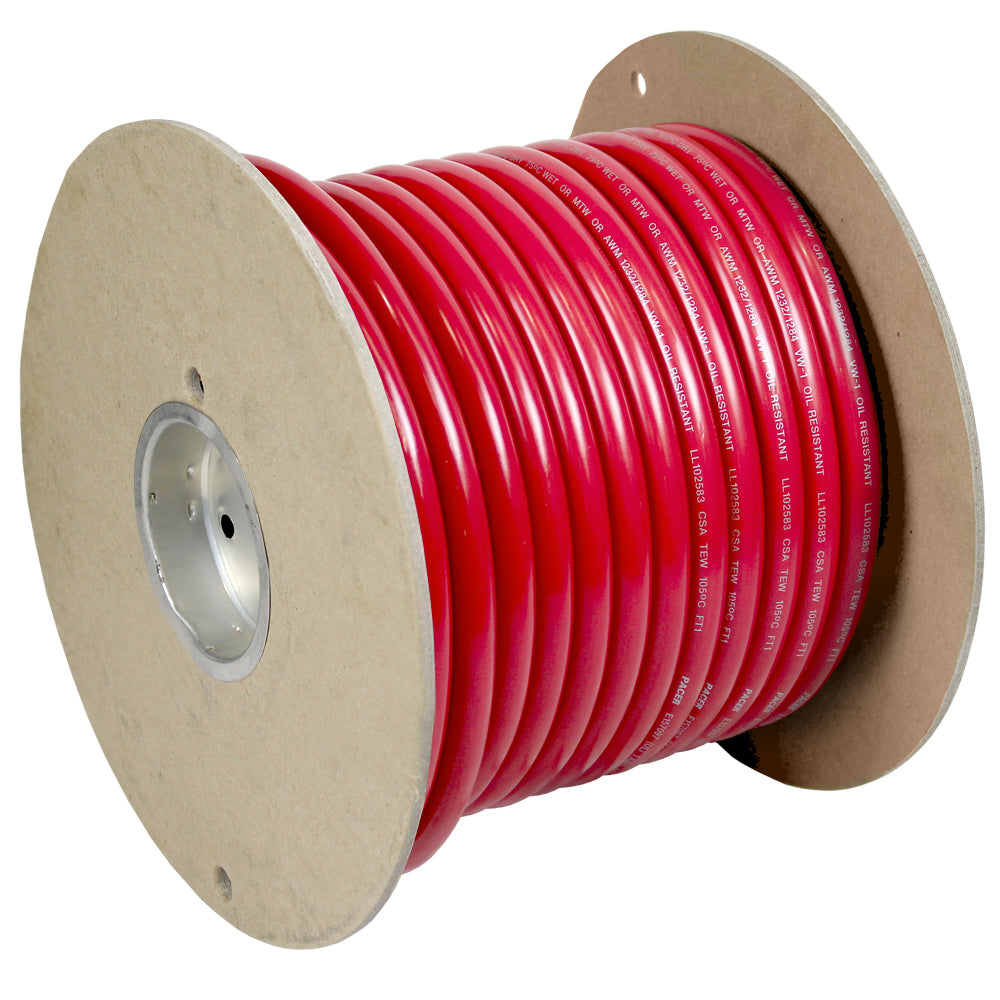

Red 4/0 AWG Battery Cable - 100'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Red
• Gauge: 4/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 85.5 lbs
• UPC: 840248204491

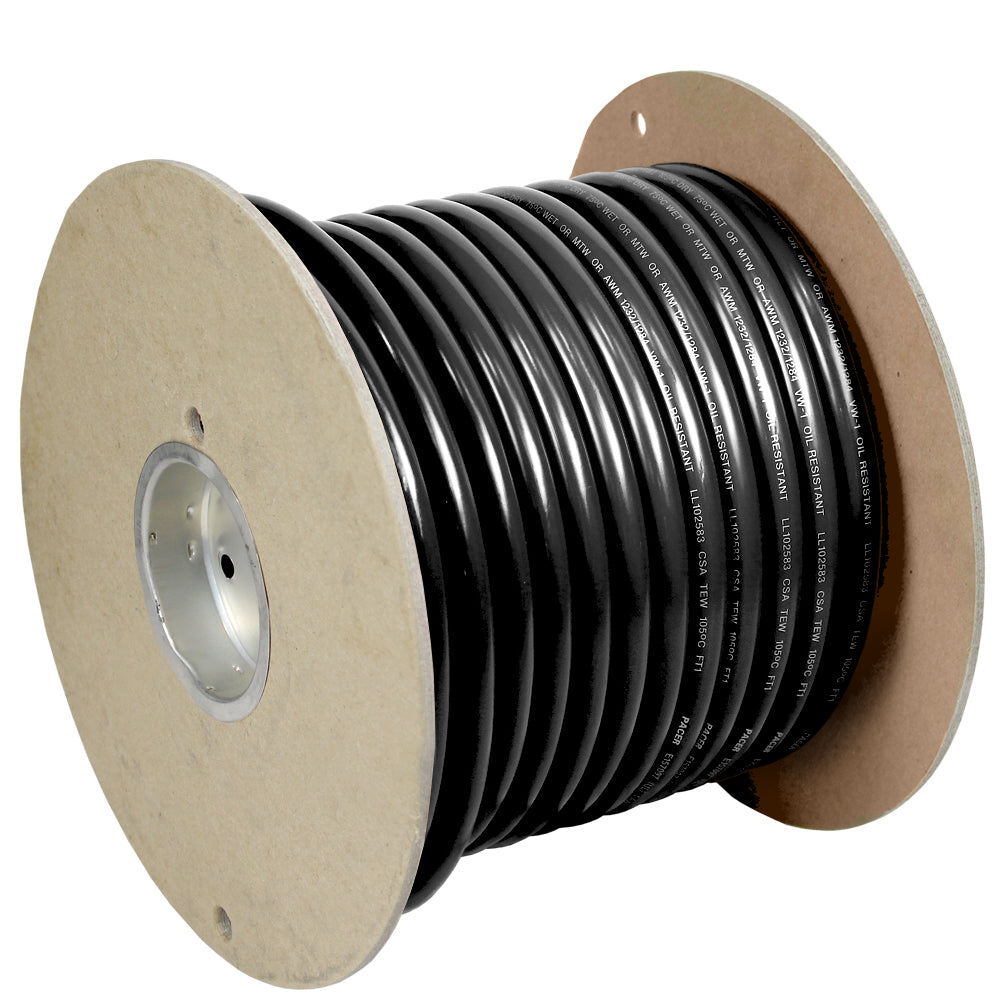

Black 4/0 AWG Battery Cable - 100'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Black
• Gauge: 4/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 87.6 lbs
• UPC: 840248204453

Centaur Charger - 24 VDC - 60AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Portable: No
• Charger Output Voltage: 24v
• Charger Output - Amps: 60a
• Charger Input - Voltage: 120/240v
• Charging Banks: 3
• Box Dimensions: 9"H x 14"W x 25"L WT: 22.05 lbs
• UPC: 8719076021575

Pro-Guide 3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp [PGC-21236]

3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium, 16V Lithium & 36V Lithium
• Output Voltage: DC 12V x 1, DC 12V/16V x 1 & DC 36V x 1
• Max Output Voltage: 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, & 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, & 43-44 for 36V Lithium Battery
• Output Current: 10A for 12V Bank, 10A for 12/16V Bank & 10A for 36V Bank
• Length: 14.7"
• Width: 9.96"
• Height: 3.86"
• Weight: 24.7 lbs
• IP Rating: 68

Brochure (pdf)

Phoenix Smart IP43 Charger 12/50 (3) 120-240VAC Requires 5-15P Mains Cord

With boat owners in mind, this adaptive 5-step charger can provide either 30A or 50A of charge to each of the three battery banks. Or the Phoenix 1+1 model provides 3A to the starter battery, the rest to the ‘house’ bank. 24V models are available with a 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.

Specifications:

• Charger Input - Voltage: 120/240v
• Charger Output - Amps: 50a
• Charger Output Voltage: 12v
• Charging Banks: 3
• Portable: No
• Box Dimensions: 6"H x 10"W x 11"L WT: 7 lbs
• UPC: 8719076053514

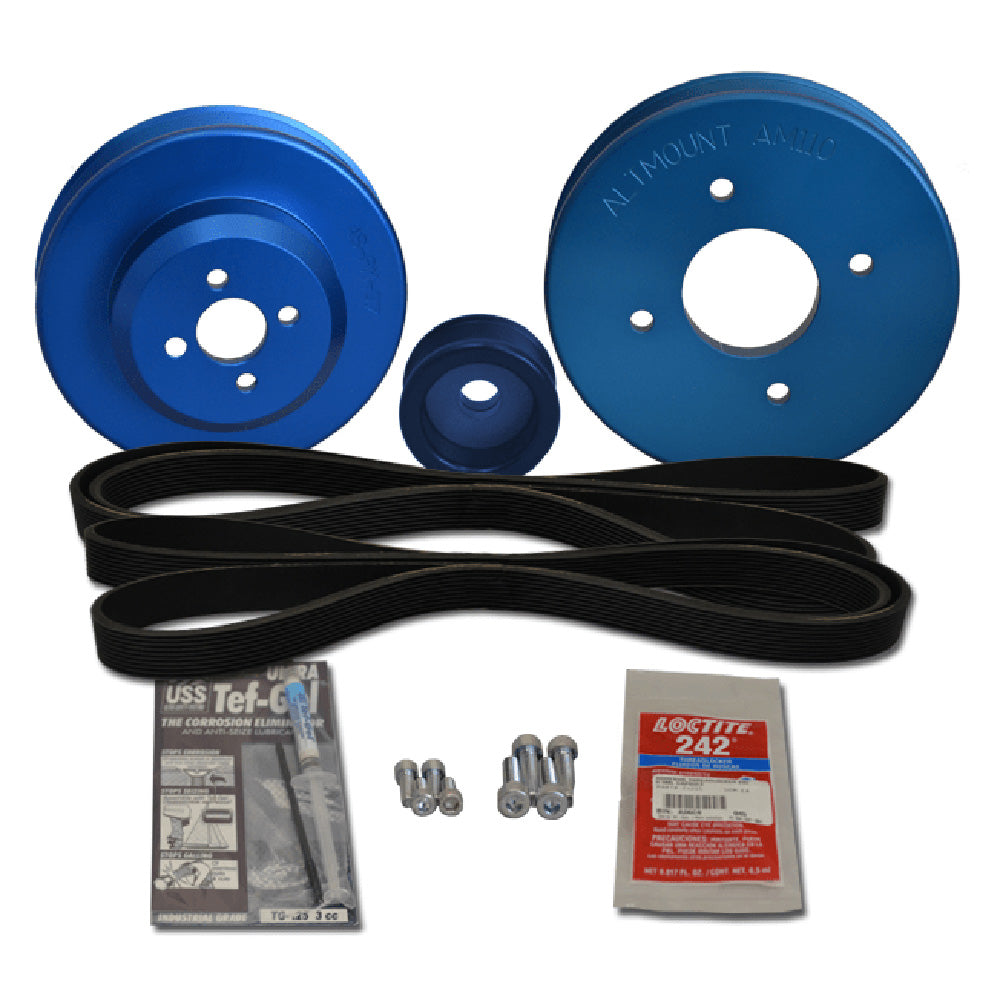

Balmar Pulley Kit f/Yanmar 3JH2-TE, 3JH2-E [48-YSP-3JH-C]

Pulley Kit for Yanmar 3JH2-TE, 3JH2-E

AltMount® Serpentine Pulley Conversion Kit for Yanmar Diesel Engines

Yanmar Engines Covered: 3JH2-TE, 3JH2-E

Kit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 45″ Circumference Serpentine Belts (one spare) & Mounting Hardware

Note:  If you specify an AT-200A Alternator, a longer belt length may be required.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
