Electrical

115-24-35CD Power Supply

This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.

Features:

• Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
• Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
• The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
• Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
• Thermally activated cooling fan on “CD” units

Specifications:

• Nominal Input/VAC: 115/230
• Maximum Input Current @115: 5.5
• Maximum Input Current @230: 2.5
• Output Amperage (Intermittent): 10
• Output Amperage (Continuous): 4
• Weight: 20 lbs. / 9.1 kg

Case Size:

• H x W x D (inch): 5.7” x 4.8” x 16.3”

Input Range

105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC

Operating Temperature

C.D. Units - 0-65 degrees C, Derate linearly from 100% @ 50 degrees C to 50% @ 65 degrees C thermal Shutdown @ 85 degrees C case temperature

Duty Cycle:

• Intermittent: 20 minutes max on time, 20% duty
• Continuous: 24 hours/day 100% Duty

Options:

• Modify for use as a battery charger
• The output voltage is adjusted (see Output Voltage for range)
• Transfer relay for back-up battery in event of power failure (ERC option)

Output Voltage:

• 24.5 VDC (Internally adjustable 21-27.5 VDC)
• Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
• 1% Line and Load (@ 110-125 / 220-250 VAC input)

Mechanical:

• Powder-coated aluminum heat sink case
• Front panel terminal block
• Heavy-duty mounting flange
• Conformal-coated PC board

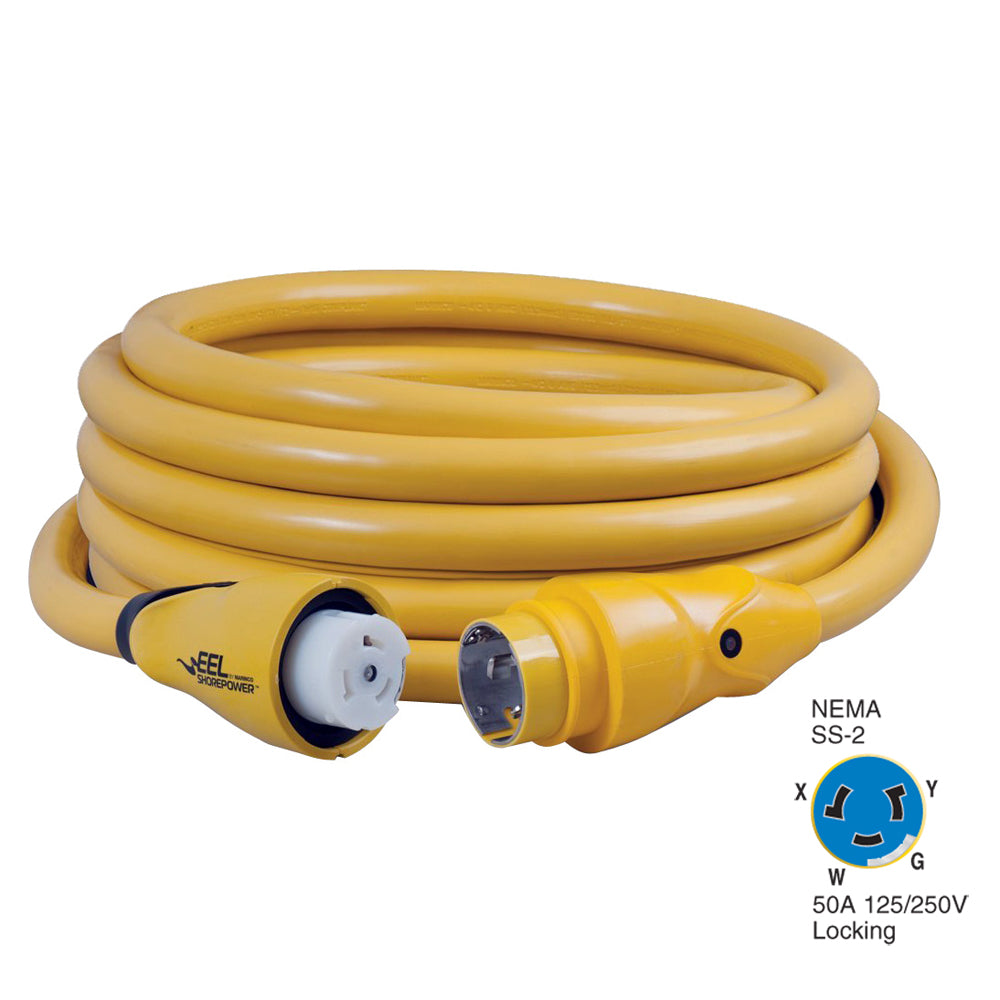

50A 125V/250V Cordset

EEL ShorePower Cordsets
One Hand. A simple twist. Full Power.

The EEL (Easily Engaged Lock) ShorePower Cordset has an industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.

Features:

• Designed for use with standard inlets (NEMA)
  50A, 125V/250V capacities; 25' length

• Cord sets meet global industry standards including ABYC and UL

• New wing-clamp technology provides a true, watertight connection every time

• Single-handed operation

• Eliminates the need for a sealing ring

• Secondary locking feature for added security

• Built-in LED cord light guides you to a secure connection every time, even in the dark

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 125/250v
• Type: Cordset
• Length: 25'
• Amperage: 50a
• Box Dimensions: 6"H x 17"W x 19"L WT: 24.9 lbs
• UPC: 093344051739

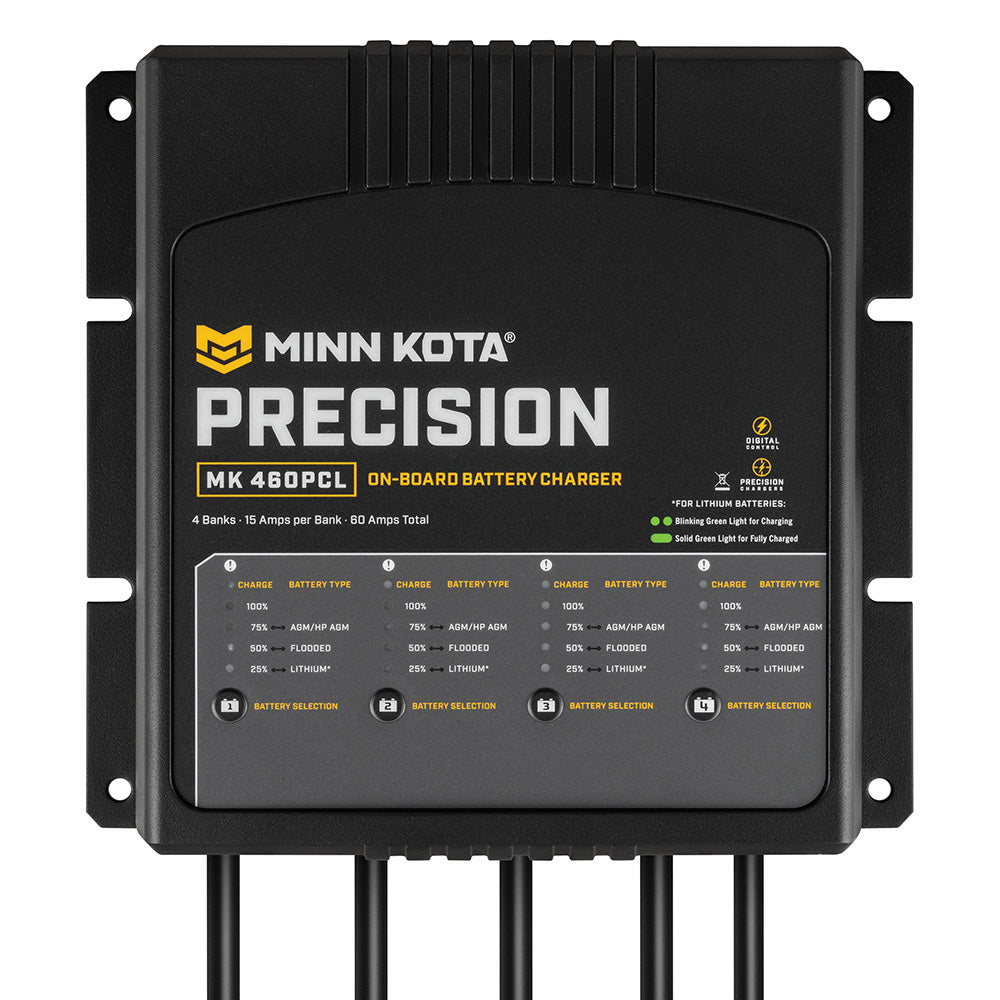

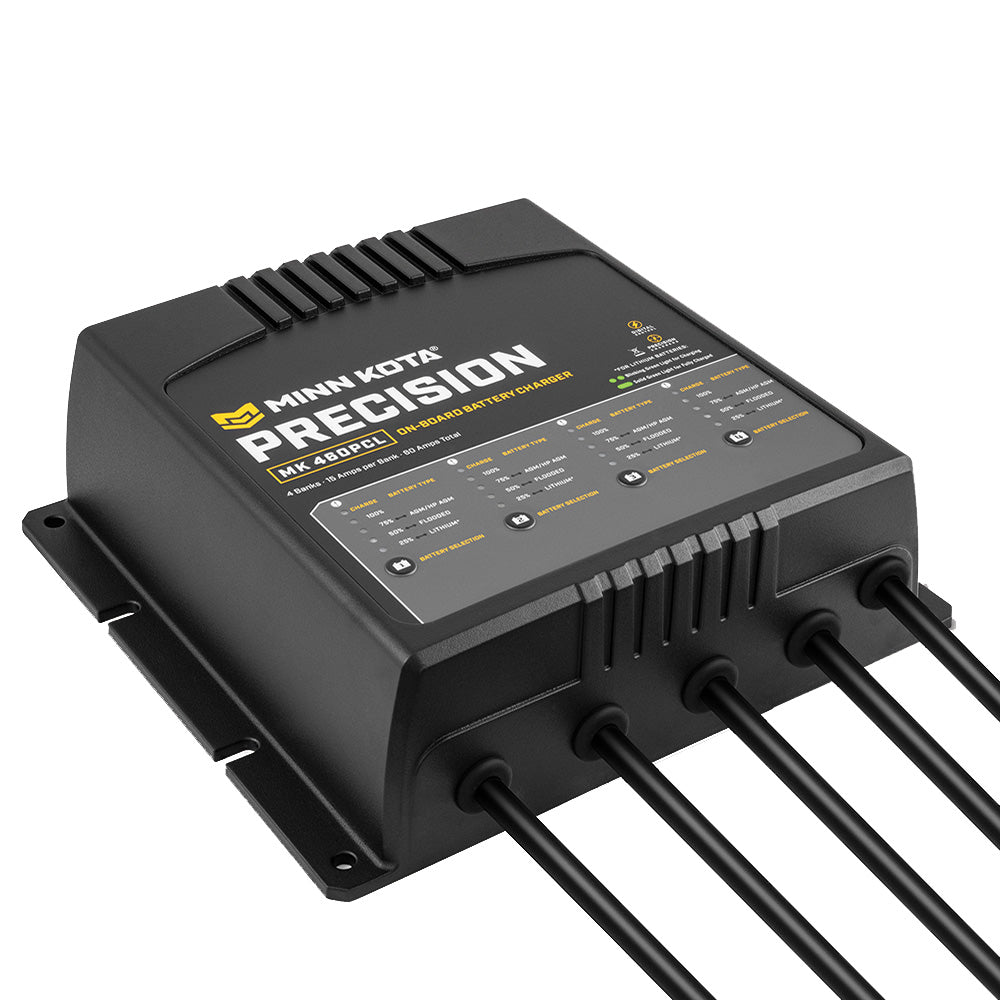

Minn Kota On-Board Precision Charger MK-460 PCL 4 Bank x 15 AMP LI Optimized Charger [1834604]

On-Board Precision Charger MK-460 PCL 4 Bank x 15 AMP LI Optimized Charger

Longer run times. Shorter charge times. The precision difference keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.

Features:

• Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
• Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
• Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
• Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
• Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
• LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
• Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe, and precise charge
• Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
• 3-Year Warranty: All battery chargers come with a full 3-year replacement warranty

Specifications:

• Product Dimensions: 3.25 in x 9.5 in x 10.5 in
• Product Weight: 19.6 lb
• AC Power Cord: 8.5'
• Battery Leads: 6'
• Charger Style: On-Board
• Output per Bank: 15 amps
• Wattage: 900W
• Charge Time: 3-5 hours
• Power Source: On-Shore AC
• Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
• 12v Lithium-Ion (LiFePO4) Optimized: Yes
• Waterproof: Yes
• Digital Control: Yes
• Automatic Temperature Compensation: Yes
• Battery Equalization: Yes
• Battery Type Selection: Yes
• LED Display: Yes
• Saltwater Compatible: Yes
• Battery Connection: Ring Terminal
• Warranty: Three-Year Warranty

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 15a
• Charger Output Voltage: 12/24/36/48v
• Charging Banks: 4
• Portable: No
• Box Dimensions: 5"H x 15"W x 20"L WT: 24.2 lbs
• UPC: 029402052707

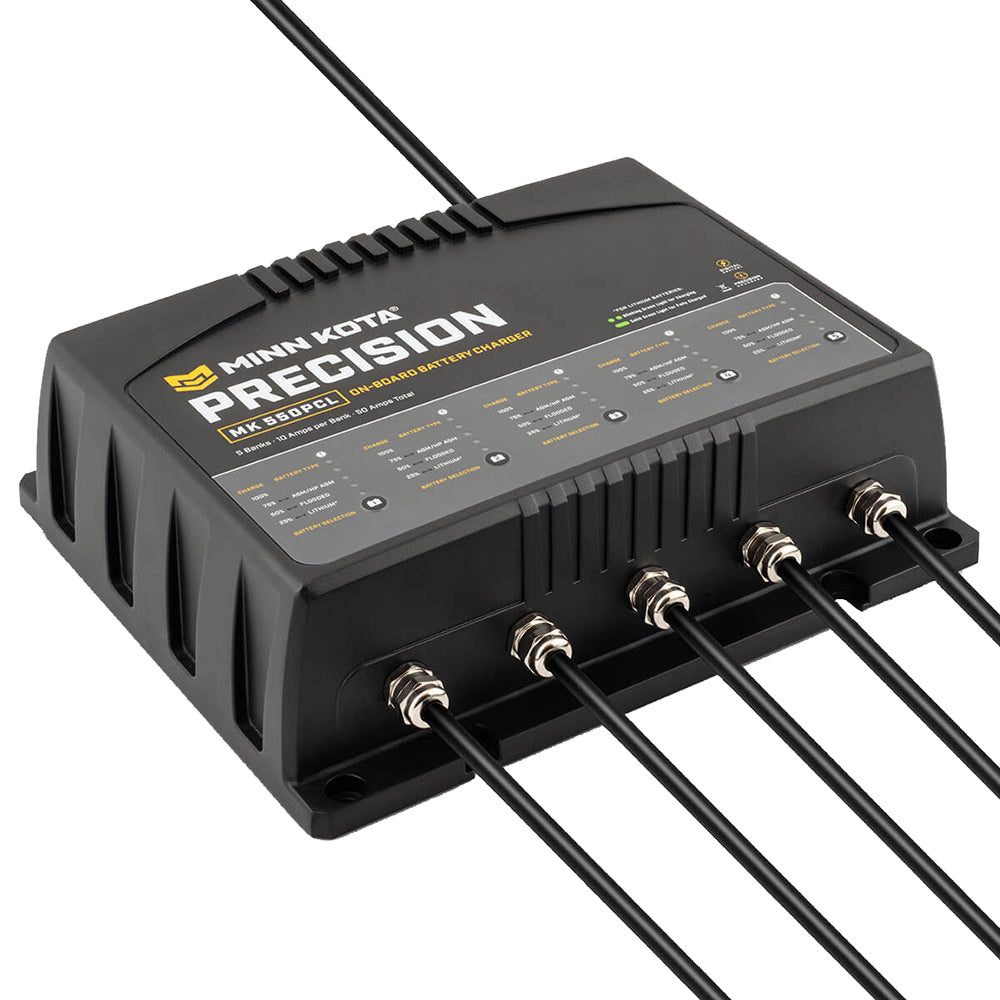

Minn Kota On-Board Precision Charger MK-550 PCL 5 Bank x 10 AMP LI Optimized Charger [1835500]

On-Board Precision Charger MK-550 PCL 5 Bank x 10 AMP LI Optimized Charger

Longer run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.

Features:

• Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
• Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
• Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
• Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
• Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
• LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
• Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
• Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
• 3-Year Warranty: All battery chargers come with a full 3-year replacement warranty

Specifications:

• Product Dimensions: 9.88 in x 11.75 in x 3.5 in
• Product Weight: 12.5 lb
• Charger Style: On-Board
• Output per Bank: 10 amps
• Wattage: 750W
• Charge Time: 4-6 hours
• Power Source: On-Shore AC
• Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
• 12v Lithium-Ion (LiFePO4) Optimized: Yes
• Waterproof: Yes
• Digital Control: Yes
• Automatic Temperature Compensation: Yes
• Battery Equalization: Yes
• Battery Type Selection: Yes
• LED Display: Yes
• Saltwater Compatible: Yes
• Battery Connection: Ring Terminal
• Warranty: Three-Year Warranty

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 10a
• Charger Output Voltage: 12/24/36/48v
• Charging Banks: 5
• Portable: No
• Box Dimensions: 3"H x 16"W x 18"L WT: 15 lbs
• UPC: 029402049295

Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 80a
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Charging Banks: 3
• Box Dimensions: 9"H x 14"W x 25"L WT: 24.25 lbs
• UPC: 8719076021520

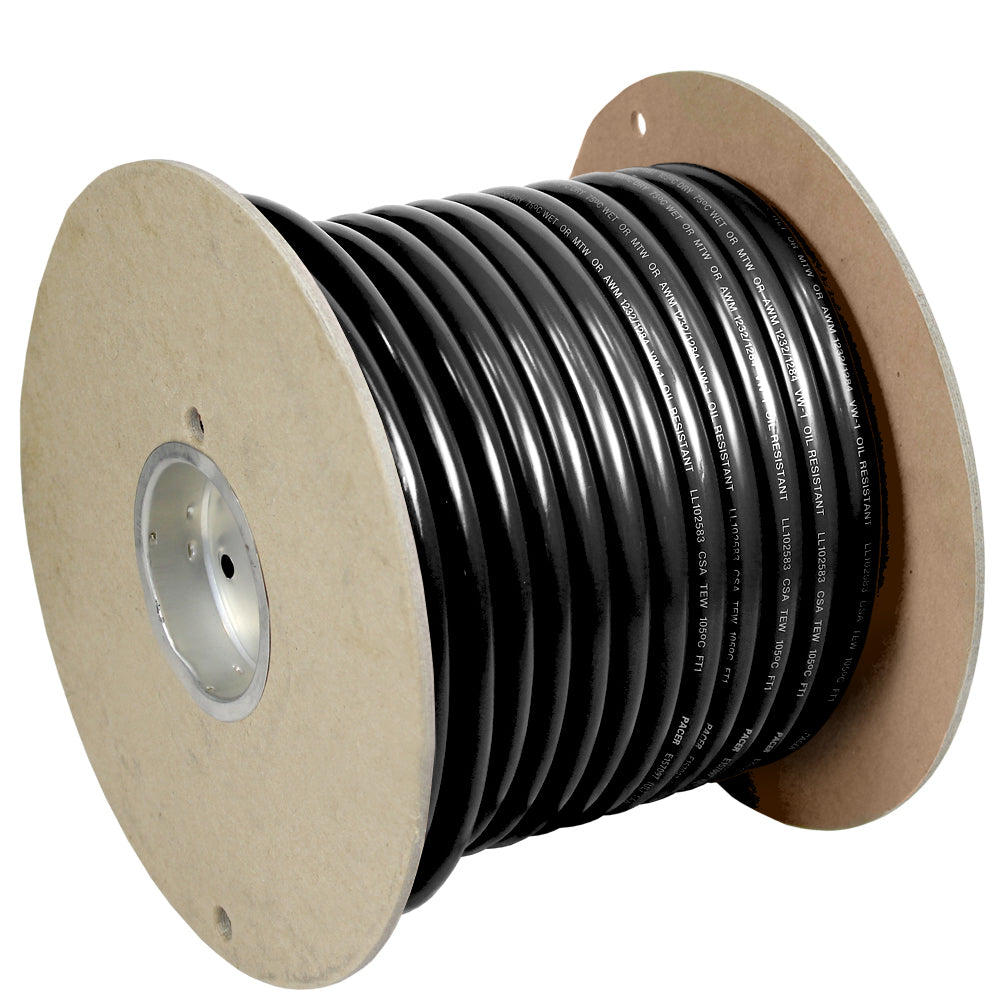

Black 2/0 AWG Battery Cable - 100'

Pacer's 2/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 2/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Black
• Gauge: 2/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 56 lbs
• UPC: 840248204279

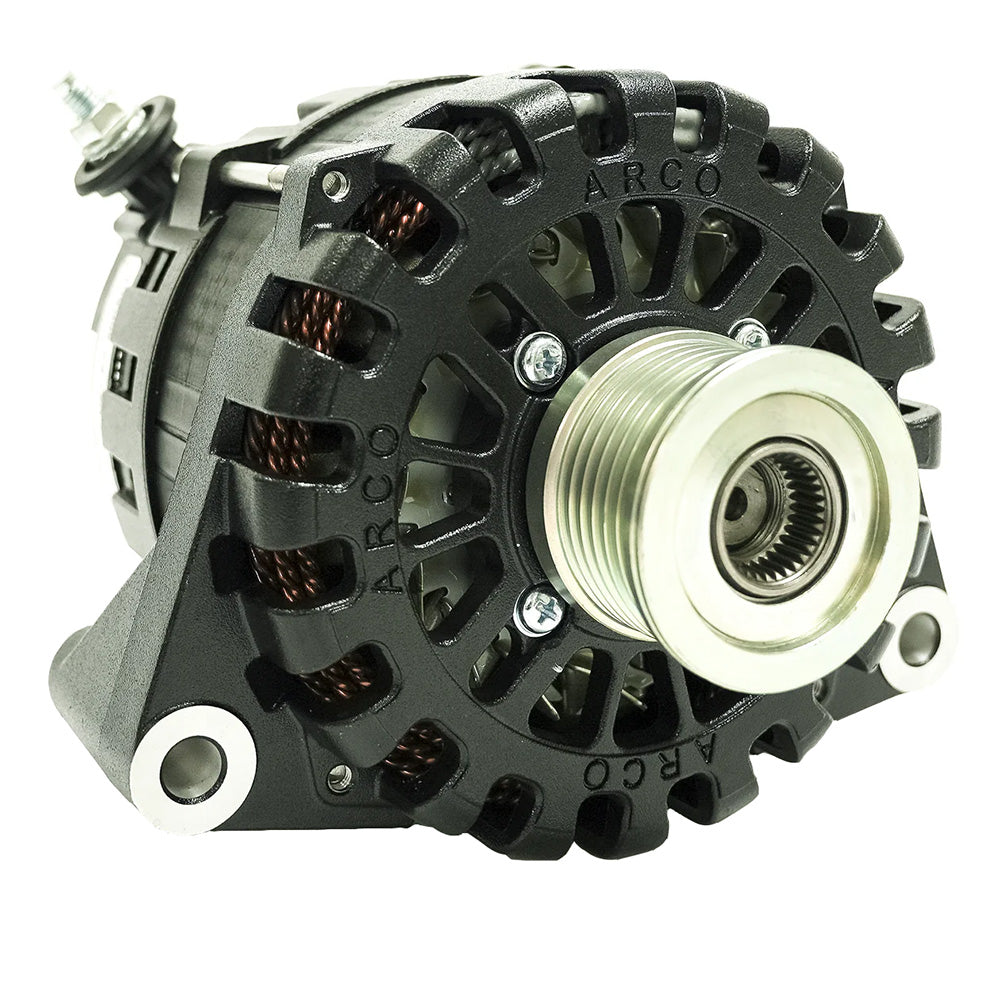

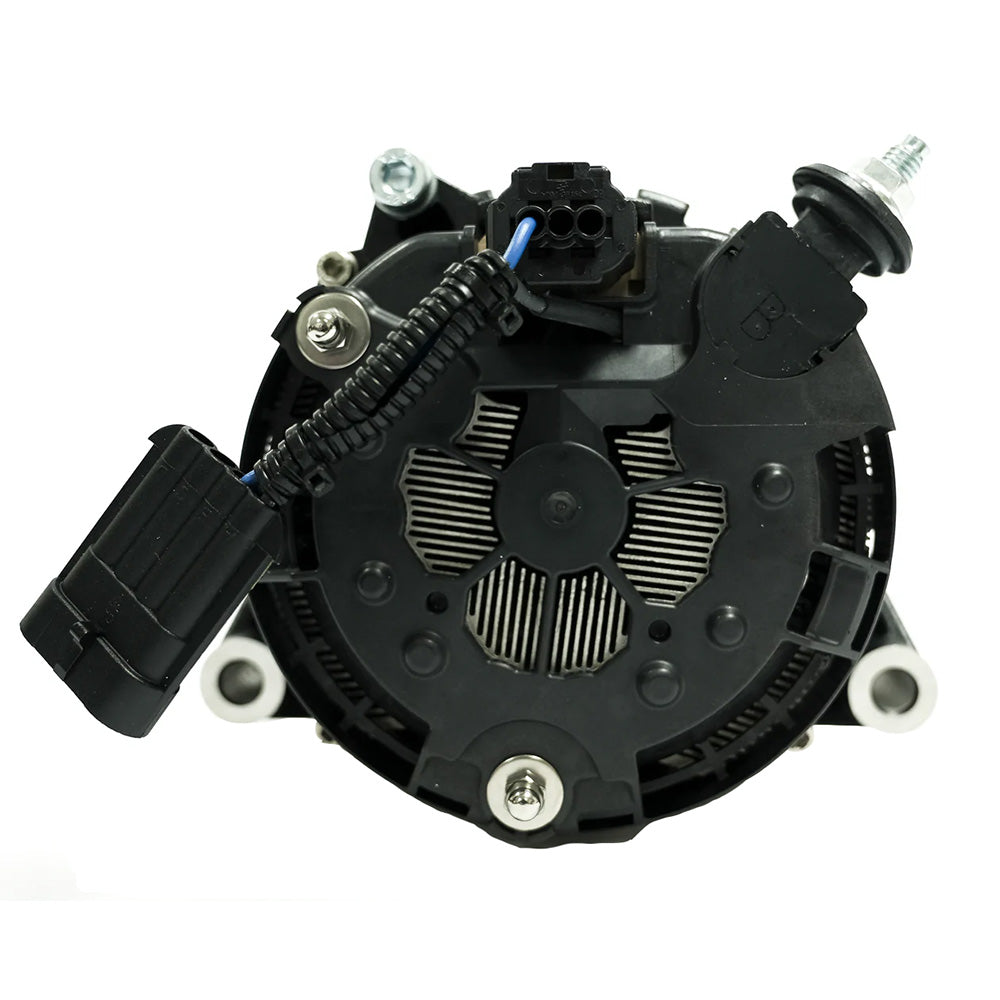

Zeus A8000-48V 8kW Ford Transit Alternator with Isolated Ground & K6 Pulley

ARCO Zeus 48V Advantage. Better Technology = Better Performance. High Output/High Amperage Alternator: The Highest Power Output in Its Class.

A8000-48V Advantage

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) at 2,500 RPM and almost 6kW (111 Amps) at 4,000 RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

True 24V Alternators

Instead of using rotors designed for 48 volts, many competitor’s alternators simply use their 12V rotors, which are less efficient and limit output at all RPMs. In this scenario, your external smart regulator must drastically reduce the field by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors’ 48V alternators, having a direct impact on the alternator’s lifespan.

Features:

• Replace your noisy generator!
• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat-shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.

Technical Specifications:

• Voltage - 48V
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only (EX)
• Finish - (Black) E-coating
• Cut-In RPM - 1,920 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts – 14.8 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts – 10.5 kW PTO
• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts – 6kW PTO
• Max Continuous Operating Temperature - 100°C / 212°F

Dual Pro RS2 2 Bank Battery Charger w/2 Bank B.O.S. [RS2/BOS12V2]

RS2 2 Bank Battery Charger with 2 Bank B.O.S.

This kit includes Dual Pro’s B.O.S. Battery Optimization System - 12V - 2-Bank (PN: BOS12V2) and Dual Pro’s RealPRO Series Battery Charger - 12A - 2-6A-Banks - 12V/24V (PN: RS2).

B.O.S. Battery Optimization System - 12V - 2-Bank

B.O.S. actively shuttles energy between batteries to keep “the pack” balanced, increasing battery strength and longevity.

Batteries in a pack will become “out of balance” and the pack is only as good as its “weakest link”. In watercraft applications, this is further compounded when the trolling motor battery is used for peripherals and/or to assist the cranking battery.

B.O.S. actively shuttles energy as needed between batteries wired in series to ensure equal voltage before, during, and after charging.

B.O.S. keeps packs balanced, enabling maximum performance, and quadruple run time on the water.

Premature battery failure due to an unbalanced pack has been, unfortunately, accepted as the ‘norm’ for decades. The B.O.S. answers this call with a BSAP-24 algorithm that can accurately predict and select the battery that needs additional energy to match the other batteries within the pack. This simultaneously and successfully extends the life of each battery in the pack, as well as increasing run times.

Features:

• Available in 6V, 8V, and 12V configuration
• Up to six batteries in a series
• Battery Selection and Prediction (BSAP-24) algorithm
• Less than 1mA sleep mode
• Transfer rate up to 7.5A
• Self-powered
• Any type of battery chemistry

Used in Any Application Where Batteries Are in Series:

• Marine
• Golf
• Industrial
• Aerial Equipment
• Solar Power
• Electrical Vehicles
• Communications
• Defense/Military

RealPRO Series Battery Charger - 12A - 2-6A-Banks - 12V/24V

RealPro Series battery chargers (formerly Recreation Series) are an affordable, reliable, and safe battery charging system designed for everyday use. The system is engineered for users who need a charging system on an occasional basis and may not want or need the capabilities of a heavier-duty and higher amperage product.

It is designed for use in many types of applications including bass boats, runabouts, pontoon boats, other watercraft, automobiles, ATVs, golf carts, and other similar uses. The system delivers sophisticated capabilities and superior value to customers.

Battery Charging Systems Designed for Everyday Applications:

• Affordable, Reliable, and Safe
• Unmatched Performance, Reliability, Safety and Quality
• TROUBLE FREE – Just Plug It In and Forget It!
• Join Over 750,000 of Dual Pro’s Satisfied Customers!
• Wide Variety of Applications
• Universal Input (100-240 VAC 50/60HZ)

Features:

• Approved for Wet Cell and Absorbed Glass Mat (AGM) batteries
• Designed for use in fresh and saltwater
• Dependable, rugged construction and waterproof
• Independent outputs and fully automatic
• Battery maintenance mode
• Two-year warranty
• DC charge cables = 5ft and AC power cord = 3ft
• Approved and meets ISO 8846 Marine standards
• Models available to charge 12-24V systems
• LED lights indicate “Each Battery’s” state of charge
• Reverse polarity protected and no installation restrictions
• Ignition protected (US Coast Guard 33 CFR 183.410)
• FCC 15 Parts A and B Interference Compliant

May Be Used in Many Types of Sporting Applications Including:

• Bass Boats
• Runabouts
• Pontoons
• Automobiles
• ATVs
• Golf Carts

Specifications:

• Charger Input - Voltage: 120/240v
• Charger Output - Amps: 12a
• Charger Output Voltage: 12/24v
• Charging Banks: 2
• Portable: No
• Box Dimensions: 3"H x 6"W x 9"L WT: 11.2 lbs

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
