Freedom X 3000 Truesine Inverter - 120AC/12DC Hardwire

True sine wave 120 VAC inverter with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

The Freedom X has become a popular choice for boaters in a short span of time. Xantrex has now added another product to this series — Freedom X 3000, a 3000-watt pure sine wave inverter with built-in 30A transfer relay. The Freedom X 3000 delivers full output up to 40°C/104°F with a 2 second surge of 6000 watts. The Freedom X 3000 features a large wiring bay with quick connect AC terminals for fast, reliable & easy wiring.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

Specifications:

• Inverts: 12 Volt DC To 120 Volt AC
• Continuous Output Power (W): 3000 Watt
• With Volt/Watt Meter: No
• With Thermal Protection: No
• With Battery Cables: No
• With Fuse: No

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 3000w
• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: Optional
• Outlet Qty: Optional
• Inverter Surge Rating: 6000w
• Inverter Input Voltage: 12v
• Inverter Output Voltage: 120v
• Waveform: True Sine Wave
• Box Dimensions: 9"H x 16"W x 20"L WT: 19.9 lbs
• UPC: 715535901493

Xantrex Freedom HF 1800 Inverter/Charger [806-1840]

Freedom HF 1800

Compact inverter/charger to power the comforts of home on your boat, RV, or truck

With modified sine wave output, Freedom HF 1800 inverter/charger is designed to run entertainment systems and small appliances in smaller boats, RV's and trucks. The Freedom HF inverter/charger is the smallest, lightest, and least expensive model in the Xantrex lineup.

Freedom HF is designed for demanding marine and RV conditions. Temperature-controlled multistage charging ensures that your batteries are recharged safely and efficiently. Both models include an automatic transfer switch and a detachable digital remote control panel display that provides precise system information and can be mounted wherever you require the information.

Product Features:

• Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment

• Removable digital display to provide system status

• Automatic three-stage battery charger

• Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included)

• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features:

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Ground-fault protection

• ETL listed for use in mobile RV and marine applications

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Outlet Qty: 1 Duplex GFCI
• Charging Banks: 1
• Inverter Cont. Output Wattage: 1800w
• Charger Output Voltage: 12v
• Charger Output - Amps: 40a
• Box Dimensions: 6"H x 11"W x 20"L WT: 15.4 lbs
• UPC: 715535890421

Quick Guide (pdf)
Owner's Manual (pdf)

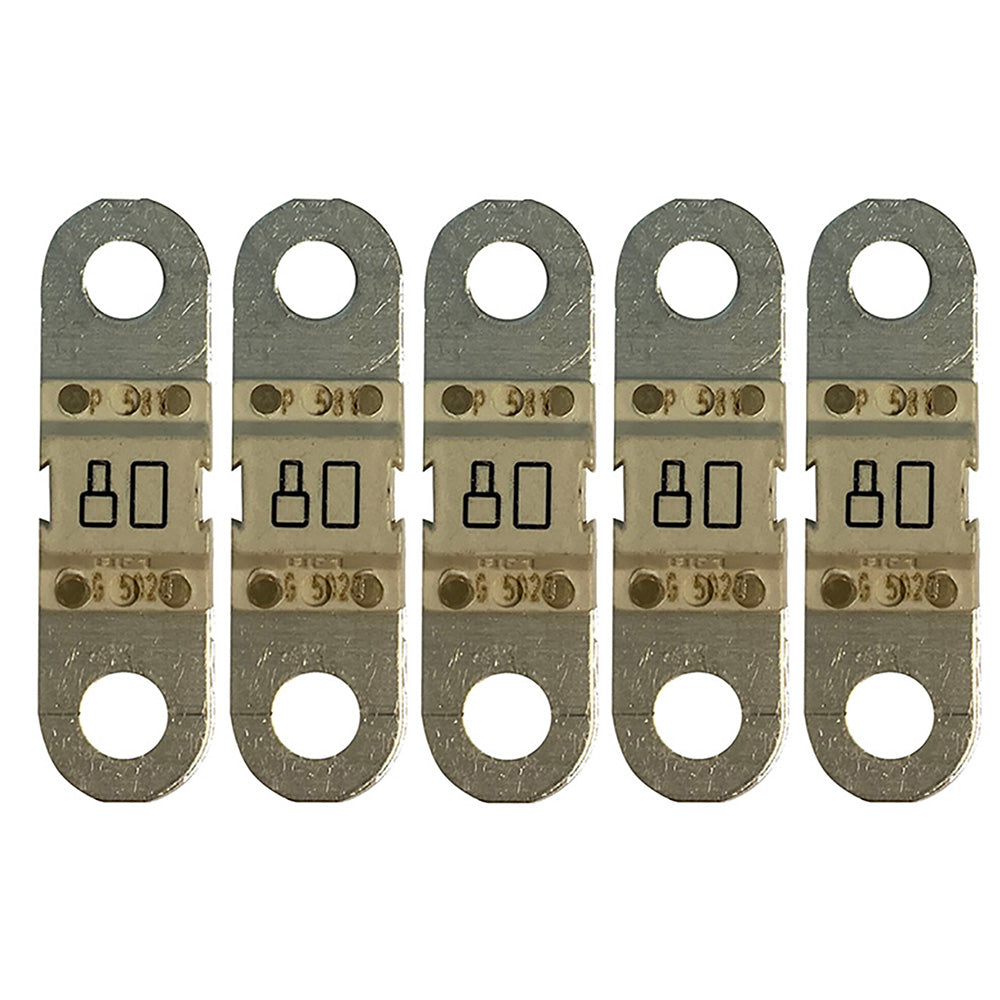

MIDI-Fuse 80A/58V M6 for 48V *Pack of 5

Features:

• MIDI-Fuse Technology: Specifically engineered as a MIDI-Fuse, this product is tailored for automotive, marine, and renewable energy systems, offering a unique size and style compared to standard, mini, or maxi fuses
• Space-Saving Design: The Victron Energy MIDI-Fuse features a compact bolt-on design, ensuring it fits seamlessly into your application without sacrificing valuable space
• Corrosion Resistance: Crafted with excellence, our MIDI-Fuse provides superior corrosion resistance, ensuring it stays protected and performs reliably even in challenging environments

Samlex 2000W Pure Sine Wave Inverter - 12V [PST-2000-12]

2000W Pure Sine Wave Inverter - 12V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 10.7 - 16.5 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 2000
• Surge: 3500 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 2000w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 12v
• Waveform: Pure Sine Wave
• Box Dimensions: 6"H x 12"W x 21"L WT: 17.7 lbs
• UPC: 622988072215

Owner's Manual (pdf)
Brochure (pdf)

Alternator 97XD Series 190A, 24V, K6 Pulley

Alternator, 97XD Series, 190A, 24V, Saddle Mount (Dual Foot), 4in, K6 Serpentine, Case Ground, 4″ J-180-Style Mounting;  Typical for Caterpillar, Cummins, Detroit Diesel & John Deere Engines.

Specifications:

• Volts: 24V
• Amps: 190A
• Mount: Dual Foot 4"
• Pulley: K6 Serpentine

Balmar Kit 621 Series 100A Single FT Alt MC Reg T Sensor [621-VUP-MC-100-SV]

Kit 621 Series 100A Single FT Alt MC Reg T Sensor

Kit Includes:

• 621-100-SV Alternator, MC-618 Regulator, Temperature Sensors, Mounting Hardware

621-100-SV Alternator: 100A, 12V, Spindle Mount (Single Foot), 1-2in, Single Deep Vee Pulley, Isolated Ground

1" Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines
2" Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Replaces:

• 621-VUP-MC-100-SR-KIT

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Amperage: 100A
• Voltage: 12v
• Box Dimensions: 10"H x 11"W x 14"L WT: 16.2 lbs
• UPC: 676205000543

Brochure (pdf)

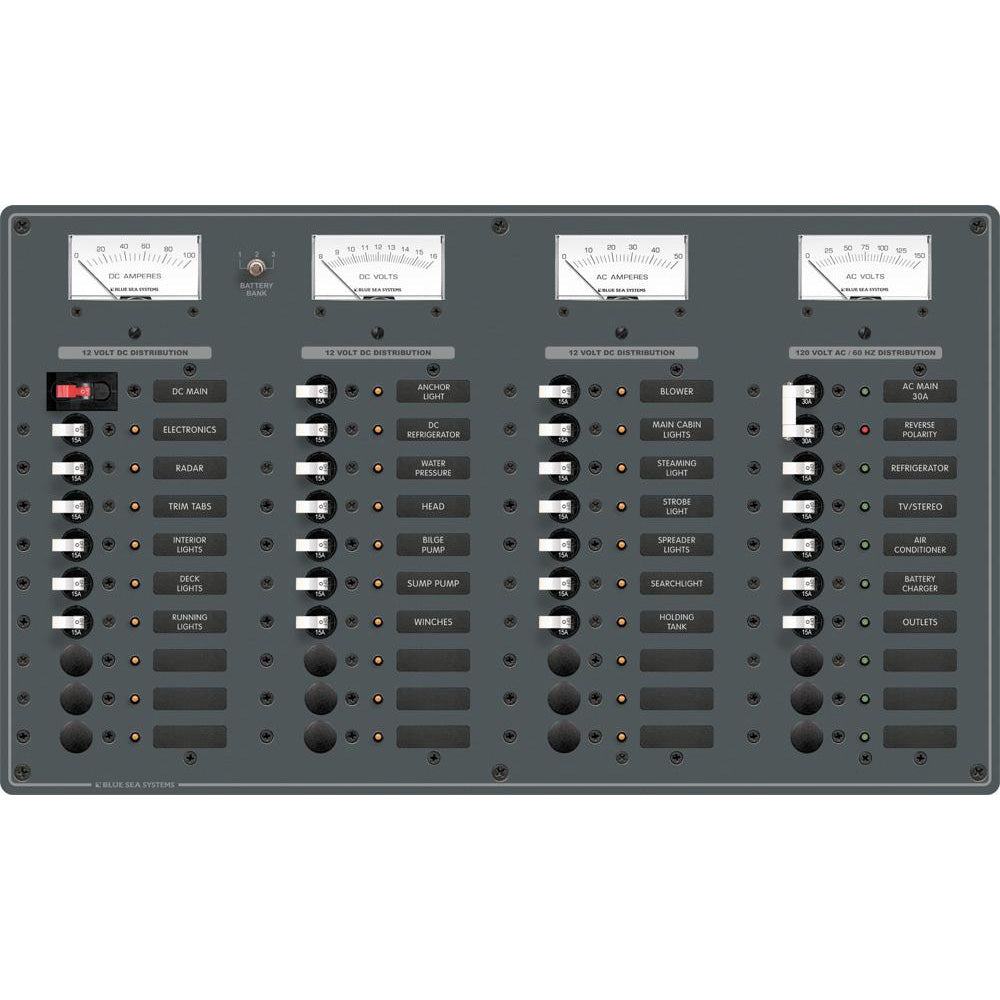

AC Main +8 Positions / DC Main +29 Positions

PN:   8095
White Switches

• Includes set of 30 common AC and 30 common DC labels

• All AC and DC buses installed, fully pre-wired

• Label backlighting pre-installed

• All LEDs installed

• Maximum panel Amperage
  • 100 Amperes DC

  • 50 Amperes AC

• Red reverse polarity indicating LED

• 9353, 0-150 Volt AC Voltmeter

• 9630, 0-50 Amp AC Ammeter

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits

• 8003, 8-16 Volt DC Voltmeter

• 8017, 0-100 Amp DC Ammeter

• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

• AC Positions: Source Selectors +8

• DC Positions: Main +29

• 120 Volts AC

• 12 Volts DC

• (1) 30A - (5) 15A AC Circuit Breakers

• (1) 100A - (20) 15A DC Circuit Breakers

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 8 AC / 29 DC
• AC/DC: Both
• Voltage: 120v/12v
• Box Dimensions: 7"H x 15"W x 22"L WT: 8 lbs
• UPC: 632085080952

Zeus 24V 7kW 3.15 Alternator with Isolated Ground & Zeus High-Energy Alternator Regulator

Zeus 24V 7kW 3.15 Alternator with Isolated Ground

The ARCO Zeus 24V 7kW alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM and almost 6kW (218 Amps) at under 6,000 RPM. In real-world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio generates over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio generates over 6kW!

The ARCO Zeus 24V 7kW alternator turns on for cruising or at mid to higher RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitor 24V alternators utilize a 12V rotor and field current, which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitor 24V alternators, which directly impacts the alternator's lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat-shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24V
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,962 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 27.5v - 284 Amps - 7,810 Watts – 11.2 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 220 Amps - 6,050 Watts – 8.6kW PTO
• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 50 Amps 1,375 Watts – 2kW PTO
• Max Continuous Operating Temperature - 100°C / 212°F

Mounting Application:

• Replaces most small case styles using a 3.15” J180 saddle style mount (e.g., Hitachi, Lucas, Mitsubishi), Most Yanmars.

Zeus High-Energy Alternator Regulator

ARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection
• Harnesses, Thermistors, and NMEA 2000 kit included
• Monitors the state of charge
• Can turn your engine into a dedicated generator with generator mode
• Pre-set battery libraries
• Data logging and sharing
• CAN bus and NMEA 2000-integrated networks
• Compatible with all voltage systems (12- 48V)
• IP66 & IP67 rated
• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"
• Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4"
• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator
• Battery wiring harness
• Alternator wiring harness
• 2 thermistors
