Electrical - Wire

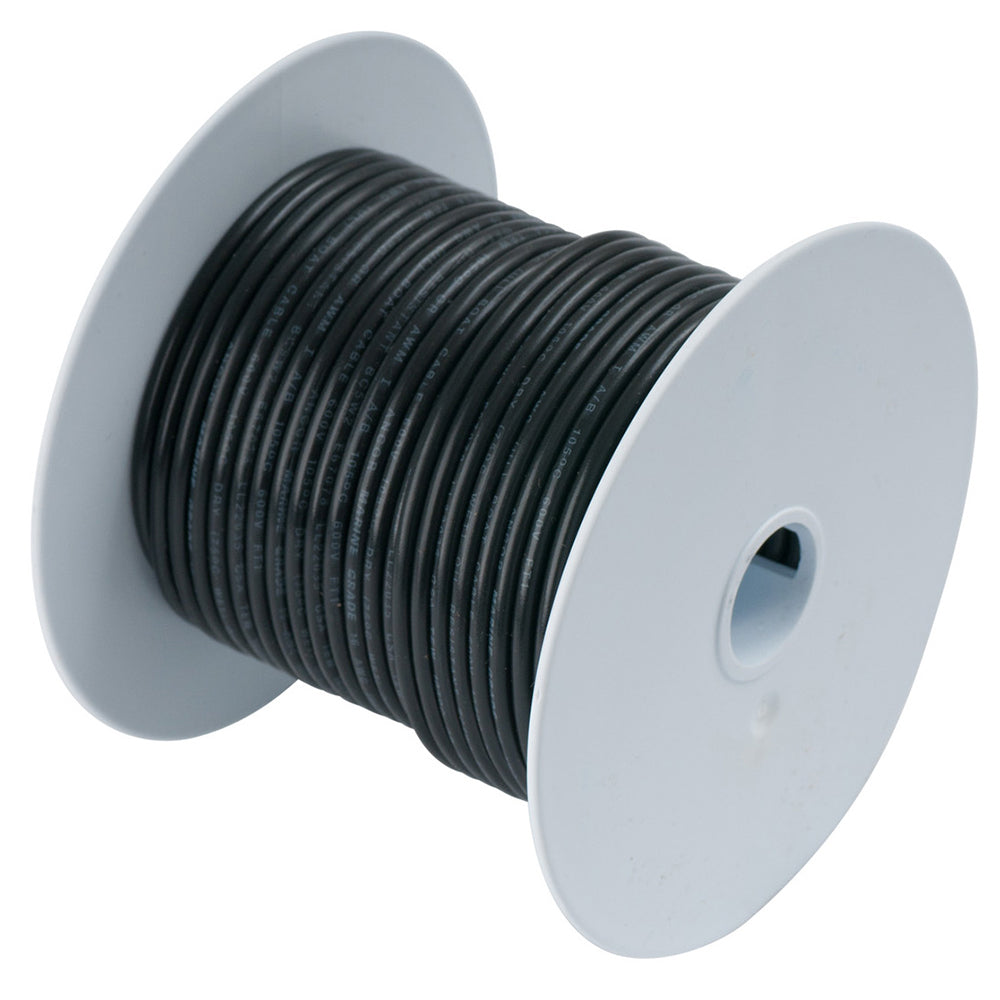

Black 4 AWG Tinned Copper Battery Cable - 250'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 250'
• Gauge: 4 AWG
• Color: Black
• Box Dimensions: 10"H x 11"W x 11"L WT: 45.6 lbs
• UPC: 091887101263

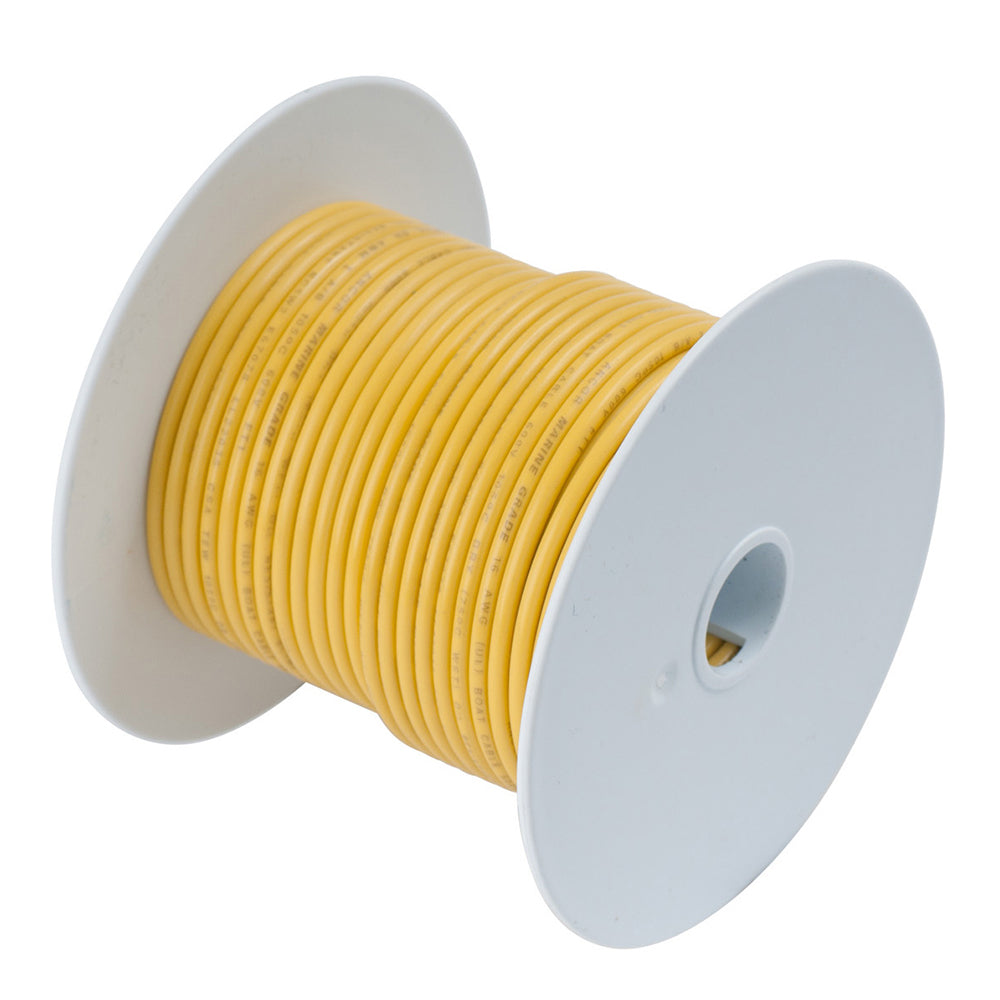

Ancor Yellow 4 AWG Tinned Copper Battery Cable - 250' [113925]

Yellow 4 AWG Tinned Copper Battery Cable - 250'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 250'
• Gauge: 4 AWG
• Color: Yellow
• Box Dimensions: 11"H x 11"W x 11"L WT: 46 lbs
• UPC: 091887967906

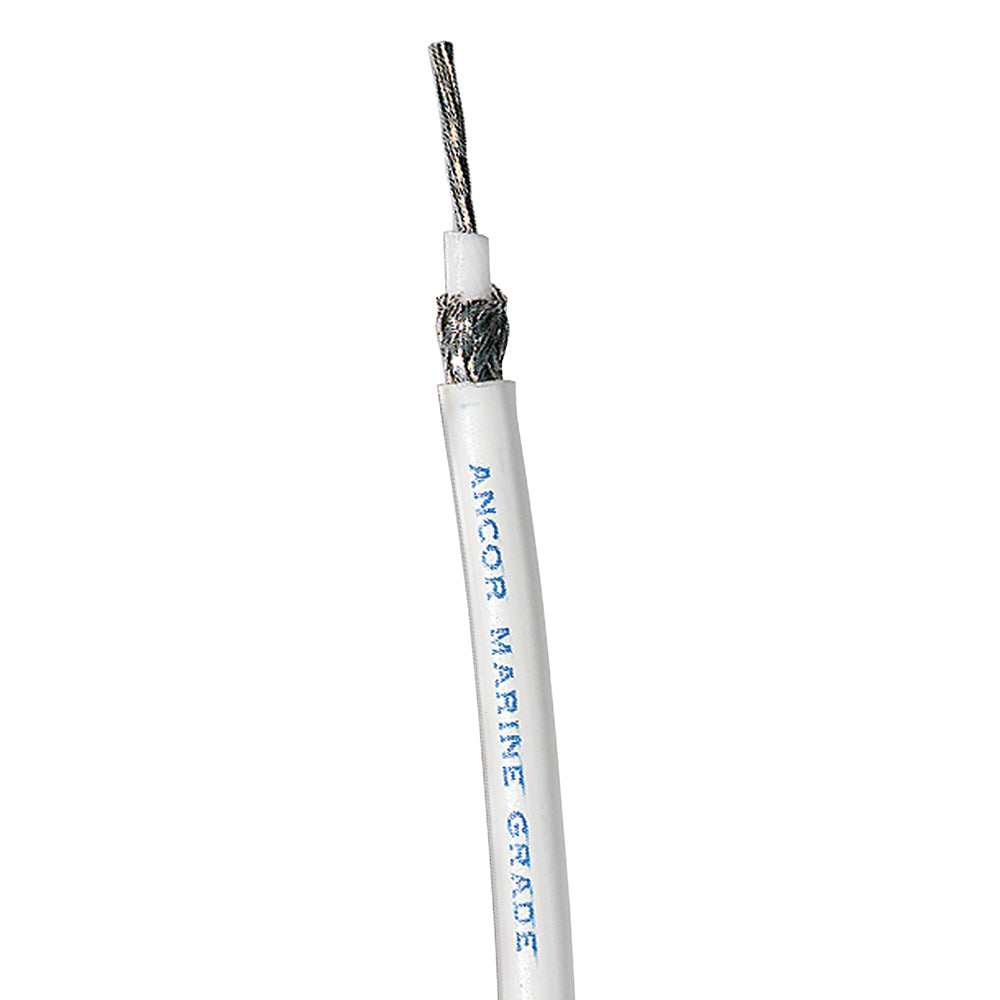

Ancor White RG 213 Tinned Coaxial Cable - 250' [151725]

White RG 213 Tinned Coaxial Cable - 250'

Coaxial cable is made with a premium tinned copper center conductor and a tinned copper outer braid for corrosion resistance and easy soldering. It features signal loss ratios of up to 50% less than other coaxial cables. 96% braid provides best signal strength and least interference with UV inhibited white jacket for longest life.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 250'
• Gauge: RG-213
• Color: White
• Box Dimensions: 11"H x 11"W x 11"L WT: 27.8 lbs
• UPC: 091887152104

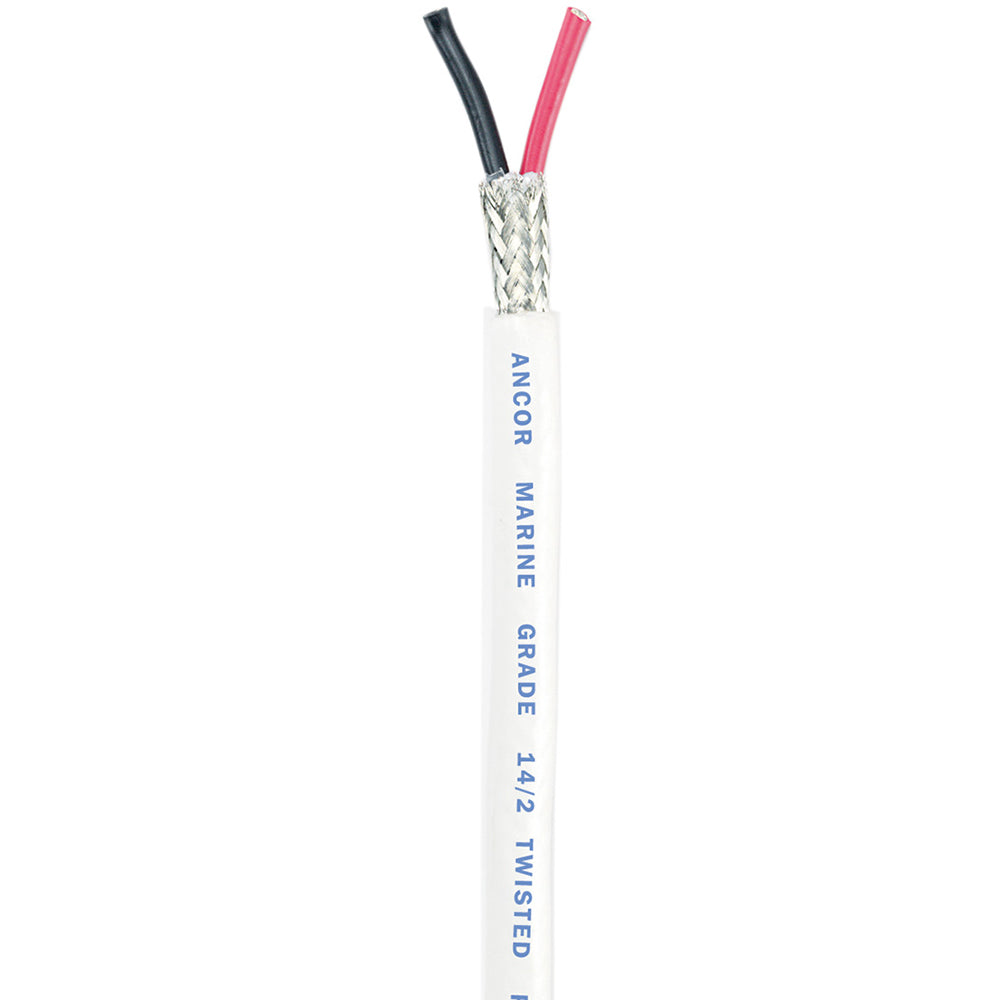

Ancor Twisted Pair w/Shield - 14/2 AWG - Round - Red/Black - 250' [141425]

Twisted Pair w/Shield - 14/2 AWG - Round - Red/Black - 250'

Twisted pairs cable with shield are made with premium tinned copper for use in all metal boats and around sensitive electronics.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red/Black
• Length (Feet): 250'
• Gauge: 14/2 AWG
• Box Dimensions: 11"H x 11"W x 11"L WT: 24.35 lbs
• UPC: 091887102215

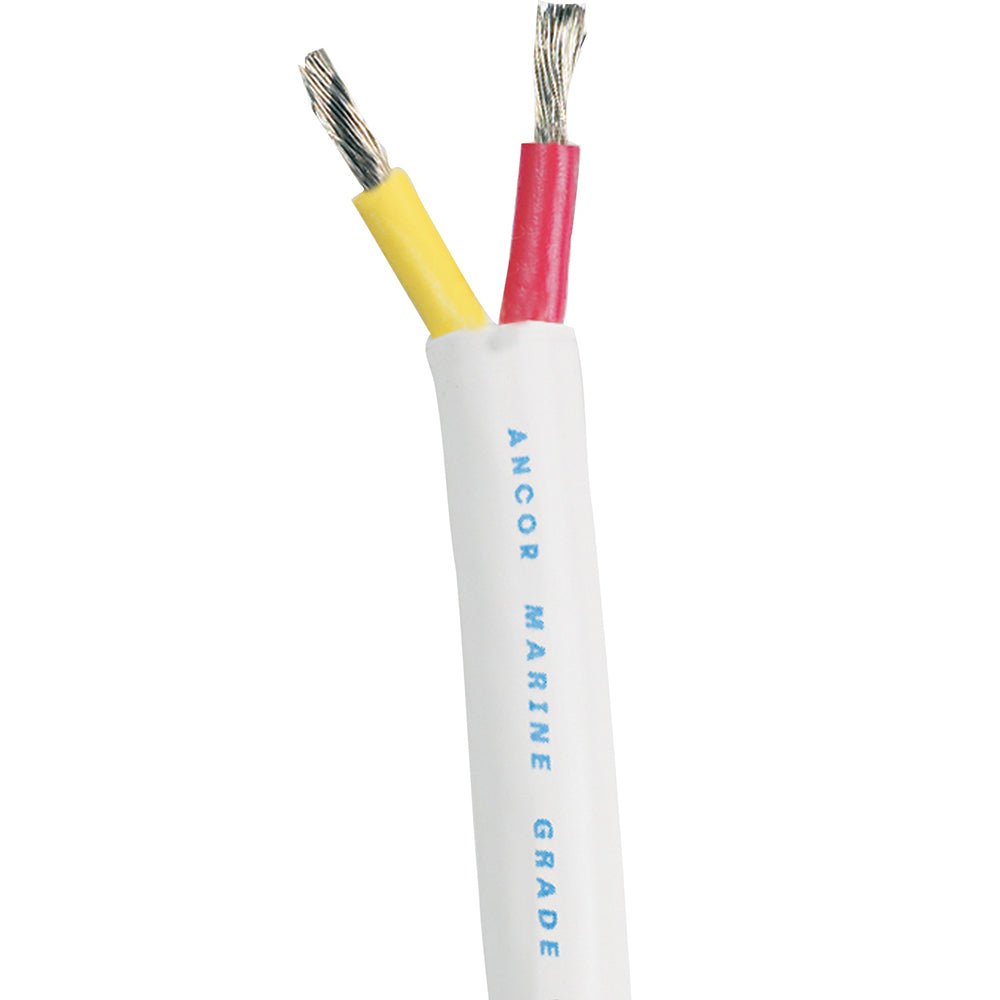

Ancor Safety Duplex Cable - 12/2 AWG - Red/Yellow - Round - 500' [126350]

Safety Duplex Cable - 12/2 AWG - Red/Yellow - Round - 500'

Ancor safety duplex cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red/Yellow
• Length (Feet): 500'
• Gauge: 12/2 AWG
• Box Dimensions: 12"H x 12"W x 18"L WT: 51 lbs
• UPC: 091887806816

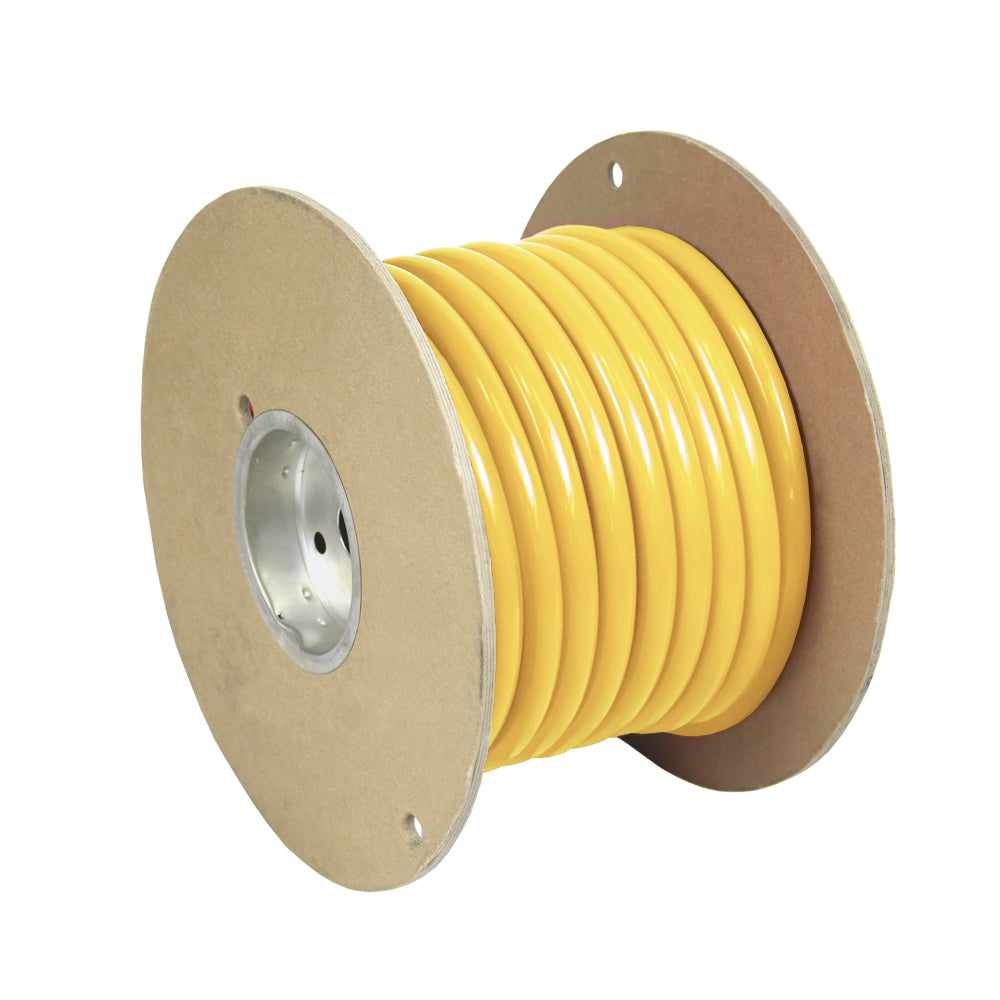

Pacer Yellow 4/0 AWG Battery Cable - 50  [WUL4/0YL-50]

Yellow 4/0 AWG Battery Cable - 50'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Yellow
• Gauge: 4/0 AWG
• Length (Feet): 50'
• Box Dimensions: 9"H x 12"W x 12"L WT: 44 lbs
• UPC: 840248204569

Brochure (pdf)

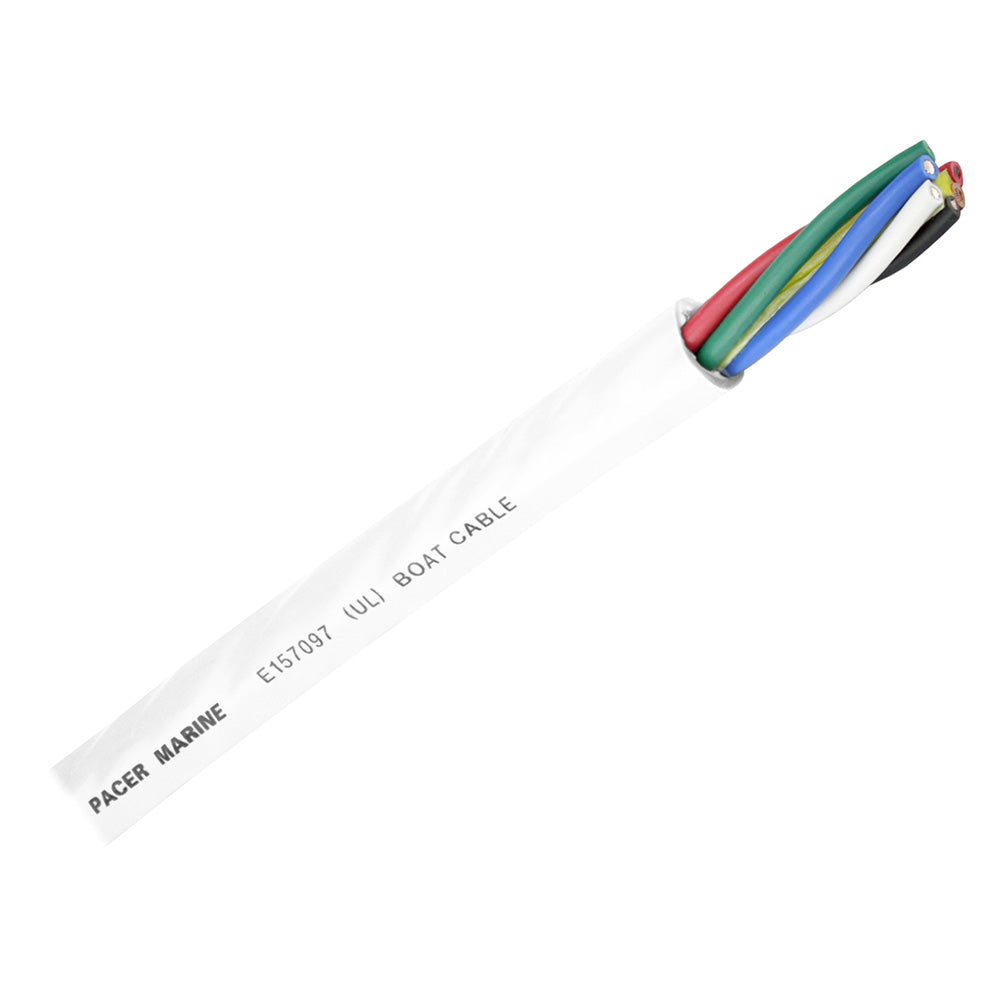

Pacer Round 6 Conductor Cable - 250 - 16/6 AWG - Black, Brown, Red, Green, Blue  White  [WR16/6-250]

Round 6 Conductor Cable - 250' - 16/6 AWG - Black, Brown, Red, Green, Blue & White

Round boat cable is the ideal choice for installation in tight spaces like boat hulls. All Pacer round boat cable is manufactured in Sarasota FL, USA. Pacer's manufactured 16 AWG round boat cable is UL approved. The tinned copper conductors provide resistance to corrosion. This boat cable is the ideal multiconductor boat cable and is easy to install for many reasons. One reason it works so well is the fact that it can bend in any direction. With other, flatter cables, your range of motion is limited. It is also made from Type III finely stranded tinned copper conductors and it has a flexible high-quality PVC insulation and jacket. These things work together to make this the best boat cable available and the easiest to install in small workspaces. It also withstands the frequent vibration and flex commonly found in marine environments.

Features:

• 16 AWG round boat cable
• 250 ft. of cable
• No. of Conductors: 6
• Pacer's boat cable is the perfect choice for many marine jobs
• It's ideal for running through sailing spars, poling platforms, and t-tops
• Also, it is the perfect choice for small hulls or other tight areas
• Type III, stranded, tinned copper conductors
• Highly flexible
• Easy to install and organize
• Easily sealed through bulkheads

Specifications:

• Conductor Colors: Black, brown, red, green, blue & white
• Conductor Stranding: 26/.0100
• Jacket Color: Grey
• Jacket Thickness (inch): 6 conductors @ 0.045"
• Nom. Cable O.D. (inch): 6 conductors @ 0.455"

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper
• ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Pacer's round boat cable is excellent for AC and DC internal wiring of boats and recreational vehicles

Compliances:

• UL Standard 1426 (BC-5W2)
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant

Specifications:

• Color: Black/Brown/Blue/Green/White/Red
• Gauge: 16/6 AWG
• Length (Feet): 250'
• Box Dimensions: 12"H x 13"W x 14"L WT: 39.5 lbs

Quick Guide (pdf)

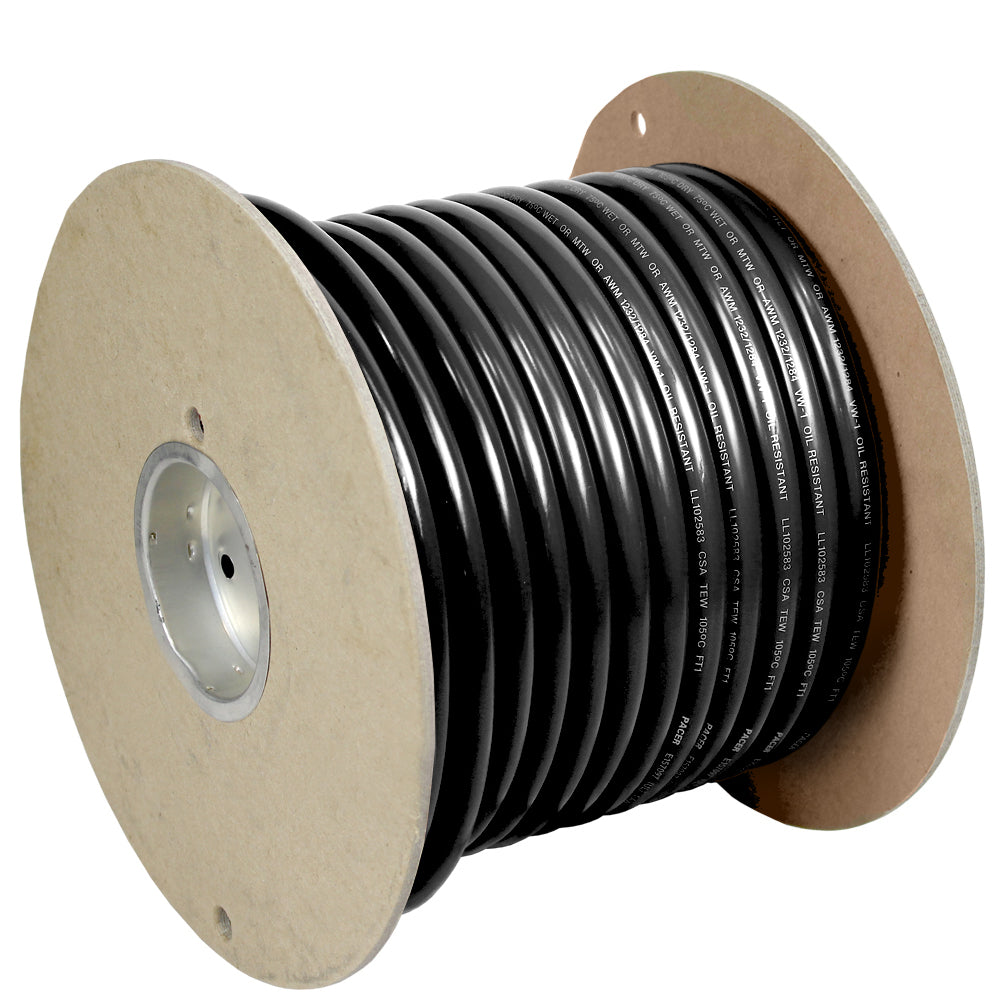

Pacer Black 1/0 AWG Battery Cable - 100  [WUL1/0BK-100]

Black 1/0 AWG Battery Cable - 100'

Pacer's 1/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 1/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Black
• Gauge: 1/0 AWG
• Length (Feet): 100'
• Box Dimensions: 9"H x 11"W x 11"L WT: 43.4 lbs
• UPC: 840248204156

Brochure (pdf)
