Electrical - Wire

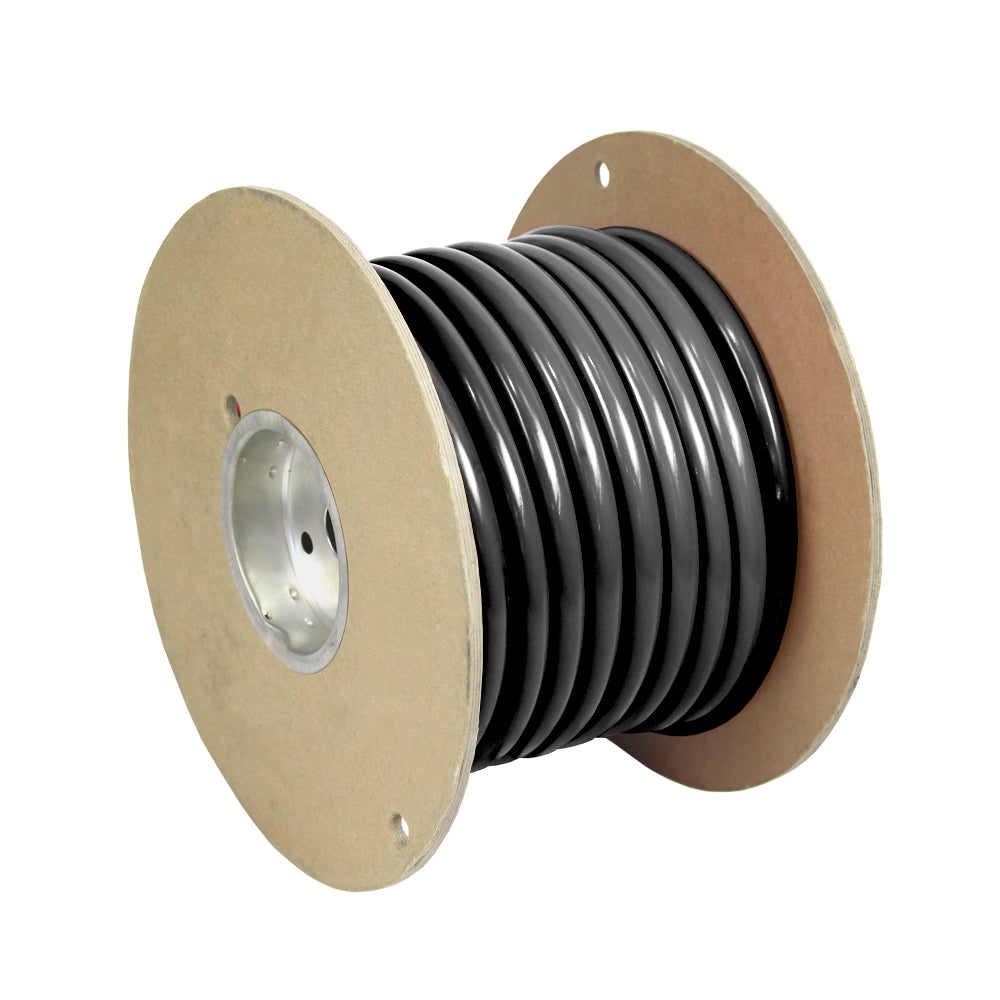

Pacer Black 4/0 AWG Battery Cable - 50  [WUL4/0BK-50]

Black 4/0 AWG Battery Cable - 50'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Black
• Gauge: 4/0 AWG
• Length (Feet): 50'
• Box Dimensions: 9"H x 10"W x 10"L WT: 42.7 lbs
• UPC: 840248204484

Owner's Manual (pdf)
Brochure (pdf)

Ancor White Triplex Cable - 10/3 AWG - Flat - 300' [131130]

White Triplex Cable - 10/3 AWG - Flat - 300'

Features:

• Ancor Triplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing.

• Outer jacket is made for easy removal and provides the best abrasion resistance available

• Ancors proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Features three Marine Grade™ primary conductors (white, black and green) in a white common jacket.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 300'
• Gauge: 10/3 AWG
• Color: Black/Green/White
• Box Dimensions: 11"H x 11"W x 11"L WT: 49 lbs
• UPC: 091887132021

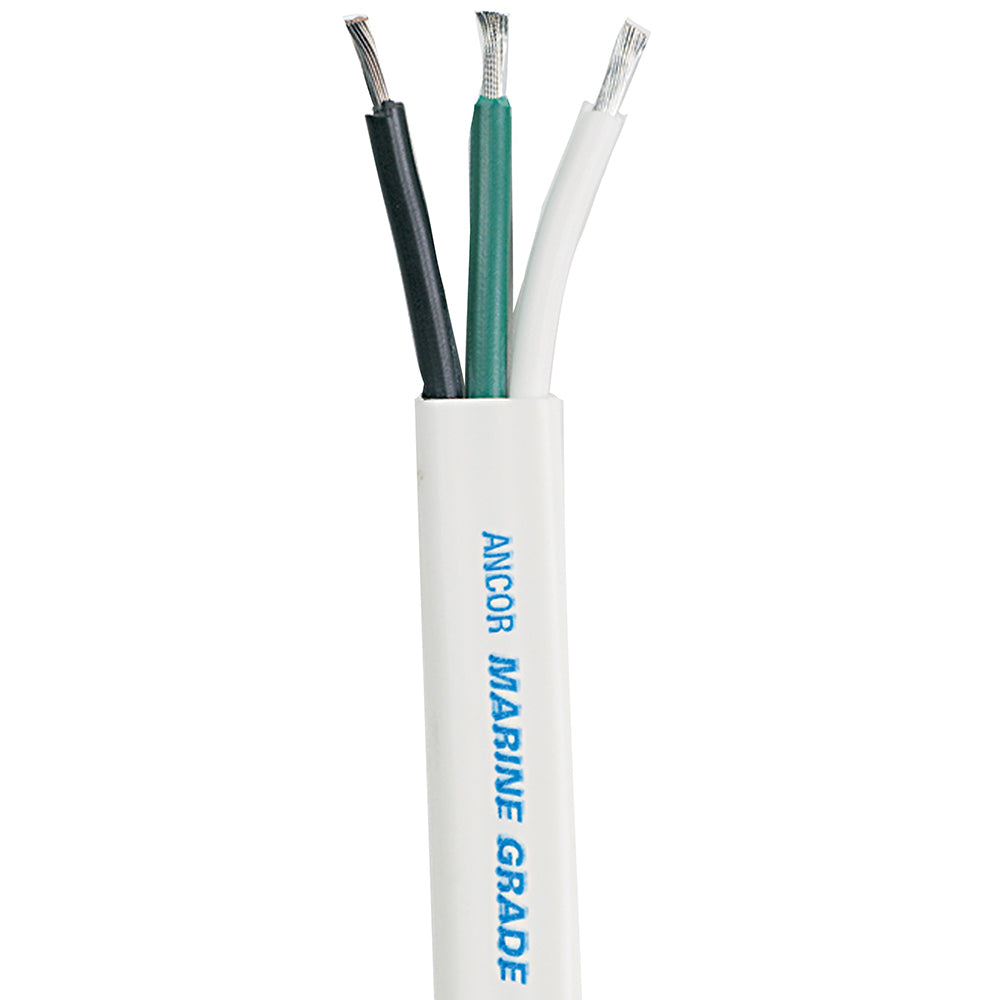

Ancor White Triplex Cable - 6/3 AWG - Flat - 100' [130710]

White Triplex Cable - 6/3 AWG - Flat - 100'

Features:

• Ancor Triplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing.

• Outer jacket is made for easy removal and provides the best abrasion resistance available

• Ancors proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Features three Marine Grade™ primary conductors (white, black and green) in a white common jacket.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 100'
• Gauge: 6/3 AWG
• Color: Black/Green/White
• Box Dimensions: 12"H x 12"W x 19"L WT: 52 lbs
• UPC: 091887101607

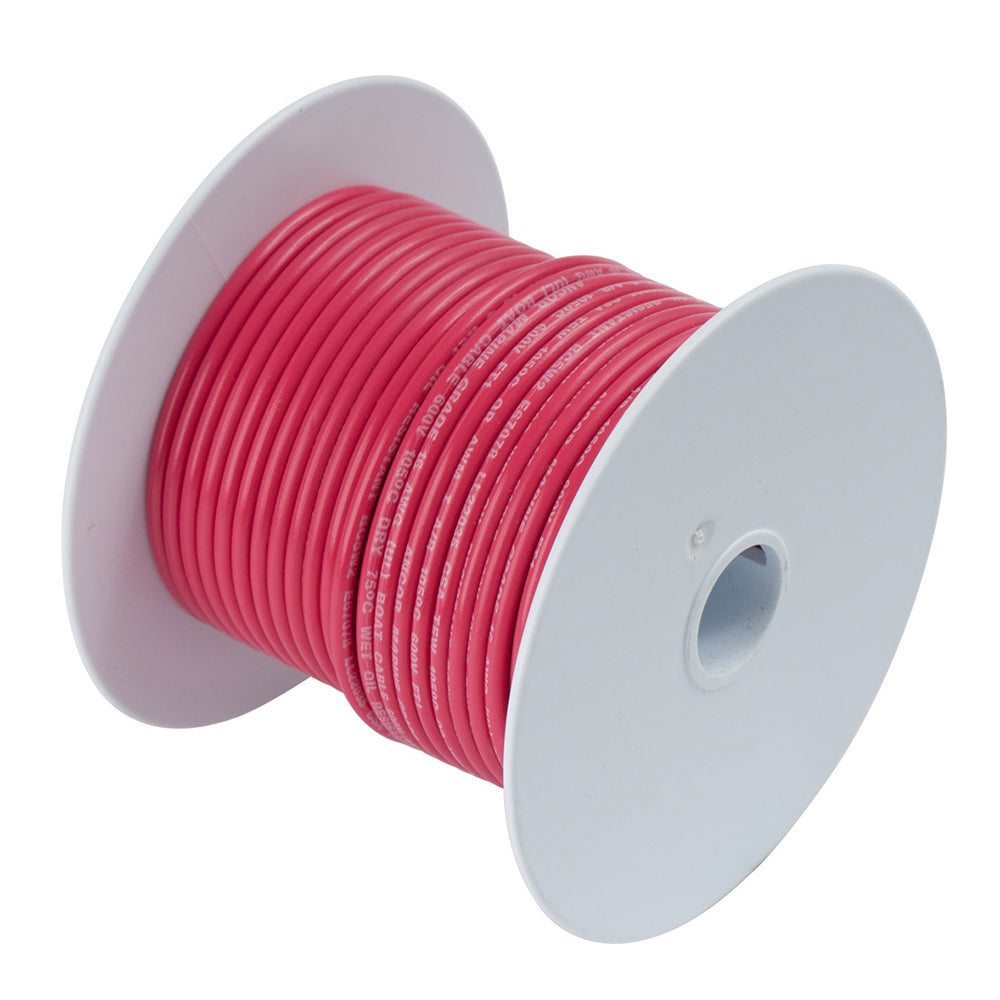

Red 4 AWG Tinned Copper Battery Cable - 250'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 250'
• Gauge: 4 AWG
• Color: Red
• Box Dimensions: 11"H x 11"W x 11"L WT: 44.4 lbs
• UPC: 091887101270

Ancor Red 2/0 AWG Battery Cable - 100' [117510]

Red 2/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red
• Length (Feet): 100'
• Gauge: 2/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 49.5 lbs

Quick Guide (pdf)
Owner's Manual (pdf)

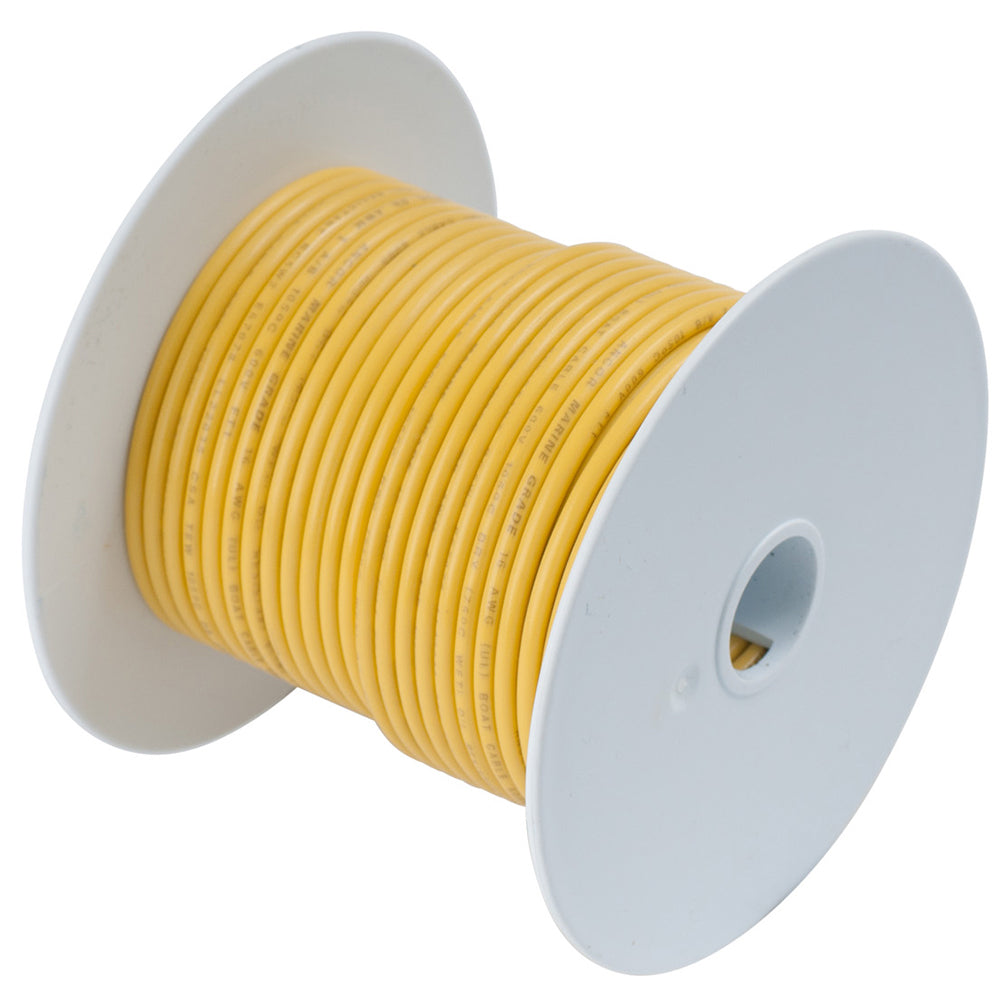

Yellow 2/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Yellow
• Length (Feet): 100'
• Gauge: 2/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 53 lbs
• UPC: 091887968071

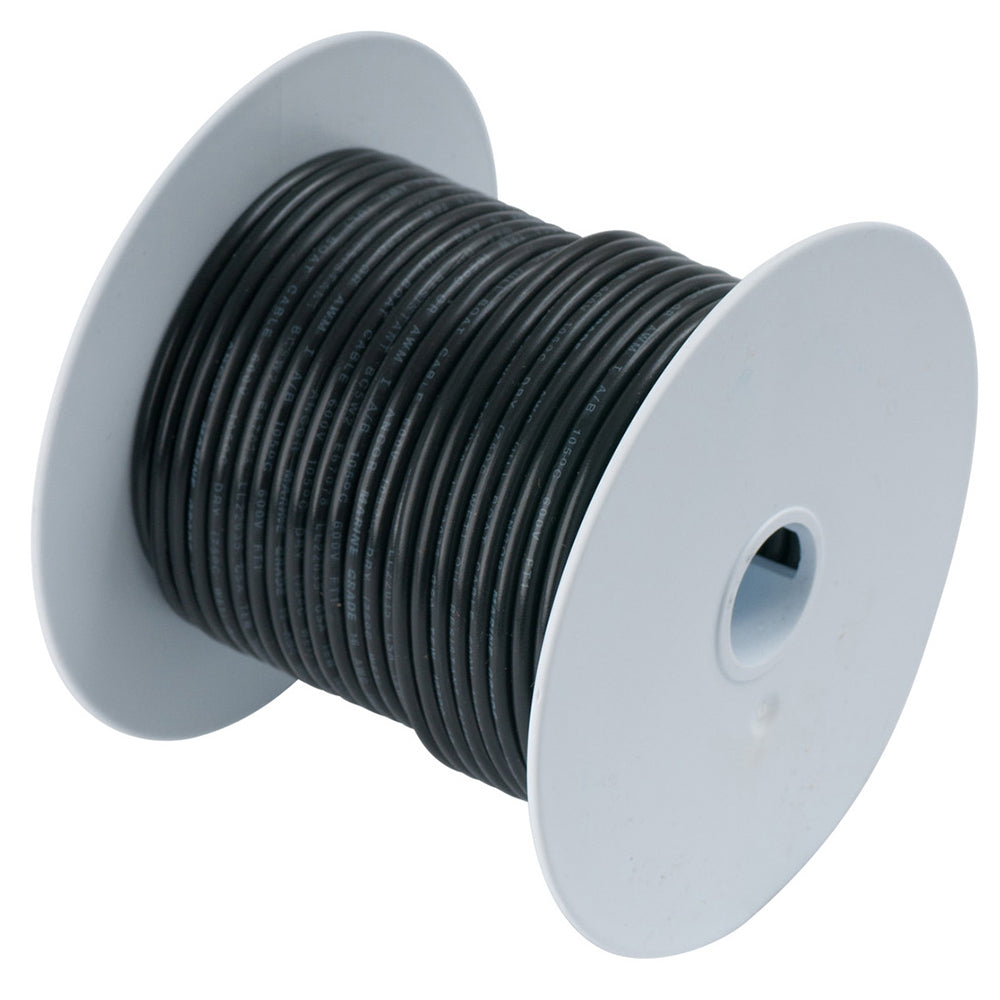

Ancor Black 1/0 AWG Battery Cable - 100' [116010]

Black 1/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Black
• Length (Feet): 100'
• Gauge: 1/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 43 lbs
• UPC: 091887116267

Owner's Manual (pdf)

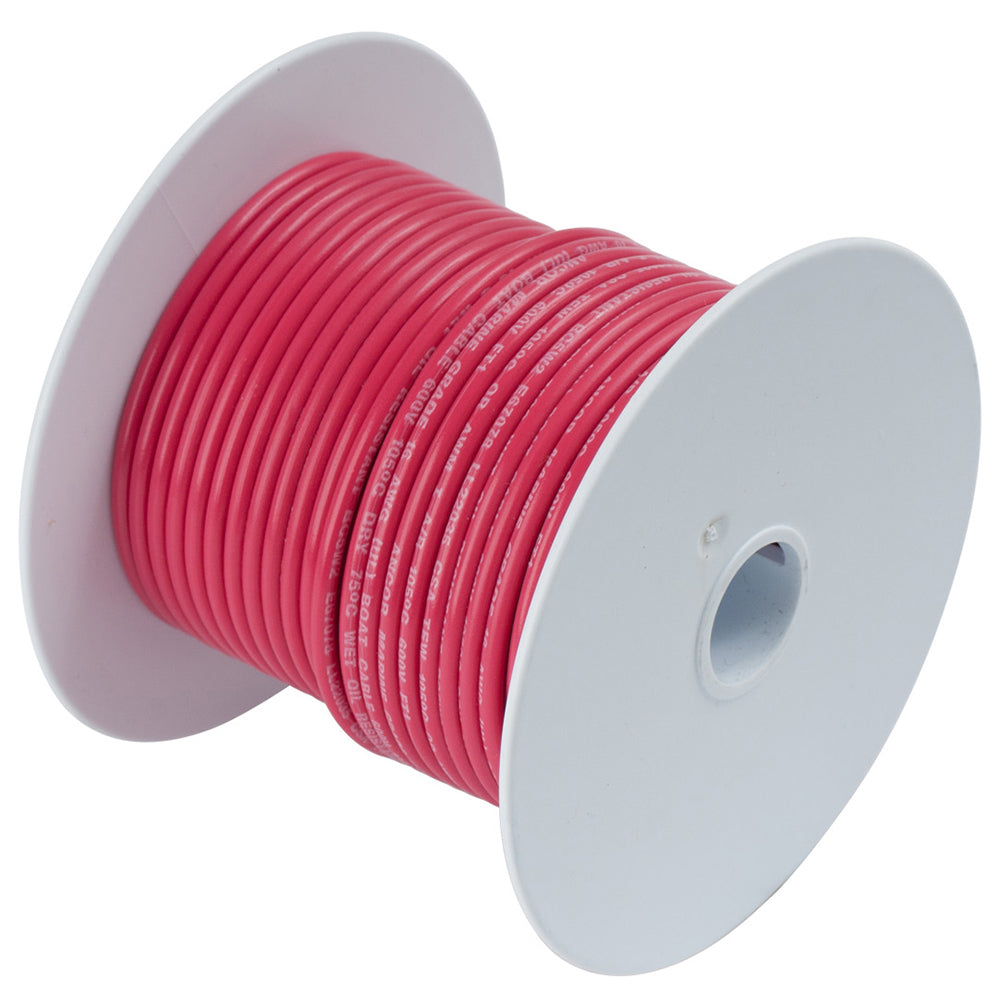

Ancor Red 1/0 AWG Battery Cable - 100' [116510]

Red 1/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red
• Length (Feet): 100'
• Gauge: 1/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 43.25 lbs
• UPC: 091887116304

Quick Guide (pdf)
Owner's Manual (pdf)
