Electrical - Inverters

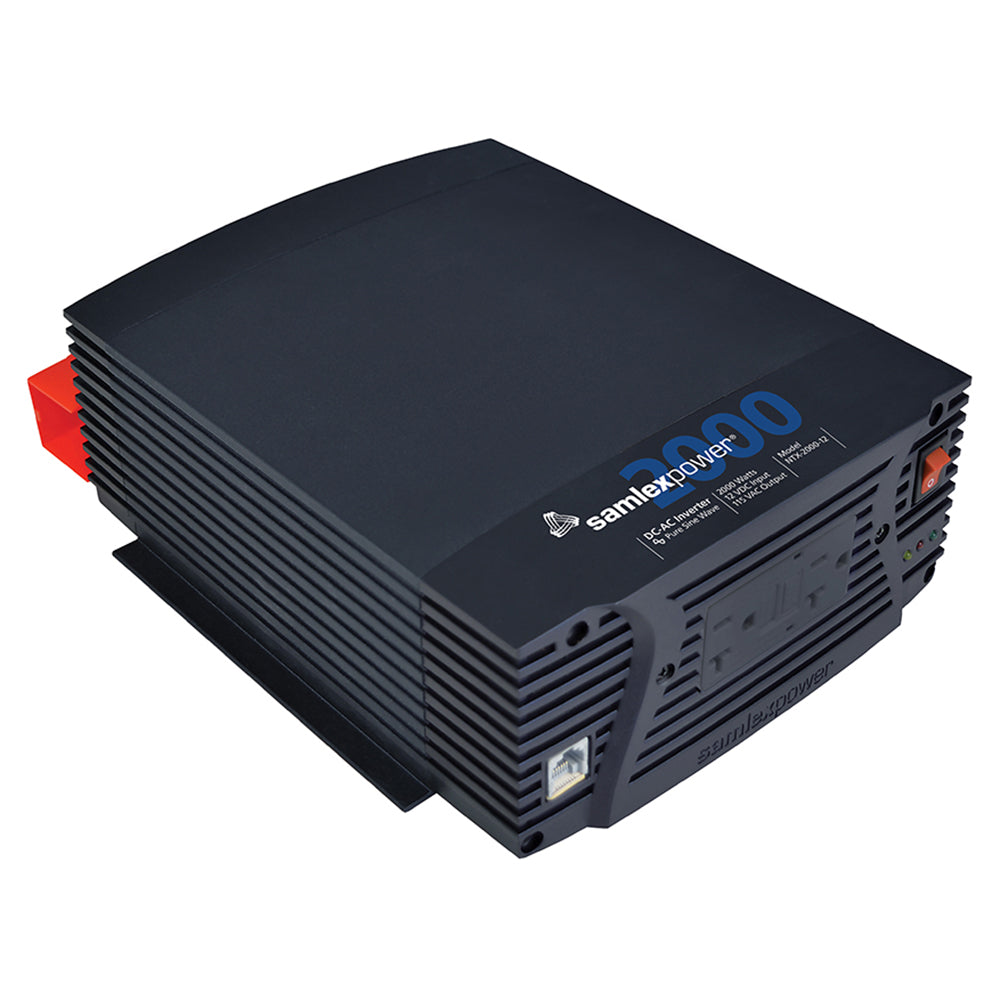

Samlex NTX-2000-12 Pure Sine Wave Inverter - 2000W [NTX-2000-12]

NTX-2000-12 Pure Sine Wave Inverter - 2000W

The NTX Series Pure Sine Wave Inverters are FCC certified to ensure no electrical interference when operating near sensitive equipment. This series has a single variable speed temperature and load-controlled fan for quiet operation.

Features:

• Pure Sine Waveform of AC output voltage
• High efficiency
• Compact size and low weight
• Very low idle current
• Easily start high surge loads with Samlex HypersurgeTM technology
• LCD Remote Control Model NTX-RC included
• Low noise load and temperature controlled variable speed fan
• Wide input voltage range

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

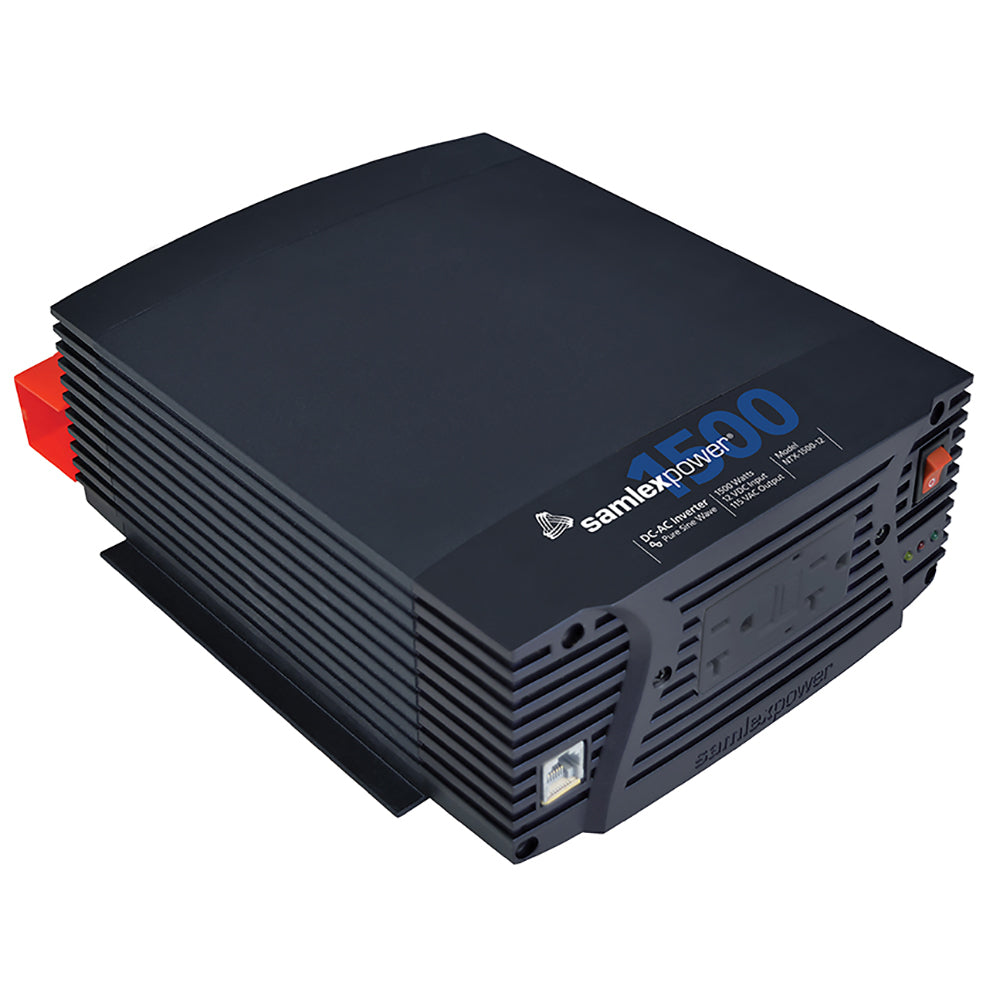

Samlex NTX-1500-12 Pure Sine Wave Inverter - 1500W [NTX-1500-12]

NTX-1500-12 Pure Sine Wave Inverter - 1500W

The NTX Series Pure Sine Wave Inverters are FCC certified to ensure no electrical interference when operating near sensitive equipment. This series has a single variable speed temperature and load-controlled fan for quiet operation.

Features:

• Pure Sine Waveform of AC output voltage
• High efficiency
• Compact size and low weight
• Very low idle current
• Easily start high surge loads with Samlex HypersurgeTM technology
• LCD Remote Control Model NTX-RC included
• Low noise load and temperature controlled variable speed fan
• Wide input voltage range

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

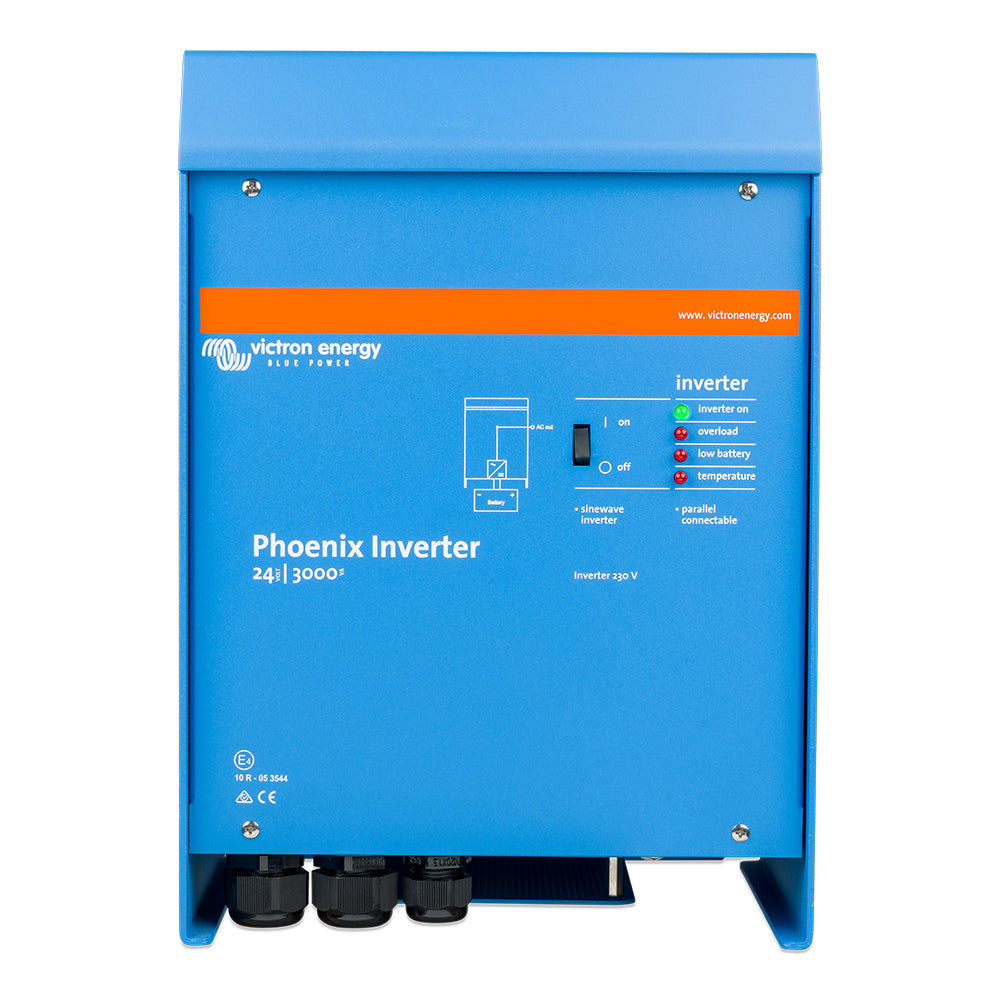

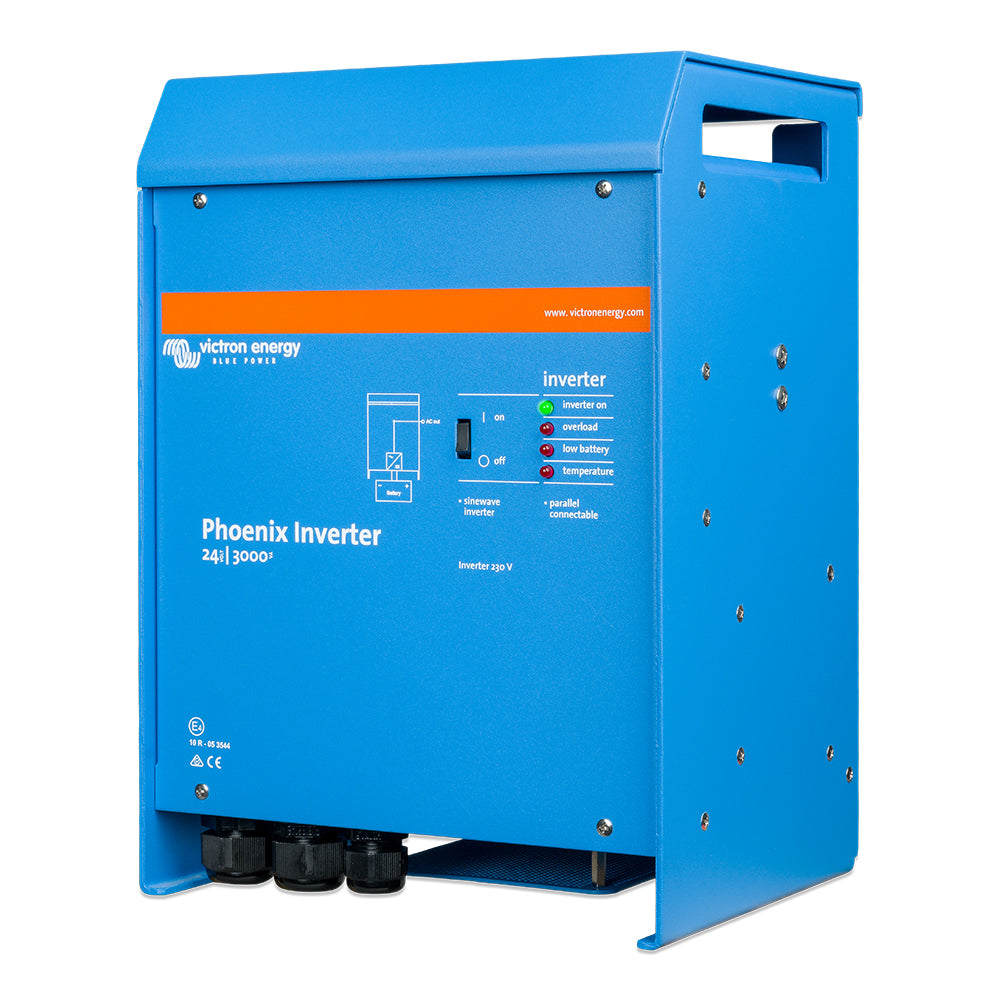

Phoenix Inverter - 12 VDC - 3000W - 120 VAC - 50/60Hz

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Communications interface

These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software,  which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Waveform: Pure Sine Wave
• Inverter Surge Rating: 6000w
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 10-17v
• GFCI: No
• DC Connection Type: Hardwire
• AC Connection Type: Hardwire
• Outlet Qty: None
• Inverter Cont. Output Wattage: 3000w
• Box Dimensions: 12"H x 14"W x 18"L WT: 44.45 lbs
• UPC: 8719076023586

Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz - VE. Bus

Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising on performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.

Parallel & 3-phase Operation Capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in a 3-phase configuration is also possible.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Waveform: Pure Sine Wave
• Outlet Qty: None
• Inverter Surge Rating: 6000w
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 19-33v
• Inverter Cont. Output Wattage: 3000w
• GFCI: No
• DC Connection Type: Hardwire
• AC Connection Type: Hardwire
• Box Dimensions: 13"H x 13"W x 18"L WT: 47 lbs
• UPC: 8719076023739

Samlex 1500W Pure Sine Wave Inverter - 24V [PST-1500-24]

1500W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs or can be hard-wired. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 1500
• Surge: 3000 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standards
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 1500w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 24v
• Waveform: Pure Sine Wave
• Box Dimensions: 6"H x 12"W x 21"L WT: 17.2 lbs
• UPC: 622988072208

Owner's Manual (pdf)
Brochure (pdf)

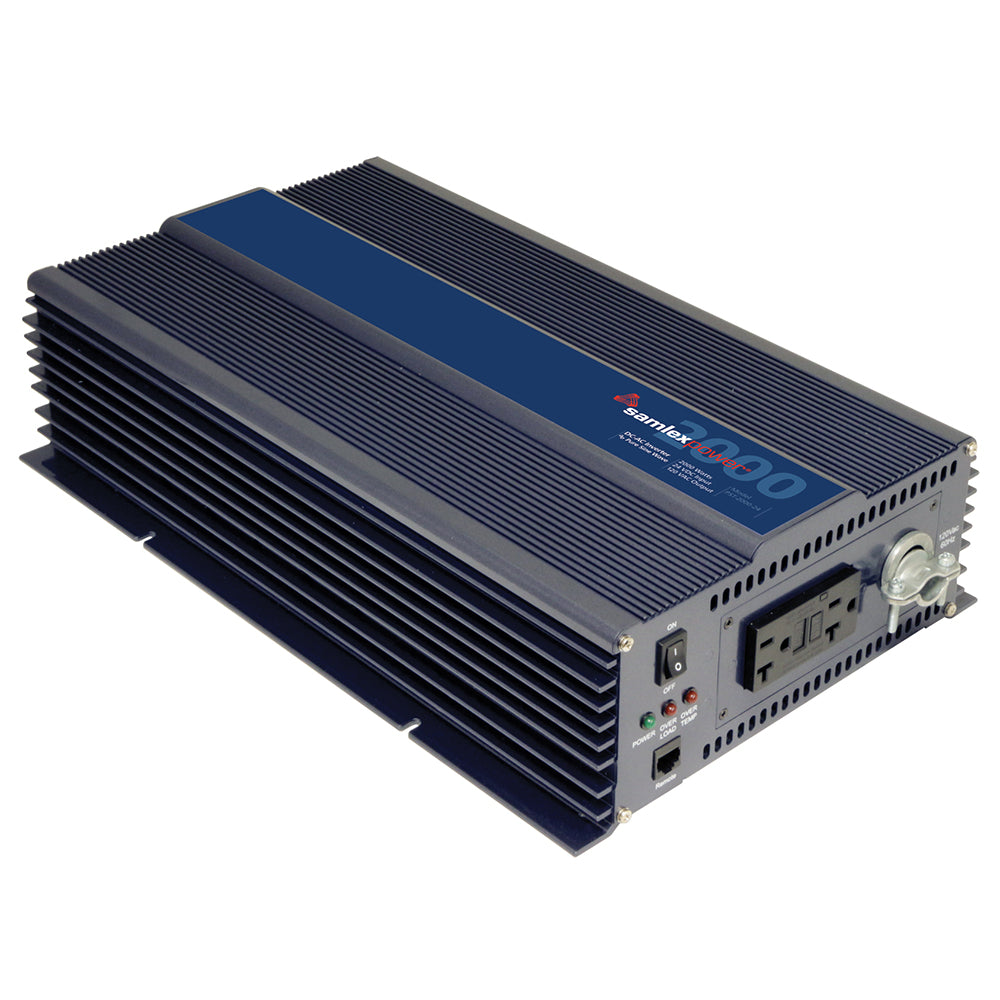

Samlex 2000W Pure Sine Wave Inverter - 24V [PST-2000-24]

2000W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 24 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2000
• Surge: 3500 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 2000w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 24v
• Waveform: Pure Sine Wave
• Box Dimensions: 6"H x 12"W x 21"L WT: 17.8 lbs
• UPC: 622988072222

Owner's Manual (pdf)
Brochure (pdf)

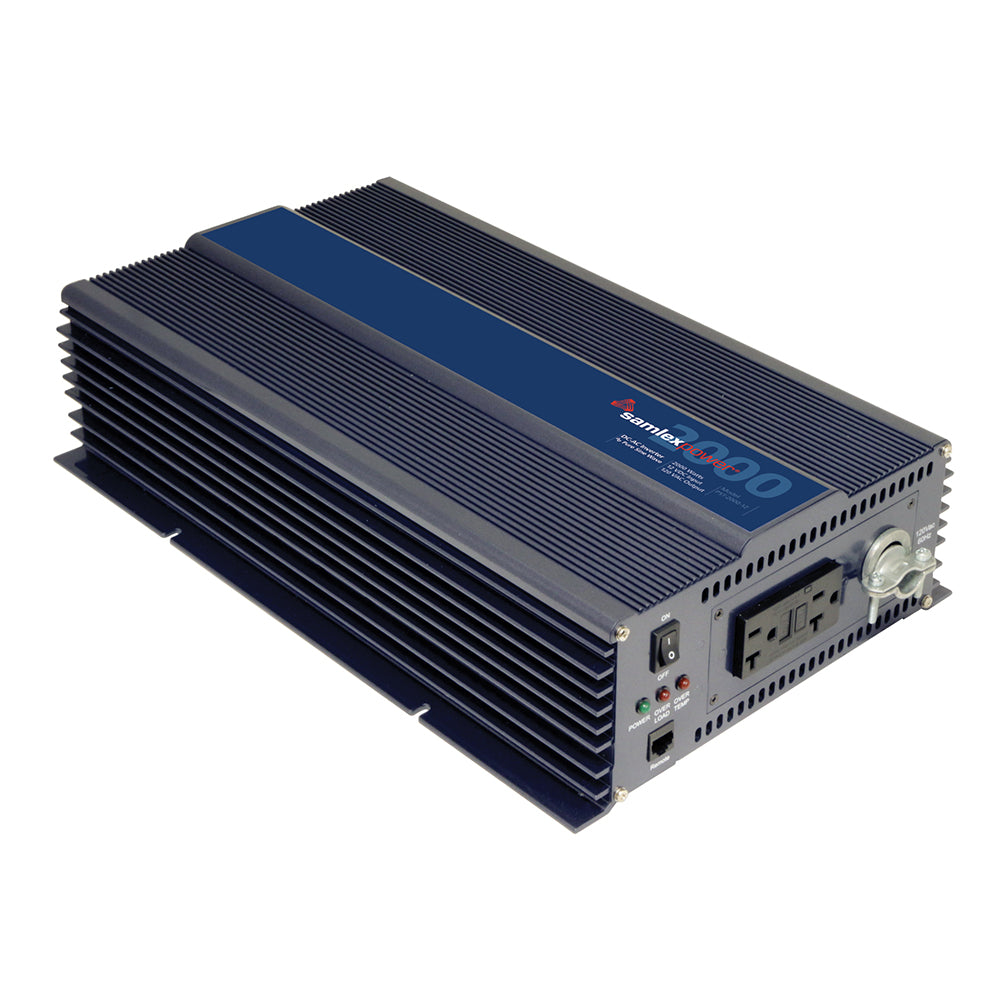

Samlex 2000W Pure Sine Wave Inverter - 12V [PST-2000-12]

2000W Pure Sine Wave Inverter - 12V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 10.7 - 16.5 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 2000
• Surge: 3500 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 2000w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 12v
• Waveform: Pure Sine Wave
• Box Dimensions: 6"H x 12"W x 21"L WT: 17.7 lbs
• UPC: 622988072215

Owner's Manual (pdf)
Brochure (pdf)

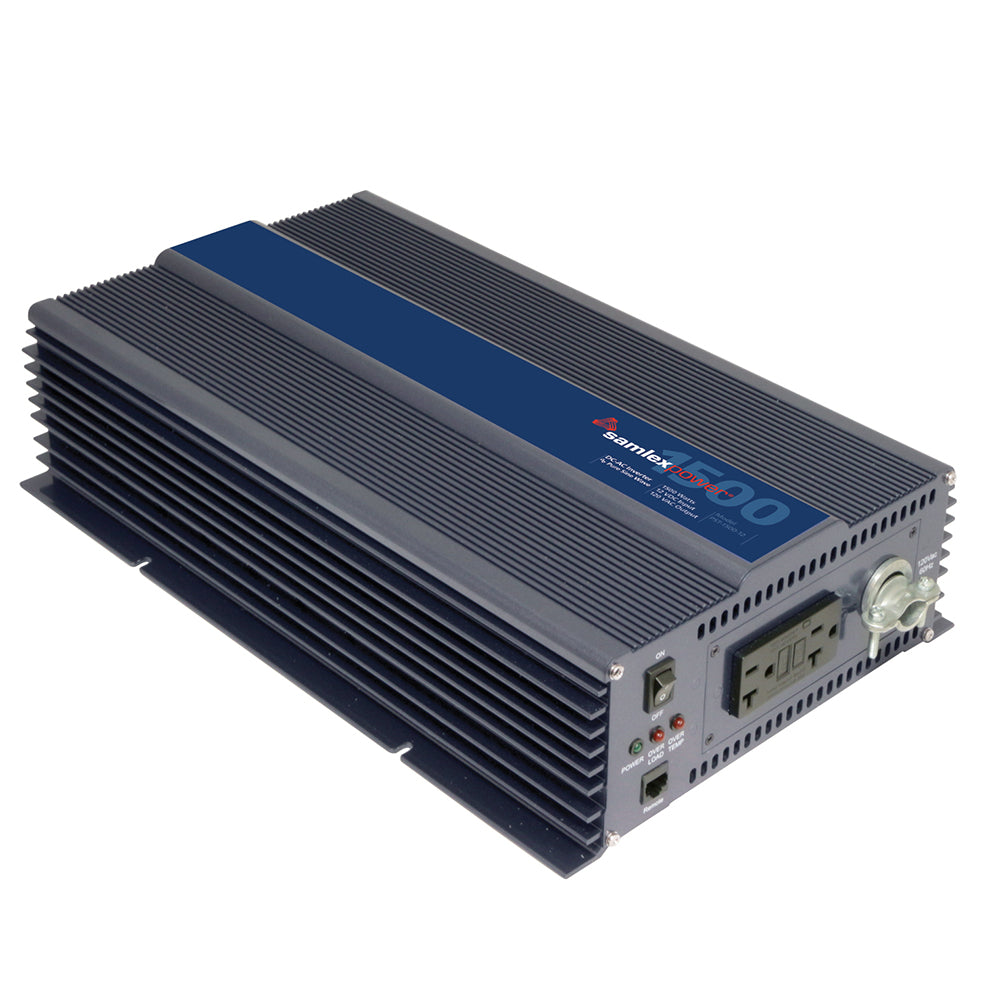

Samlex 1500W Pure Sine Wave Inverter - 12V [PST-1500-12]

1500W Pure Sine Wave Inverter - 12V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs or can be hard-wired. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 10.7 - 16.5 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 1500
• Surge: 3000 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 1500w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 12v
• Waveform: Pure Sine Wave
• Box Dimensions: 6"H x 12"W x 21"L WT: 17 lbs
• UPC: 622988072192

Owner's Manual (pdf)
Brochure (pdf)
