Phoenix Inverter - 12 VDC - 3000W - 120 VAC - 50/60Hz

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Communications interface

These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software,  which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

• Waveform: Pure Sine Wave
• Inverter Surge Rating: 6000w
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 10-17v
• GFCI: No
• DC Connection Type: Hardwire
• AC Connection Type: Hardwire
• Outlet Qty: None
• Inverter Cont. Output Wattage: 3000w
• Box Dimensions: 12"H x 14"W x 18"L WT: 44.45 lbs
• UPC: 8719076023586

Quick Guide (pdf)
Brochure (pdf)

Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz - VE. Bus

Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising on performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.

Parallel & 3-phase Operation Capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in a 3-phase configuration is also possible.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

• Waveform: Pure Sine Wave
• Outlet Qty: None
• Inverter Surge Rating: 6000w
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 19-33v
• Inverter Cont. Output Wattage: 3000w
• GFCI: No
• DC Connection Type: Hardwire
• AC Connection Type: Hardwire
• Box Dimensions: 13"H x 13"W x 18"L WT: 47 lbs
• UPC: 8719076023739

Quick Guide (pdf)
Brochure (pdf)

1500W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs or can be hard-wired. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 1500
• Surge: 3000 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standards
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 1500w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 24v
• Waveform: Pure Sine Wave
• Box Dimensions: 6"H x 12"W x 21"L WT: 17.2 lbs
• UPC: 622988072208

Owner's Manual (pdf)
Brochure (pdf)

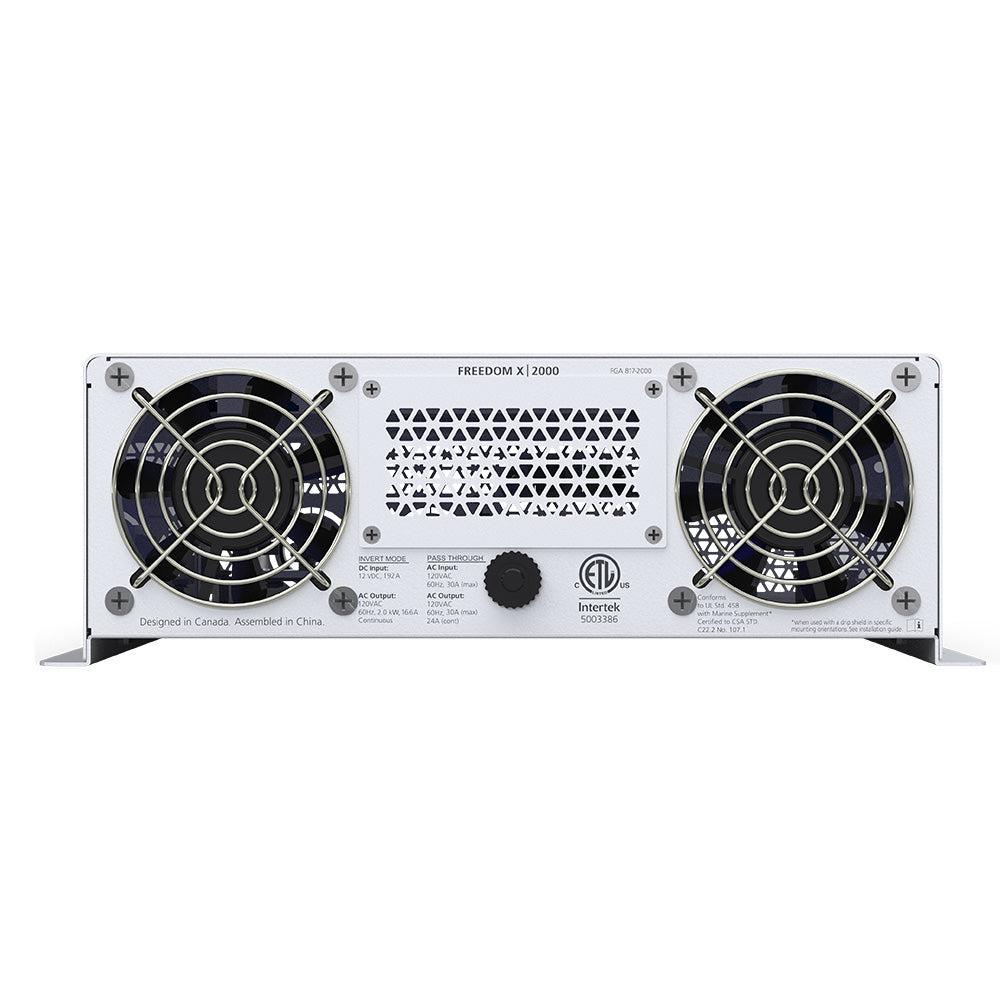

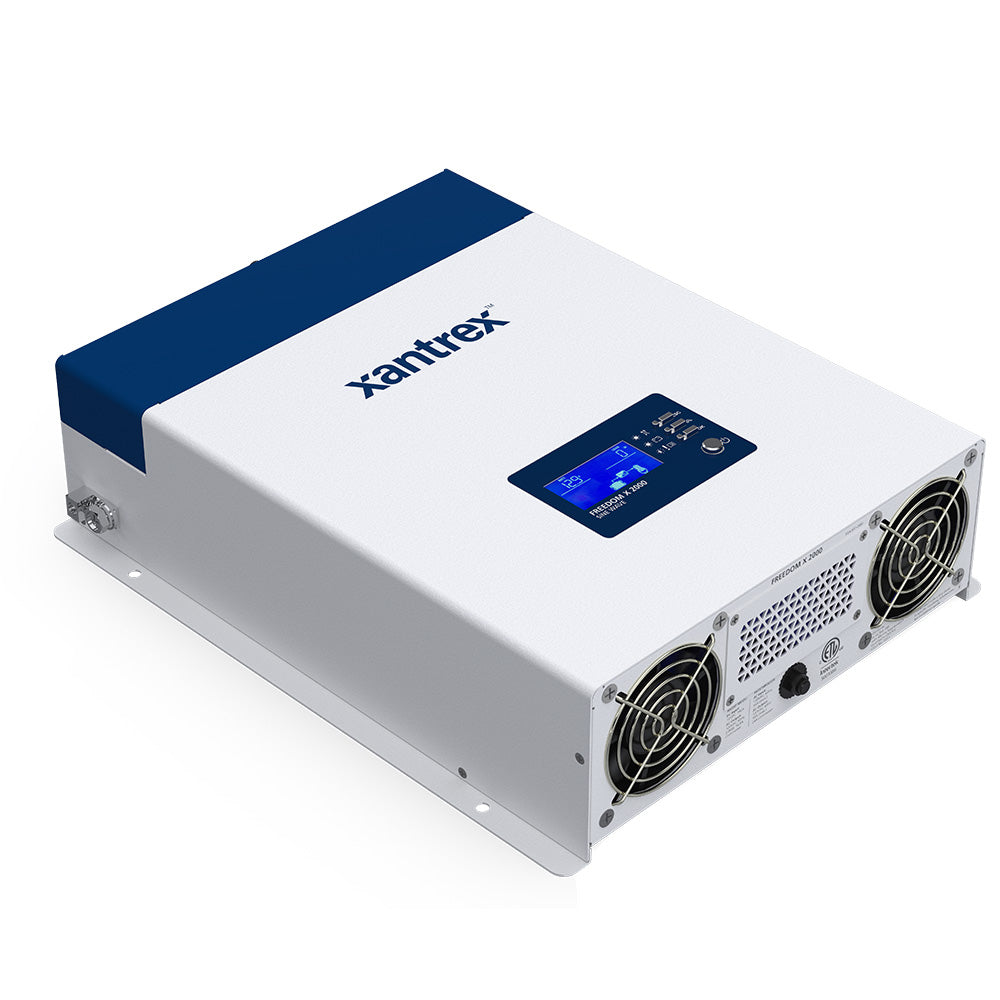

Xantrex Freedom X 2000 True Sine Wave Power Inverter - 12VDC - 120VAC - 2000W [817-2000]

Freedom X 2000 True Sine Wave Power Inverter - 12VDC - 120VAC - 2000W

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 2000w
• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: Optional
• Outlet Qty: Optional
• Inverter Surge Rating: 4000w
• Inverter Input Voltage: 12v
• Inverter Output Voltage: 120v
• Waveform: True Sine Wave
• Box Dimensions: 9"H x 15"W x 20"L WT: 18.8 lbs
• UPC: 715535901387

Owner's Manual (pdf)
Brochure (pdf)

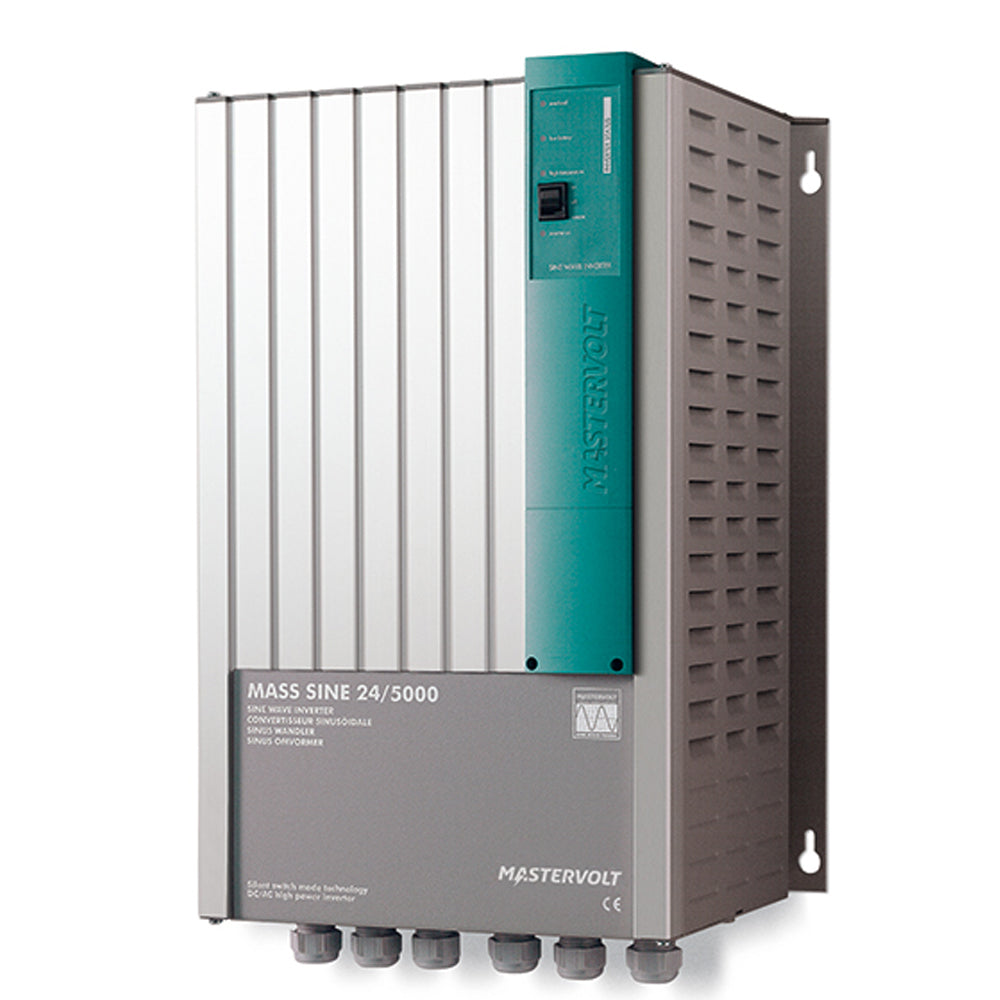

Mass Sine Wave Inverter 24/5000 (230V/50Hz)

For the toughest tasks
Mass Sine sine wave inverters are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass Sine series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

Making the best even better
The reliability and long lifespan of Mastervolt's sine wave inverters have been established beyond doubt over the past 20 years. While the Mass products have evolved with the latest technological developments, the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions, Mastervolt has developed the Green by Heart programme. Its impact on the Mass Sine inverters include:

• An exceptionally effective use of the consumed input current (cos phi) > 0.98!

• Use of top quality components with a long lifespan.

• Savings in weight and space.

• Fewer installation materials.

Powerful selling points

• Capacity between 800 W and 5 kW.

• Suitable for high starting/peak loads, even up to 200% at brief consumption.

• 230V/50Hz pure sine wave voltage; no faults or humming sounds from connected equipment, not even with sensitive communication and measuring equipment.

• Fully MasterBus compatible with AC Power Analyser or MasterBus Inverter Interface.

• All Mastervolt inverters provide pure sine wave voltage to ensure seamless operation of the connected equipment. Mastervolt inverters are the best choice available.

MasterBus compatible
In combination with the MasterBus Inverter Interface or AC Power Analyser, you can easily connect every Mass Sine inverter within a MasterBus network. All you need is a single cable with one connection. Your benefits: Fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel.

Easy and safe connection
Mass products are equipped with certified industrial connection technology. The larger inverter models have internal connections, the smaller models use a cable and plug & play socket.

Automatic switching
Easy to install within a mains voltage and/or generator power system, the Mass Sine inverter can switch between sources or combine the supply using the Masterswitch or Systemswitch system.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: No
• Outlet Qty: None
• Inverter Surge Rating: 9000w
• Inverter Input Voltage: 24v
• Inverter Output Voltage: 230v
• Waveform: True Sine Wave
• Inverter Cont. Output Wattage: 4000w
• Box Dimensions: 14"H x 17"W x 23"L WT: 49.2 lbs
• UPC: 816882020643

Owner's Manual (pdf)

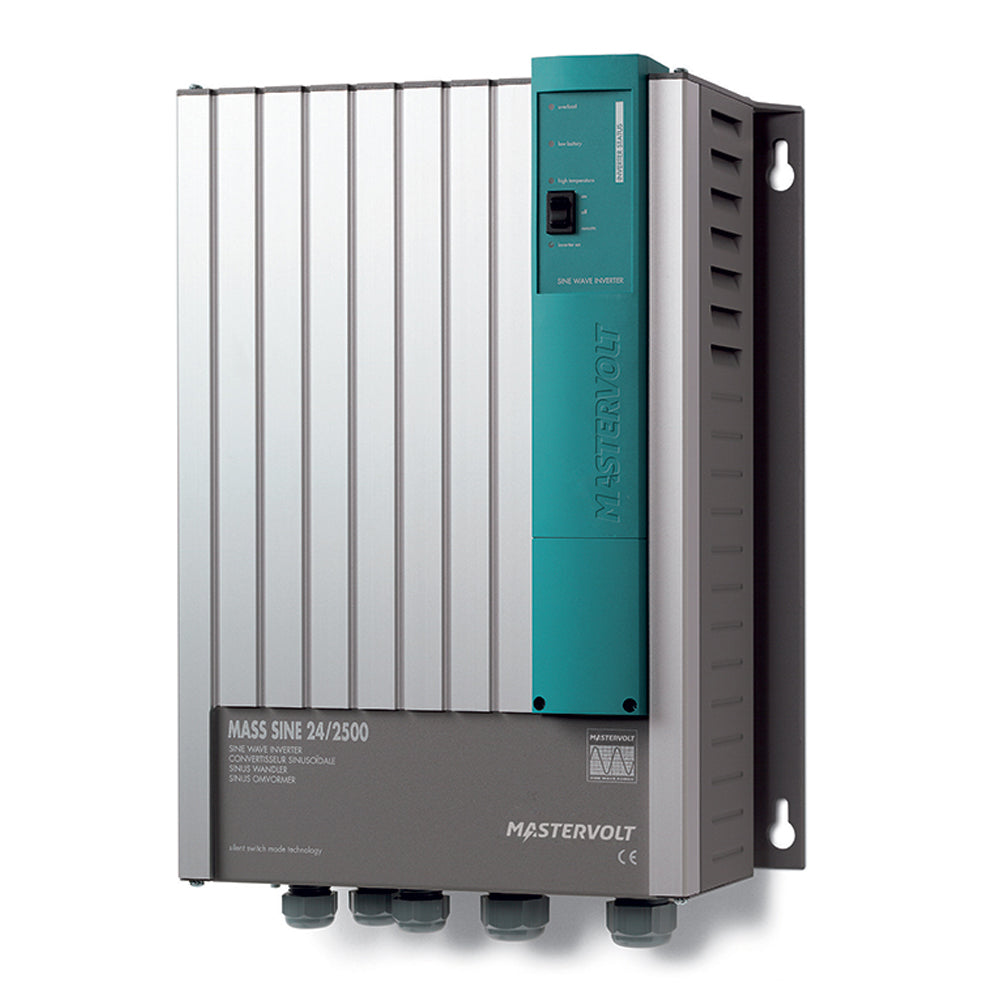

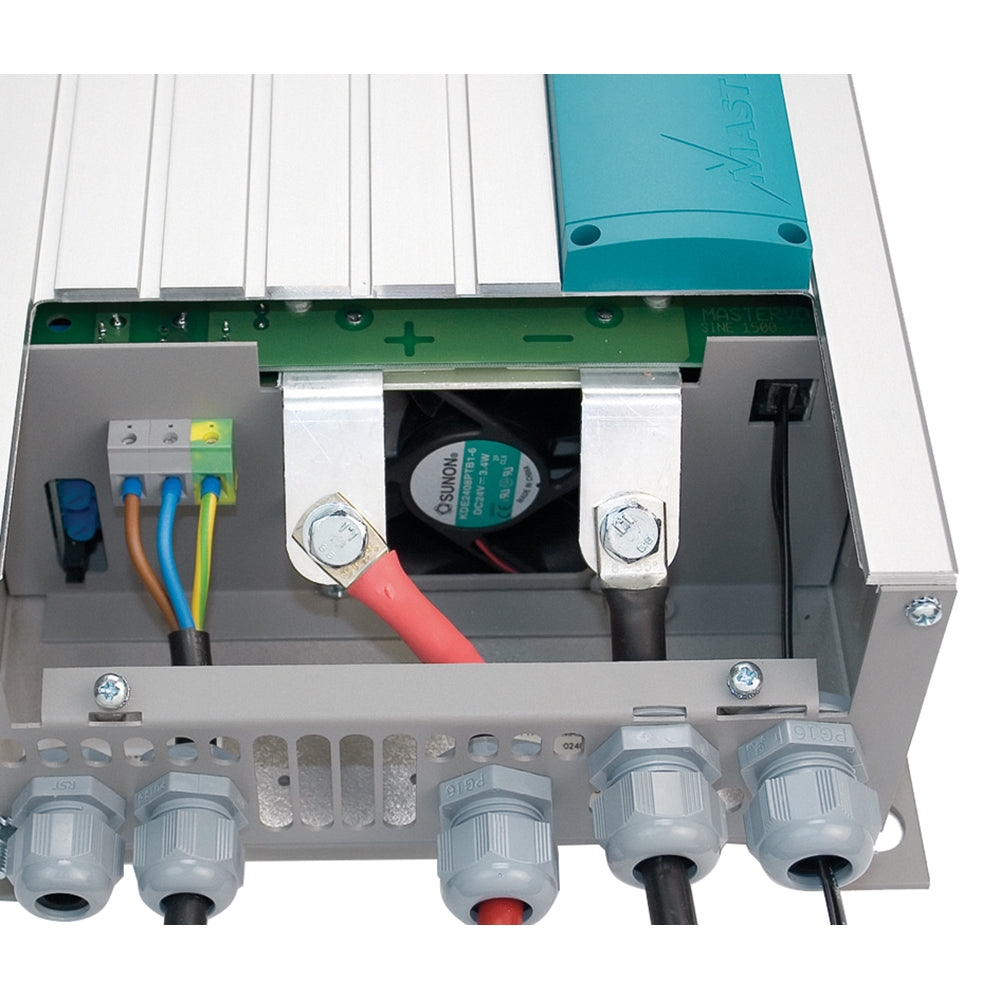

Mass Sine Wave Inverter 24/2500 (230V/50Hz)

For the toughest tasks
Mass Sine sine wave inverters are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass Sine series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

Making the best even better
The reliability and long lifespan of Mastervolt's sine wave inverters have been established beyond doubt over the past 20 years. While the Mass products have evolved with the latest technological developments, the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions, Mastervolt has developed the Green by Heart programme. Its impact on the Mass Sine inverters include:

• An exceptionally effective use of the consumed input current (cos phi) > 0.98!

• Use of top quality components with a long lifespan.

• Savings in weight and space.

• Fewer installation materials.

Powerful selling points

• Capacity between 800 W and 5 kW.

• Suitable for high starting/peak loads, even up to 200% at brief consumption.

• 230V/50Hz pure sine wave voltage; no faults or humming sounds from connected equipment, not even with sensitive communication and measuring equipment.

• Fully MasterBus compatible with AC Power Analyser or MasterBus Inverter Interface.

• All Mastervolt inverters provide pure sine wave voltage to ensure seamless operation of the connected equipment. Mastervolt inverters are the best choice available.

MasterBus compatible
In combination with the MasterBus Inverter Interface or AC Power Analyser, you can easily connect every Mass Sine inverter within a MasterBus network. All you need is a single cable with one connection. Your benefits: Fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel.

Easy and safe connection
Mass products are equipped with certified industrial connection technology. The larger inverter models have internal connections, the smaller models use a cable and plug & play socket.

Automatic switching
Easy to install within a mains voltage and/or generator power system, the Mass Sine inverter can switch between sources or combine the supply using the Masterswitch or Systemswitch system.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: No
• Outlet Qty: None
• Inverter Surge Rating: 5000w
• Inverter Input Voltage: 24v
• Inverter Output Voltage: 230v
• Waveform: True Sine Wave
• Inverter Cont. Output Wattage: 2000w
• Box Dimensions: 8"H x 15"W x 21"L WT: 26.3 lbs
• UPC: 816882020629

Owner's Manual (pdf)
Brochure (pdf)

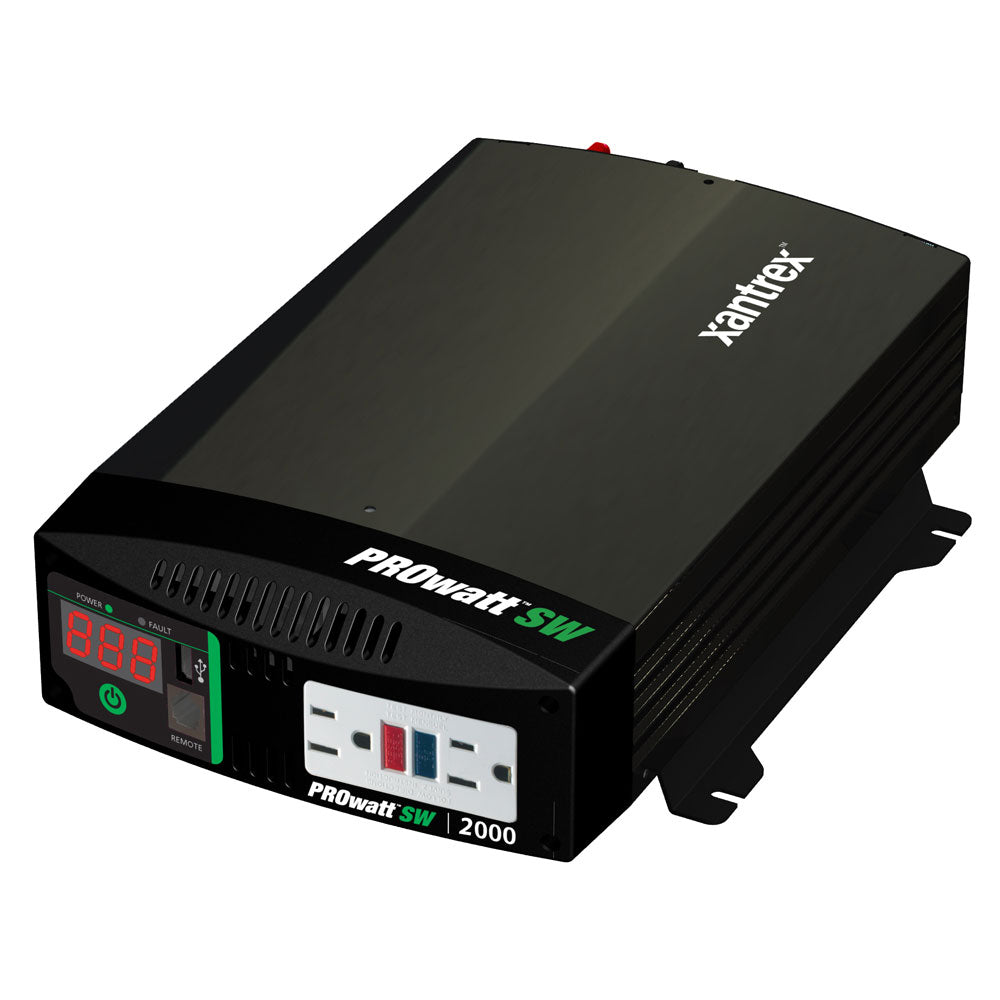

Xantrex PROwatt SW2000 - True Sine Wave Inverter [806-1220]

PROwatt SW Sine Wave Inverter

PURE POWER. TRUE VALUE.

The PROwatt SW offers affordable, quality pure sine wave inverter solution for both recreational andcommercial applications. PROwatt SW provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter's output when the vehicle's ignition is not engaged.

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.

Product Features:

• 1800W Continuous, 3000W Surge Capability
• Built-in digital display for DC volts and output power
• Built-in USB port
• Dual GFCI AC receptacles for safe operation
• Heavy duty terminals for trouble-free battery connection
• Available ON/OFF remote switch (with ignition lockout)
• Meets stringent UL458 regulatory standard
• Two year warranty

Protection Features:

• Low voltage shutdown (10.5 Vdc)
• Low voltage alarm (11.0 Vdc)
• Over voltage protection (15.5 Vdc)
• Over load shutdown
• Over temperature shutdown
• GFCI protection

Electrical Specifications:

• Continuous Power:1800W
• Surge Capacity (Peak): 3000W
• DC Input: 12 Vdc (nominal)
• AC Output Frequency: 60 ± 0.5 Hz
• AC Output Voltage Range: 104 - 127 Vac
• USB Output: 5 V / 500 mA
• Output Waveform: True Sine Wave
• Optimum Efficiency: 90%
• No Load Current Draw: < 0.8 A
• Input Voltage Range: 10.5 - 15.5 Vdc

General Specifications:

• Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
• AC Receptacle: Dual GFCI
• USB Receptacle: Single Port (Type A)
• DC Connection: Hardwire
• Recommended DC Fuse: 250 A
• Digital Display: DC voltage, AC output power & error codes
• Dimensions (H x W x L): 3.9" x 11.8" x 13.7" (100 x 299 x 348mm)
• Weight: 10.7lb (4.9kg)
• Warranty: Two year

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 1 Duplex GFCI
• Inverter Surge Rating: 3000w
• Inverter Input Voltage: 12v
• Waveform: True Sine Wave
• Inverter Output Voltage: 120v
• AC Connection Type: Hardwire
• Inverter Cont. Output Wattage: 1800w
• Box Dimensions: 7"H x 14"W x 17"L WT: 13.3 lbs
• UPC: 715535894221

Quick Guide (pdf)
Owner's Manual (pdf)

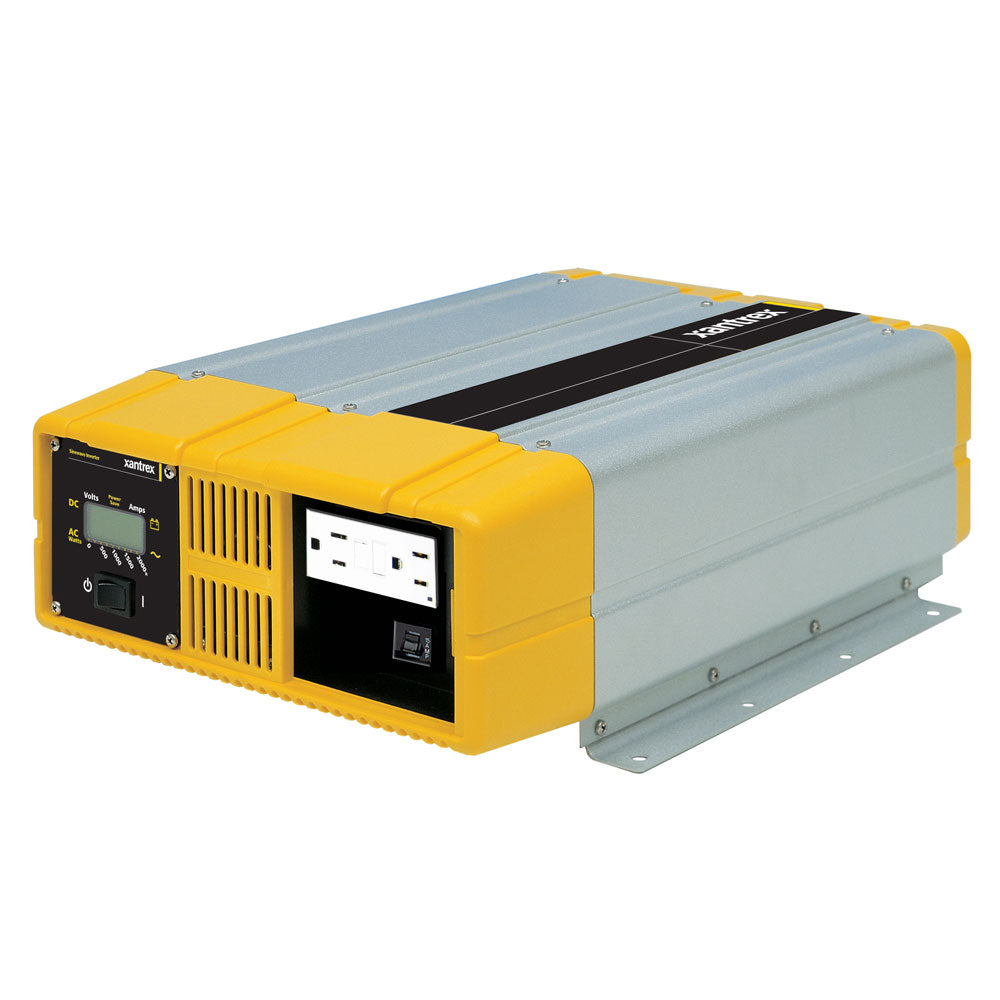

Provides 1800 watts of sine wave AC power from a DC source

Offering superior quality true sine wave output, the Prosine 1800 stand-alone inverter is ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.

Product Features

• 1800 watt inverters (2900 watt surge capability)

• True sine wave AC output (crystal controlled)

• Removable LCD display can be mounted remotely for control and monitoring

• Unique DC terminals offer 180-degree connections for easy installation in tight places

• Powersave mode draws only 1.5 watts under no load

• Two year warranty

Protection Features

• Over temperature shutdown and automatic overload protection

• Over voltage and under voltage protection

• Short circuit and AC backfeed protection

With less than 3% total harmonic distortion, Prosine 1000 and 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes Prosine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.

Light and compact

Prosine inverters are lighter and more compact than other inverters with similar power ratings because they use high-frequency switching technology in the power conversion process.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 1 Duplex GFCI
• Inverter Surge Rating: 2000w
• Waveform: True Sine Wave
• Inverter Input Voltage: 12v
• Inverter Output Voltage: 120v
• AC Connection Type: Hardwire
• Inverter Cont. Output Wattage: 1800w
• Box Dimensions: 8"H x 14"W x 19"L WT: 19.4 lbs
• UPC: 715535618001

Owner's Manual (pdf)
Brochure (pdf)
