Electrical - Electrical Panels

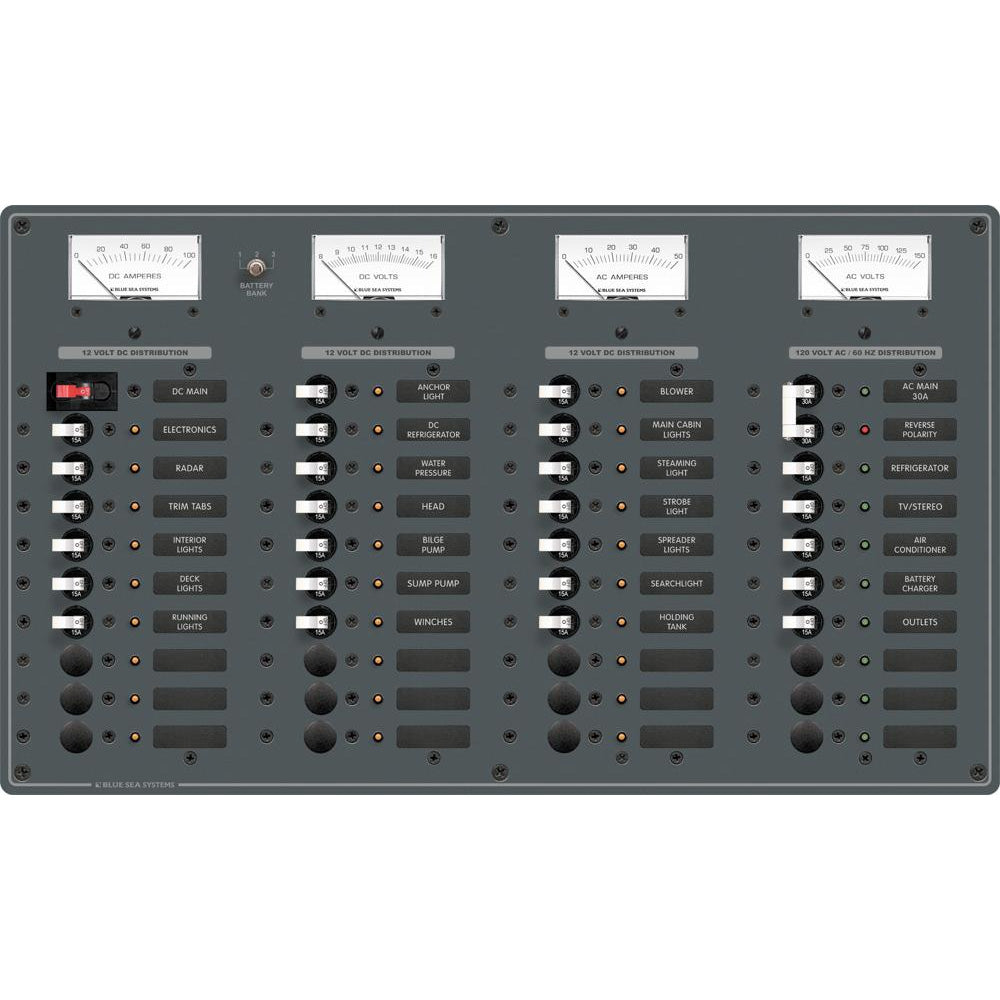

Blue Sea 8195 AC Main + 8 Positions / DC Main + 29 Positions [8195]

Ships Direct From Manufacturer

AC Main + 8 Positions / DC Main + 29 Positions

Switches Color: White

Installed AC Breakers

• (1) 16A

• (5) 8A

Installed DC Breakers

• (1) 100A Main

• (20) 15A

• Voltage 230v - 12V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 8 AC / 29 DC
• AC/DC: Both
• Voltage: 230v/12v
• Box Dimensions: 8"H x 15"W x 22"L WT: 12.6 lbs
• UPC: 632085081959

Quick Guide (pdf)
Owner's Manual (pdf)

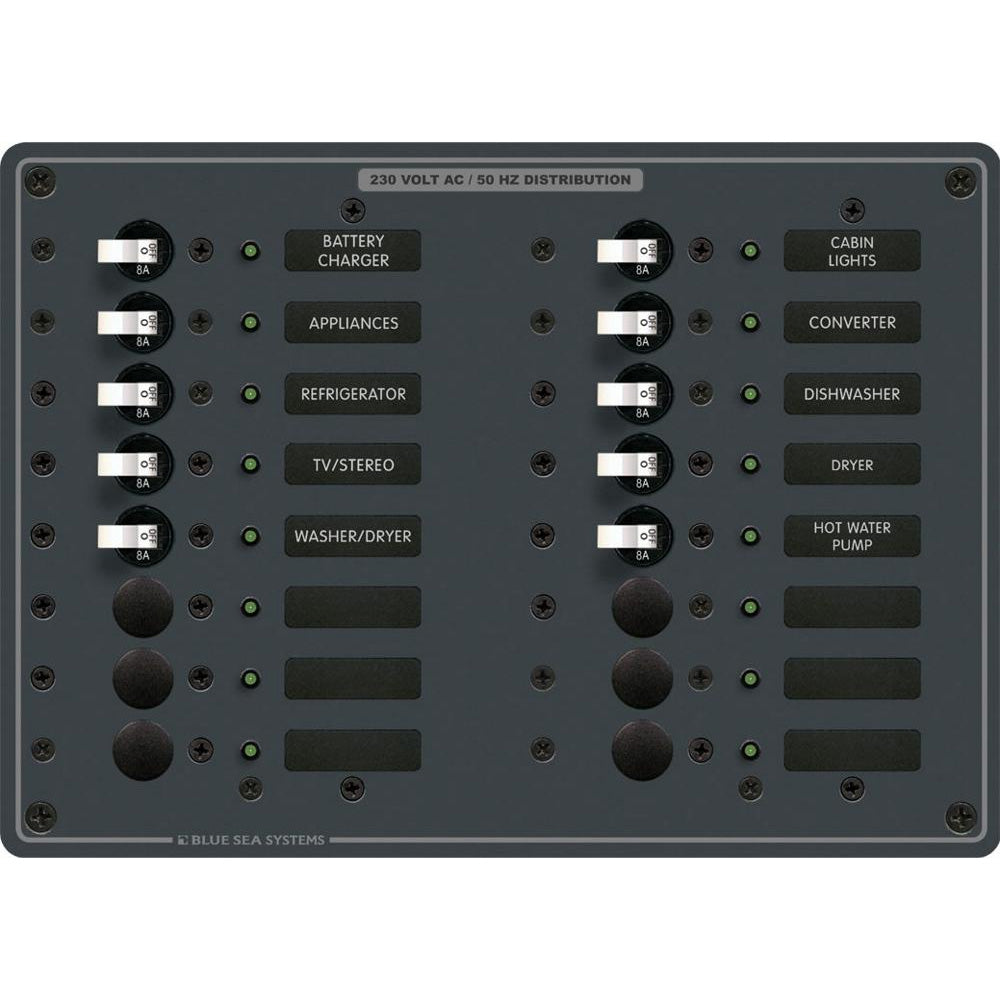

Blue Sea 8561 AC 16 Position 230v (European) Breaker Panel (White Switches) [8561]

AC 16 Position (European)

PN:  8561
White Switches

Features:

• All hot, neutral and safety ground buses installed, fully pre-wired

• Label backlighting pre-installed

• Detailed installation instructions and cutout template

• All LEDs installed

• Maximum panel Amperage - 100 Amperes

• (10) 8A Single Pole Circuit Breaker

• 230 Volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 16
• Box Dimensions: 4"H x 9"W x 12"L WT: 4.1 lbs
• UPC: 632085085612

Quick Guide (pdf)
Owner's Manual (pdf)

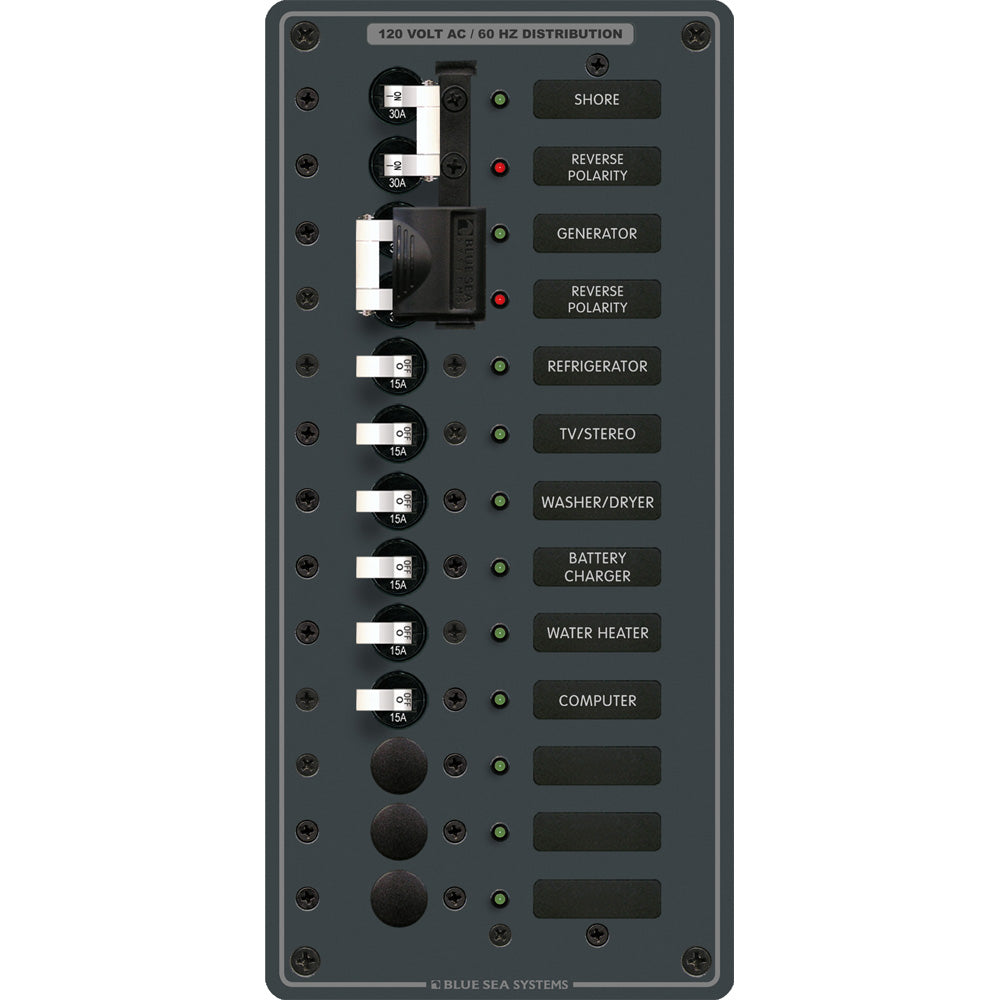

Blue Sea 8466 AC 2 Sources + 9 Positions [8466]

AC 2 Sources + 9 Positions

• (2) 30A Double Pole Circuit Breakers

• (6) 15A Single Pole Circuit Breakers

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 9
• Box Dimensions: 5"H x 10"W x 12"L WT: 5 lbs
• UPC: 632085084660

Quick Guide (pdf)
Owner's Manual (pdf)

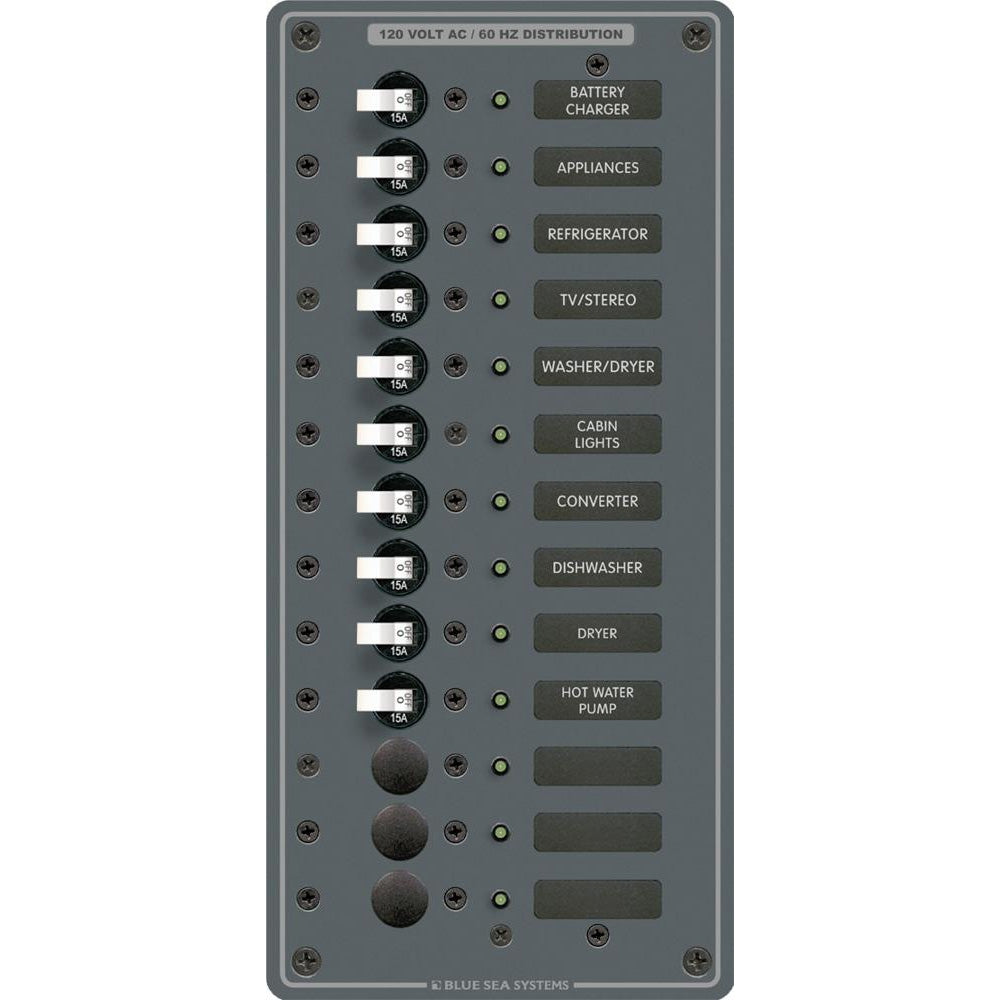

Blue Sea 8480 AC 13 Position - Vertical [8480]

AC 13 Position

Black Switches

• (10) 15A Single Pole Circuit Breakers

• A-Series Circuit Breaker Panels

• All hot, neutral, and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 100 Amperes

• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 13
• Box Dimensions: 4"H x 9"W x 13"L WT: 3.45 lbs
• UPC: 632085084806

Quick Guide (pdf)
Owner's Manual (pdf)

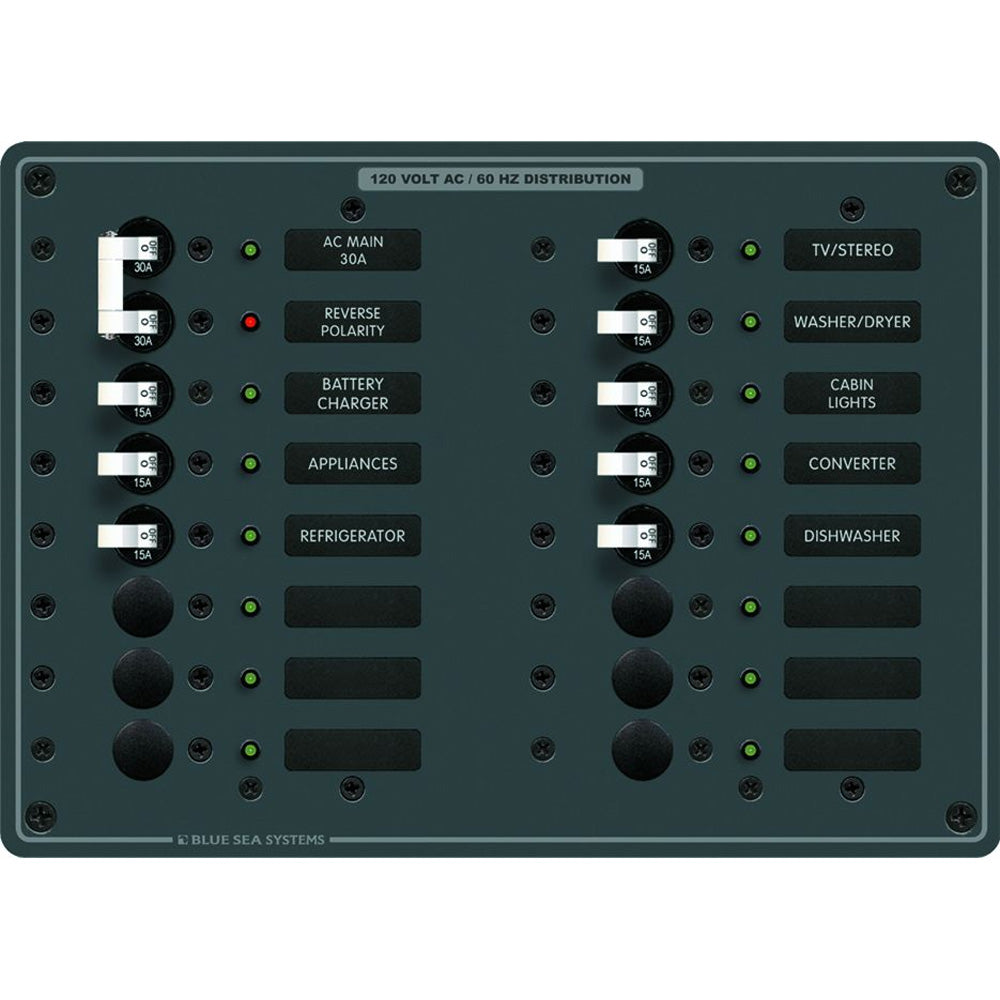

Blue Sea 8464 AC Main +14 Positions [8464]

AC Main + 14 Positions

Features:

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 14
• Nominal Voltage: 120v AC
• Height: 7.5"
• Width: 10.5"

Included:

• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (15) 8024 LED - 120V AC Green
• (1) 8066 LED - 120V AC Red
• (8) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
• (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 14
• Box Dimensions: 4"H x 9"W x 12"L WT: 3.4 lbs
• UPC: 632085084646

Quick Guide (pdf)
Owner's Manual (pdf)

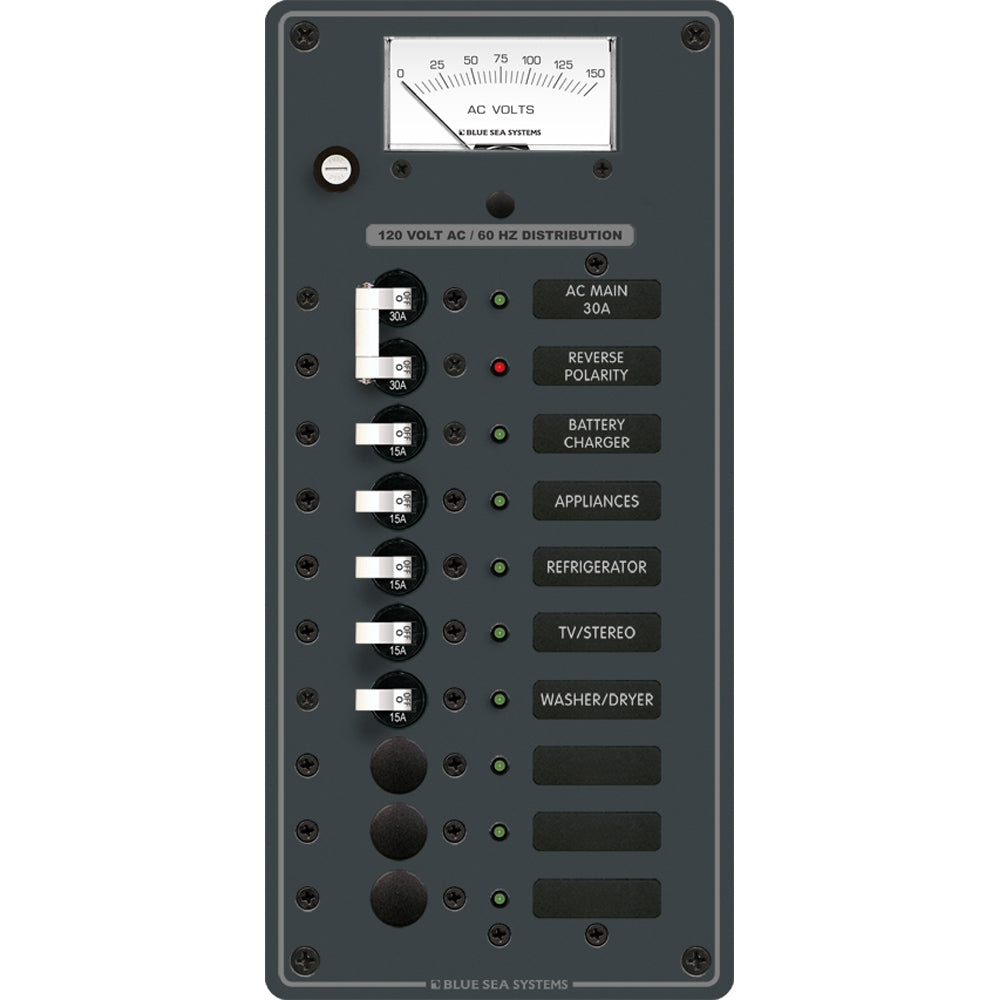

Blue Sea 8488 Breaker Panel - AC Main + 8 Positions - White [8488]

AC Main + 8 Positions

Color: Black
30A Double: 1
15A Single: 5

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 8
• Box Dimensions: 5"H x 9"W x 12"L WT: 3.15 lbs
• UPC: 632085084882

Quick Guide (pdf)
Owner's Manual (pdf)

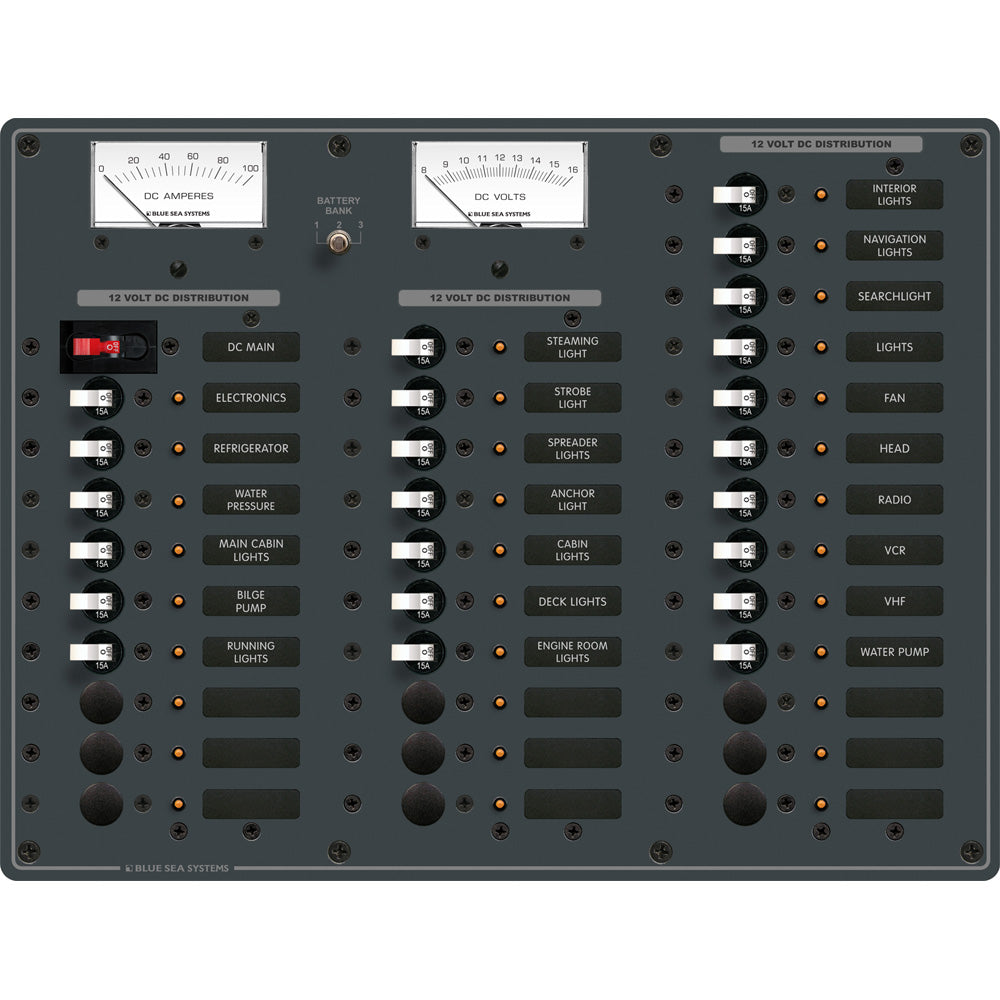

Blue Sea 8381 DC Main + 32 Positions [8381]

Ships Direct From Manufacturer

Main + 32 Positions

• (23) 15A Single Pole Circuit Breakers

• (1) 100A C-Series Main Circuit Breaker

• (1) 8003 DC Analog Voltmeter

• (1) 8017 DC Analog Ammeter

White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 32
• AC/DC: DC
• Voltage: 12v
• Box Dimensions: 7"H x 14"W x 22"L WT: 10.4 lbs
• UPC: 632085083816

Quick Guide (pdf)
Owner's Manual (pdf)

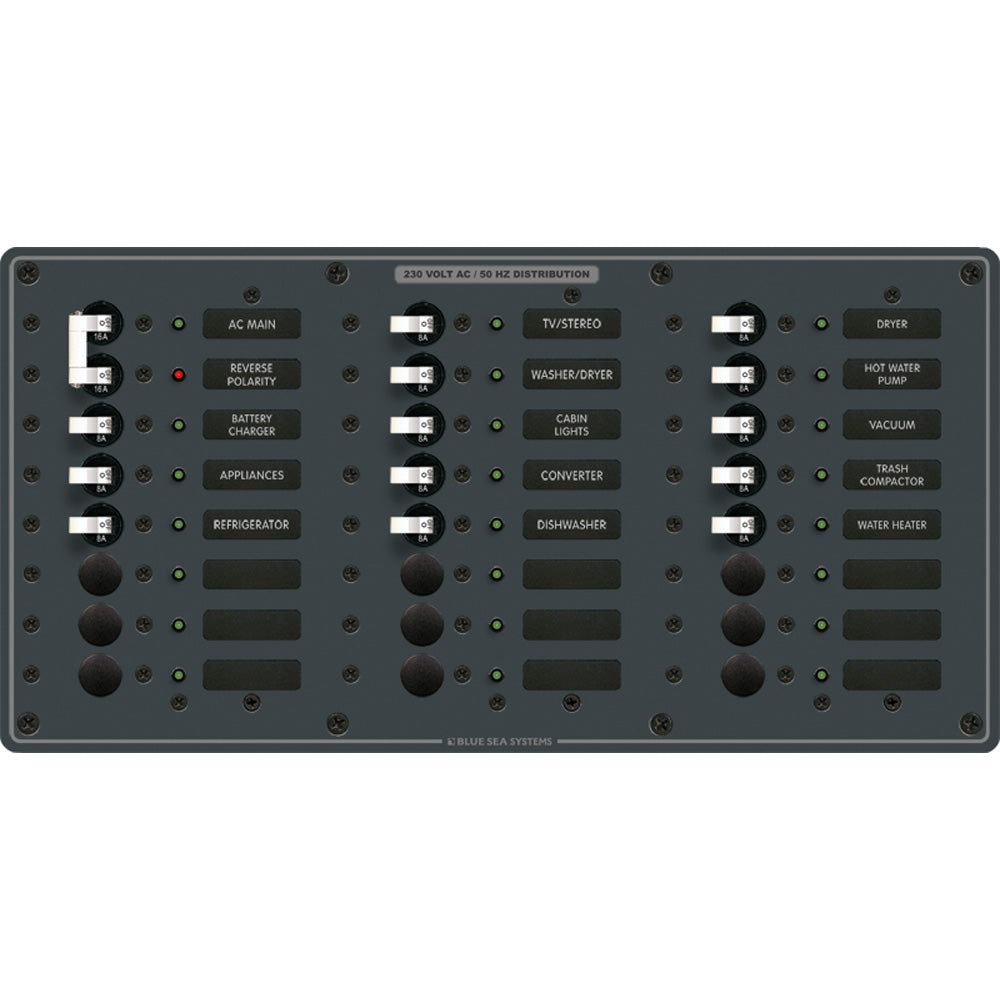

Blue Sea 8565 Breaker Panel - AC Main + 22 Positions (European) - White [8565]

AC Main + 22 Positions (European)


Color: White
16A Double: 1
8A Single: 13

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 22
• UPC: 632085085650

Quick Guide (pdf)
Owner's Manual (pdf)
