Electrical - Electrical Panels

AC Main + 8 Positions (European)

White Switches

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 8
• Voltage: 230v
• Box Dimensions: 4"H x 9"W x 12"L WT: 3.25 lbs
• UPC: 632085081744

AC Main + 6 Positions / DC Main + 18 Positions

Switches Color: White

Installed AC Breakers

• Voltage 230v - 12/24V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230/12/24v
• AC/DC: Both
• Max Breaker Quantity: 6 AC / 18 DC
• Box Dimensions: 6"H x 14"W x 22"L WT: 10.25 lbs
• UPC: 632085085087

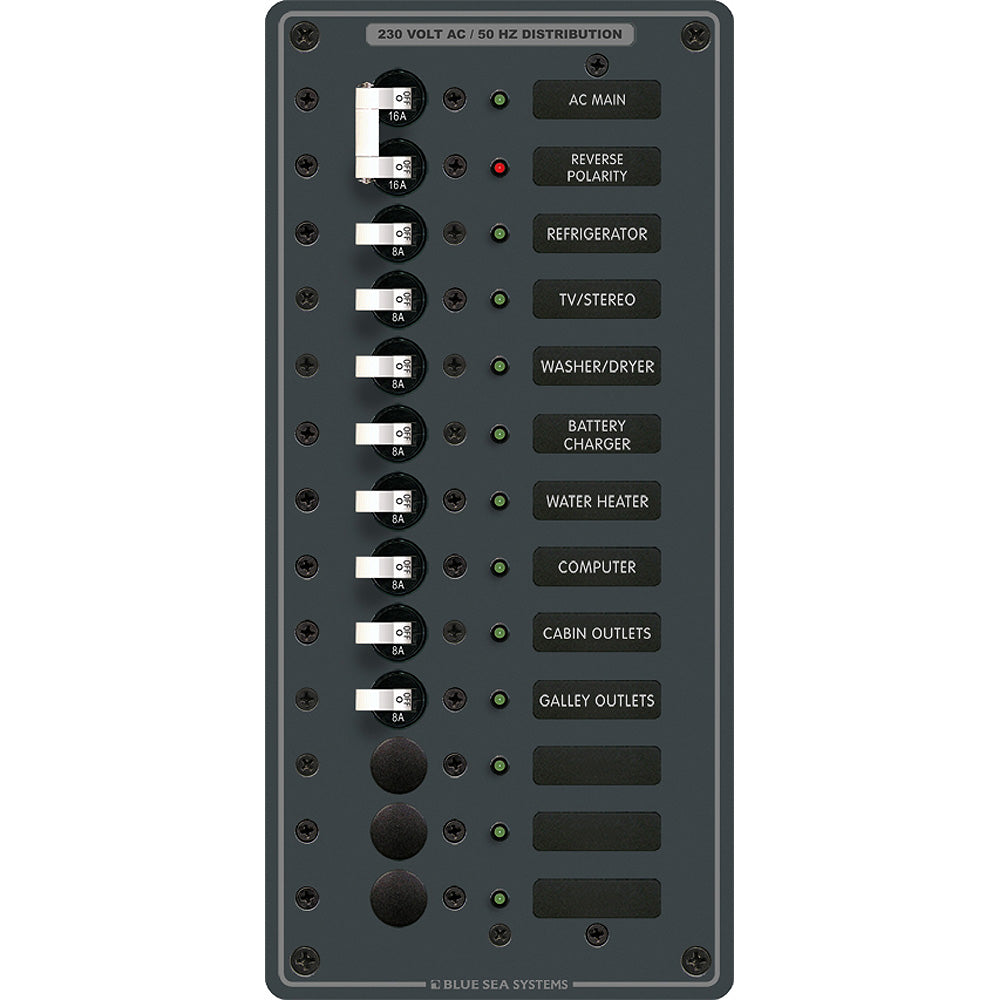

AC Main + 11 Positions (European)


Color: White
16A Double: 1
8A Single: 8

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 11
• Box Dimensions: 5"H x 9"W x 12"L WT: 3.55 lbs
• UPC: 632085085858

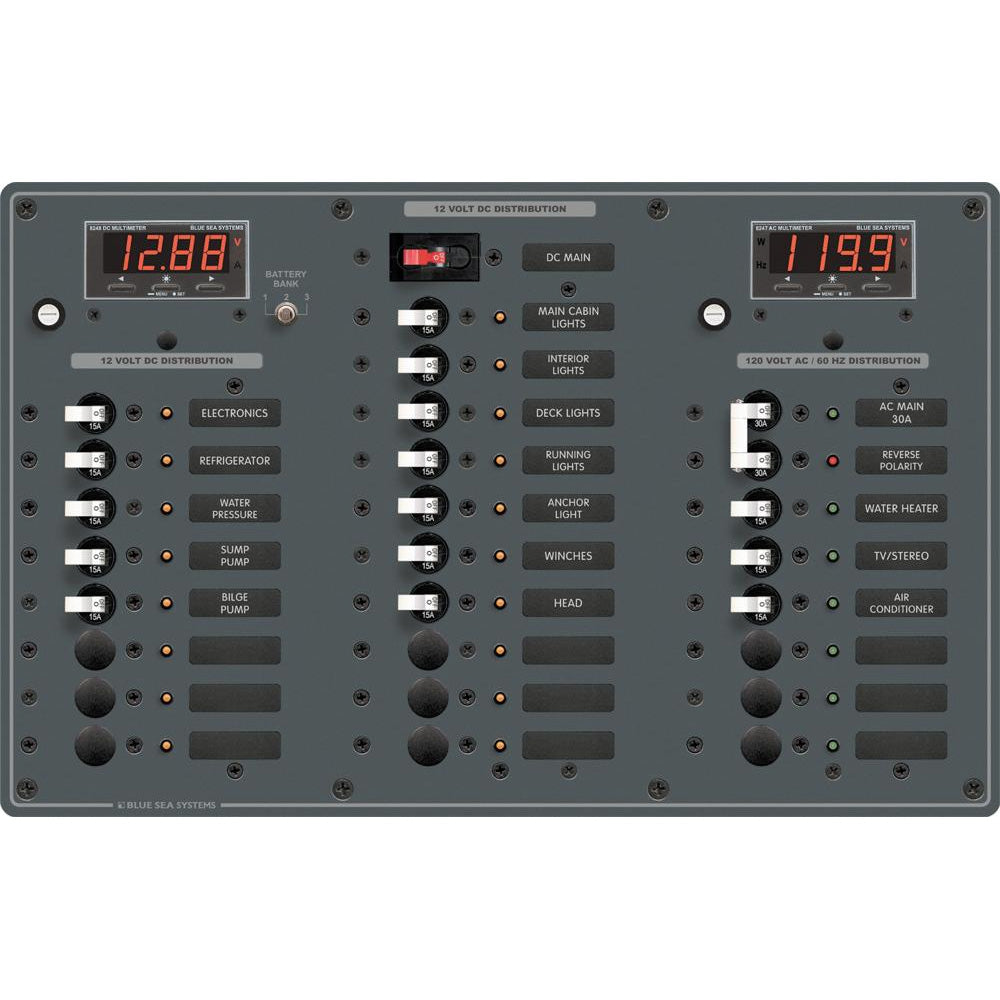

AC Main + 6 Positions / DC Main + 18 Positions

Installed AC Breakers

• 120V AC

• 12/24V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Detailed installation instructions and cutout template included

• Countersunk mounting holes throughout

• Includes set of 60 common AC and DC Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120/12/24v
• Max Breaker Quantity: 6 AC / 18 DC
• AC/DC: AC
• Box Dimensions: 7"H x 15"W x 22"L WT: 10.3 lbs
• UPC: 632085084080

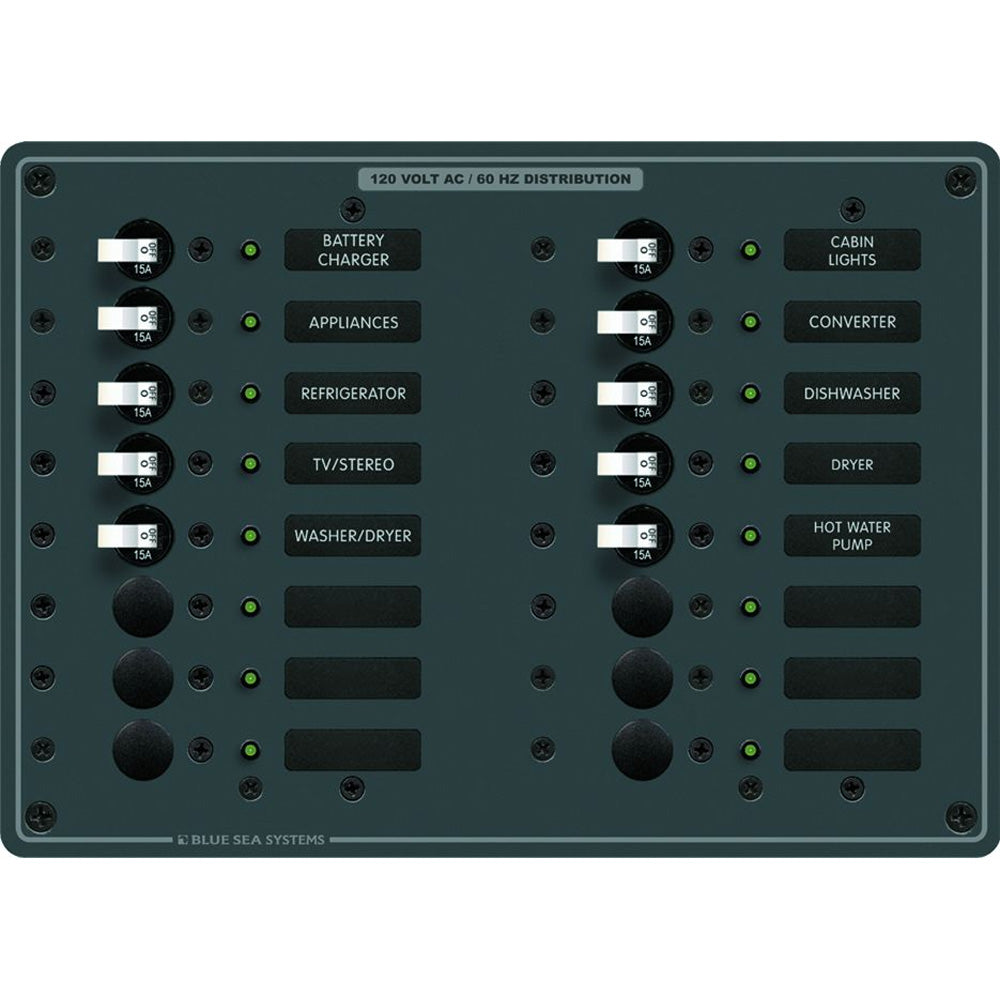

AC 16 Position

• (10) 15A Single Pole Circuit Breakers


• All hot, neutral, and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit posistions

• Maximum panel amperage - 100 Amperes

• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Indusrty standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 16
• Box Dimensions: 5"H x 9"W x 12"L WT: 4 lbs
• UPC: 632085084615

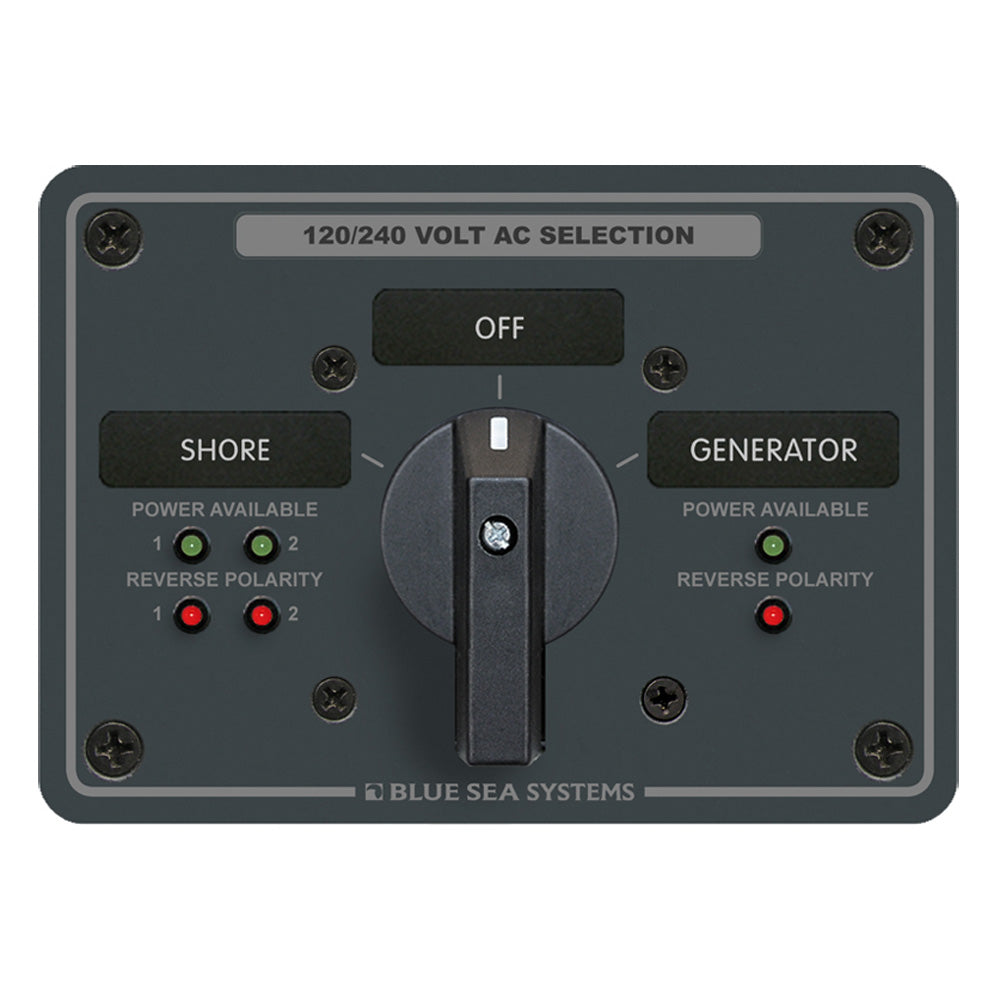

AC Rotary Switch Panel 65 AMP - 2 Positions + OFF - 4 Pole

Features:

• Switches between 2-120V AC shore power sources
• Two-part polyurethane slate gray finish
• Heavy 1/8" aluminum 5052 alloy
• Red reverse polarity LED indicators
• Green power available LED indicators
• Switches AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two or three different AC sources to one circuit
• Includes heavy duty industrial-rated switch
• Red reverse polarity LED indicators
• Green power-available LED indicators

Specifications:

• Positions: 2 + Off
• Nominal Voltage: 240v AC
• Poles: 4
• Maximum Amperage: 65A
• Source In: 3
• Height: 3.75"
• Width: 5.25"
• Depth: 4.5"

Included:

• (1) 9093 AC Rotary Switch - OFF + 2 Positions 120/240v AC 65A
• (1) 9583 AC Rotary Panel Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 2 +OFF
• Voltage: 240v
• Box Dimensions: 5"H x 10"W x 13"L WT: 2.1 lbs
• UPC: 632085083694

8184 AC Main + 6 Positions/DC Main +15 Positions

Switches Color: White

Features:

• All AC and DC buses installed and fully pre-wired
• Label backlighting pre-installed
• ON - indicating LEDs installed in all circuit positions
• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

Specifications:

• Positions: 6 AC / 15 DC
• Nominal Voltage: 230v AC / 12v DC
• Height: 10"
• Width: 14.75"
• Depth: 3"

Included:

• (3) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch)
• (1) 7294 A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main)
• (1) 9354 AC Voltmeter - 0 to 250v AC (AC Meter)
• (9) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch)
• (1) 7250i Circuit Breaker CA1 100A Red IP (DC Main)
• (1) 8017 DC Analog Ammeter - 0 to 100A w/ Shunt (DC Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 6 AC / 15 DC
• AC/DC: Both
• Voltage: 230v/12v
• Box Dimensions: 3"H x 7"W x 15"L WT: 8.9 lbs
• UPC: 632085081843

16 Positions

• Voltage 12/24v

• Amperage 100A

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12/24v
• AC/DC: DC
• Max Breaker Quantity: 16
• Box Dimensions: 5"H x 9"W x 12"L WT: 3.9 lbs
• UPC: 632085083779
