Electrical - Electrical Panels

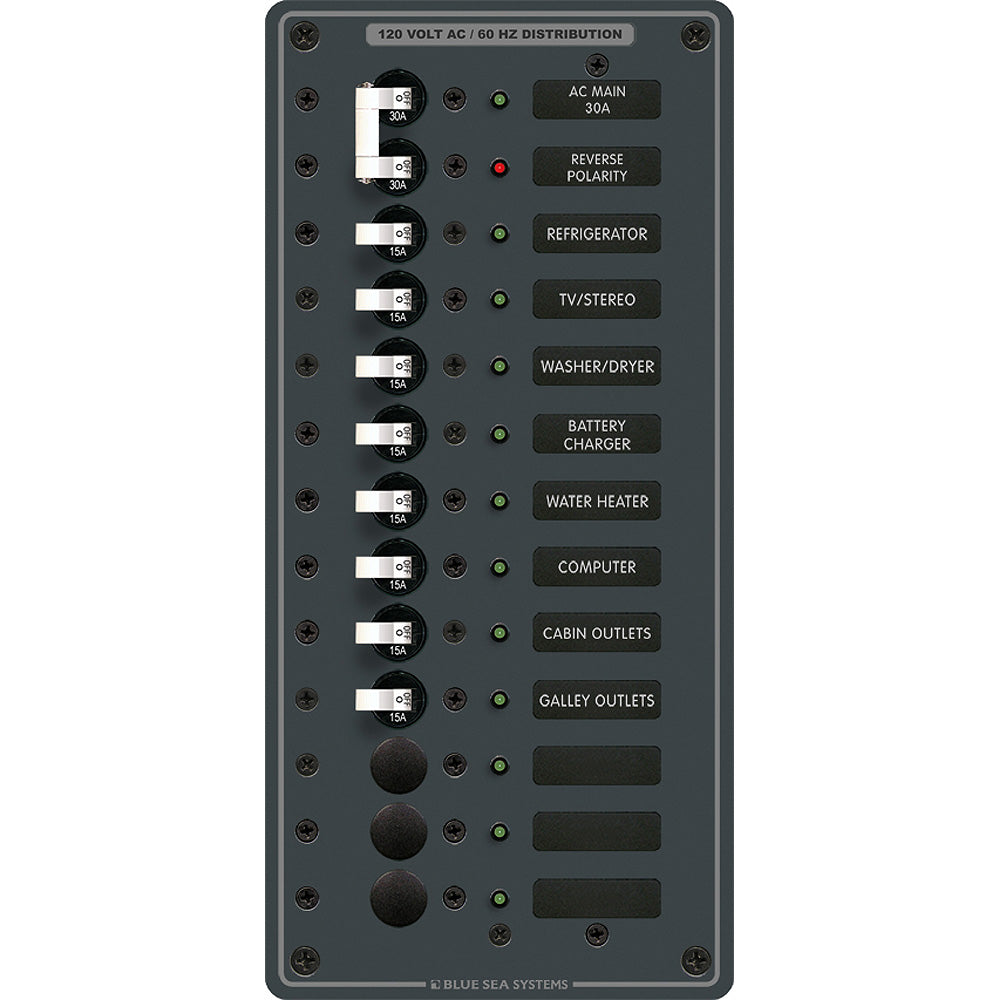

Blue Sea 8485 AC Main + 11 Positions [8485]

Main + 11 Positions

• (1) 30A Double Pole Circuit Breaker

• (8) 15A Single Pole Circuit Breaker

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 11
• Box Dimensions: 5"H x 9"W x 12"L WT: 3.5 lbs
• UPC: 632085084851

Quick Guide (pdf)
Owner's Manual (pdf)

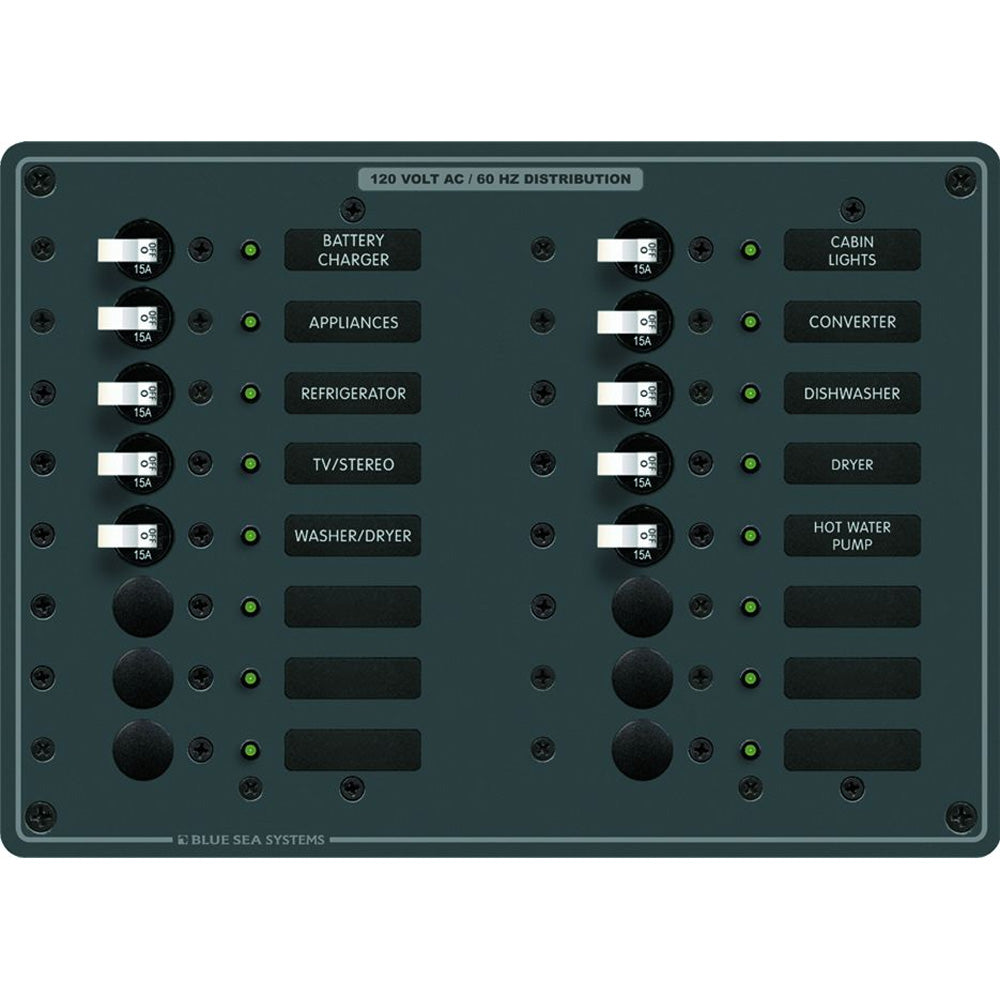

Blue Sea 8462 AC 2 Sources + 9 Positions [8462]

AC 2 Sources + 9 Positions

• (2) 30A Double Pole Circuit Breakers

• (6) 15A Single Pole Circuit Breakers

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Voltage: 120v
  • AC/DC: AC
  • Max Breaker Quantity: 9
  • Box Dimensions: 5"H x 9"W x 11"L WT: 4.15 lbs
  • UPC: 632085084622

  Quick Guide (pdf)
  Owner's Manual (pdf)

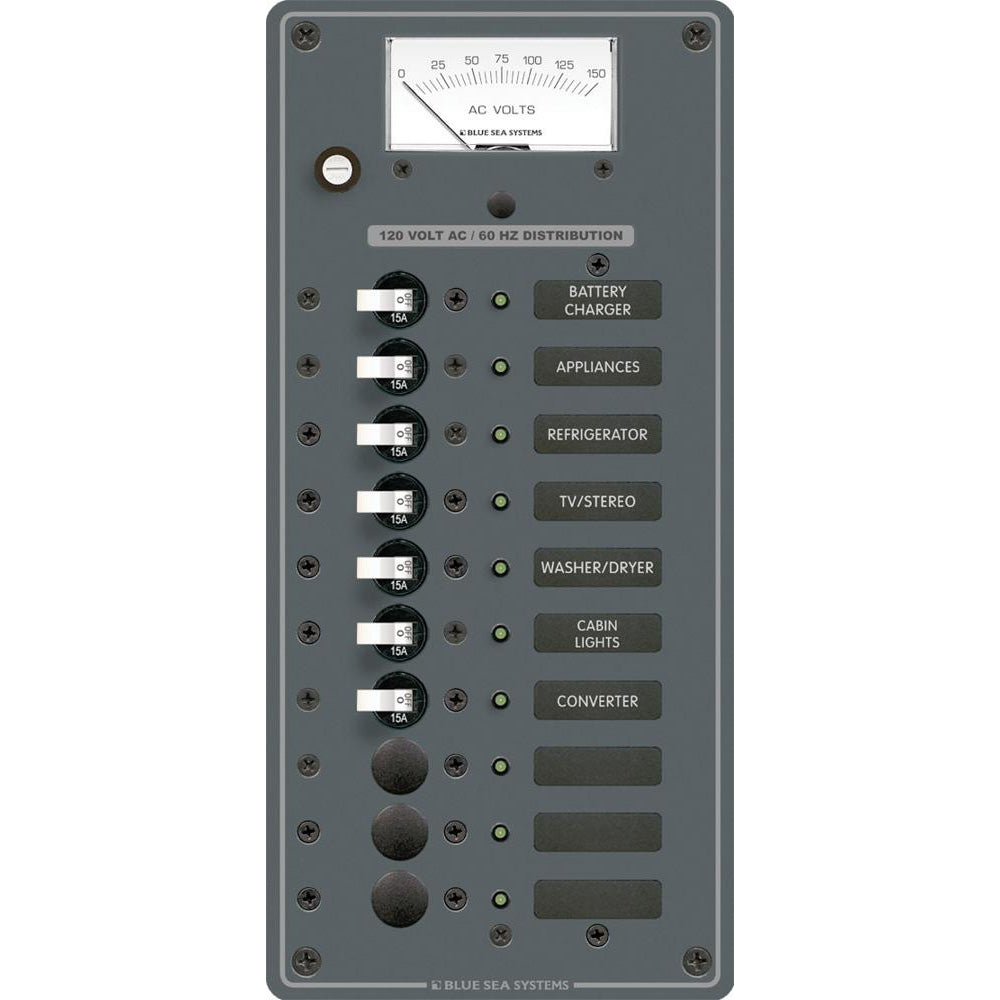

Blue Sea 8478 AC 10 Position [8478]

AC 10 Position

• (7) 15A Single Pole Circuit Breakers

• (1) 9353 AC Analog Voltmeter

• A-Series Circuit Breaker Panels

• All hot, neutral, and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 100 Amperes

• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 10
• Box Dimensions: 5"H x 9"W x 12"L WT: 3.05 lbs
• UPC: 632085084783

Quick Guide (pdf)
Owner's Manual (pdf)

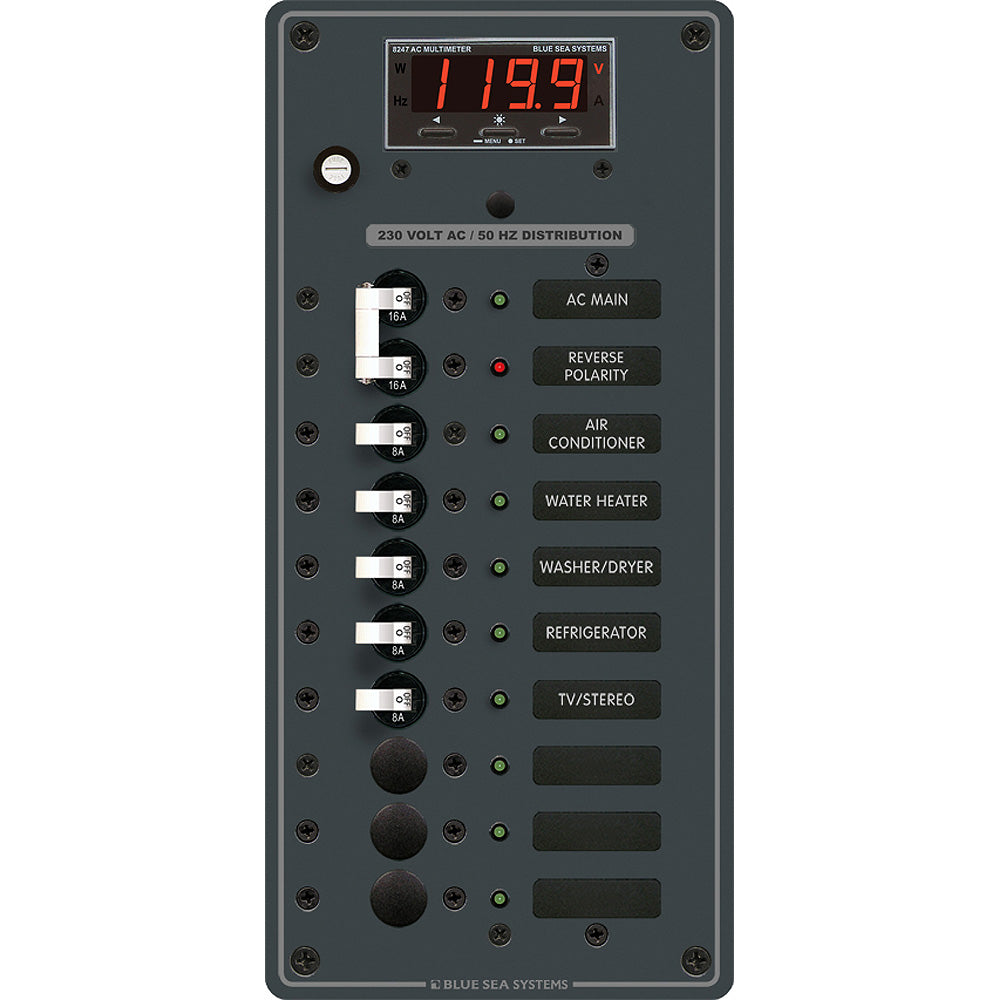

Blue Sea 8506 Breaker Panel - AC Main + 8 Positios (European) - White [8506]

AC Main + 8 Positions (European)


Color: White
16A Double: 1
8A Single: 5

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 8
• Box Dimensions: 6"H x 9"W x 12"L WT: 3.4 lbs
• UPC: 632085085063

Quick Guide (pdf)
Owner's Manual (pdf)

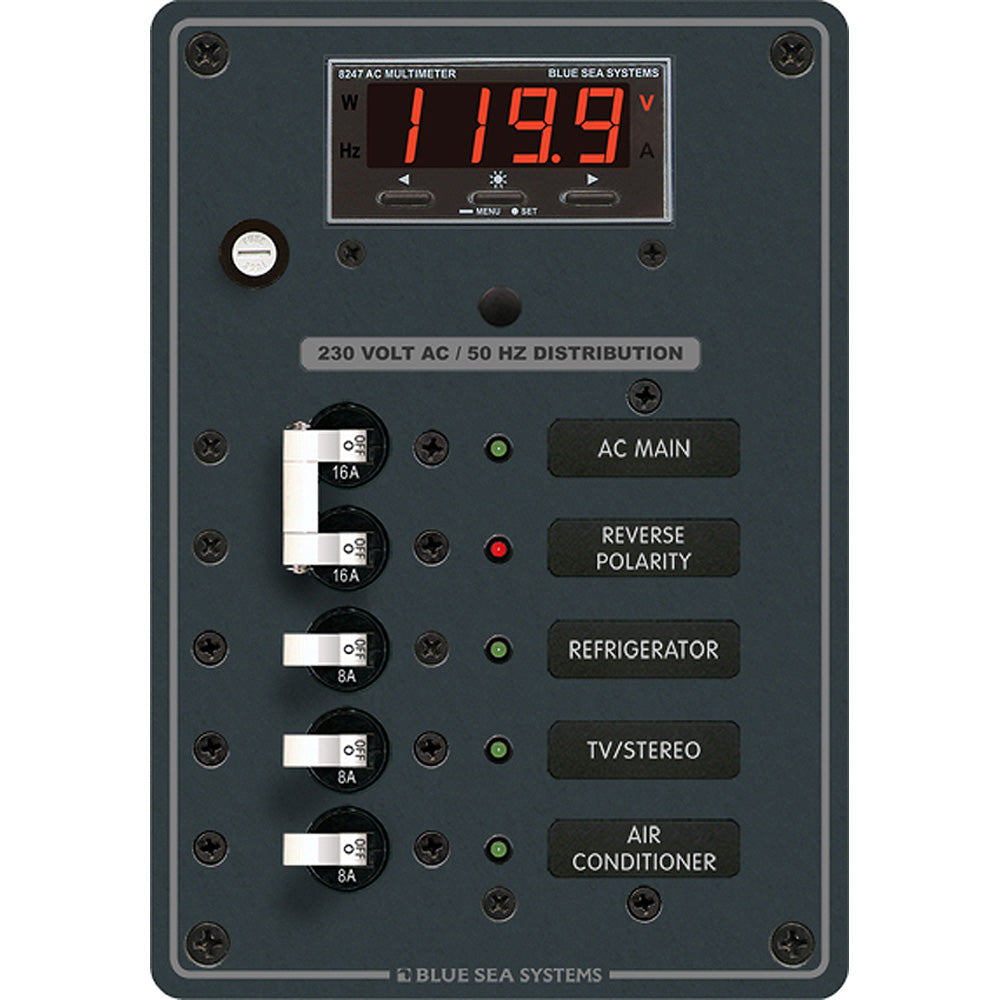

Blue Sea 8505 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 3 Position [8505]

230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8505
White Switches

• (1) 16A Double Pole Circuit Breaker Installed

• (3) 8A Single Pole Circuit Breakers Installed

• (1) 8247 AC Digital Multimeter w/ Alarm

Features:

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 3
• Box Dimensions: 6"H x 10"W x 12"L WT: 3 lbs
• UPC: 632085085056

Quick Guide (pdf)
Owner's Manual (pdf)

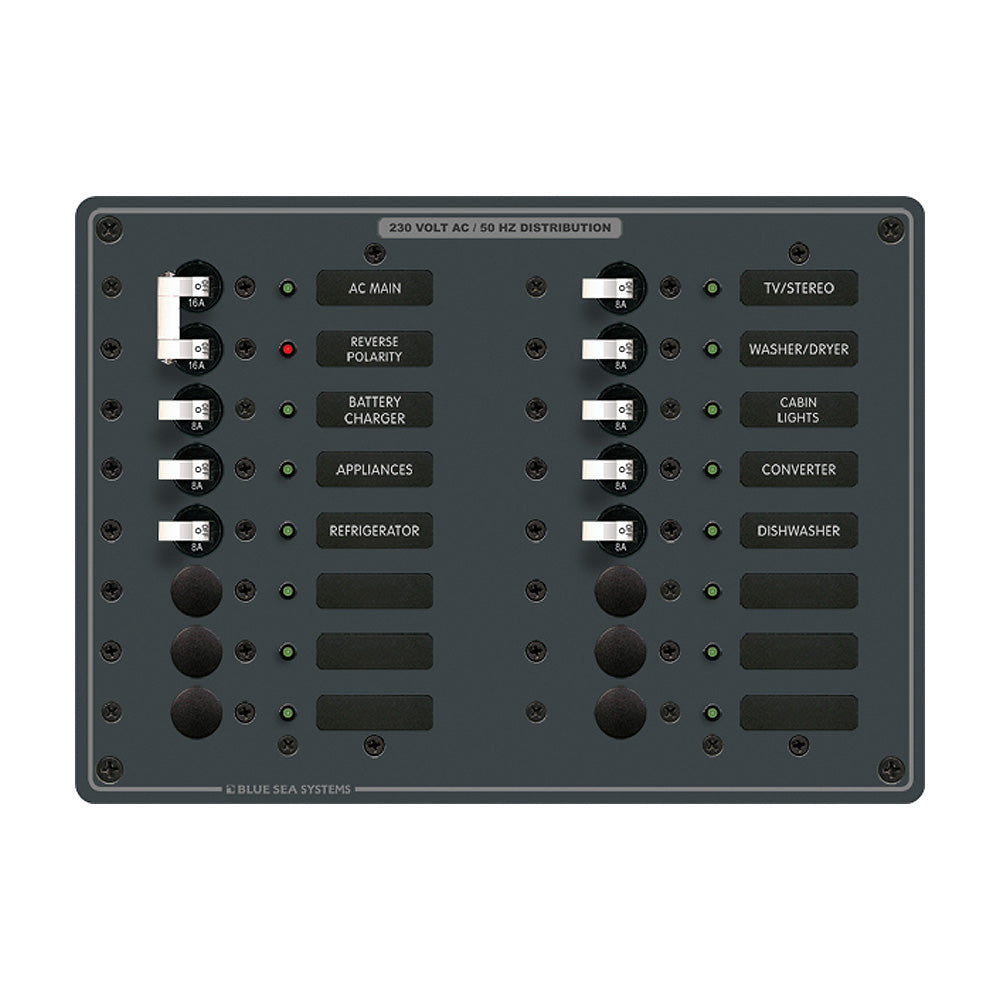

Blue Sea 8564 Breaker Panel - AC Main + 14 Positions (European) - White [8564]

AC Main + 14 Positions (European)


Color: White
16A Double: 1
8A Single: 8

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 14
• UPC: 632085085643

Quick Guide (pdf)
Owner's Manual (pdf)

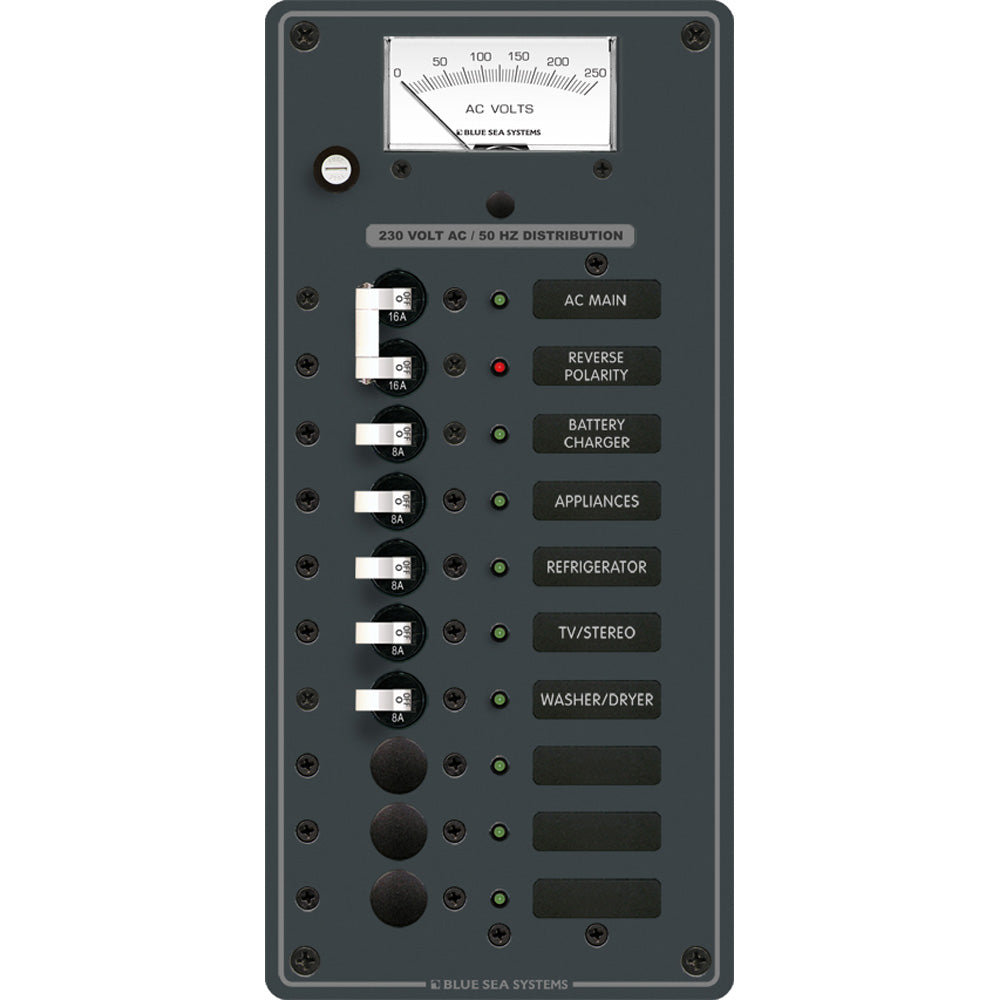

Blue Sea 8588 Breaker Panel - AC Main + 8 Positions (European) - White [8588]

AC Main + 8 Positions (European)


Color: White
16A Double: 1
8A Single: 5

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 8
• Box Dimensions: 4"H x 10"W x 12"L WT: 3.35 lbs
• UPC: 632085085889

Quick Guide (pdf)
Owner's Manual (pdf)

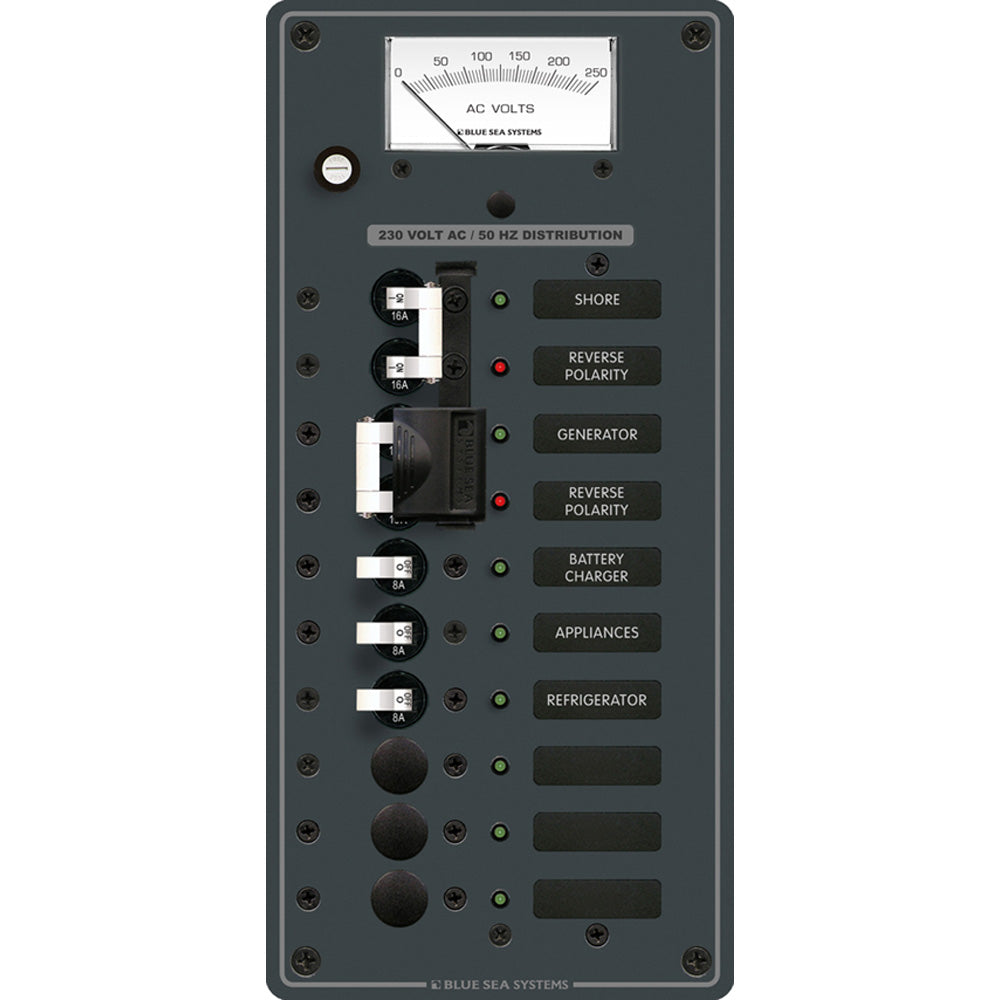

Blue Sea 8589 AC Toggle Source Selector (230V) - 2 Sources + 6 Positions [8589]

AC Toggle Source Selector (European)


p045.19PN: 8589
White Switches

• (2) 16A Double Pole Circuit Breakers Installed

• (3) 8A Single Pole Circuit Breakers Installed

• (1) 9354 AC Analog Voltmeter

Features:

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Voltage: 230v
  • AC/DC: AC
  • Max Breaker Quantity: 6
  • Box Dimensions: 4"H x 9"W x 12"L WT: 3.3 lbs
  • UPC: 632085085896

  Quick Guide (pdf)
  Owner's Manual (pdf)
