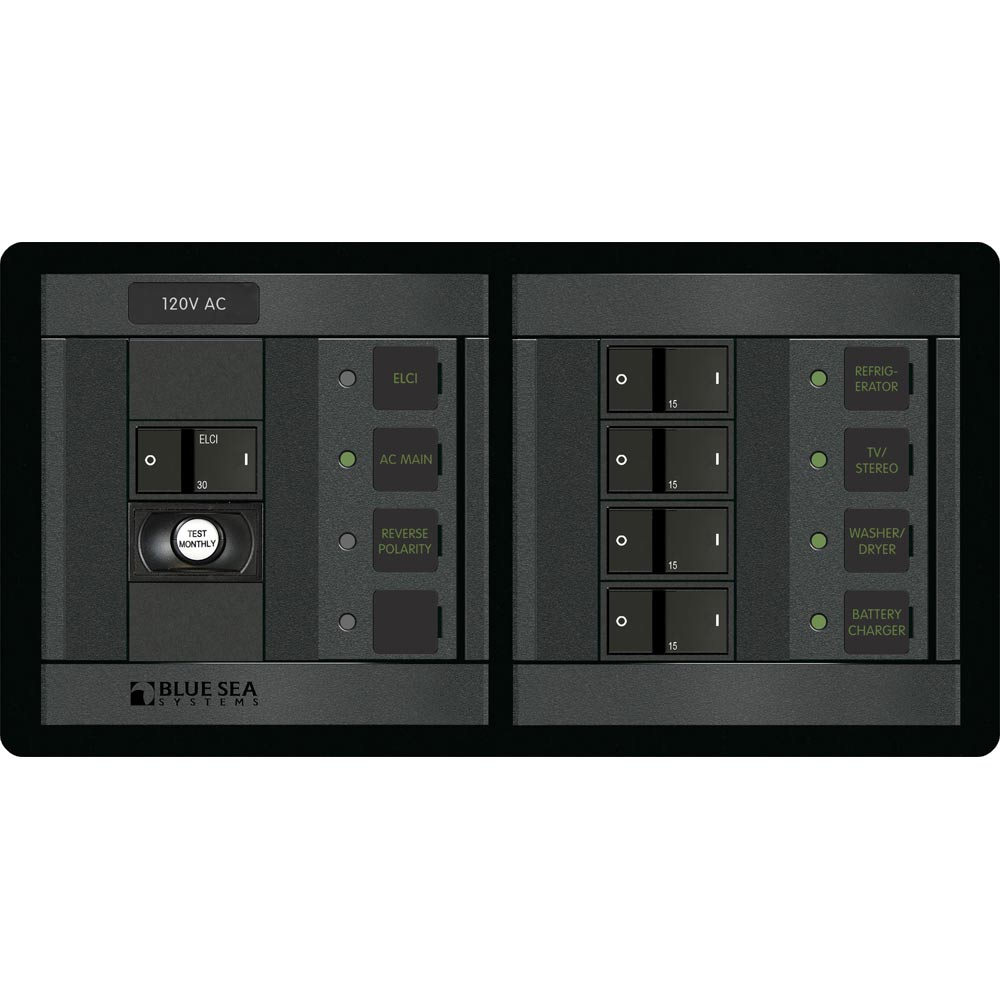

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal [1193]

ELCI Main 30A Double Pole + 4 Positions Horizontal

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Four 15A AC Branch Flat Rocker Circuit Breaker

• Red " Reverse Polarity" LED

• Includes 4206 AC Panel Basic Square Format Label Set

• All circuit label positions are backlit

• "ON" indicating LEDs

Specifications:

• Positions: 1

• Nominal Voltage: 120V AC

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.99" (101.35mm)

• Weight: 1.00lb (0.45kg)

Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Box Dimensions: 5"H x 9"W x 13"L WT: 3.8 lbs
• UPC: 632085011932

Quick Guide (pdf)
Owner's Manual (pdf)

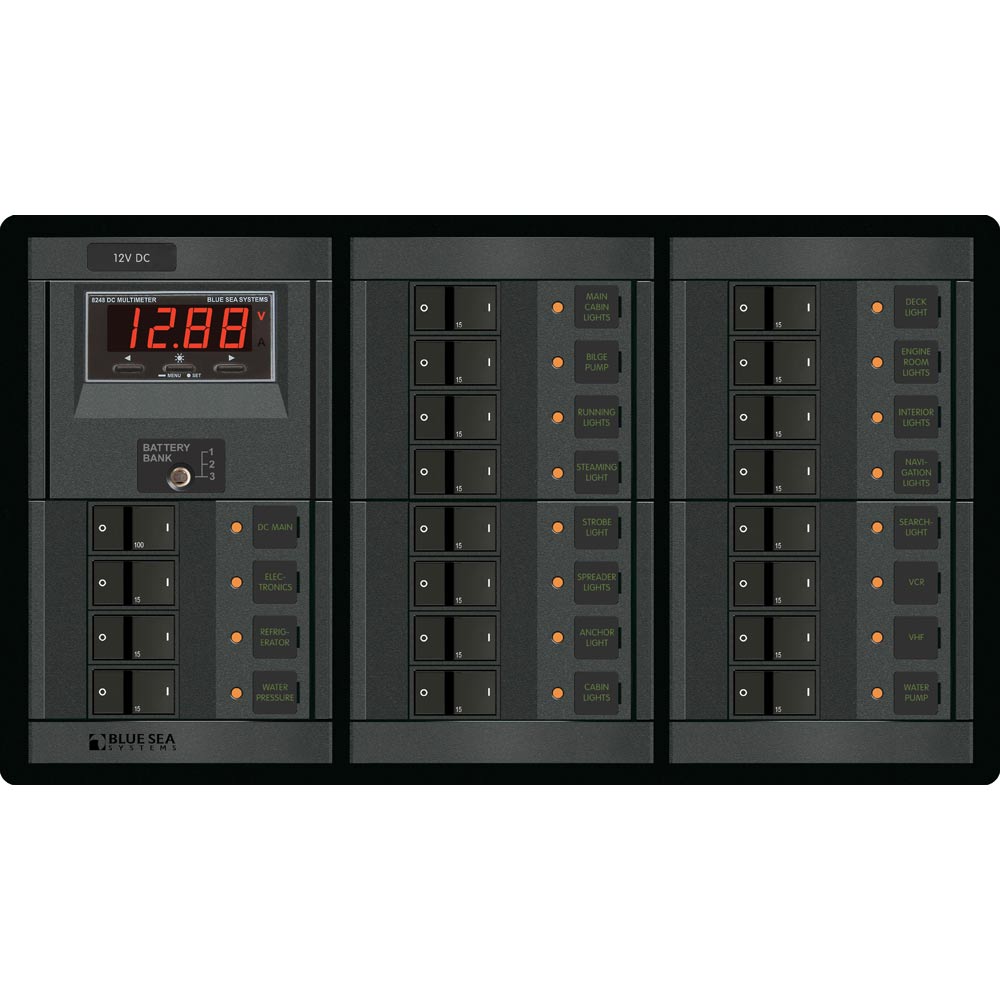

Blue Sea 1221 12V DC Main + 19 Positions w/Digital Meter [1221]

Ships Direct From Manufacturer

12 Volt DC Main + 19 Positions w/Digital Meter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 19

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 7.75" (196.85mm)

• Width: 13.63" (346.2mm)

• Depth: 4.00" (101.6mm)

• Weight: 8.80lb (3.99kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 9"H x 12"W x 18"L WT: 8.25 lbs
• UPC: 632085012212

Quick Guide (pdf)
Owner's Manual (pdf)

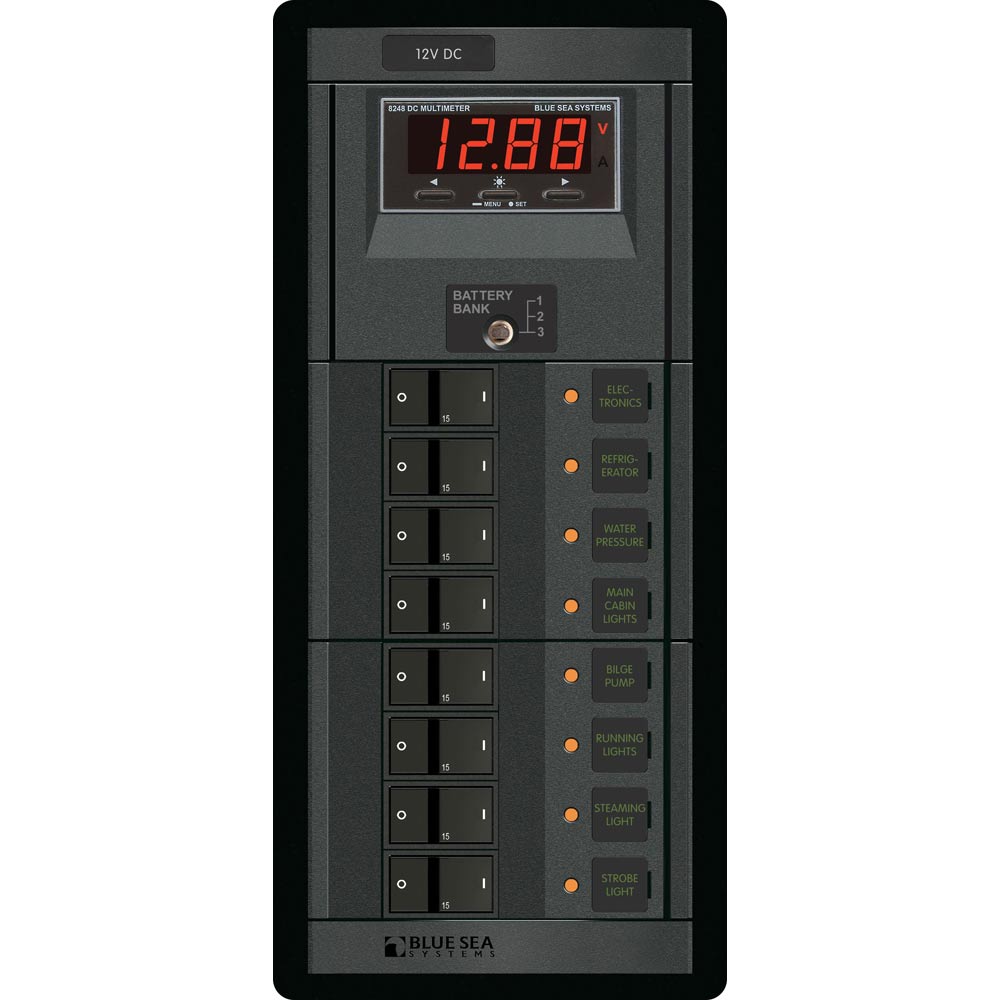

Blue Sea 1227 12V DC 8 Position w/Digital Meter [1227]

12 Volt DC 8 Position w/Digital Meter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 10.75" (273.05mm)

• Width: 4.88" (123.95mm)

• Depth: 4.00" (101.6mm)

• Weight: 5.76lb (2.61kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 5"H x 9"W x 13"L WT: 4.3 lbs
• UPC: 632085012274

Quick Guide (pdf)
Owner's Manual (pdf)

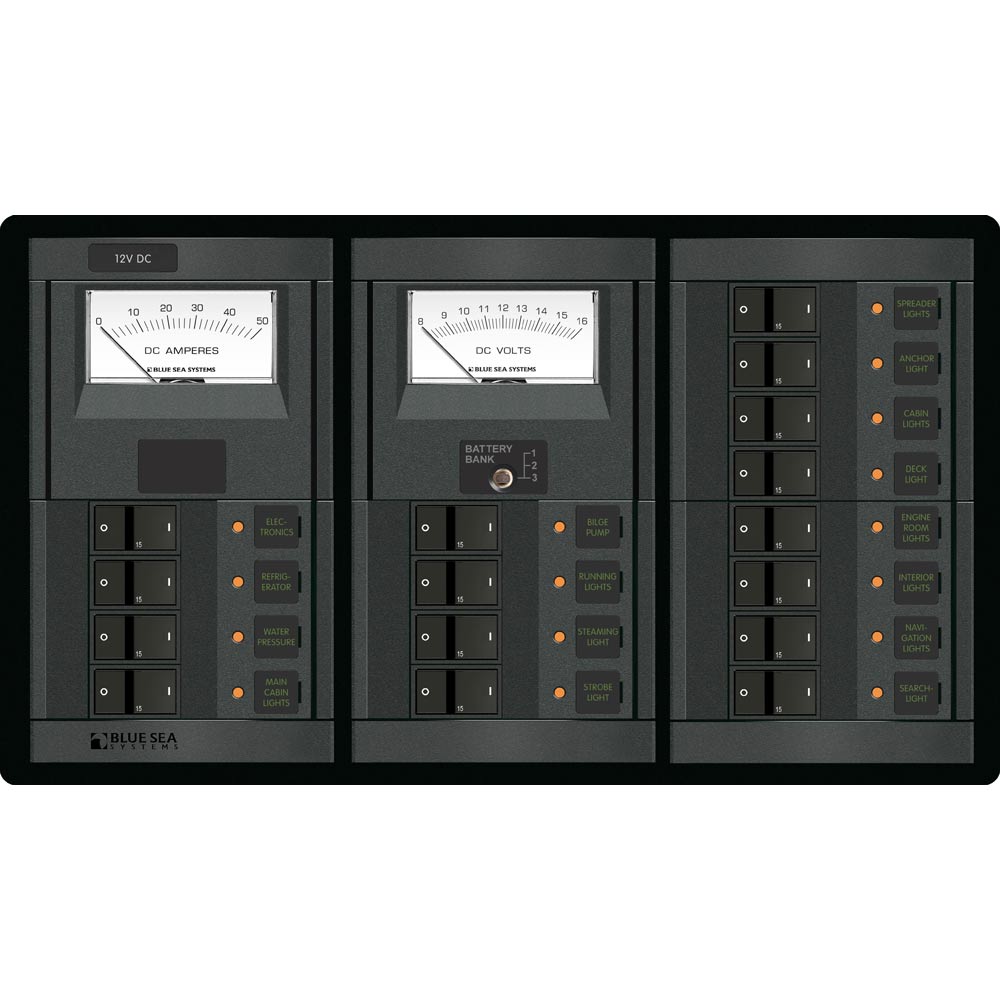

Blue Sea 1201 12V DC 16 Position - w/DC Analog Voltmeter & Ammeter [1201]

Ships Direct From Manufacturer

12 Volt DC 16 Position w/DC Analog Voltmeter & Ammeter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 16

• Nominal Voltage: 12V DC

• Maximum Amperage*: 50A per bus

• Height: 7.75" (196.85mm)

• Width: 13.63" (346.2mm)

• Depth: 3.00" (76.2mm)

• Weight: 6.58lb (2.98kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(16) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
(1) - 8022 - DC Analog Ammeter - 0 to 50A with Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 9"H x 12"W x 18"L WT: 7.2 lbs
• UPC: 632085012014

Quick Guide (pdf)
Owner's Manual (pdf)

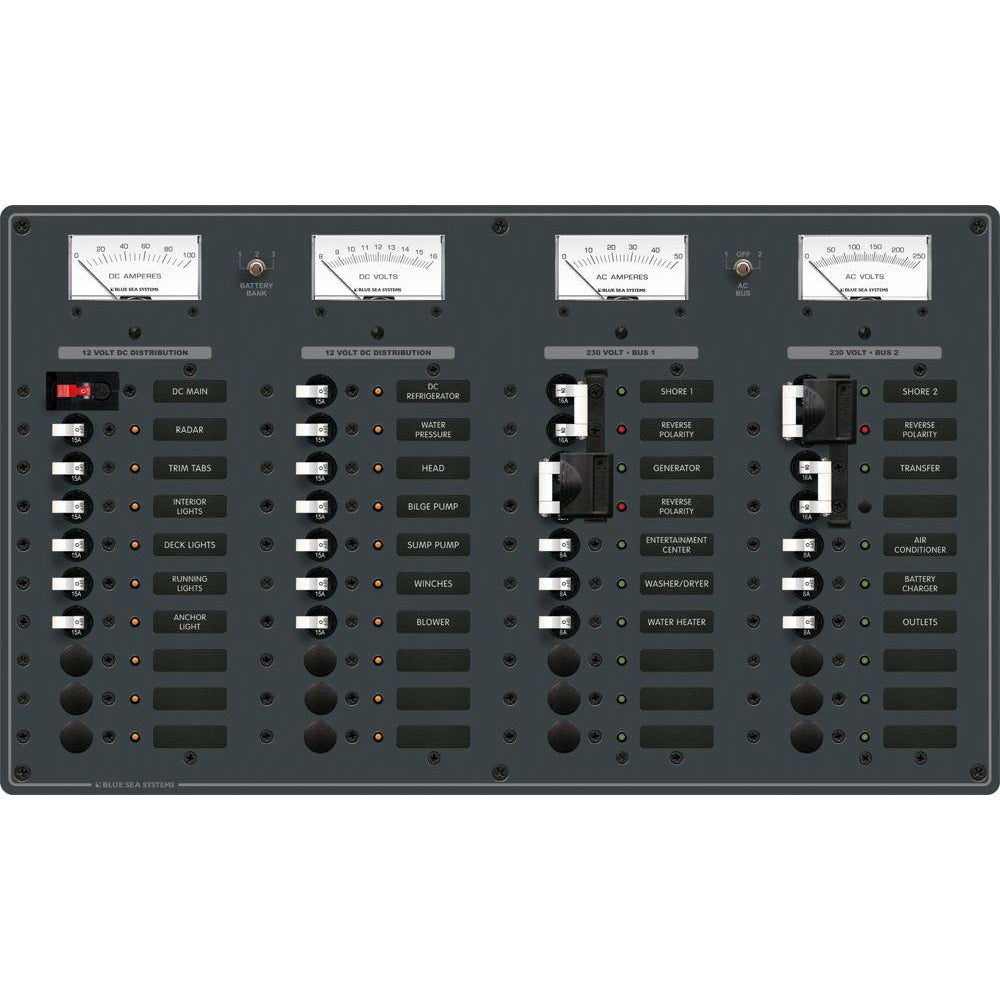

Blue Sea 8186 AC 2 Sources + 12 Positions/DC Main + 19 Positions [8186]

Ships Direct From Manufacturer

AC 2 Sources + 12 Positions / DC Main + 19 Positions

Switches Color: White

Installed AC Breakers

• (3) 16A

• (1) 32A

• (6) 8A

Installed DC Breakers

• (1) 100A Main

• (13) 15A

• Voltage 230v - 12V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 12 AC / 19 DC
• AC/DC: Both
• Voltage: 230v/12v
• UPC: 632085081867

Quick Guide (pdf)
Owner's Manual (pdf)

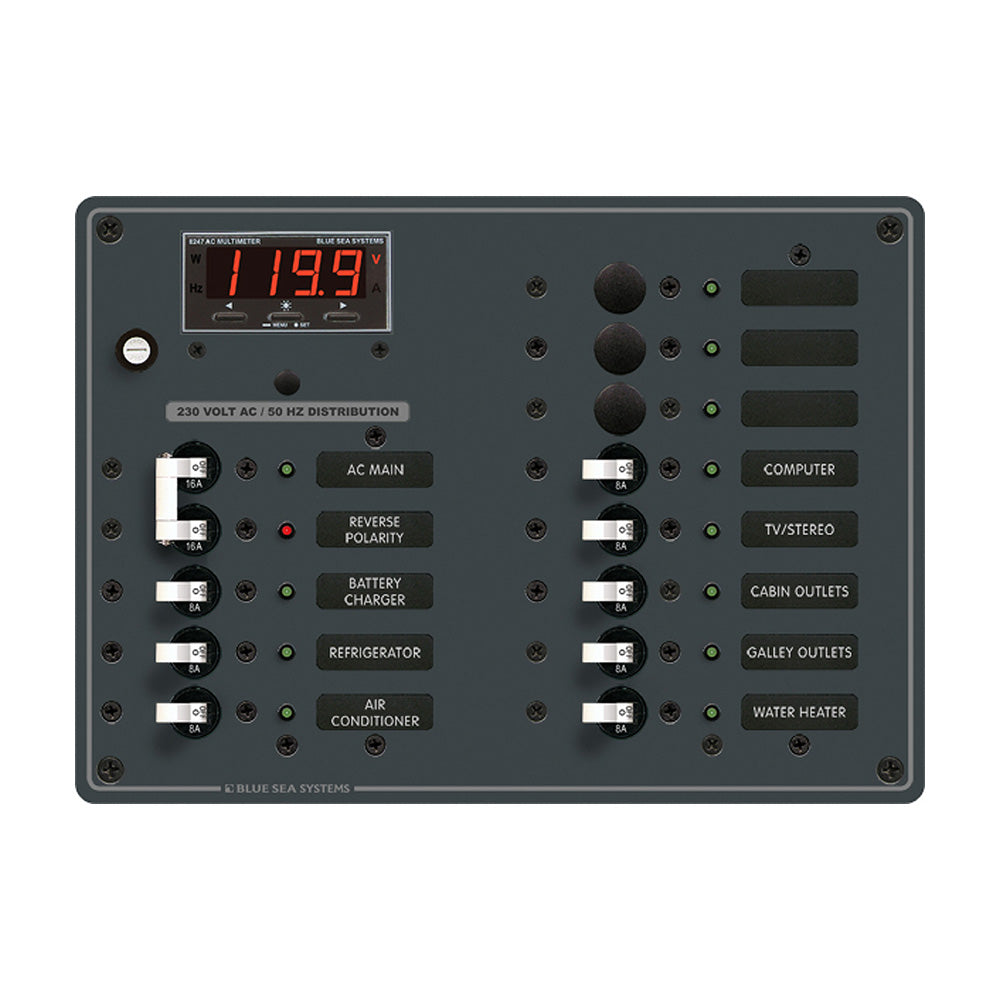

Blue Sea 8507 Breaker Panel - AC Main + 11 Position (European) - White [8507]

AC Main + 11 Positions (European)


Color: White
16A Double: 1
8A Single: 8

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 11
• Box Dimensions: 6"H x 9"W x 11"L WT: 4.6 lbs
• UPC: 632085085070

Quick Guide (pdf)
Owner's Manual (pdf)

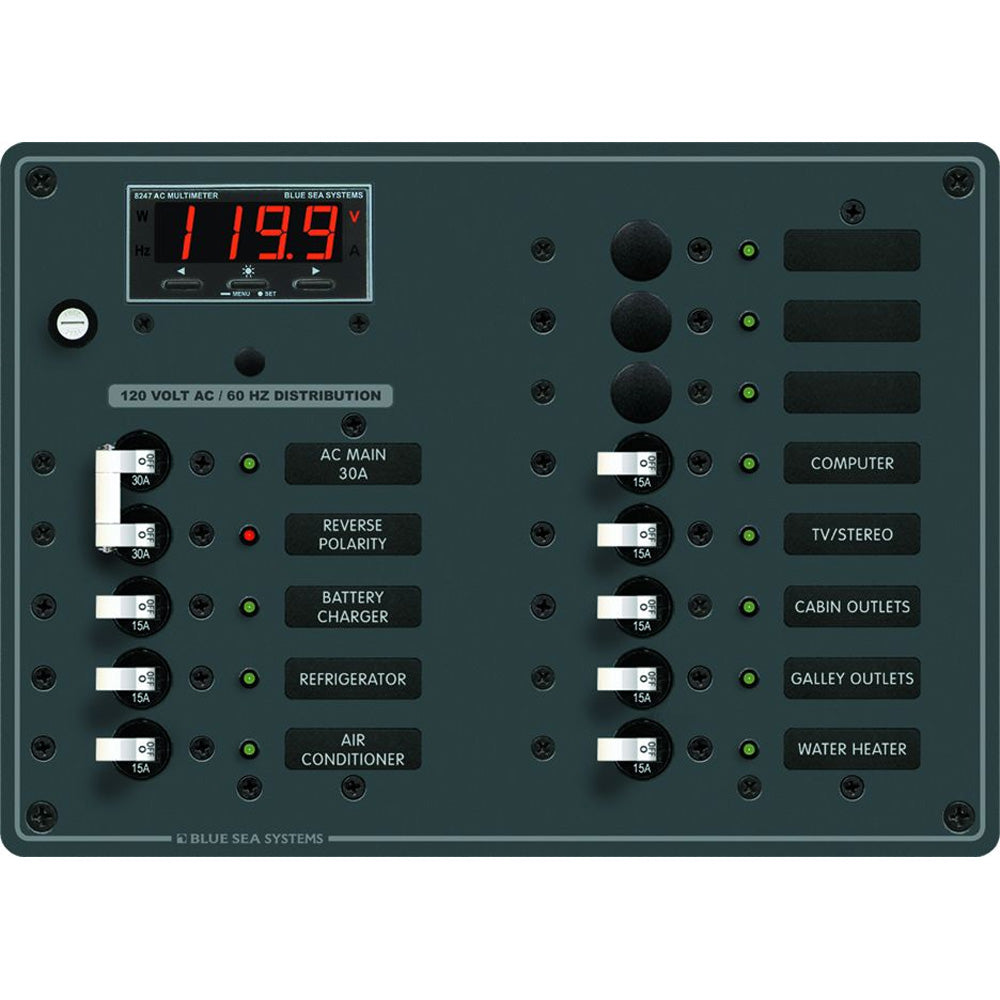

Blue Sea 8407 AC Main + 11 Positions [8407]

Main + 11 Positions

• (1) 30A Double Pole Circuit Breaker

• (8) 15A Single Pole Circuit Breaker

• (1) 8247 AC Digital Multimeter w/ Alarm

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 11
• Box Dimensions: 4"H x 6"W x 12"L WT: 3 lbs
• UPC: 632085084073

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

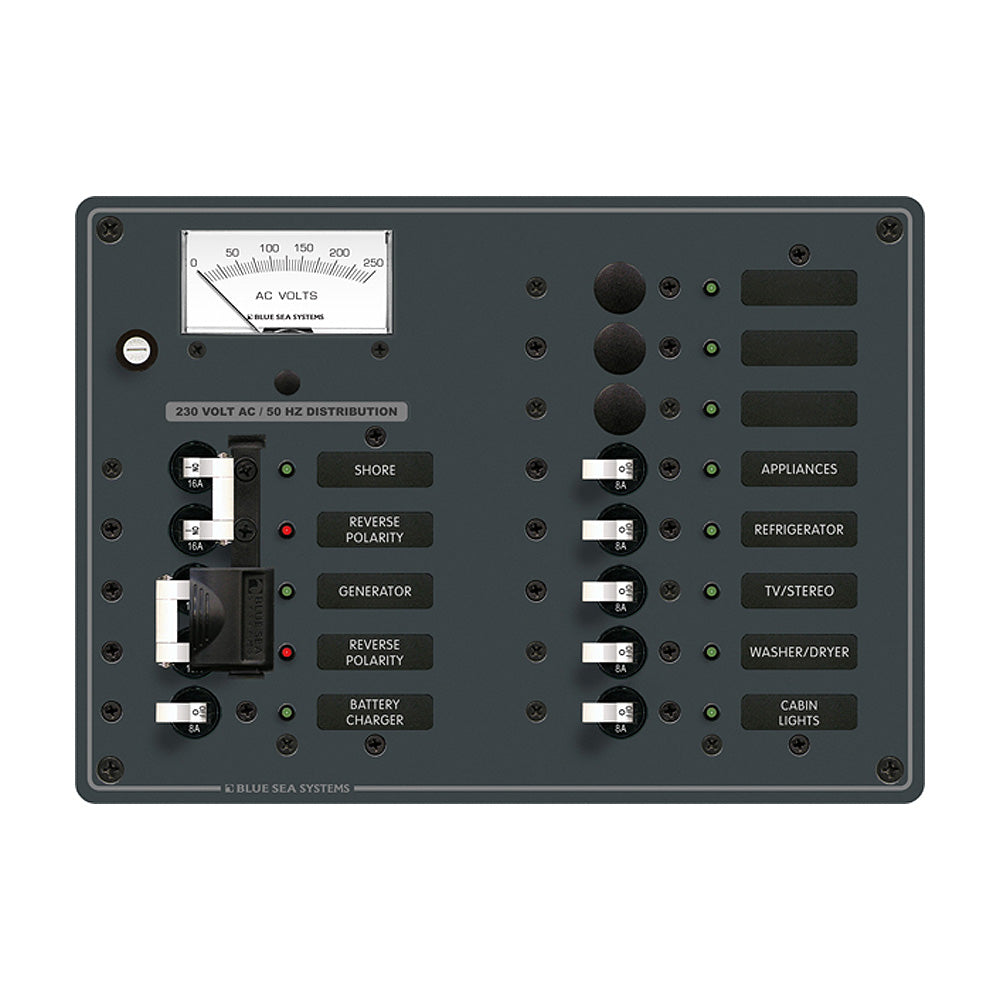

Blue Sea 8562 AC Toggle Source Selector (230V) - 2 Sources + 9 Positions [8562]

AC Toggle Source Selector (European)


PN: 8562
White Switches

• (2) 16A Double Pole Circuit Breakers Installed

• (6) 8A Single Pole Circuit Breakers Installed

• (1) 9354 AC Analog Voltmeter

Features:

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout
  =
• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

• For 230V AC Systems

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 230v
• AC/DC: AC
• Max Breaker Quantity: 9
• Box Dimensions: 4"H x 9"W x 12"L WT: 4.2 lbs
• UPC: 632085085629

Quick Guide (pdf)
Owner's Manual (pdf)
