Electrical - Electrical Panels

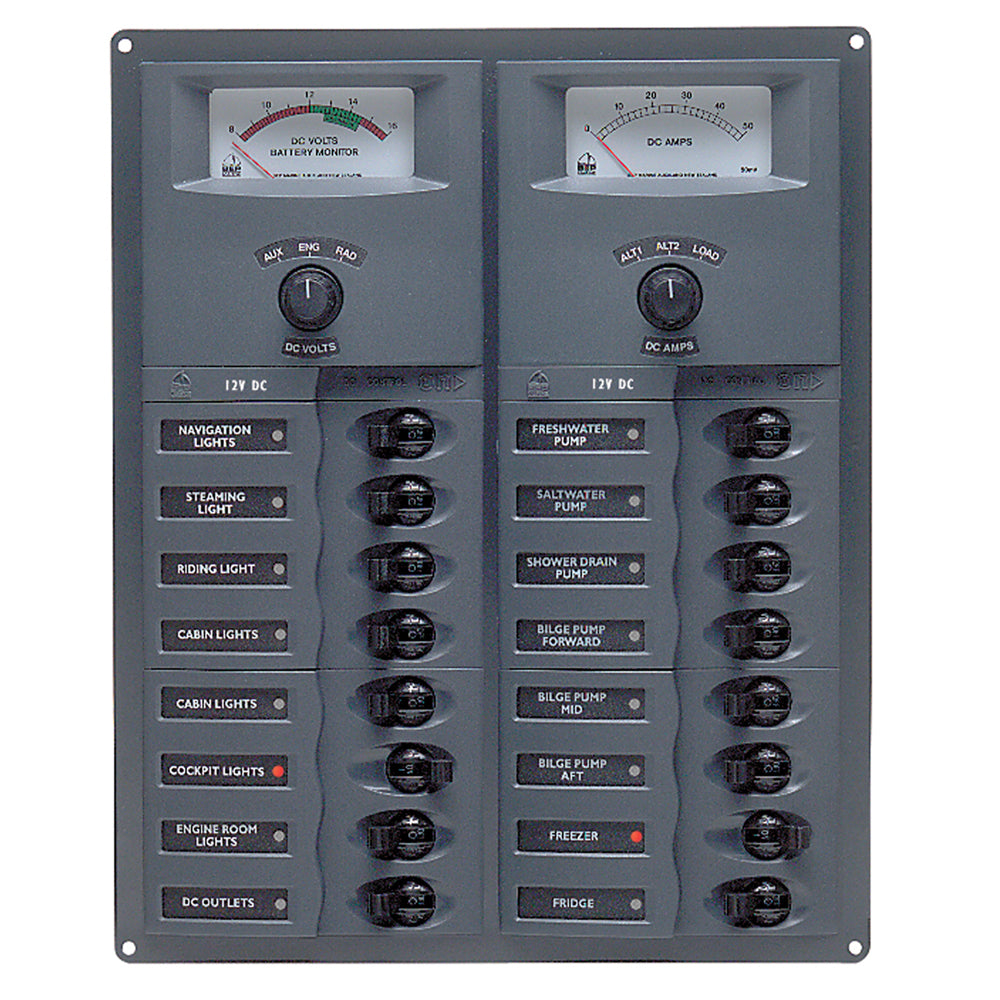

BEP Panel 16SP DC12V Analog [904-AM]

Panel 16SP DC12V Analog
DC circuit breaker panel with analog monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 16 Loads
Circuit Breakers: 4X 5A, 5X 10A, 5X 15A, 1X 20A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 11.6" X 9.75" X 2.5"
Neg Bus: 12 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12v
• AC/DC: DC
• Max Breaker Quantity: 16
• UPC: 843687003847

Owner's Manual (pdf)

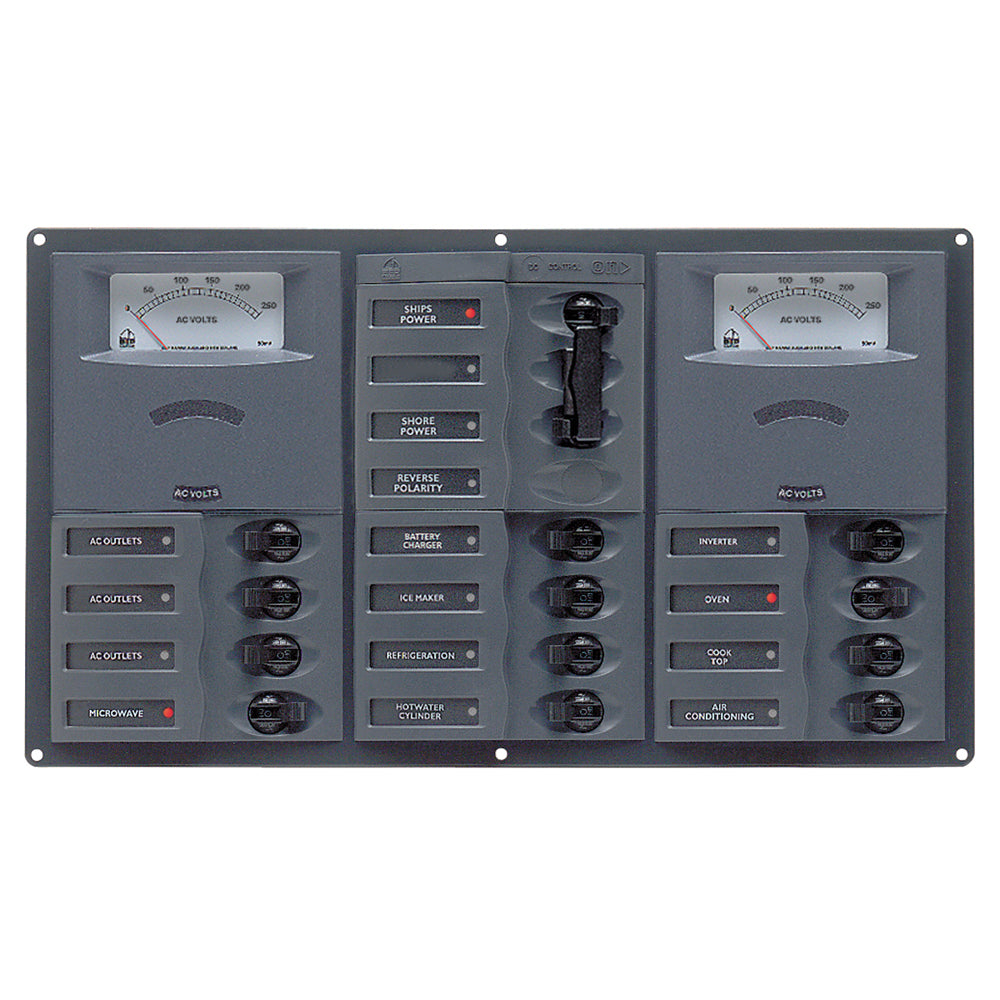

BEP AC Circuit Breaker Panel w/Analog Meters, 12SP 2DP AC230V Stainless Steel Horizonal [900-AC3-AM]

AC Circuit Breaker Panel with Analog Meters, 12SP 2DP AC230V Stainless Steel Horizonal

Features

• Supplied with tranducer

• Reverse polarity indicator

• Double pole mains input CBs with side lockout

• Analog meter

• LED wired to indicate live panel with mains breaker either on or off

• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

Specifications

• Total Positions: 12 Loads + 2 Inputs

• Circuit Breakers: 1x 5A, 4x 10A, 5x 15A, 1x 20A, 1x 25A + 1x 20A, 1x 30A

• Nominal Voltage: 230V AC

• Maximum Amperage: 30A

• Dimensions: 7.9" X 13.9" X 2.5"

• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 12+2
• UPC: 843687003762

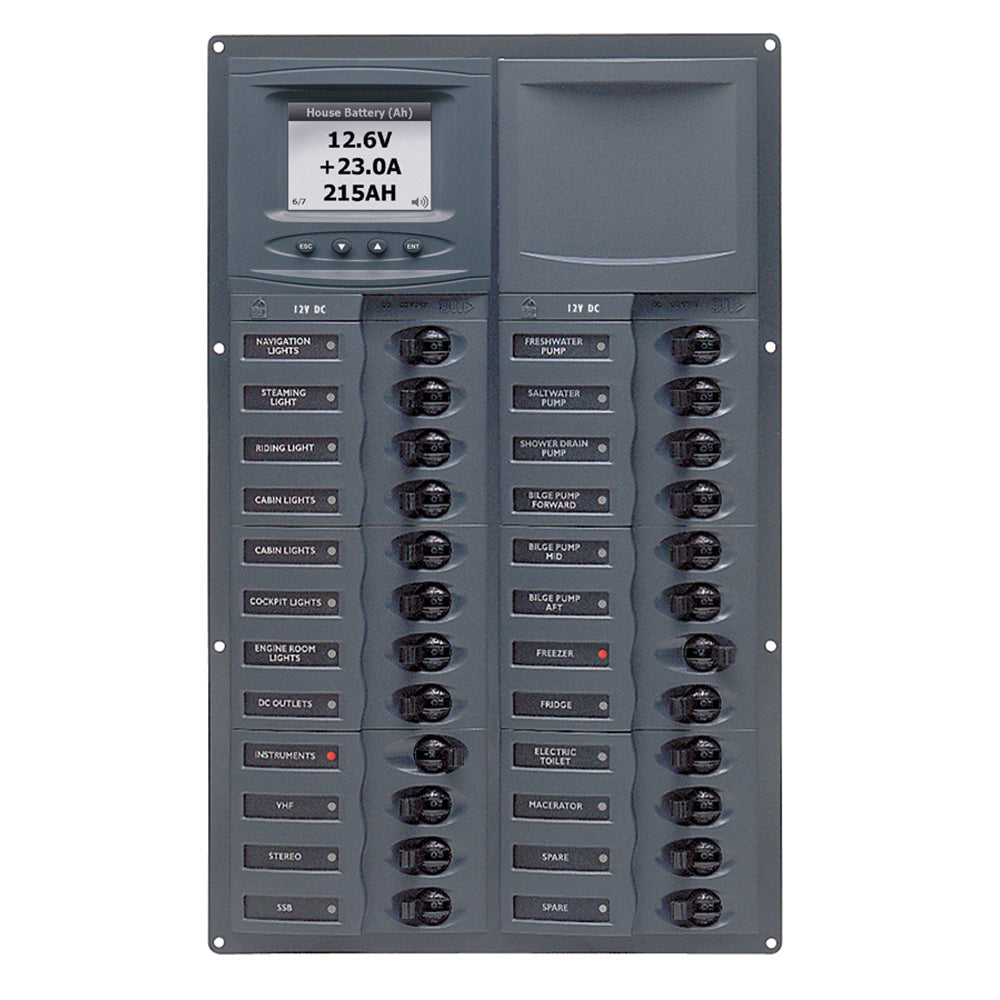

BEP Panel 24SP DC12V DCSM Vertical [905V-DCSM]

Ships Direct From Manufacturer

Panel 24SP DC12V DCSM Vertical
DC circuit breaker panel with digital monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 24 Loads
Circuit Breakers: 5X 5A, 8X 10A, 8X 15A, 1X 20A, 1X 25A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 15" X 9.75" X 2.5"
Neg Bus: 12 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12v
• AC/DC: DC
• Max Breaker Quantity: 24
• UPC: 843687004127

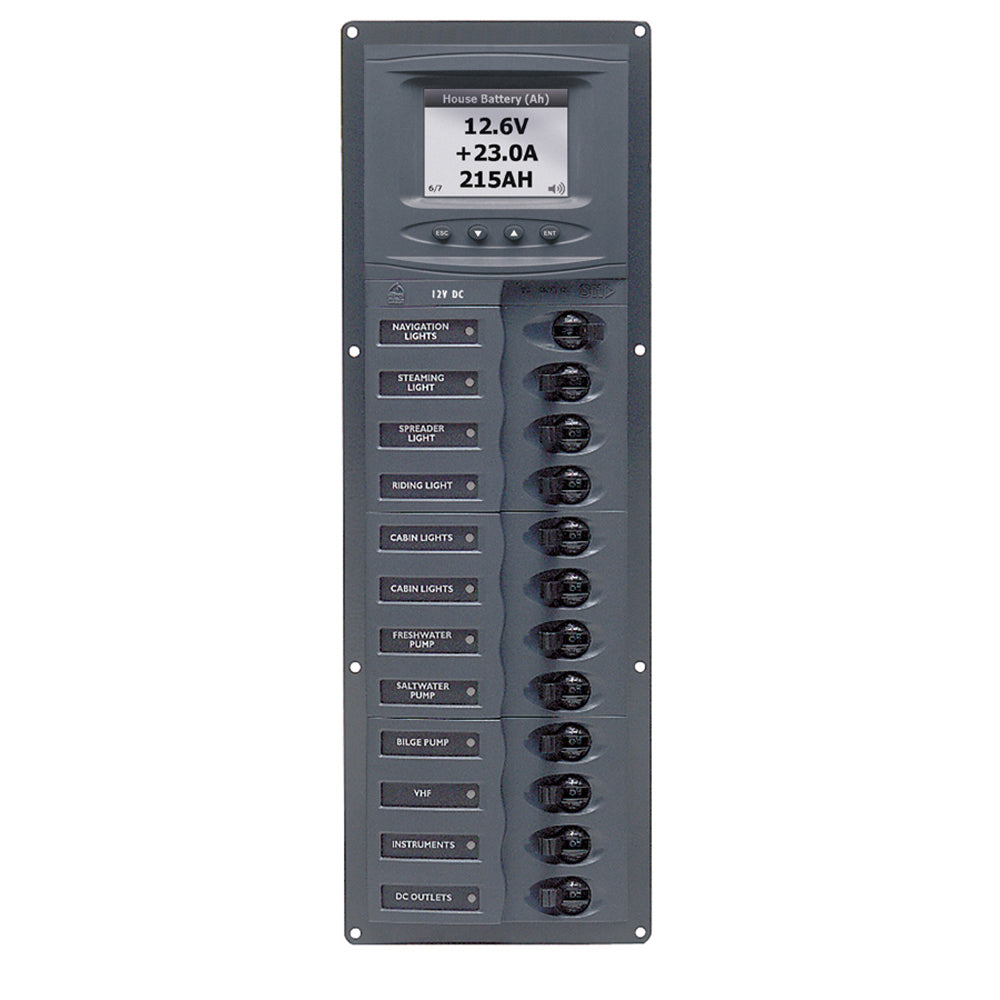

BEP Panel 12SP DC12V DCSM Vertical [902V-DCSM]

Panel 12SP DC12V DCSM Vertical
DC circuit breaker panel with digital monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 12 Loads
Circuit Breakers: 3X 5A, 4X 10A, 4X 15A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A
Dimensions: 15" X 5" X 2.5"
Neg Bus: 6 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Max Breaker Quantity: 12
• Voltage: 12v
• UPC: 843687004073

Owner's Manual (pdf)

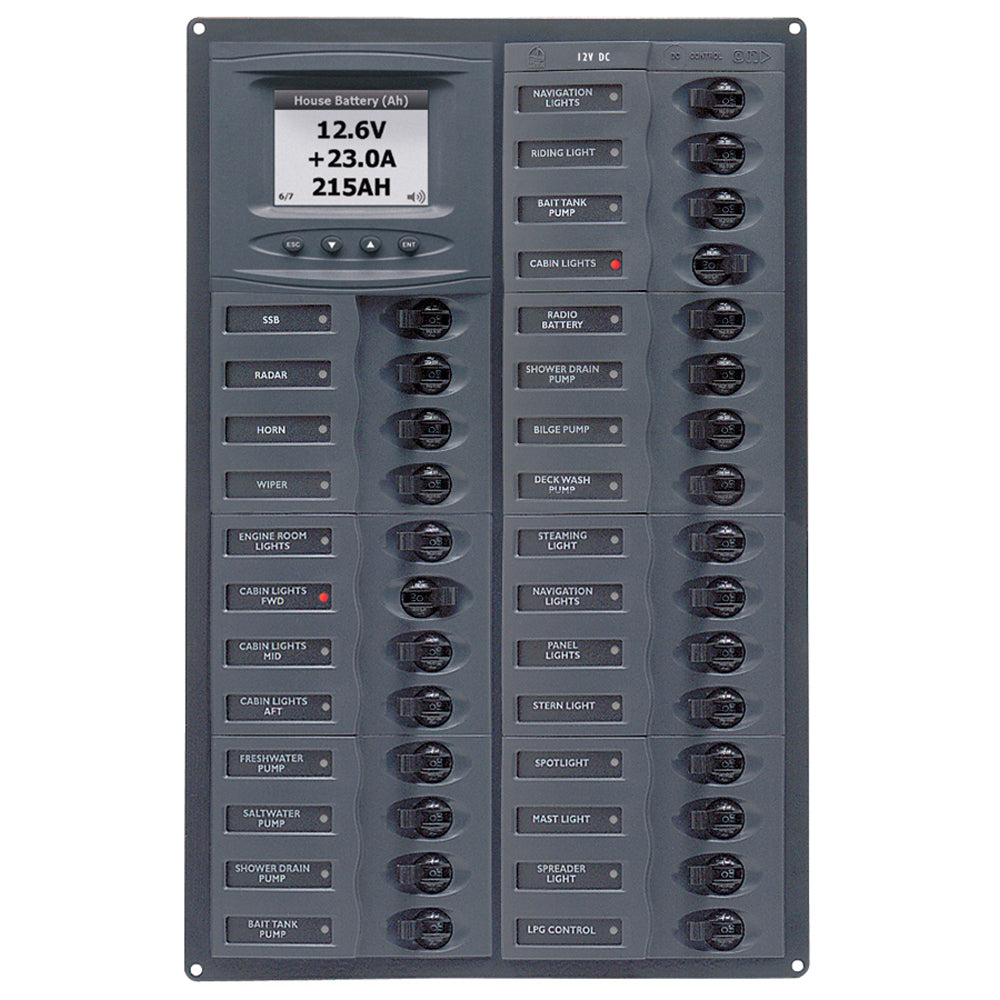

BEP Millennium Series DC Circuit Breaker Panel w/Digital Meters, 28SP DC12V [M28-DCSM]

Ships Direct From Manufacturer

Millennium Series DC Circuit Breaker Panel with Digital Meters, 28SP DC12V

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Mimic Panel for quick reference of systems in operation

• Panels meet ABYC standards

Specifications

Total Positions: 28 Loads
Circuit Breakers: 8X 5A, 8X 10A, 8X 15A, 2X 20A, 2X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 14.6" X 9.75" X 2.5"
Neg Bus: 24 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12v
• AC/DC: DC
• Max Breaker Quantity: 28
• Box Dimensions: 6"H x 12"W x 18"L WT: 9.5 lbs

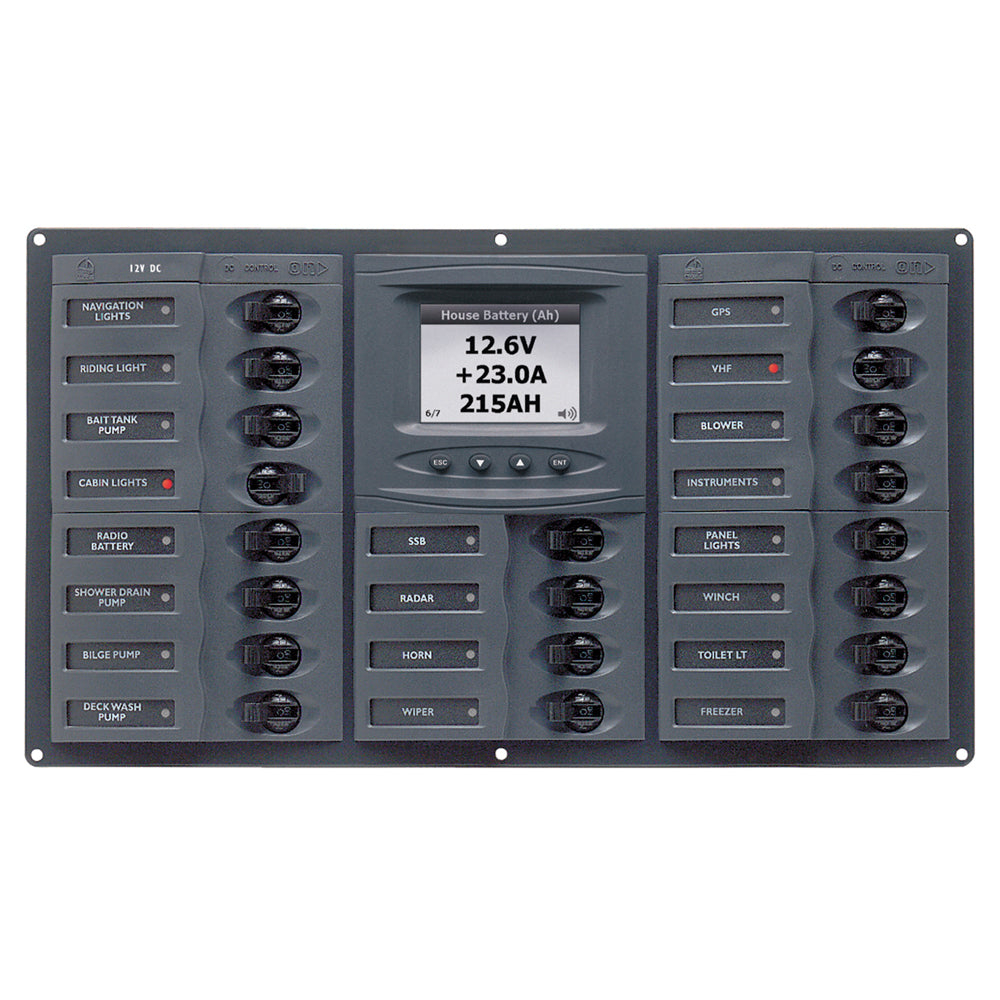

BEP Panel 20SP DC12V DCSM [903-DCSM]

Ships Direct From Manufacturer

Panel 20SP DC12V DCSM
DC circuit breaker panel with digital monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 20 Loads
Circuit Breakers: 5X 5A, 6X 10A, 7X 15A, 1X 20A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A/80A/160A buses
Dimensions: 7.9" X 9.75" X 2.5"
Neg Bus: 12 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Max Breaker Quantity: 20
• Voltage: 12v
• Box Dimensions: 4"H x 11"W x 16"L WT: 6.7 lbs

Owner's Manual (pdf)

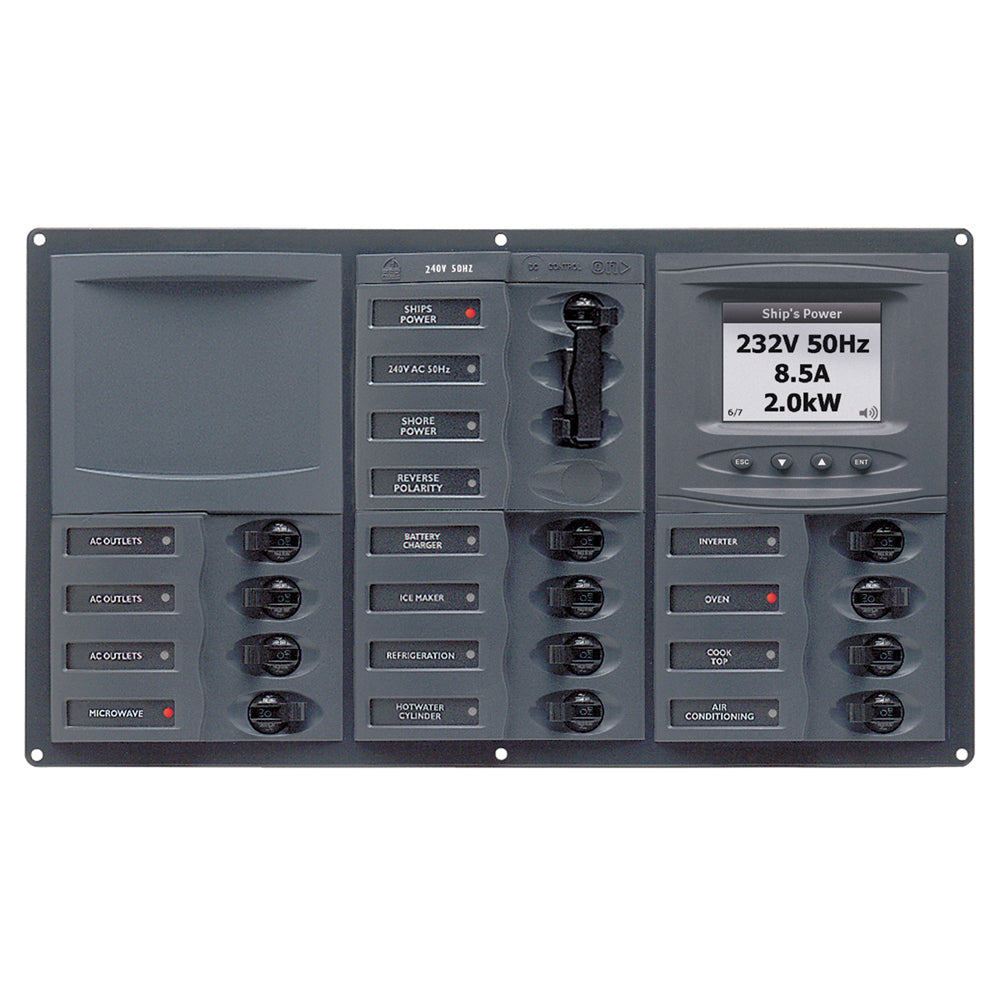

BEP AC Circuit Breaker Panel w/Digital Meters, 12SP 2DP AC230V ACSM Stainless Steel Horizontal [900-AC3-ACSM]

Ships Direct From Manufacturer

AC Circuit Breaker Panel with Digital Meters, 12SP 2DP AC230V ACSM Stainless Steel Horizontal

Features

• Supplied with tranducer

• Reverse polarity indicator

• Double pole mains input CBs with side lockout

• Digital meter shows volts, amps and frequency

• LED wired to indicate live panel with mains breaker either on or off

• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

Specifications

• Total Positions: 12 Loads + 2 Inputs

• Circuit Breakers: 1x 5A, 4x 10A, 5x 15A, 1x 20A, 1x 25A + 1x 20A, 1x 30A

• Nominal Voltage: 230V AC

• Maximum Amperage: 30A

• Dimensions: 7.9" X 13.9" X 2.5"

• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 12+2
• UPC: 843687004288

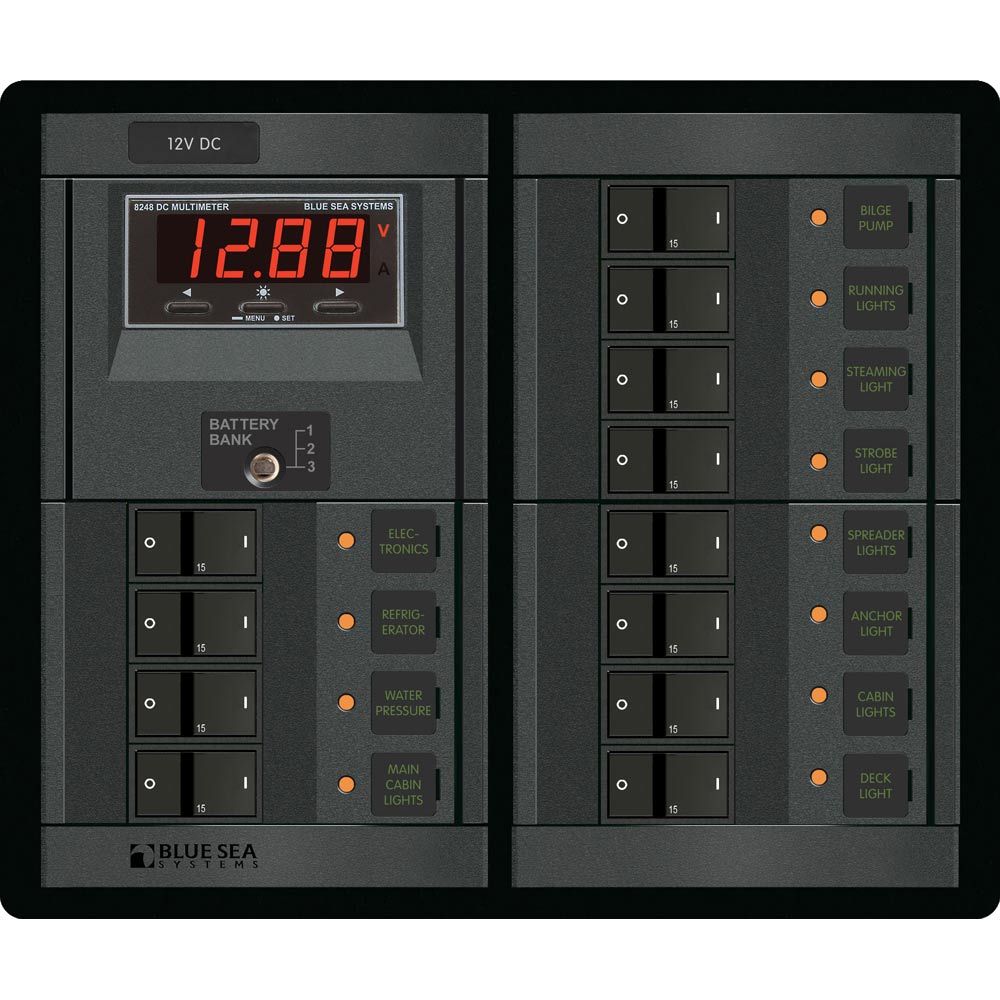

Blue Sea 1217 12V DC 12 Position w/Digital Meter [1217]

12 Volt DC 12 Position w/Digital Meter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 12

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 7.75" (196.85mm)

• Width: 9.25" (234.95mm)

• Depth: 4.00" (101.6mm)

• Weight: 5.99lb (2.72kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.


Includes:
(12) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 6"H x 10"W x 13"L WT: 5.8 lbs
• UPC: 632085012175

Quick Guide (pdf)
Owner's Manual (pdf)
