Electrical - Battery Chargers

Professional Series Battery Charger - 60A - 4-15A-Banks - 12V-48V

The Professional Series chargers have set the standard in the marine industry for more than a decade. They are known as the safest, most reliable, and best performing battery chargers in the industry. Across a broad range of fishing and recreational boats, Pro Charging Systems keeps boaters on the water longer while extending the life of their batteries. Dual ProTM charging technology has been and continues to be the choice of over 50 boat manufacturers and professional fishermen on the B.A.S.S. and FLW tournament circuit.

Battery Charging System Designed for Use On Land and in Fresh and Salt Water

• The “Green” Charger: Totally “Repairable” Not a Throw-Away
• Unmatched Performance, Reliability, Safety and Quality
• TROUBLE FREE – Just Plug It In and Forget It!
• Join Over 750,000 of Our Satisfied Customers!
• Fully Automatic and Totally Waterproof

Features:

• Approved for Wet Cell and AGM batteries
• Models also available for Gelled Electrolyte batteries
• Designed for use in fresh and saltwater
• DeltaVolt® Intuitive Charging Technology
• Waterproof, dependable, rugged construction
• Independent outputs
• Fully automatic / multi stage charging
• Zero spark technology
• Battery maintenance mode
• On-board diagnostic codes
• Temperature compensated
• Advanced microprocessor controlled
• Battery systems available: 12V – 48V
• LED lights indicate the state of charge
• Reverse polarity protected
• No installation restrictions
• FCC Parts A & B interference compliant
• DC charge cables = 5' AC power cord = 3'
• Approved and meets ISO 8846 Marine standards
• Ignition protected (US Coast Guard 33 CFR 183.410

May be used in many types of sporting applications including:

• Inland Watercraft
• Salt Water Watercraft
• Motorcycles
• Golf Carts
• Utility Vehicles…

Specifications:

• Charger Output Voltage: 12/24/36/48v
• Charger Output - Amps: 60a
• Charging Banks: 4
• Portable: No
• Charger Input - Voltage: 120v
• Box Dimensions: 12"H x 13"W x 19"L WT: 33.2 lbs
• UPC: 738562000724

All Digital Electronic Charging
Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating.

ProMar Digital Performance Charging

ProMar Digital Charging Performance - 12 Selectable Profiles
Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.

Power Factor Correction - Global AC Input
Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.

Distributed On Demand Technology
Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.

Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode
Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.

Conservation Energy Saver Mode
After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)

Service and Fault Mode LED Indicators
Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.

Automatic Fan Speed Control
Quiet operation. Innovative front exhaust prevents restriction of air flow and cooling.

Automatic Temperature Compensation and Built-in Safety
Remote temperature probe included - Ignition protected and current limiting. Designed and constructed to: Marine ULc 1236, CE, CTick and FCC Class B.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 50a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Box Dimensions: 6"H x 11"W x 15"L WT: 8.15 lbs
• UPC: 031669631502

All Digital Electronic Charging
Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating.

ProMar Digital Performance Charging

ProMar Digital Charging Performance - 12 Selectable Profiles
Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.

Power Factor Correction - Global AC Input
Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.

Distributed On Demand Technology
Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.

Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode
Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.

Conservation Energy Saver Mode
After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)

Service and Fault Mode LED Indicators
Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.

Automatic Fan Speed Control
Quiet operation. Innovative front exhaust prevents restriction of air flow and cooling.

Automatic Temperature Compensation and Built-in Safety
Remote temperature probe included - Ignition protected and current limiting. Designed and constructed to: Marine ULc 1236, CE, CTick and FCC Class B.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 30a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Box Dimensions: 6"H x 11"W x 13"L WT: 6.6 lbs
• UPC: 031669631304

Centaur Charger - 24 VDC - 60AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Portable: No
• Charger Output Voltage: 24v
• Charger Output - Amps: 60a
• Charger Input - Voltage: 120/240v
• Charging Banks: 3
• Box Dimensions: 9"H x 14"W x 25"L WT: 22.05 lbs
• UPC: 8719076021575

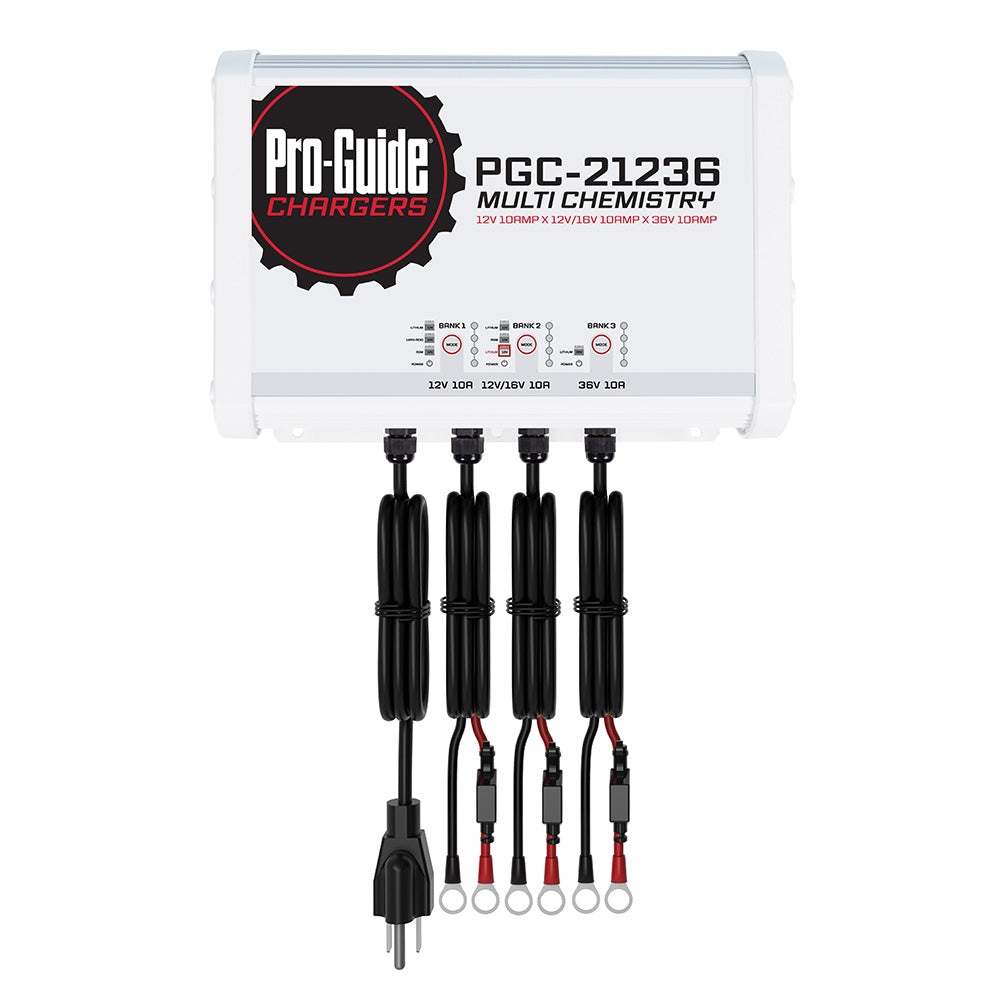

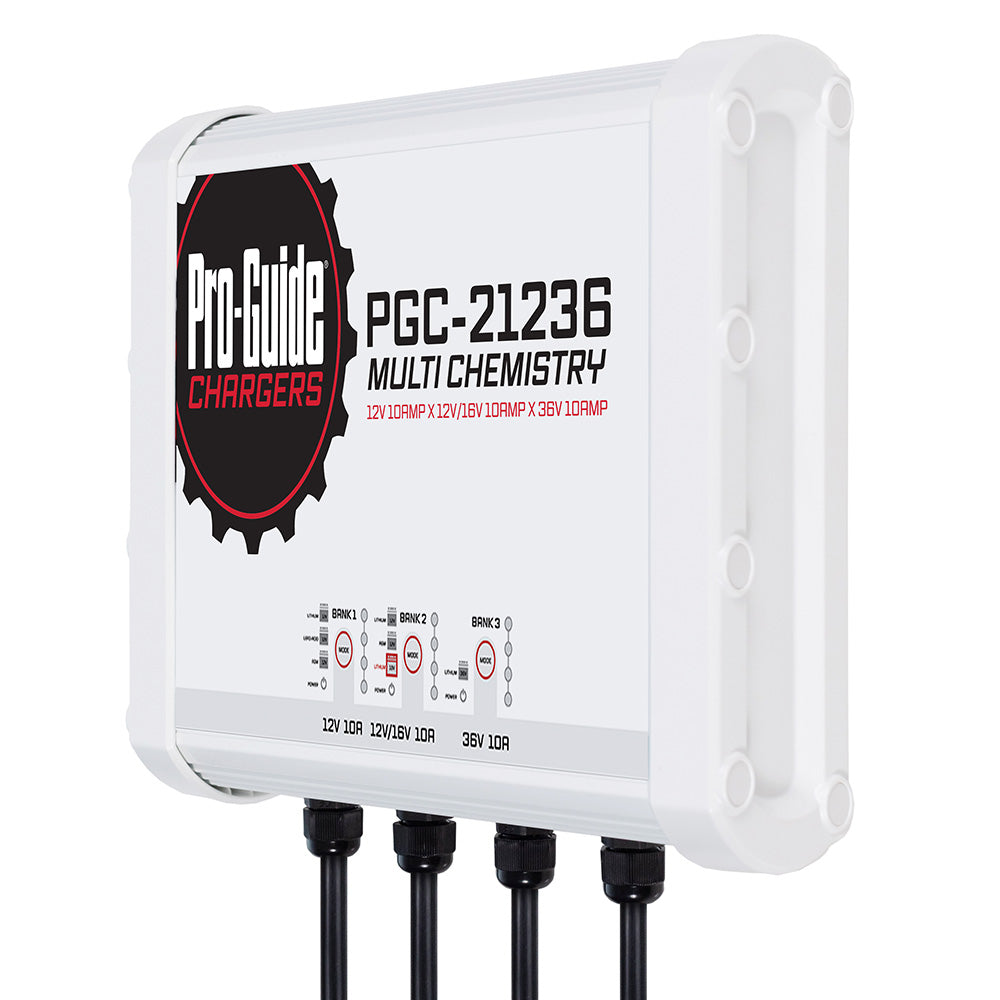

Pro-Guide 3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp [PGC-21236]

3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium, 16V Lithium & 36V Lithium
• Output Voltage: DC 12V x 1, DC 12V/16V x 1 & DC 36V x 1
• Max Output Voltage: 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, & 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, & 43-44 for 36V Lithium Battery
• Output Current: 10A for 12V Bank, 10A for 12/16V Bank & 10A for 36V Bank
• Length: 14.7"
• Width: 9.96"
• Height: 3.86"
• Weight: 24.7 lbs
• IP Rating: 68

Brochure (pdf)

Centaur Charger - 12 VDC - 80AMP - 3-Bank - 120-240 VAC

Features:

• Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 80a
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Charging Banks: 3
• Box Dimensions: 9"H x 14"W x 25"L WT: 24.25 lbs
• UPC: 8719076021520

PT-24-13W Battery Charger

“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 24-volt model
• “Smart” circuitry provides three-stage charging – bulk, absorption, float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current
• The optional sensor adjusts output voltage based on battery temperature
• Current limiting prevents damage from overloading
• Use as a power supply; can power loads without a battery in line
• Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• Install in conjunction with PT-MCU for additional control and monitoring
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 90 – 132, 180 – 264
• Input Amps @ Full Load: @ 115 VAC: 6.5, @ 230 VAC: 4
• Power Factor: .7
• Max Output Amps: 13
• Output Banks: 3
• Battery Capacity (Amp-Hours): 26 – 130
• Operating Temp. Rating Reference: T-2
• Case Size Reference: A-1
• Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (28.4A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1” (2.8 cm) to height and .92” (2.3 cm) to depth
• Weight Lbs./Kg: 8/4
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Compliance Reference: CG, ABS

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C
• Derate Linearly From 100% @ 50 degrees C to 60% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load
• Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load

Compliance References:

• UL: UL 1950 (per DNB report)
• CG: USCG CFR 183.410 (Ignition protected)
• EN: EN 60335-1
• CE: Carries the CE mark
• ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Options:

• Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)

Specifications:

• Charger Input - Voltage: 115/230v
• Charger Output - Amps: 13a
• Charger Output Voltage: 24v
• Charging Banks: 3
• Portable: No
• Box Dimensions: 10"H x 10"W x 16"L WT: 9 lbs

HF Eagle ES800 Series 36V Single Lithium Charger

For Marine, Golf, Aerial, Emergency Services, Floor Scrubbers, and more.

Applications:

• Marine: Connect to our PROView Link app to choose the right algorithm for your Lithium, AGM, or Lead Acid batteries and more.
• Golf & LSV: Pair our portable charger with our 7.5 ft. interchangeable connector cables. We offer options for most major cart manufacturers. Our PVL app allows you to choose the algorithm for your battery(s) chemistry.
• Aerial Equipment: Our chargers work with most Scissor and Boom Lifts, as well as various carts and burden carriers' manufacturers.
• Emergency Services: First Responders & Warning Systems depend on our chargers to keep their batteries charged and conditioned for use when needed.
• Floor Scrubbers: Rugged and Waterproof to work in any Janitorial/Industrial environment.
• Your Equipment: The Eagle Series HF (ES800) is the perfect choice for any application requiring a Powerful, Durable, Waterproof Charger with Advanced Data Monitoring & Logging capabilities, with selectable algorithms all accessible via our free-to-download PROView Link App.

Features:

• Portable and Onboard Options
• Output: 800W - 24VDC @ 33.3A, 36VDC @ 22.48VDC, & 48VDC @ 16.7A
• AC Universal Input (85-270 VAC 50/60HZ)
• CAN Capable
• PROView Link App Enabled to receive over-the-air updates and more
• Dimensions: L10" x W7.15" x H4"
• Weight: 11 LBS
• Developed to be interleaved for higher output requirements
• US Designed and Assembled

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 22a
• Charger Output Voltage: 36v
• Charging Banks: 1
• Portable: No
• Box Dimensions: 5"H x 12"W x 14"L WT: 11.6 lbs
• UPC: 738562003459
