Victron Energy

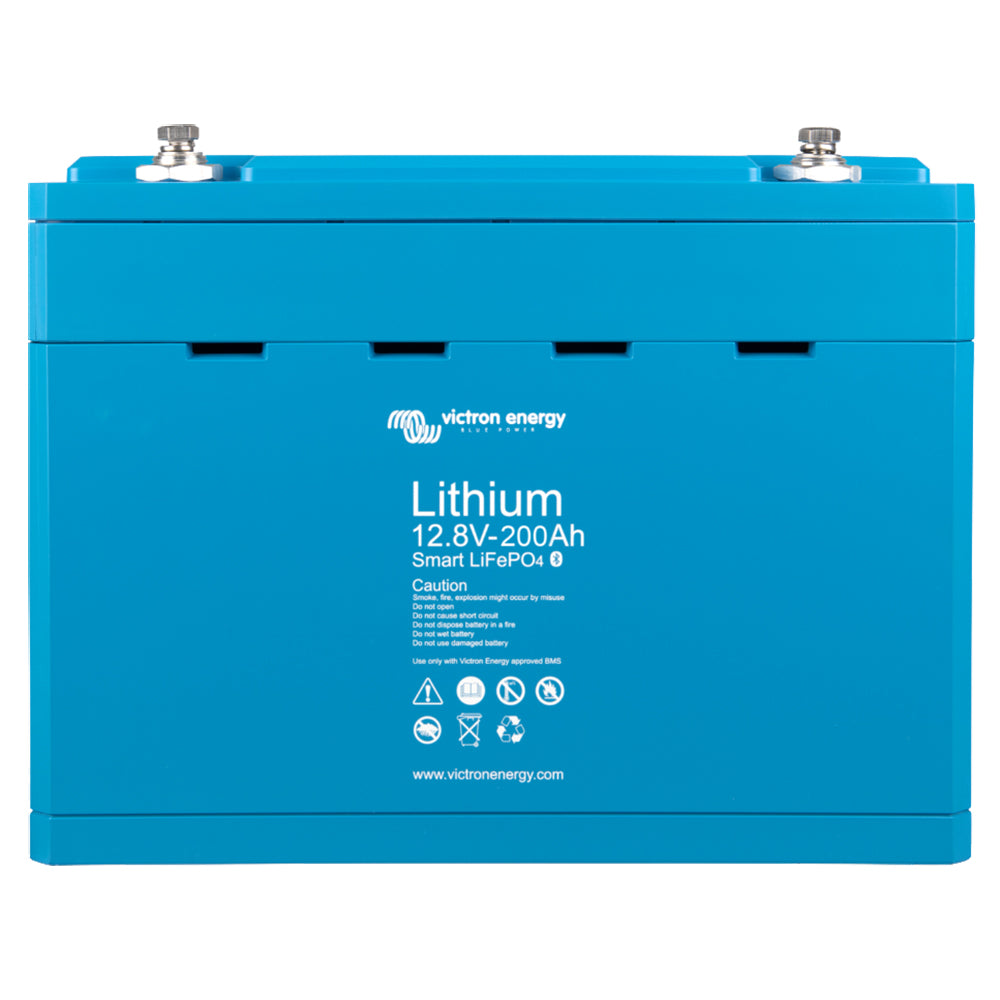

Victron Lithium Battery 12VDC 200Ah Smart LiFePO4 [BAT512120610]

~~$1,837.00~~$1,561.45

Lithium Battery 12VDC 200Ah Smart LiFePO4

Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of an LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery, therefore, consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.

Lithium Batteries require additional components during installation to make the system operate properly. These should be professionally installed to help avoid costly non-warranty failures.

Rugged

A lead-acid battery will fail prematurely due to sulfation:

If it operates in deficit mode for long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime). An LFP battery does not need to be fully charged. Service life even slightly improves in case of a partial charge instead of a full charge. This is a major advantage of LFP compared to lead acid.
Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance, and high efficiency (see below).
LFP is therefore the chemistry of choice for very demanding applications.

Efficient

In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance. The round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%. The round trip energy efficiency of an LFP battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.

Size & Weight:

Saves up to 70% in space. Saves up to 70% in weight.

Expensive?

LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.

Please contact your dealer for any returns, repairs or support issues related to this product.
Quick Guide (pdf)

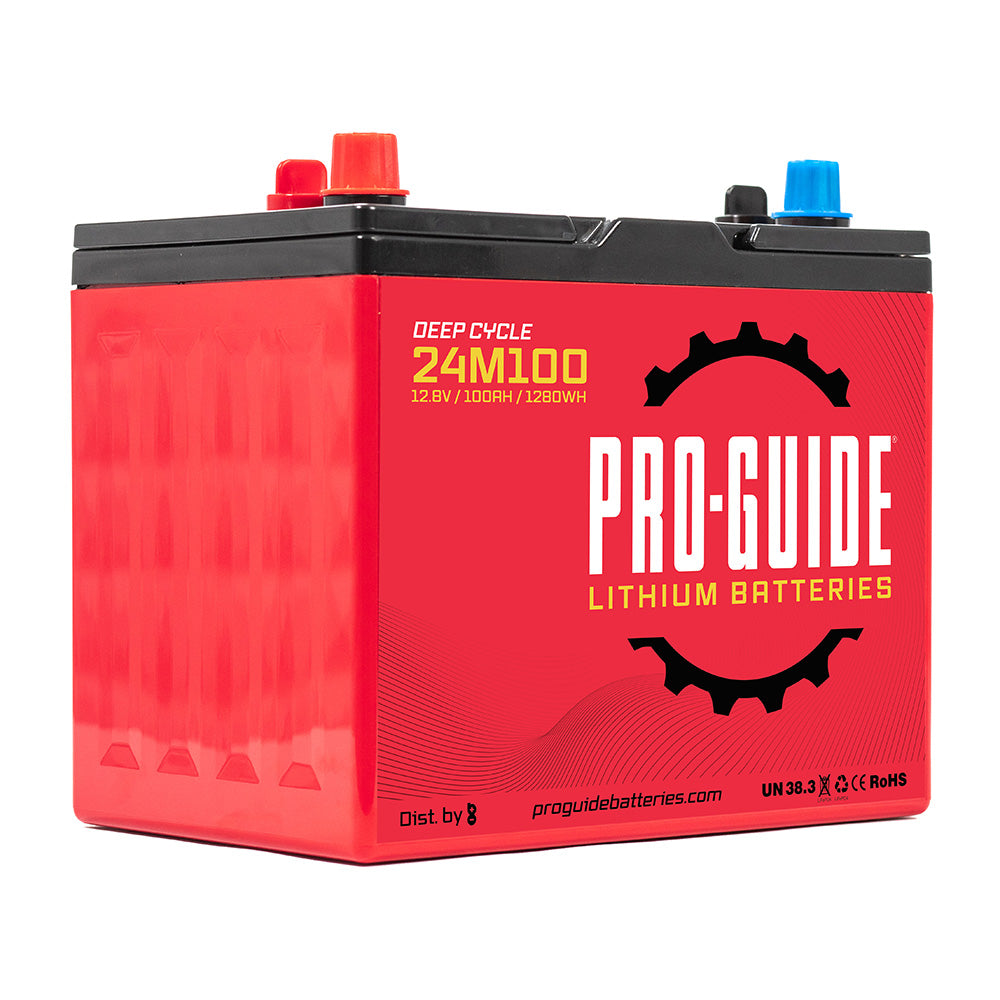

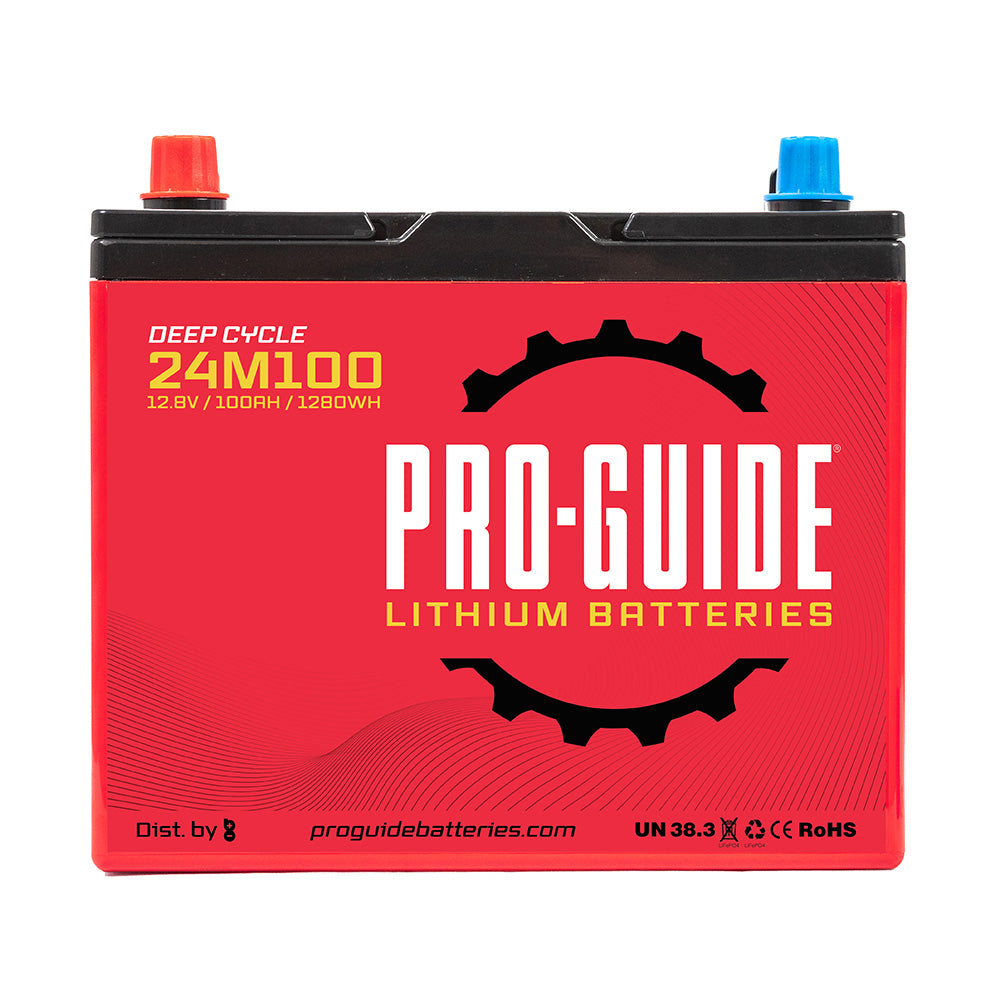

Pro-Guide Signature Series Lithium Battery - 12V - 100AH - Group 24 [24M100]

Pro-Guide Batteries

Pro-Guide Signature Series Lithium Battery - 12V - 100AH - Group 24 [24M100]

~~$999.00~~$699.99

Pro-Guide Signature Series Lithium Battery - 12V - 100AH - Group 24 [24M100]

Pro-Guide Signature Series Lithium Battery - 12V - 100AH - Group 24

With a cycle life rated up to 3000 cycles, the Pro-Guide Lithium 24M100 battery is your new favorite choice for powering your boating & RV adventures, solar storage, and more.

Features:

When you need power that'll last, the Pro-Guide Lithium 24M100 battery is there to support you. Get more out of your RV and other trolling motors, boating, solar energy storage, and deep cycle battery applications
With cycle lives rated beyond 3000 cycles @ 80% DOD and a capacity of 100Ah or 1280Wh, you get a battery that performs at a high level over its whole life span.
The first-of-its-kind Brass Dual Terminals are corrosion-resistant, making for an ideal connection that withstands high temperatures, weather, and other environmental stressors.
An enclosed cell reduces the impacts of vibrations and improves the life span of the battery, sheltering it from the wear and tear that can cause other batteries to break down faster.
Easy-to-read State of Charge (SOC) indicator built right into the top of the case ensures you'll always know where your battery stands

At just 23.8 pounds, the Pro-Guide Lithium 24M100 battery is one of the lightest and longest-lasting deep cycle batteries available.

When you're ready to hit the road in your RV, nothing should slow you down

When you're ready to take the boat out, nothing should get in the way of a smooth ride.

And when you want a battery that will support you on all your adventures, big and small, nothing performs quite as well as the Pro-Guide Lithium 24M100 Battery.

This deep-cycle battery features an ideal mix of performance (certified up to 3000 cycles) and capacity (100Ah) to go along with a lightweight (just 23.8 pounds!), stable design.

And even if you're discharging it 80% every single time, you can still get 3000 cycles out of your Pro-Guide Lithium 24M100 battery. That's like 7 years of non-stop use. Crank the tunes, roll down the window, and enjoy the open road, because there's no stopping you!

Specifications:

Group Size: 24
Voltage: 12
Amp Hours: 100AH
Watt Hours: 1280WH
Charge Current (Standard/Max): 10A / 50A
Terminal Type: 1 SAE Post, 1 Stud terminal
Weights: 23.8 lbs
Length: 10.25"
Width: 6.75"
Height: 9.25"

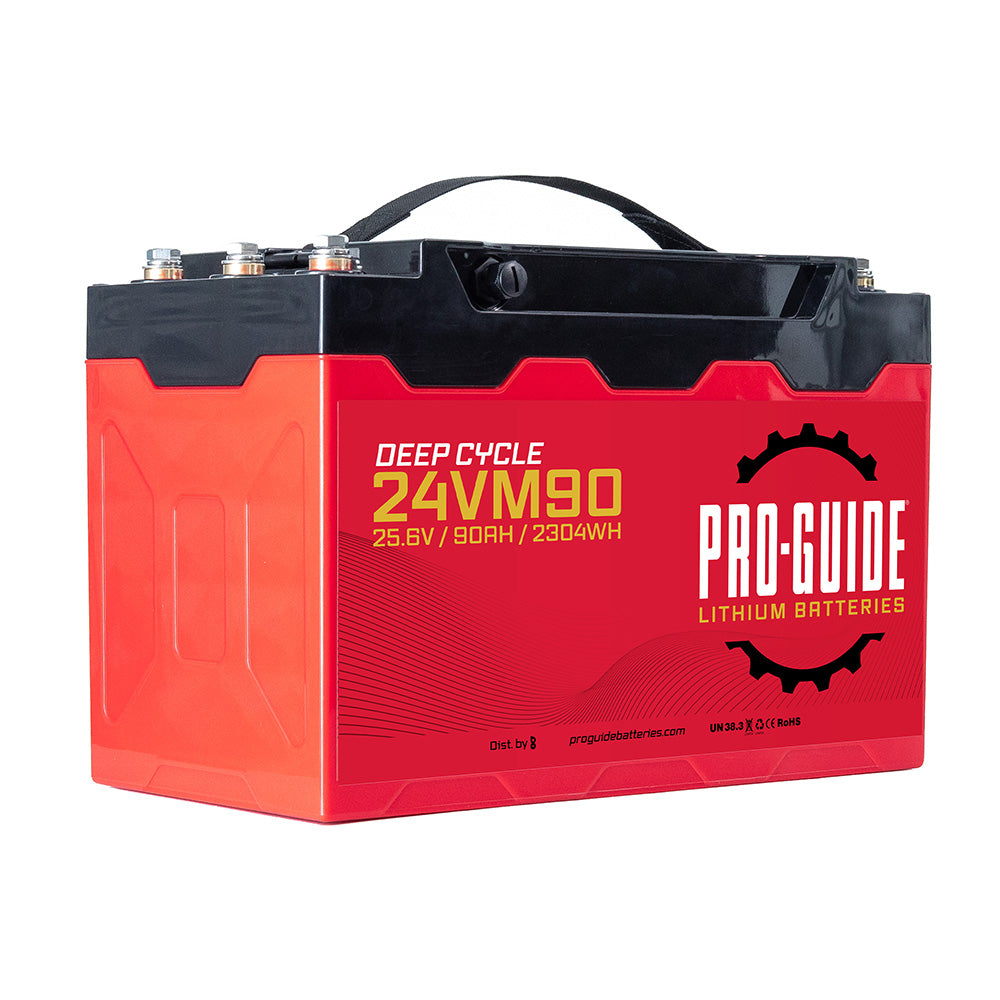

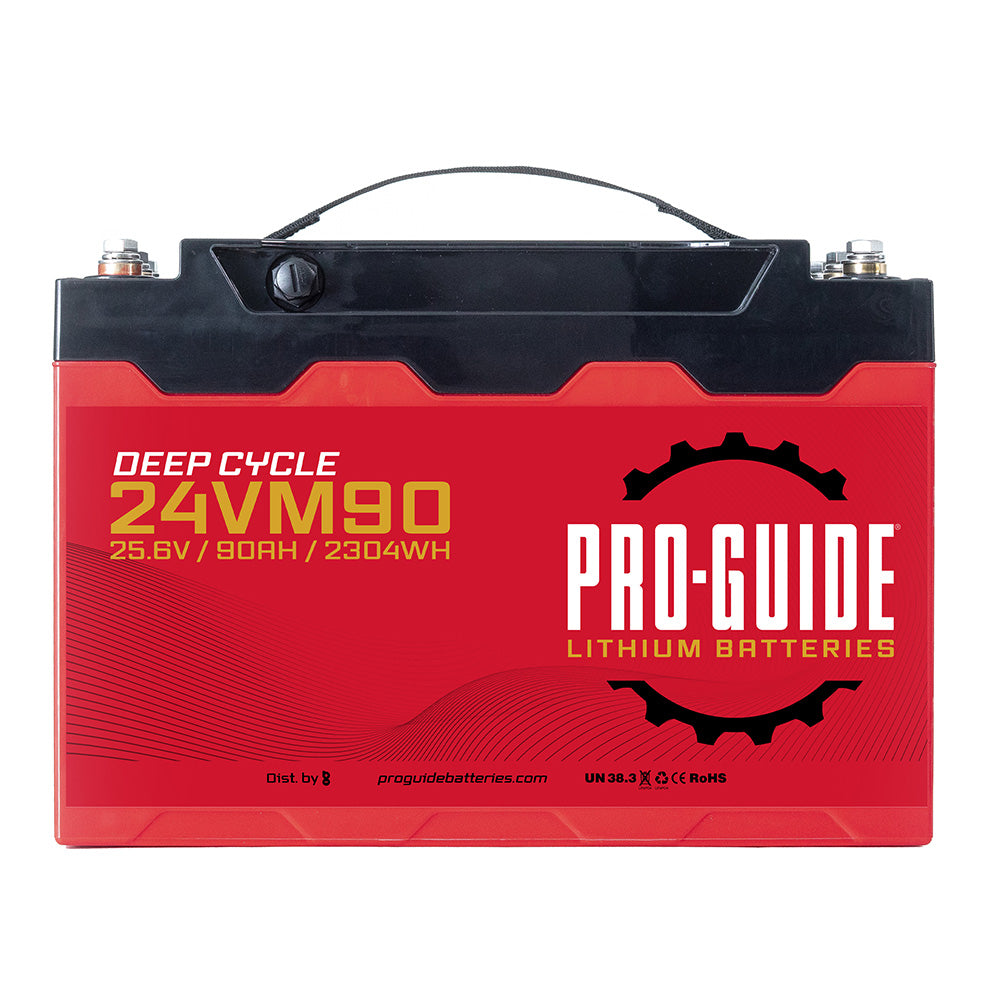

Pro-Guide Alpha Series Lithium Battery - 24V - 90AH - Group 31 [24VM90]

Pro-Guide Batteries

Pro-Guide Alpha Series Lithium Battery - 24V - 90AH - Group 31 [24VM90]

~~$1,699.00~~$1,249.99

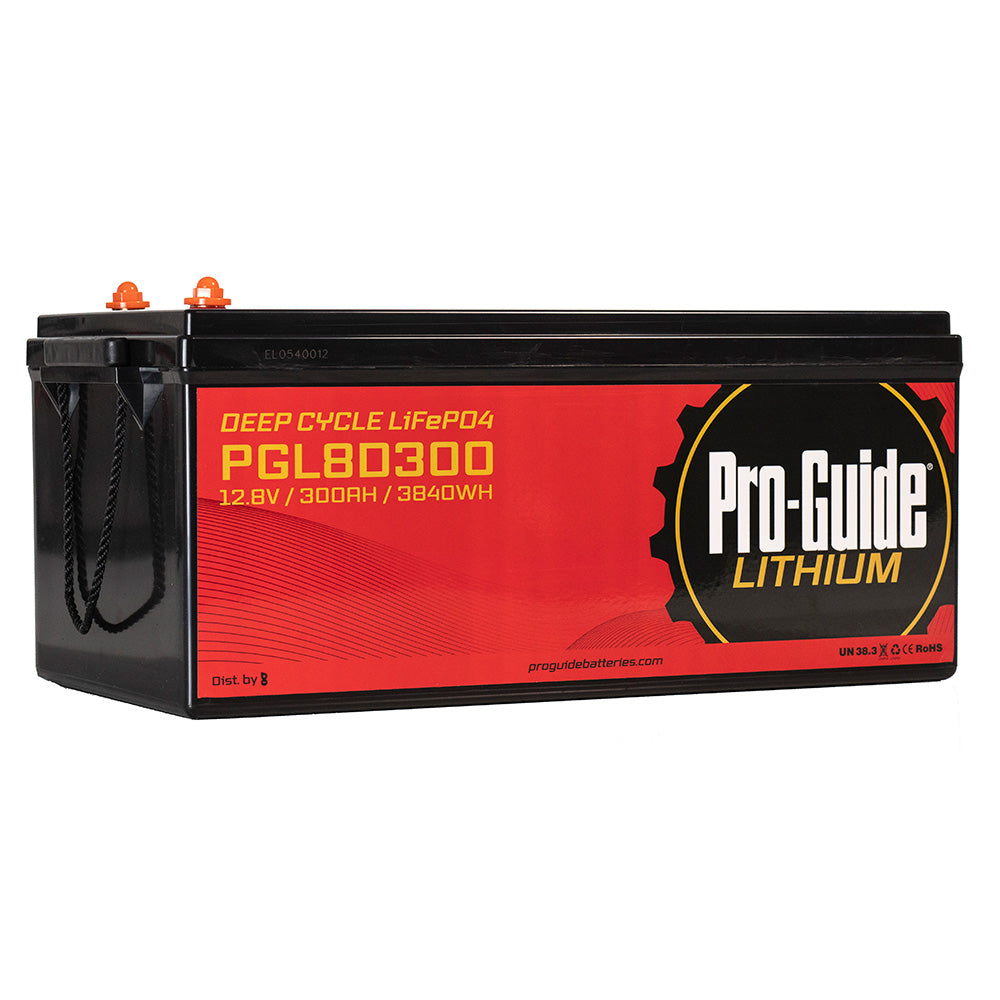

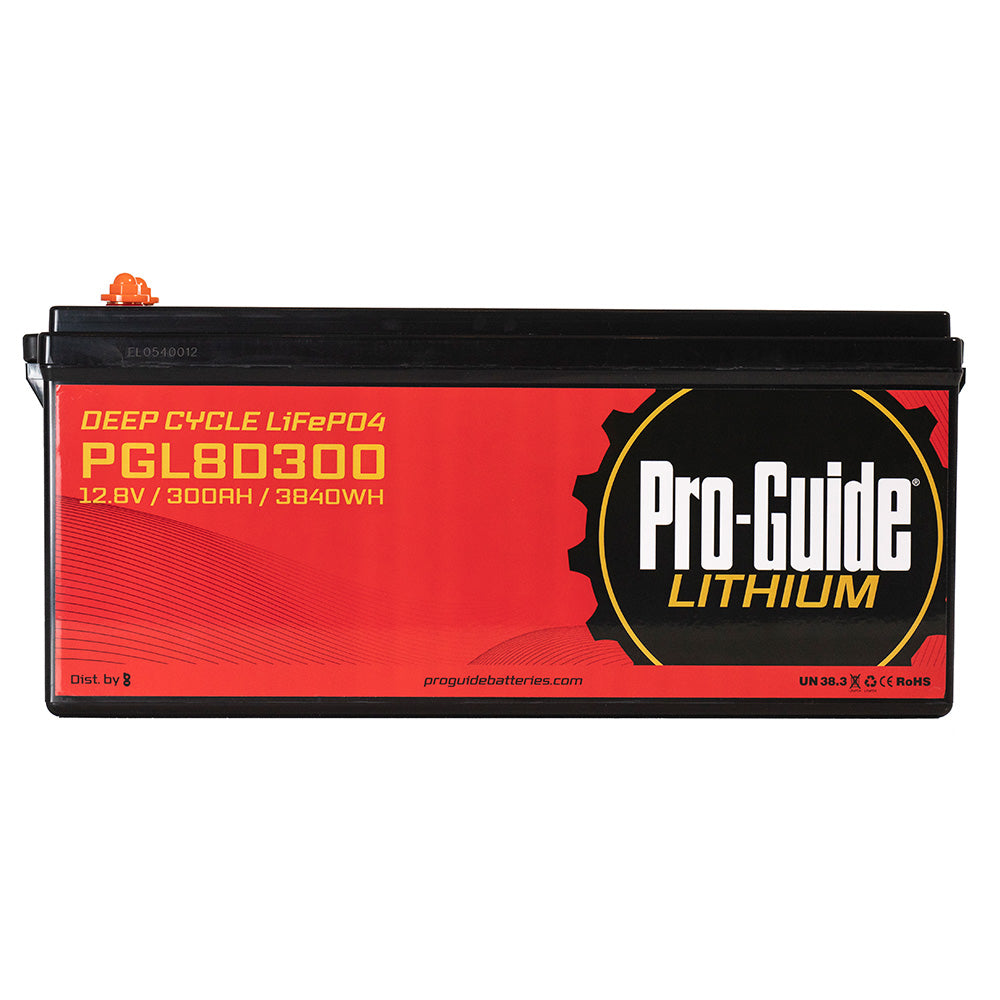

Pro-Guide Signature Series Lithium Battery - 12V - 300AH - 8D [8D300]

Pro-Guide Batteries

Pro-Guide Signature Series Lithium Battery - 12V - 300AH - 8D [8D300]

~~$1,799.00~~$1,499.99

Pro-Guide Signature Series Lithium Battery - 12V - 300AH - 8D [8D300]

Ships Direct From Manufacturer

Signature Series Lithium Battery - 12V - 300AH - 8D

With a cycle life rated up to 3000 cycles @ 80% DOD, the Pro-Guide lithium 8D300 battery is your new favorite choice for powering your boating & RV adventures, solar storage, and more

1. When you need power that'll last, the Pro-Guide lithium 8D300 battery is there to support you. Get more out of your RV and other trolling motors, boating, solar energy storage, and deep cycle battery applications

2. With cycle lives rated beyond 3000 cycles @ 80% DOD and a capacity of 300Ah, you get a battery that performs at a high level over its whole lifespan

3. For the strongest connection possible for your deep cycle applications, the 8D300 comes with M8 internal threaded terminals.

4. A built-in ABS Honeycomb Frame to keep the 8D300's cells protected from vibrations and improve the life span of the battery, sheltering it from the wear and tear that can cause other batteries to break down faster

5. Built in a 7-day sleep timer to keep the battery from self-discharging over time, and the battery is tuned to wake up with a 50mah inrush and draw of amperage. Meaning that your charger or trolling motor will wake up the battery for use!

At just 72.75 pounds, the Pro-Guide lithium 8D300 battery is one of the lightest and longest-lasting deep cycle batteries available

When you're ready to hit the road in your RV, nothing should slow you down

When you're ready to take the boat out, nothing should get in the way of a smooth ride.

And when you want a battery that will support you on all your adventures, big and small, nothing performs quite as well as the Pro-Guide lithium 8D300 battery.

This deep cycle battery features an ideal mix of performance (certified up to 3000 cycles) and capacity (300 Ah) to go along with a lightweight (just 72.75 pounds!), stable design.

And even if you're discharging it 80% every single time, you can still get 3000 cycles out of your Pro-Guide lithium 8D300 battery. That's like 7 years of non-stop use. Crank the tunes, roll down the window, and enjoy the open road, because there's no stopping you!

For a safer, stable battery that will let you enjoy the most out of your activities, trust in the Pro-Guide lithium 8D300 battery.

Specifications:
