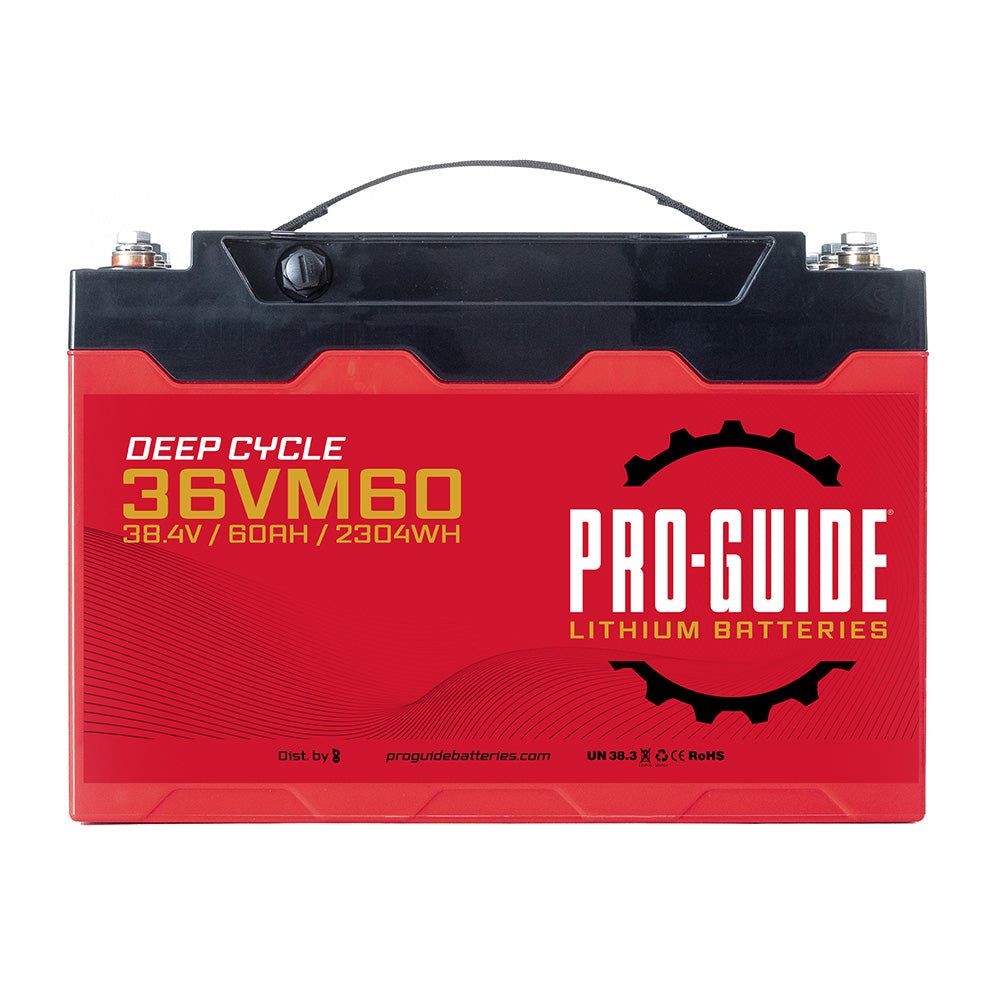

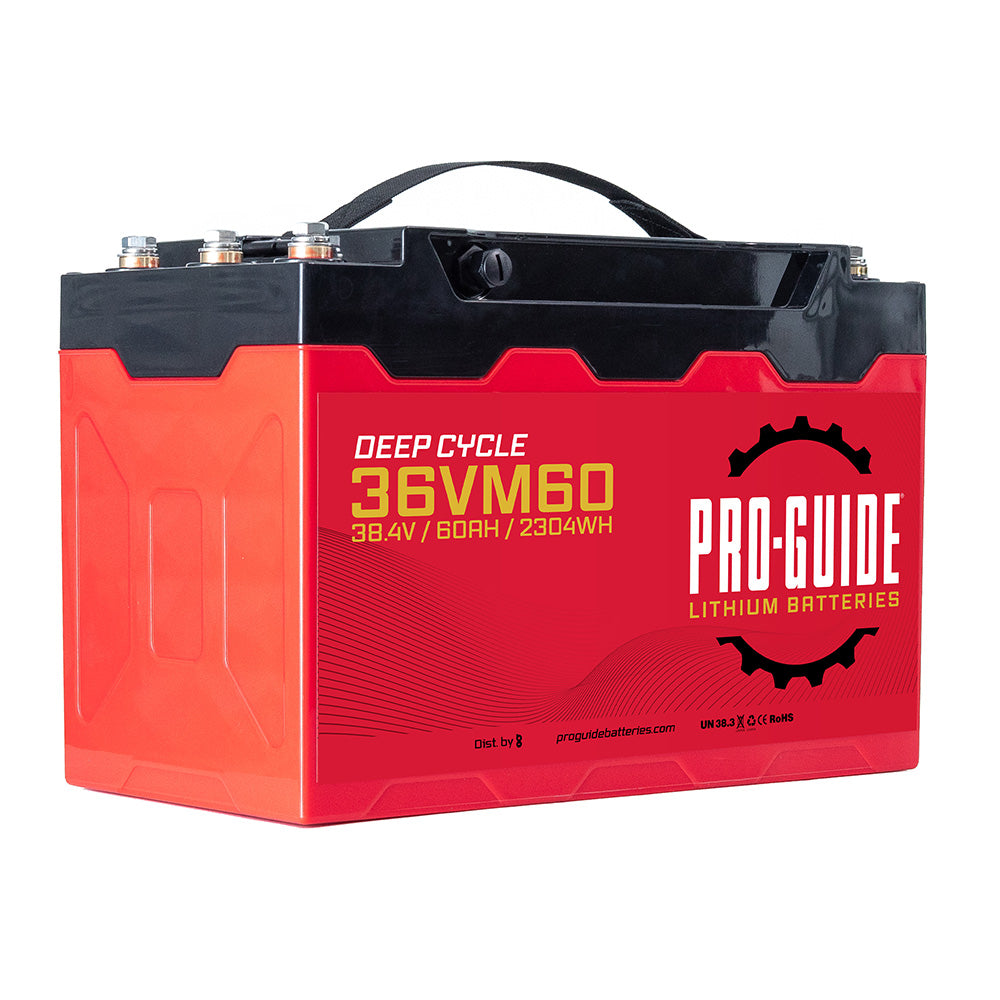

Pro-Guide Alpha Series Lithium Battery - 36V - 60AH - Group 31 [36VM60]

Ships Direct From Manufacturer

Alpha Series Lithium Battery - 36V - 60AH - Group 31

The Pro-Guide PGL36VM60 is engineered specifically for electric trolling motors and deep-cycle marine use. Featuring a 60 amp-hour capacity (2304 watt-hours), robust 100-amp BMS, IP67 waterproof rating, and Bluetooth connectivity, this battery ensures consistent performance. The Pro-Boost mode reserves 10% capacity, ensuring power remains steady even under demanding conditions.

Specifications:

• Group Size: 31
• Voltage: 36
• Cold Cranking Amps (CCA): N/A
• Marine Cranking Amps (MCA): N/A
• Amp Hours: 60AH
• Watt Hours: 2304WH
• Charge Current (Standard/Max): 10-12A / 30A
• Terminal Type: 3 x Internal Thread (M8)
• Weights: 44.09 lbs
• Length: 13.07"
• Width: 6.93"
• Height: 8.9"
• Bluetooth: Enabled
• Heating: Enabled
• NMEA2000: Compatible

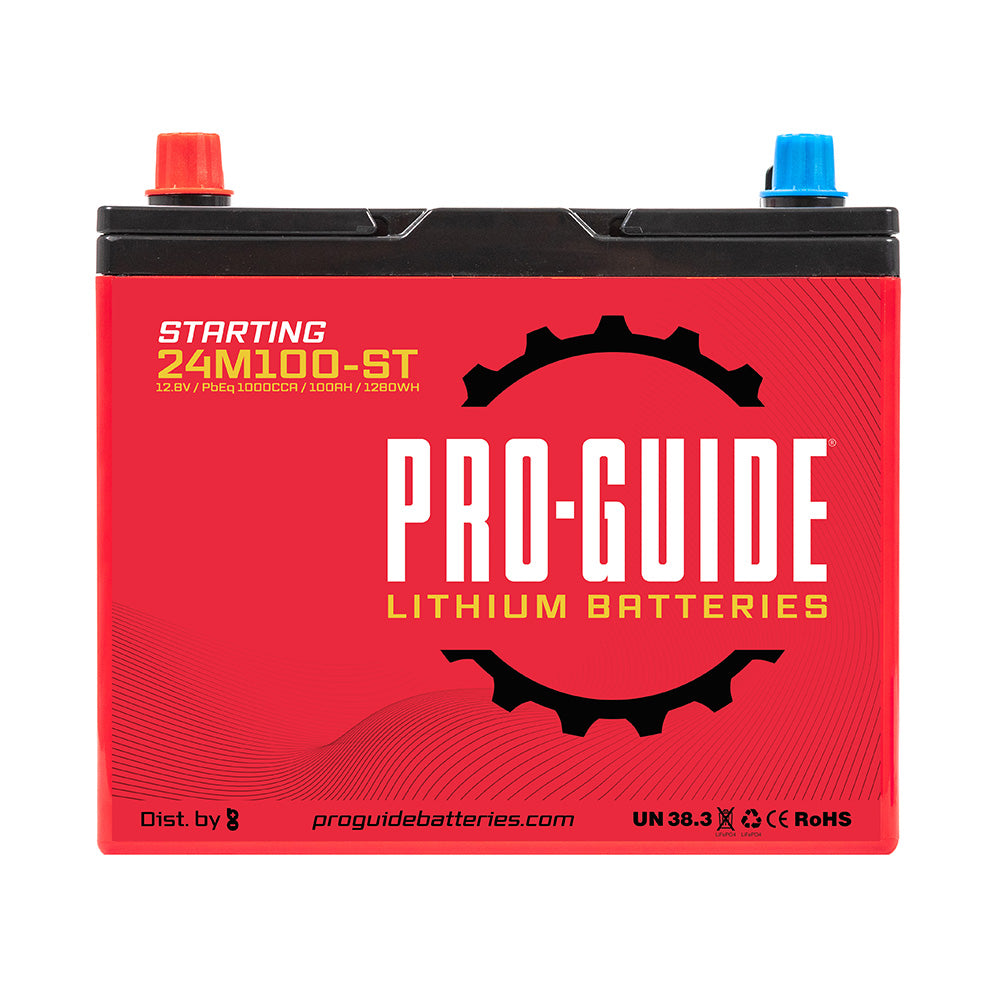

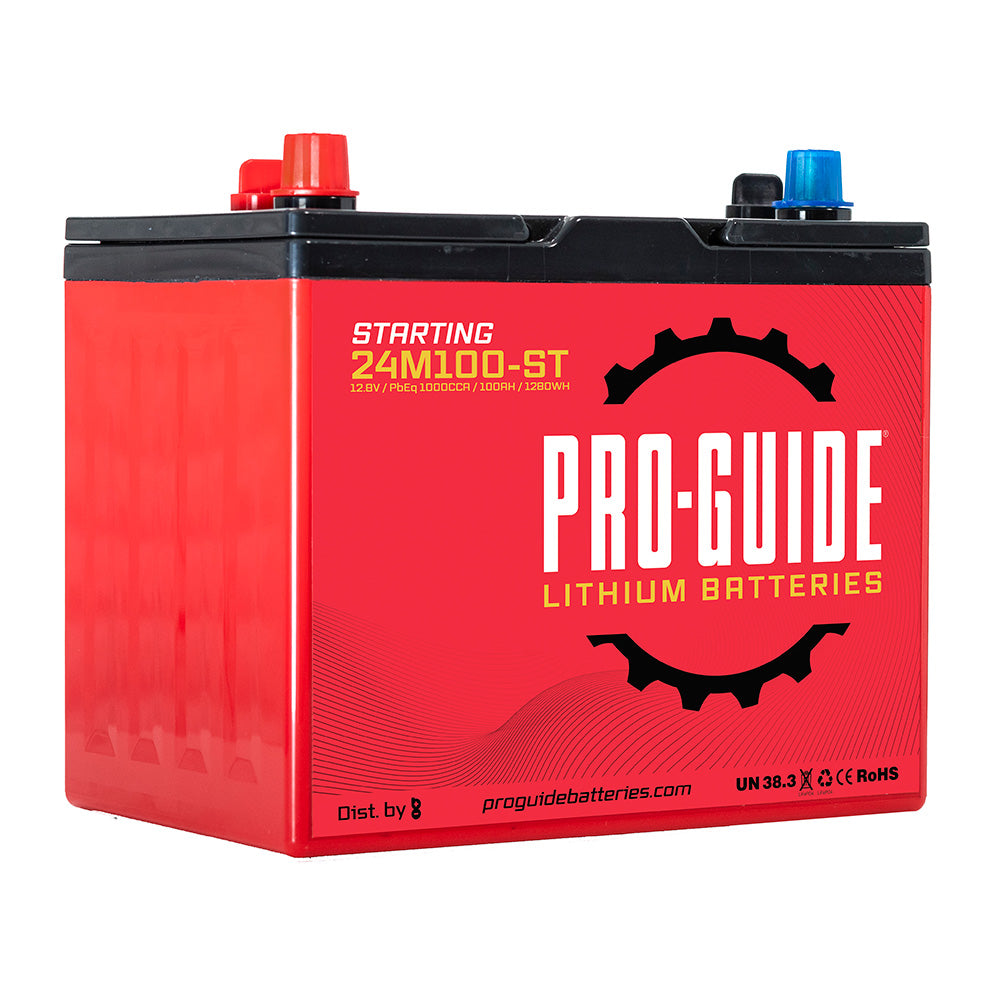

Pro-Guide Signature Series Lithium Starting Battery - 12V - 100AH - Group 24 [24M100-ST]

Signature Series Lithium Starting Battery - 12V - 100AH - Group 24

Pro-Guide Lithium 24M100-ST Starting Battery, the perfect starting battery for the most extreme anglers.

With 1000 PbEq CCA's and 100AH's, this battery is designed to power your Outboard, and keep up to (2-3) 12" graphs and Livescope running all day on the water. The innovative "ProBoost" feature provides built-in jump starting, so you'll never have to worry about being stranded by a dead battery again.  The brass terminals ensure a secure connection, and the battery meets all Mercury Lithium Starting Requirements.  Trust Pro-Guide Battery to keep you powered up and ready to hit the water at a moment's notice.

Specifications:

• Group Size: 24
• Voltage: 12
• Cold Cranking Amps (CCA): PbEq 1000 CCA
• Marine Cranking Amps (MCA): N/A
• Amp Hours: 100AH
• Watt Hours: 1280WH
• Charge Current (Standard/Max): 10A / 50A
• Terminal Type: 1 SAE Post, 1 Stud terminal
• Weights: 28.7 lbs
• Length: 10.25"
• Width: 6.75"
• Height: 9.25"

Brochure (pdf)

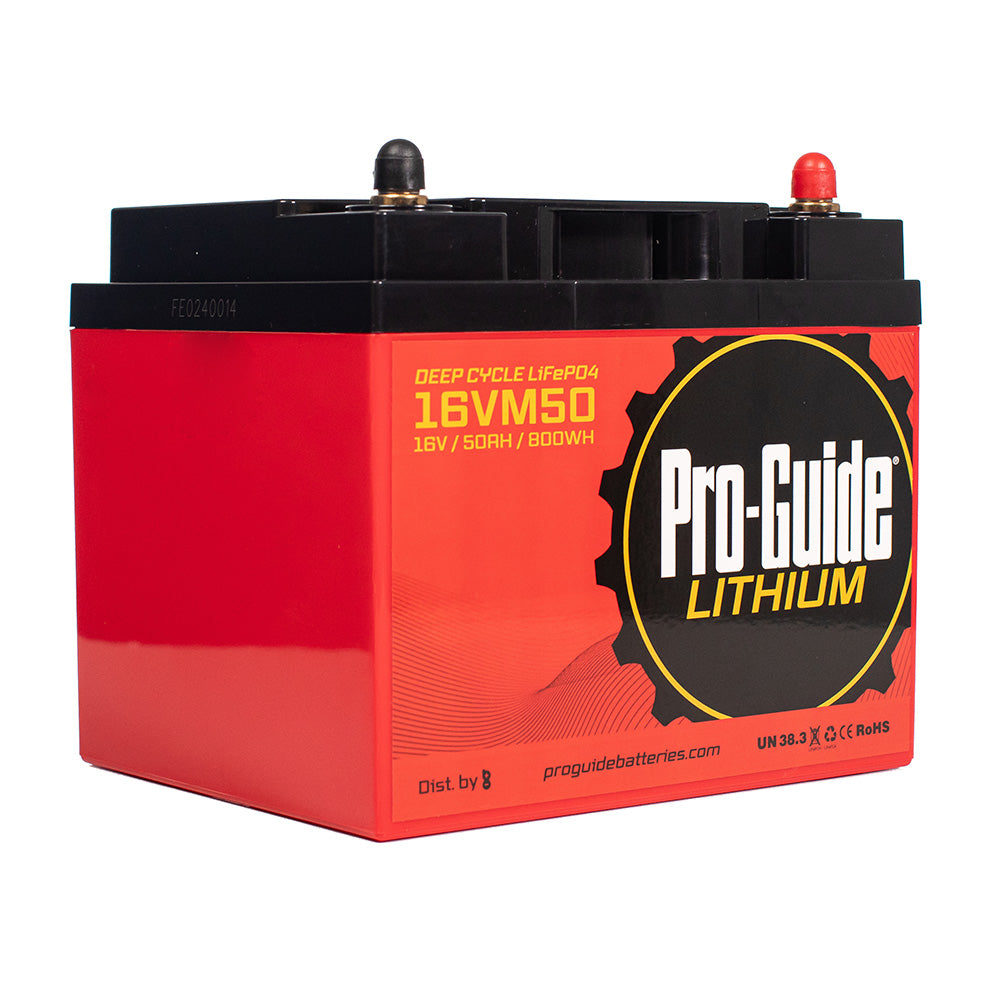

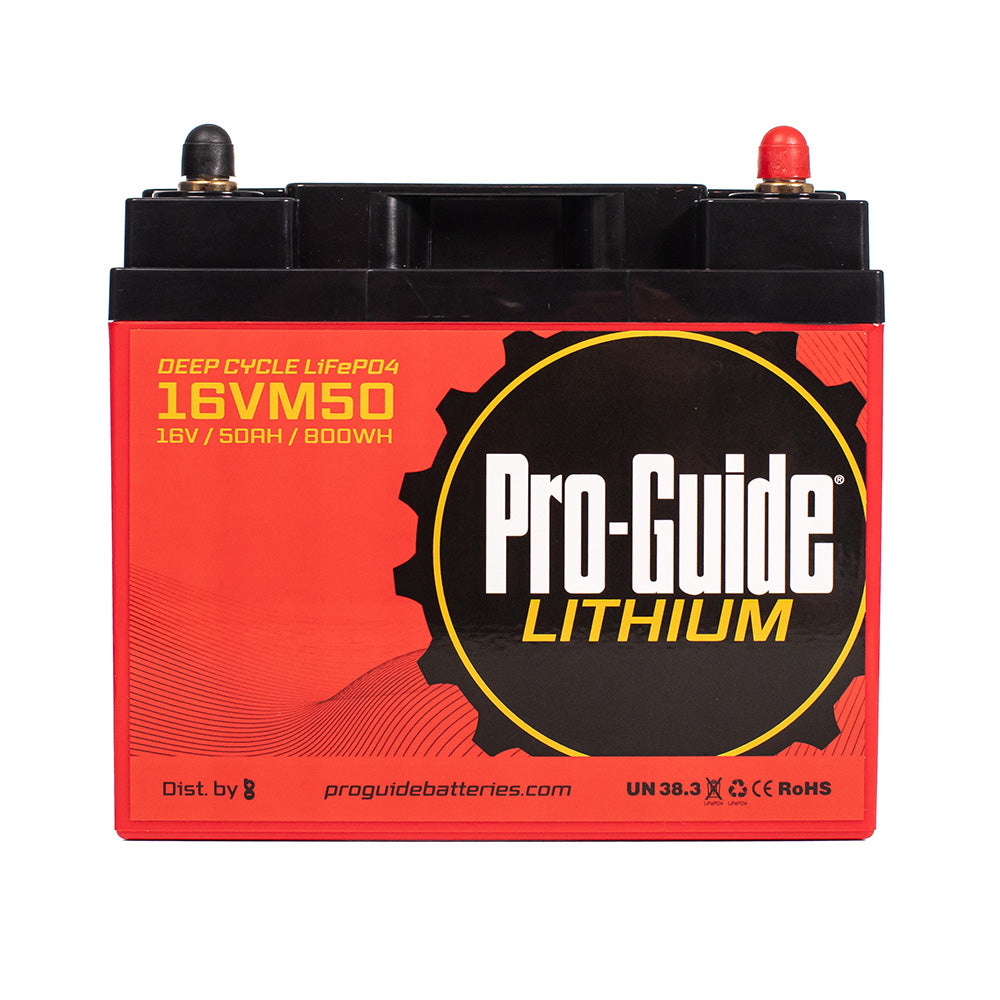

Pro-Guide Signature Series Lithium Battery - 16V - 50AH [16VM50]

Signature Series Lithium Battery - 16V - 50AH

With a cycle life rated up to 3000 cycles, the Pro-Guide Lithium 16VM50 battery is your new favorite choice for powering your marine electronics

1. When you need power that'll last, the 16VM50 is here to support you.  Get more out of your fish finder, kayak, or other finesse applications

2. With cycle lives rated beyond 3000 cycles @ 80% DOD and a capacity of 50Ah or 800Wh, you get a battery that performs at a high level over its whole lifespan

3. With internal thread (M6) terminals, a secure connection is simple, allowing peace of mind for your time on the water

4. At only 12 lbs, this battery will efficiently power your application without weighing you down!

Power comes in small packages with the Pro-Guide Lithium 16VM50! An energy-dense pack that allows you to power big and small applications on the water!

Specifications:

• Group Size: N/A
• Voltage: 16
• Amp Hours: 50AH
• Watt Hours: 800WH
• Charge Current (Standard/Max): 10A / 25A
• Terminal Type: Internal Thread (M6)
• Weights: 11.68 lbs
• Length: 7.75"
• Width: 6.5"
• Height: 6.9"

Brochure (pdf)

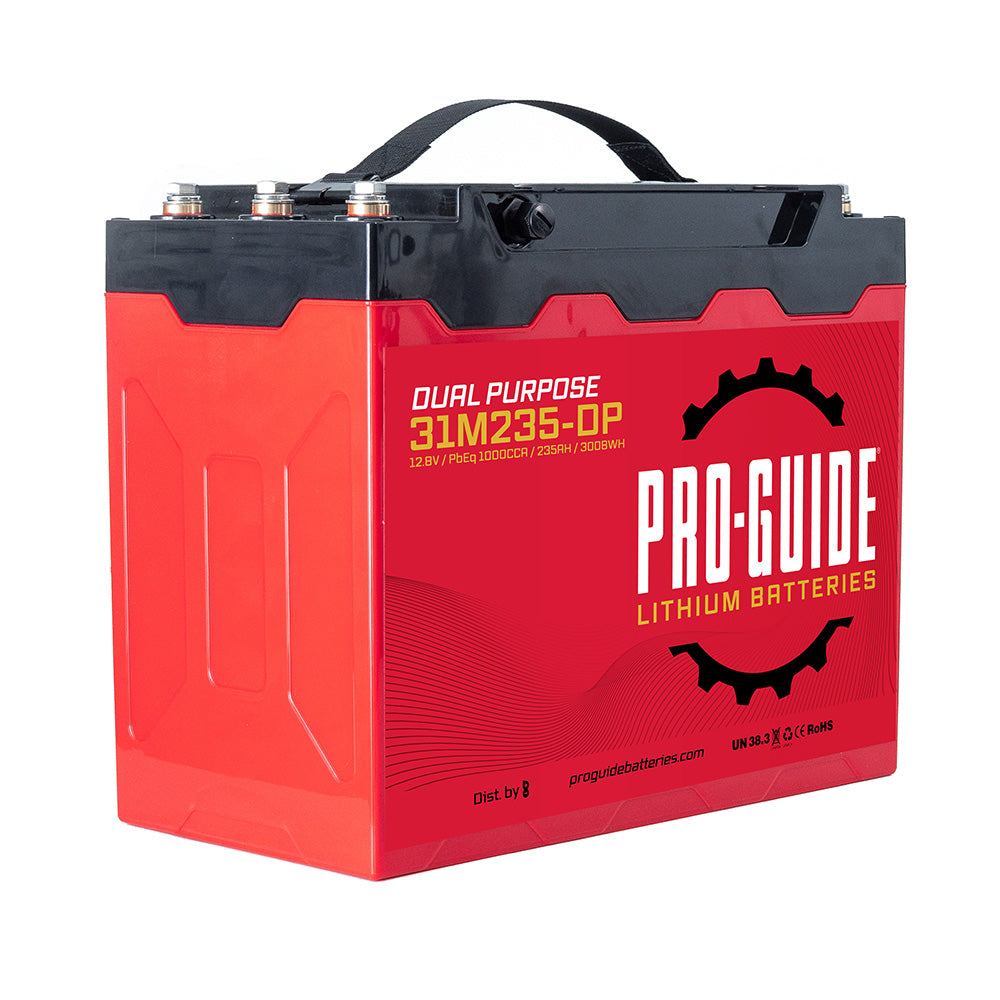

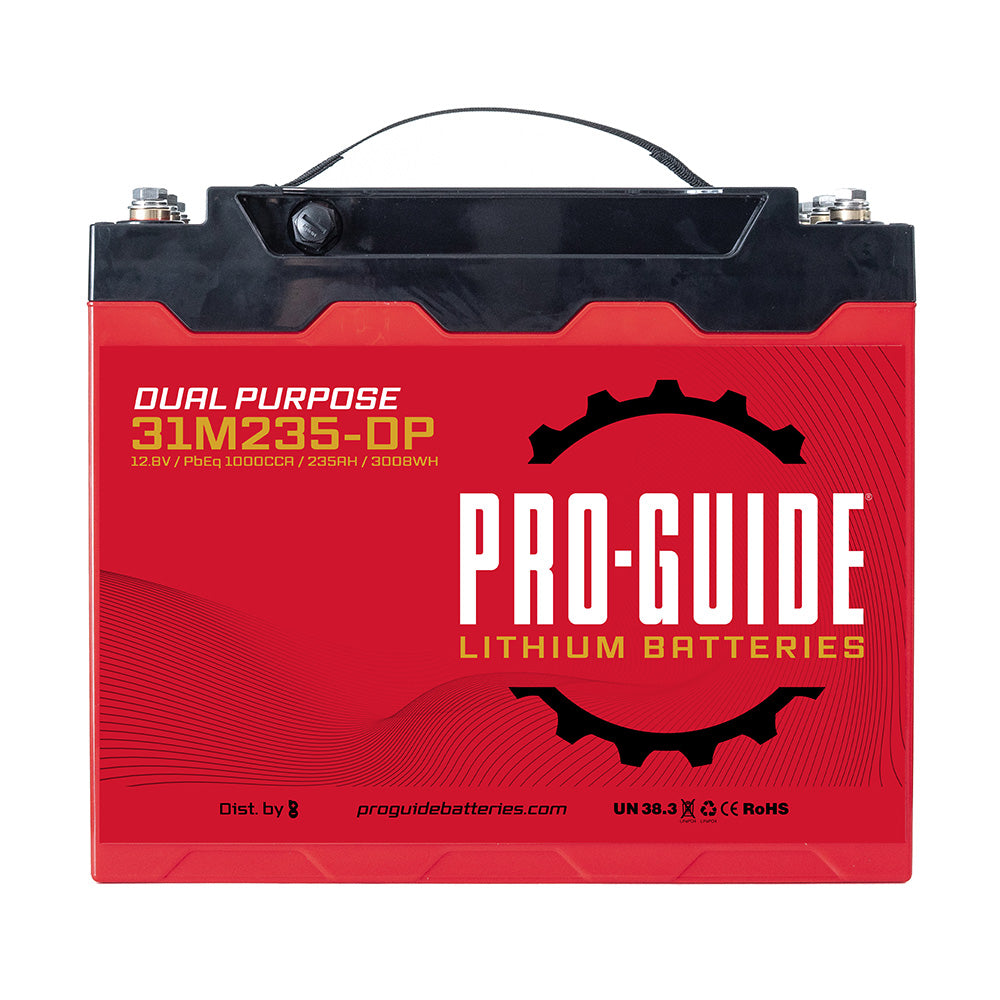

Pro-Guide Alpha Series Lithium Battery - 12V - 235AH - Group 31 (Tall) [31M235-DP]

Ships Direct From Manufacturer

Alpha Series Lithium Battery - 12V - 235AH - Group 31 (Tall)

The Pro-Guide PGL31M235-DP dual-purpose lithium battery provides outstanding performance, featuring a 235 amp-hour capacity (3008 watt-hours), a robust 200-amp BMS, and IP67-rated durability. Enhanced with Bluetooth connectivity for real-time monitoring and Pro-Boost technology that reserves 20% capacity, this battery is optimized for powerful starting and dependable deep-cycle use in marine, RV, and off-grid applications.

Specifications:

• Group Size: 31 (Tall)
• Voltage: 12
• Cold Cranking Amps (CCA): PbEq 1000 CCA
• Marine Cranking Amps (MCA): N/A
• Amp Hours: 235AH
• Watt Hours: 3008WH
• Charge Current (Standard/Max): 10-47A /117.5A
• Terminal Type: 3 x Internal Thread (M8)
• Weights: 52.91 lbs
• Length: 13.07"
• Width: 6.93"
• Height: 10.83"
• Bluetooth: Enabled
• Heating: Enabled
• NMEA2000: Compatible

Brochure (pdf)
