Communication - Mobile Broadband

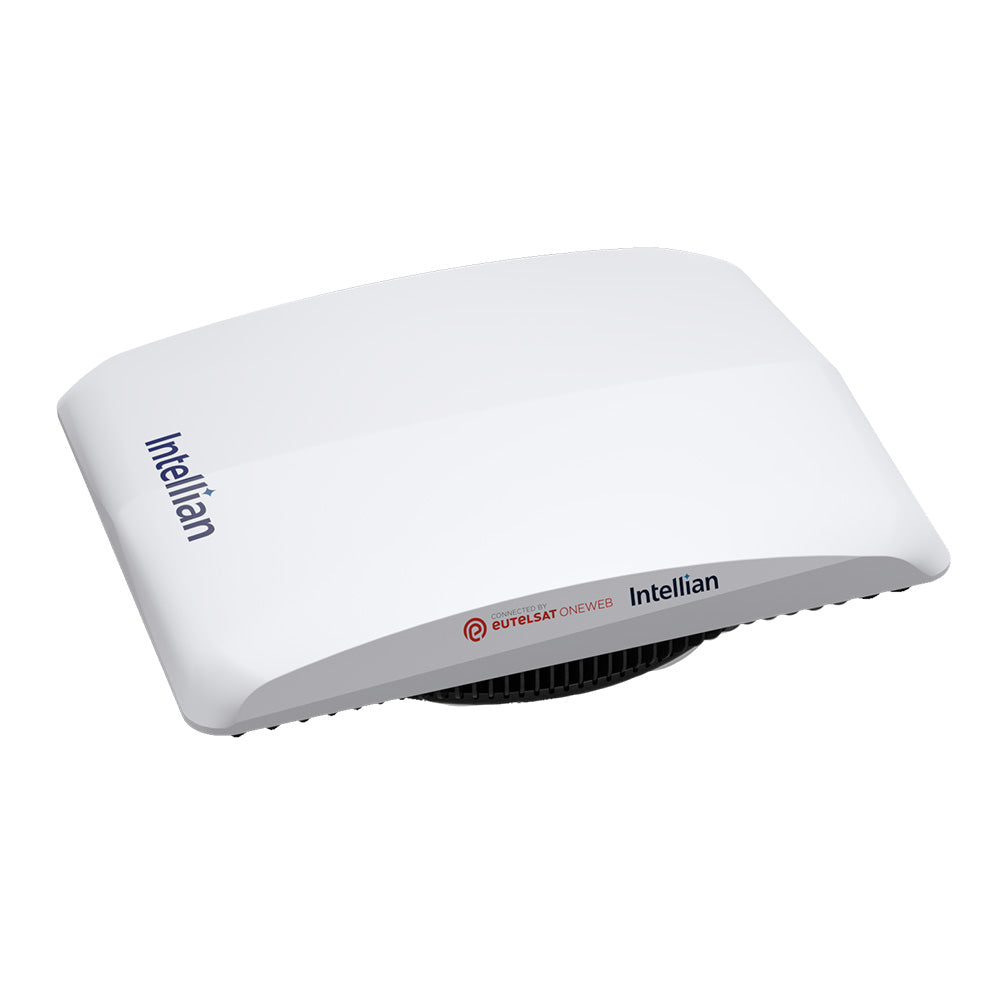

Intellian Compact Maritime Outdoor Antenna Unit [OS-OW10HF]

Ships Direct From Manufacturer

Compact Maritime Outdoor Antenna Unit

The OW10HM is the ideal Flat Panel UT for the fishing and leisure markets, offering a small, lightweight, and sleek form factor, designed to outperform existing connectivity solutions.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW10HM delivers optimal performance in a compact form factor, making it the ideal connectivity solution for use cases that are SWaP-constrained. The resulting solution provides the user experience and service levels for maritime applications that customers expect.
• Seamless Connectivity - The OW10HM features Intellian’s advanced tracking technology, improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and undisrupted connectivity.
• Harsh Environment Performance - The OW10HM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Compact Flat Panels, there are four CNX variants offered for specific deployments: CNX-BB, CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and compact form factor of the OW10HM enable easy installation by a single person. Paired with Intellian’s Maritime mount adapter, the UT is easily installed on pole, mast, and pedestal mounts commonly used in the Maritime market. Installation is further simplified through the use of combined power and data over a single coax cable connecting the below-deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 22" x 17.7" x 4.7"
• Panel Weight - 26.9 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 9 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 75 Mbps
• Peak Uplink Data Rate - 14 Mbps

Brochure (pdf)

KVH Enterprise Maritime Outdoor Antenna Unit [OS-OW11FFG]

Ships Direct From Manufacturer

Enterprise Maritime Outdoor Antenna Unit

The OW11FM is the ideal flat-panel user terminal for the Cruise, Energy, Merchant, and Ferry markets, delivering low-latency, high-speed connectivity and reliability for critical communications, crew welfare, safety, route planning, and entertainment.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW11FM delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring that the highest demands of maritime and land mobile customers.
• Seamless Connectivity - The OW11FM features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improve connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW11HM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels, there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and optimal form factor of the OW11FM enable easy installation by a single person. Paired with Intellian’s Maritime mount adapter kit, the UT is easily installed on pole, mast, and pedestal mounts commonly used in the Maritime market. Installation is further simplified through the use of combined power and data over a single coaxial cable connecting the below-deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.
• Blockage Mitigation Solution - Blockage Mitigation Solution is designed to overcome known and unavoidable blockages, enabling seamless, uninterrupted service in the primary-primary configuration. Utilizing a single service plan, the OW11FL (land fixed) and OW11FM (maritime) are the only flat panel user terminals to support this unique, more resilient, and cost-effective solution on Eutelsat's OneWeb LEO network. This is ideal for installations where an obstruction is unavoidable, such as a cell tower in cellular backhaul applications, or a ship’s superstructure in maritime environments.
  All existing Enterprise Series Flat Panels support the Blockage Mitigation Solution, which requires two user terminals and a CNX-Rack.

Technical Specifications:

• Panel Dimensions - 38.2" x 19.7" x 5.1"
• Panel Weight - 45.1 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 10.7 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 195 Mbps
• Peak Uplink Data Rate - 32 Mbps

Brochure (pdf)

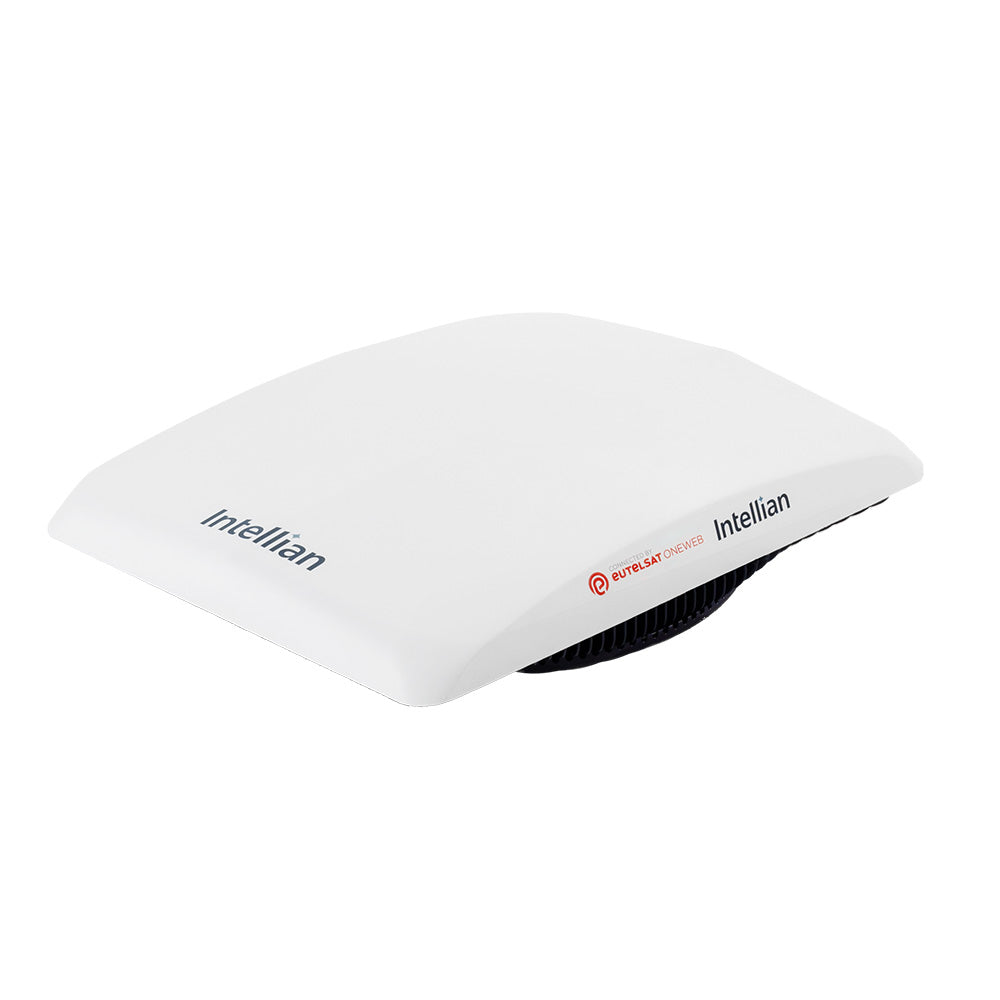

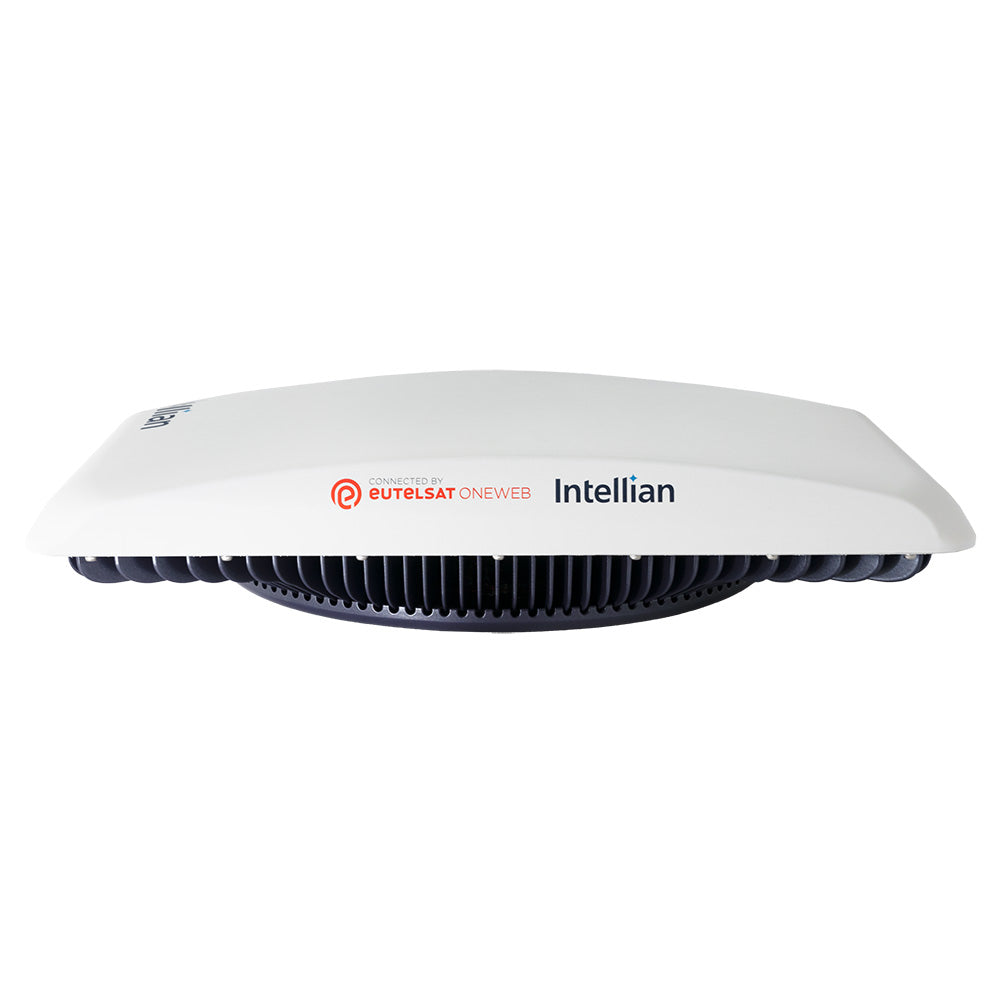

Intellian Compact Land Mobile Outdoor Antenna Unit [MS-OW10HF]

Ships Direct From Manufacturer

Compact Land Mobile Outdoor Antenna Unit

The OW10HV is the ideal Flat Panel UT for the first responder, forestry, and transportation markets, offering a small, lightweight, and sleek form factor, designed to outperform existing connectivity solutions.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW10HV delivers optimal performance in a compact form factor, making it the ideal connectivity solution for use cases that are SWaP-constrained. The resulting solution provides the user experience and service levels that customers expect.
• Seamless Connectivity - The OW10HV features Intellian’s advanced tracking technology, improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW10HV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to 131 °F). Integrated radar rejection filtering ensures performance in high-interference installations and reliable broadband services for customers situated in the most remote locations.
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Compact Flat Panels, there are four CNX variants offered for specific deployments: CNX-BB, CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and compact form factor enable easy installation by a single person. Designed for use with standard off-the-shelf mounting solutions, the OW10HV can be deployed in a variety of locations to suit the application and environment. Installation is further simplified through the use of combined power and data over a single coax cable connecting the indoor and outdoor units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 22" x 17.7" x 4.7"
• Panel Weight - 26.9 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 9 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 75 Mbps
• Peak Uplink Data Rate - 14 Mbps

Brochure (pdf)

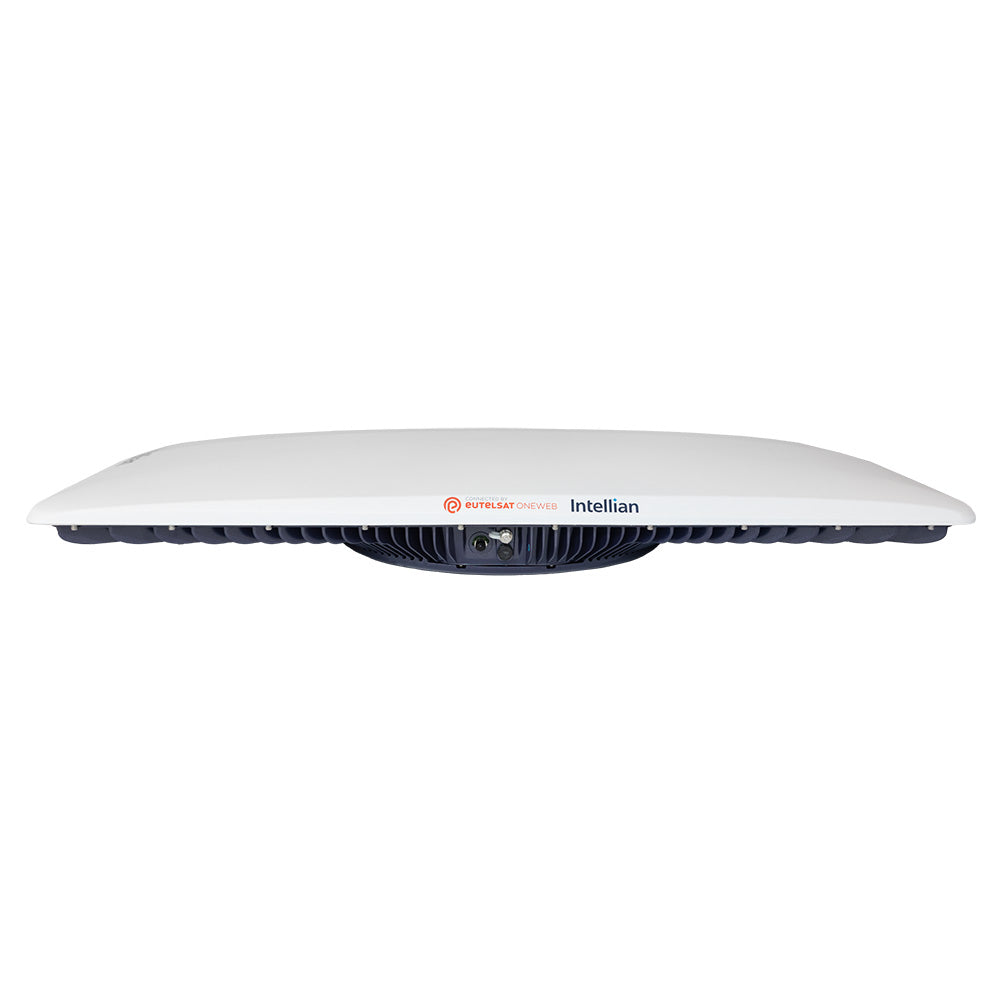

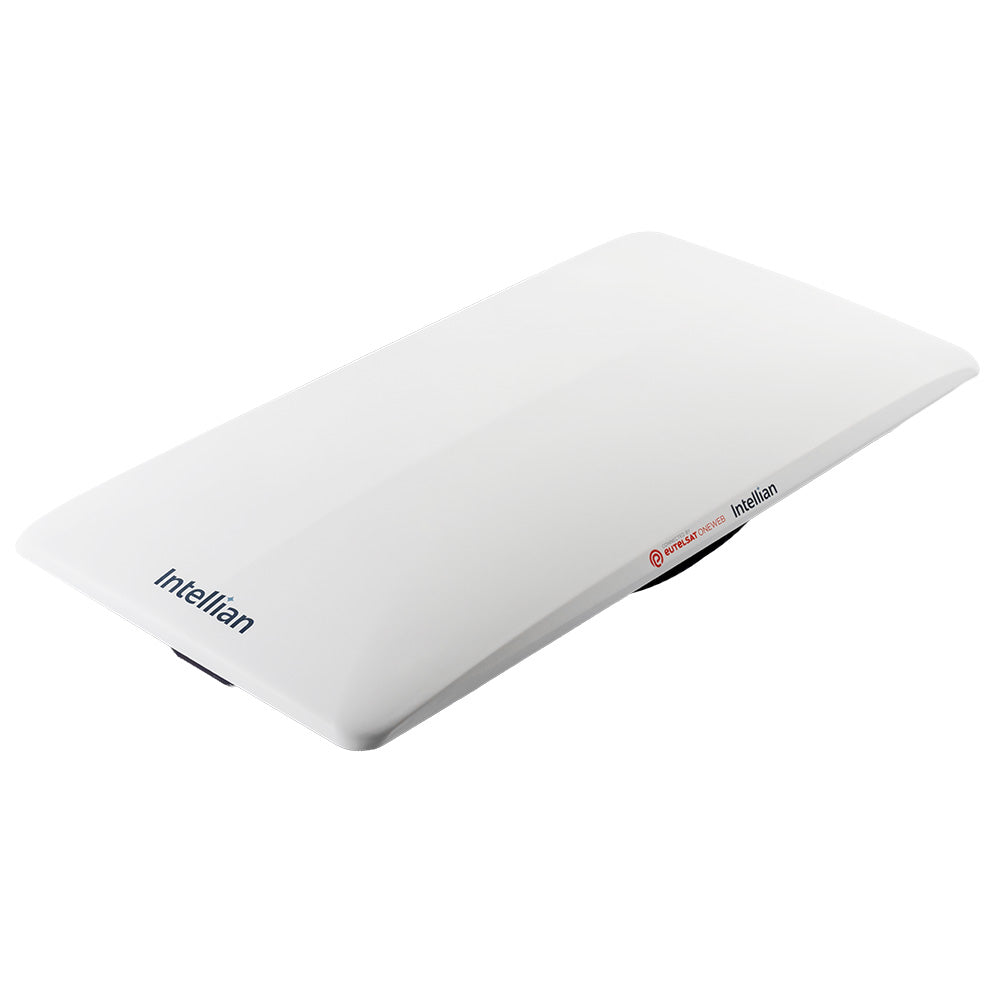

Intellian Enterprise Land Mobile Outdoor Antenna Unit [MS-OW11FFG]

Ships Direct From Manufacturer

Enterprise Land Mobile Outdoor Antenna Unit

The OW11FV is the ideal Flat Panel user terminal for Government and Transportation markets, delivering low-latency, high-speed connectivity and reliability for critical communications, safety, route planning, and entertainment.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW11FV delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring that the highest demands of land mobile customers.
• Seamless Connectivity - The OW11FV features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improve connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW11FV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels, there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and optimal form factor of the OW11FV enable easy installation by a single person. Paired with Intellian’s Mobile mount adapter kit, the UT is easily installed on vehicles of any size. Installation is further simplified through the use of combined power and data over a single coaxial cable connecting the outdoor and CNX unit. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 38.2" x 19.7" x 5.1"
• Panel Weight - 45.1 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 10.7 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 195 Mbps
• Peak Uplink Data Rate - 32 Mbps

Brochure (pdf)

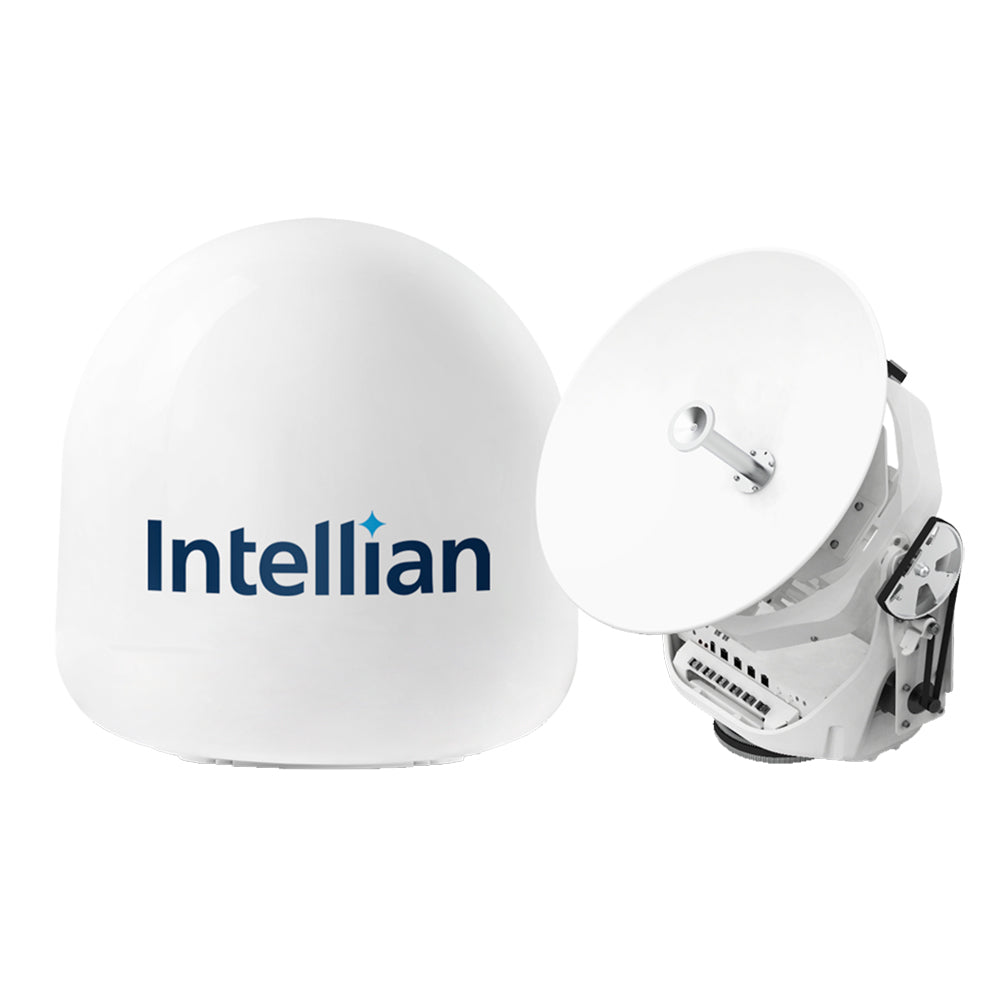

Intellian v45C 45cm Compact  Light Ku-Band VSAT Antenna - 6W [VL-45-E1YN]

Ships Direct From Manufacturer

v45C 45cm Compact & Light Ku-Band VSAT Antenna - 6W

The v45C is a compact and lightweight 45cm and 23kg maritime Ku-Band system. The v45C VSAT system is designed to deliver enhanced connectivity and user experience to smaller boats and vessels, including fishing, leisure, commercial, and government. The antenna offers exceptional value and performance no matter the communication needs or space constraints onboard.

Compact & Light VSAT Terminal

45cm and 23kg maritime Ku-band system provide enhanced connectivity and user experience to smaller boats and vessels.

Quick & Easy Installation

Single coaxial cable is connected externally, so no requirement to access the inside of the radome.

Antenna Management Platform

Intellian’s integrated AptusNX platform provides a responsive web user interface to manage and control the antenna system.

Unparalleled User Experience

The advanced design ensures Optimal performance on both HTS and wide beam Ku-band satellites.

Optimized Performance

• The RF design is optimized to deliver best-in-class performance and efficiency.
• The advanced design ensures optimal performance on both HTS and wide beam Ku-band satellites.
• Customers have the flexibility of connecting their v45C antenna via their Ku-band service provider of choice.

Unrivaled Global Support

• Most cost-effective delivery of products and support services through Intellian's global operation and logistic centers
• Industry-leading global support through our in-house engineers and an extensive network of dealers and service partners.

Specifications:

• Radome Dimension: 61x62.7 cm (24x24.6 inch)
• Reflector Diameter: 45cm (17.7inch)
• Antenna Weight: 23kg/ 50.7 lbs
• TX Frequency: 13.7514.5GHz Ku-band
• RX Frequency: 10.712.75GHz Ku-band
• TX Gain: 34.8 dBi @ 14.25 GHz (excl. radome)
• RX Gain: 33.2 dBi @ 11.7 GHz (excl.radome)
• G/T: >12.3 dB/K (min.)

Quick Guide (pdf)

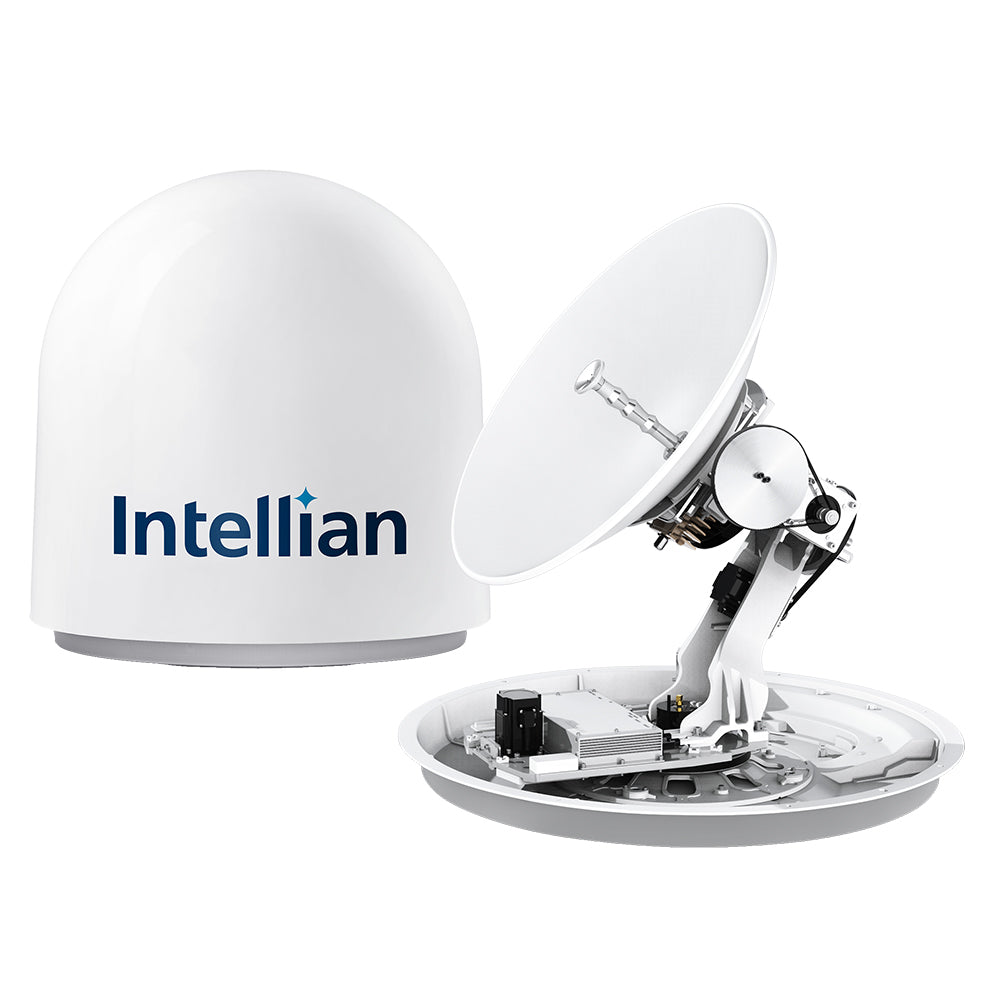

Intellian v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight [VE-60-E1YN]

Ships Direct From Manufacturer

v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight

Reliable & Powerful 65cm Maritime System - Light. Affordable. Powerful.

Advanced Performance and Design

Intellian’s advanced RF design and technology delivers highly efficient performance, including enhanced tracking precision compared to other 65 cm class systems. The v60E has a compact and streamlined mechanical design to produce a light weight and robust antenna, maintaining high levels of reliability and performance that are compulsory in a Maritime environment.

Controlled Costs with Light and Compact Form-factor

With its light and compact form-factor, the cost of installation and logistics is reduced. The weight of the antenna system is only 42kg, allowing installation without a crane and this saves the total cost of installation.

Simplified installation & enhanced AptusNX

Combining Tx, Rx and DC power into one coaxial cable solution with an external dome-on connection enables faster and reduced costs of installation for the v60E. It also eliminates the need to remove the radome during installation. Users can commission the system using AptusNX by simply plugging a laptop into the ACU, without any need to download extra software. The AptusNX uses an installation wizard with a step-by-step commissioning guide to easily complete setup, and with enhanced diagnostic capabilities, the AptusNX can send an alert to the network operator when preventative maintenance is required.

Features:

• Single coaxial cable
• Gyro-free Operation
• Pain-free Installation
• Global Satellite Library
• AptusNX
• Auto Beam Switching (ABS)
• Simplified 6W Single BUC
• Open Platform compatibility

Brochure (pdf)

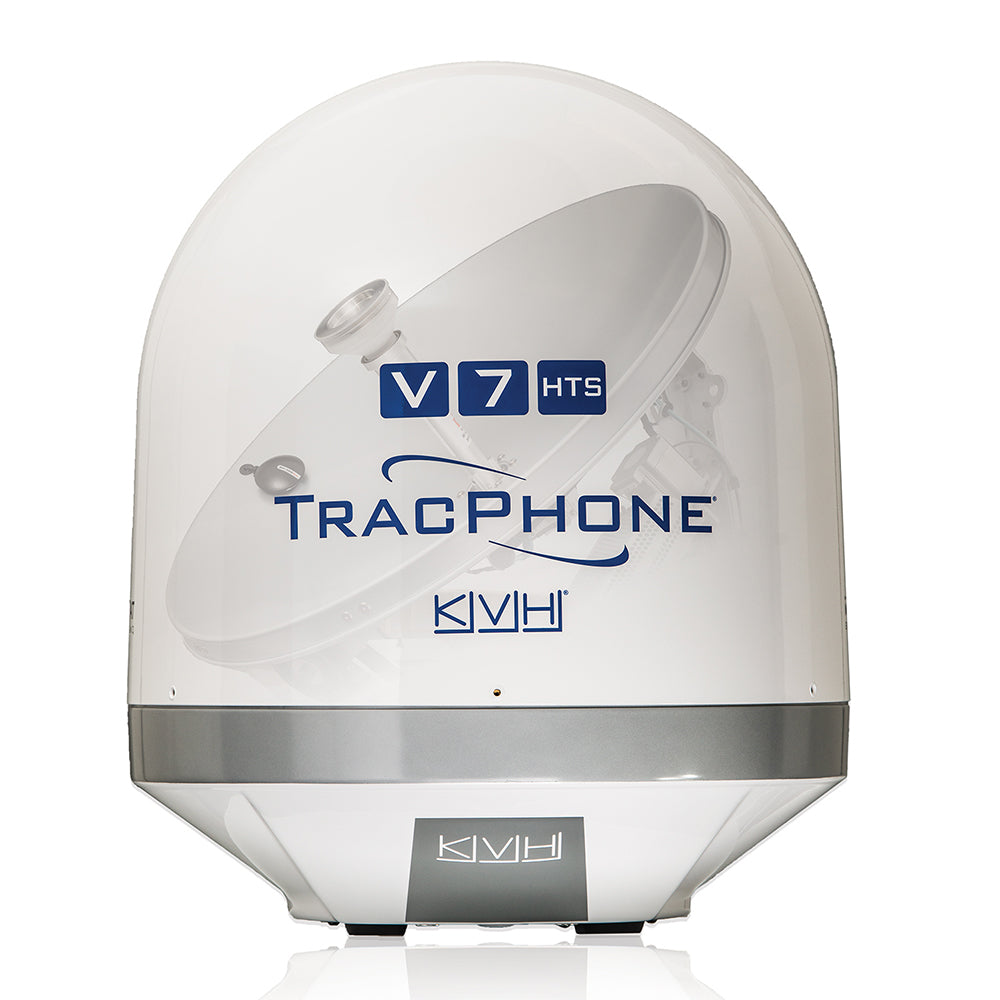

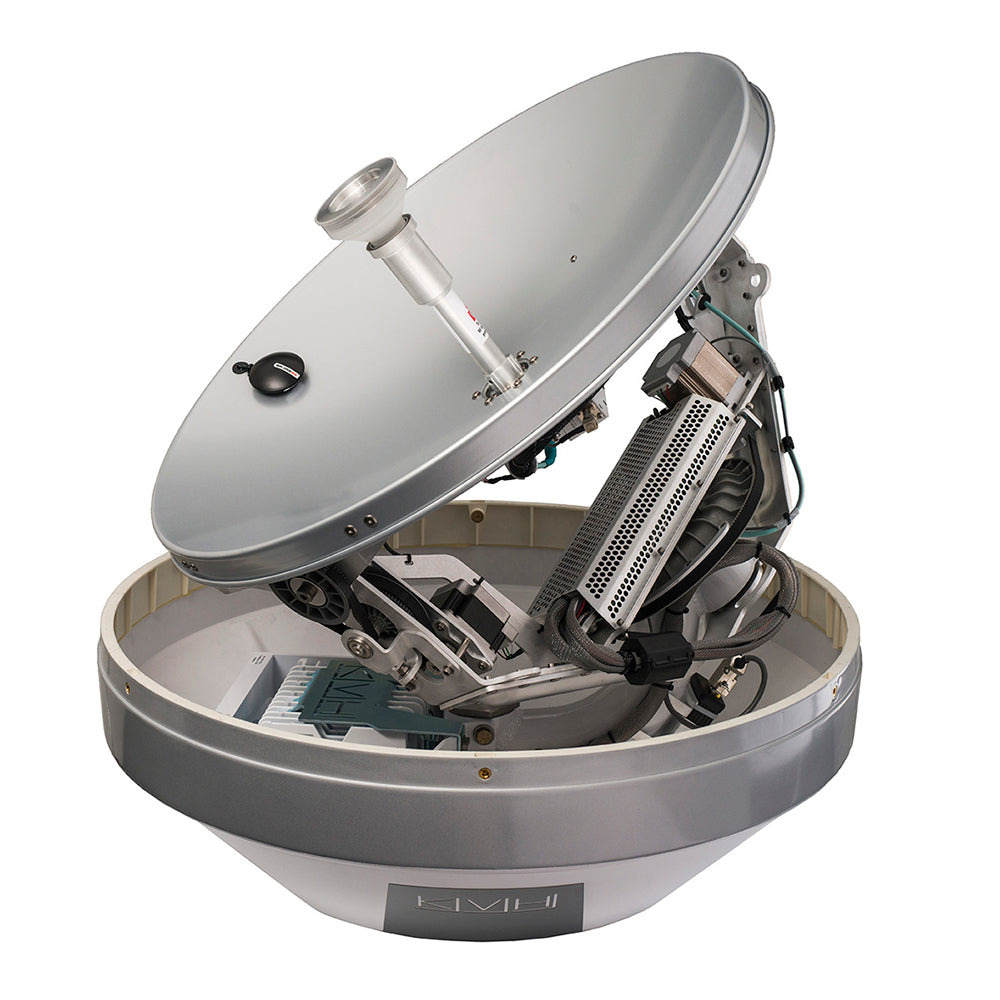

KVH TracPhone V7-HTS Ku-Band 24" mini-VSAT [01-0408-15]

Ships Direct From Manufacturer

TracPhone V7-HTS 24" Rack Mounted

TracPhone V7HTS includes KVH's exclusive dual channel configuration with innovative hybrid airtime plans that deliver a free unlimited use data channel running at the same time as your ultra-fast channel.

Enterprise-Grade Ku-Band VSAT Antenna

The TracPhone V7-HTS is a quantum leap in maritime satellite communications, offering high-throughput global connectivity via next-generation satellites as an overlay on the industry-leading mini-VSAT Broadband Network. Developed by KVH specifically for the mini-VSAT Broadband Network, TracPhone V7-HTS uses a 60 cm-diameter antenna dish, in a 66 cm-diameter antenna unit. The 3-axis gyro-stabilized maritime VSAT antenna with a 4th axis of automatic skew adjustment boasts an extended elevation range of -24° to 119° ensuring that the antenna tracks satellites directly above the vessel to low on the horizon.

The Most Advanced Maritime Network Available

TracPhone V7HTS delivers global connections and unmatched speed using new, advanced Intelsat and SKY Perfect JSAT Ku-band satellites that add HTS capabilities to the mini-VSAT Broadband network. KVH's high-speed worldwide HTS network offers critical advantages over other maritime networks for your personal, operational, and crew connections including:

• 25 million square miles added to KVH’s already industry-leading Ku-band coverage, delivering unprecedented coverage for 10/3 Mbps (download/upload)* connectivity
• greater resilience to weather and rain fade than Ka-band networks
• no fall back onto antiquated L-band satellites due to rain fade or network beam availability issues
• integrated cybersecurity using advanced network-level firewall and automated threat management
• automatic, fast switching among high-speed network beams, ensuring seamless communications wherever you cruise

Because Connections Matter...

Communications are critical for your yacht’s operations as well as ensuring that everyone on board enjoys the benefits of broadband connections to keep connected when at sea. That’s why TracPhone V7-HTS is designed specifically with the rigors of the marine environment in mind, and includes elements like:

• Innovative hybrid airtime plans that deliver a free unlimited use data channel running at the same time as your ultra-fast channel
• 2U high all-in-one Integrated CommBox Modem (ICM)
• Proactive monitoring to ensure maximum uptime and performance
• Secure myKVH Portal with mini-VSAT Manager for unmatched control and monitoring
• IP-MobileCast compatibility to keep everyone onboard happy with delivery of daily news and licensed entertainment, and your captain and crew up-to-date with delivery of operational information such as charts, weather, and training

The Integrated CommBox Modem (ICM)

The ICM is the streamlined all-in-one belowdecks unit that drives the TracPhone V7HTS. It features a browser-based user interface and a convenient iPhone® app for system status, updates, and support. Replacing a full rack of components required for competitors’ systems, the 2U-high ICM contains:

• IP-enabled antenna control unit
• CommBox™ Network Manager
• High-throughput modem Voice over IP (VoIP) adapter
• Built-in Wi-Fi and Ethernet switch
• Content storage and access for operations, entertainment and Videotel training content provided by IP-MobileCast™
• Support for over-the-air software updates for the ICM and antenna unit

IP-MobileCast Content Delivery Service

KVH’s IP-MobileCast service delivers large files, including electronic charts, weather forecasts, training videos, news, sports, TV shows and series, and premium movies. IP-MobileCast uses proprietary software that provides advanced error correction, compression, and validation of data integrity throughout the transmission from shore to ship for unparalleled reliability and efficiency. Shoreside servers encode files for transmission and queue them for multicast delivery “over the top” of the mini-VSAT Broadband network. The IP-MobileCast service’s patented Forward Error Correction (FEC) technology ensures that the CommBox servers on ships receive each file in perfect condition the first time it is transmitted. The unique FEC algorithms deliver the highest level of reliability by accommodating intermittent non-continuous transmission, which might happen when large transmissions are interrupted by prioritized network traffic or in very poor weather conditions.

Specifications:

• Speed - Max: 10/3 Mbps (down/up)
• Wireless: Yes
• Box Dimensions: 35"H x 41"W x 54"L WT: 150 lbs
• UPC: 028327013145

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

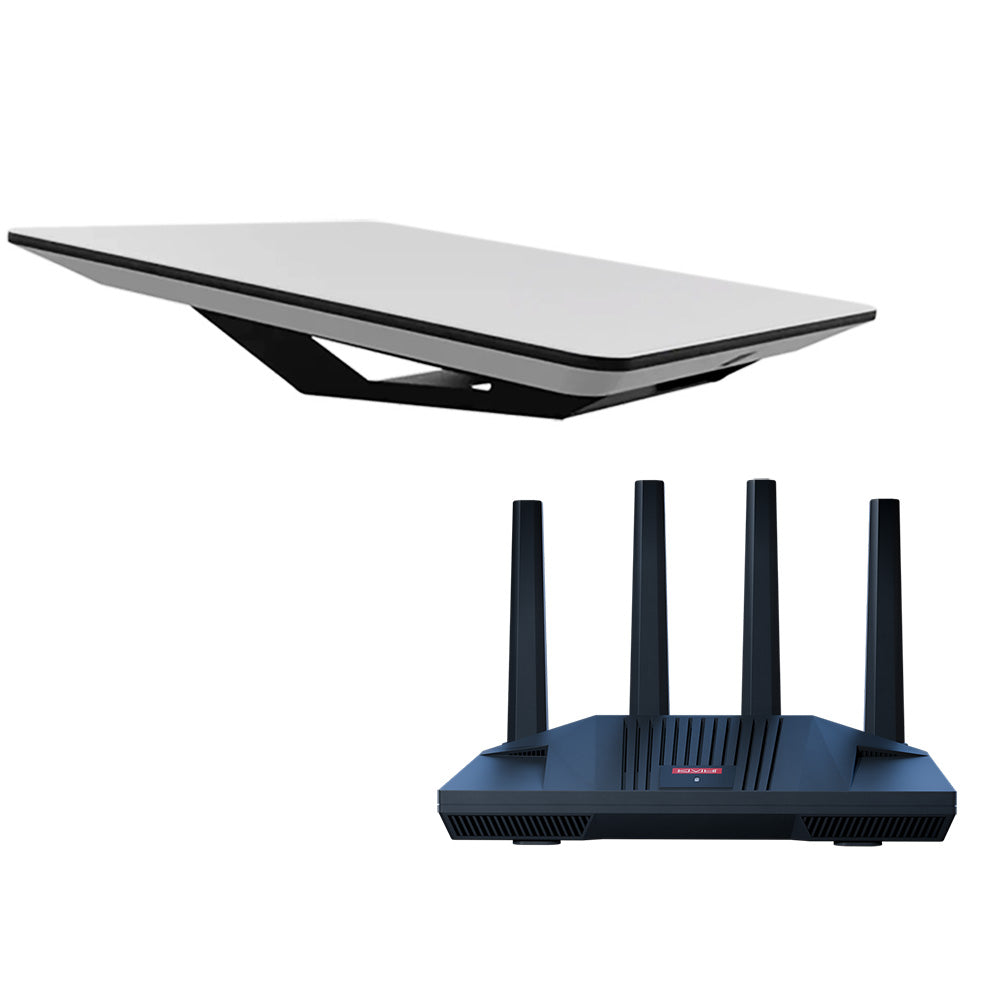

Starlink Performance Gen 2 Kit with CommBox Edge Core Communications Gateway & Wi-Fi Router

*This item is provided through KVH direct, NOT Starlink. Activation is done through KVH service and will not work with Starlink direct unless an unlock fee is paid*

Upgrade from Starlink with “just a router” to a smart, high-performance network with KVH’s exclusive Starlink + CommBox Edge Core Performance Bundle. Enjoy powerful controls and features you simply do not get with typical routers.

The Power and Reliability of KVH, the Speed of Starlink

Keep your family, friends, and crew connected when you turn to KVH for a Starlink high-performance terminal, as a standalone solution, or as part of a comprehensive hardware and service solution. Enjoy seamless, intelligent integration of Starlink’s speed and affordability (where available) with KVH’s white glove service, proven global HTS network, multi-channel hybrid connections, and outstanding performance.

Add a Starlink flat panel high-performance terminal to your yacht’s TracNet solution with our simple, single-cable installation and exclusive intelligent hybrid switching to ensure you enjoy the best and fastest communications at all times. For existing TracPhone® terminal users, an easy configuration update and single cable enable automatic switching between KVH’s global HTS network and Starlink for seamless connectivity.

Turn to KVH as your single source for a complete Starlink solution. Enjoy same-day shipping, unmatched customer satisfaction, and 24/7/365 live warranty support and global service through KVH's OneCare Global Support Program. Plus, you can activate your Starlink through KVH when it's right for you.

Enhance your onboard communications with fast speeds, affordable data, and KVH's advanced, integrated services for enhanced security, connectivity, and versatility.

Starlink Available as a Standalone Solution or a Supplement to KVH’s Award-winning Connectivity Solutions

• Starlink flat panel high-performance terminal and service with high-speed, low-latency Internet
• Choice of KVH TracNet™ hybrid terminal with integrated global VSAT, 5G/LTE cellular, and shore-based Wi-Fi bridge, or TracPhone VSAT terminals
• KVH ONE™ global hybrid network

Rely on the Speed of Starlink and the Support of KVH

• Bringing connectivity to your customers has never been so easy.
• Enhance your onboard communication offerings with Starlink and KVH, the world leader in marine connectivity.

Unmatched customer satisfaction with easy activation through KVH

• When you order Starlink from KVH, customers are activated when it's right for them (unlike other Starlink suppliers, who start billing for monthly service after shipping).
• KVH offers live 24/7/365 Starlink activation service plus plan change and service pause requests!
• Rapid activation and no delays mean your customers are always connected while onboard.

Superior performance with KVH connectivity and intelligent hybrid switching

• For yacht owners who want the most reliable, versatile connectivity solution afloat, we can help you offer:

Seamless, intelligent integration of Starlink’s speed and affordability with:

• KVH’s proven global HTS network
• Multi-channel connections
• Network management devices
• NMEA award-winning TracNet hybrid antennas with VSAT, 5G/LTE, and Wi-Fi all under one dome

Features:

• Complete Starlink kits with KVH’s exclusive custom data plans
• Seamless support and automatic switching for multiple WANs like Starlink, OneWeb, 5G, VSAT, external Wi-Fi, and more.
• Smart data usage tracking and alerts to help keep costs under control.
• Free base feature set with easy over-the-air license upgrades to advanced tools for as little as $49/month
• Pause and resume devices as needed.
• Wi-Fi mesh network with unlimited SSIDs plus an extended, high-gain Wi-Fi bridge for better coverage where it counts.
• Out-of-the-box, fully operational router with no activation required + easy registration for free cloud access to see site status and configure remotely.
• Unlimited LANs enable as many networks as needed.

What's In The Box?

• Flat-High Performance Antenna
• Wedge Mount
• Power supply with a wall mount
• 25m (82') PoE Cable
• 5m (16.5') Ethernet Cable
• 1.8m (6') AC Cable f/ Power Supply
• CommBox Edge Core Communications Gateway & Wi-Fi Router
• American-to-European outlet plug adapter

KVH Starlink Tech Support Phone Number - 888-584-5714

KVH Starlink Activation Phone Number - 866-399-8509
